Specifications
Acoustical specifications
Frequency Response
50 Hz – 20000 Hz
Max SPL @ 1m
127 dB
Horizontal coverage angle
90°
Vertical coverage angle
70°
Transducers
Compression Driver
1 x 1.0”, 1.5” v.c
Woofer
1 x 10”, 2.0” v.c

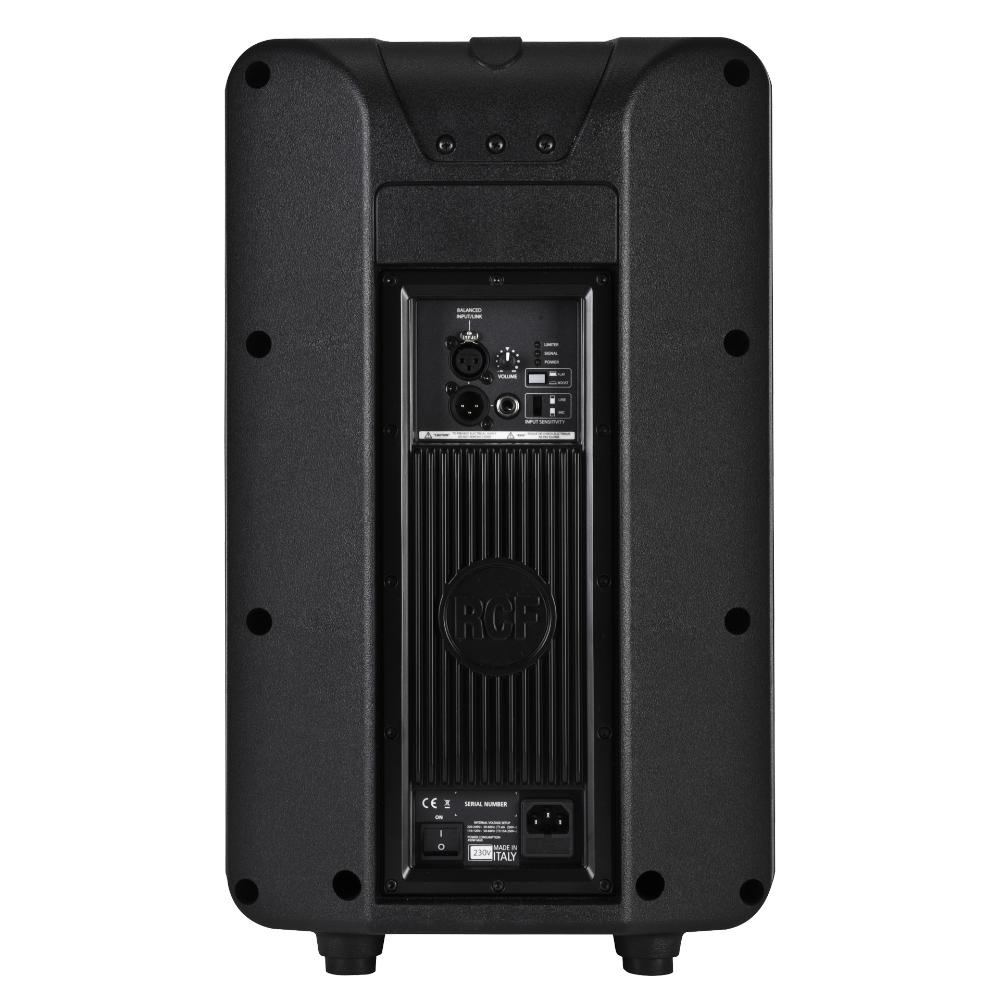

Input/Output section

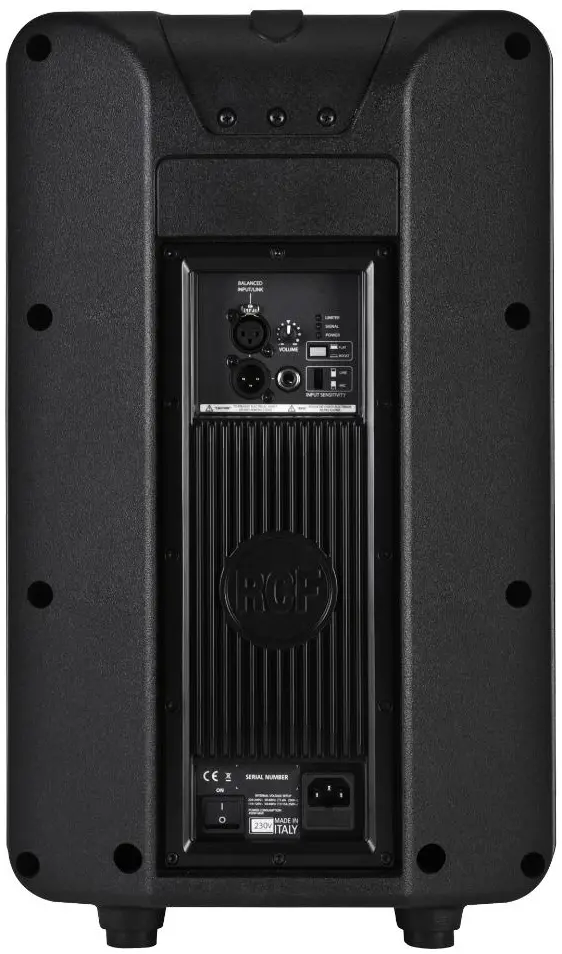

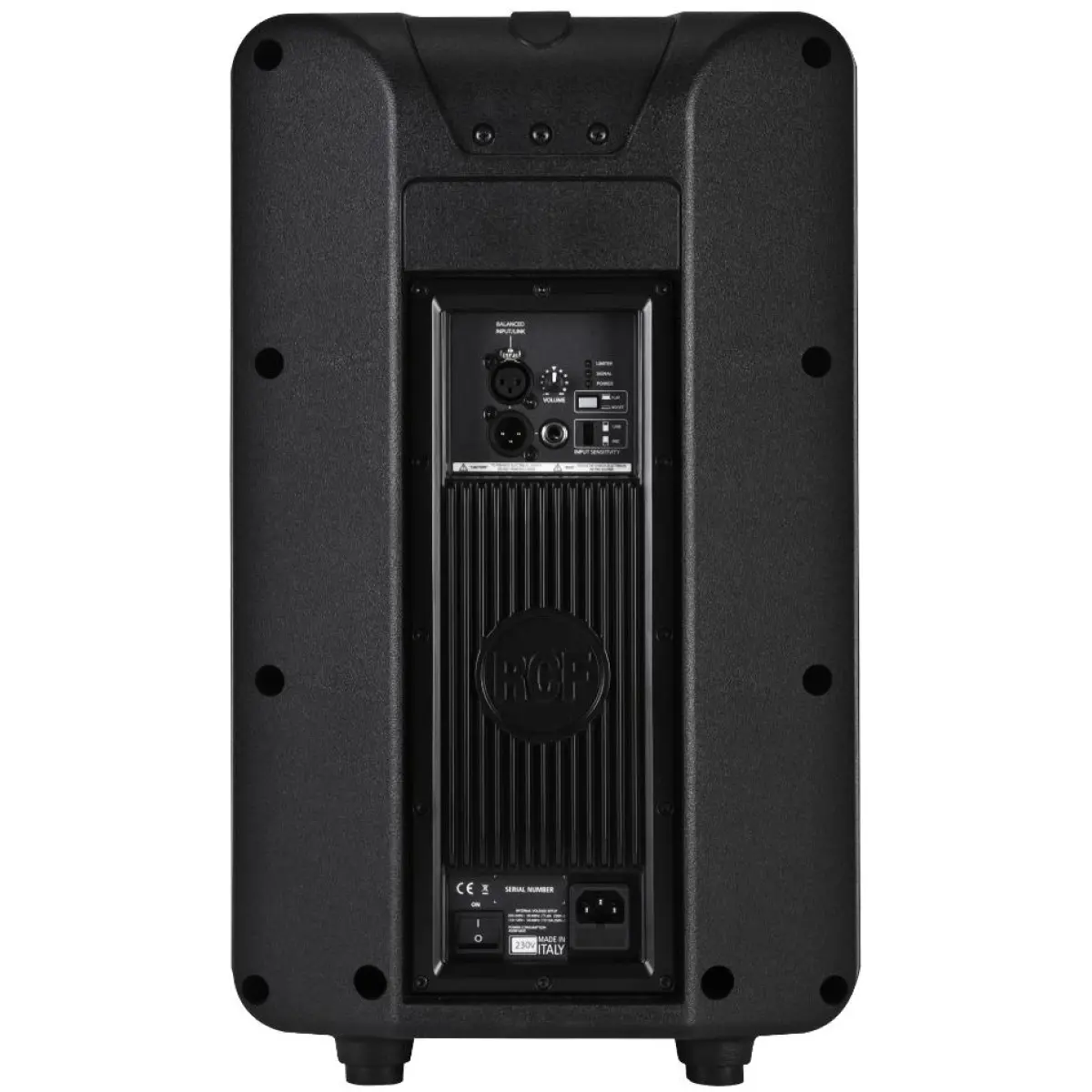

Input signal
bal/unbal
Input connectors
XLR, Jack
Output connectors
XLR
Input sensitivity
-2 dBu/+4 dBu
Mic. Input Sensitivity
-32 dBu
Processor section
Crossover Frequencies
1800 Hz
Protections
Thermal, RMS
Limiter
Soft Limiter
Controls
Volume, Boost, Mic/Line
Power section
Total Power
800 W Peak, 400 W RMS
High frequencies
200 W Peak, 100 W RMS
Low frequencies
600 W Peak, 300 W RMS
Cooling
Convection
Connections
VDE
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
PP Composite
Hardware
2 x M10

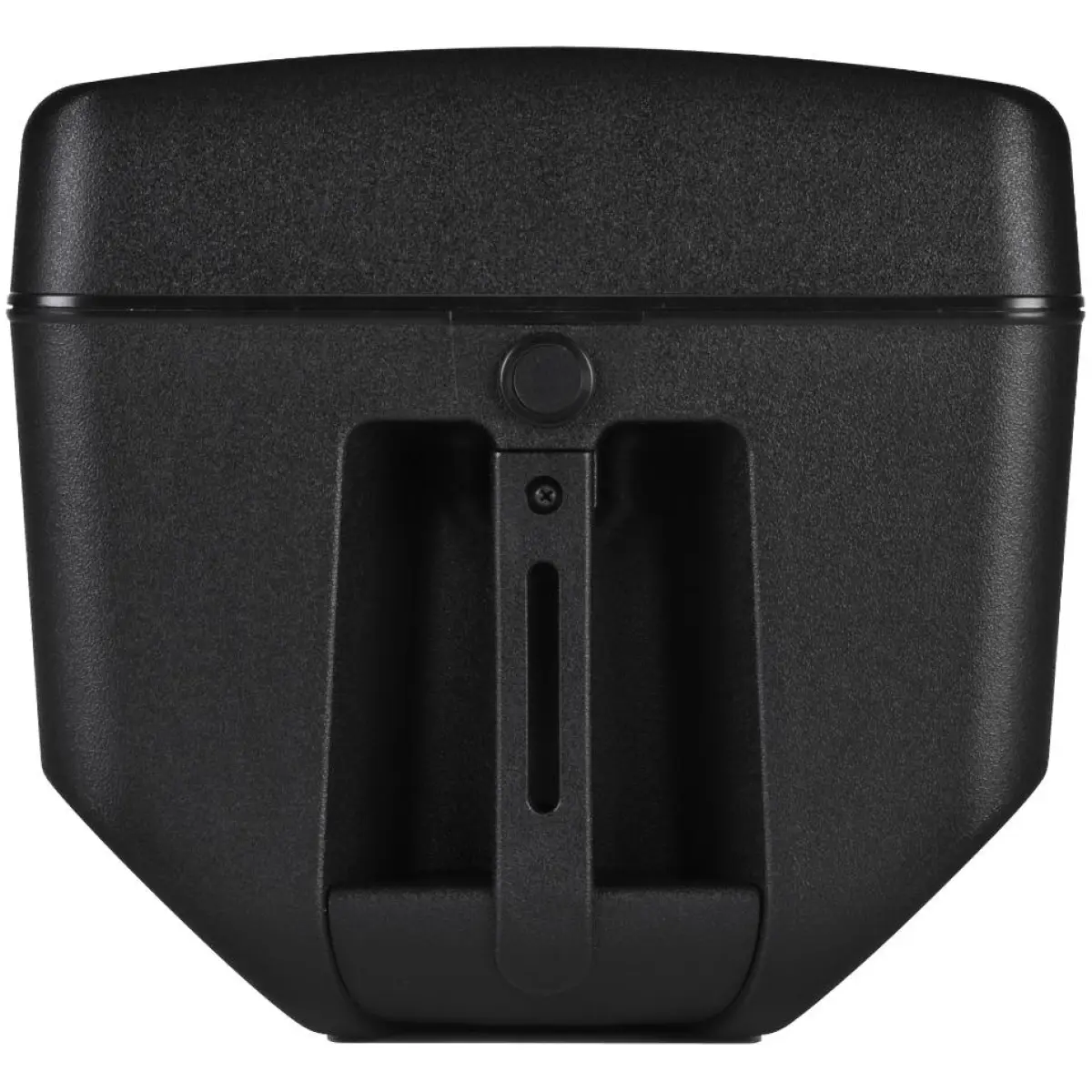

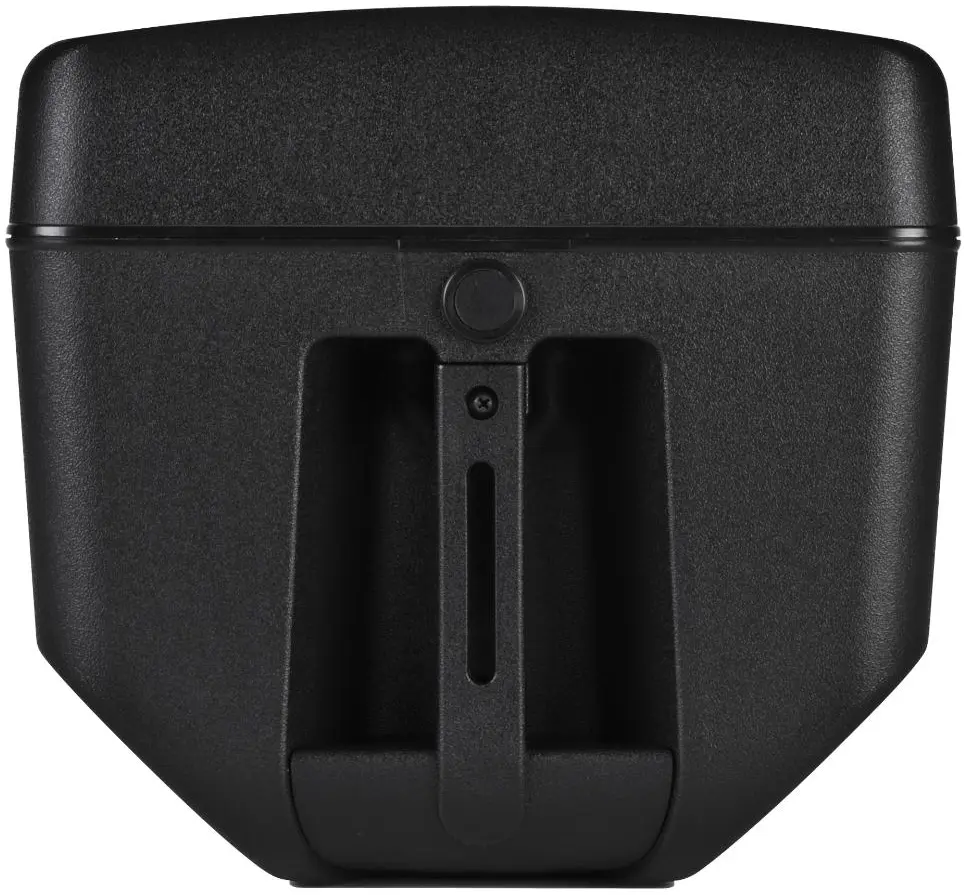

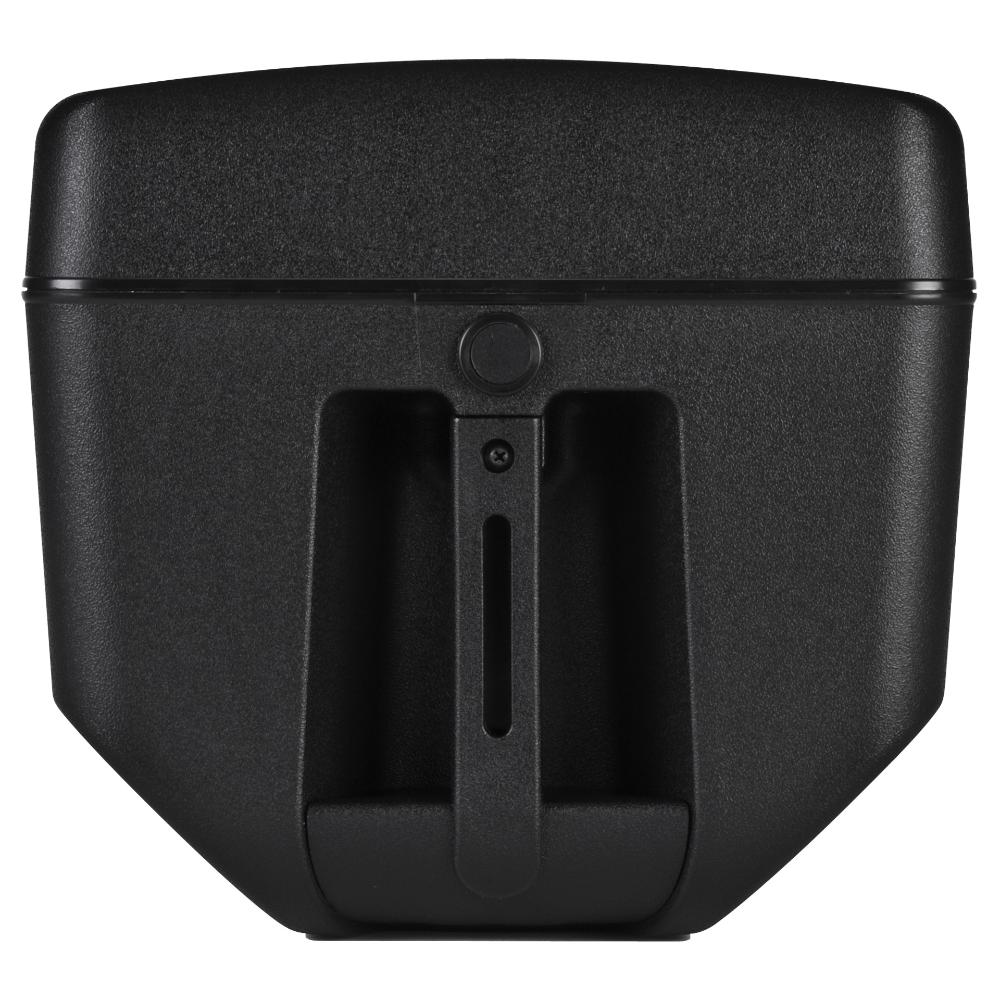

Handles
1 Top
Pole mount/Cap
Yes
Grille
Steel
Color
Black
Size / Weight
Height
537 mm / 21.14 inches
Width
337 mm / 13.27 inches
Depth
315 mm / 12.4 inches
Weight
12.2 kg / 26.9 lbs
Shipping information
Package Height
600 mm / 23.62 inches
Package Width
396 mm / 15.59 inches
Package Depth
372 mm / 14.65 inches
Package Weight
14.8 kg / 32.63 lbs
