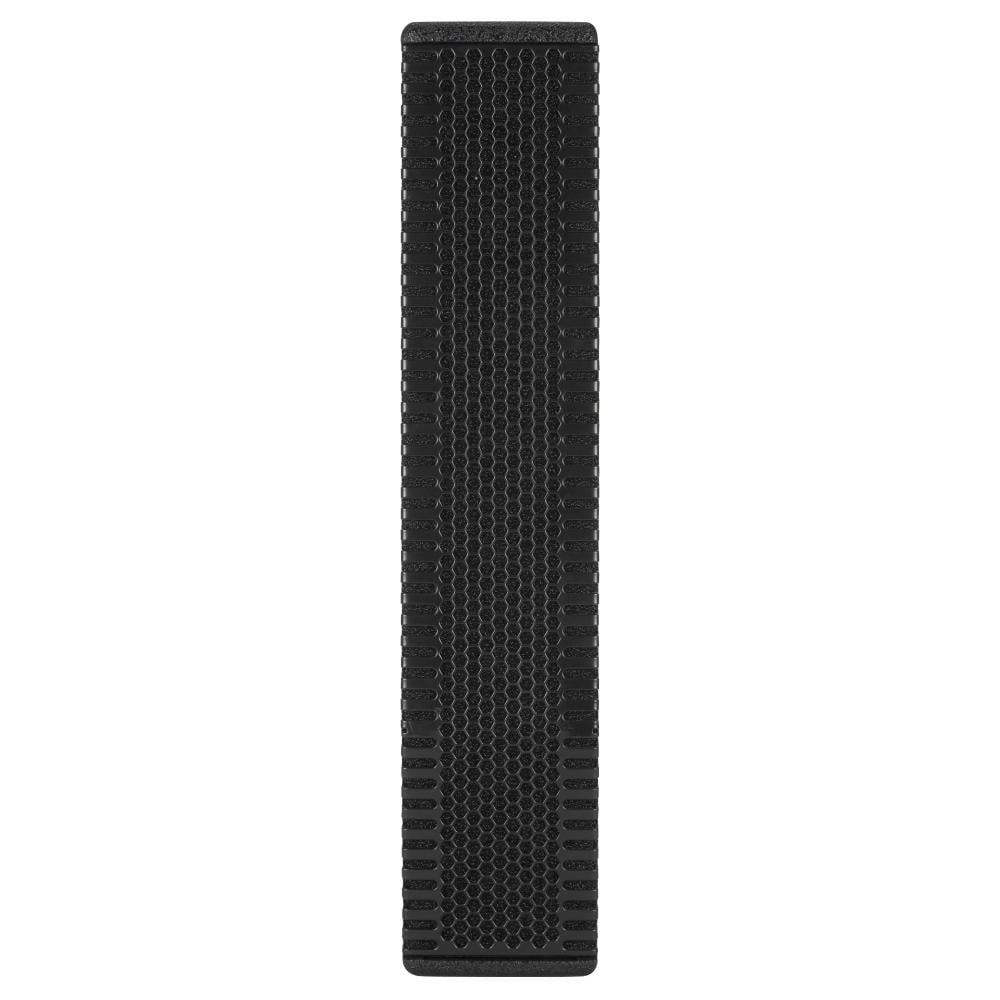

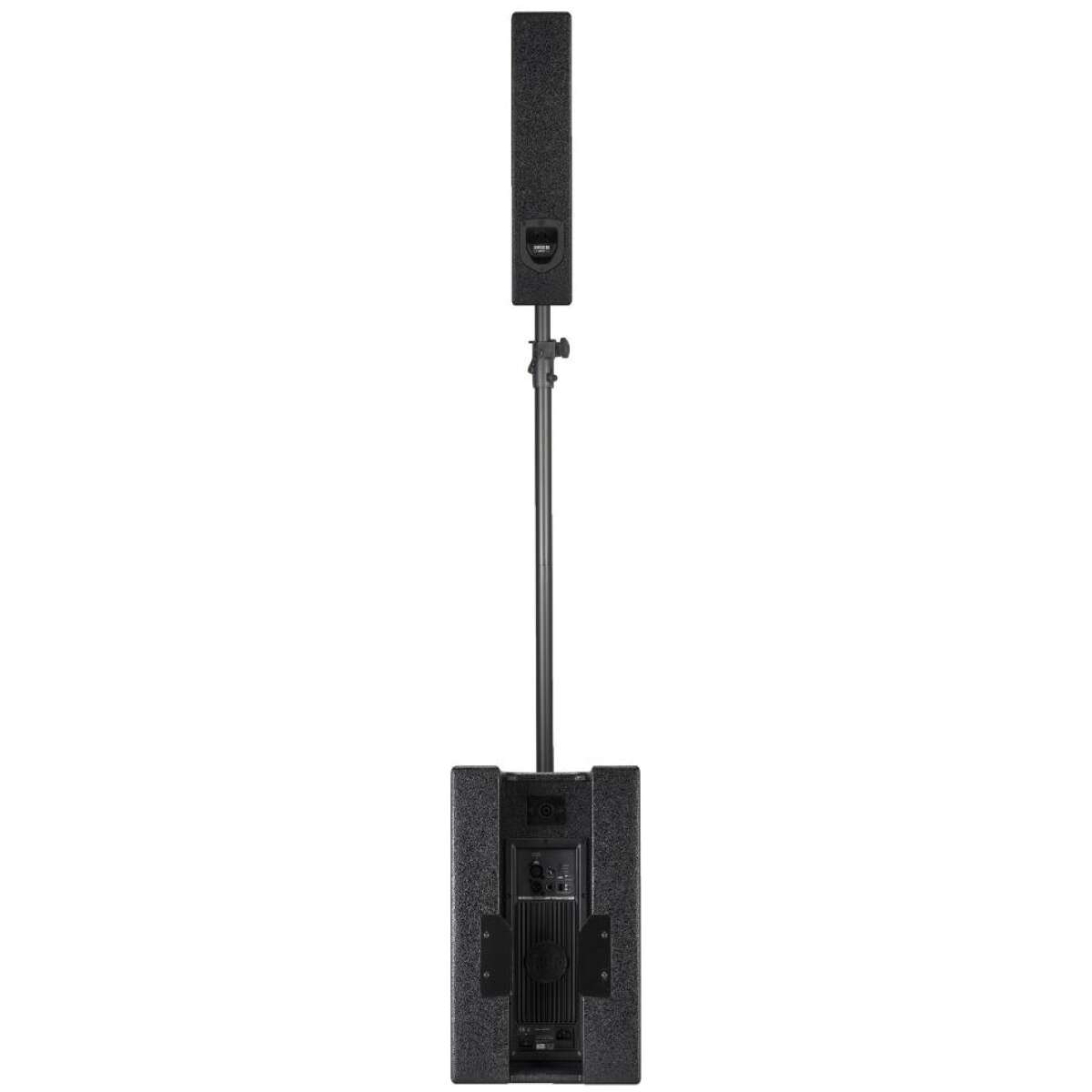

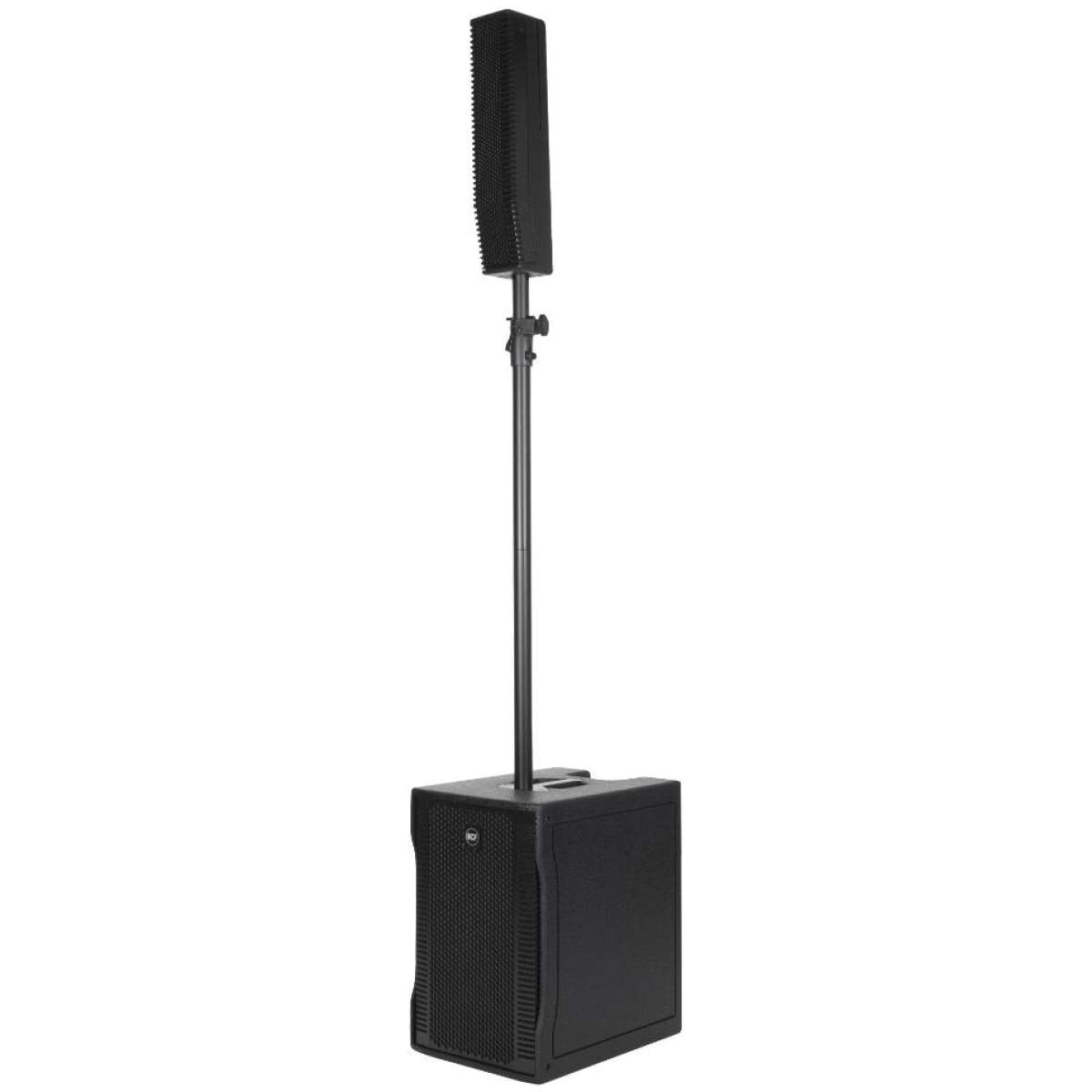

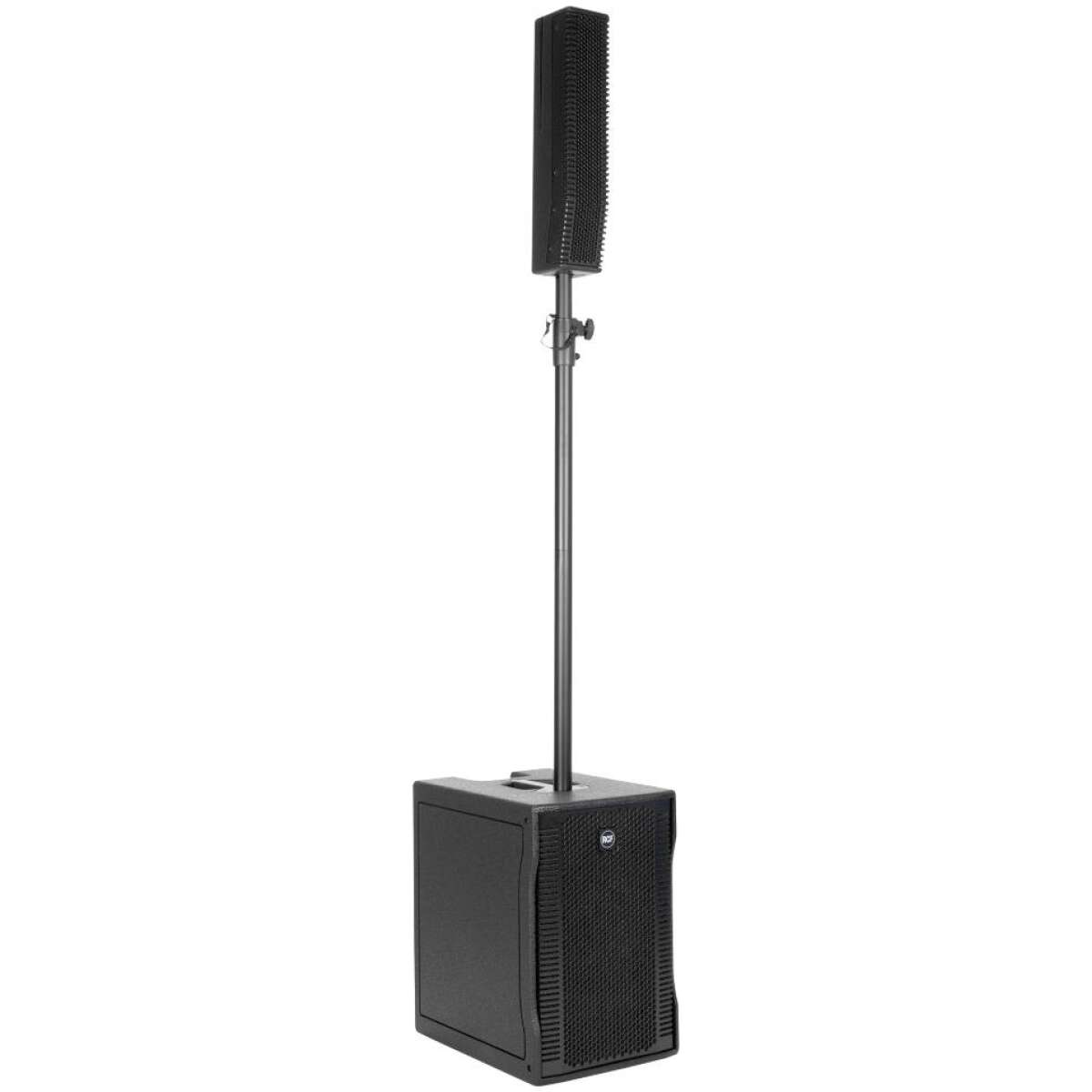

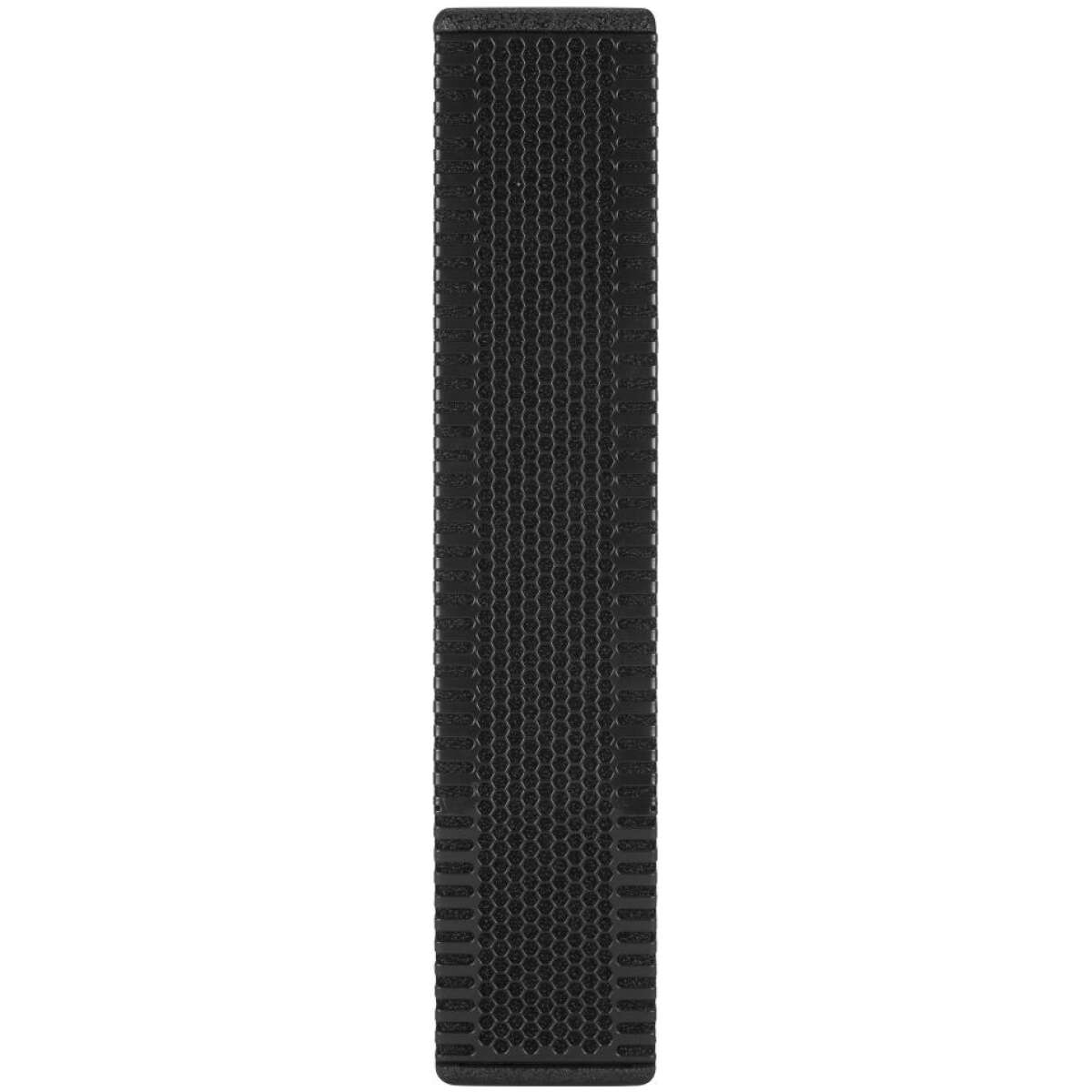

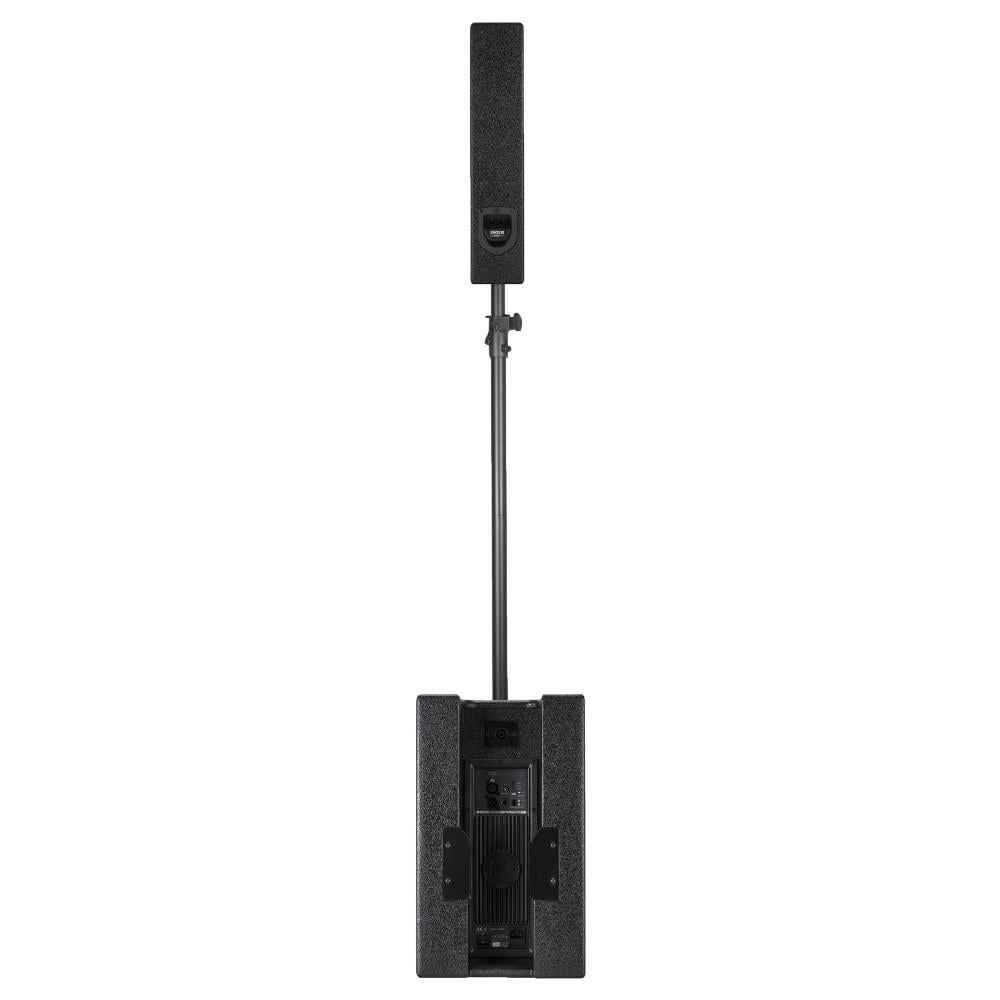

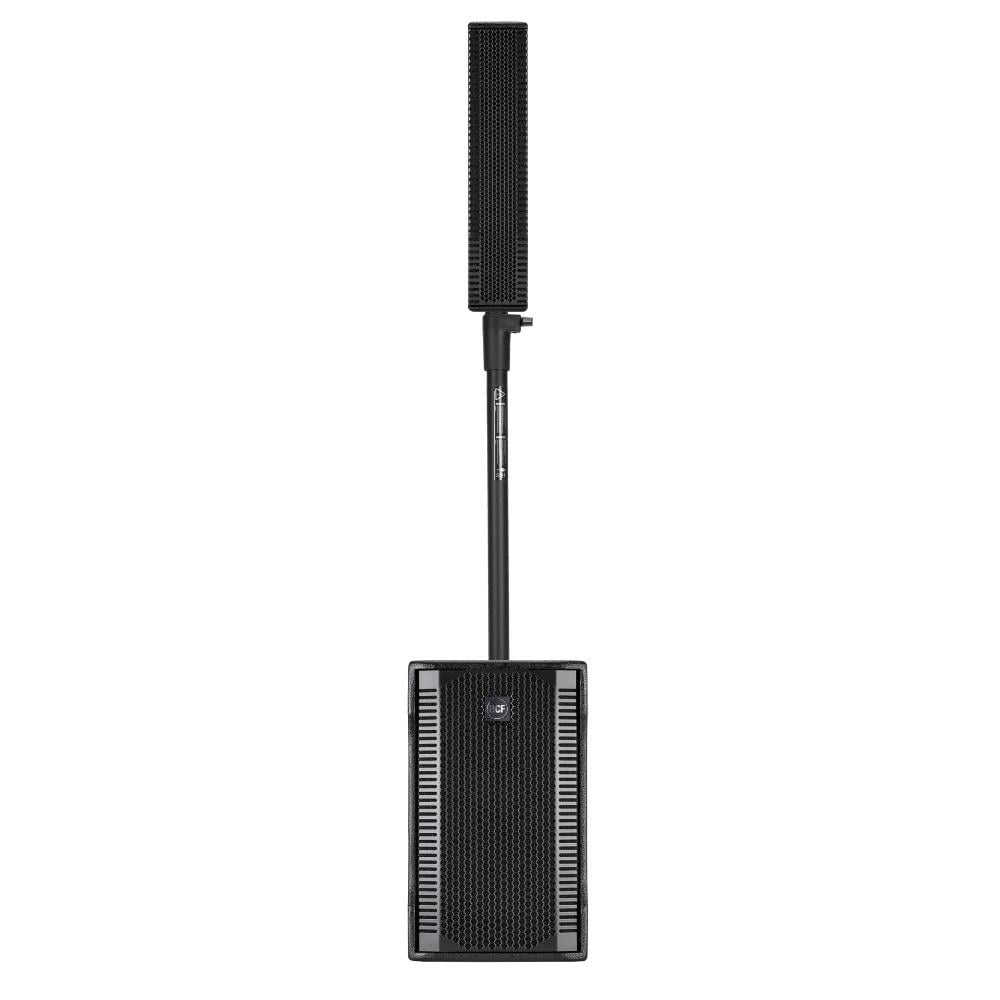

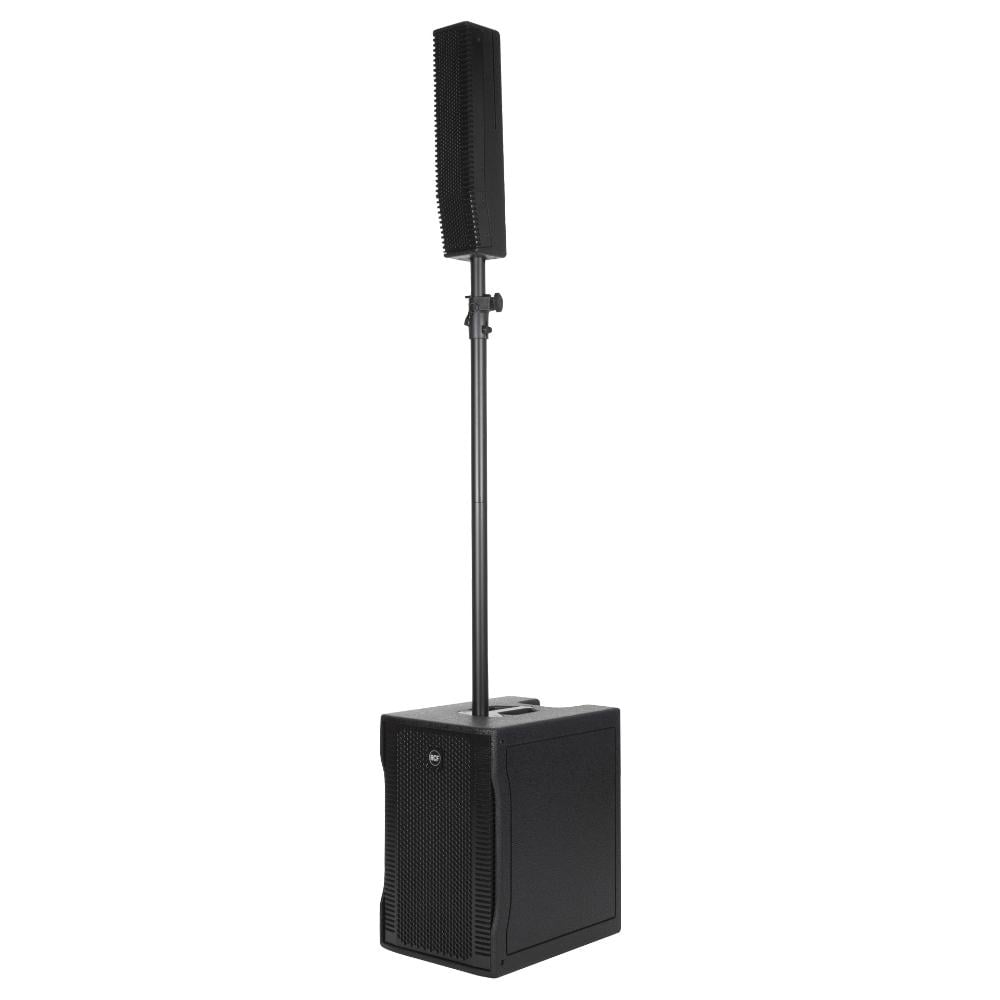

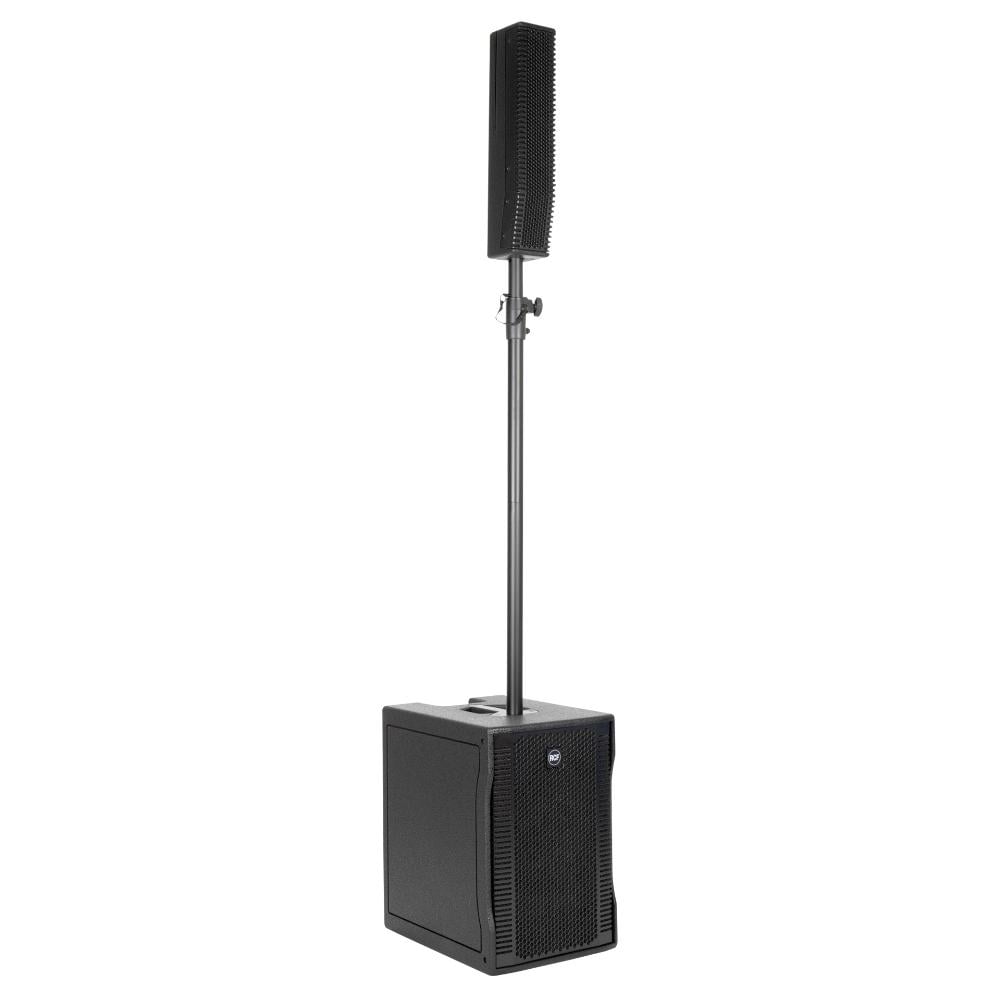

RCF EVOX 8 Active Two-Way Array

SKU: EVOX8 Brand:

R26 335,00

In stock (can be backordered)

In stock (can be backordered)

×

Beat The Price Request

Got a lower price elsewhere? Share the link or an official quote with us, and we'll do our best to match or beat it!

18 People watching this product now!

Description

Features
  • 1400 Watt
  • 128 dB max SPL
  • 40 Hz 20 kHz frequency response
  • 12″ Woofer, 2.5″ v.c.
  • 8 x 2″ Ultra compact fullrange, 1.0 v.c.
  • 120° x 30° slightly tilted pattern control
  • Innovative DSP processing
  • Pole mountable, easy set-up and transportation

Evox 8 is a portable compact size sound reinforcement system. Evox 8 combines the quality and reliability of RCF transducers with a very high amplification power. The system features eight 2.0” full range transducers in the line source satellite and a deep sounding 12” woofer in a bass reflex enclosure. The system is designed to be the perfect high output solution for live music and DJs. The unique vocal attitude and SPL make Evox 8 the perfect tool for larger presentations, corporate events and congresses.

Specifications
Acoustical specifications
Frequency Response
45 Hz – 20000 Hz
Max SPL @ 1m
128 dB
Horizontal coverage angle
120°
Vertical coverage angle
30°
Transducers
Fullrange
8 x 2.0”, 1.0” v.c
Woofer
12”, 2.5” v.c
Input/Output section
Input signal
bal/unbal
Input connectors
XLR, Jack
Output connectors
XLR
Input sensitivity
-2 dBu/+4 dBu
Processor section
Crossover Frequencies
220 Hz
Protections
Thermal, RMS
Limiter
Soft Limiter
Controls
Volume, EQ, phase, Xover
Power section
Total Power
1400 W Peak, 700 W RMS
High frequencies
400 W Peak, 200 W RMS
Low frequencies
1000 W Peak, 500 W RMS
Cooling
Convection
Connections
VDE
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
Baltic birch plywood
Hardware
2 x M6
Handles
1 Top
Pole mount/Cap
Yes
Color
Black
Size / Weight
Height
530 mm / 20.87 inches
Width
346 mm / 13.62 inches
Depth
459 mm / 18.07 inches
Weight
23.8 kg / 52.47 lbs
Shipping information
Package Height
580 mm / 22.83 inches
Package Width
400 mm / 15.75 inches
Package Depth
570 mm / 22.44 inches
Package Weight
27.7 kg / 61.07 lbs
