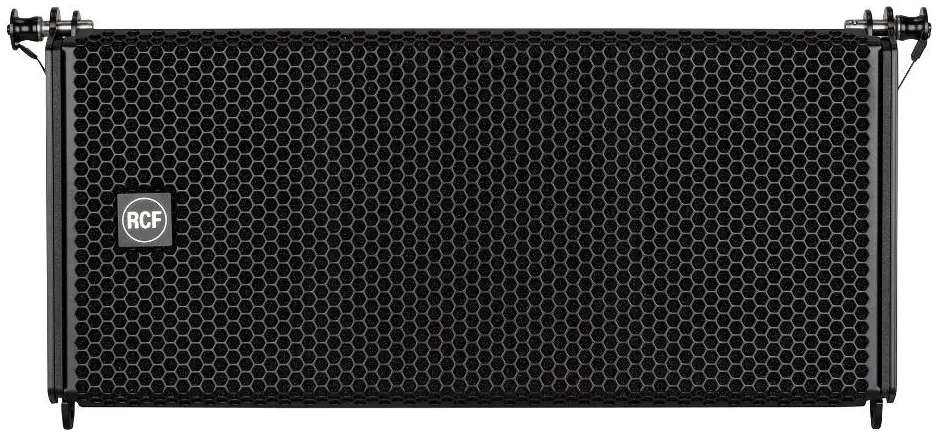

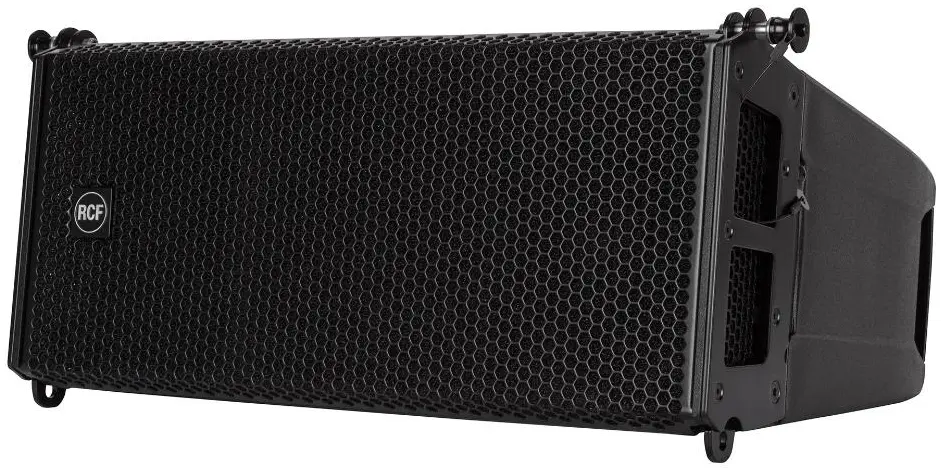

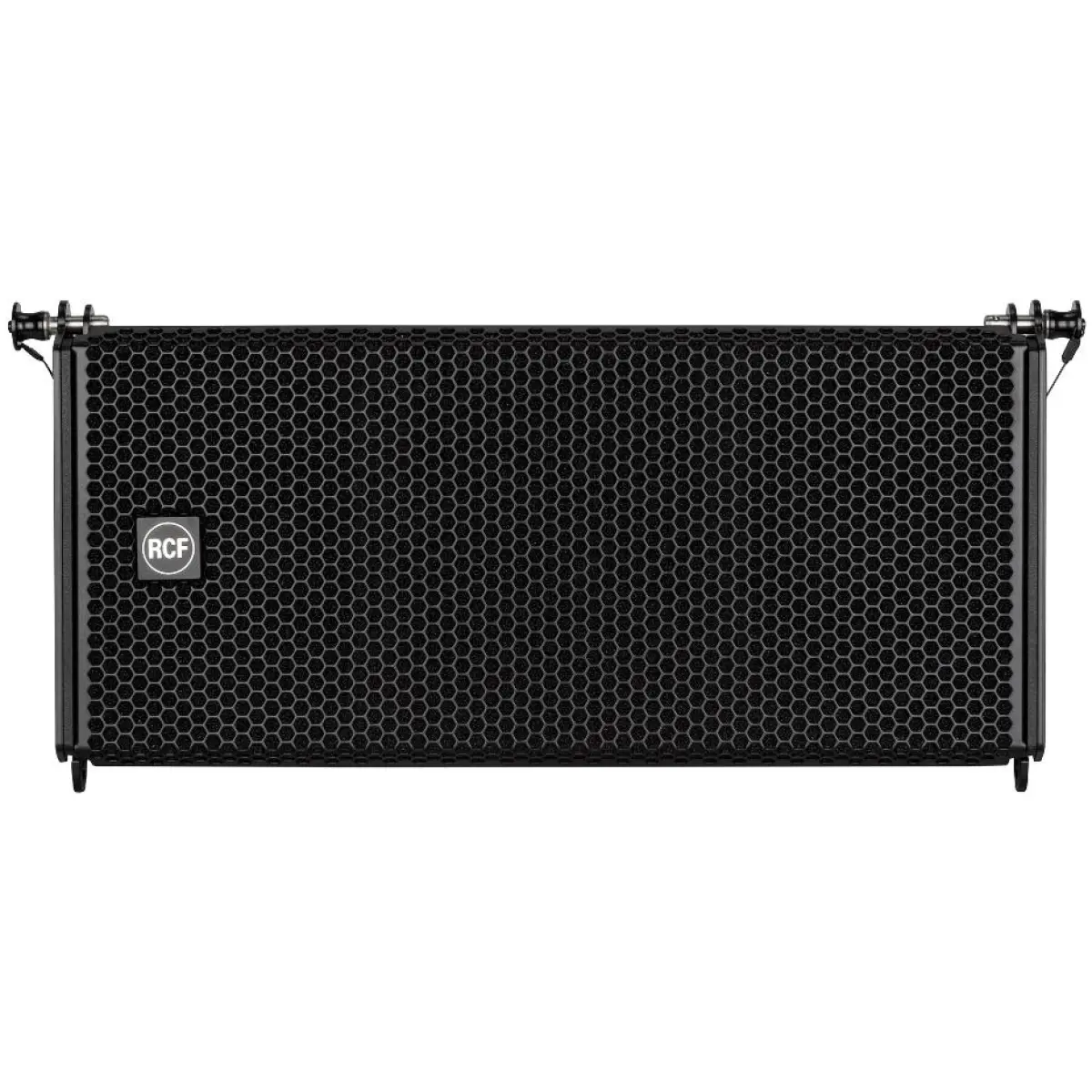

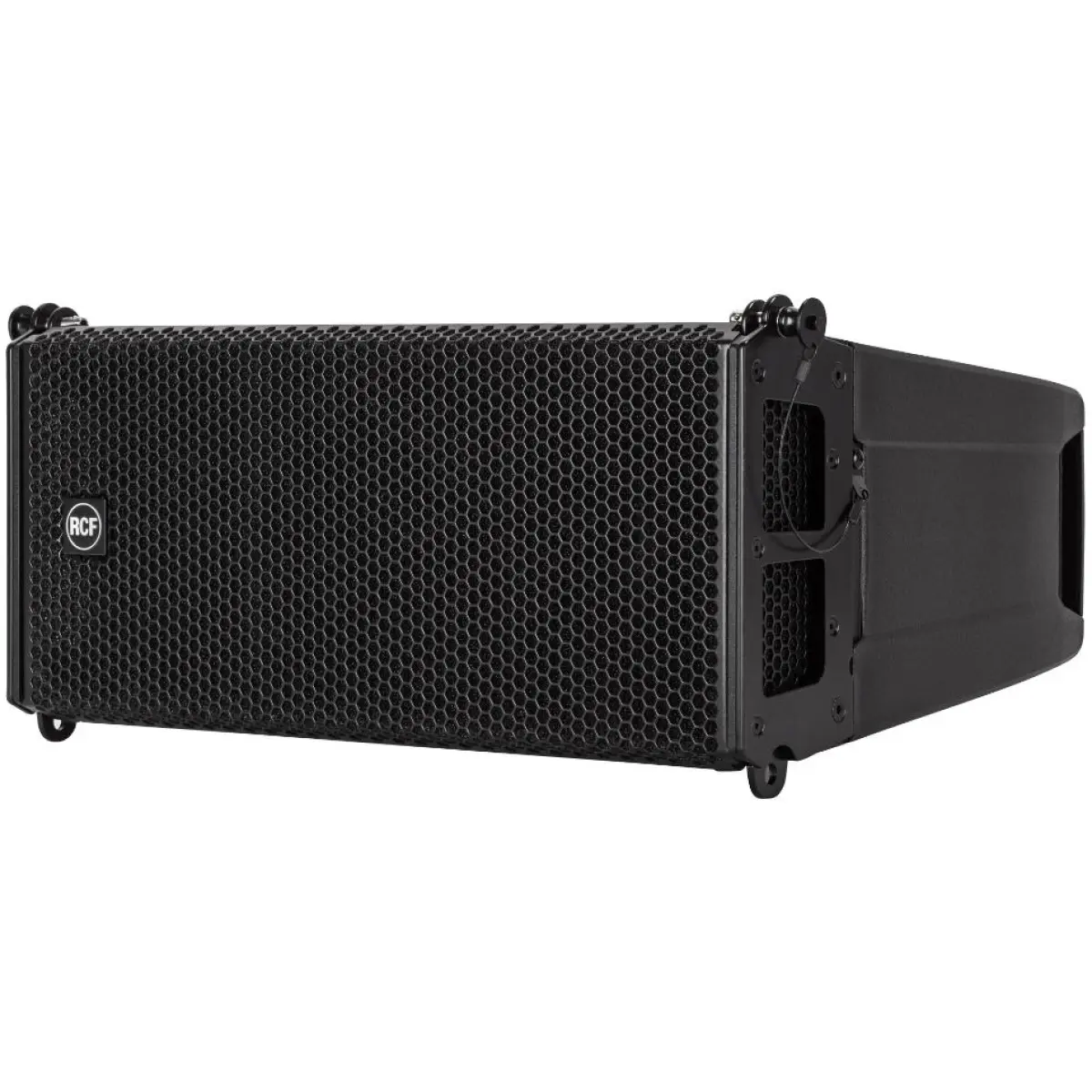

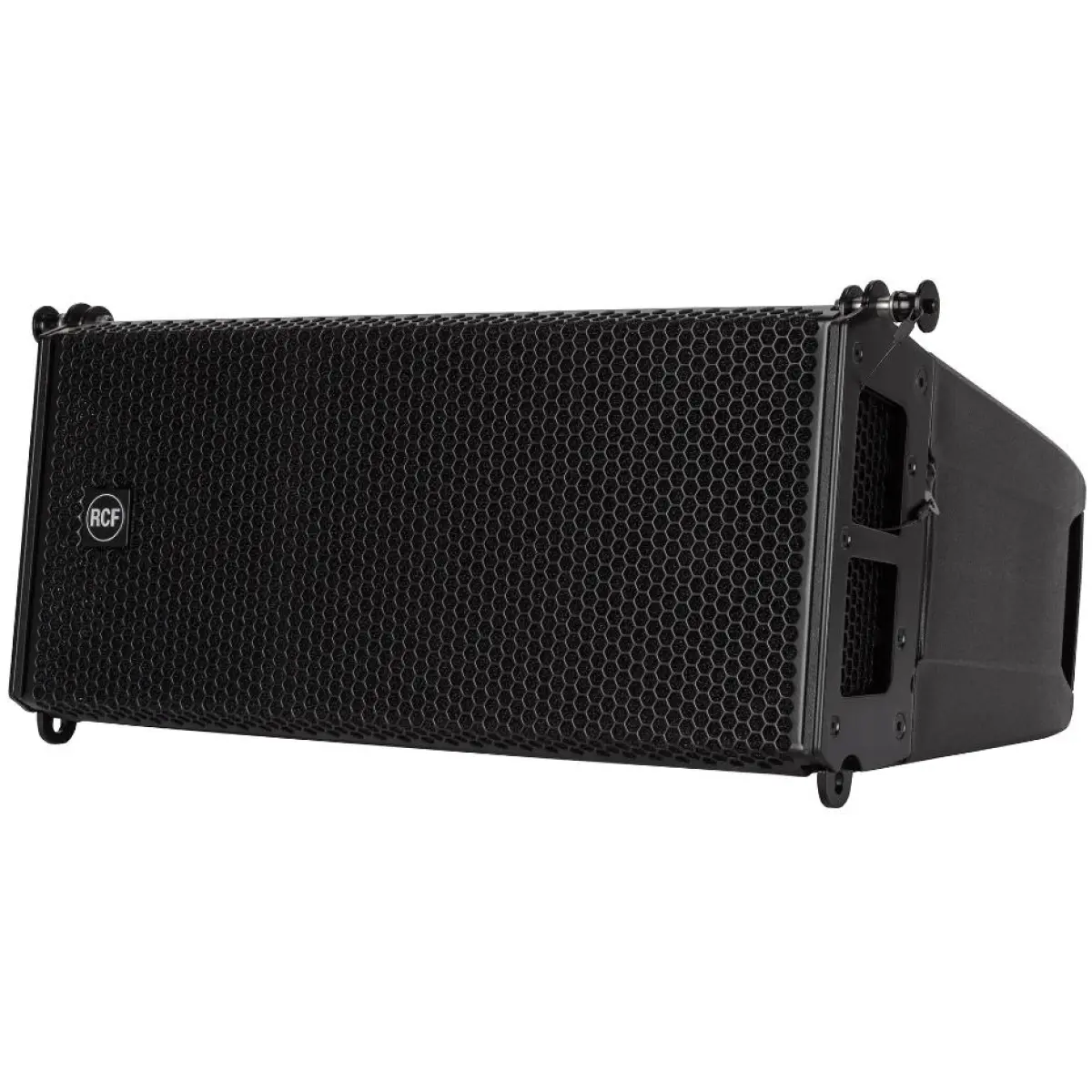

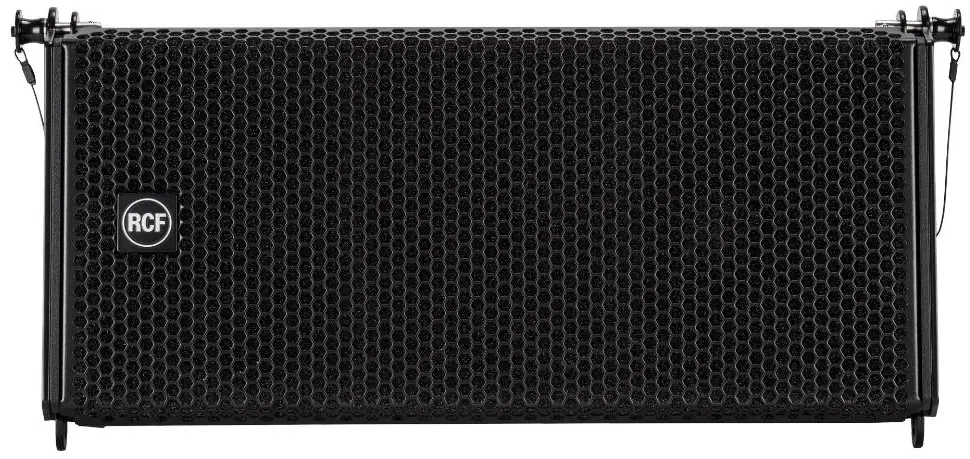

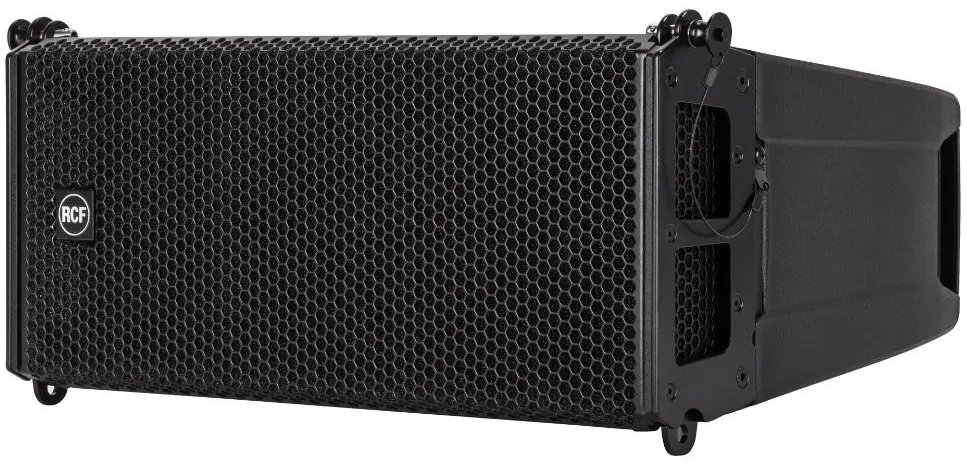

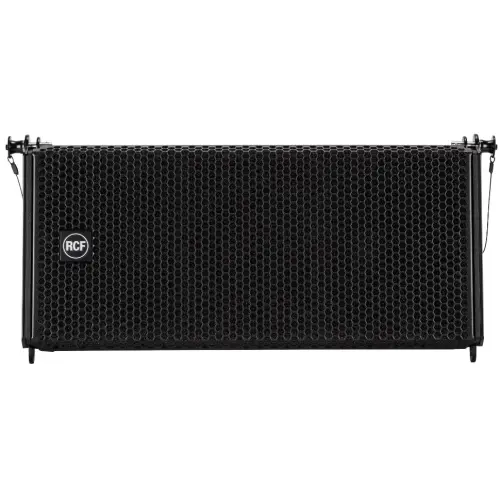

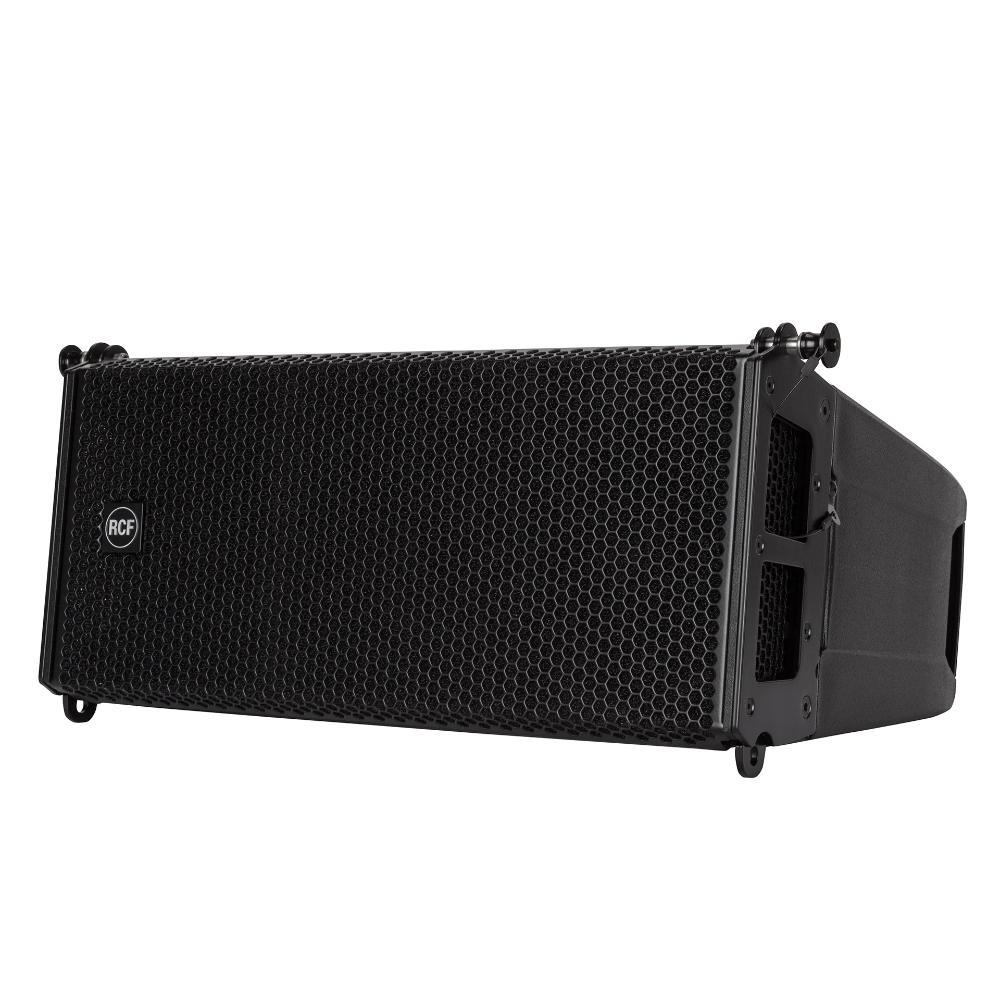

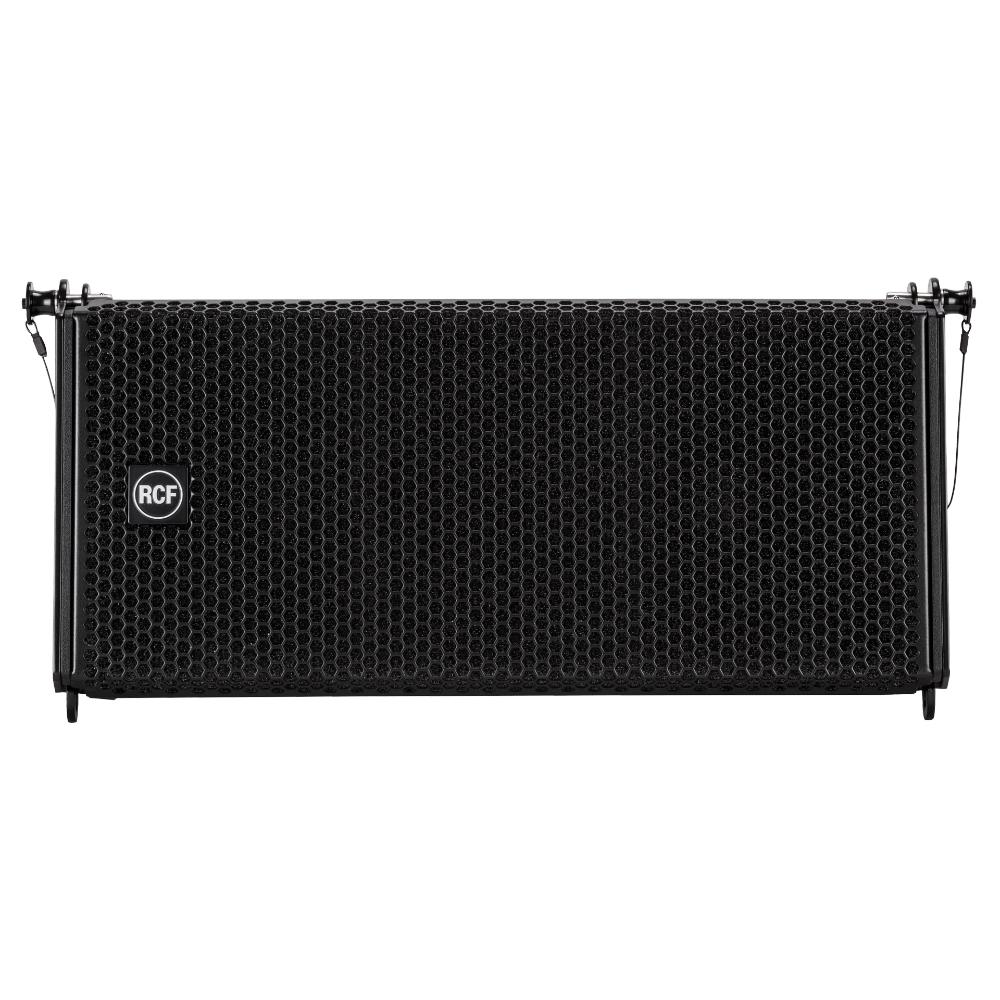

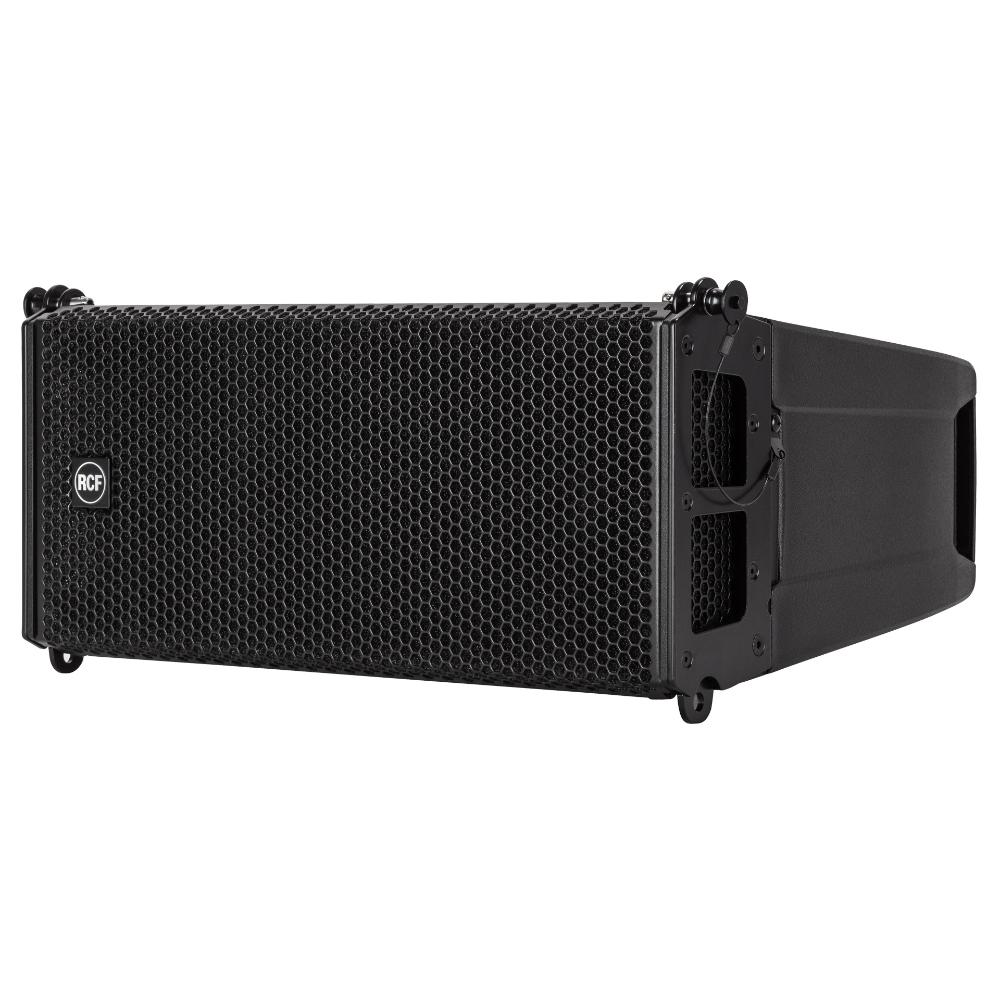

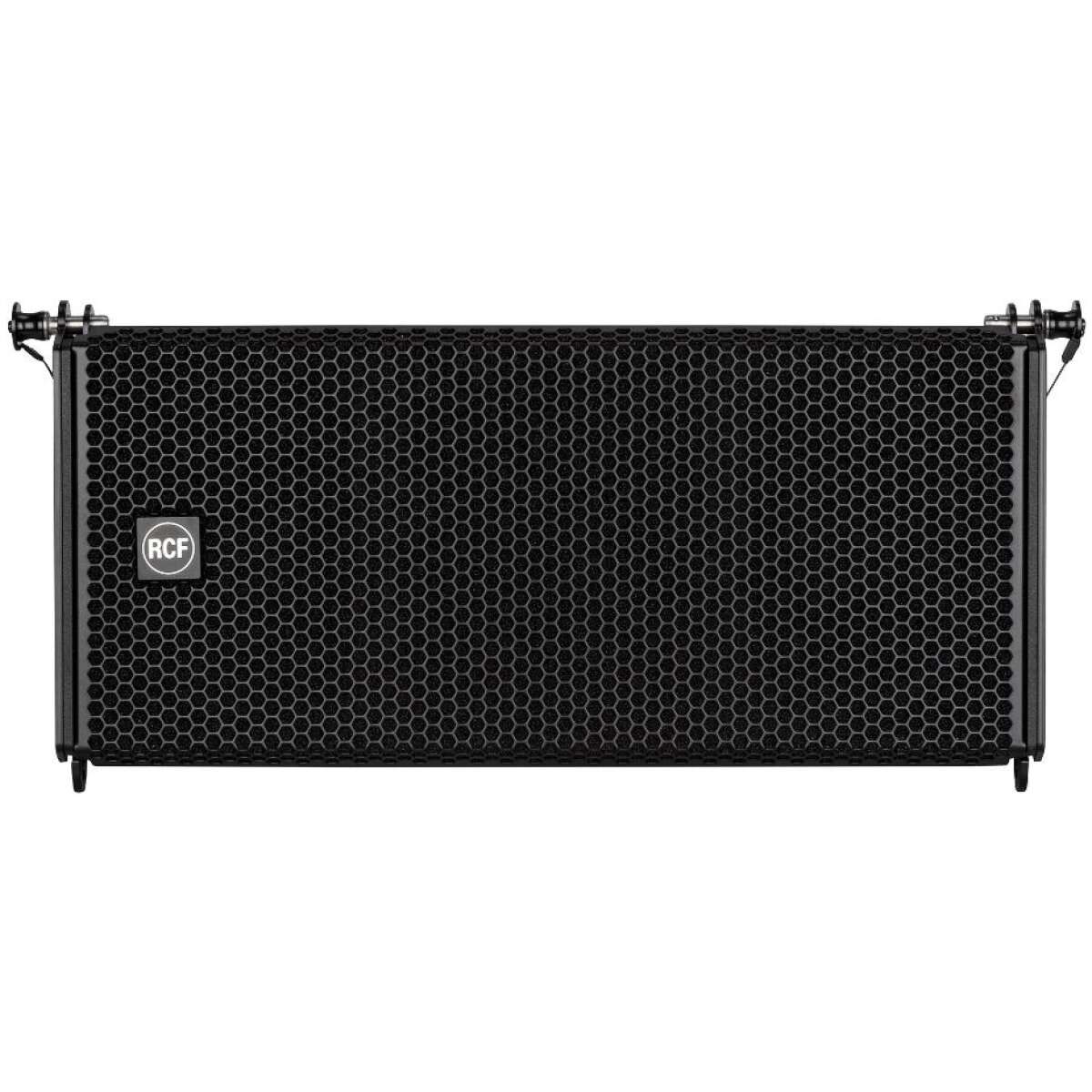

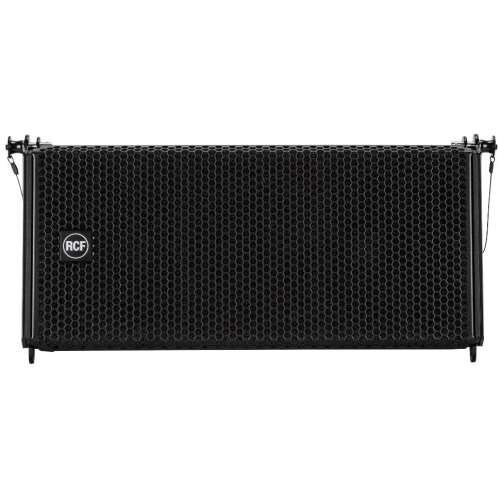

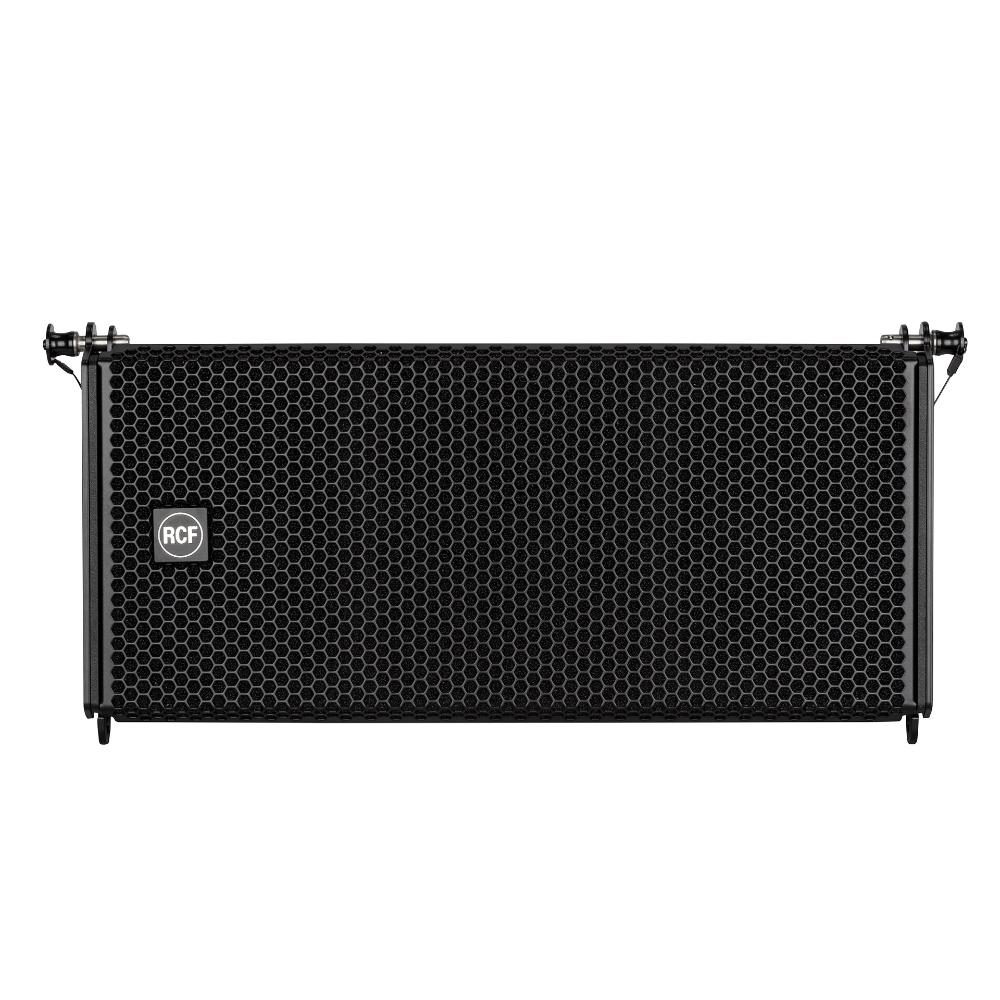

The HDL6-A is the ideal choice when line array performance is needed and a fast and easy set-up a must. A 1400 W 2-channel class-D amplifier powers the system. A powerful DSP processes the sound including crossover, phase correction, limiting and protection. The system features state-of-the-art RCF transducers – two powerful 6.0” woofers for a solid bass reproduction plus a high powered 1.7” voice coil compression driver mounted on a precise 100° x 10° waveguide delivers vocal clarity with high definition and an incredible dynamic. The HDL 12-AS is the ideal flyable bass complement for the HDL 6-A array system.
Acoustical specifications
Frequency Response
65 Hz – 20000 Hz
Max SPL @ 1m
131 dB
Horizontal coverage angle
100°
Vertical coverage angle
10°
Transducers
Compression Driver
1 x 1.0” neo, 1.75” v.c
Woofer
2 x 6.0” neo, 2.0” v.c
Input/Output section
Input signal
bal/unbal
Input connectors
XLR
Output connectors
XLR
Input sensitivity
+4 dBu
Processor section
Crossover Frequencies
900 Hz
Protections
Thermal, RMS
Limiter
Soft Limiter
Controls
HF correction
Power section
Total Power
1400 W Peak, 700 W RMS
High frequencies
400 W Peak, 200 W RMS
Low frequencies
1000 W Peak, 500 W RMS
Cooling
Convection
Connections
Powercon IN/OUT
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
PP Composite
Hardware
Array fittings
Handles
2 Back
Grille
Steel
Color
Black, White
Size / Weight
Height
237 mm / 9.33 inches
Width
470 mm / 18.5 inches
Depth
377 mm / 14.84 inches
Weight
11.6 kg / 25.57 lbs
Shipping information
Package Height
260 mm / 10.24 inches
Package Width
550 mm / 21.65 inches
Package Depth
425 mm / 16.73 inches
Package Weight
13 kg / 28.66 lbs
