Acoustical specifications
Frequency Response (-10dB)
70 Hz – 20000 Hz
Max SPL @ 1m
106 dB
Coverage angle
100°
System Sensitivity
92 dB
Power section
Amplification
Full Range
Power Handling
12 W RMS
Peak Power Handling
48 W PEAK
Recommended Amplifiers
DMA 504, DMA 162, DMA 82, DMA 162P, ES 2160, ES 3080, AM 2320, AM 2160, AM 2080, AM 1125, UP 8504, UP 8502, UP 8501, UP 2321, UP 2162
Transducers
Dome Tweeter
1.0”
Woofer
6.0”
Input/Output section
Input connectors
Screw Terminals
Output connectors
Screw Terminals

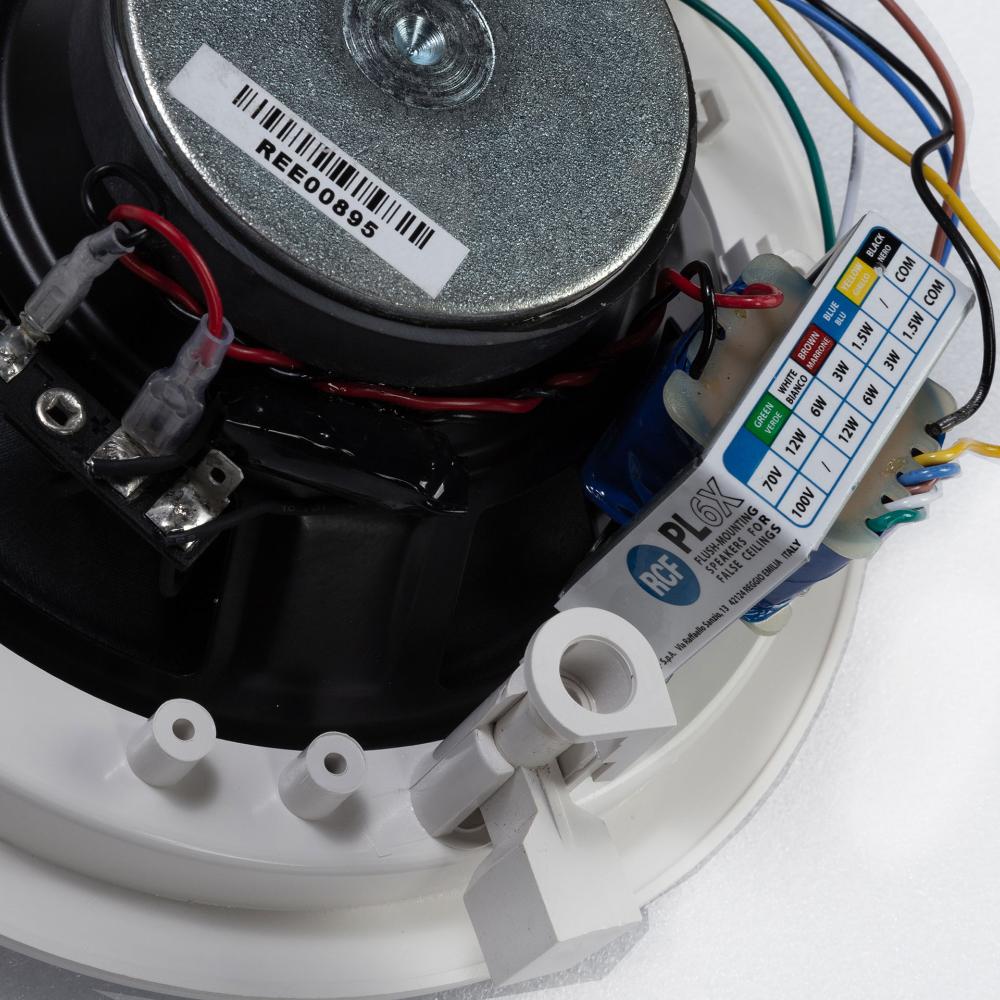

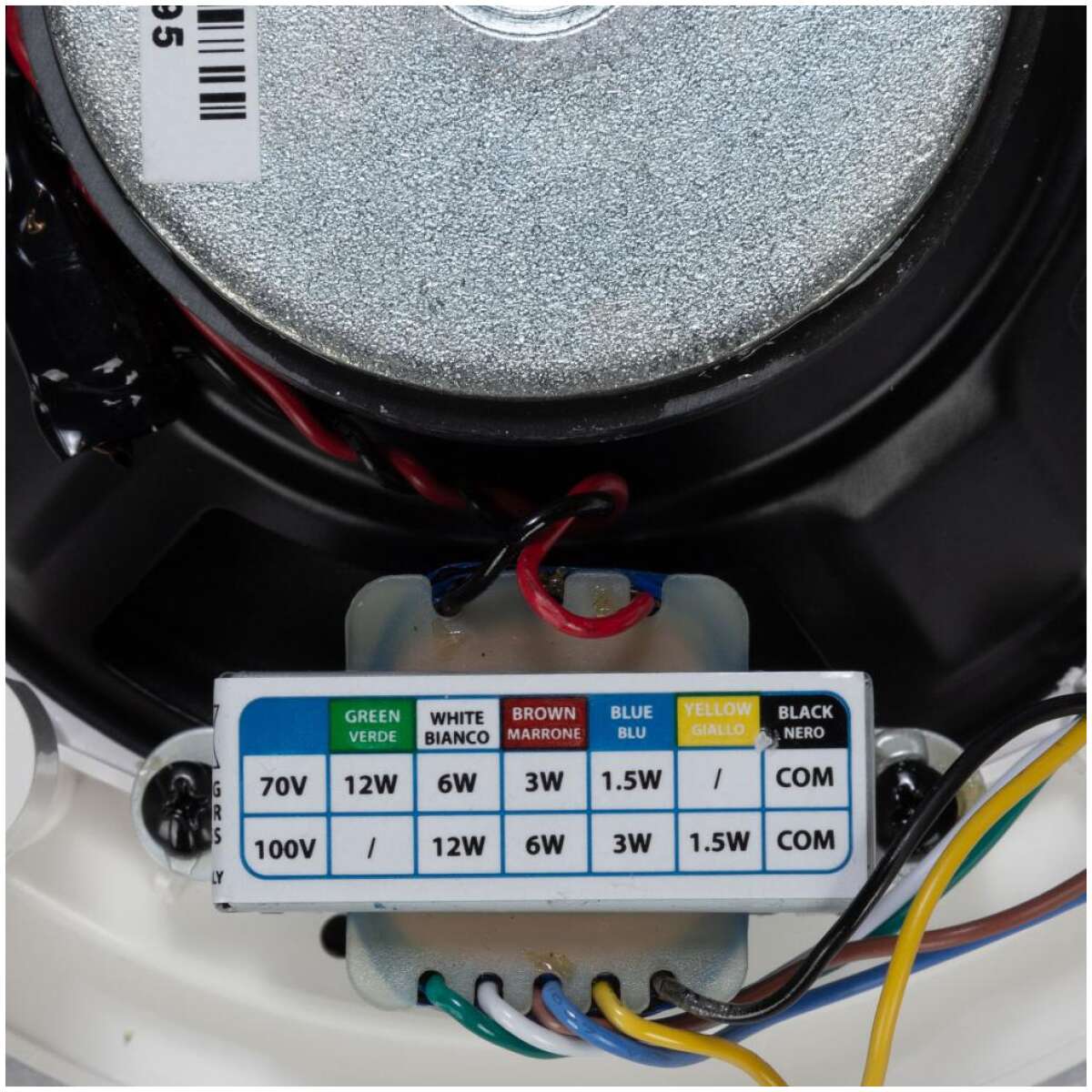

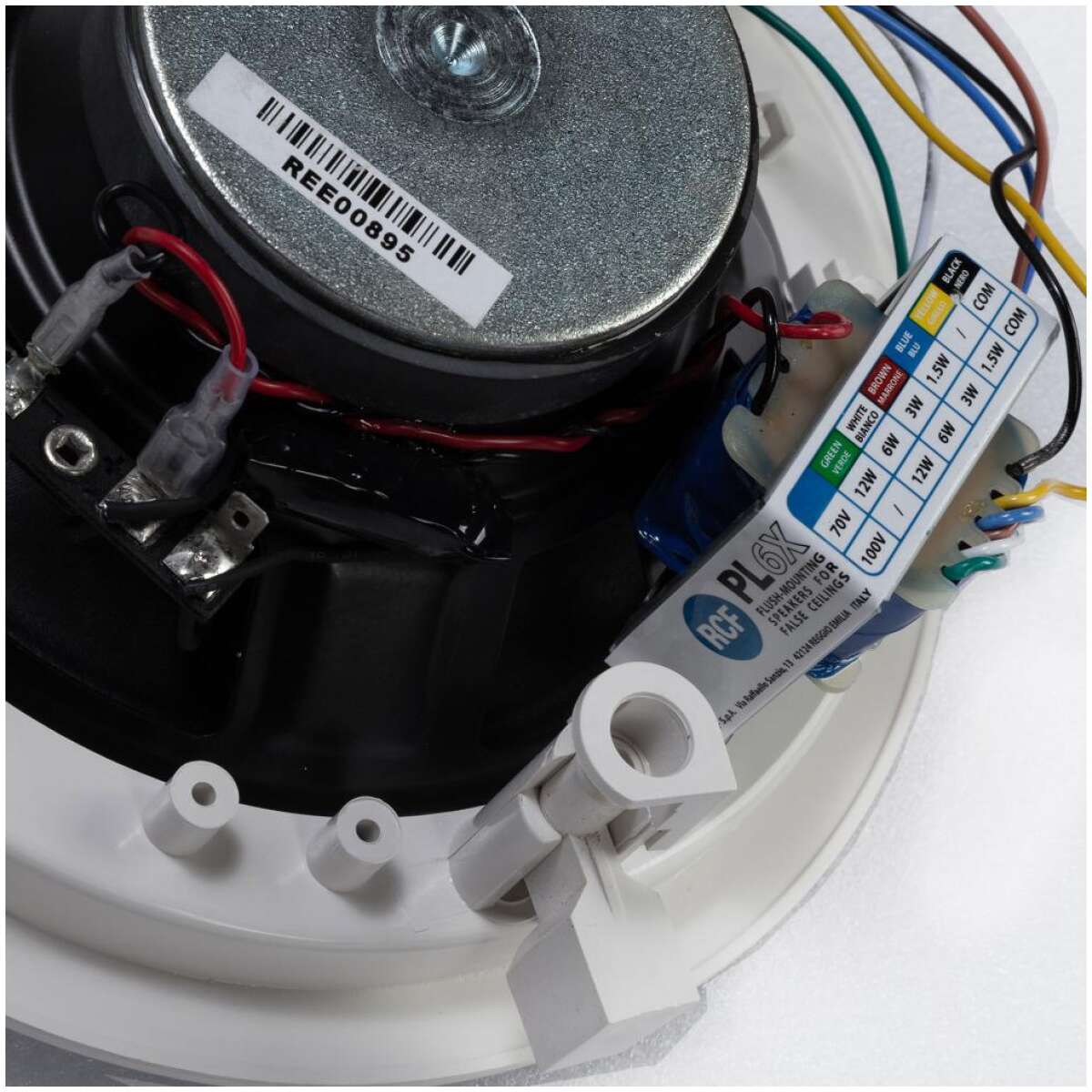

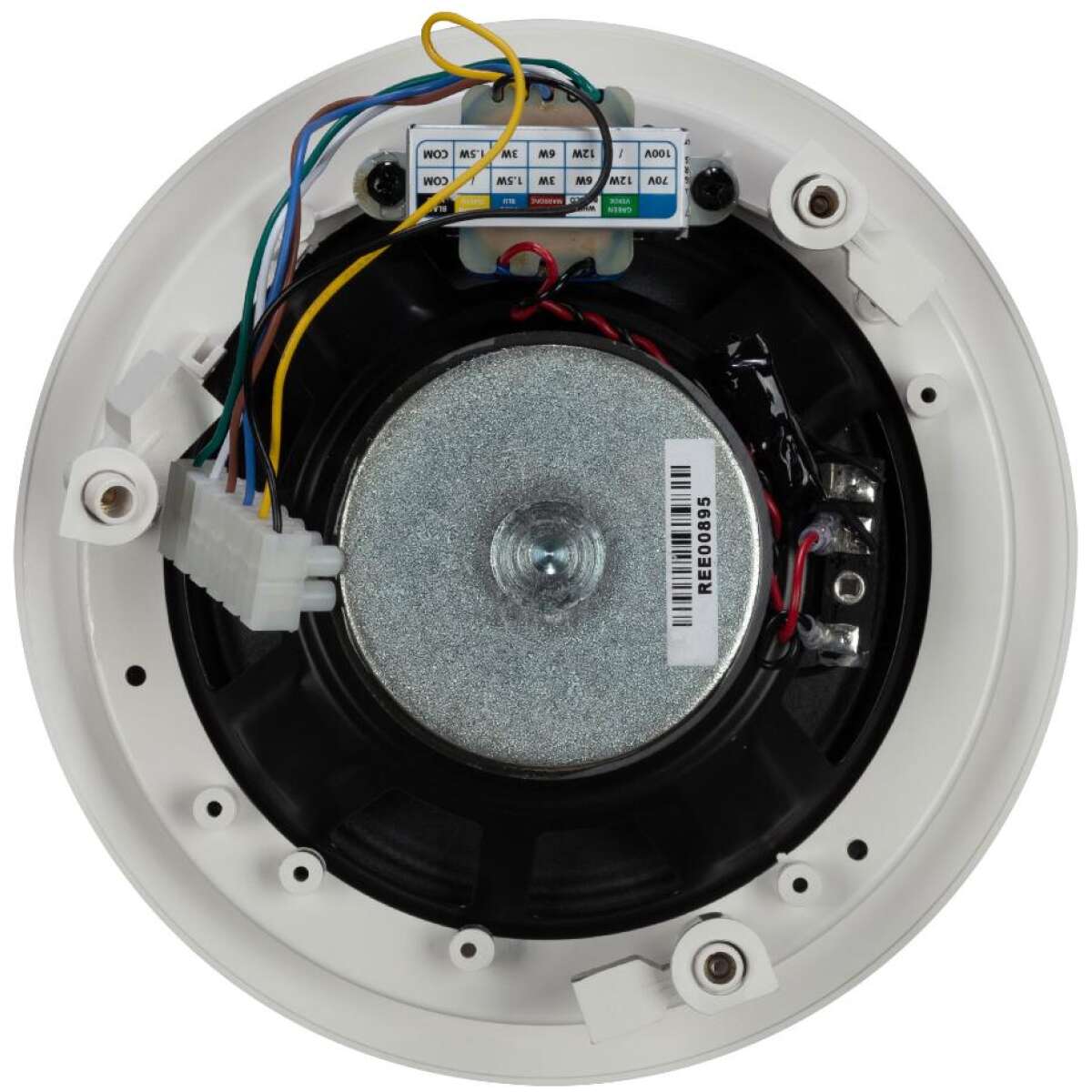

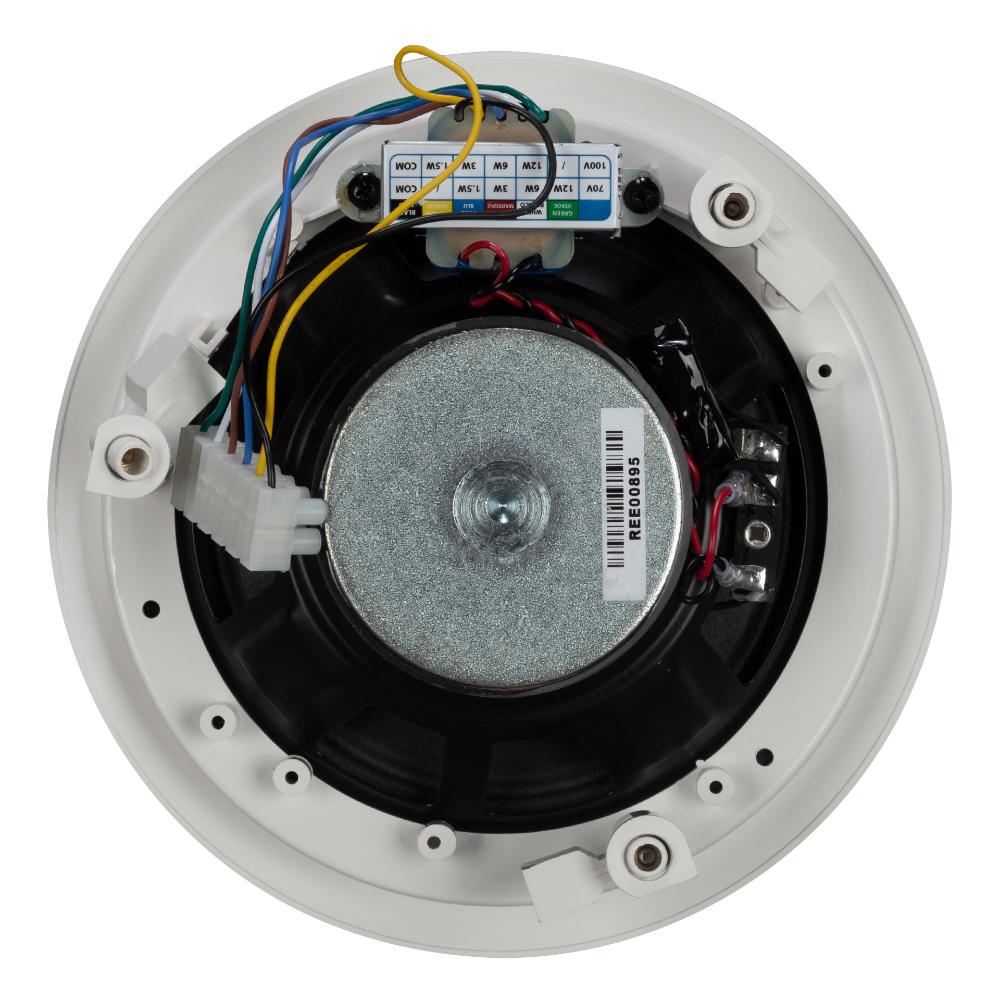

Constant Voltage Transformer
70/100 V
Power selection 1
12 W – 833 ohm
Power selection 2
6 W – 1667 ohm
Power selection 3
3 W – 3333 ohm
Power selection 4
1.5 W – 6667 ohm
Standard compliance
IP protection grade
IP 44
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
Plastic
Hardware
Plastic Material
Grille
Aluminium
Color
White – RAL 9003, Black – RAL 9005
Size / Weight
Depth
73 mm / 2.87 inches
Recessed Depth
66 mm / 2.6 inches
Diameter
204 mm / 8.03 inches
Cut out diameter
182 mm / 7.17 inches
Weight
0.78 kg / 1.72 lbs
Shipping information
Package Height
240 mm / 9.45 inches
Package Width
240 mm / 9.45 inches
Package Depth
110 mm / 4.33 inches
Package Weight
1.56 kg / 3.44 lbs
