Description

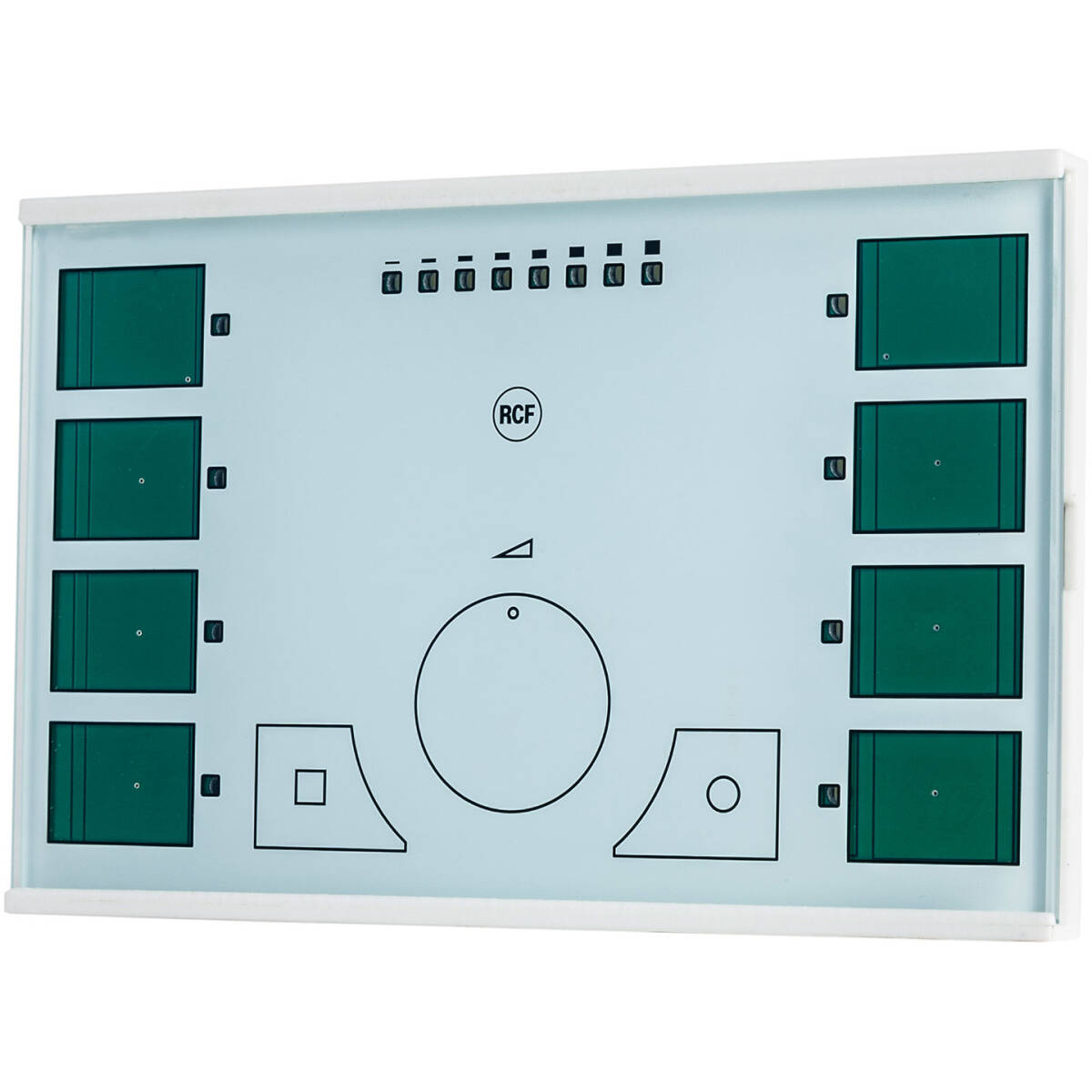

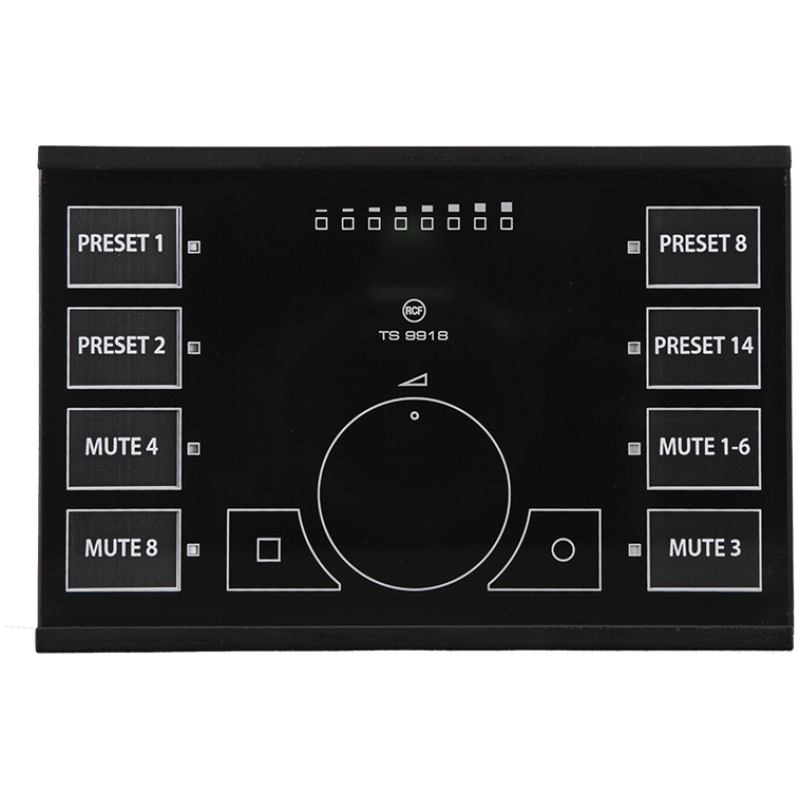

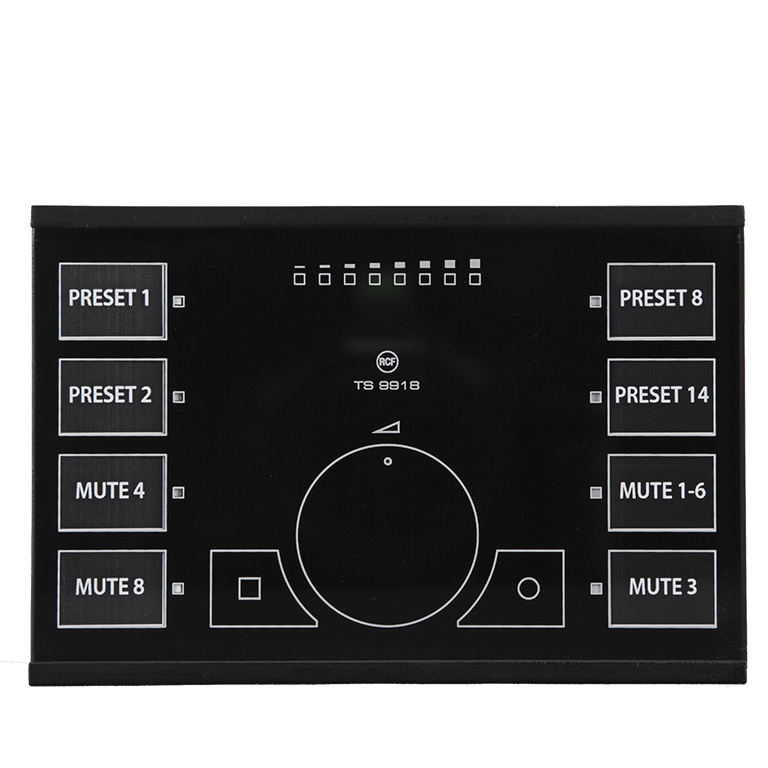

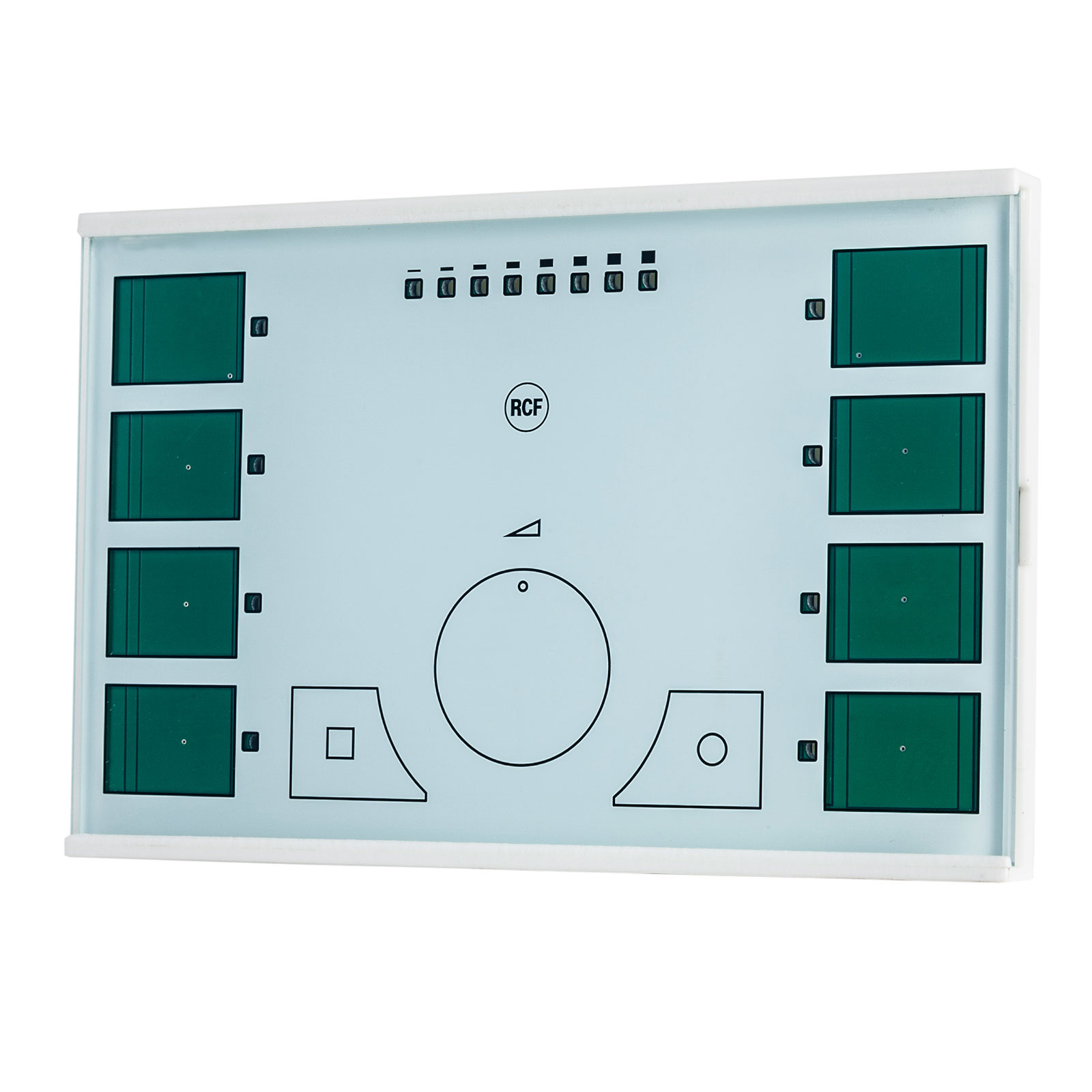

TS 9918 is a touch sensitive remote control mainly dedicated to MZ 8060 digital matrix units. Its 8 buttons and scroll-wheel are fully configurable using the PC Control Software and the slim-line structure allows installation in any environment. Three back-light operation modes are available according to application: night, eco, daylight.
Two kinds of configurations are possible for each remote control: Static or Dynamic. Static is when each button can work as VOLUME control and MUTE command for a single IN or a single OUT or for a GROUP of them; as GPO trigger, PRESET-RECALL or as input ENABLING command according to the pre-set priority levels. Dynamic is when the 2 groups of 4 buttons each allow you to act on input(s) and output(s) in terms of MUTE and VOLUME controls, but also to work as patch&link of any input(s) to any output(s).
Features
- Slim design with glass surface
- Compatible with most of the standard electrical boxes
- Touch sensitive activation
- 8 configurable buttons
- Addressable volume
- Level Meter
- Indicators
Part number:
13360235
TS 9918
Black, EAN 8024530010386
13360243
TS 9918 W
White, EAN 8024530010768
Mute channel and groups
Preset recall
Matrix node assignment
Preset recall
Matrix node assignment
