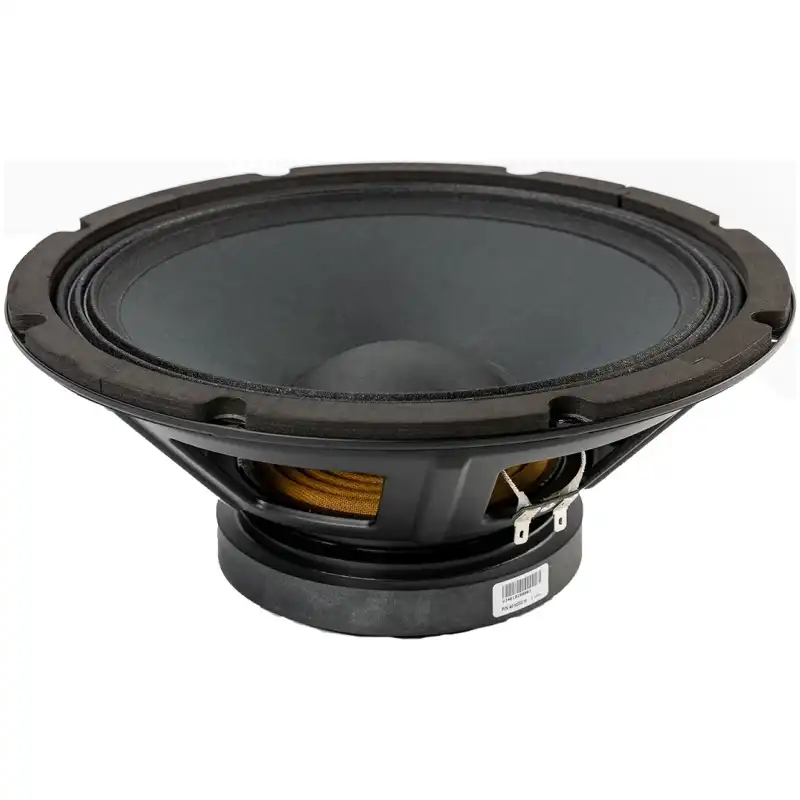

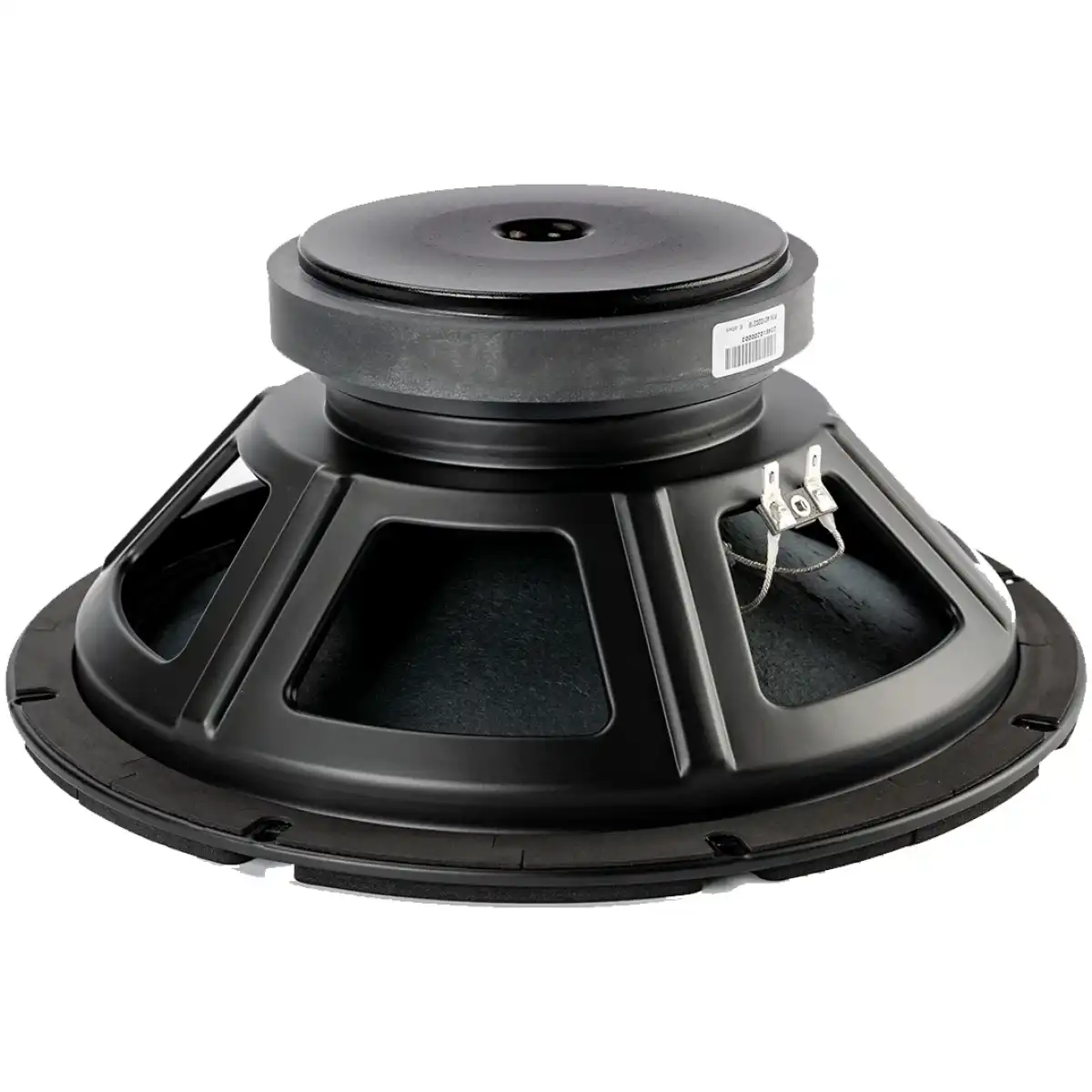

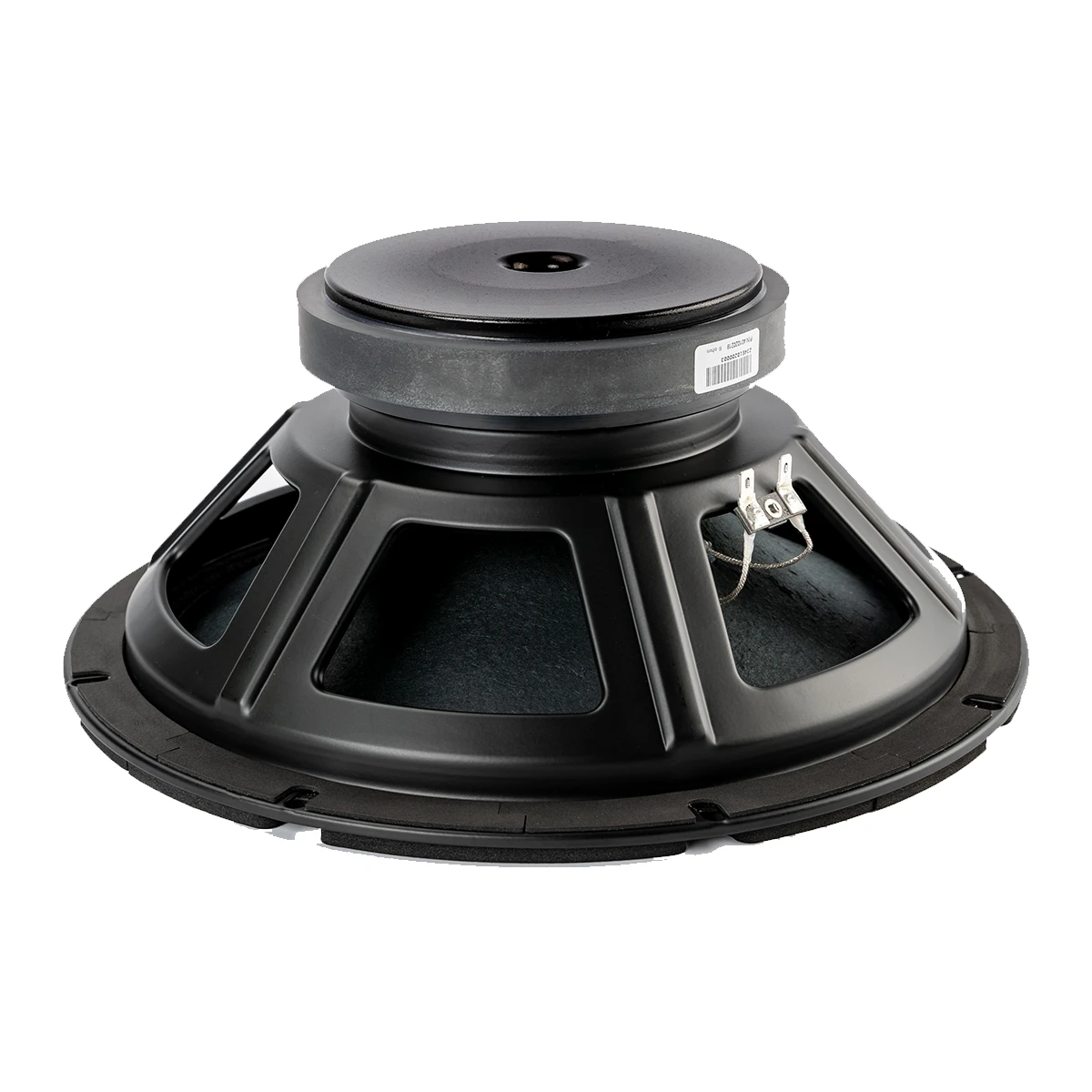

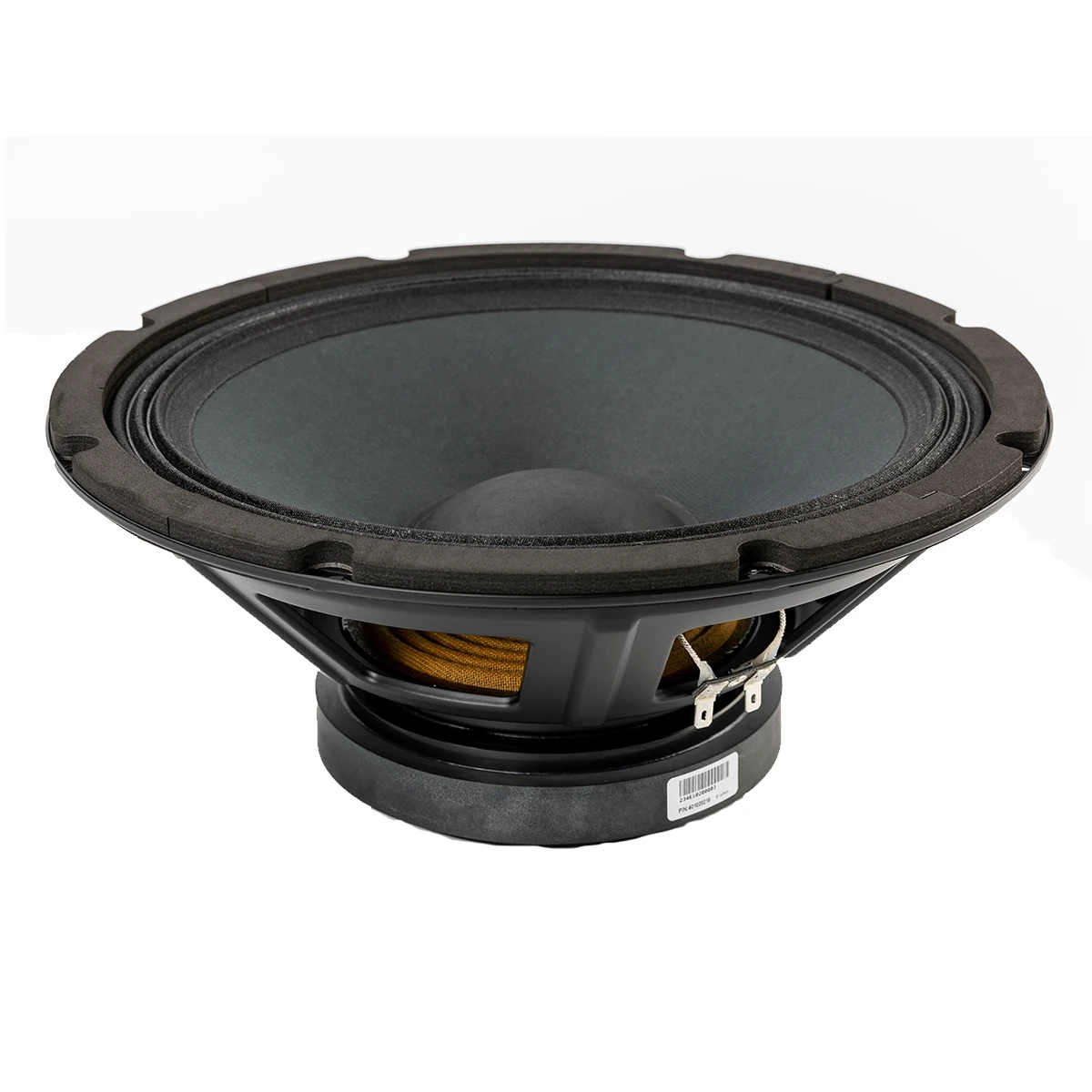

Redcatt 121FIND 12″ Loose Speaker

The Redcatt 121FIND is a professional 12-inch low-frequency transducer engineered for compact and medium-sized PA systems, stage monitors, portable speakers, and 2-way/3-way cabinet designs. With a strong ferrite magnet, reinforced cone, and high-temperature 2.5″ voice coil, the 121FIND delivers punchy mid-bass, clean midrange vocal presence, and excellent sensitivity.

This driver is ideal for new cabinet builds, repairs, or upgrades for 12″ PA speakers, wedges, or bass-reflex enclosures.

Key Features

• 12″ professional LF driver

• 2.5″ high-temperature copper voice coil

• Ferrite magnet motor

• Reinforced cellulose/paper cone with treated cloth surround

• Clean, controlled mid-bass performance

• High sensitivity for strong output with moderate amplifier power

• Suitable for 2-way tops, floor monitors, and compact mains

• Works in both sealed and vented enclosures

Technical Specifications

(Based on Redcatt FIND-series 12″ drivers — will adjust when label data is provided)

Driver

• Size: 12 inches

• Voice Coil: 2.5″ (63 mm)

• Voice Coil Material: Copper

• Former: Kapton

• Cone: Reinforced paper

• Surround: Treated cloth

• Basket: Pressed steel / cast frame (model dependent)

• Magnet Type: Ferrite

Power Handling

• RMS / AES: 250–300W RMS

• Program: 500–600W

• Peak: 1000–1200W

Performance

• Nominal Impedance: 8 Ohms

• Sensitivity: 96–98 dB (1W/1m)

• Frequency Range: 50 Hz – 4 kHz

• Recommended Crossover (2-way): 1.8–2.5 kHz

Expected Thiele/Small Parameters

• Fs: 45–55 Hz

• Qts: 0.32–0.45

• Vas: 45–65 L

• BL: 12–16 Tm

• Xmax: 3.5–5.0 mm
