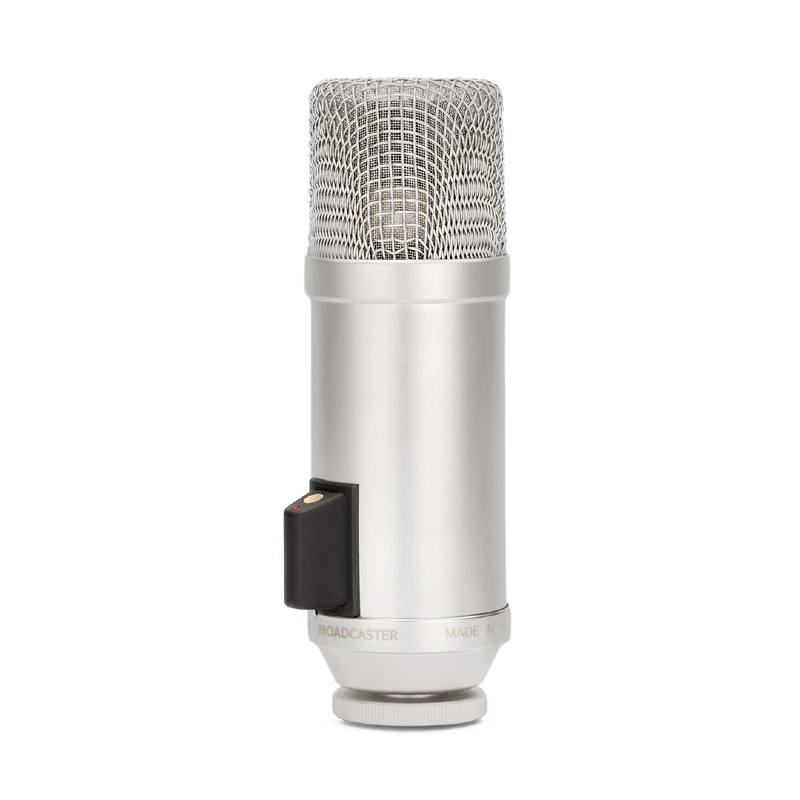

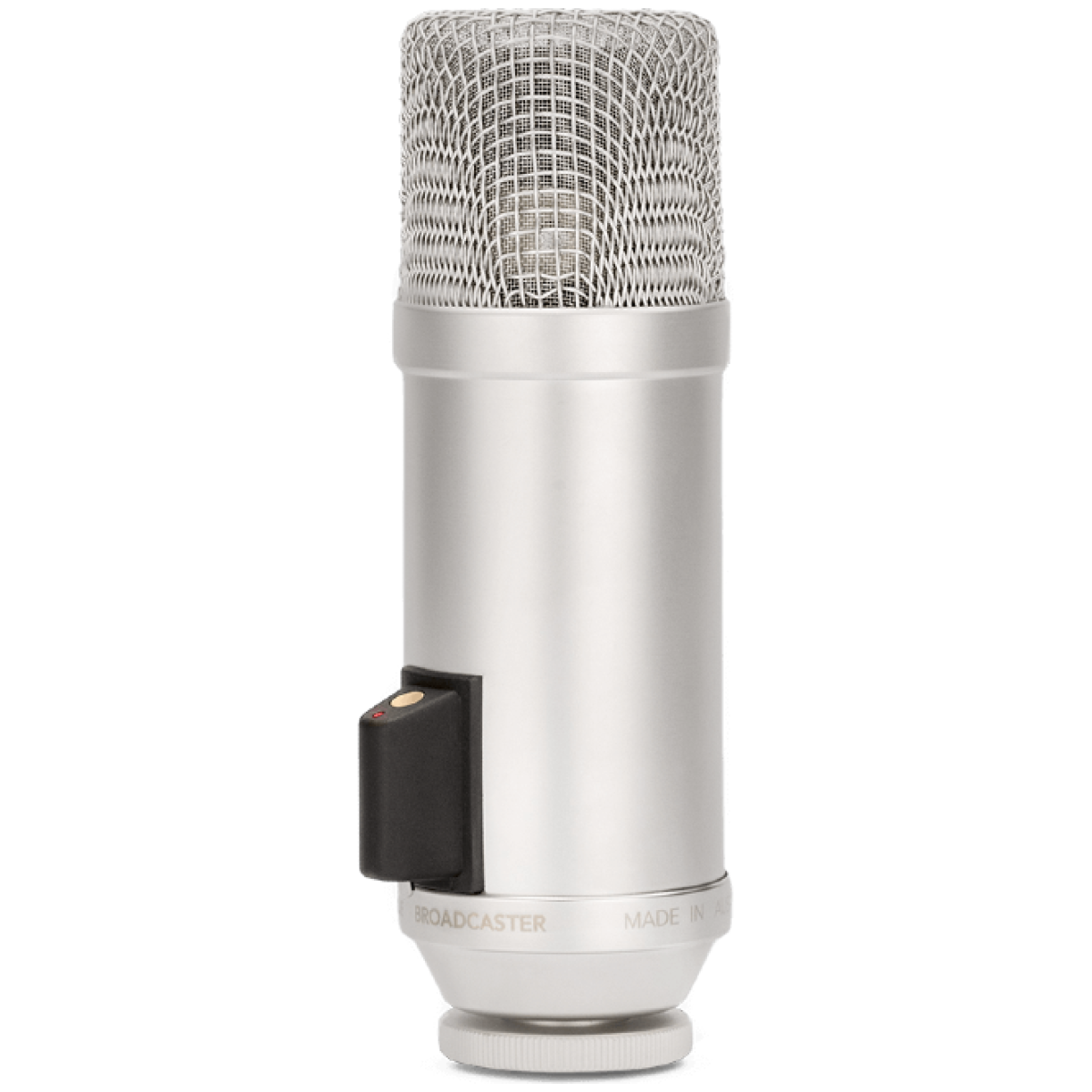

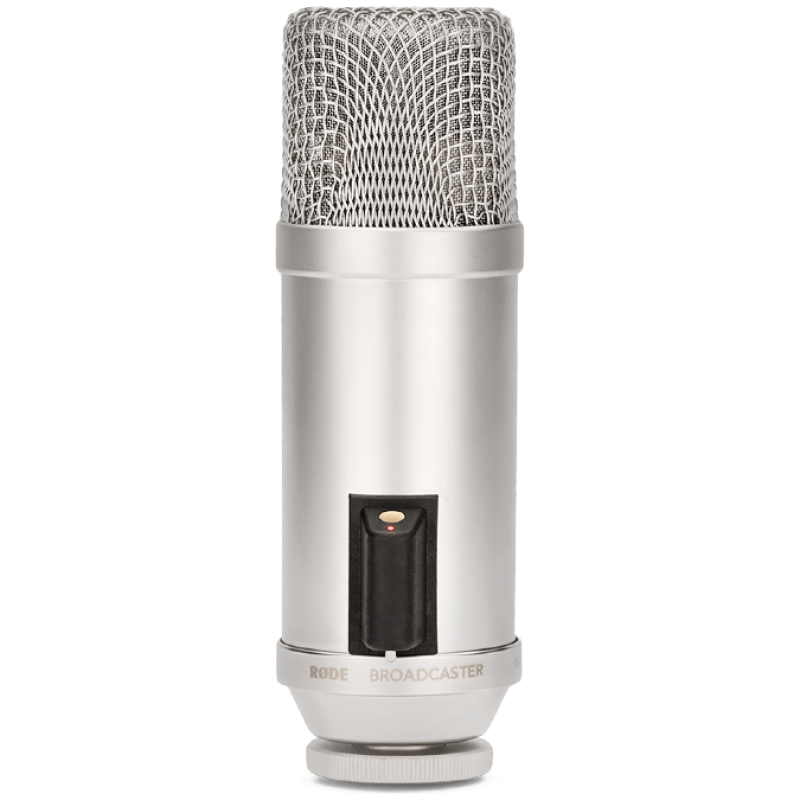

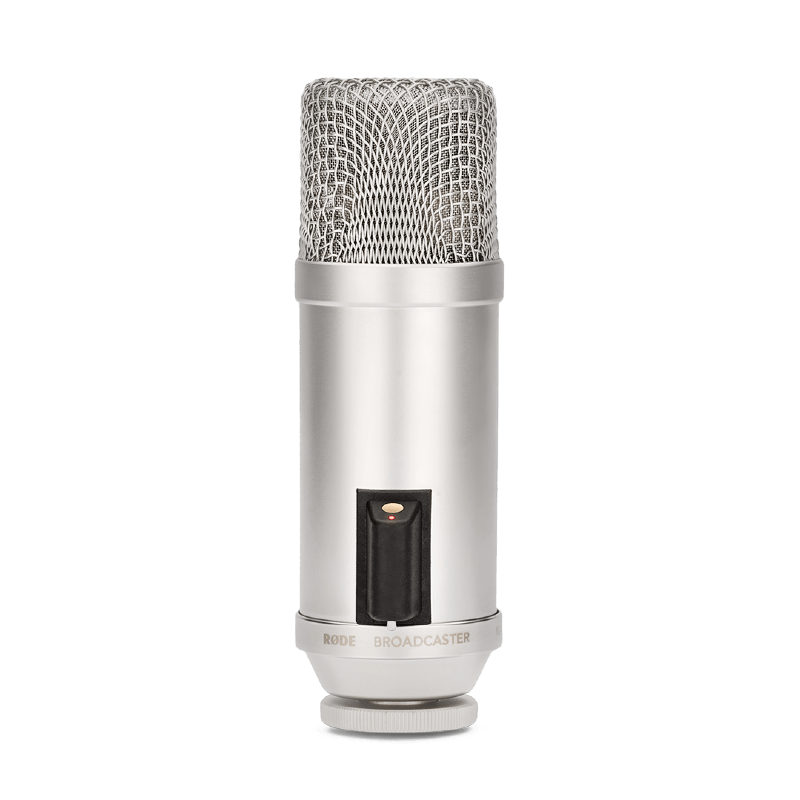

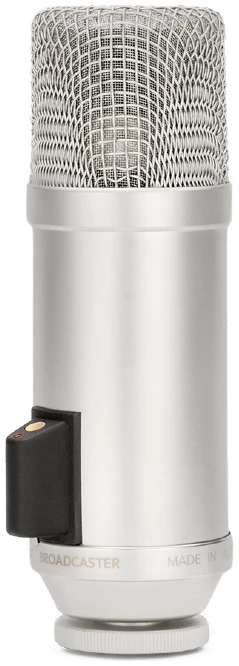

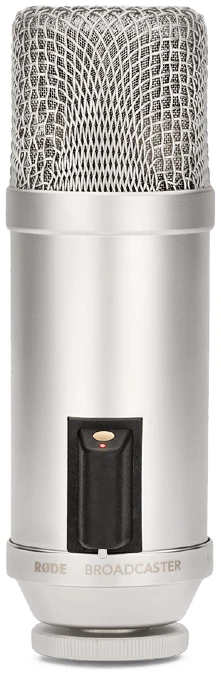

The RØDE Broadcaster (RODBC) is a professional large-diaphragm cardioid condenser microphone engineered specifically for broadcast, voice-over, and studio applications. Renowned for its warm, rich tone and exceptional clarity, the Broadcaster delivers the classic “radio sound” favored by professional broadcasters. It features a tight cardioid pickup pattern for excellent off-axis rejection, an internal pop filter to minimize plosives, and an on-air indicator LED that can be activated remotely. Built with a rugged all-metal body, it ensures reliable performance in demanding studio environments.
Specifications:
- Acoustic Principle: Pressure gradient
- Transducer Type: 1″ large diaphragm condenser capsule
- Polar Pattern: Cardioid
- Frequency Response: 20 Hz – 20 kHz
- Output Impedance: 40 Ω
- Sensitivity: -34 dB re 1V/Pa (20 mV @ 94 dB SPL ±2 dB)
- Equivalent Noise Level: 14 dBA
- Maximum SPL: 128 dB SPL (@1kHz, 1% THD)
- Dynamic Range: 114 dB
- Signal-to-Noise Ratio: 80 dB
- Power Requirements: 48V phantom power
- Output Connection: XLR (balanced)
- On-Air Indicator: External 5–48V DC control (via pin 2)
Applications:
- Radio and broadcast studios
- Voice-over and podcast production
- Studio vocals and narration
- Streaming and professional communication
