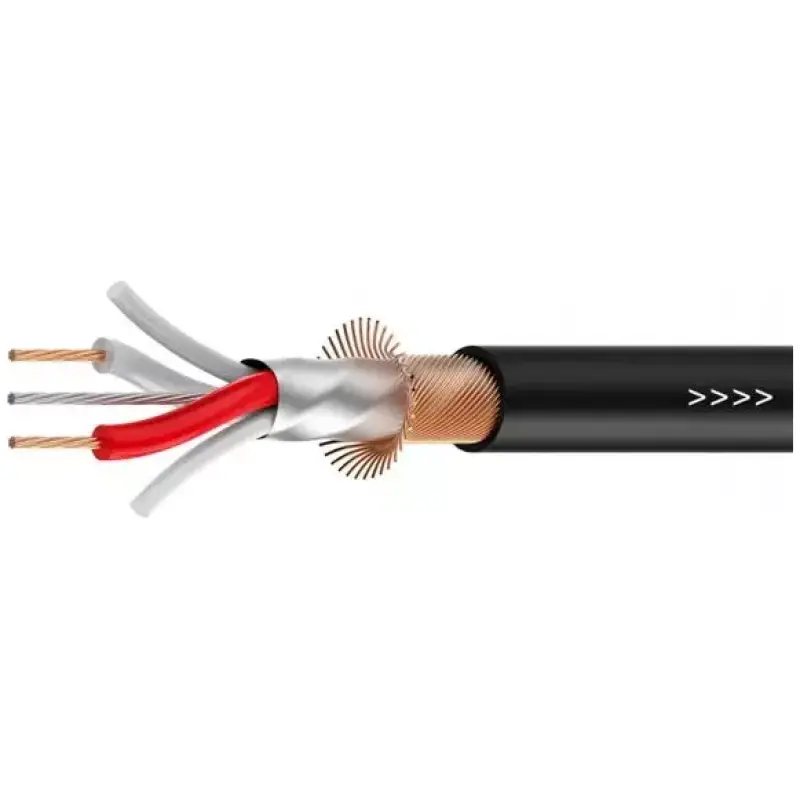

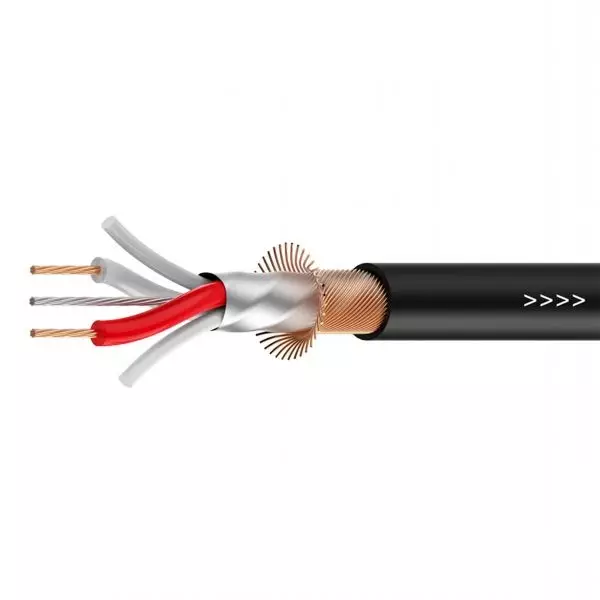

Roxtone – 100M Dmx Cable Hq Black

Optimum shielding with dense copper spiral shielding + AL/PT-foil. Small diameter, thus suitable for use with RCA-connectors.

Features:

• Studio patch cabling
• Control of lighting, scanner units, and displays
• Permanent installation

Specifications:

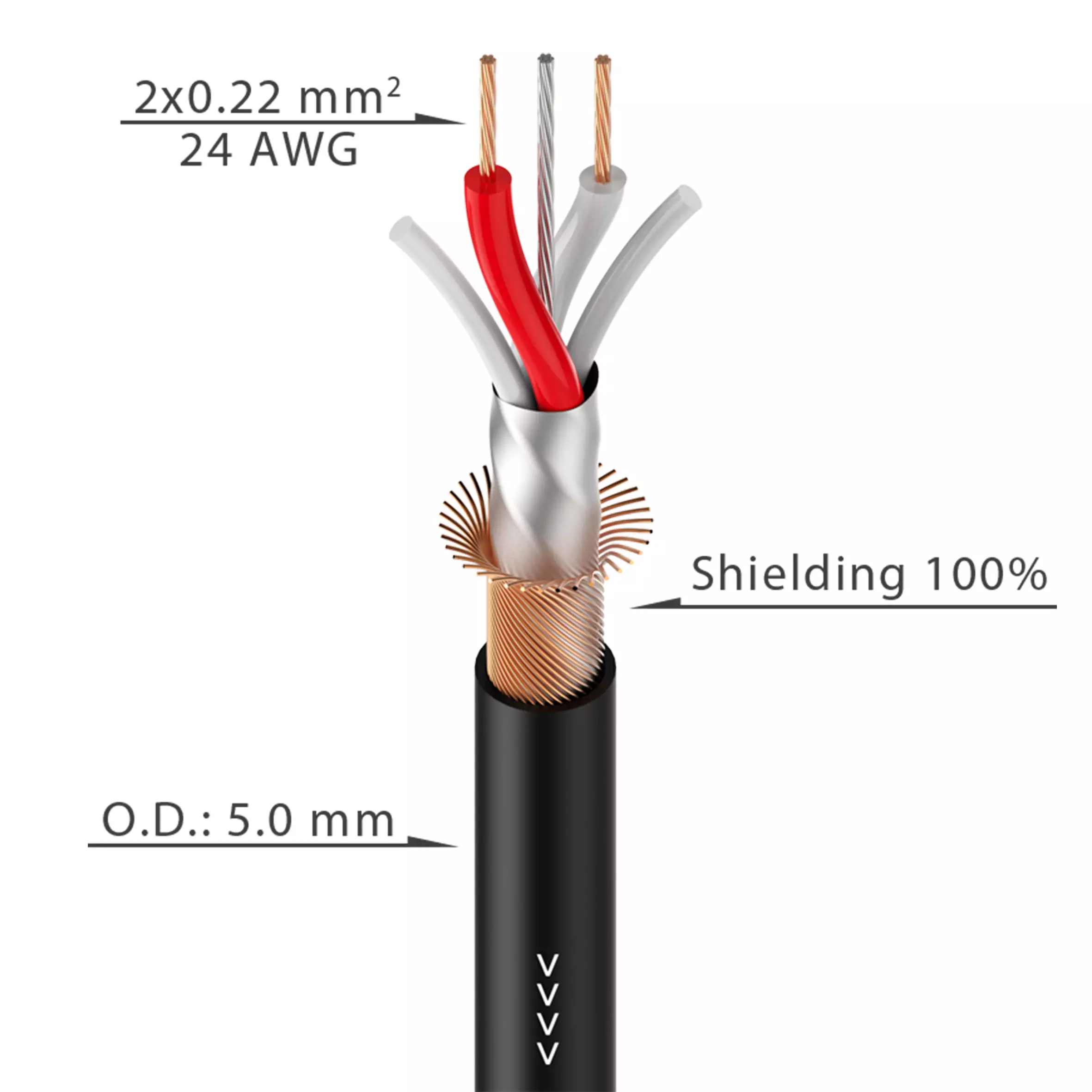

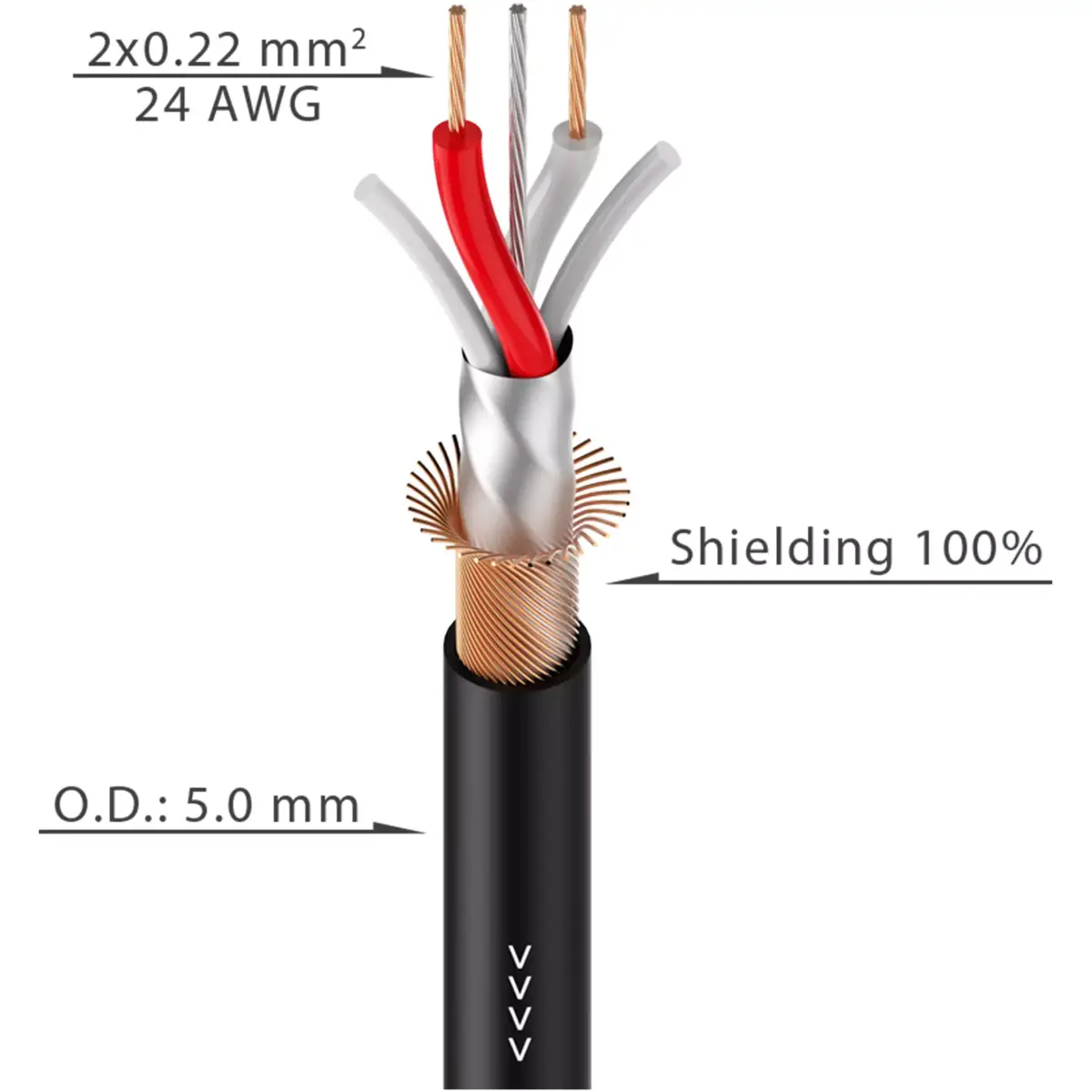

• Jacket, diameter: PVC 5,0 mm
• AWG: 24
• No. of inner conductors: 2 x 0,22 mm²
• Copper strand per conductor: 7 x 0,20 mm
• Conductor insulation: PE 1,70 mm
• Drain Wire: Tin plated copper 7 x 0,18 mm
• Shielding: Copper spiral shielding with 80 x 0,10 mm + AL/PT-foil+PE filler
• Shielding factor: 100 %
• Temperature range: min. -20 °C
• Temperature range: max. 85 °C
• Packaging: 100/300 m roll
