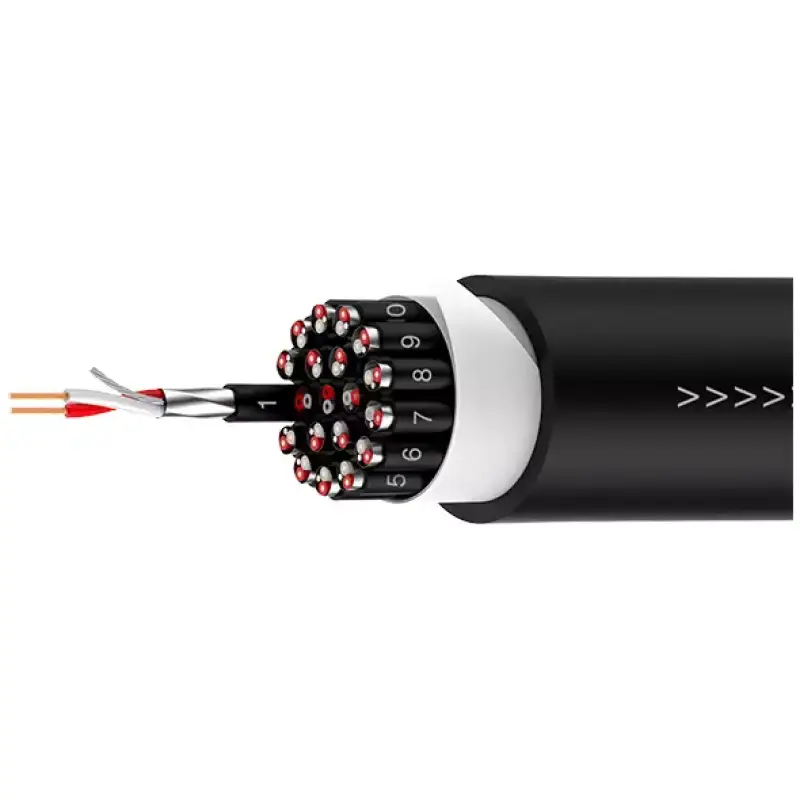

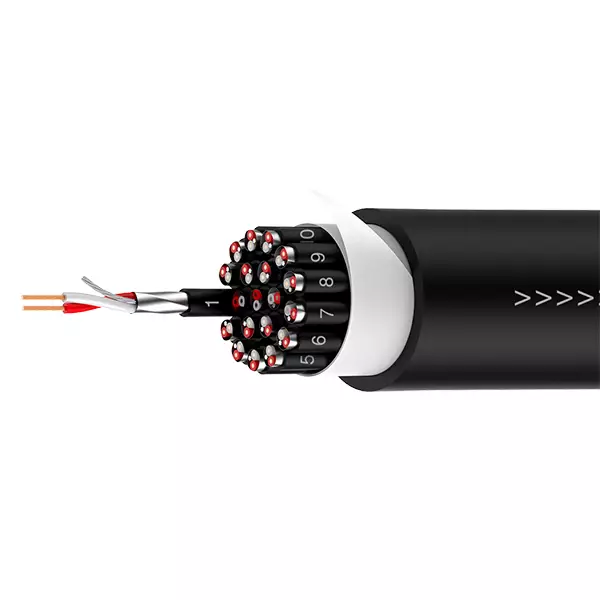

Roxtone – 20 Way Multicore Audio Cable

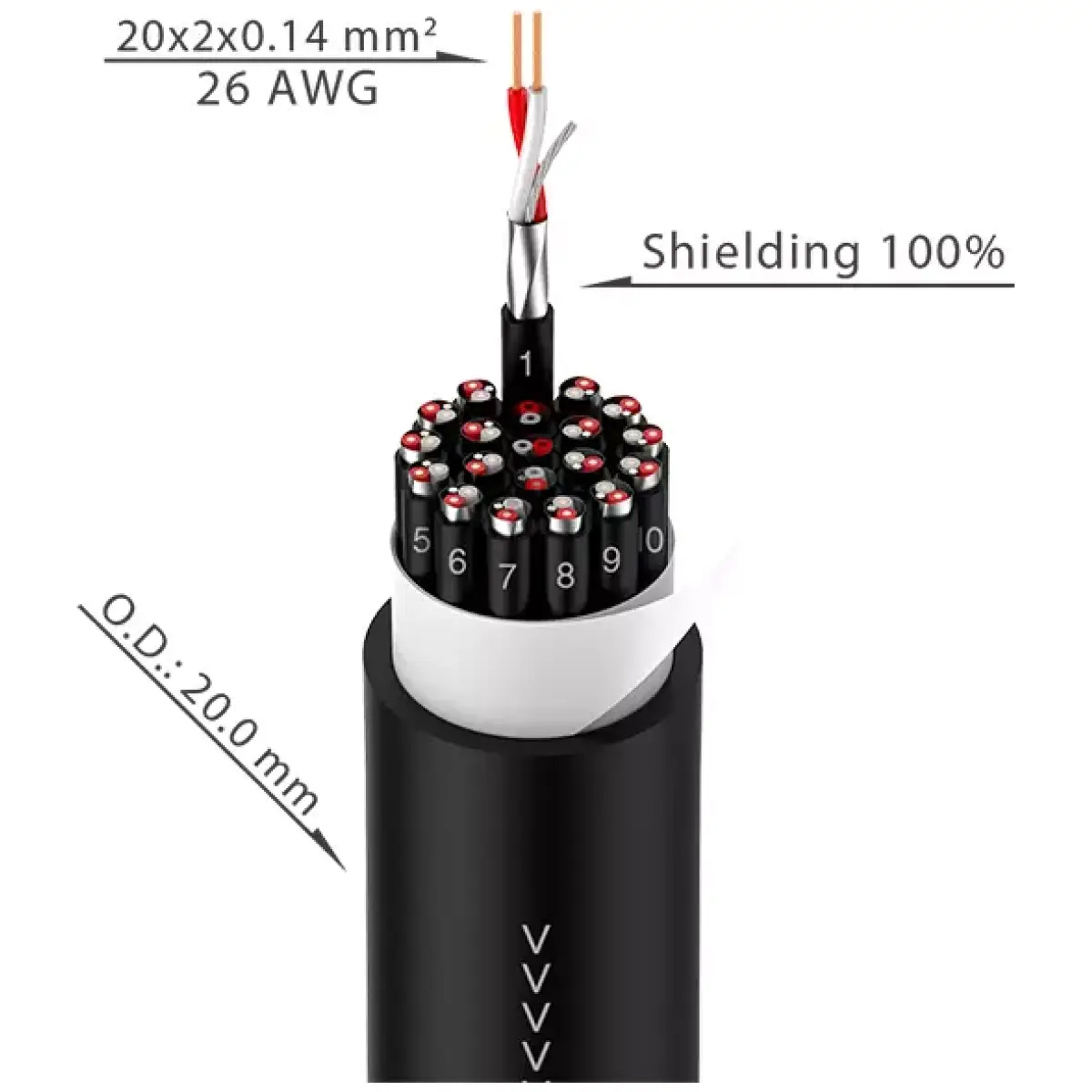

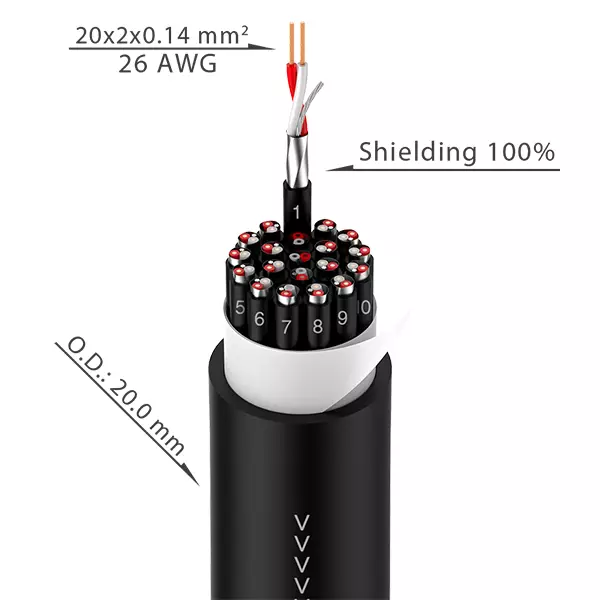

Multicore audio cable – 26AWG – 12 x 2 x 0,14mm²

Features:

• Each pair is individually insulated with black and number-printed PVC jacket
• Excellent to work with due to the use of a special AL/PT-foil
• Flexible due to the special wire construction
• Good shielding due to the overall and individual wire pair shielding

Specifications:

• PVC jacket, diameter: 18 mm
• Cond. PVC jacket,diameter: 3,0mm
• AWG: 26
• No. of inner conductors: 20 x 2 x 0.14 mm²
• Copper strand per conductor: 18 x 0,10 mm
• Conductor insulation: PE 1,1 mm
• Shielding: AL/PT-foil + drain wire 7 x 0,18 mm tin plated copper
• Shielding factor: 100 %
• Temperature range: min. -20 °C
• Temperature range: max. 70 °C
