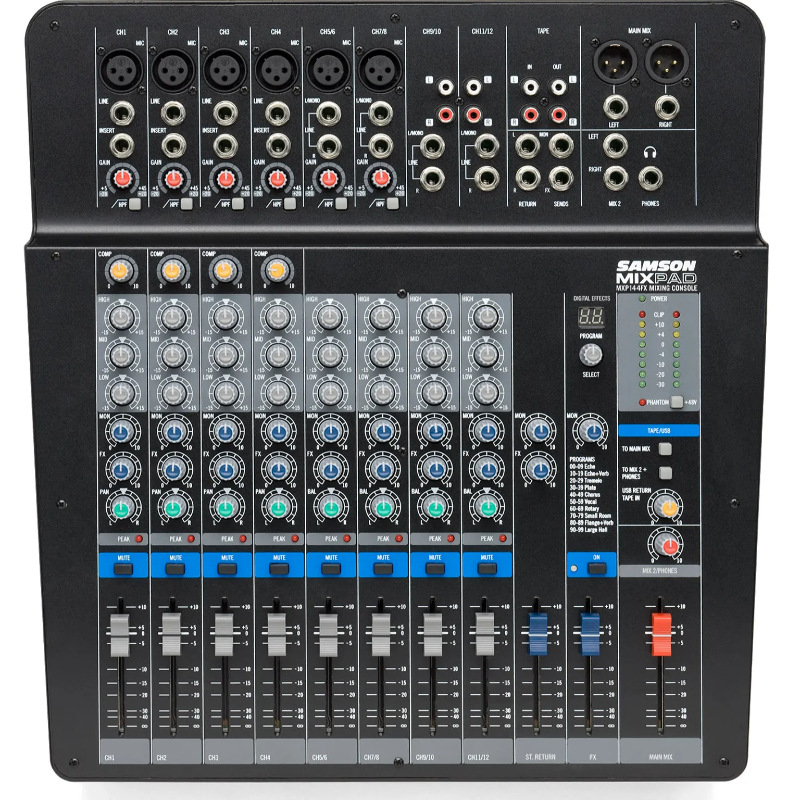

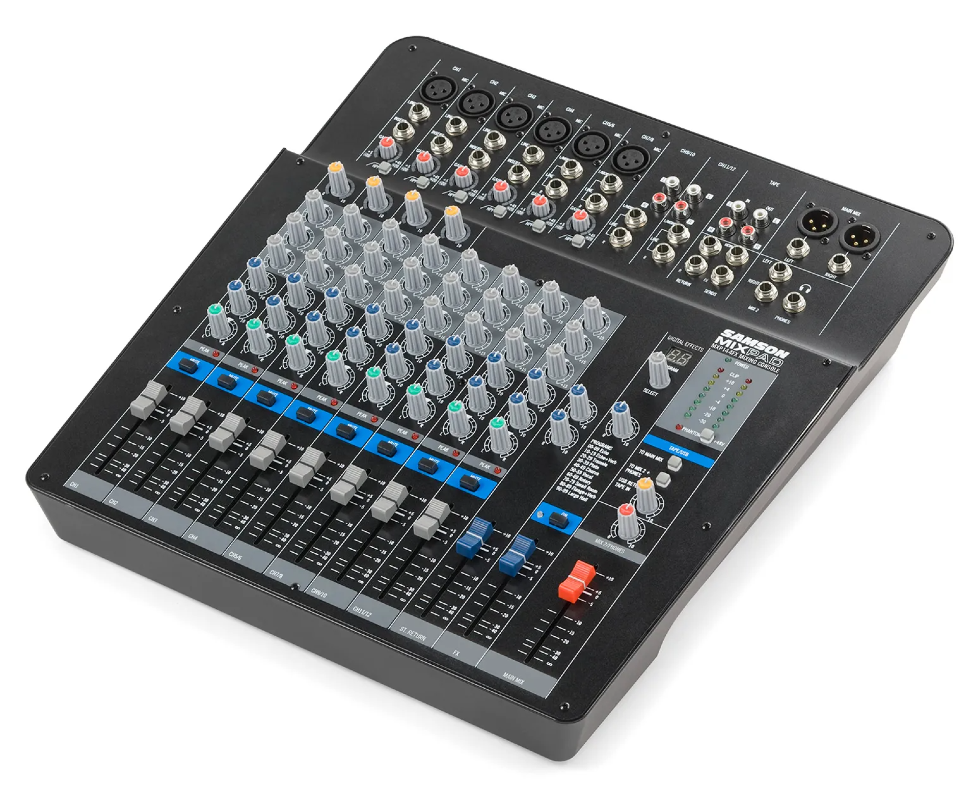

Samson SAMS-MXP 144FX 14-Input Analog Stereo Mixer With Effects And USB

The Samson MXP144FX is a professional 14-input analog stereo mixer offering clean sound, intuitive operation, and built-in digital effects for live performances, recording, and multimedia applications. It features high-quality mic preamps, 3-band EQ on all mono channels, 24-bit digital effects, and USB connectivity for direct recording or playback with your computer.

Compact yet powerful, the MXP144FX is perfect for musicians, bands, houses of worship, and small studios that need flexible routing, crystal-clear audio, and reliable performance in one versatile console.

SPECIFICATIONS
• Mixer type: Analog stereo mixer with digital effects and USB interface
• Total inputs: 14 channels
• Mic inputs: 8 × XLR with +48V phantom power
• Line inputs: 14 × ¼″ TRS (balanced/unbalanced)
• Stereo inputs: 3 × stereo line channels (¼″ TRS)
• EQ: 3-band EQ (High, Mid, Low) on all mono channels
• Aux sends: 1 pre/post switchable auxiliary send
• Effects: 24-bit DSP with 16 high-quality digital effects (reverb, delay, chorus, etc.)
• Faders: 60 mm smooth channel faders
• USB interface: 2-in/2-out (for playback and recording via PC/Mac)
• Outputs:
– Main stereo out (XLR + ¼″ TRS)
– Control room and headphone outputs
– Stereo RCA record out and playback in
• Phantom power: +48V global
• Power supply: Internal, 100–240V AC, 50/60 Hz
• Frequency response: 20 Hz – 20 kHz ±1.5 dB
• THD + N: <0.005% @ +4 dBu
• S/N ratio: >90 dB
• Dimensions: 37.5 × 37.0 × 9.5 cm
• Weight: ±3.8 kg

FEATURES
• 14-channel mixer with ultra-low-noise mic preamps
• 24-bit internal effects processor for polished live sound
• USB I/O for direct recording/playback with DAWs
• 3-band EQ on mono channels for precise tone shaping
• +48V phantom power for condenser microphones
• High-headroom design ensures clean, clear mix output
• Compact metal chassis for stage, studio, or install use
