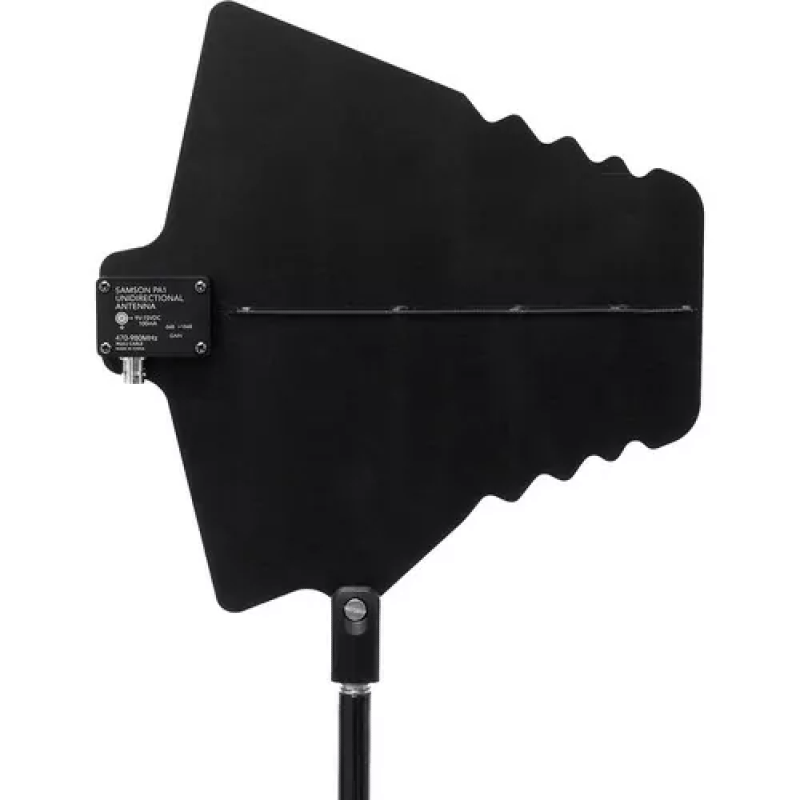

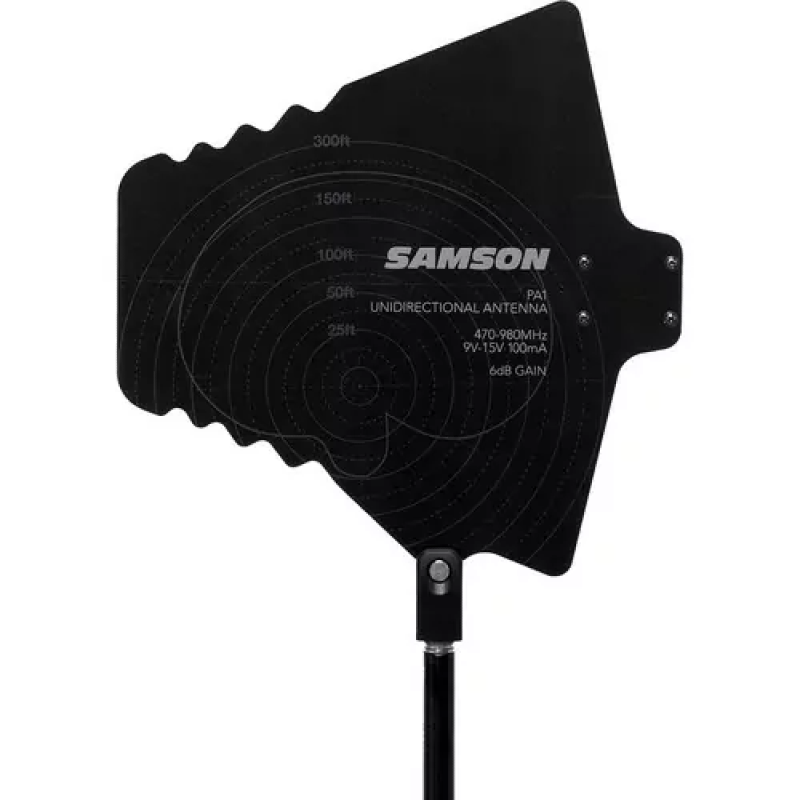

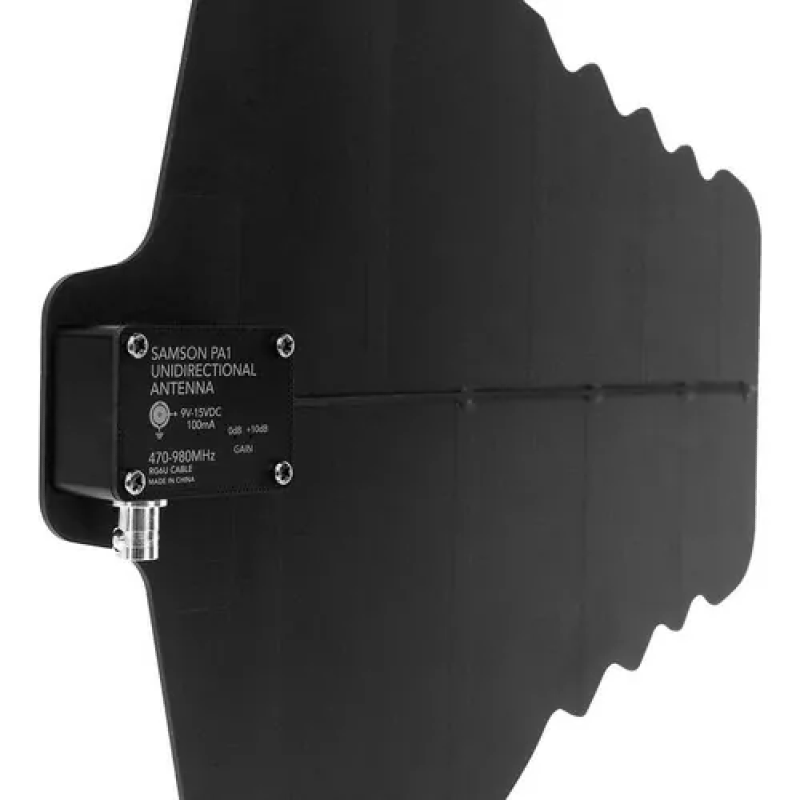

Samson SAMW-PA1 Active Unidirectional Antennas (Pair)

The Samson PA1 is a pair of active unidirectional antennas designed to extend the range and improve the reception of Samson wireless microphone systems. Engineered for professional stage, studio, and installation use, these antennas offer superior signal clarity and reduced dropouts by focusing the pickup pattern in a specific direction. Each antenna includes built-in amplification to compensate for cable loss and enhance wireless performance, even in complex RF environments.

Key Features:

• Pair of active directional antennas for enhanced wireless signal reception
• Ideal for use with Samson wireless systems (UHF and multi-channel receivers)
• Built-in amplifier for extended range and reduced signal loss
• BNC connectors for easy integration with antenna distribution systems
• Adjustable gain to optimize performance in different environments
• Mounting hardware included for rack or stand installation
• Designed to minimize interference and improve reliability in high-RF areas

Specifications:

• Type: Active unidirectional antenna
• Frequency Range: 470–960 MHz (UHF)
• Gain: Adjustable, typically up to +6 dB
• Connector Type: BNC
• Power Requirement: 9–12 V DC (phantom power via coaxial cable)
• Polarization: Linear
• Impedance: 50 Ω
• Operating Temperature: 0°C – 40°C
