Highlights
Now also available in a matte-black finish
Sophisticated class-A design and specially-selected high-grade FETs for a signal boost without coloration
Vastly lower output impedance and nearly half the noise of anything else on the market to raise any mic level with clarity
Always a consistent +28dB regardless of the connected load to enable mics with a lower output
Provides improved level to a preamp – all without adding noise or coloration, bringing new life to your favorite passive microphones

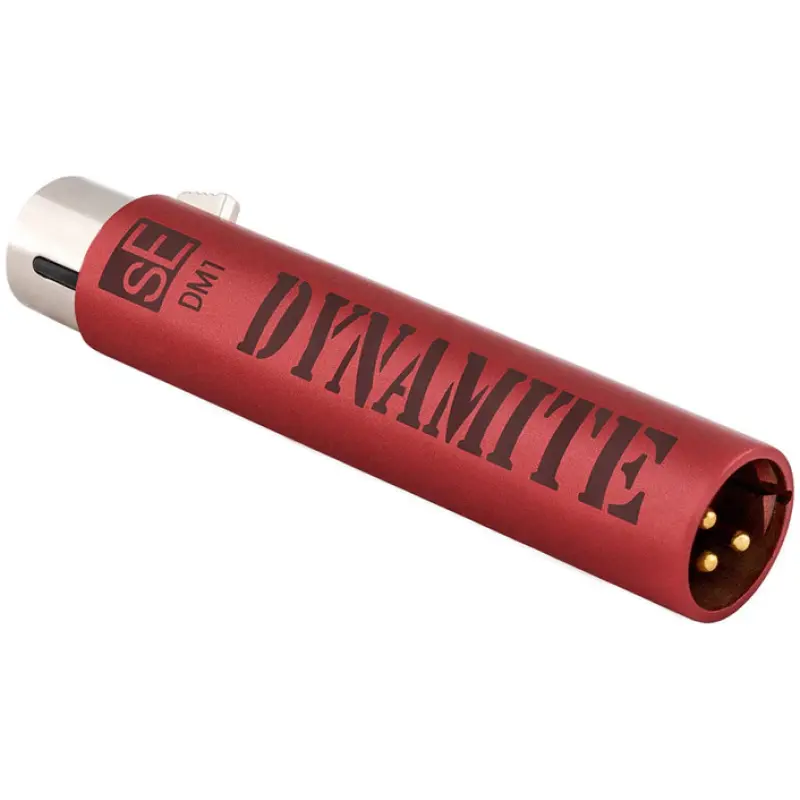

All-metal housing and premium finish ensures the DM1 can handle demanding on-tour or recording/broadcast studio lifestyles
Gold plated XLR connector for loss-free reliable signal connection
Perfect for podcasting, recording, or live sound
Specs
Power
Electrical Impedance135 Ohms
Recommended Load Impedance>1K Ohms
Connectivity3-pin male/female XLR connector
Powering 48V Phantom Power (P48 according to IEC 61938)
Sound
Frequency range 10 Hz – 120 kHz (-0.3 dB)
Gain28 dB
Current consumption 3.0 mA
Max output level (0.5% THD)8.3 dBV (2.6 V)
Output noise level9 µV (a-weighted)
Input impedance 10k Ohms
Dimensions
Preamp diameter 19 mm (0.75 in.)
Preamp length 96 mm (3.78 in.)
Preamp weight 96 mm (3.78 in.)
What’s in the box
DM1
sE Logo Sticker
User manual with warranty card
