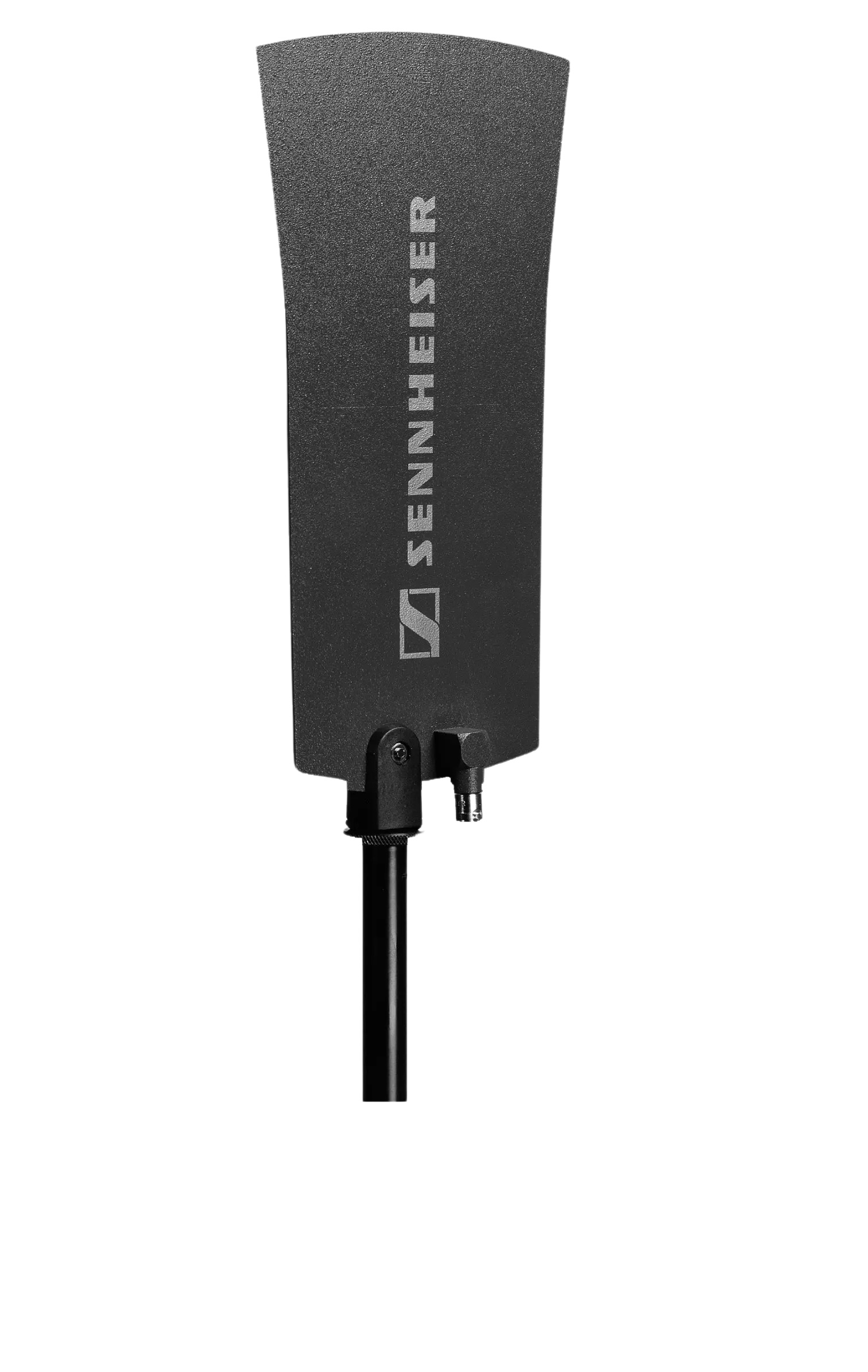

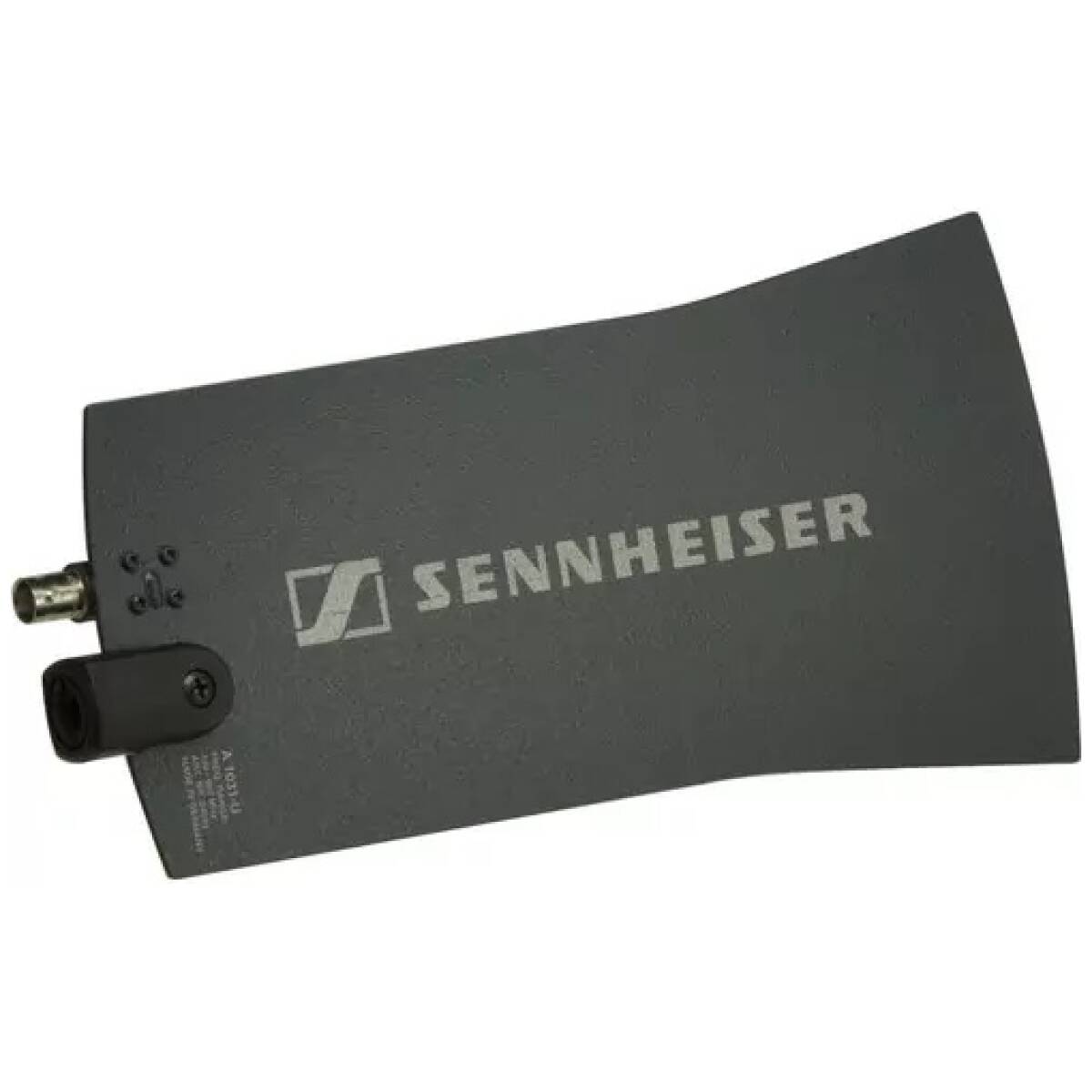

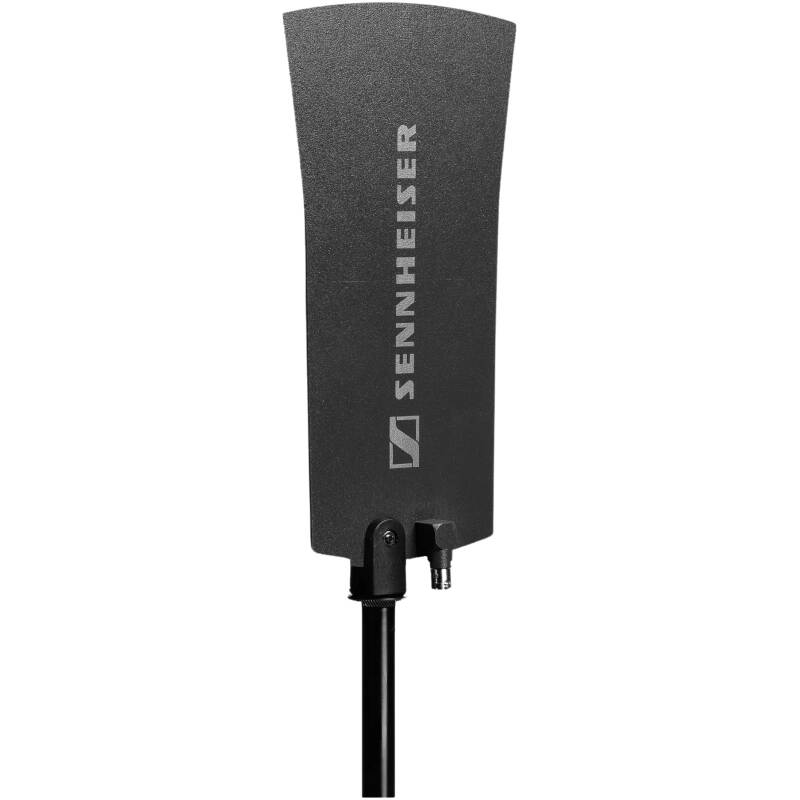

The Sennheiser A 1031-U is a passive omnidirectional UHF antenna designed for both transmitting and receiving applications. It provides full 360-degree coverage, making it ideal for environments where multiple wireless microphones or bodypack transmitters move unpredictably. Its wideband design supports 430–960 MHz, covering all common UHF wireless mic bands. The A 1031-U mounts easily on standard microphone stands and connects via a 50-ohm BNC socket.
Key Features
-
Wideband UHF operation: 430–960 MHz
-
Full 360° omnidirectional radiation pattern
-
Passive design (no power required)
-
Standard 50-ohm BNC connector
-
Suitable for both transmission and reception
-
Mounts on standard 5/8-inch and 3/8-inch mic stand threads
-
Improves RF stability and reduces dropouts compared to stock antennas
-
Ideal for fixed installations, live sound, broadcast and rental systems
Technical Specifications
-
Frequency Range: 430–960 MHz
-
Polar Pattern: Omnidirectional
-
Gain: 0 dB (unity)
-
Impedance: 50 ohms
-
Connector: BNC female
-
Maximum RF Input Power: 10 W
-
Mounting: 5/8-inch thread with 3/8-inch adapter
-
Operating Temperature: –20 °C to +80 °C
