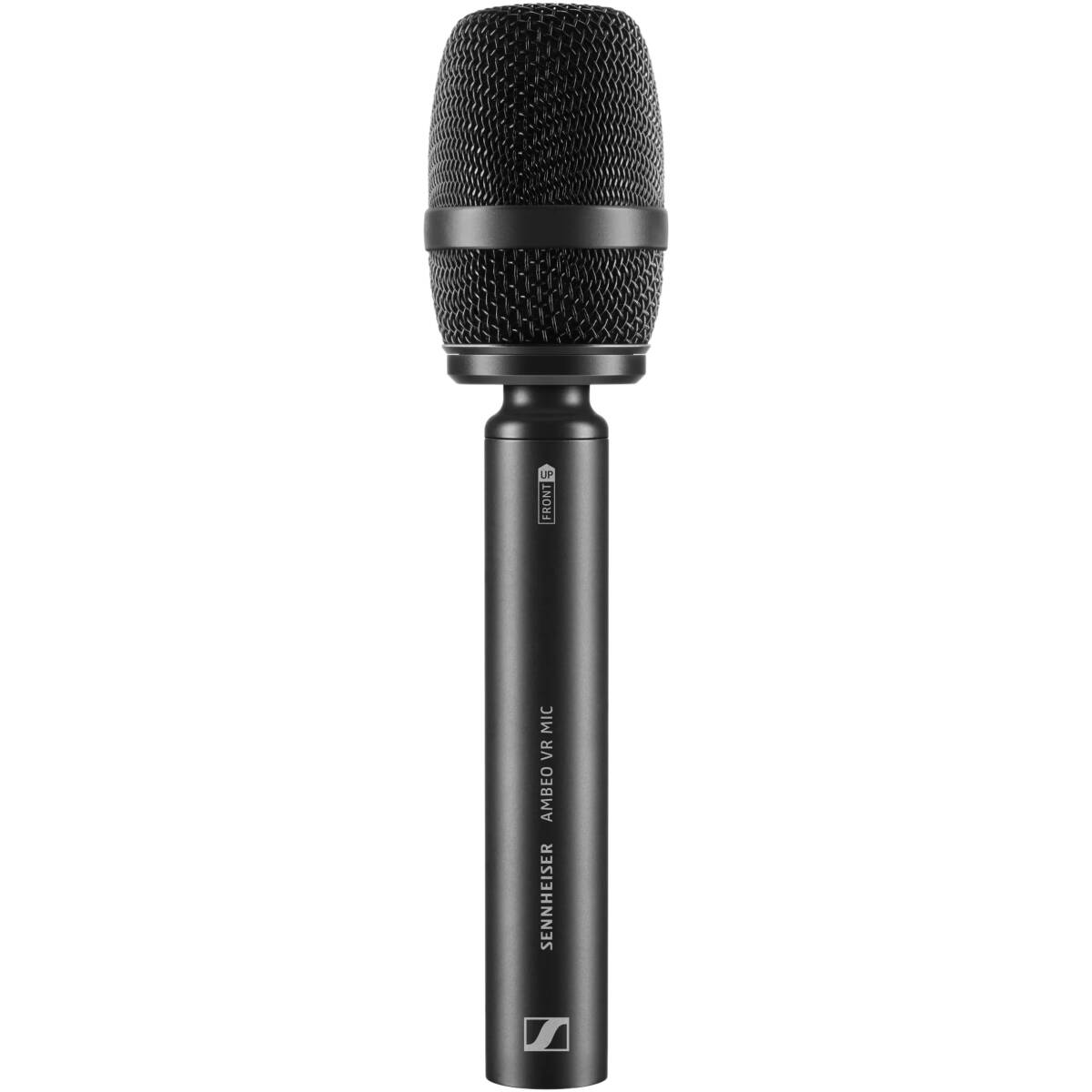

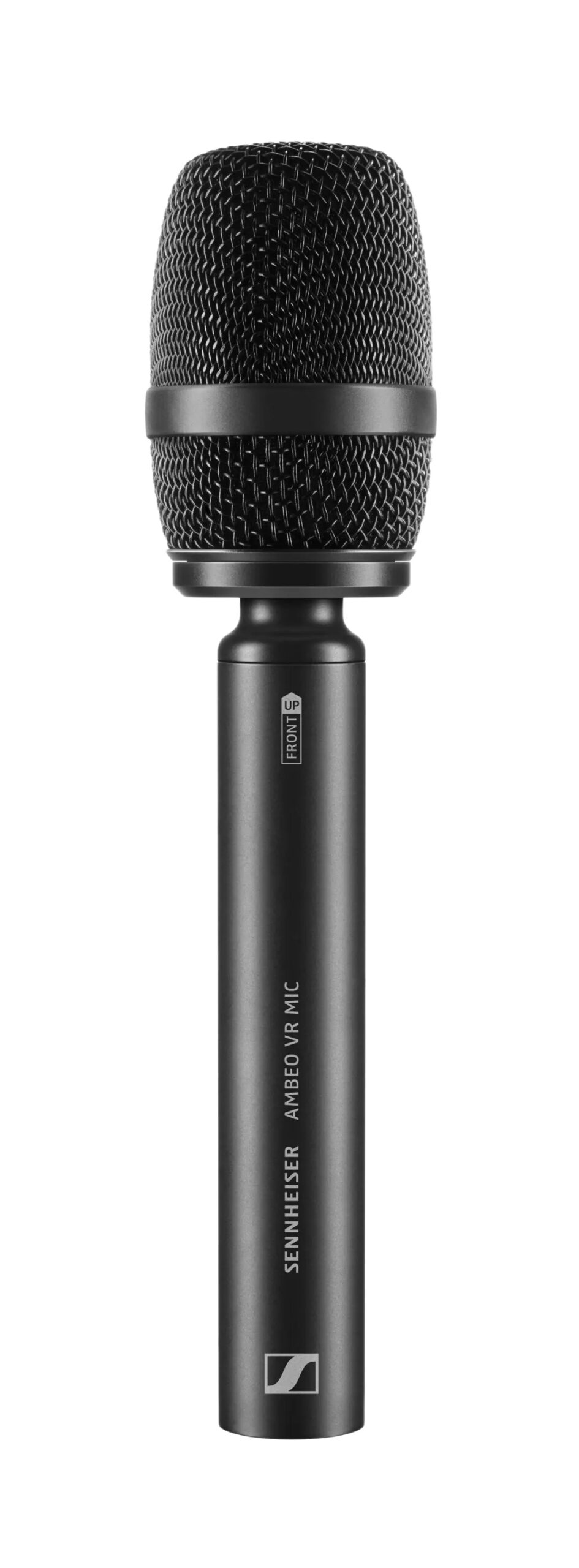

The Sennheiser AMBEO VR Mic is a professional four-capsule ambisonic microphone designed for immersive 3D audio capture. It records in A-format using four matched KE 14 cardioid capsules arranged in a tetrahedral layout. Using the included software converter, the A-format channels can be transformed into B-format (W, X, Y, Z), which is required for VR, 360° video, spatial audio, game audio, and other immersive production workflows.

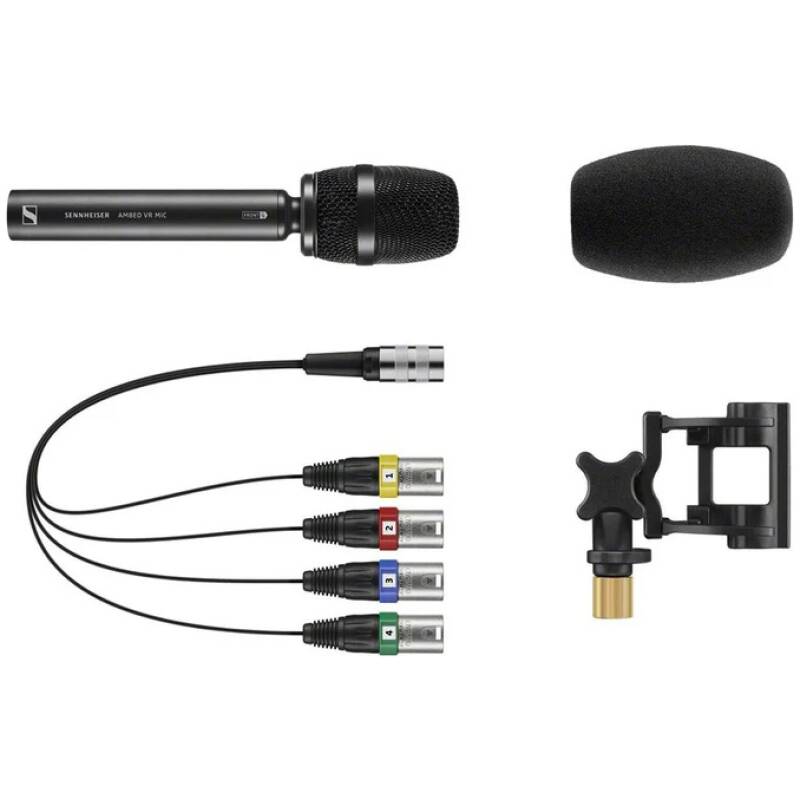

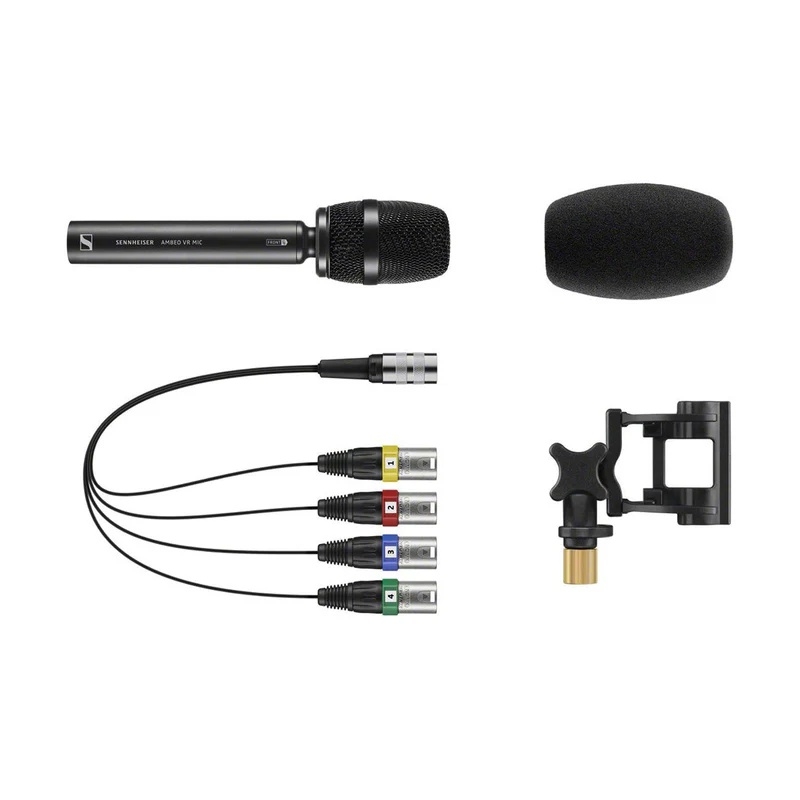

The microphone includes a Rycote suspension mount, a balanced 4-XLR split cable, windshield, and accessories, making it suitable for studio, broadcast, field and VR production environments.
Key Features
-

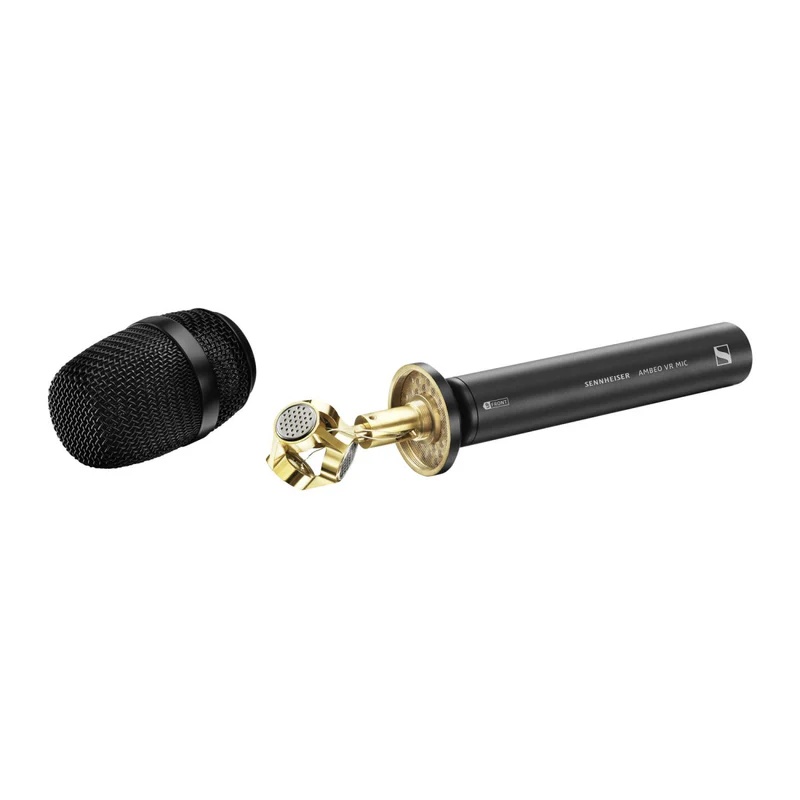

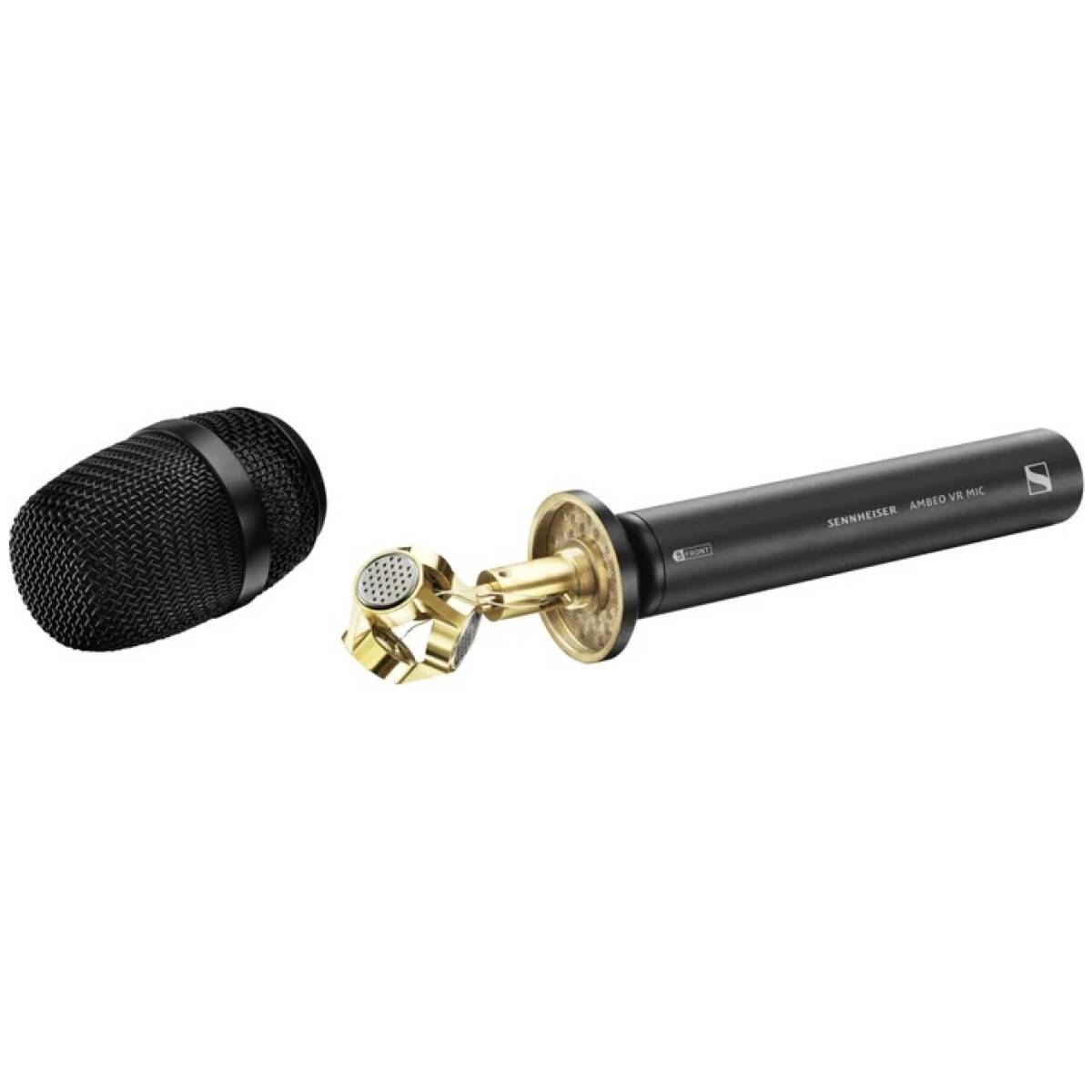

Four matched KE 14 condenser capsules in tetrahedral configuration
-
Full-sphere audio capture for VR, 360° and spatial audio production
-
A-format output with included software converter for B-format workflows
-
Rycote suspension mount included to reduce handling noise
-
4-channel balanced XLR split cable included
-
Foam windshield included for outdoor or location recording
-
Precision-matched capsules for accurate full-sphere imaging
-
Built for portable use, studio work or on-set recording
Technical Specifications
-
Transducer Type: Pre-polarised condenser
-
Capsule Configuration: Four matched cardioid capsules
-
Frequency Response: 20 Hz – 20 kHz
-
Sensitivity: Approximately 31 mV/Pa
-
Nominal Impedance: Approx. 200 ohms
-
Minimum Terminating Impedance: 1,000 ohms
-
Equivalent Noise Level: Approximately 18 dB(A)
-
Maximum SPL (1% THD): Approximately 130 dB
-
Power Requirements: Four channels of 48 V phantom power (approx. 3.5 mA each)
