The Sennheiser EM-XSW 1-B is a UHF wireless receiver from the XS Wireless 1 series, designed for clear, reliable, and easy-to-use wireless performance. It operates in the B-band (614–638 MHz) and uses wideband FM modulation with a double-superheterodyne architecture for strong RF stability.
This receiver is ideal for live sound, corporate events, schools, churches, and performers needing dependable entry-level wireless audio.
Key Features
-
Operating frequency range: 614–638 MHz (B-band)
-
Wideband FM modulation
-
Double-superheterodyne receiver design for improved RF rejection and stability
-
Automatic frequency management and synchronisation
-
Up to 10 compatible channels (environment-dependent)
-
True antenna diversity for reduced dropouts
-

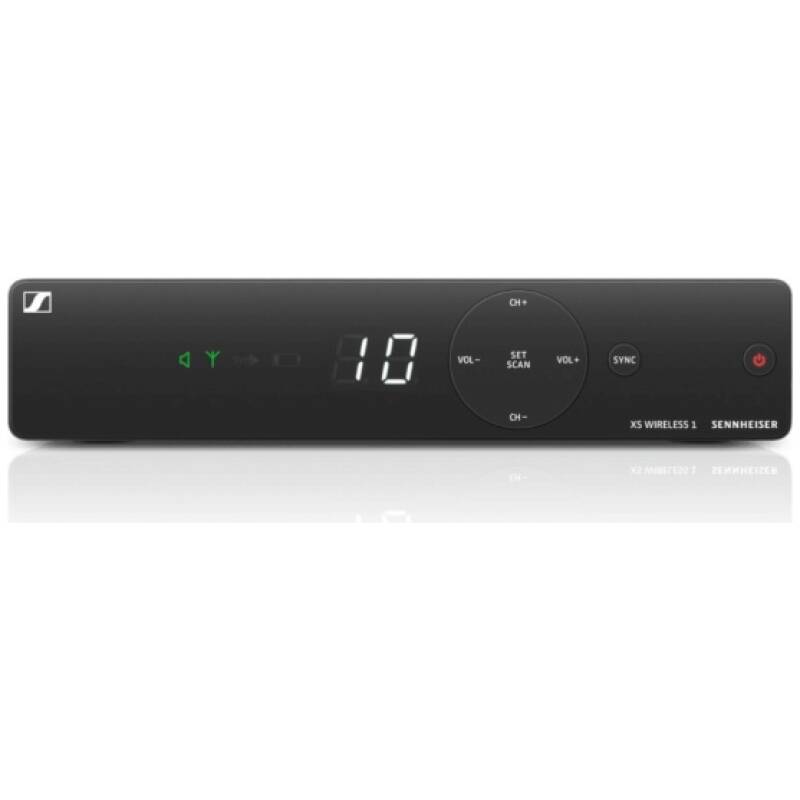

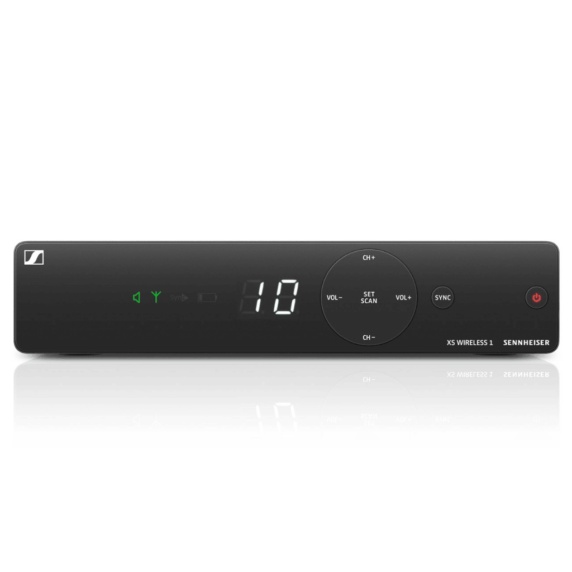

Simple front-panel controls for quick setup
-
Clear status indicators for audio, RF, and channel selection
-
Lightweight, durable housing suitable for fixed or portable setups
-
Compatible with XSW 1 handheld and bodypack transmitters (same band)
Technical Specifications
-

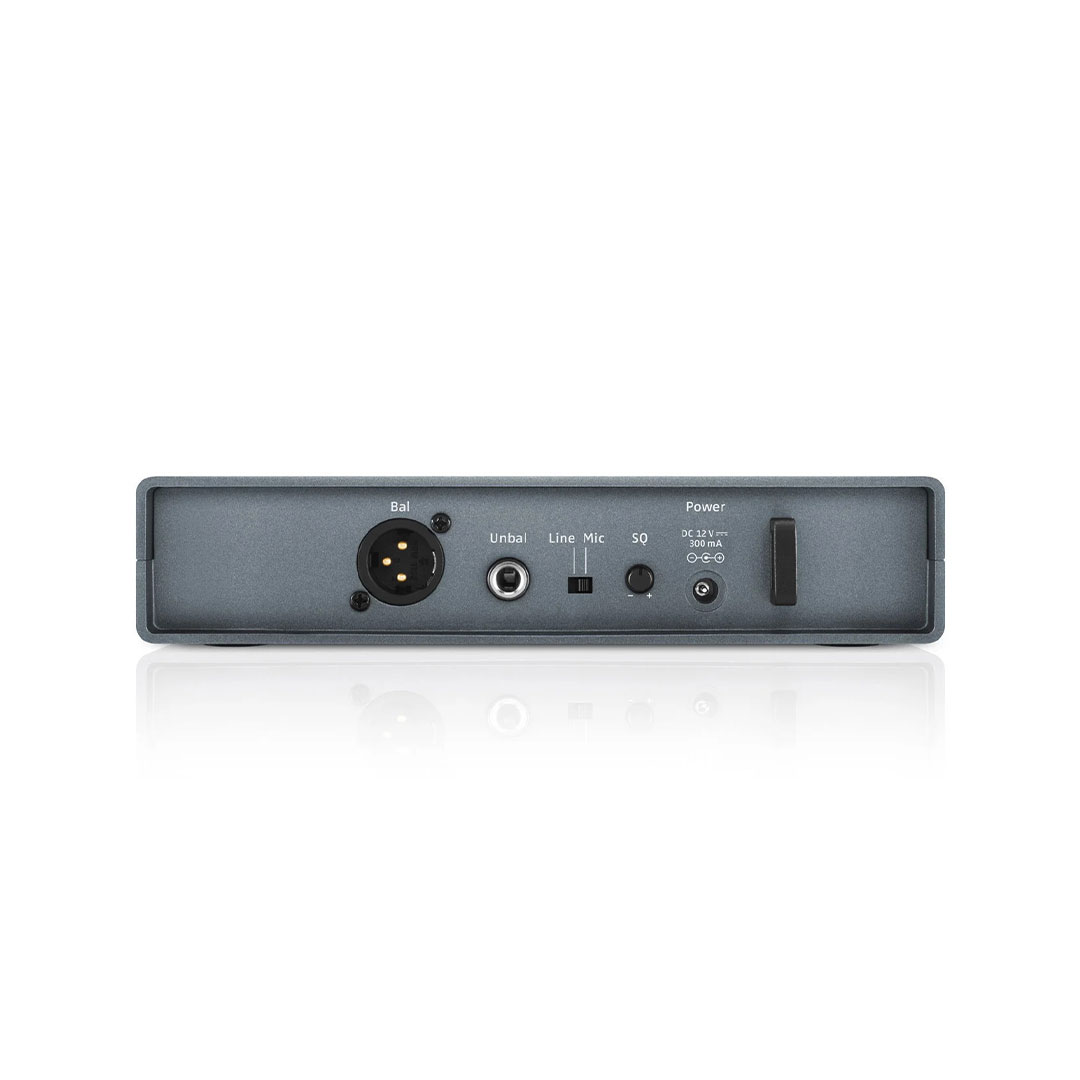

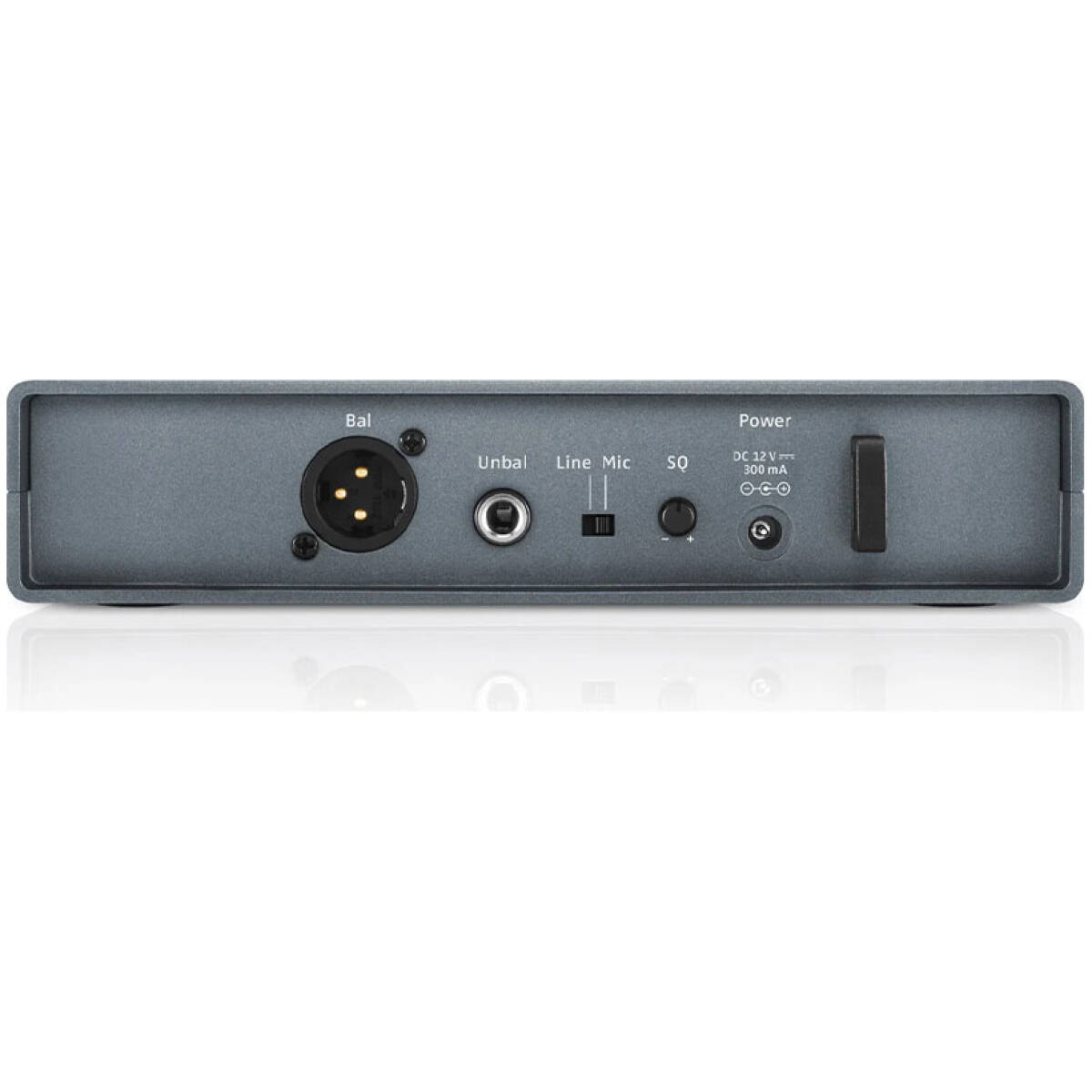

Audio outputs:
-
1 × balanced XLR output
-
1 × unbalanced 6.3 mm jack output
-
-
RF sensitivity: optimised for stable UHF reception in live environments
-
Frequency stability: supported by double-superheterodyne architecture
-
Power requirement: NT 12-5 CW external power supply (not battery-powered)
