The Sennheiser EW-D EM is the stationary digital RF receiver used in Evolution Wireless Digital (EW-D) microphone systems.
Operating in the 606.2–662 MHz band, it delivers low-latency 24-bit digital audio, excellent RF stability, and a clean, consistent signal — making it ideal for live sound, churches, corporate AV, schools, theatres, and production environments.
This is the receiver unit only, designed to pair with EW-D handheld or bodypack transmitters operating in the same frequency band.
Key Features
-
Operating frequency range: 606.2–662 MHz (S1-7 band)
-
Digital UHF transmission with 24-bit audio quality
-
Extremely low latency (around 1.9 ms)
-
56 MHz switching bandwidth
-
Automatic frequency coordination via Smart Assist App
-
Up to 90 compatible channels depending on RF environment
-
Stable digital transmission with no companding
-

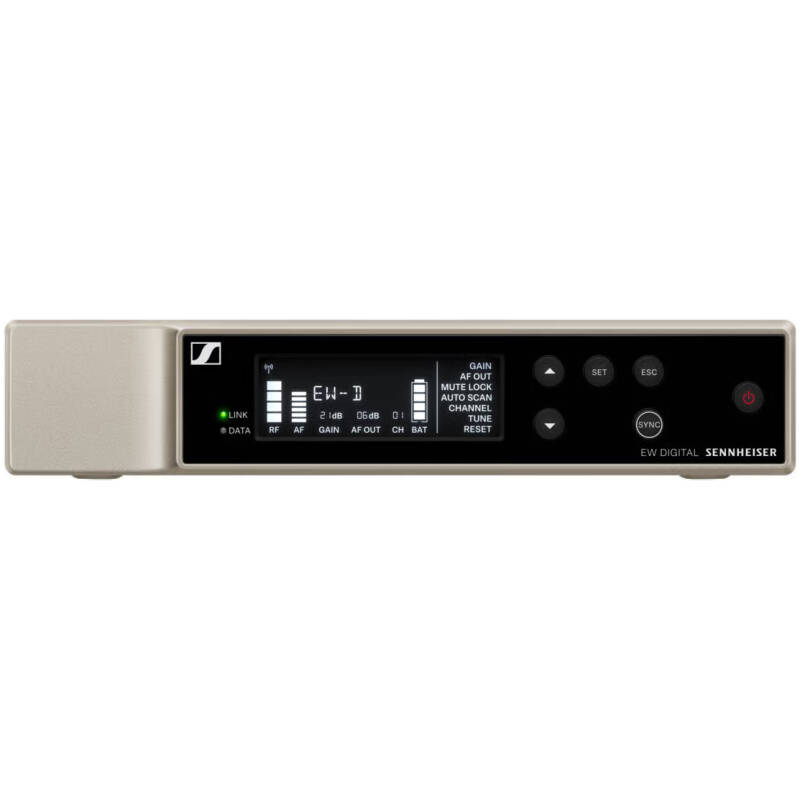

OLED display for clear reading in all environments
-
Metal housing suitable for racks, touring, and installations
-
Secure AES 256-bit encryption
-
Works with all EW-D handheld and bodypack transmitters in the same band
Technical Specifications
-

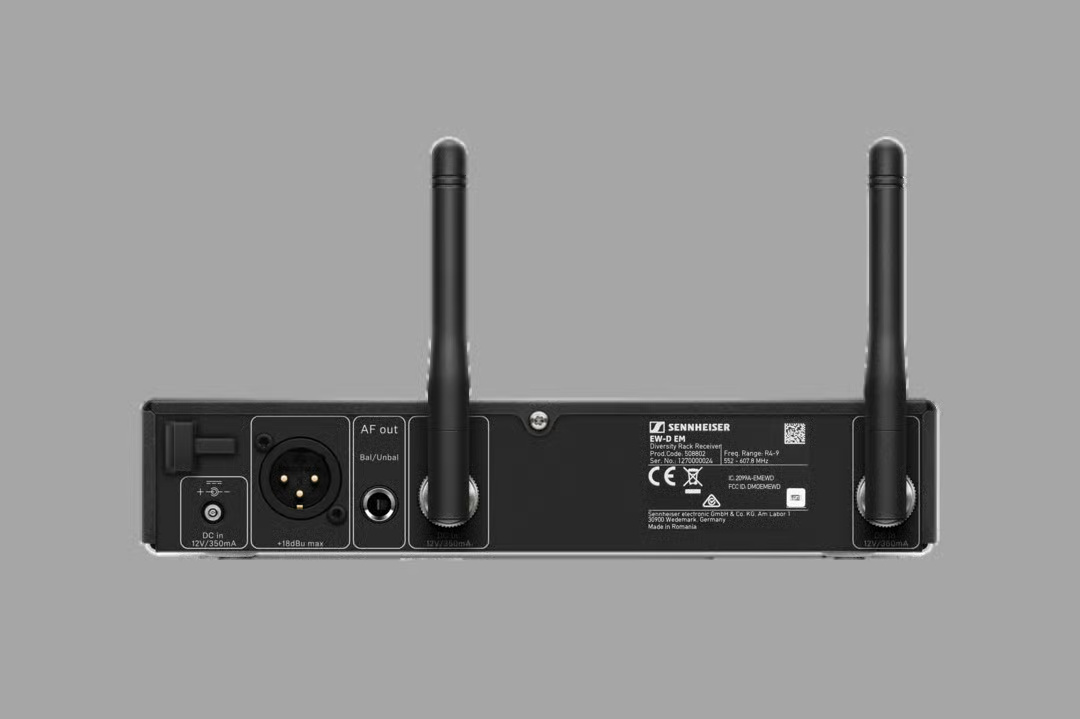

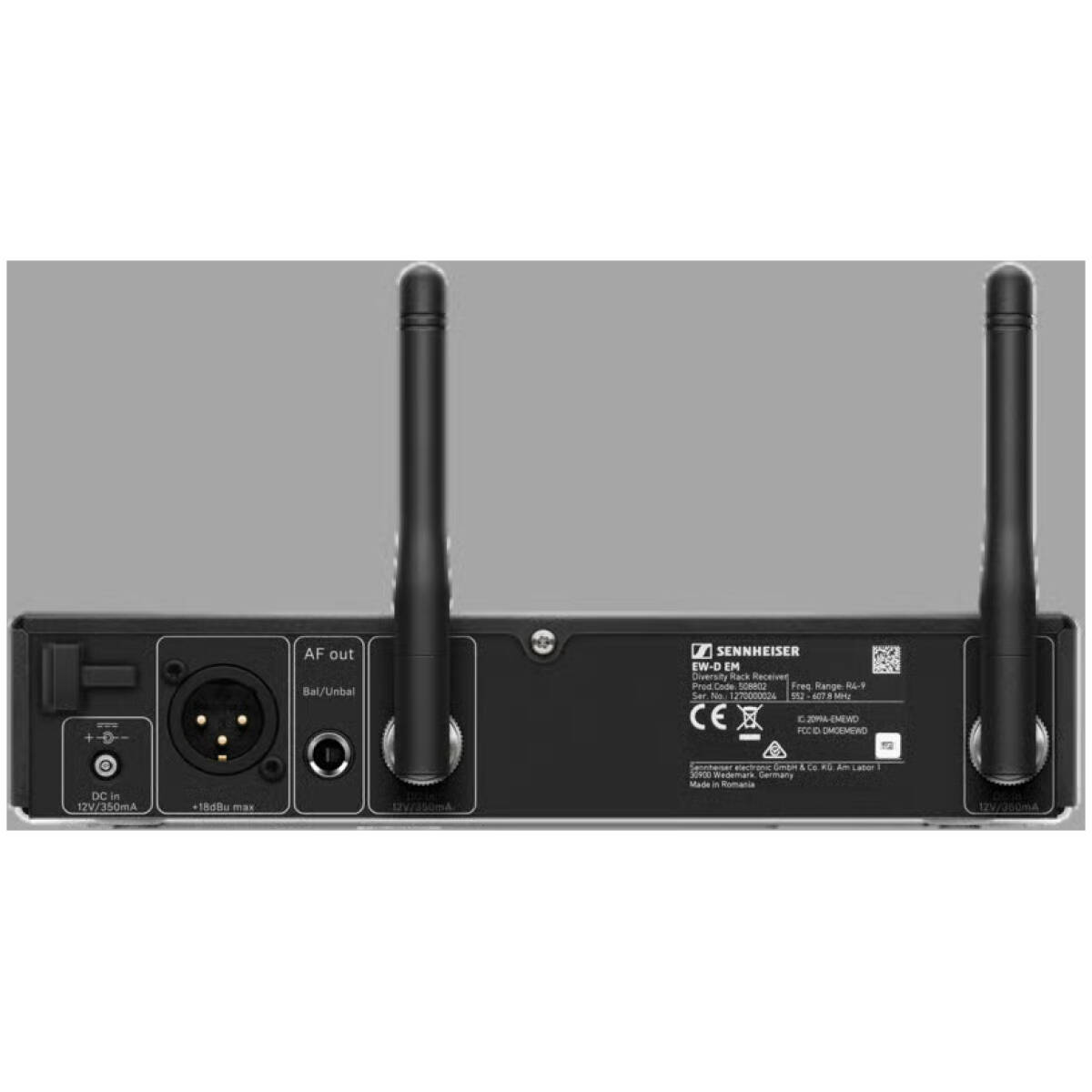

Audio outputs:
-
Balanced XLR
-
Unbalanced 6.3 mm jack
-
-
Frequency response: 20 Hz – 20 kHz
-
Antenna connections: 2 × BNC
