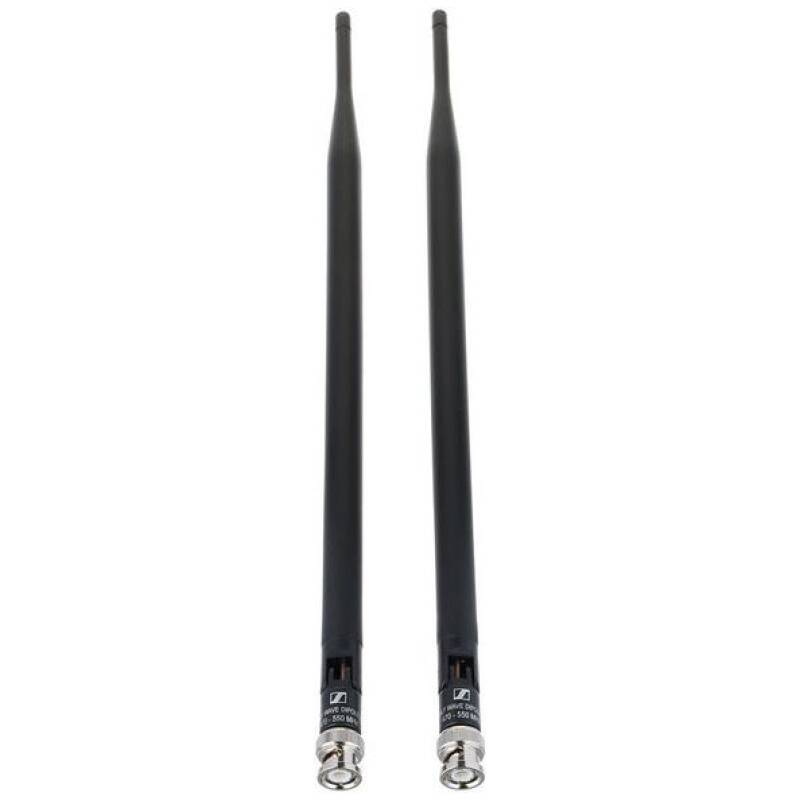

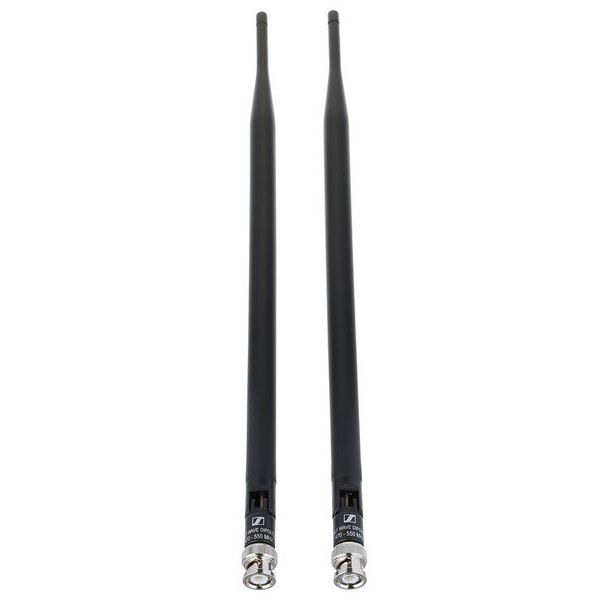

The Sennheiser Half-Wave Dipole (Q-Band) is a tuned antenna pair designed for wireless microphone receivers operating in the 470–550 MHz range. Compared to standard quarter-wave antennas, these half-wave rods offer improved reception stability, better range, and more consistent performance in congested RF environments. Each antenna mounts via a BNC swivel connector for easy positioning.
Key Features
-
Frequency range: 470–550 MHz (Q band)
-
Half-wave design for improved reception and stability
-
BNC male swivel connector
-
Typical gain: approximately +2 dBi
-
Impedance: 50 ohms
-
Return loss: approximately –10 dB
-
Radiation pattern: omnidirectional, vertically polarised
-
Length per antenna: approximately 344 mm (13.5 in)
-
Weight: approximately 48.6 g per antenna
Suitable Applications
-
Sennheiser wireless microphone receivers operating in the 470–550 MHz band
-
Stage, studio, rental, and fixed installation use
-
Improving RF signal stability and range compared to stock antennas
