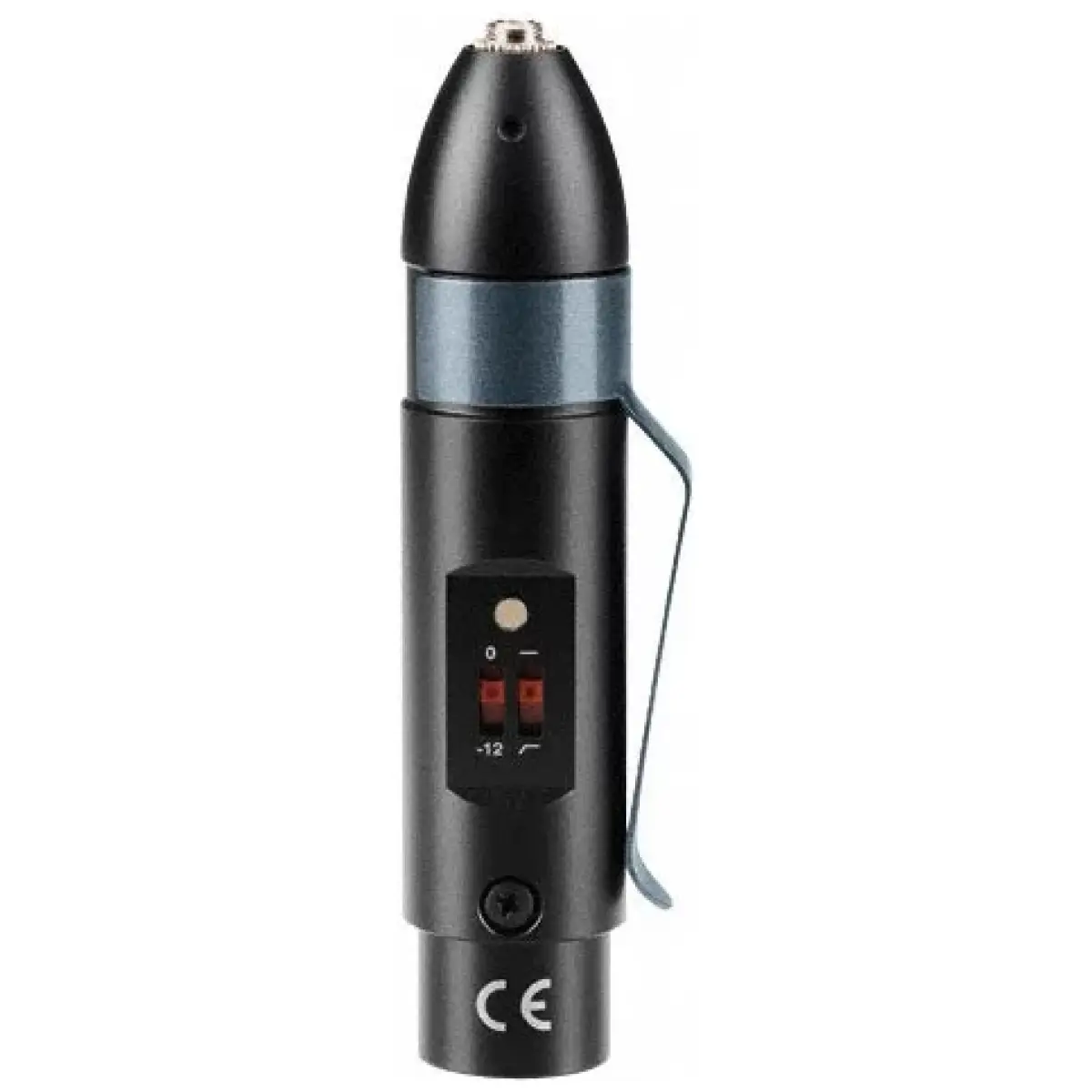

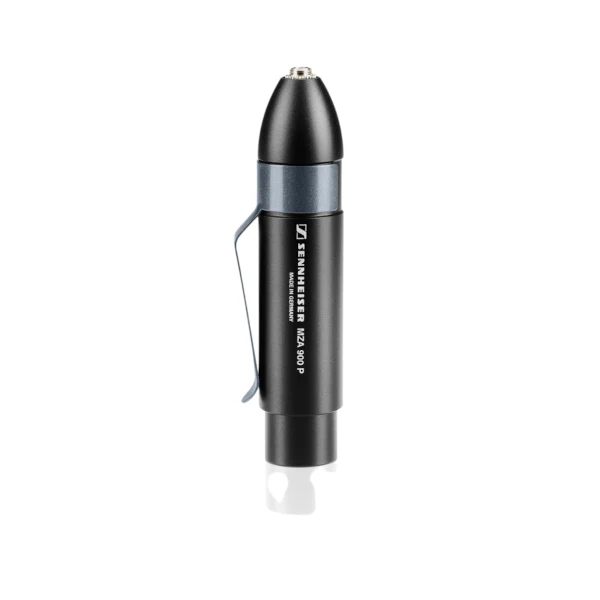

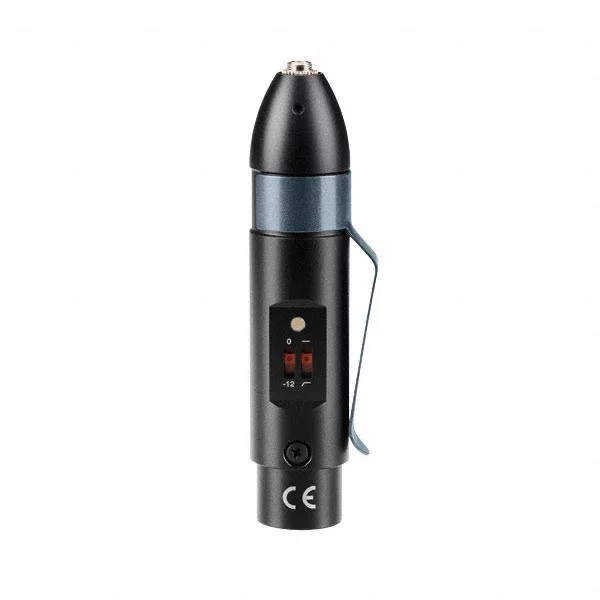

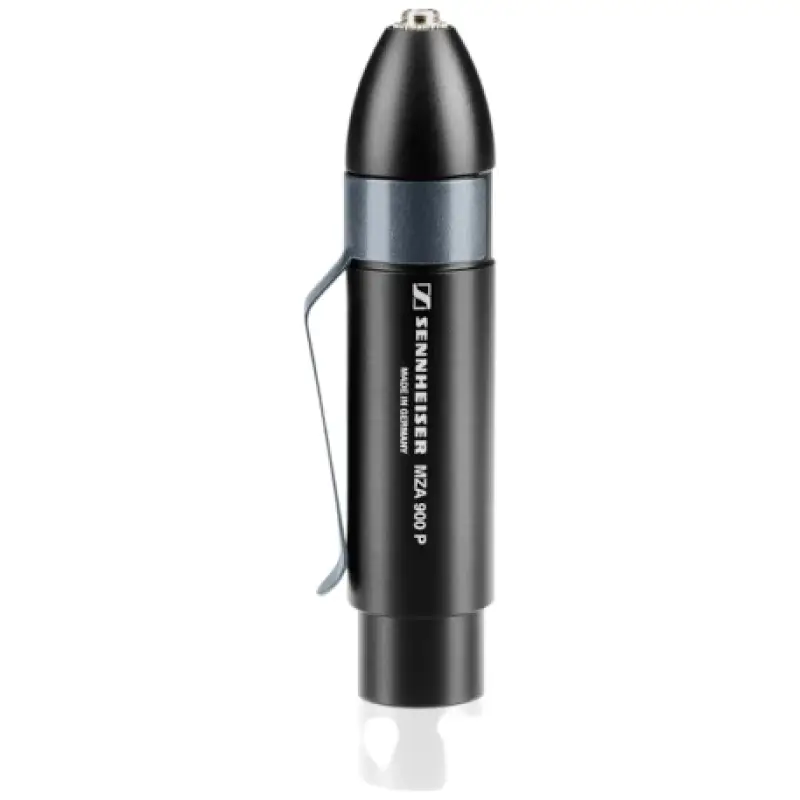

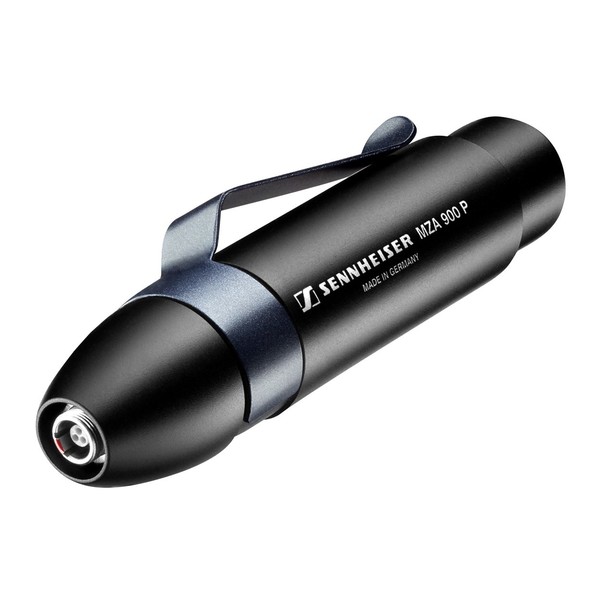

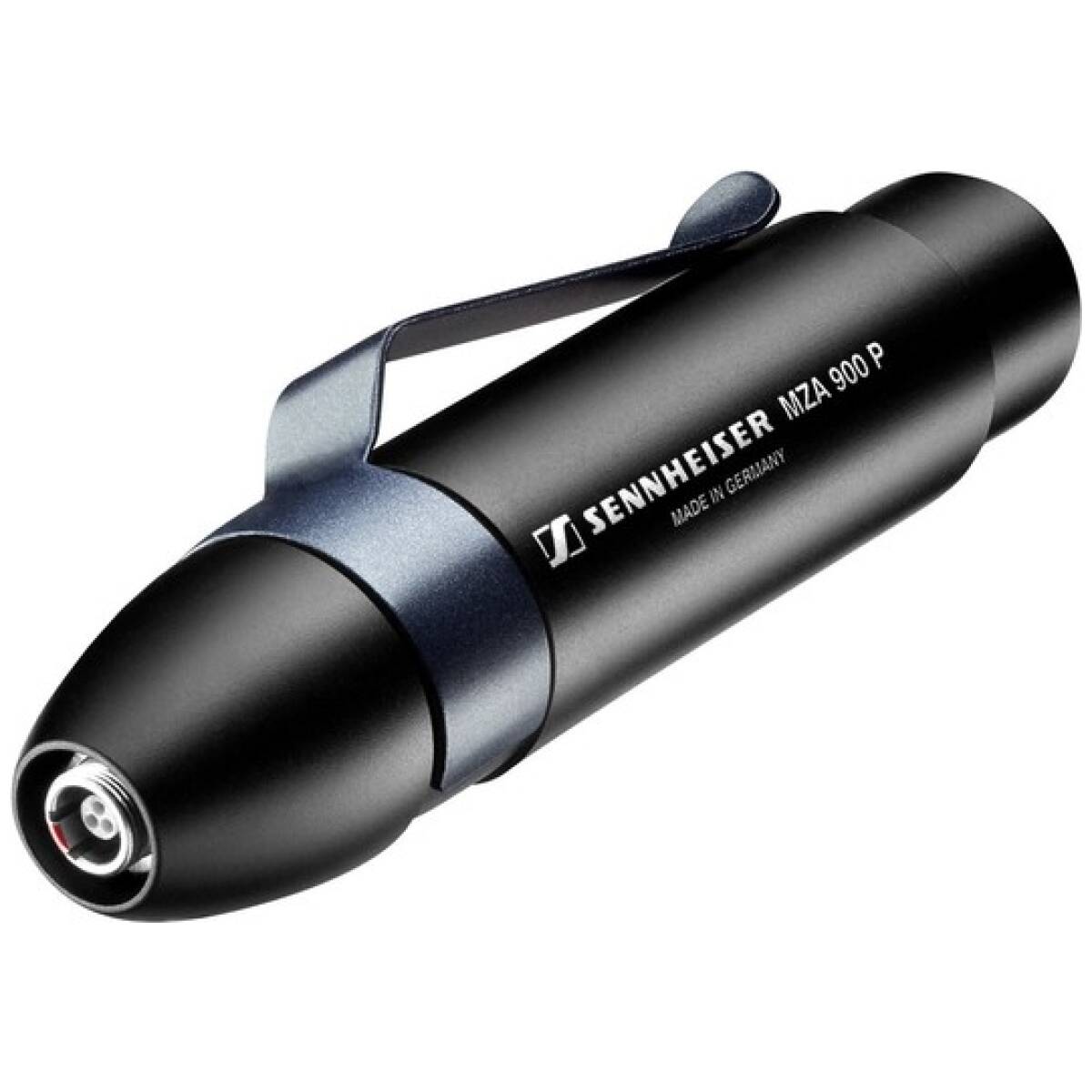

The Sennheiser MZA 900 P is a phantom power adapter with which you can connect your 3.5mm jack Sennheiser condenser microphone to a traditional XLR microphone input. The connected microphone is then powered via the adapter. Naturally, the operating Voltage needs to match the phantom power that is generated by the table. The Sennheiser MZA 900 P is compatible with the Evolution Wireless series, amongst others. The MZA900P can also be used as a cable tester for XLR microphone cables.
Specifications
Product features
| Sustainable product | not specified |
|---|---|
| Type of adapter | transformer |
| Input | jack (3.5 mm stereo) |
| Output connector | XLR (3-pin) |
Weight and dimensions including packaging
| Weight (incl. packaging) | 100 gr |
|---|---|
| Dimensions (incl. packaging) | 16,0 x 11,0 x 4,0 cm |
Product specifications
- rugged metal housing
- switchable gain: 0 or -12 dB
- switchable roll-off filter @ 125 Hz: 12 dB / oct
- two-colour LED indicators (phantom power, audio peak)
- input: 3.5mm stereo jack connector, lockable
- output: XLR-3M
- frequency response: 20 – 20,000 Hz (-1 dB)
- output voltage: 1.8V (P48), 0.6V (P12) @ o dB gain
- output impedance: 100 Ohm
- required phantom power: P12 – P48, 10 – 52V, 2.6 – 2.8 mA
- diameter: 19 – 22 mm
- length: 100 mm
- weight: 60 grams
- operating temperature: -20 to +60 °C
- delivered including belt clip, manuals and warranty certificate
