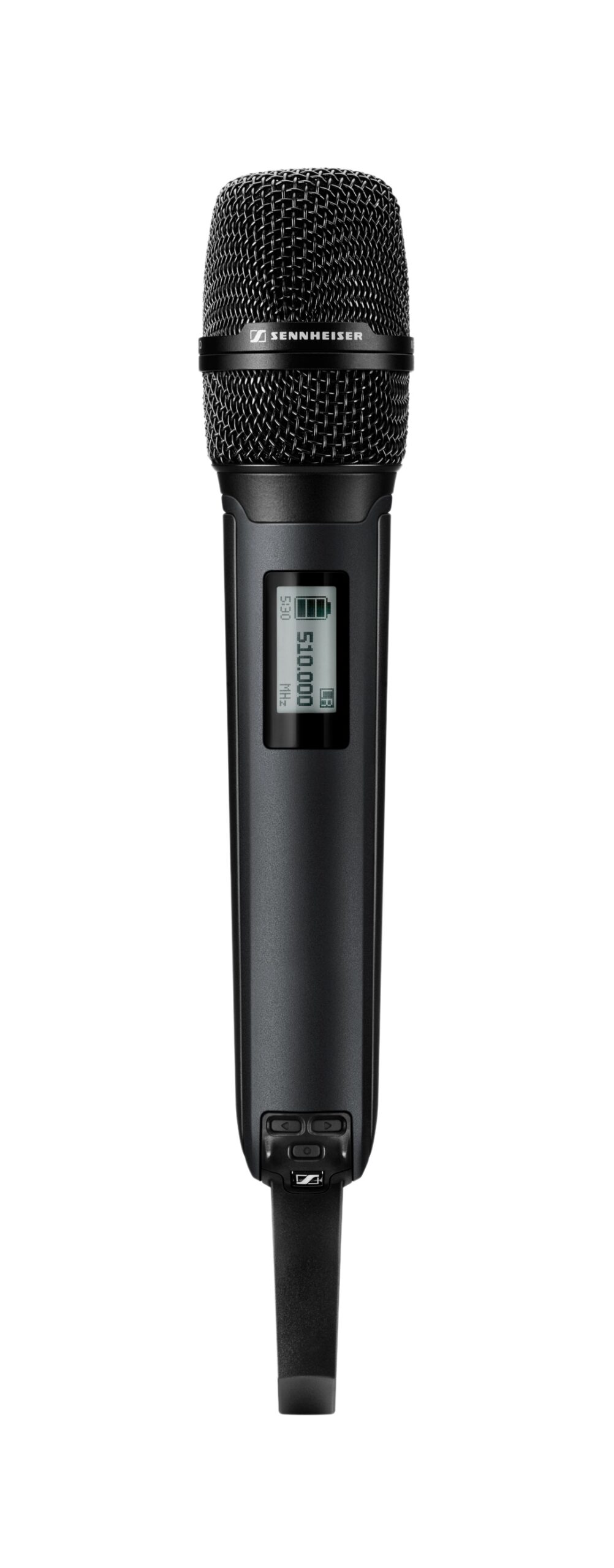

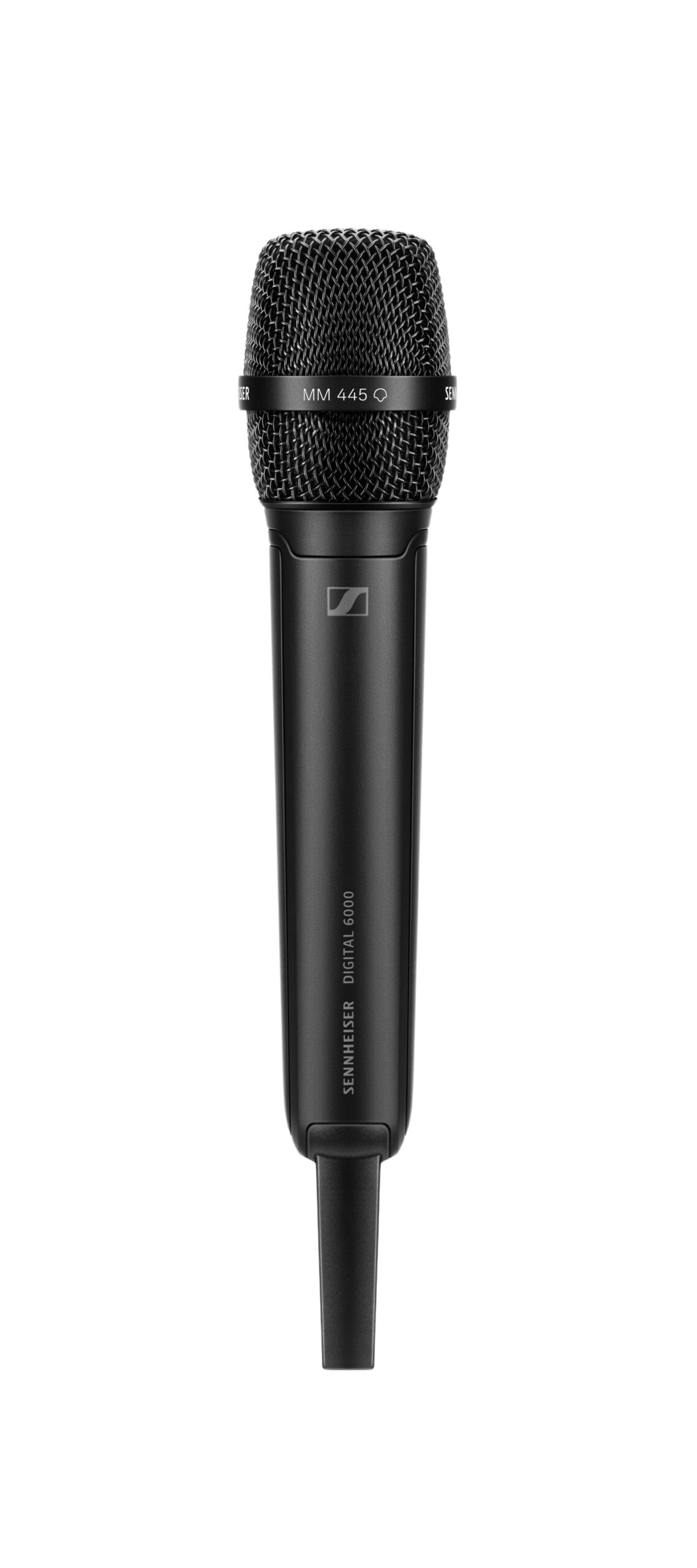

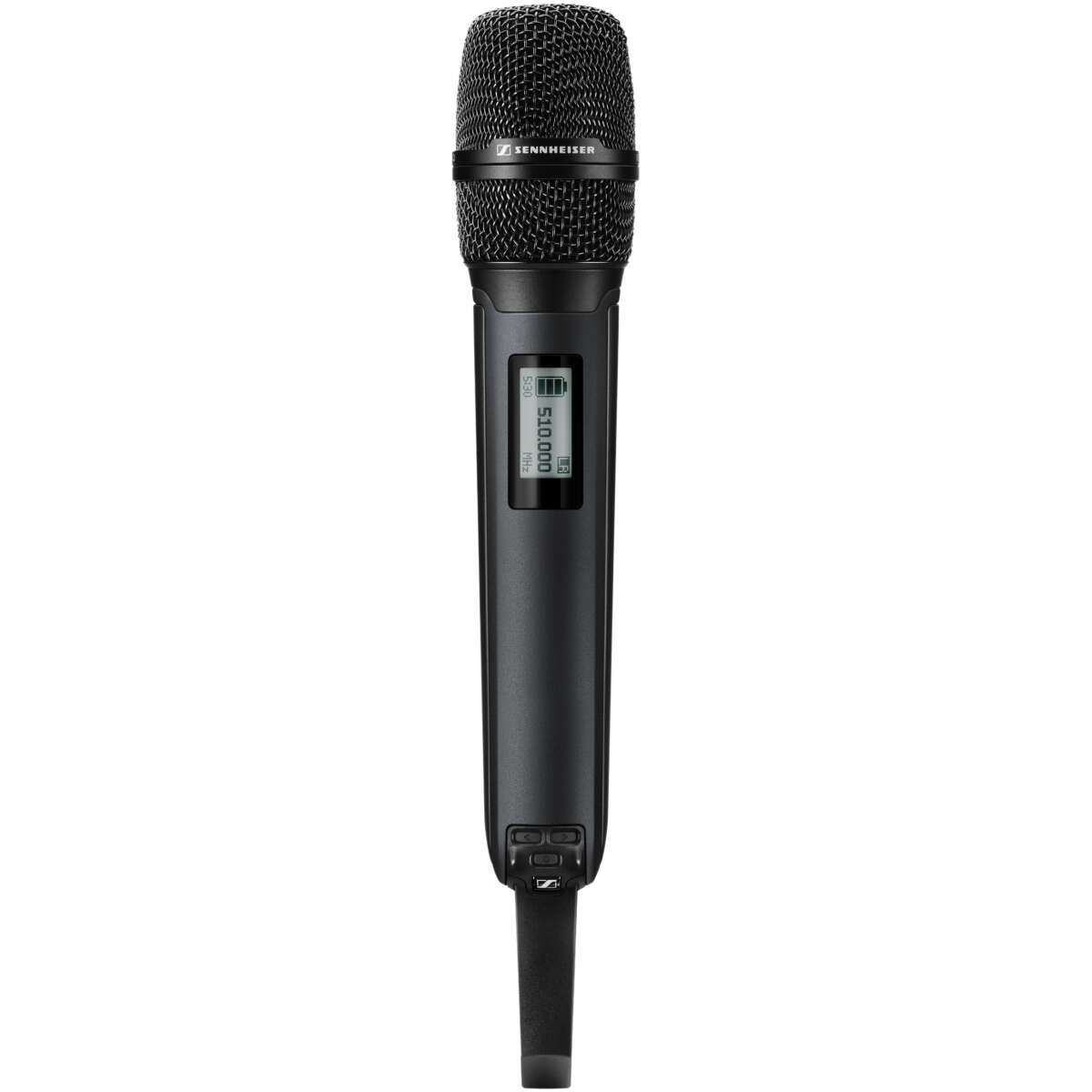

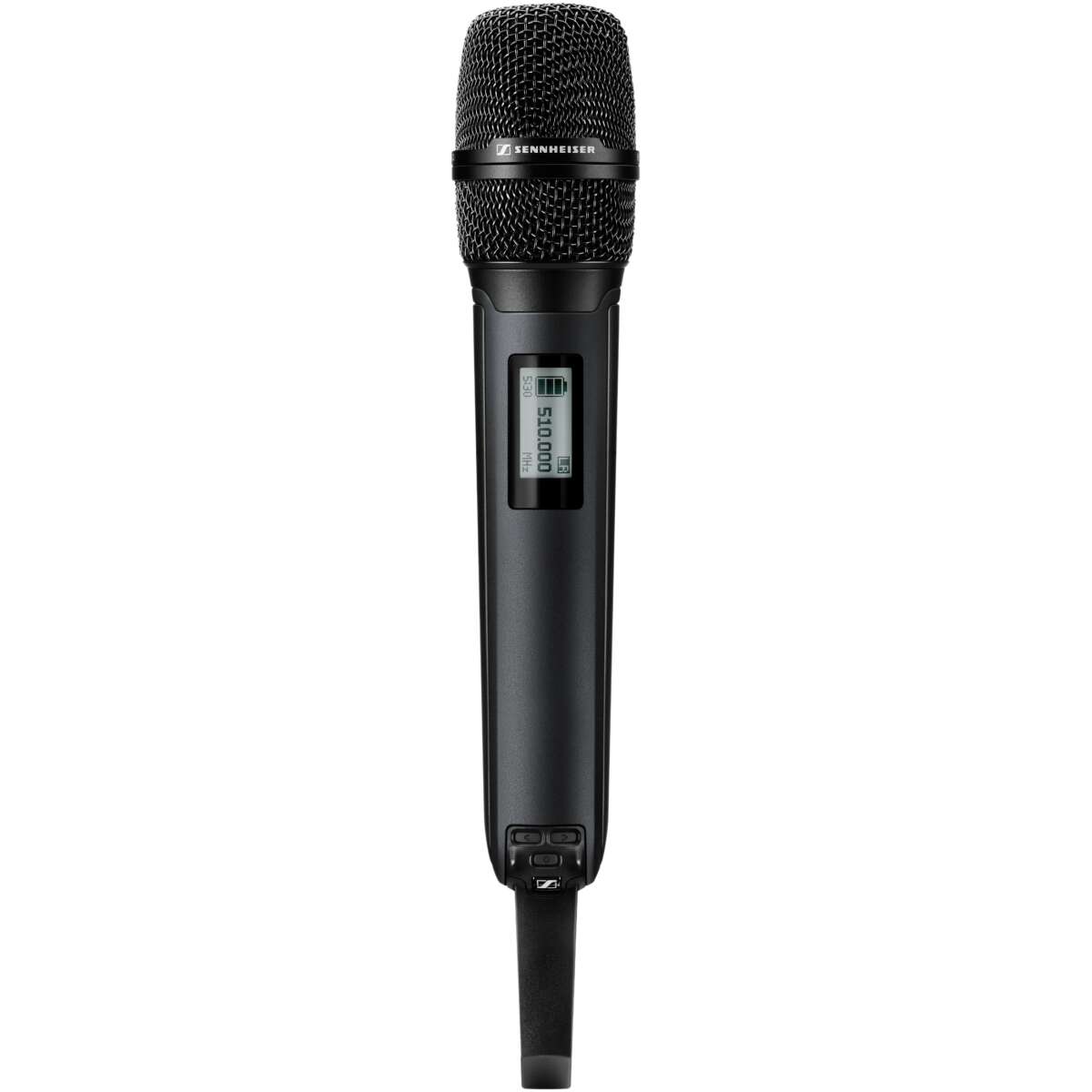

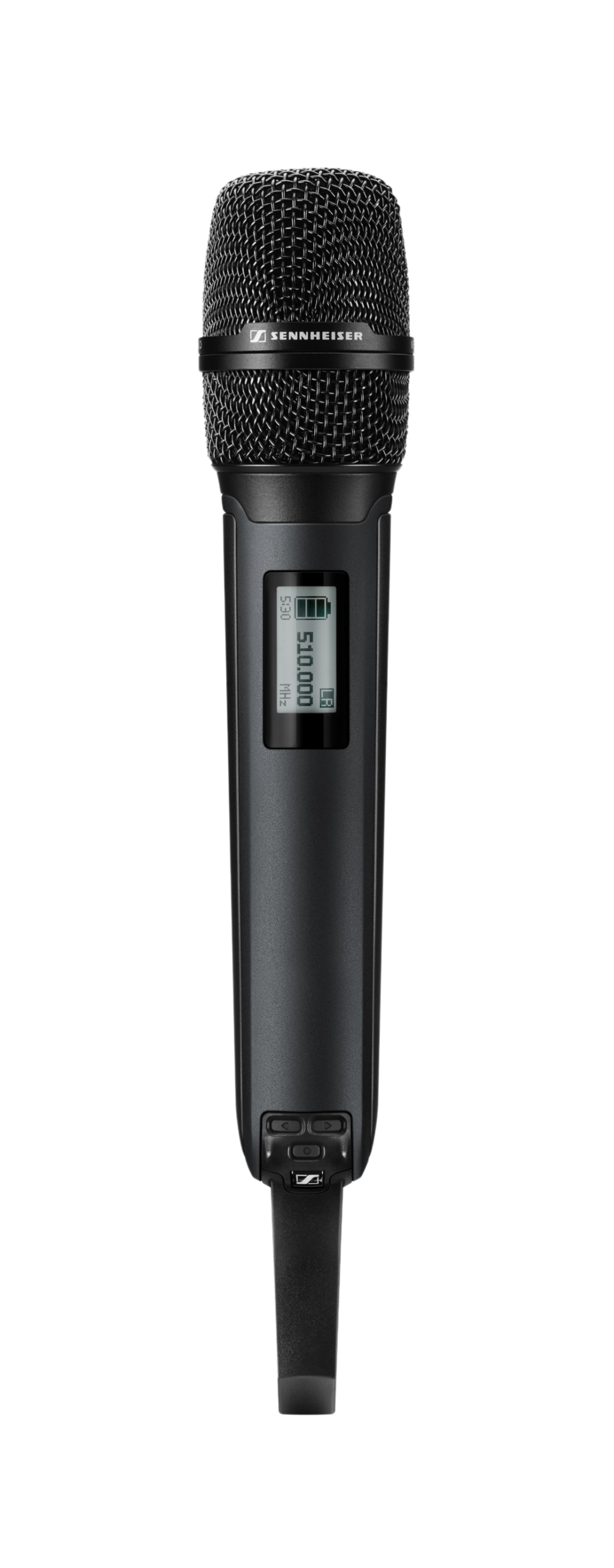

Sennheiser Skm 6000 Bk B1-b4, Handheld Digital Transmitter, Long Range Mode, 630-718mhz

The Sennheiser SKM 6000 BK B1-B4 is a flagship digital handheld wireless transmitter designed for the most demanding live sound, broadcast, theatre, and touring applications. Part of the Digital 6000 Series, it delivers exceptional RF reliability through Sennheiser’s renowned Long Range (LR) mode and pristine audio quality via the proprietary Sennheiser Digital Audio Codec (SeDAC). The transmitter supports a wide range of interchangeable Sennheiser and Neumann microphone capsules, making it suitable for virtually any vocal application.

Key Features

• Digital handheld transmitter for Sennheiser Digital 6000 systems
• B1-B4 frequency range: 630–718 MHz
• Long Range (LR) mode for maximum transmission reliability
• Link Density (LD) mode for high channel counts in limited spectrum
• Compatible with Sennheiser and Neumann interchangeable capsules
• Sennheiser Digital Audio Codec (SeDAC) technology
• AES-256 encryption support
• Intermodulation-free operation for efficient frequency coordination
• Infrared synchronization with compatible receivers
• Rugged metal construction for professional touring use
• Backlit LCD display with intuitive menu navigation
• Compatible with BA 60 rechargeable battery pack or B 60 battery compartment

Technical Specifications

• Wireless Technology: Digital UHF
• Frequency Range: 630 – 718 MHz
• Switching Bandwidth: Up to 88 MHz
• RF Output Power: 25 mW RMS (LR Mode)
• Frequency Response: 30 Hz – 20 kHz (LR Mode)
• Frequency Stability: < 5 ppm
• Tunability: 25 kHz steps
• Low-Cut Filter: 60, 80, 100, or 120 Hz
• Audio Codec: SeDAC
• Encryption: AES-256
• Dimensions: 270 × 40 mm
• Operating Time: Approx. 5.5 hours with BA 60 battery pack
