Inspire your audience. High flexibility for those willing to go a step further. XS WIRELESS 2 grows with your demands by offering an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions.

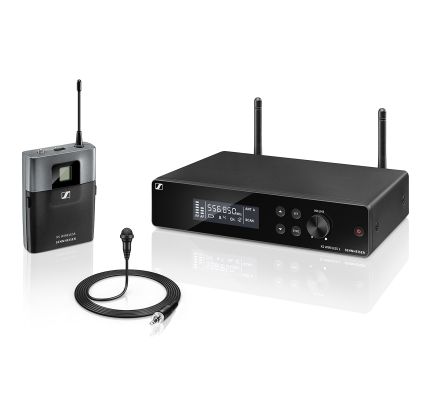

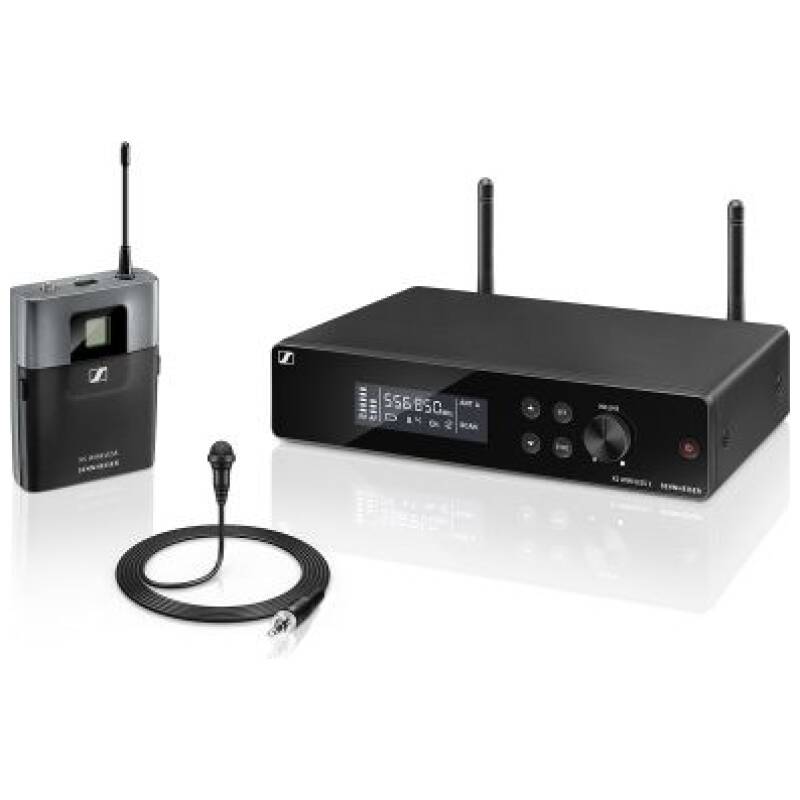

The XS WIRELESS 2 LAVALIER MIC SET is an easy to use all-in-one wireless system for presenters and moderators, excellent for a powerful and inspiring presentation. The set includes a stationary receiver for quick set-up and hassle-free handling, as well as a lightweight bodypack transmitter and an unobstrusive clip-on microphone. Metal receiver housing and rackmount kit included.

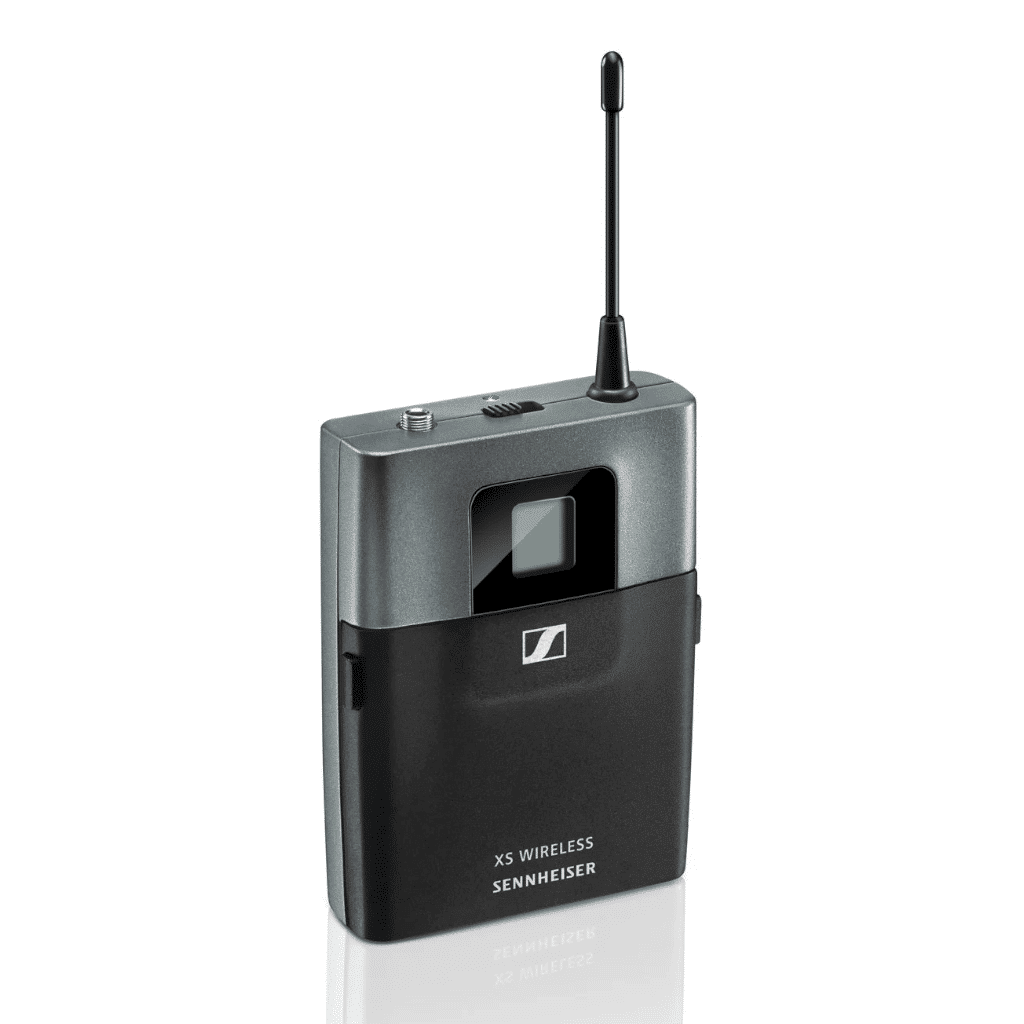

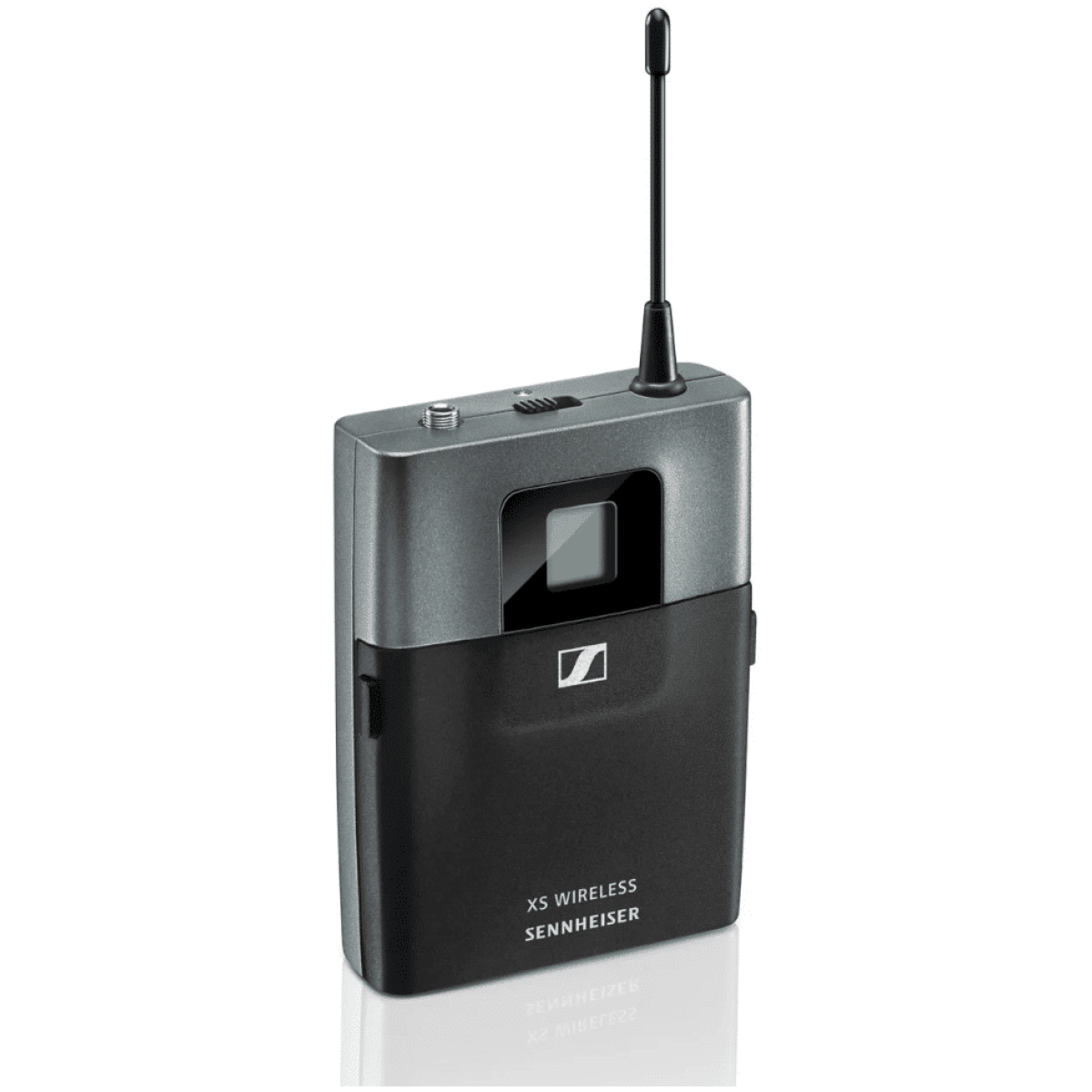

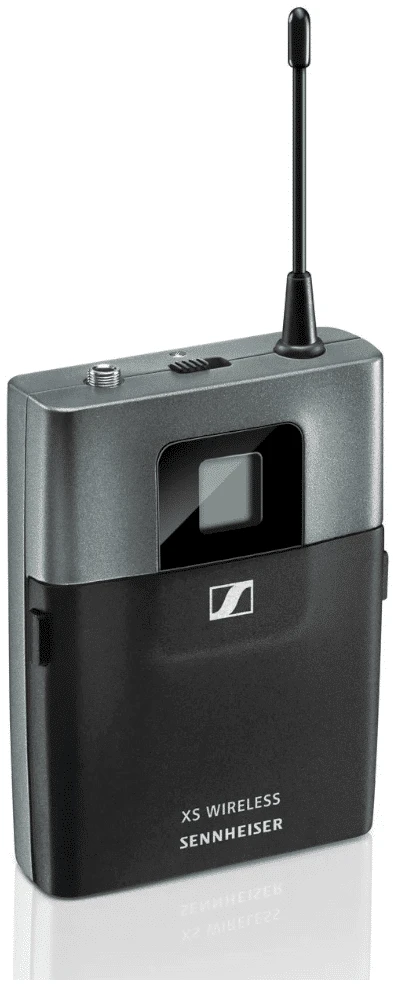

- Unobstrusive clip-on microphone for hands-free operation and compact bodypack transmitter

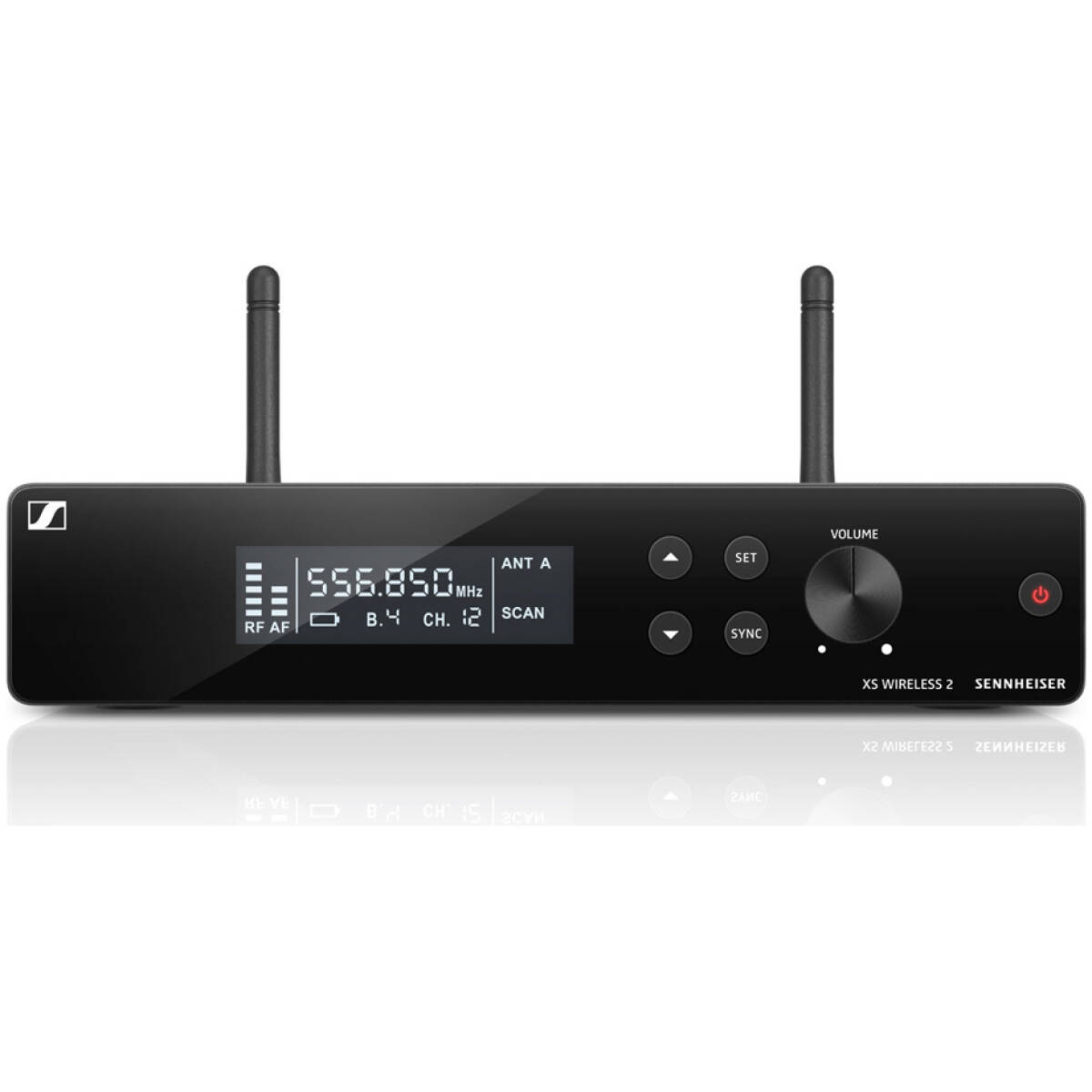

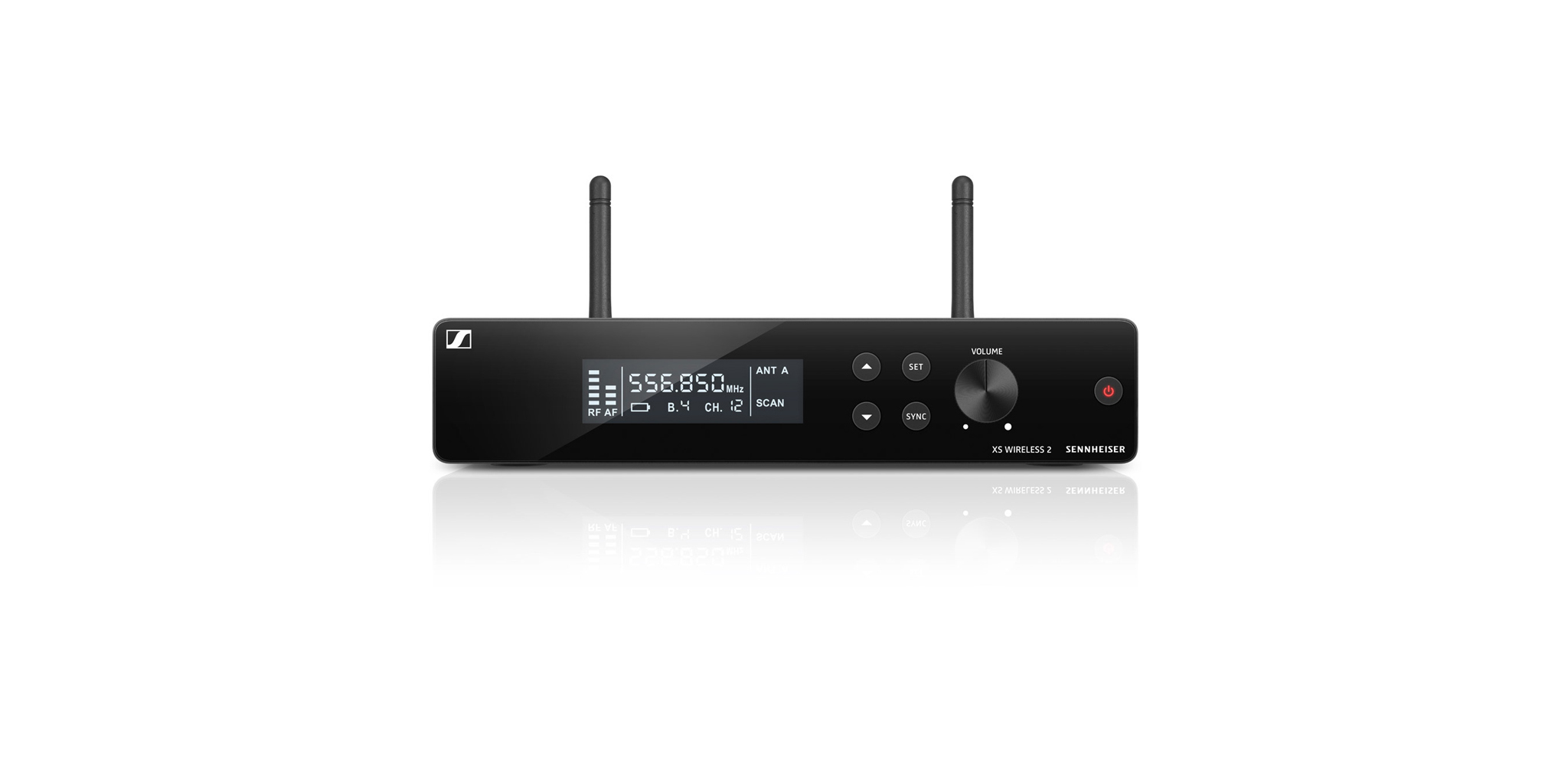

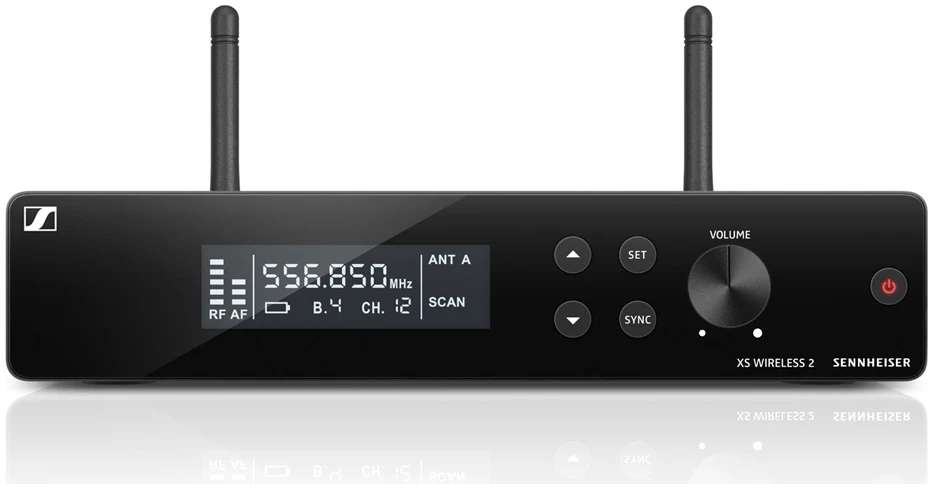

- True diversity receiver with metal housing
- External antennas
- Automatic frequency management and synchronization via remote channel for easy setup
- Fully tunable over a wide range of UHF frequencies
- Rackmount kit included
- Up to 12 compatible channels
Specifications
Receivers
Dimensions
Approx. 200 X 42 X 127 Mm
Weight
Approx. 680g
Power Supply
12 V DC Nom. / 300 Ma
Housing
Metal
AF Frequency Response
50 To 16,000 Hz
Transmitter
Dimensions
Approx. 71 X 96 X 28 Mm
Weight
Approx. 95g
Operating Time
Approx. 10 Hrs
Power Supply
2 AA Size Batteries, 1.5 V
Housing
Robust ABS
AF Frequency Response
50 To 16,000 Hz (–3 Db)
Microphone
Condenser
Frequency Response
50 To 16,000 Hz (–3 Db)
THD, Total Harmonic Distortion
≤ 0.9%
Pick-Up Pattern
Omni-Directional
Signal-To-Noise Ratio
≥ 103 Dba
RF Output Power
10 Mw
Switching Bandwidth
Up To 24 Mhz
Modulation
Wideband FM
Output Voltage
‘1/4“ (6.3 Mm) Jack Socket (Unbalanced): +6 Dbu, XLR Socket (Balanced): +12 Dbu
Diversity Reception
True Diversity
Frequency
8 Frequency Banks, Each With Up To 12 Factory-Preset Channels
Frequency Range
A: 548-572 Mhz, GB: 606-630 Mhz, B: 614-638 Mhz, C: 766-790 Mhz, D: 794-806 Mhz, E: 821-832 Mhz, 863-865 Mhz, K: 925-937.5 Mhz
Sensitivity
< 3 Μv At 52 Db(A)Rms S/N
Squelch
Switchable From 3 Dbμv To 28 Dbμv (Via Pilot Tone)
Synchronization
2.4 Ghz, Low Power OQPSK (Only Active During Synchronization)
Adjustment Range Transmitter
0 To -30 Db, Adjustable In 10 Db Steps
Audio Adjustment Range
40 Db, Adjustable In 5-Db Steps
Line / Mic Level
20 Db, Switchable
Temperature Range
Operation: 0°C To +40°C, Storage: –20°C To +70°C
Receiver Principle
Double Superheterodyne
