Features
- Podcasts, Vlogs, Music, Conference Calls
- Single-Channel XLR + 1/4″ Combo Input
- 5 DSP Sound Presets
- For Mac/Windows, MFi-Certified for iOS
- Phantom Power
- Touch-Panel Control
- Headphone Output
- 24-Bit / 48 kHz
- Compatible with the MOTIV Recording App
Specifications
| Channels of I/O |
1 Input
|
| Maximum Sampling Rate |
48 kHz / 24-Bit
|
| Number of Microphone Inputs |
1 Preamp
|
| Analog Audio I/O |

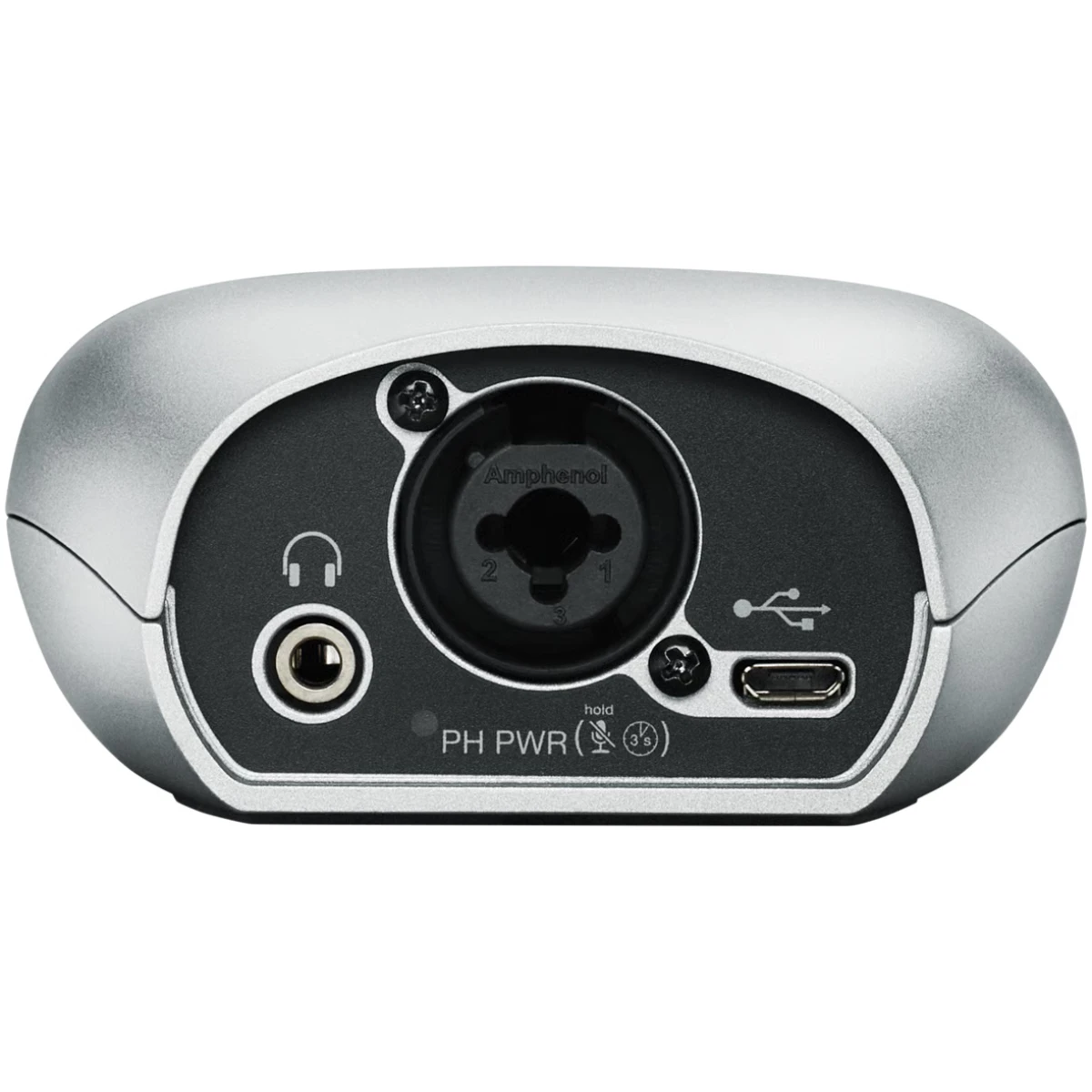

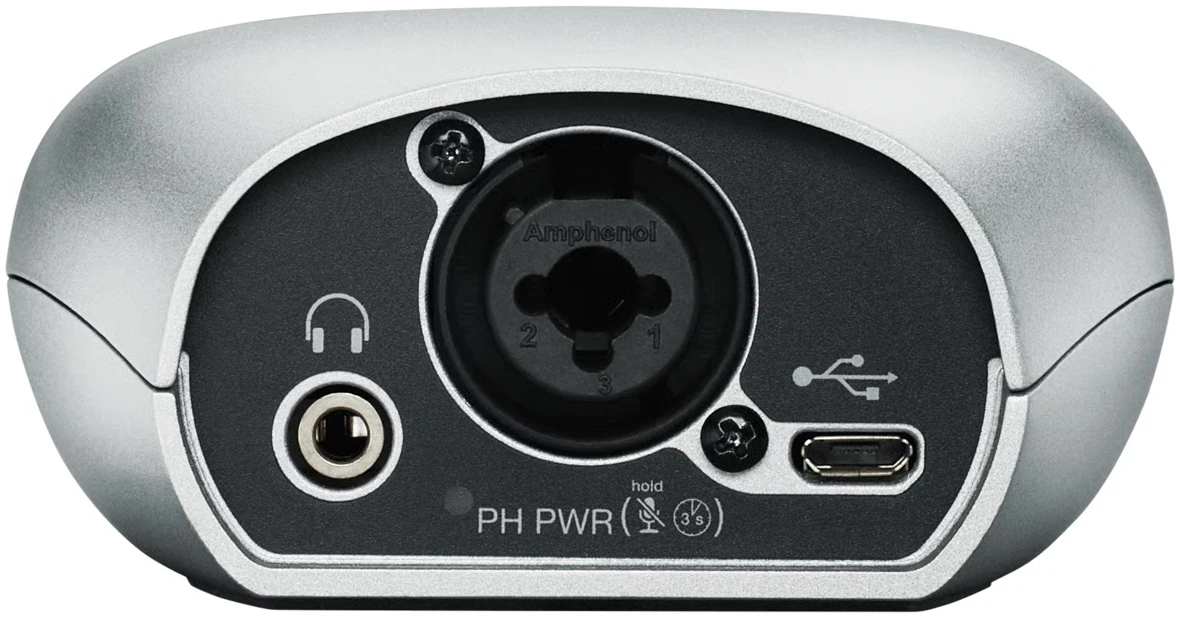

1x Combo XLR-1/4″ TRS Balanced/Unbalanced Mic/Line Input
1x 1/8″ / 3.5 mm TRS Headphone Output |
| Host Connection |
Micro-USB (Class-Compliant)
|
| OS Compatibility |
macOS 10.7
macOS 10.8 macOS 10.9 macOS 10.10 Windows 7 or Later 7 or Later |
| Power Requirements |
Lightning Bus Power, USB Bus Power
|
| Channels of I/O |
1 Input
|
| Maximum Sampling Rate |
48 kHz / 24-Bit
|
| Number of Microphone Inputs |
1 Preamp
|
| Input Level Adjustment |
via Touchscreen
|
| Expansion Slots |
No
|
Signal Processing
| Gain/Trim Range |
Mic:
0 dB to +36 dB Hi-Z: +9 dB |
| Solo/Mute |
Mute per Input Channel
|
Connectivity
| Analog Audio I/O |
1x Combo XLR-1/4″ TRS Balanced/Unbalanced Mic/Line Input
1x 1/8″ / 3.5 mm TRS Headphone Output |
| Phantom Power |
48 V
|
| Digital Audio I/O |
No
|
| Host Connection |
Micro-USB (Class-Compliant)
|
| Host Connection Protocol |
USB 2.0
|
| USB (Non-Host) |
No
|
| Sync I/O |
No
|
| Network I/O |
No
|
| MIDI I/O |
No
|
Performance
| Frequency Response |
20 Hz to 20 kHz
|
| Maximum Input Level |
Mic:
0 DVB Hi-Z: 9 DVB |
| Impedance |
Mic :
2 Kilohms Hi-Z : 1 Megohm |
Digital Audio
| Sample Rates |
44.1 / 48 kHz
|
| Bit Depths |
16 / 24-Bit
|
Compatibility
| OS Compatibility |
macOS 10.7
macOS 10.8 macOS 10.9 macOS 10.10 Windows 7 or Later 7 or Later |
| Included Software |
No
|
| Mobile Device Compatibility |
iPhone 5, 5c, 5s, 6, 6 Plus
iPad 4th Gen. iPad Air iPad Air 2 iPad Mini 1st Gen., 2nd Gen., 3rd Gen. iPod Touch 5th Gen. |
Power
| Power Requirements |
Lightning Bus Power, USB Bus Power
|
Physical
| Dimensions |
3.3 x 2.8 x 1.7″ / 84 x 72 x 42 mm
|
| Weight |
10.9 oz / 310.0 g
|
Packaging Info
| Package Weight |
1.035 lb
|
| Box Dimensions (LxWxH) |
4.75 x 3.8 x 2.8″
|
