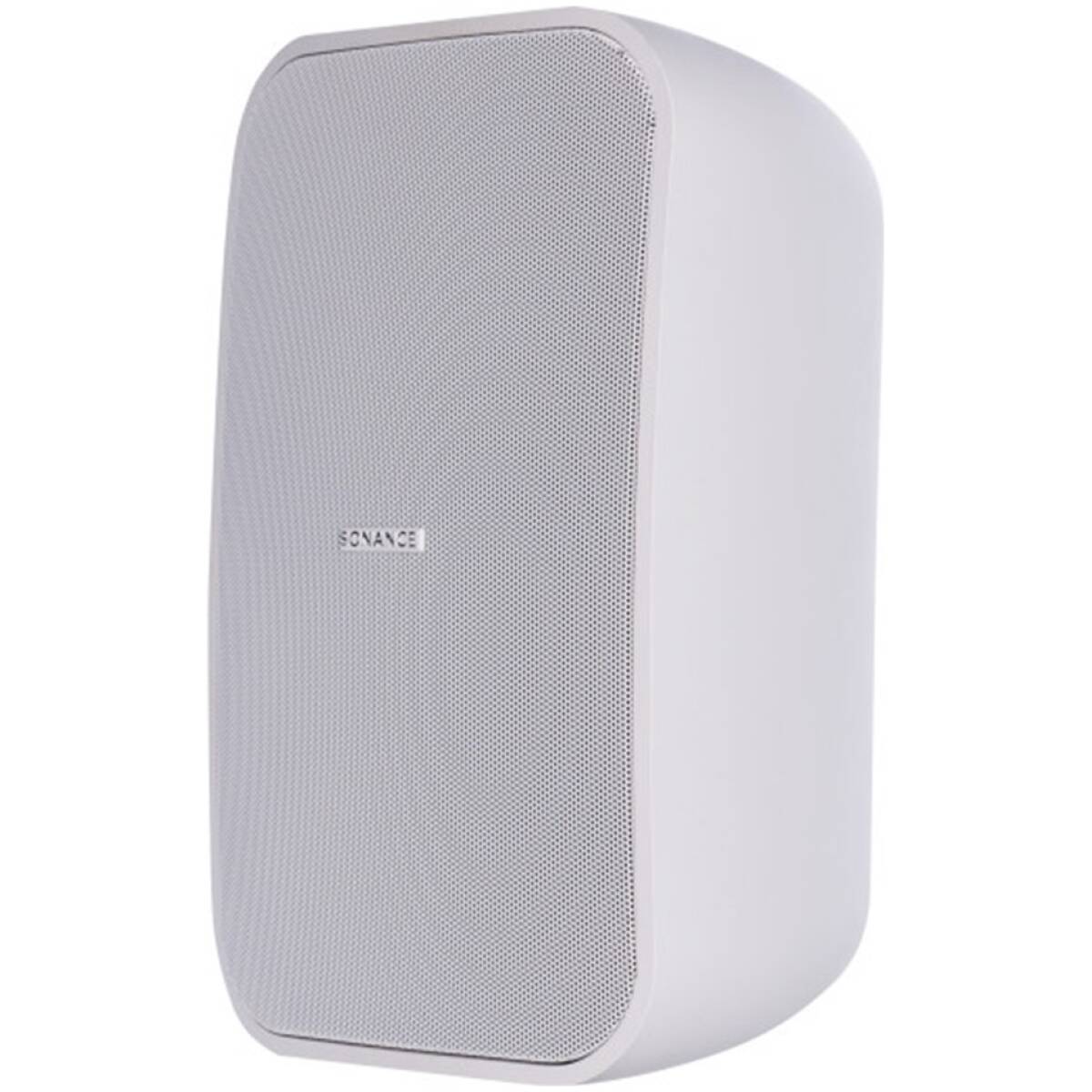

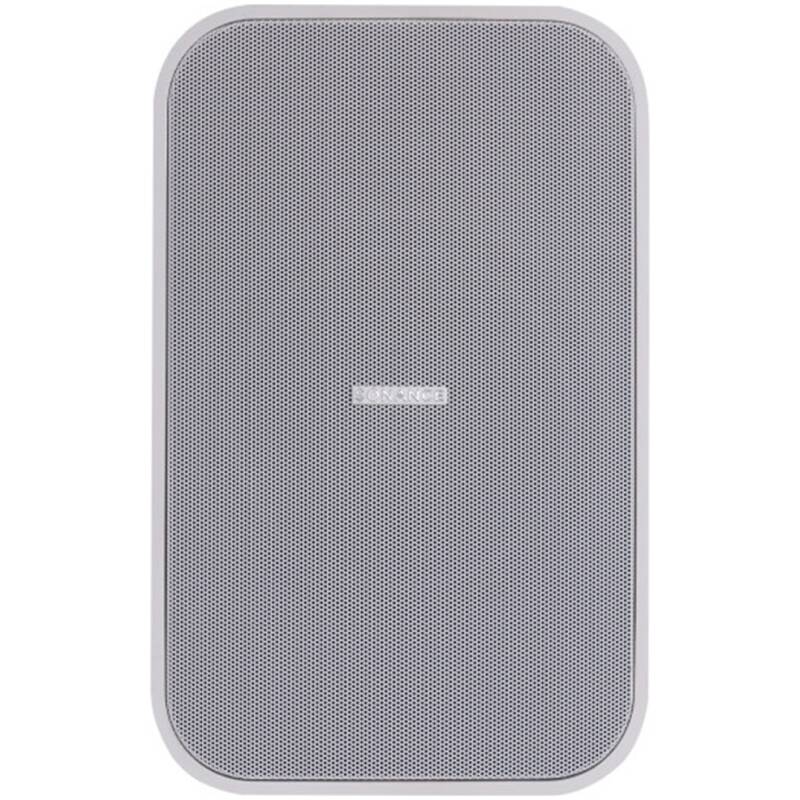

Sonance PS-S53T-MKII-WH Surface Mount Speaker(Unit)

The Sonance PS-S53T-MKII-WH is a versatile surface mount speaker that delivers high-quality sound for both commercial and residential environments. With a frequency range from 43Hz to 25kHz, this speaker ensures full-range audio reproduction for diverse applications, including retail spaces and houses of worship. It features 90 Watts of continuous program power and 45 Watts of continuous pink noise, providing ample sound output for large areas. With a sensitivity of 88dB and a peak SPL of 113dB at 1 meter, it guarantees exceptional sound clarity and volume. The speaker’s 90-degree x 90-degree coverage pattern ensures even sound distribution, making it ideal for various spaces.

Built for durability, the Sonance PS-S53T-MKII-WH features a powder-coated aluminum grille and a polypropylene cone with a butyl rubber surround for the low-frequency driver. The high-frequency driver uses a 1-inch cloth dome, cooled with ferrofluid to prevent overheating during extended use. It has an 8 Ohms nominal impedance and includes transformer taps for 70V and 100V systems, offering flexible installation options for both commercial and residential spaces.

The Sonance PS-S53T-MKII-WH is also weather-resistant, with an IPX4 splash-proof rating and compliance with MIL-STD-810 for humidity, salt spray, and temperature conditions, making it suitable for both indoor and outdoor use. Its sleek, minimalistic design allows it to seamlessly blend into any environment, available in both black and white finishes. The speaker also incorporates Sonance’s FastMount system for easy and secure installation.

The Sonance PS-S53T-MKII-WH Surface Mount Speaker is a robust, high-performance speaker ideal for both commercial and residential environments. Its durability, weather resistance, and powerful audio capabilities make it an excellent choice for consistent sound coverage in a variety of spaces.

Specifications:

• Frequency Range (-10dB): 43Hz – 25kHz
• Frequency Range (-3dB): 70Hz – 20kHz
• Power Capacity: 90 Watts Continuous Program Power | 45 Watts Continuous Pink Noise
• Nominal Sensitivity: 88dB
• Nominal Coverage Angle: 90 degrees x 90 degrees
• Rated Maximum SPL: 106dB @ 1 meter (3.3 feet) average, 113dB peak
• Rated Impedance: 8 Ohms nominal, 6 Ohms minimum

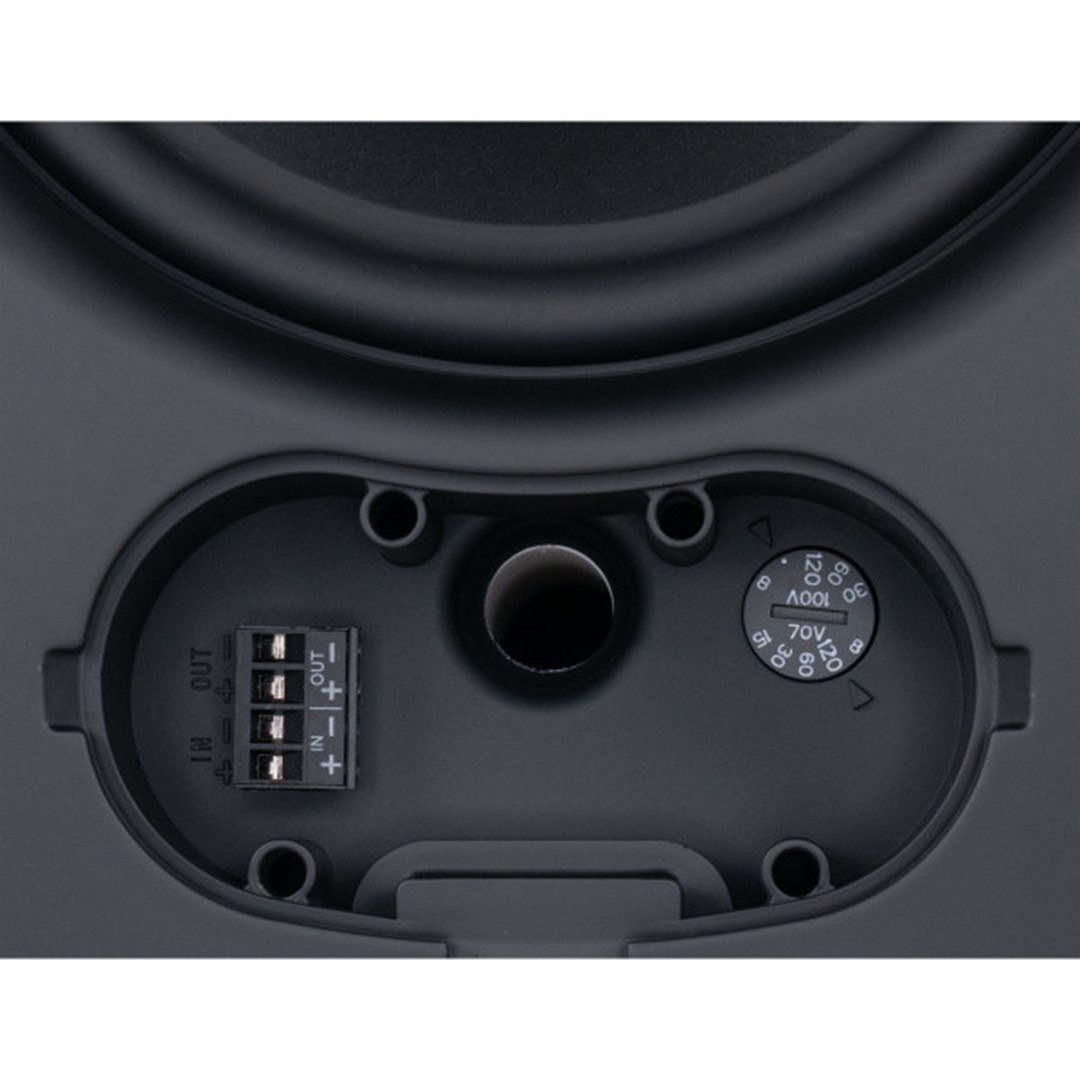

• Transformer Taps:
  • 70V: 30W, 15W, 7.5W, and 3.8W
  • 100V: 30W, 15W, and 7.5W
• Crossover Point: 2750Hz
• Overall Dimensions: 10.08” Height x 6.36” Width x 5.68” Depth (256mm x 162mm x 144mm)
• Net Weight: 8.68 lbs (3.94kg) each
• Shipping Weight: 23.93 lbs (10.85kg) pair

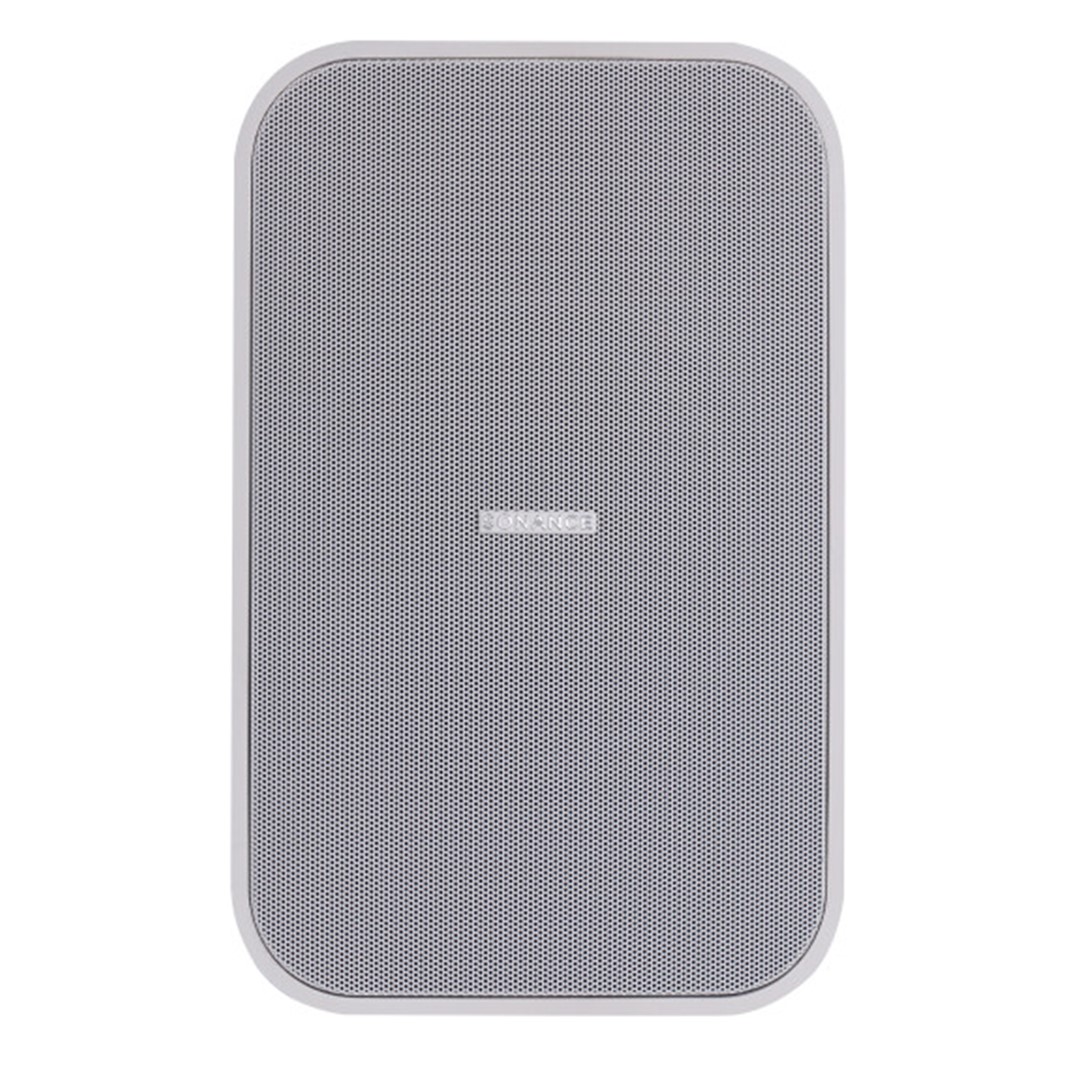

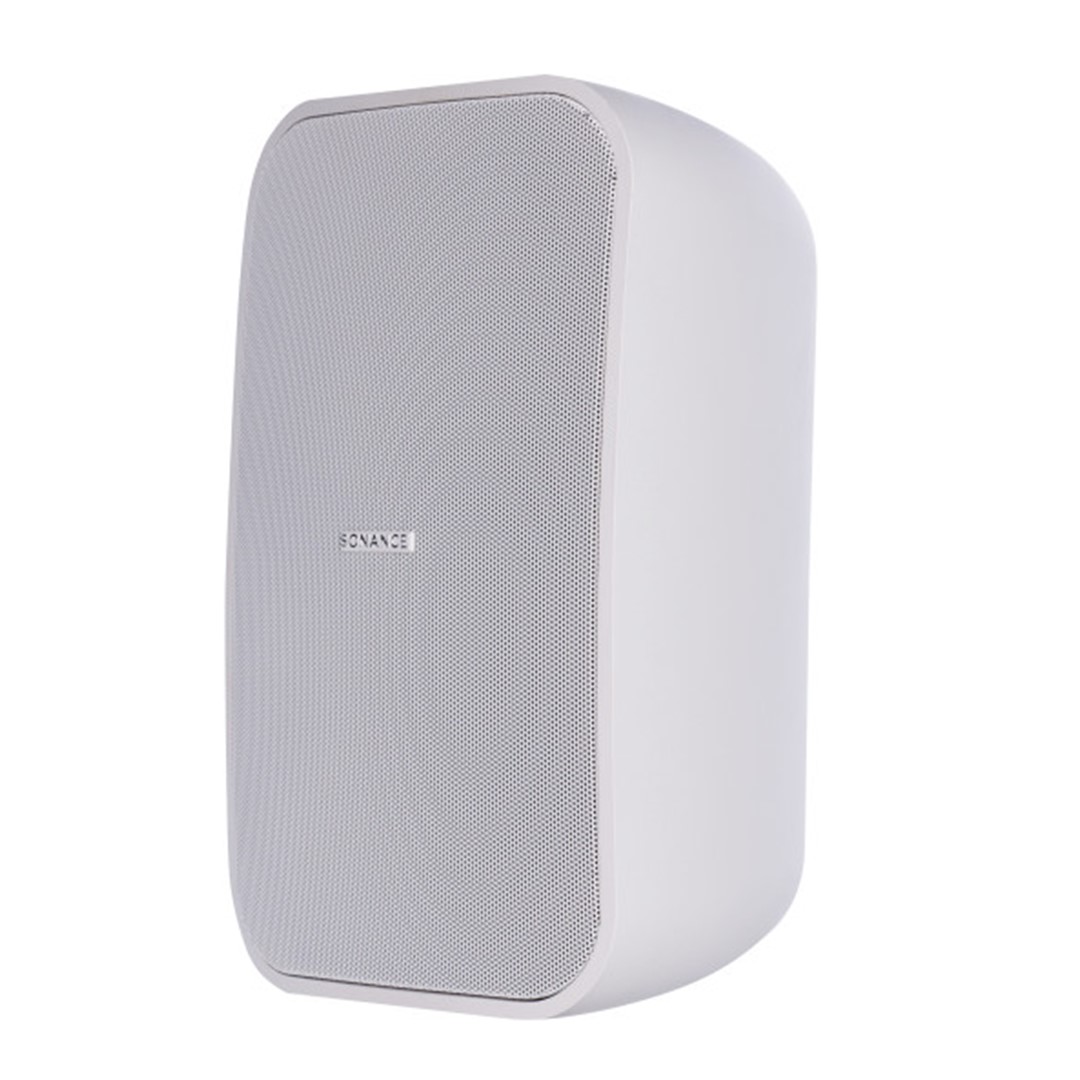

• Grille: Powder-Coated Aluminum Friction Fit

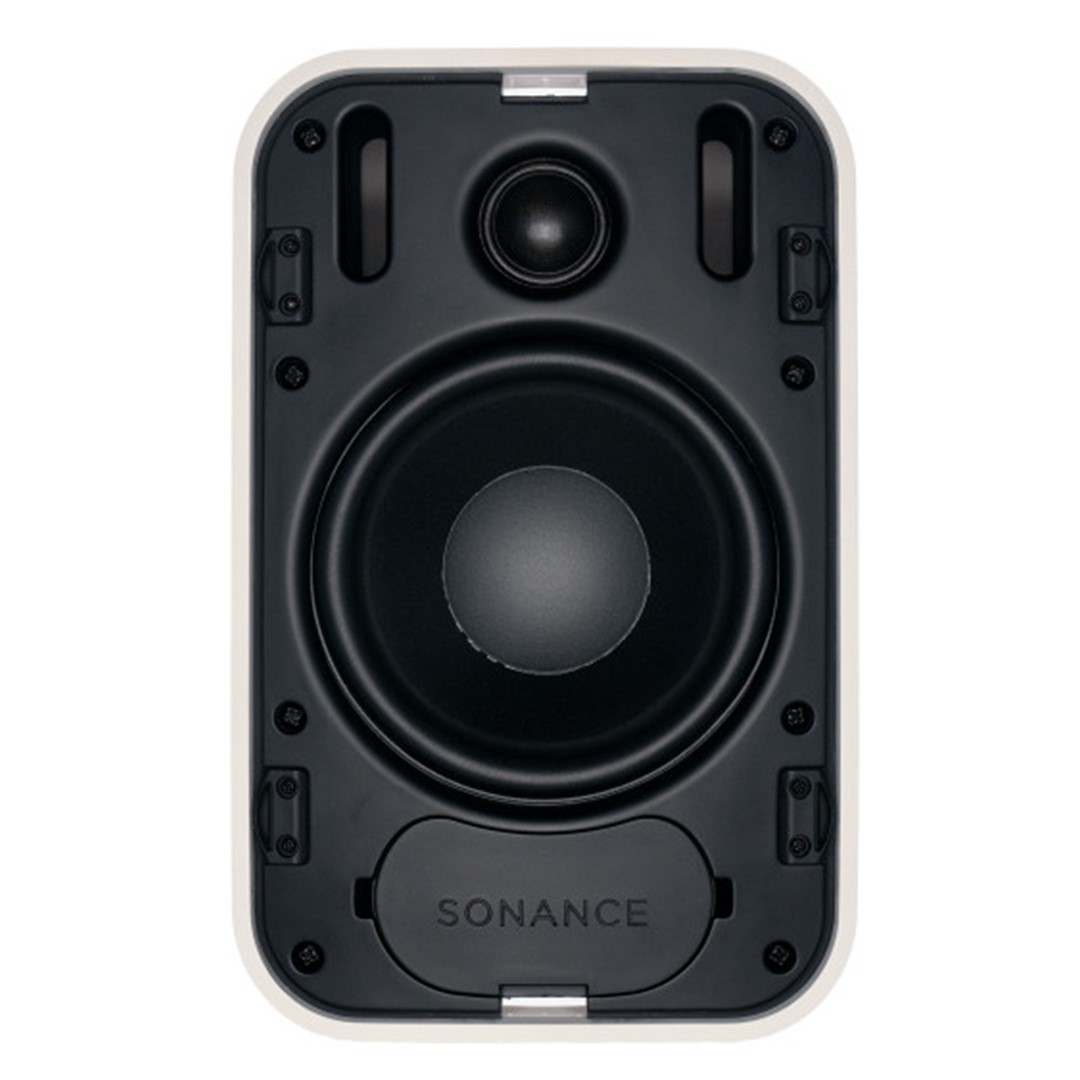

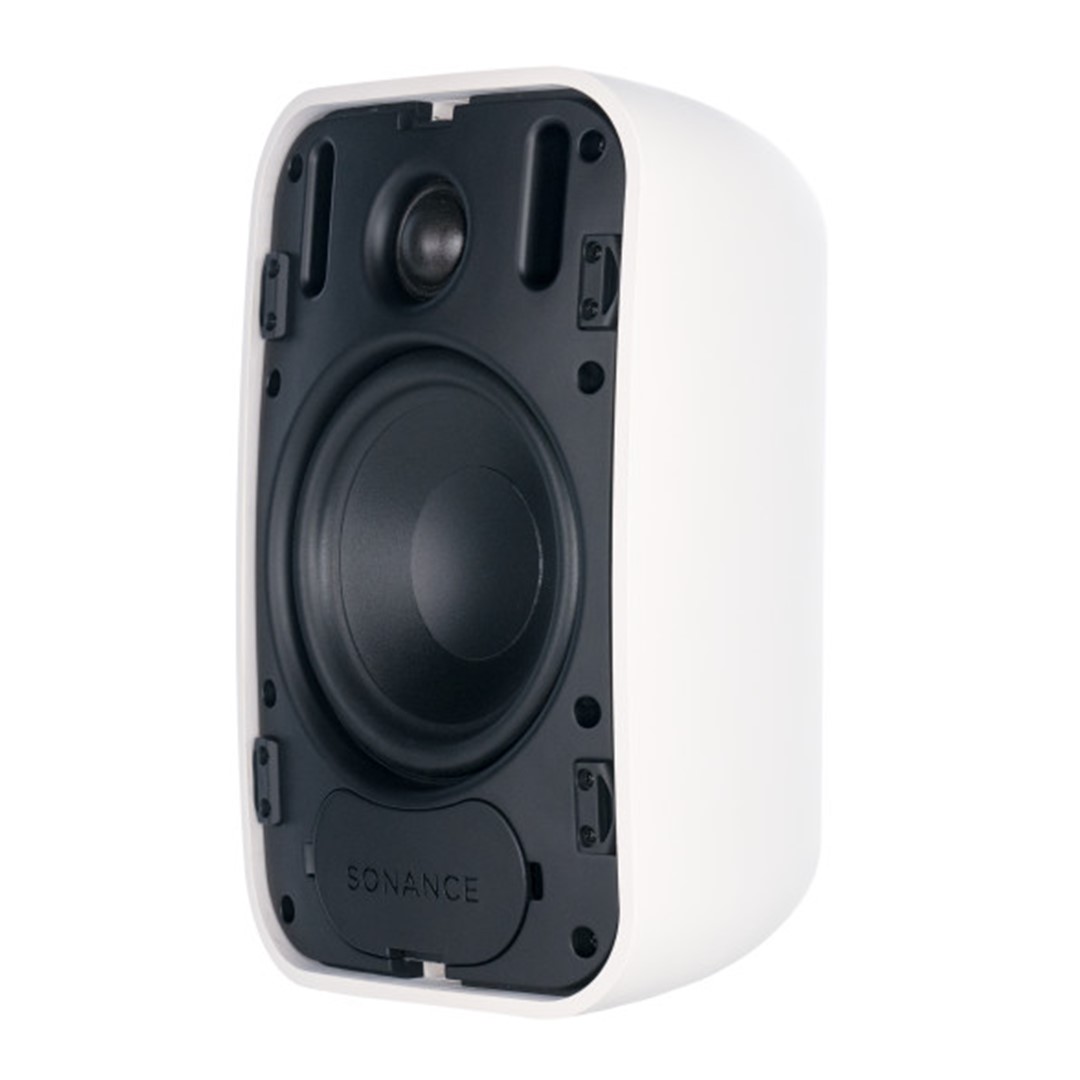

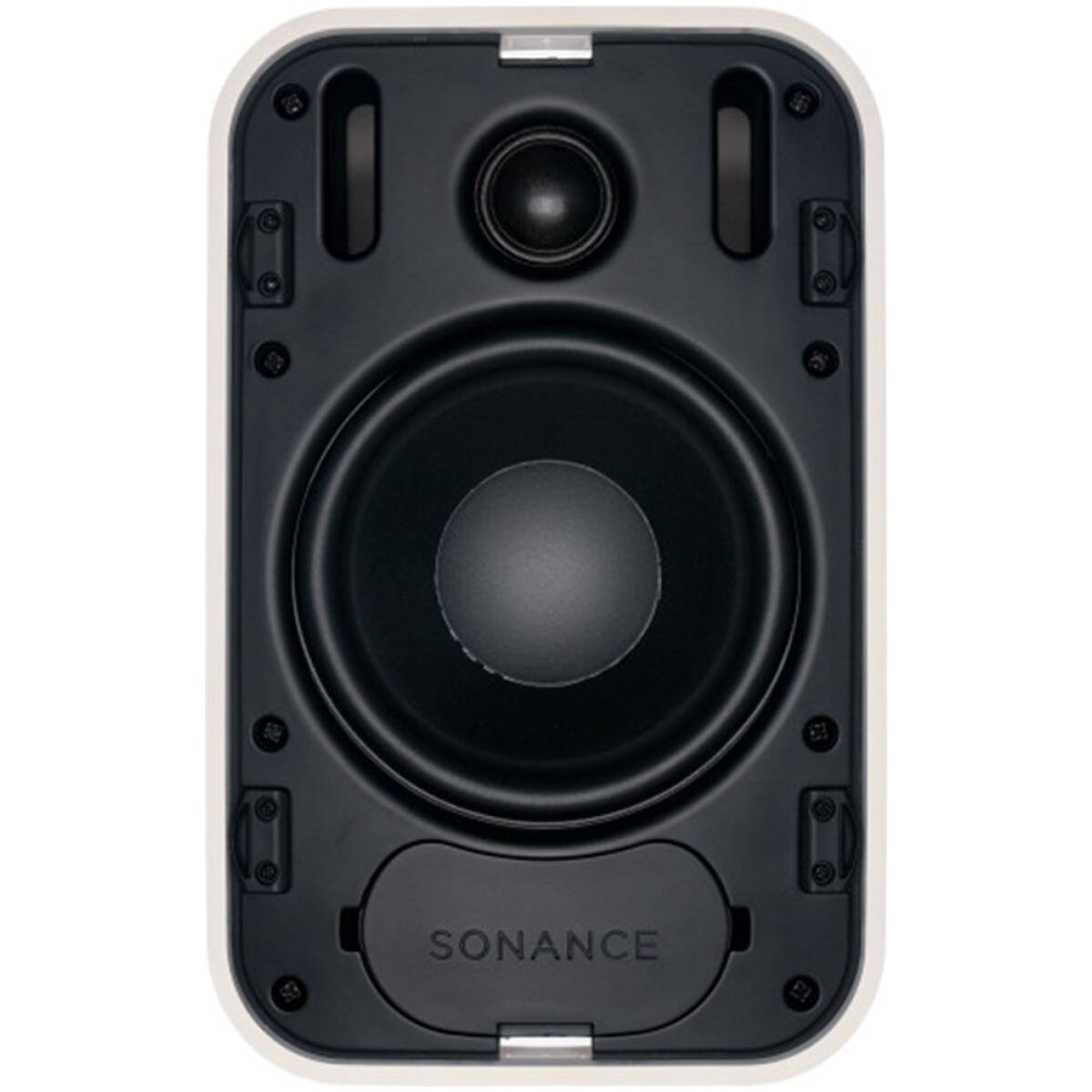

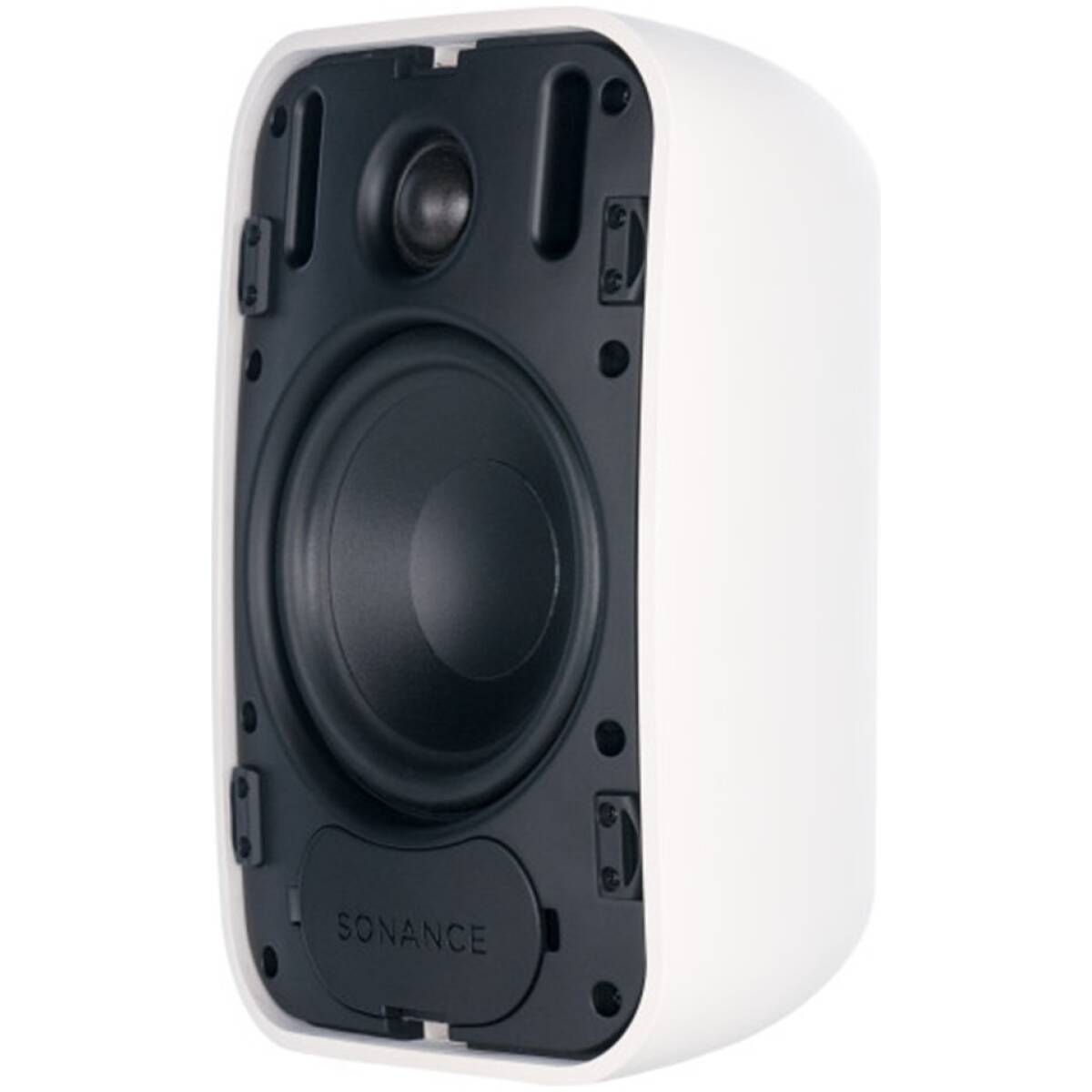

• LF Driver: 5.25” (130mm) Polypropylene Cone, Butyl Rubber Surround
• HF Driver: 1” (25mm) Cloth Dome, Ferrofluid cooled

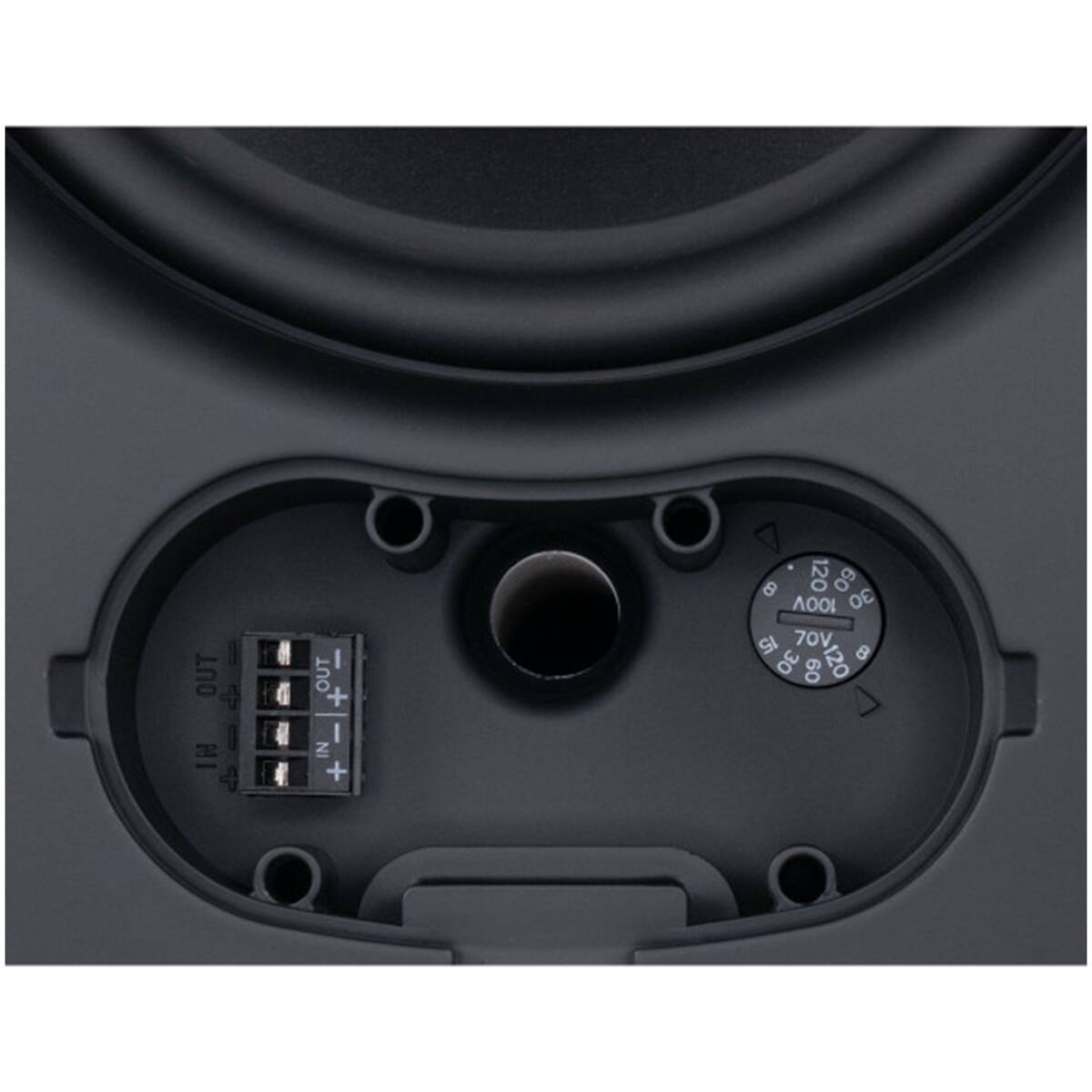

• Input Connector: Front-mounted four pin, Euroblock with loop output connections
• Safety Agency Certifications: UL 1480, UL 2239, NFPA 70
• Environmental & UV Protection: Conforms to MIL-STD-810 for humidity, salt spray, temperature, and IEC 529 IPX4 splash-proof rating

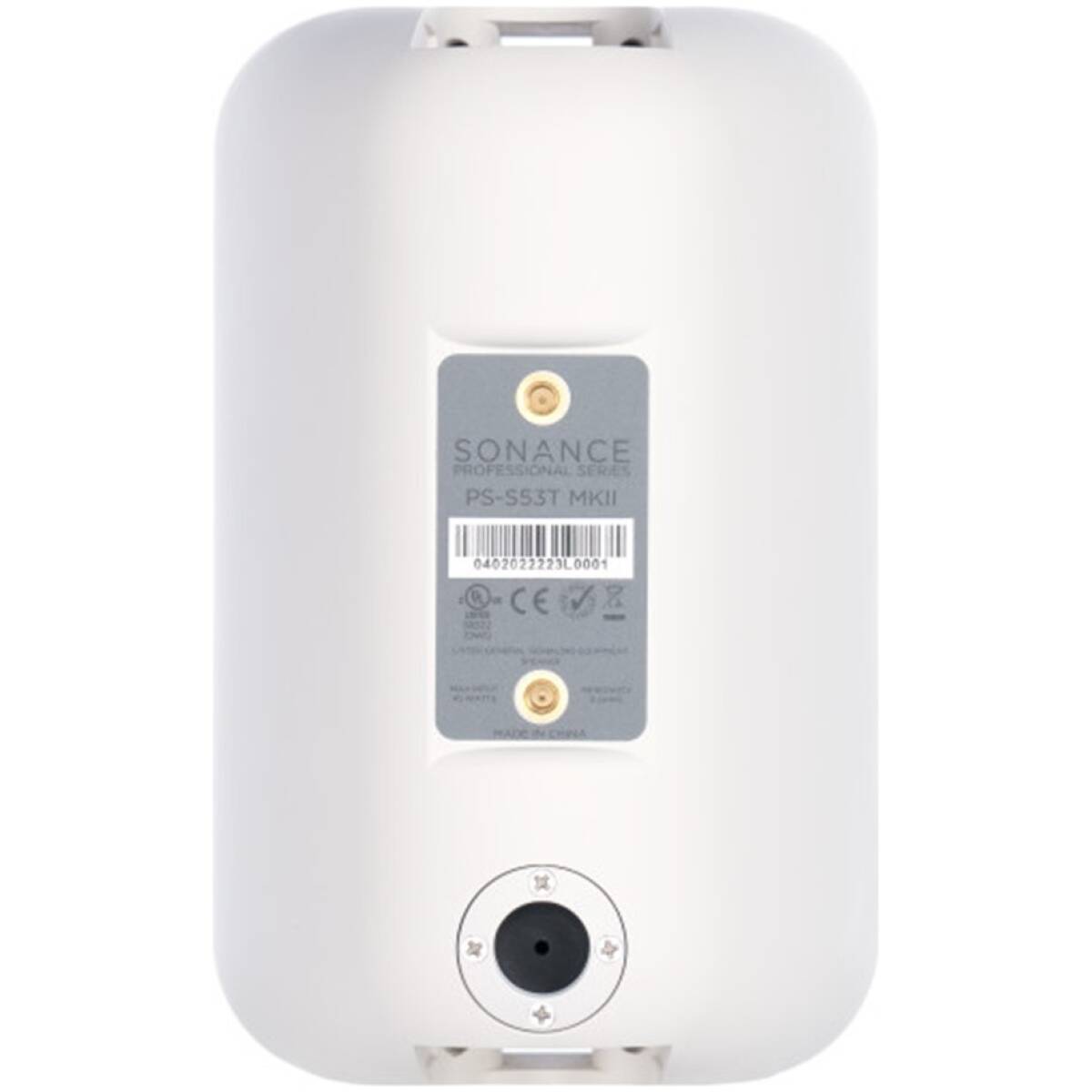

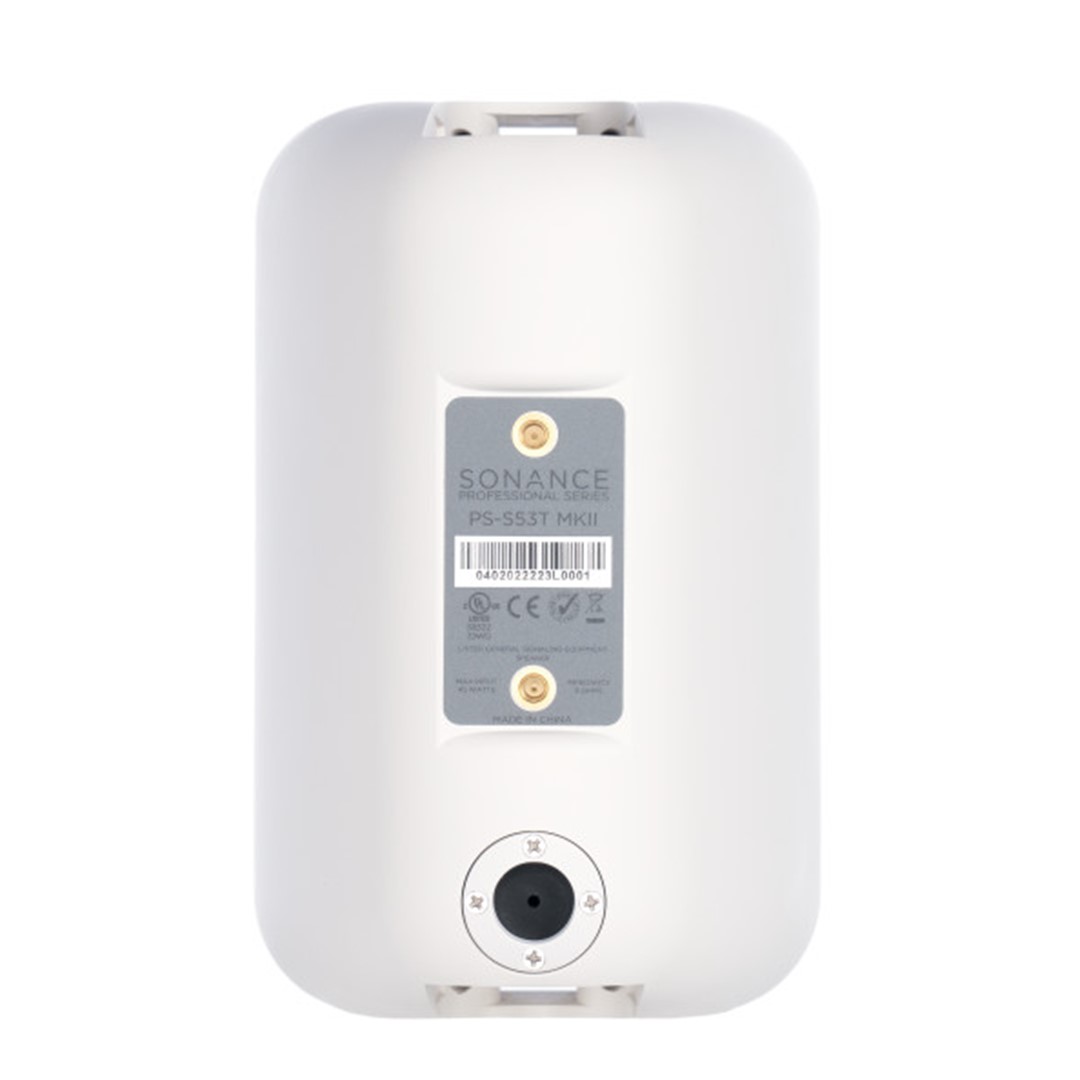

• Mounting Bracket: U-Bracket with Sonance FastMount
• Color Options: Black or White
• Shipping Dimensions: 6.38″ x 5.67″ x 10.08″ (162.05 mm x 144.02 mm x 256.03 mm)
• Shipping Weight per Pair: 8.82 lbs (4.0 kg)
