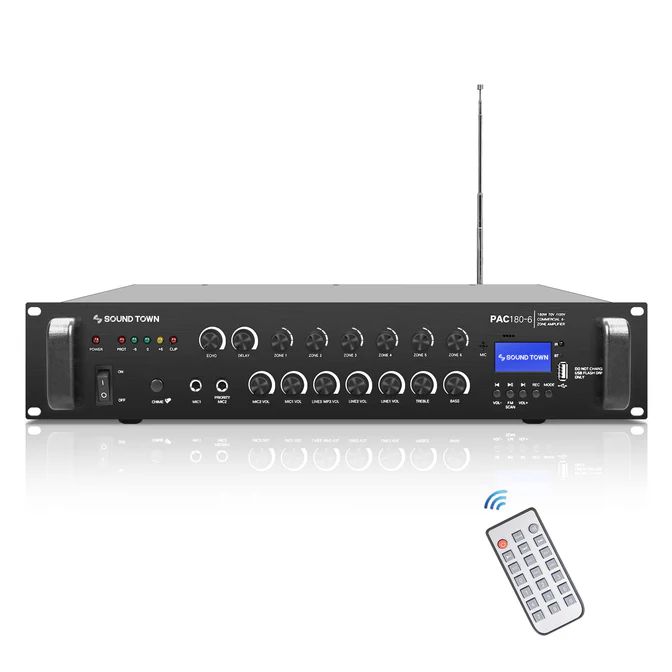

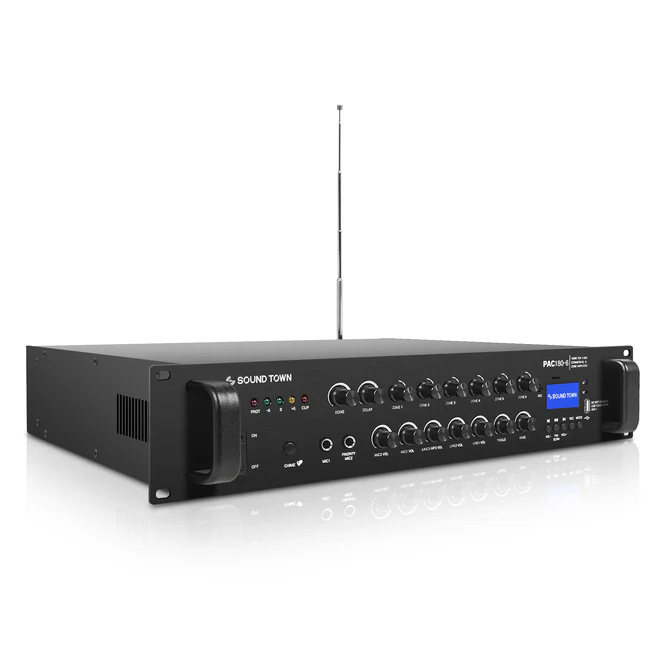

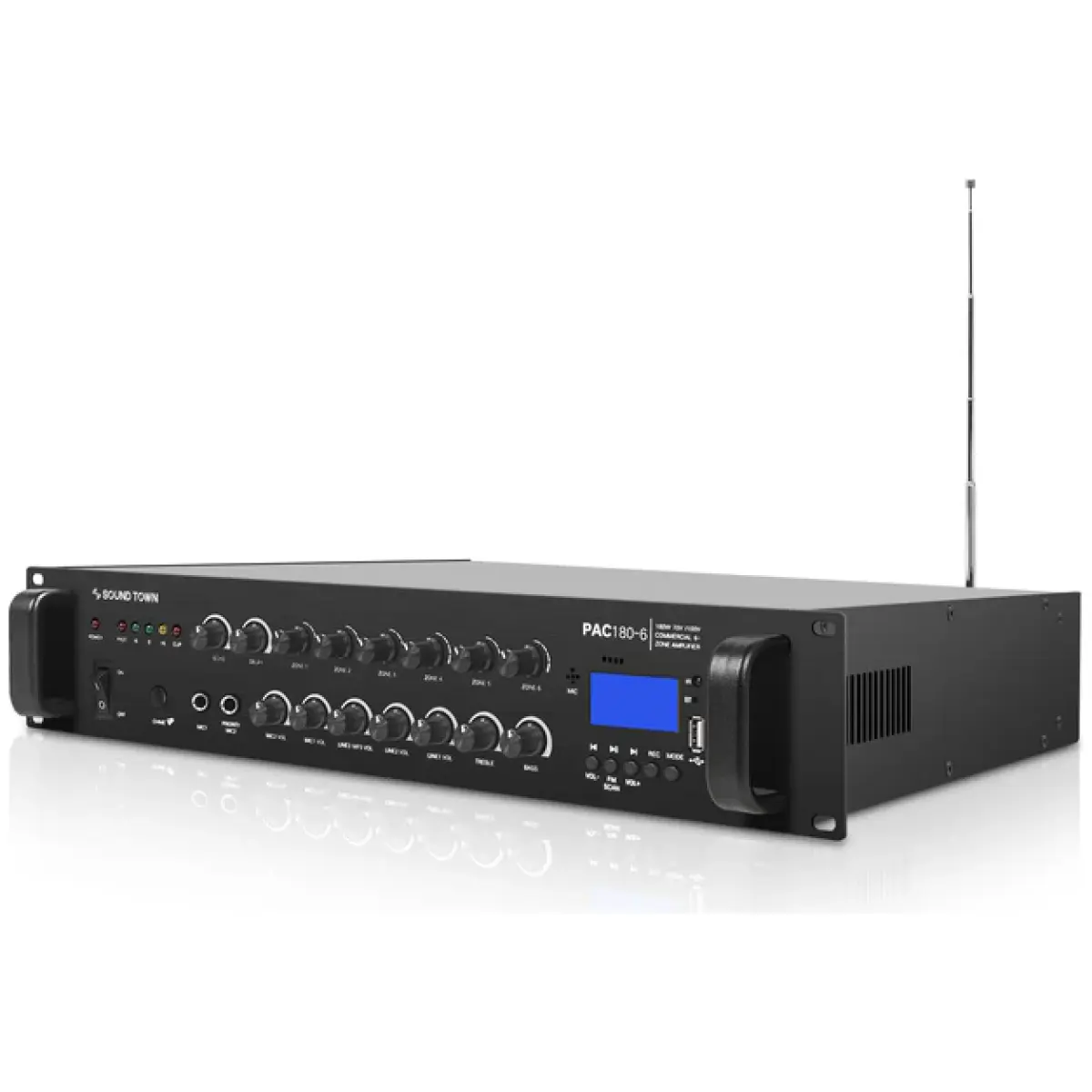

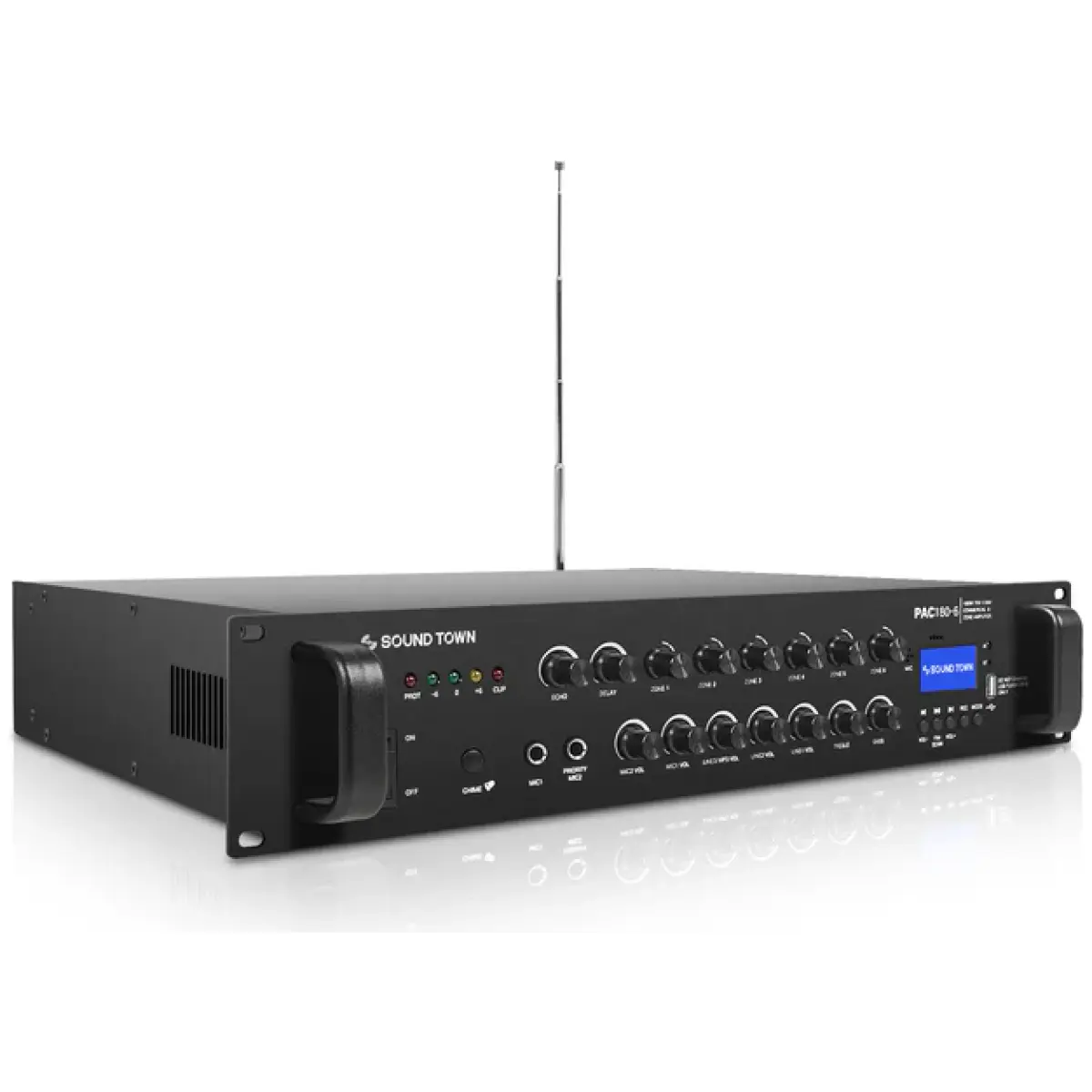

Sound Town PAC180-6 Commercial Power Amplifier

The Sound Town PAC180-6 is a 6-zone 19″ rack mountable commercial power amplifier. It comes with 180W RMS output and can be split into 6 zones. Its integrated clipping limiter protects your speakers and amp from overheating. Better yet, it is capable of 70-volt, 100-volt, 8-ohm, and 4-ohm and is ideal for applications such as restaurants, bars, pubs, schools and warehouse.

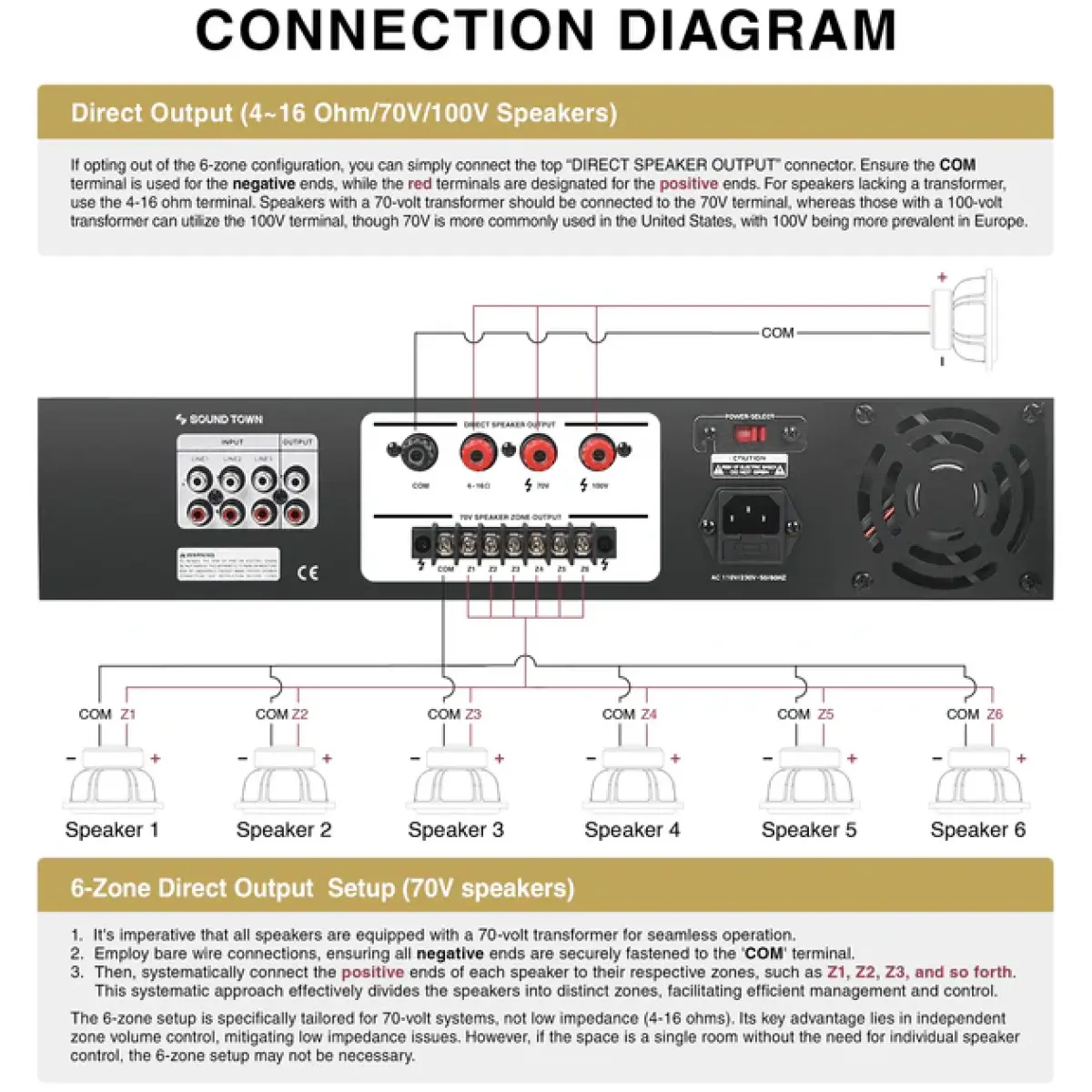

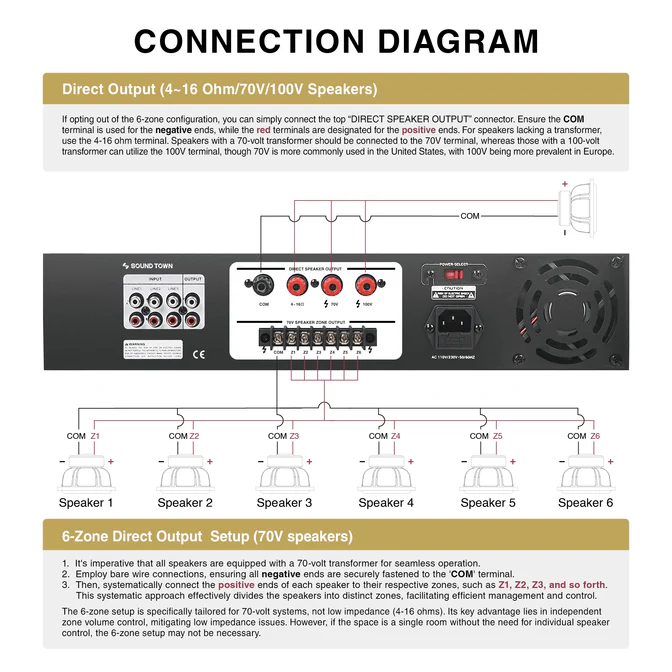

With a built-in potentiometer, each zone can power up to 200W but the total for all zones must be less than 180W. You can also connect a 70V speaker to the 100V 6-zone function, but the power output would be lower. For example, when it’s 60W at 100V per zone, the power will be around 42W at 70V. In addition, 70V/100V and 8-Ohm can’t be used at the same time. A 6-zone cannot pick up 8-Ohm. If you want to connect 8-Ohm, you can only connect the 4-16 Ohms terminal of the main output and you can’t connect any other 70V/100V terminals.

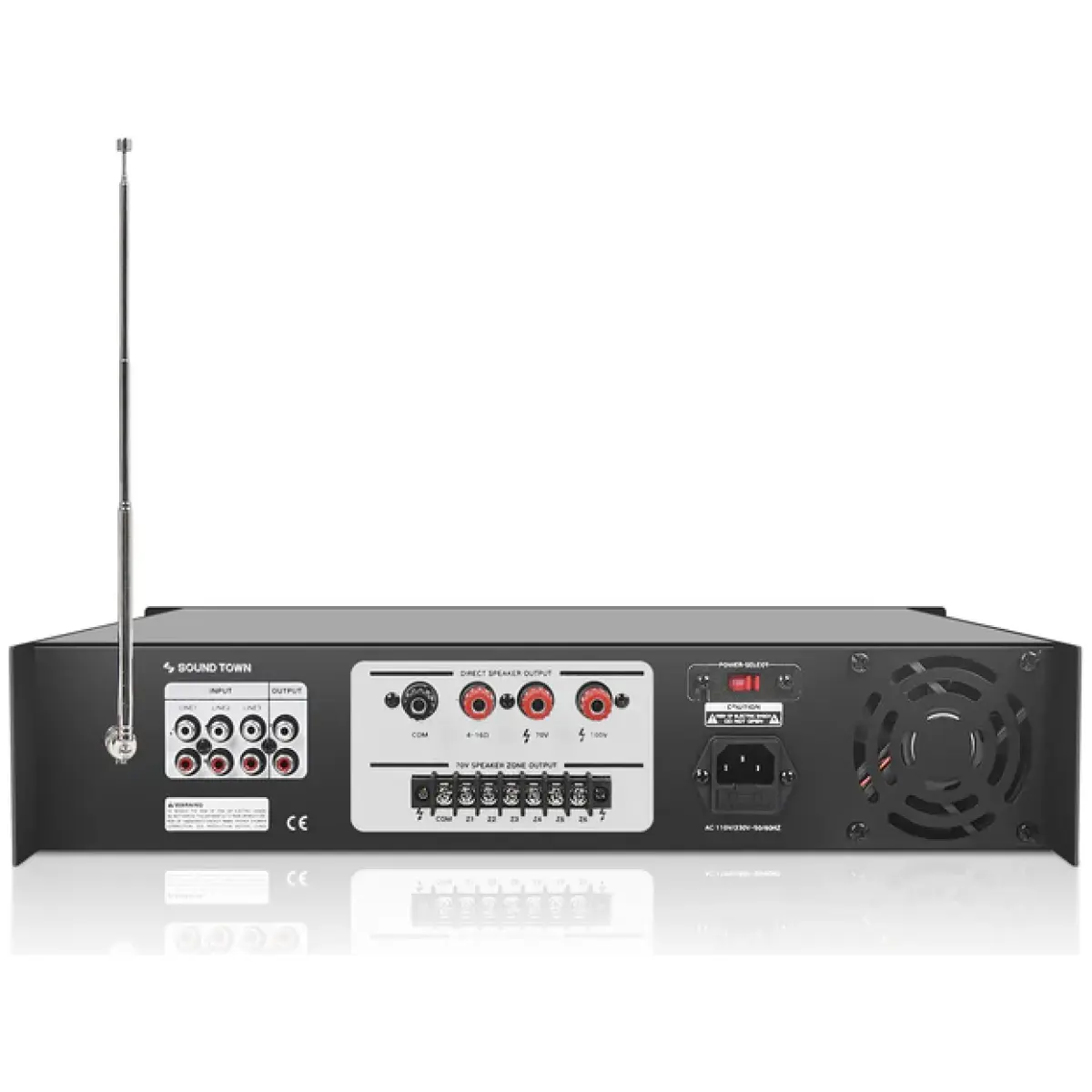

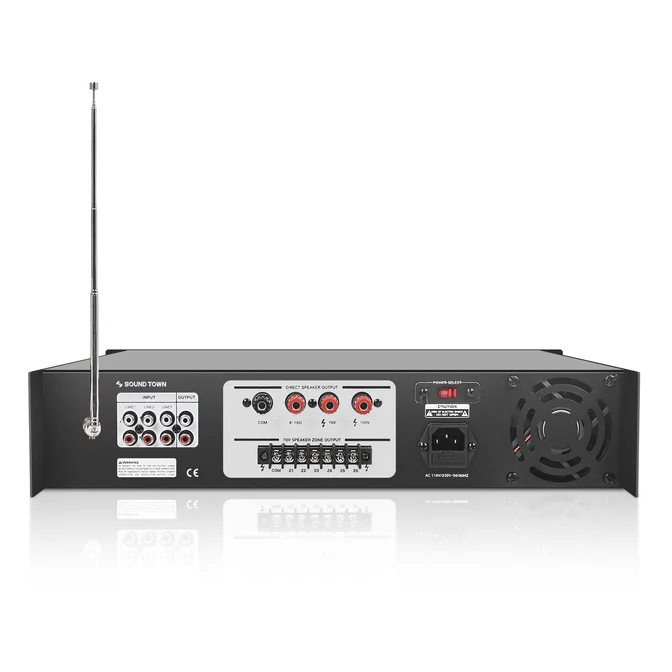

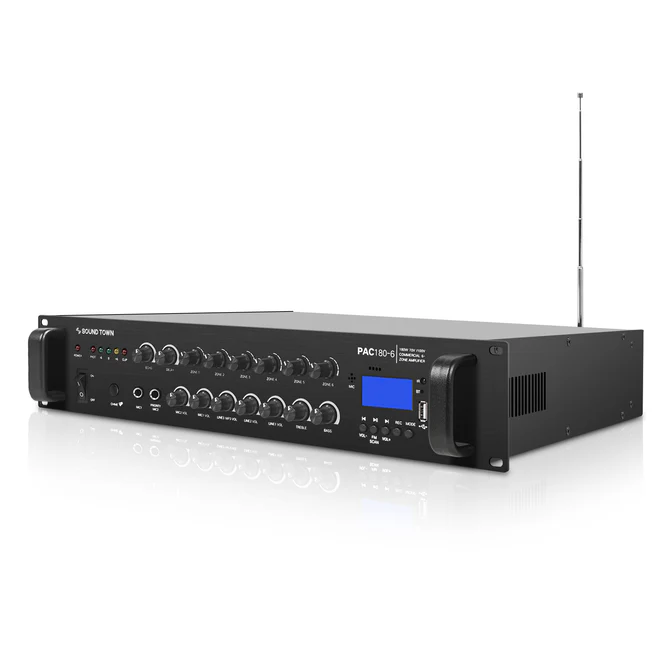

The multi-zone power amplifier comes with 3 sets of RCA inputs, 2 mic inputs, and Bluetooth, USB, FM radio FM antenna and RCA line output, 70V / 100V / 4~16-ohm red positive speaker output terminals and shared negative speaker output terminal. Its versatile input and output options allows you to easily set this up in a variety of multi-room applications. Each of the 2 mics input has echo control all 6 zones have separate volume knobs for easy adjustment.
