DESCRIPTION

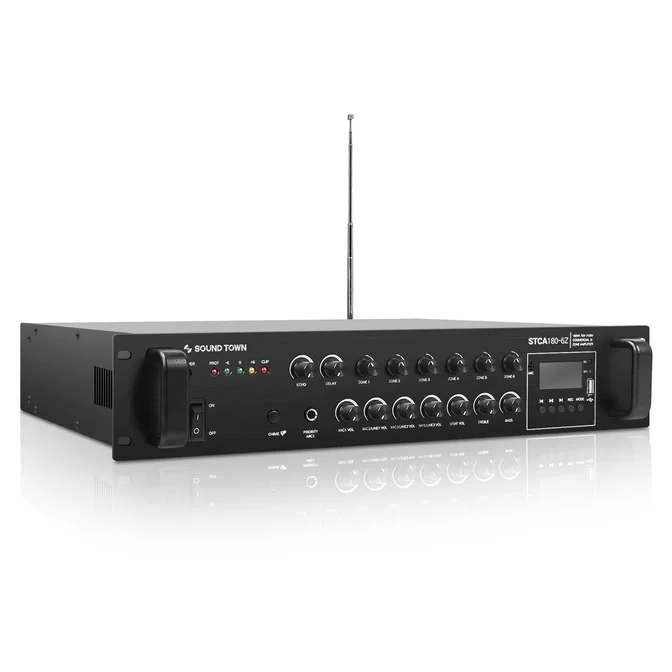

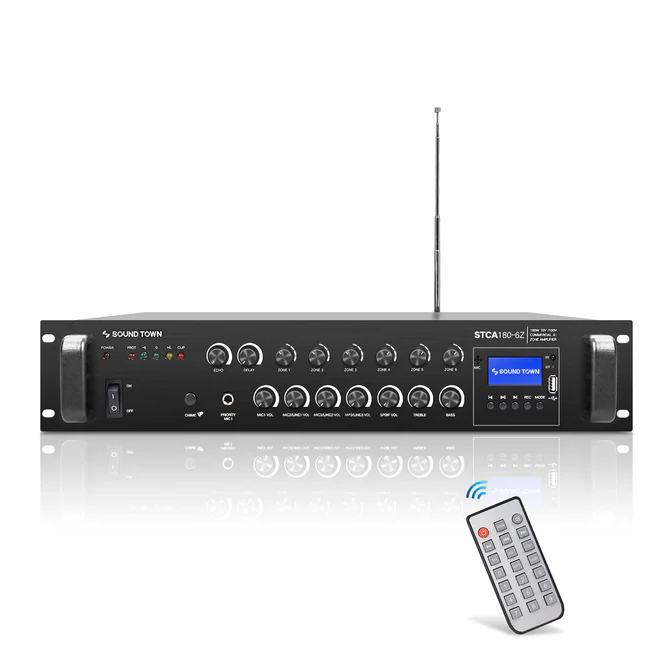

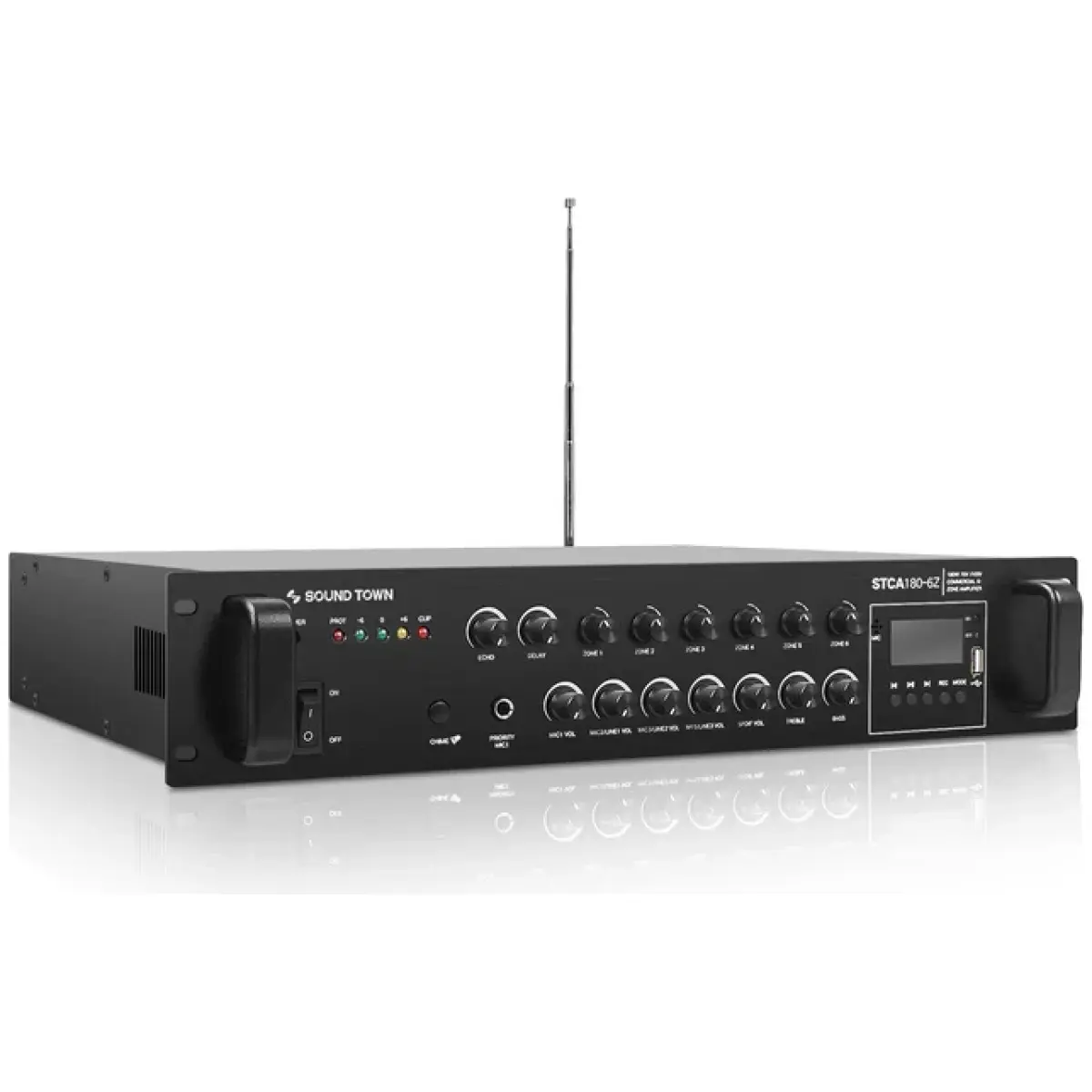

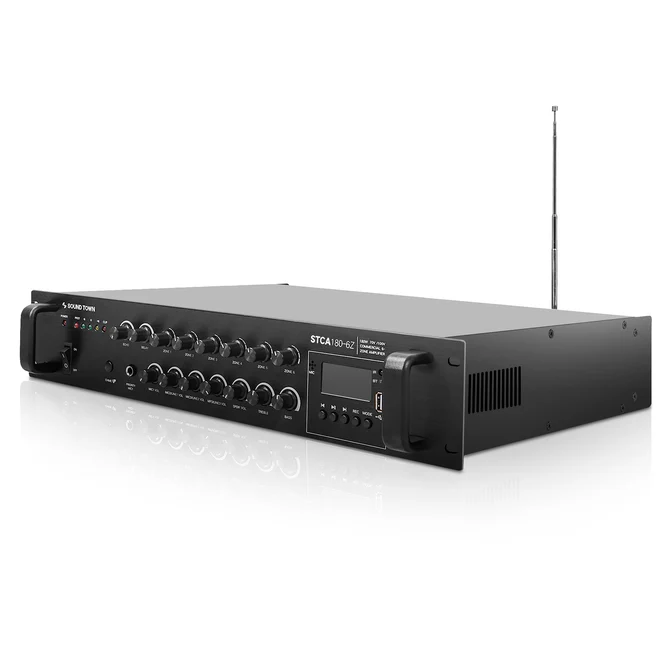

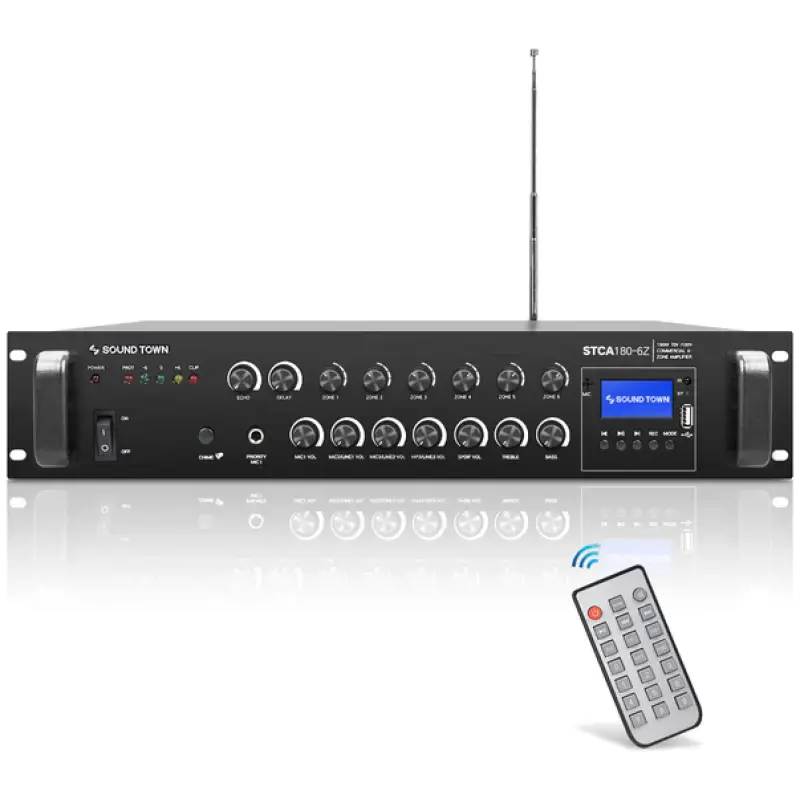

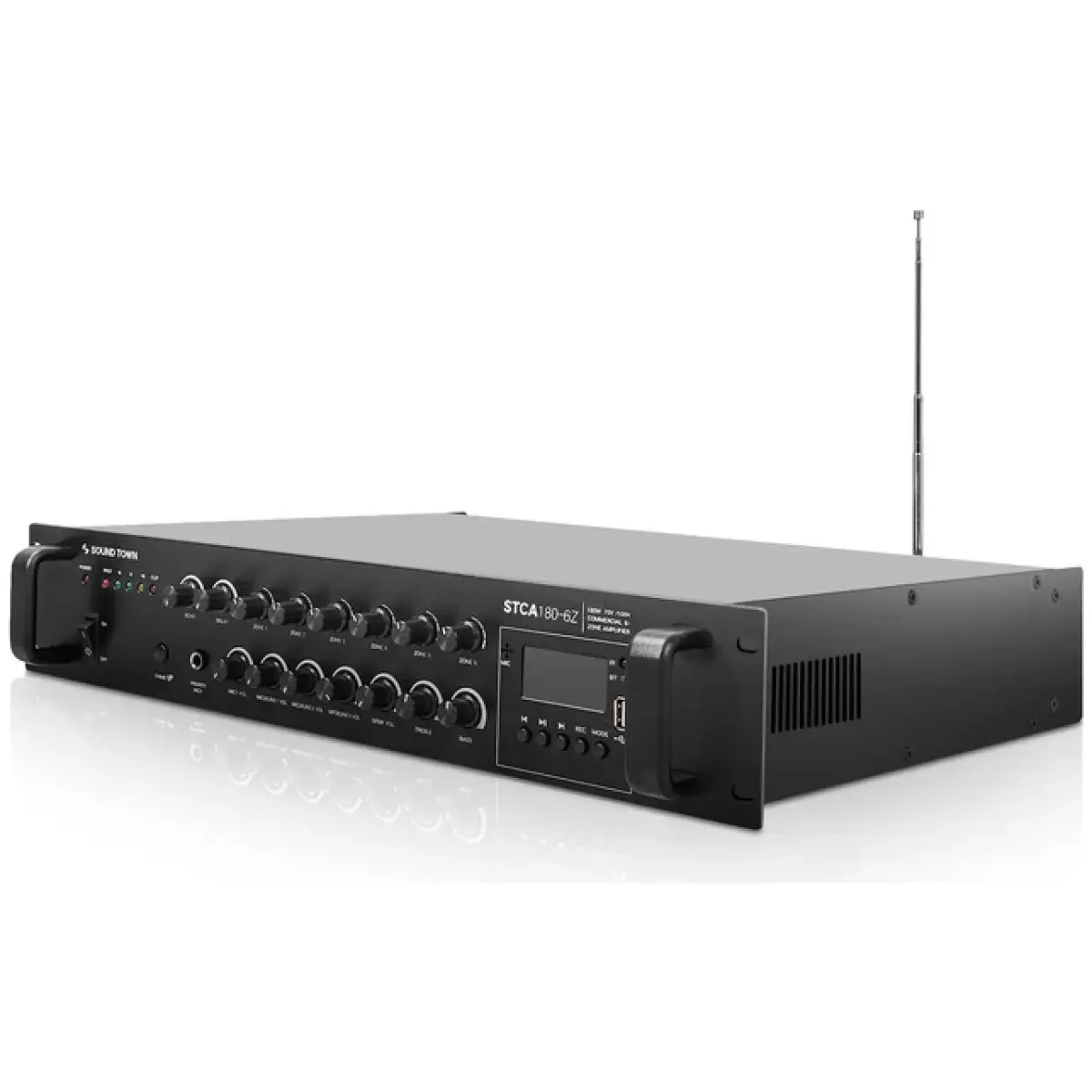

The Sound Town STCA180-6Z is a 6-zone 19” rack mountable commercial power amplifier. It comes with 180W RMS output and can be split into 6 zones. Its integrated clipping limiter protects your speakers and amp from overheating. Better yet, it is capable of 70-volt, 100-volt, 8-ohm, and 4-ohm and is ideal for applications such as restaurants, bars, pubs, schools and warehouse.

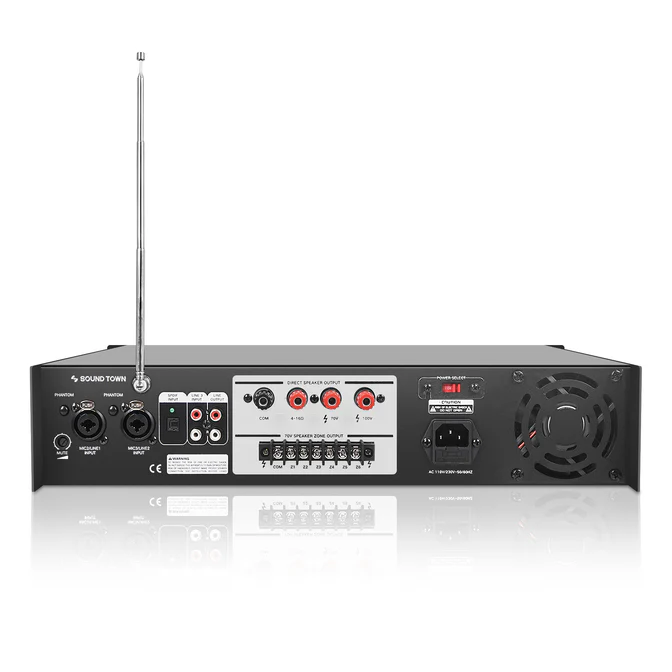

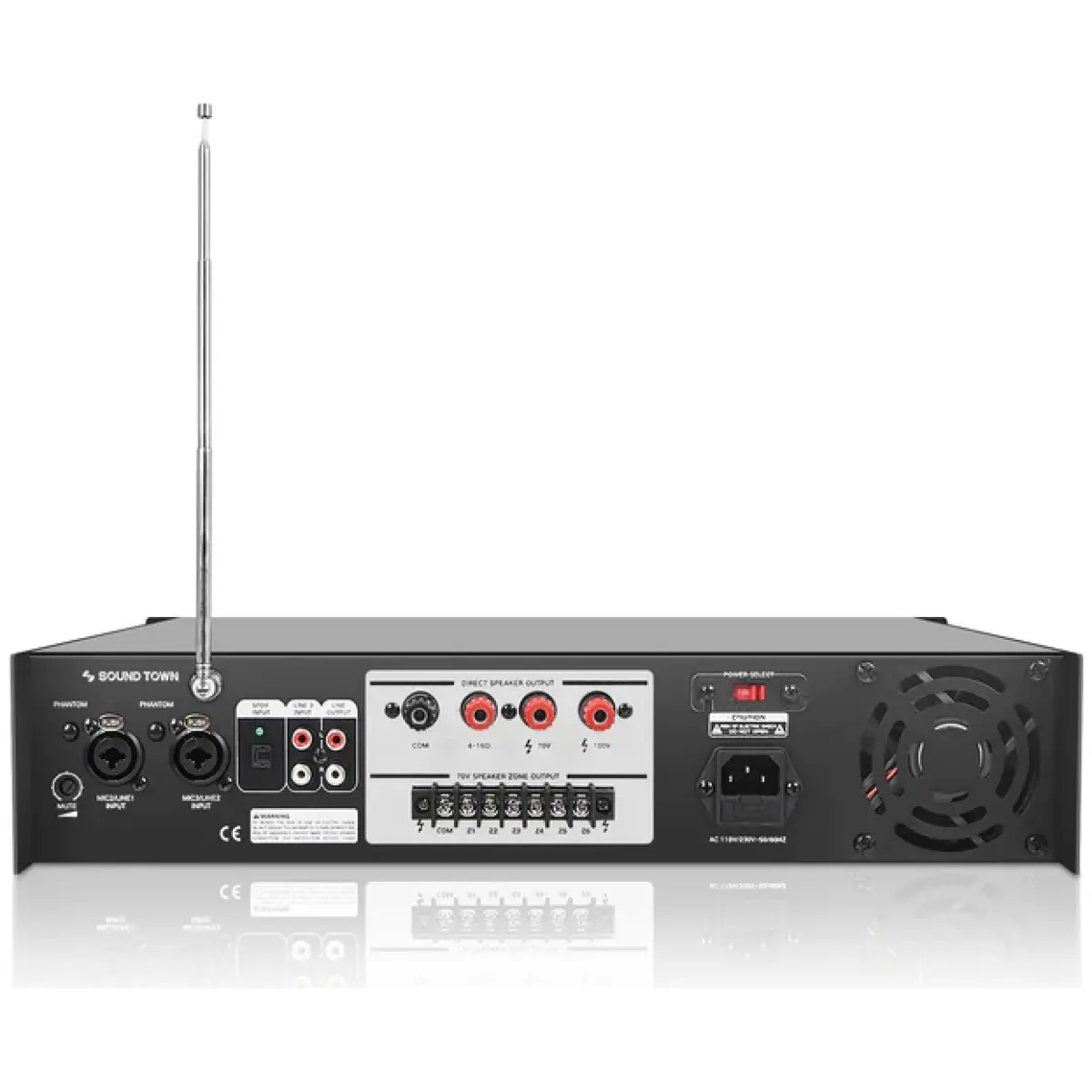

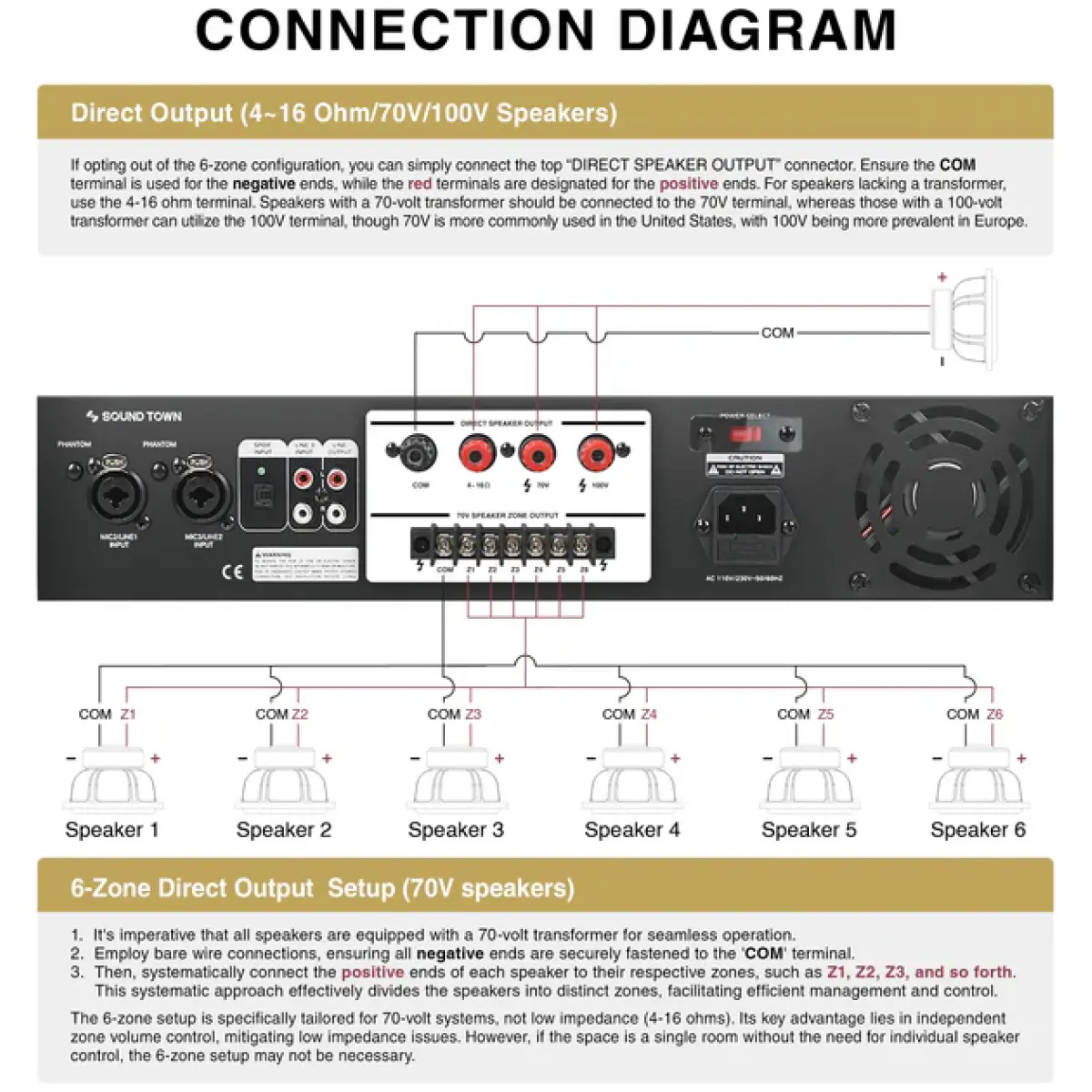

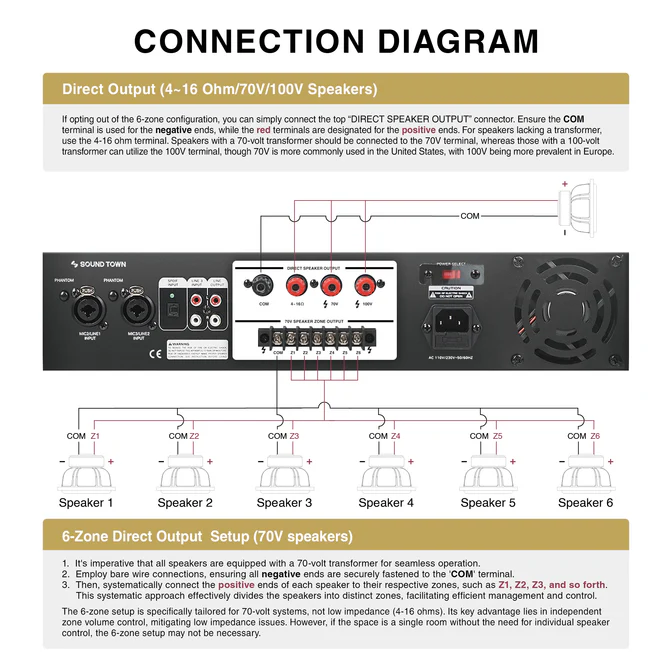

The multi-zone power amplifier comes with RCA input, 3 mic inputs, Optical (SPDIF) input, and Bluetooth, USB, FM radio, FM antenna and RCA line output, 70V / 100V / 4~16-ohm red positive speaker output terminals and shared negative speaker output terminal.
FEATURES
- The commercial (public address) power amplifier has a 6-zone speaker output with individual volume control
- Two phantom-powered mic inputs make using condenser microphones convenient
- Versatile inputs with RCA, 3 mic inputs with 1 priority mic input on the front, Optical (SPDIF) input, USB input, FM radio tuner, FM antenna, and Bluetooth for easy connection to audio streaming devices; each mic has repeat, speed, echo control
- Built-in clipping limiter and reliable cooling system protect your speakers and amplifiers from overheating
- The audio amplifier is ideal for multi-room applications or broadcasting system such as restaurants, lounges, bars, pubs, schools and warehouses
SPECIFICATIONS
| MODEL | STCA180-6Z |
| OUTPUT POWER | 180W RMS |
| OUTPUT TYPE | 70V/100V/4~16Ω |
| MIC INPUT | 3mV, 600 Ω |
| LINE INPUT | 200mV, 10k Ω |
| FREQ. RANGE | 50 Hz~20k Hz |
| DISTORTION | 0.5% (1k Hz) |
| S/N RATIO AUX | 88 dB |
| S/N RATIO MIC | 116 dB |
| VOLTAGE | AC110V~230V |
Dimension & Weight
| Product Width (in.) | 19.0″ | Package Width (in.) | 20.9″ |
| Product Height (in.) | 3.5″ | Package Height (in.) | 6.9″ |
| Product Depth (in.) | 15.3″ | Package Depth (in.) | 18.7″ |
| Product Weight (lb.) | 22.0 lbs | Package Weight (lb.) | 24.0 lbs |
Warranty/Certifications
| Manufacturer Warranty | 1 Year |
