DESCRIPTION

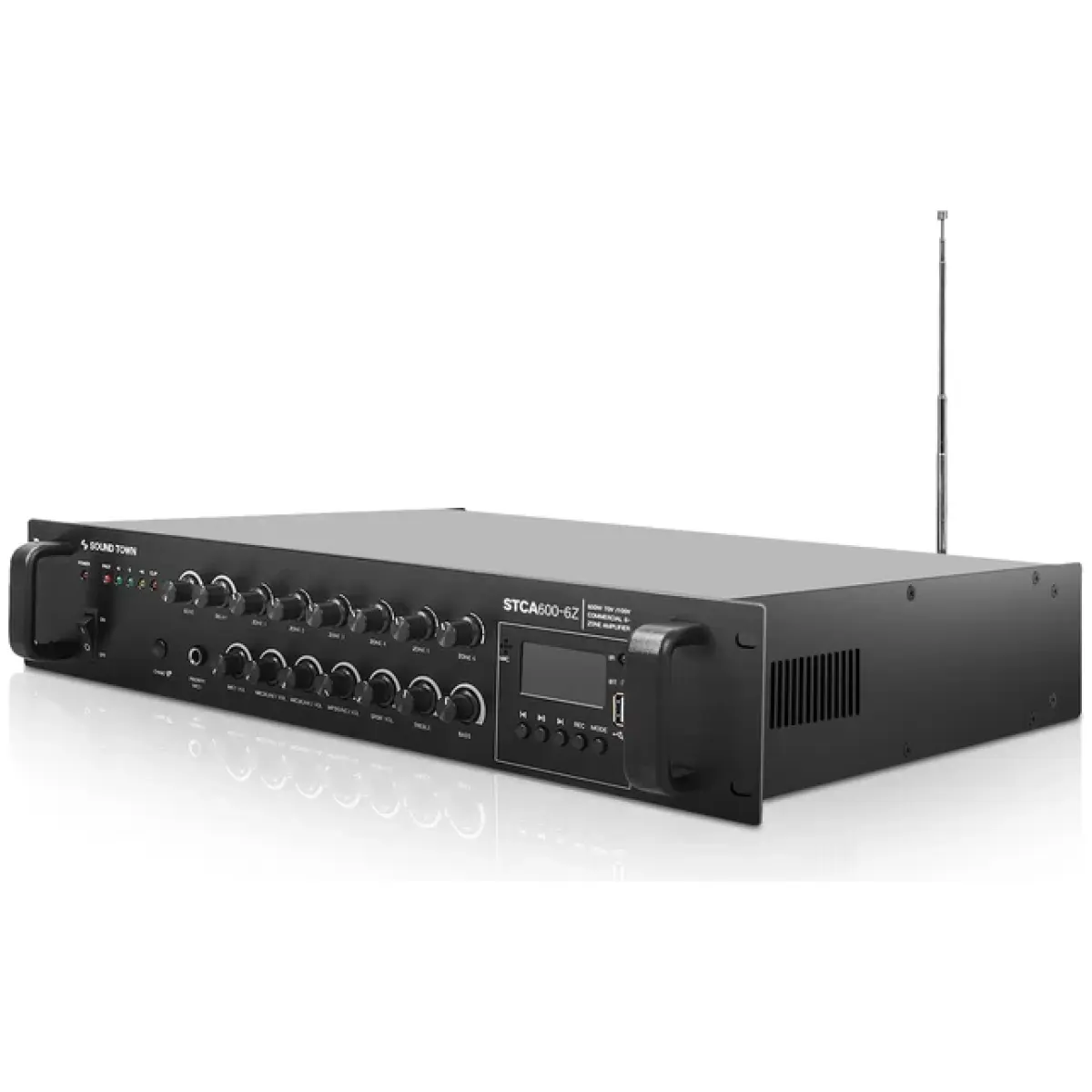

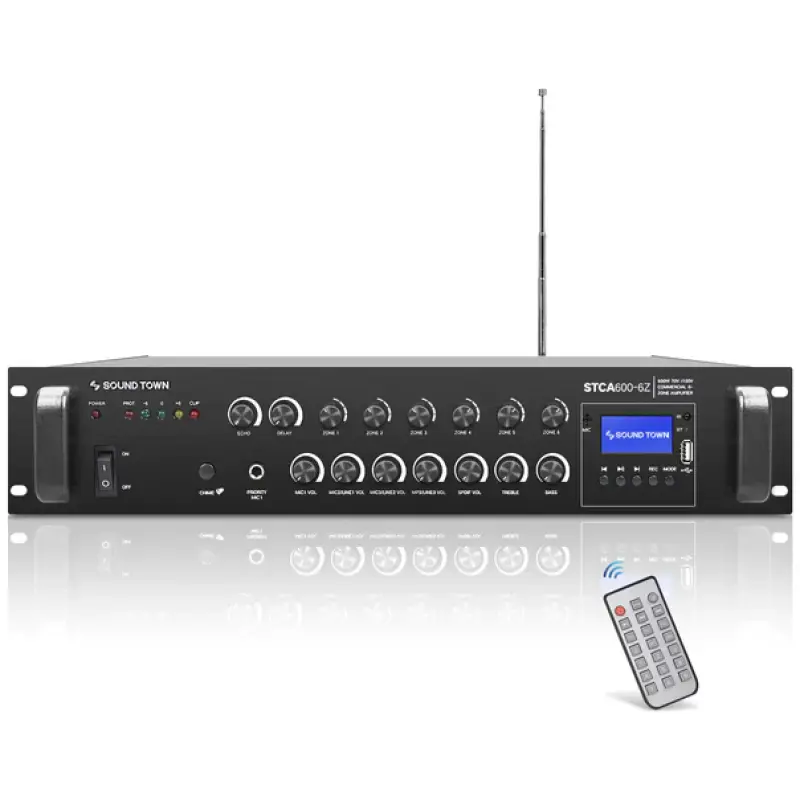

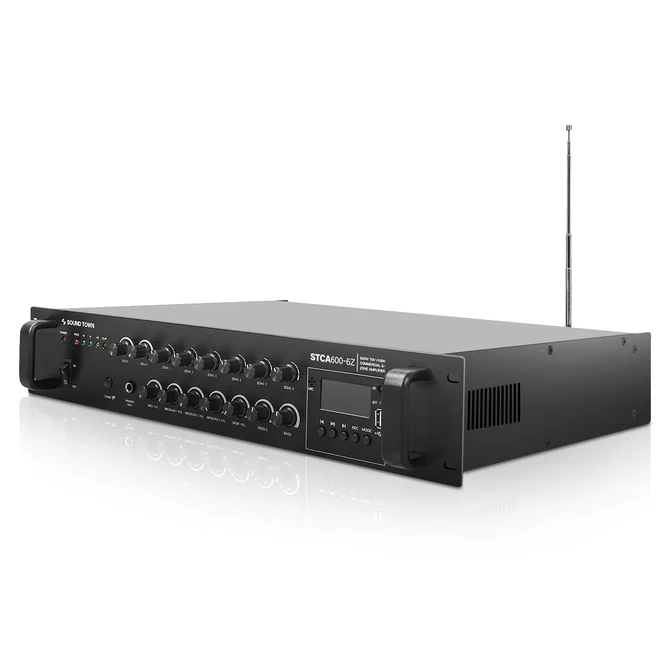

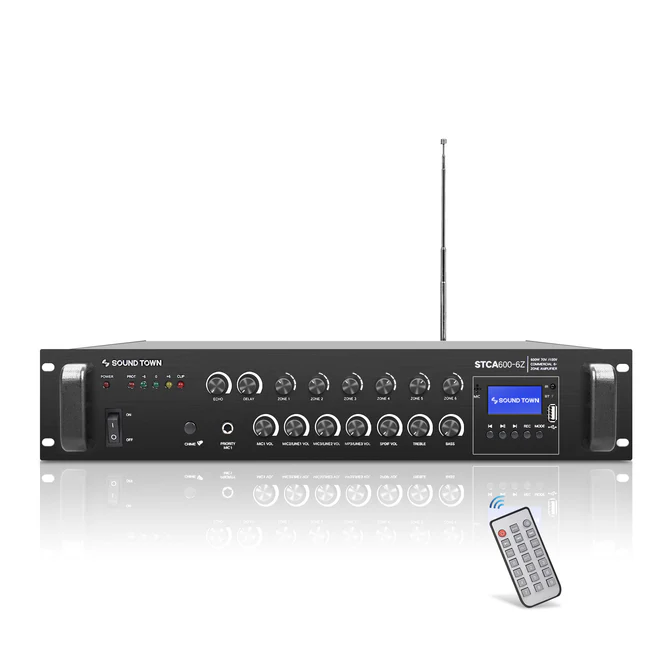

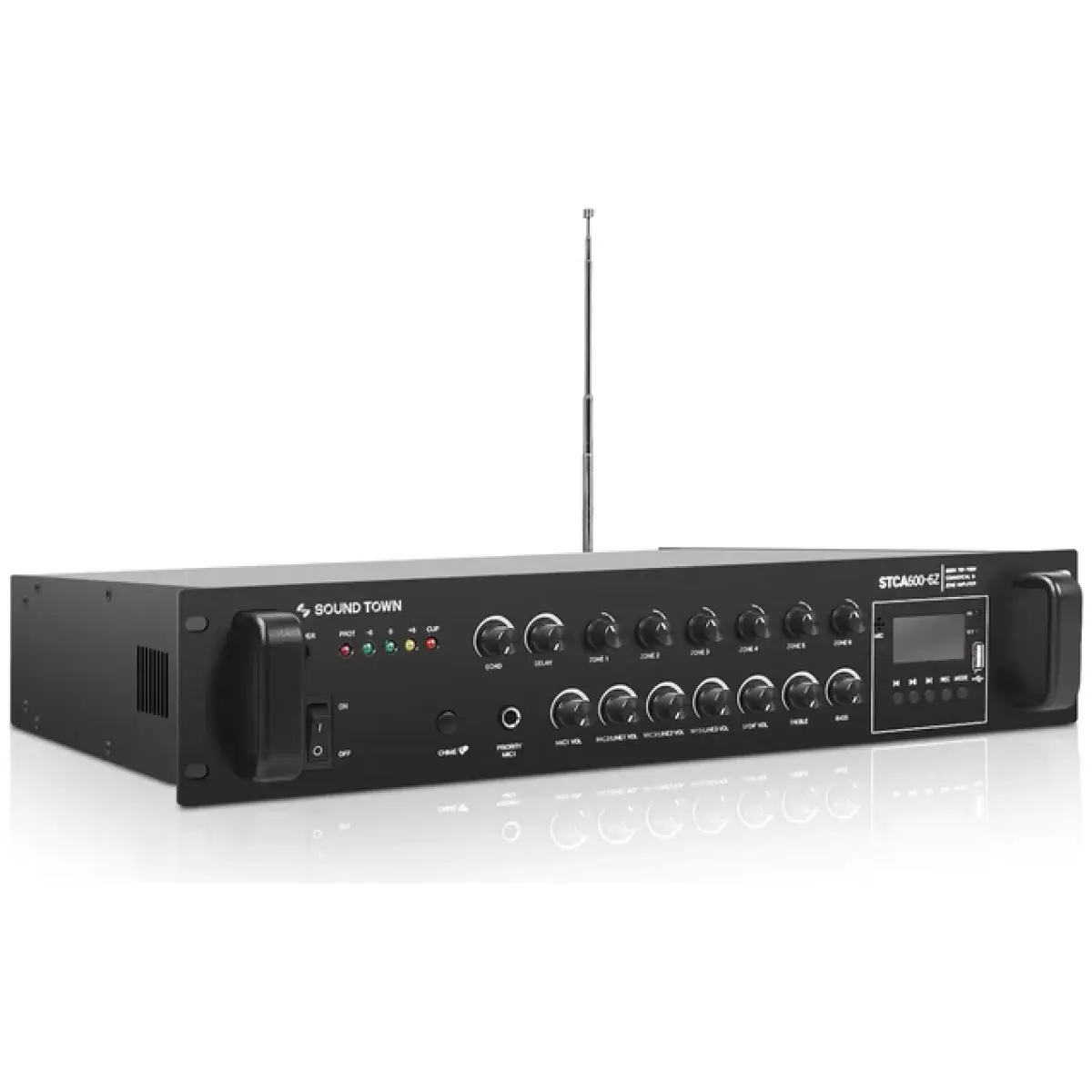

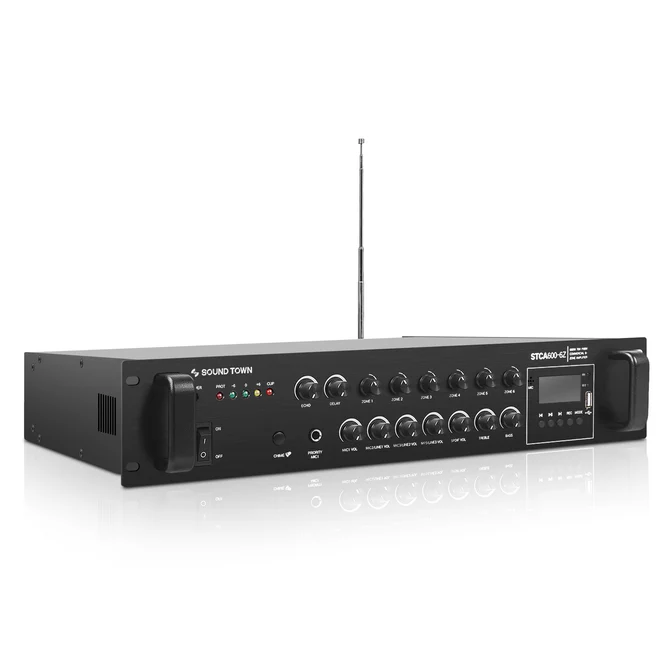

The Sound Town STCA600-6Z is a 6-zone 19” rack mountable commercial power amplifier. It comes with 600W RMS output and can be split into 6 zones. Its integrated clipping limiter protects your speakers and amp from overheating. Even better, it is capable of 70-volt, 100-volt, 8-ohm, and 4-ohm and is ideal for applications such as restaurants, bars, pubs, schools and warehouse.

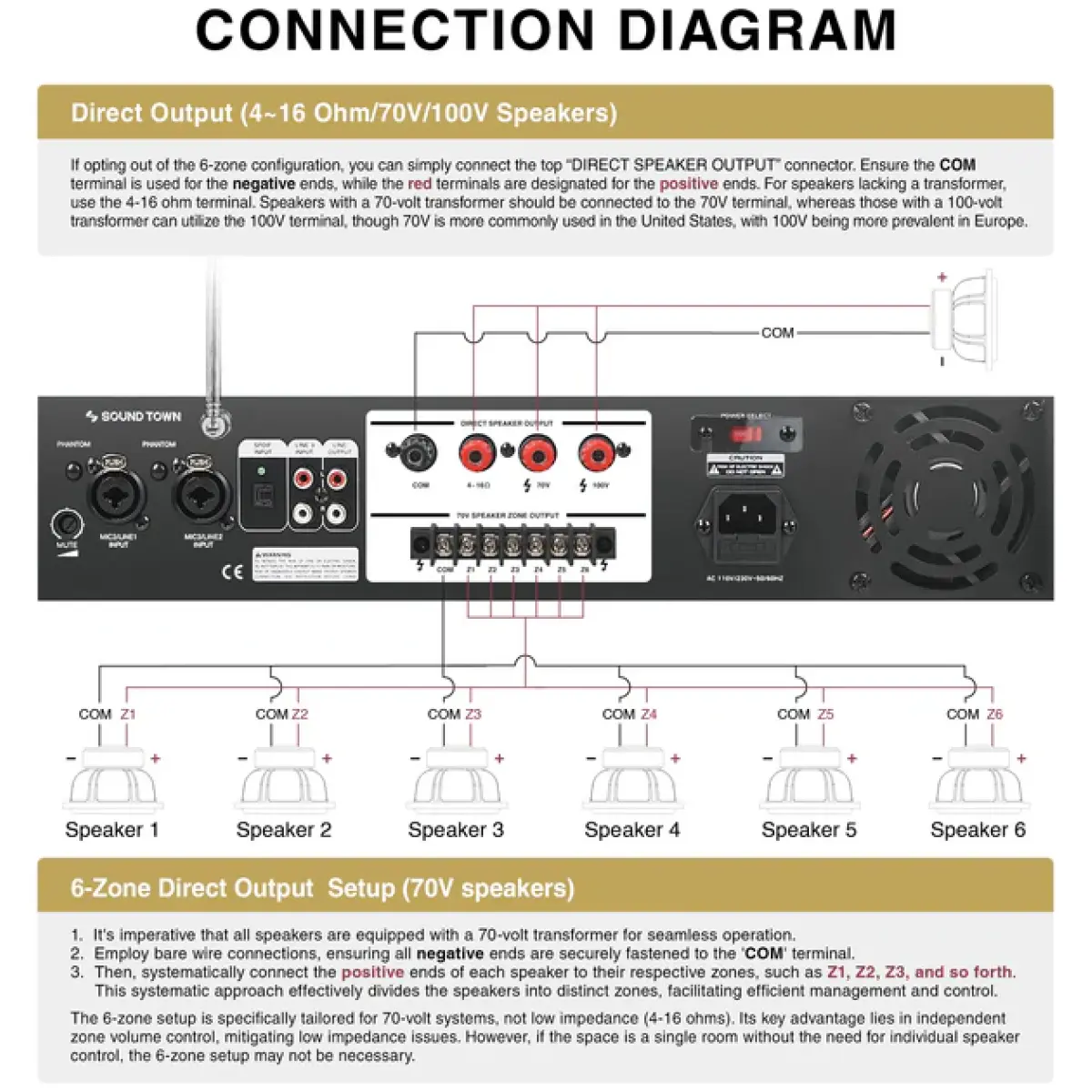

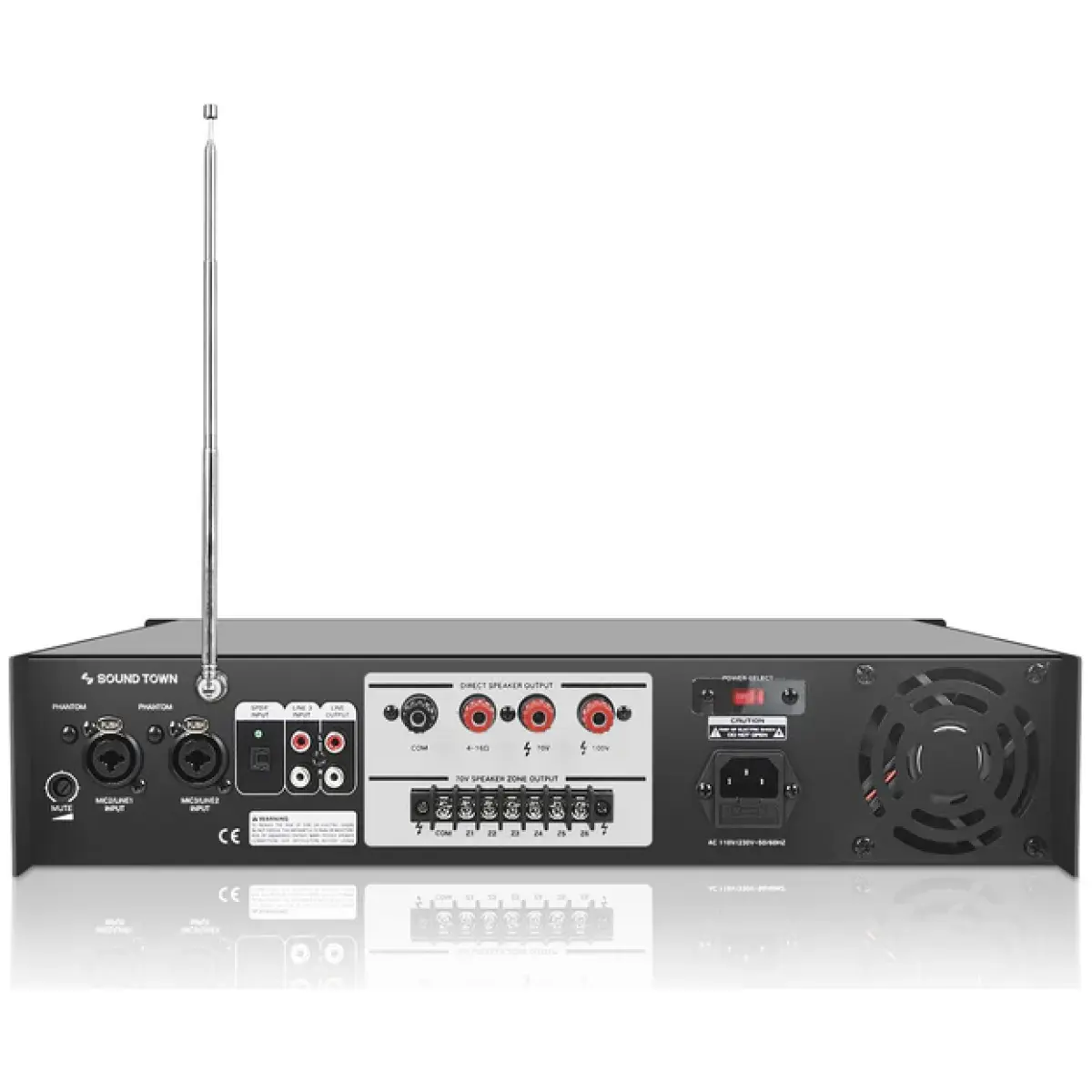

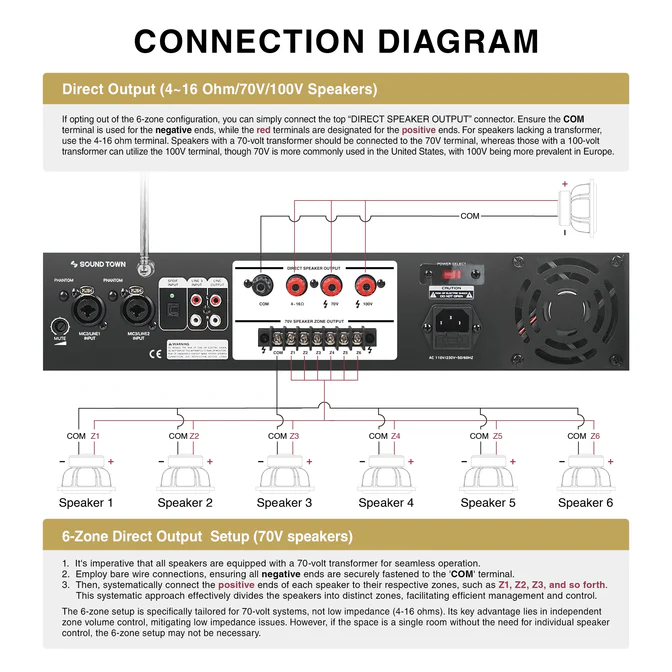

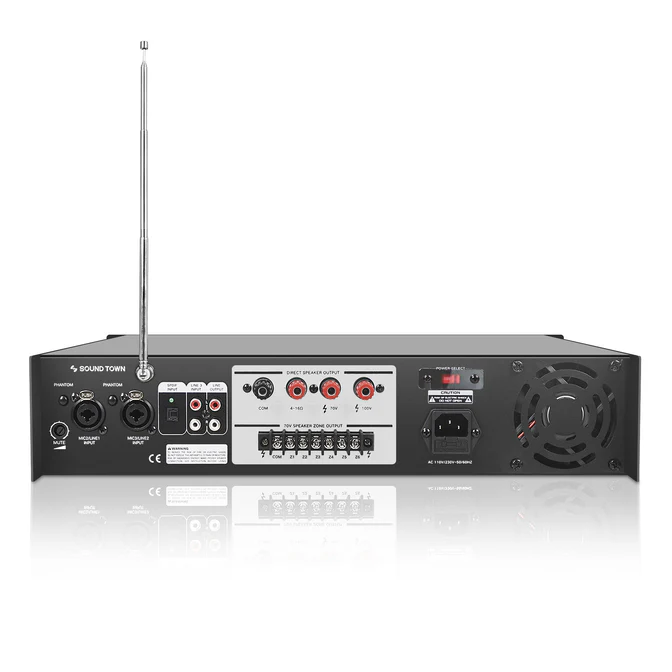

The multi-zone power amplifier comes with 2 RCA inputs, 3 mic inputs, Optical (SPDIF) input, USB, FM radio tuner, FM antenna and RCA line output, 70V / 100V / 4~16-ohm red positive speaker output terminals and shared negative speaker output terminal.
The amplifier’s versatile input and output options allow you to easily set this up in a variety of multi-room applications. Each of the 3 mics input has echo control and all 6 zones have separate volume knobs for easy adjustment. Two mic inputs are also phantom powered and compatible with condenser microphones.
FEATURES
- 6-zone speaker outputs with individual control
- Two phantom-powered mic inputs make using condenser microphones convenient
- Versatile inputs with 2 RCA inputs, 3 mic inputs with 1 priority mic input on the front, 1 optical (SPDIF) input, USB input, FM radio tuner, FM antenna and Bluetooth; each mic has repeat, speed, echo control
- Built-in clipping limiter protects your speakers and amp from overheating

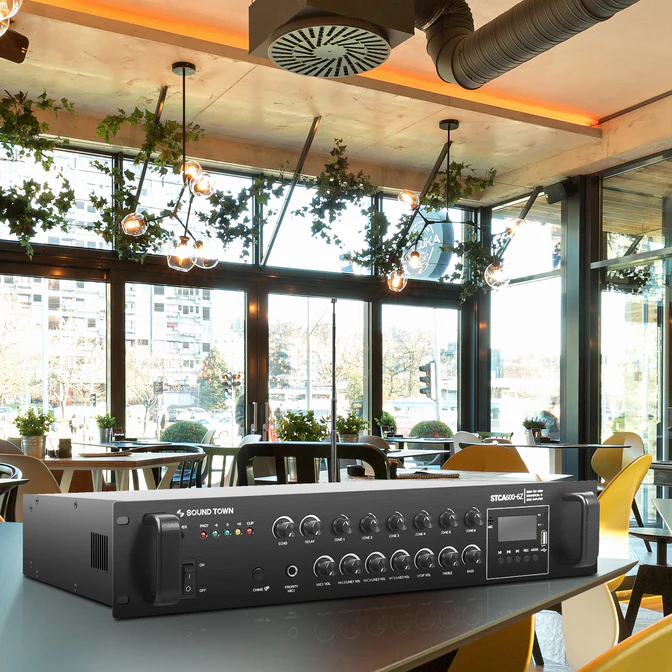

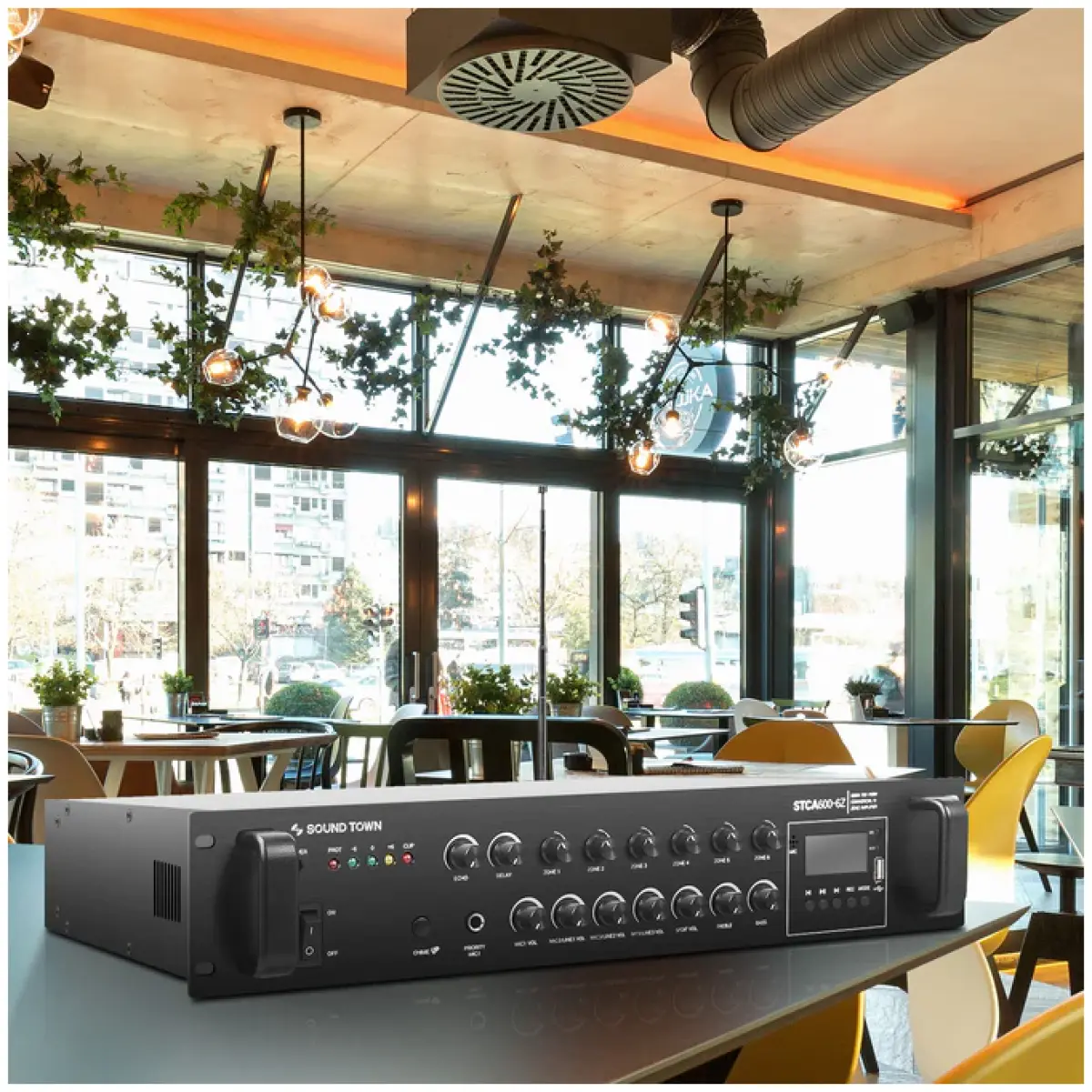

- Ideal for multi-room applications such as restaurants, lounges, bars, pubs, schools and warehouses
SPECIFICATIONS
| Model | STCA600-6Z |
| Output Power | 600W RMS |
| Output Type | 70V/100V/4~16Ω |
| MIC Input | 3mV, 600 Ω |
| Line Input | 200mV, 10k Ω |
| Freq. Range | 50 Hz~20k Hz |
| Distortion | 0.5% (1k Hz) |
| S/N Ratio AUX | 88 dB |
| S/N Ratio MIC | 116 dB |
| Voltage | AC110V~230V |
Dimension & Weight
| Product Width (in.) | 19.0″ | Package Width (in.) | 22.0″ |
| Product Height (in.) | 3.5″ | Package Height (in.) | 7.7″ |
| Product Depth (in.) | 15.3″ | Package Depth (in.) | 18.5″ |
| Product Weight (lb.) | 33.0 lbs | Package Weight (lb.) | 34.7 lbs |
Warranty/Certifications
| Manufacturer Warranty | 1 Year |
