DESCRIPTION

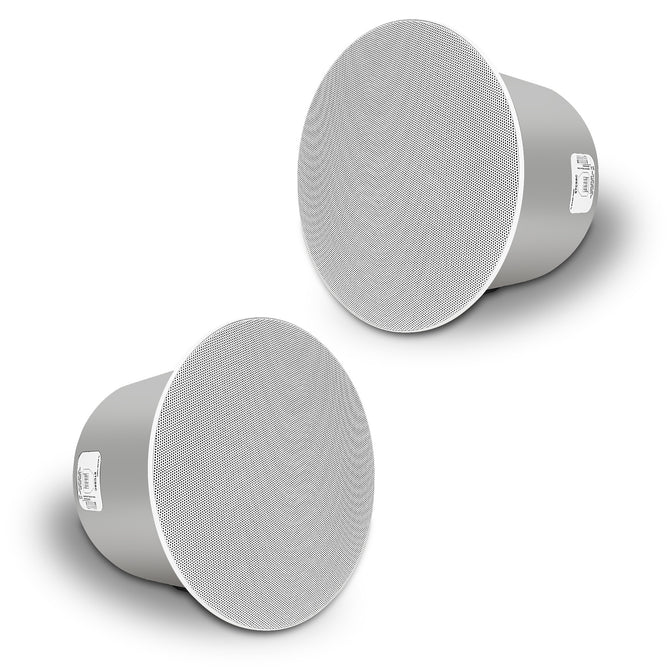

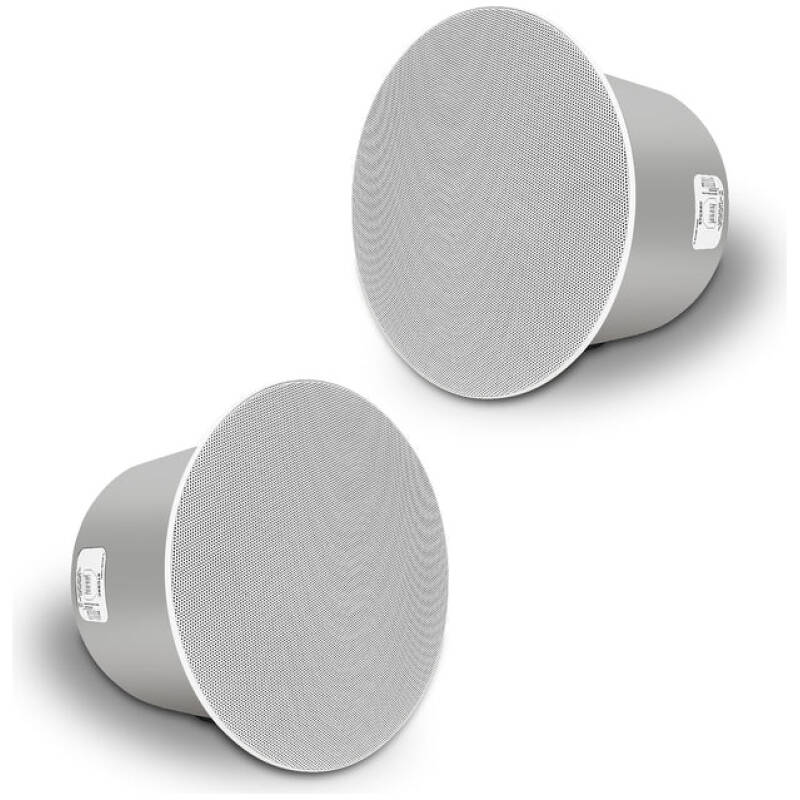

Introducing the Sound Town STCS8C-PAIR high-performance in-ceiling speakers tailored for those who truly care about performance. This set includes a total of two STCS8C coaxial in-ceiling speakers, each boasting a robust 8″ woofer alongside a 1″ coaxial compression driver. Together, they deliver a powerful output of 80W RMS and 160W program power at 8Ω.
Designed with a built-in multi-tap transformer, these in-ceiling speakers can support 70V/100V and 8Ω (low impedance) and can easily be adjusted using the baffle-mounted tap switch. This ensures a seamless integration with virtually any professional sound system. Installation is a breeze with the included bridge rail installation kit, providing secure mounting to ceilings in both residential and commercial settings.
With its white-painted magnetic grill coupled with a sturdy steel backcan, the STCS8C-PAIR offers a sleek, elegant finish that matches many different types of environments and settings while the 120° conical sound coverage ensures immersive sound dispersion to your audience. This makes the STCS8C-PAIR in-ceiling speakers an optimal choice for venues like restaurants, cafes, bars, lobbies, conference rooms, auditoriums, retail stores, casinos and much more!
FEATURES
- HIGH-PERFORMANCE IN-CEILING SPEAKERS: The Sound Town STCS8C-PAIR includes 2 coaxial in-ceiling speakers, each featuring an 8″ woofer and a 1″ coaxial compression driver, delivering 80W RMS and 160W program power (8Ω)

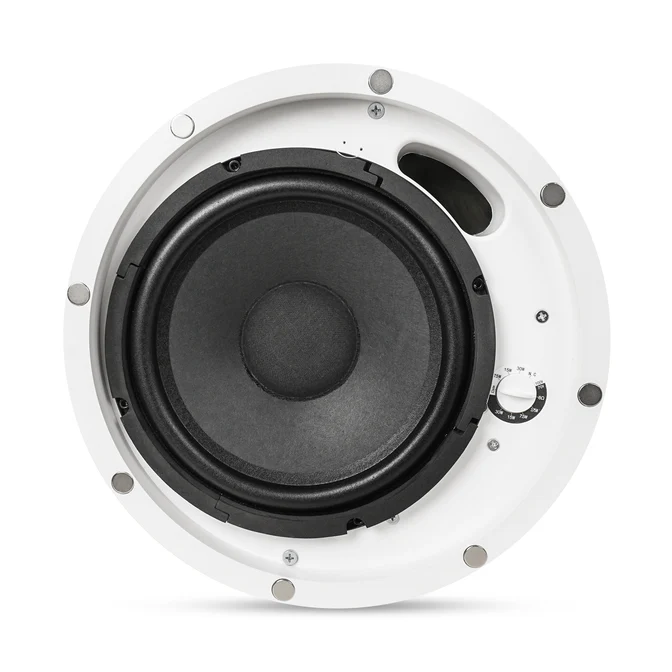

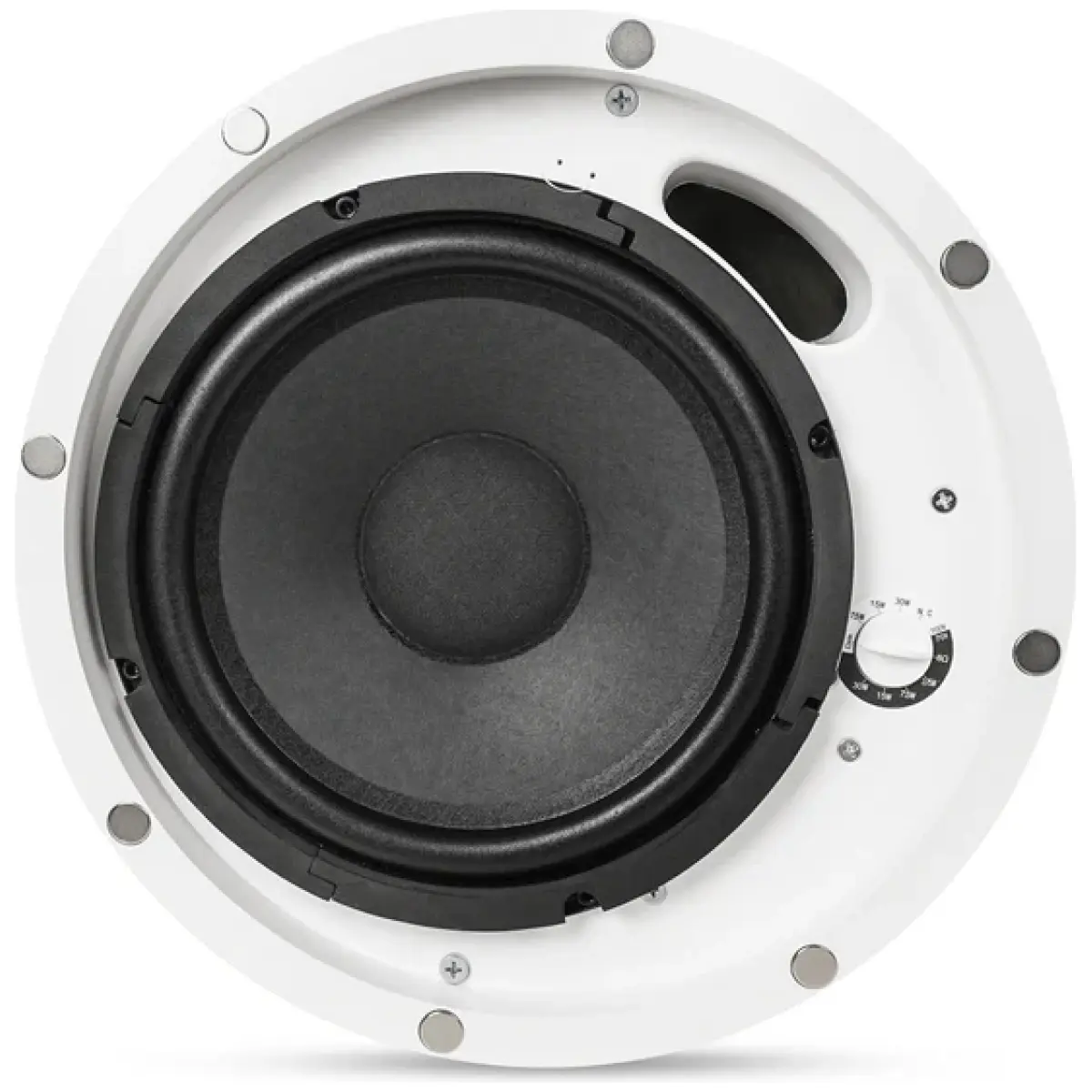

- MULTI-TAP TRANSFORMER 70V/100V: Equipped with a multi-tap transformer, the STCS8C-PAIR in-ceiling speakers can support both 70V/100V and 8Ω low impedance operation via the baffle mounted tap switch, allowing connectivity to virtually any pro sound system

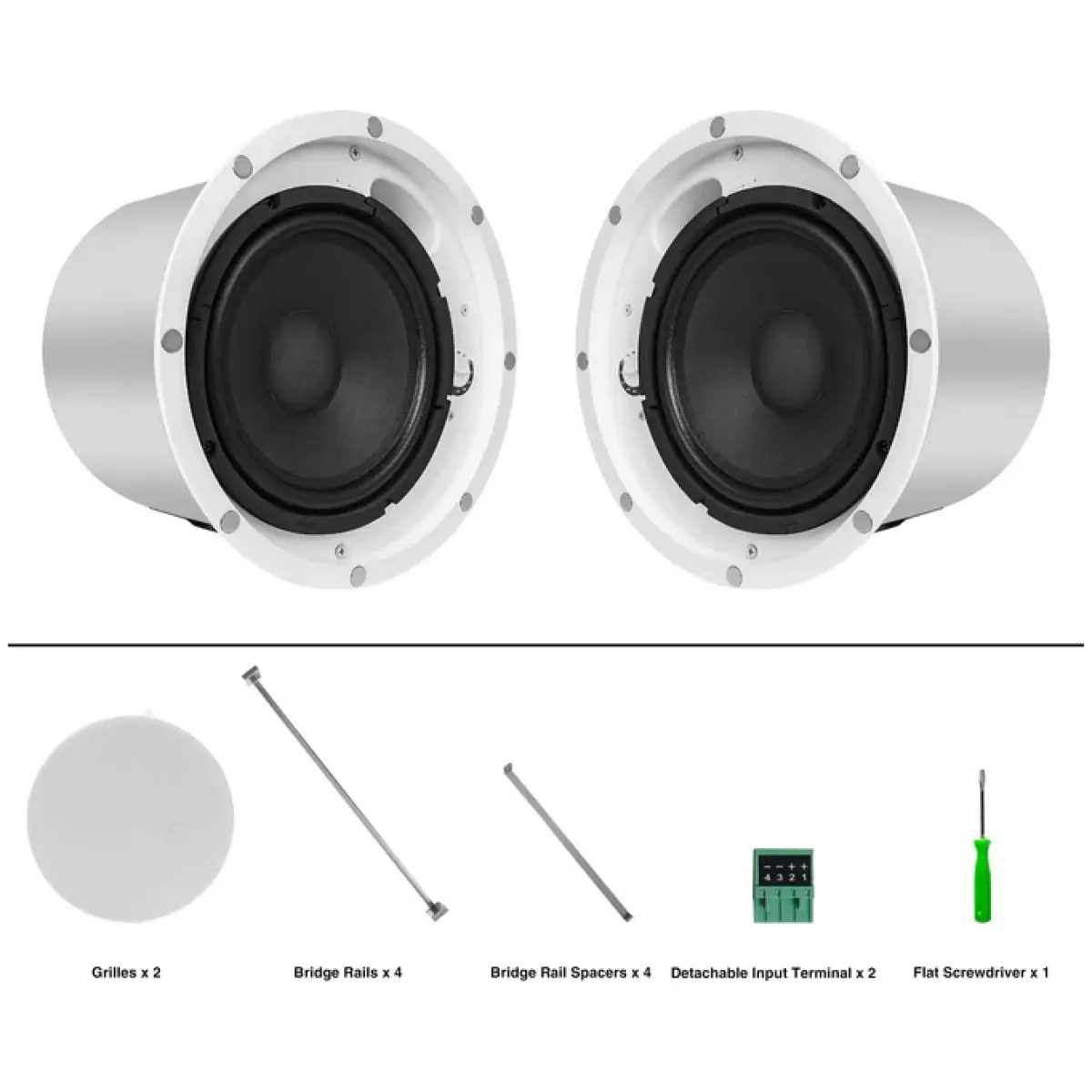

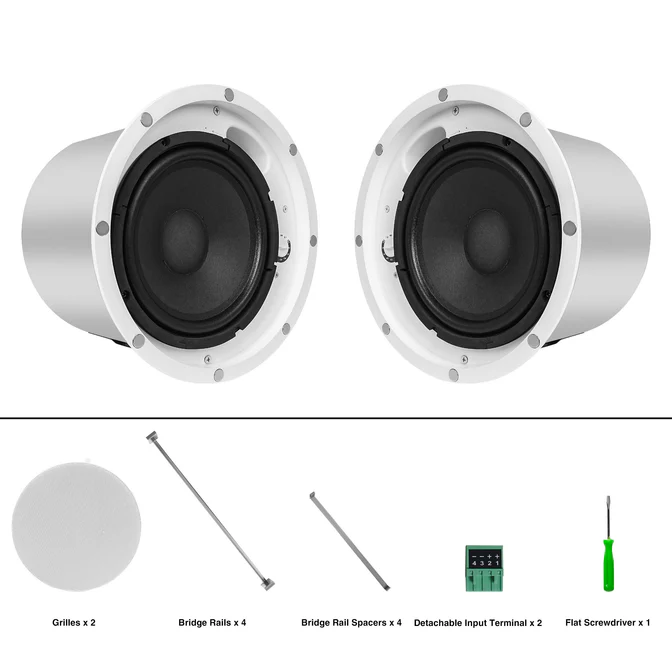

- SIMPLE AND EFFORTLESS INSTALLATION: Easily and securely install the STCS8C-PAIR to the ceiling with the included bridge rail installation kit, suitable for both home and commercial setups

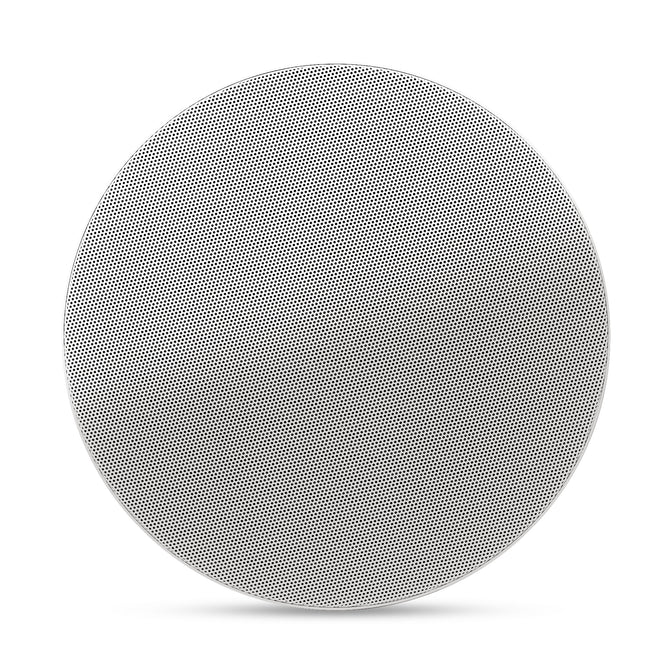

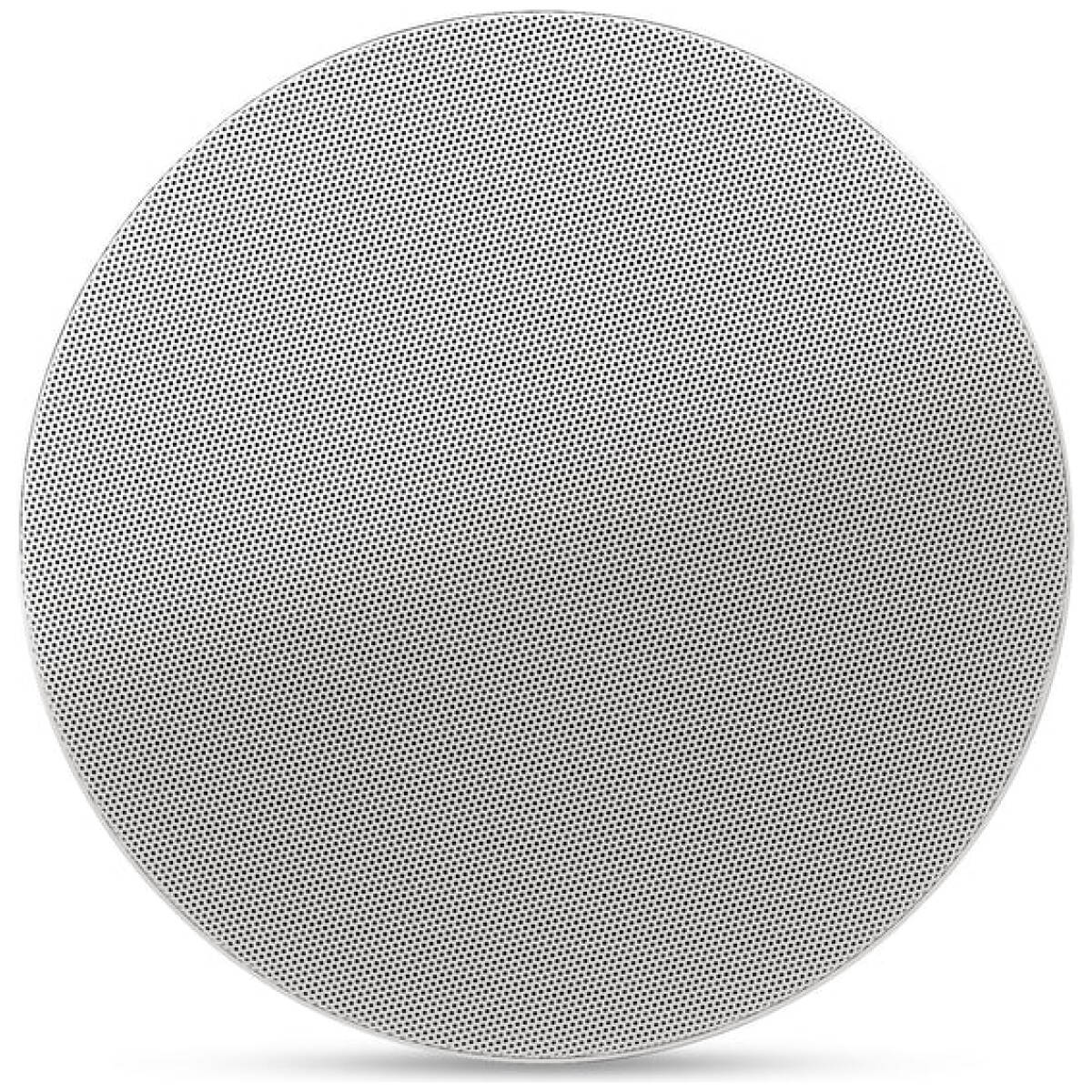

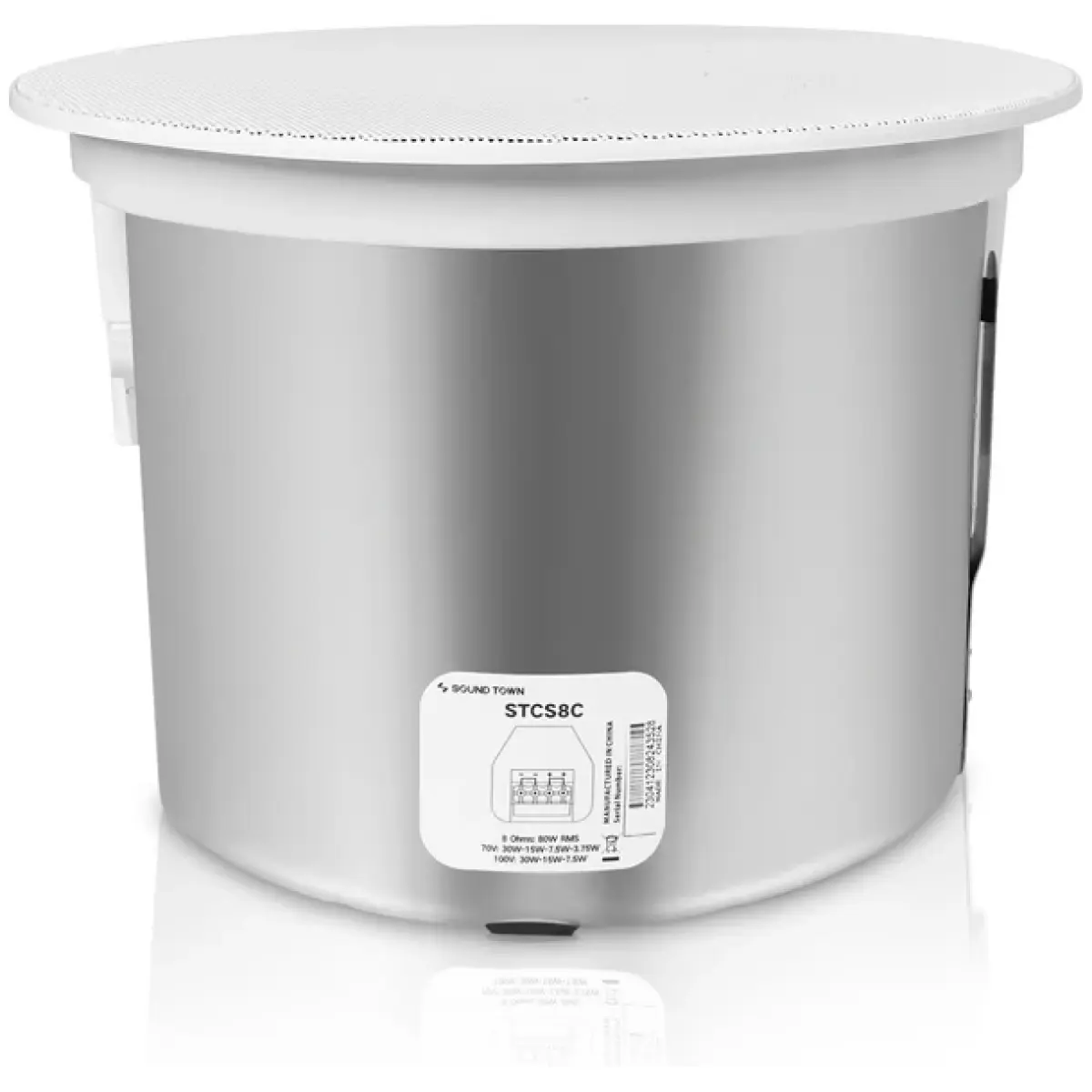

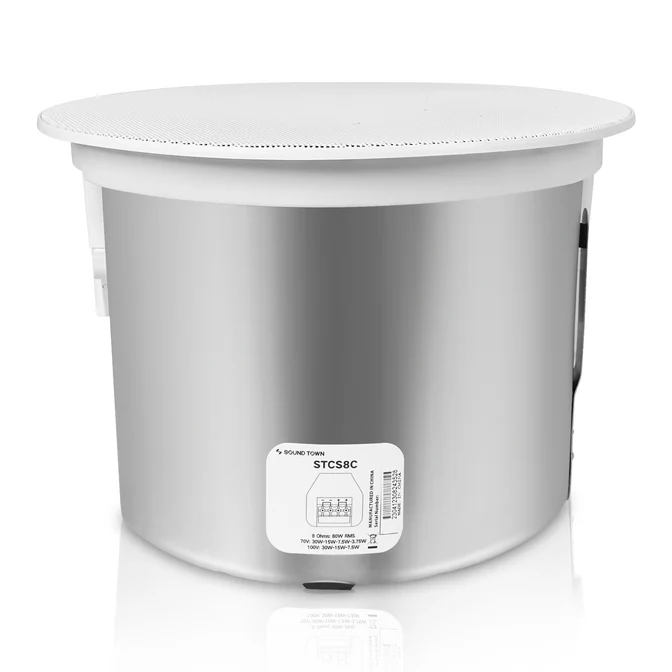

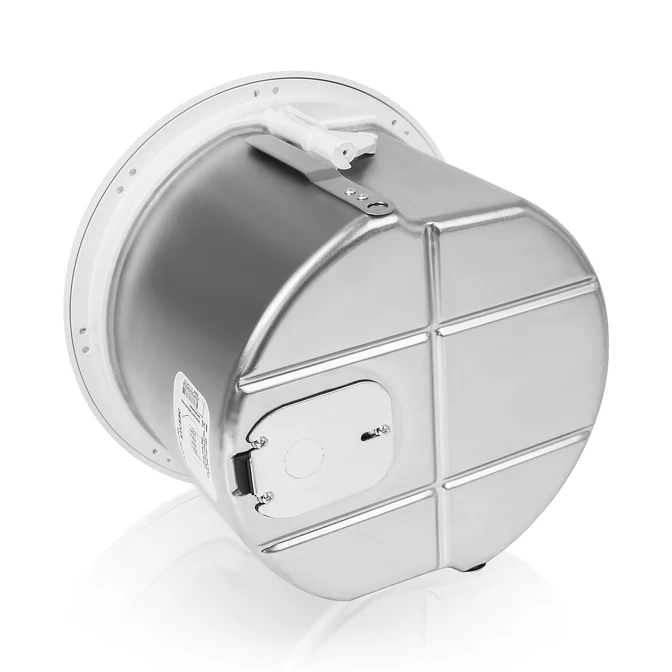

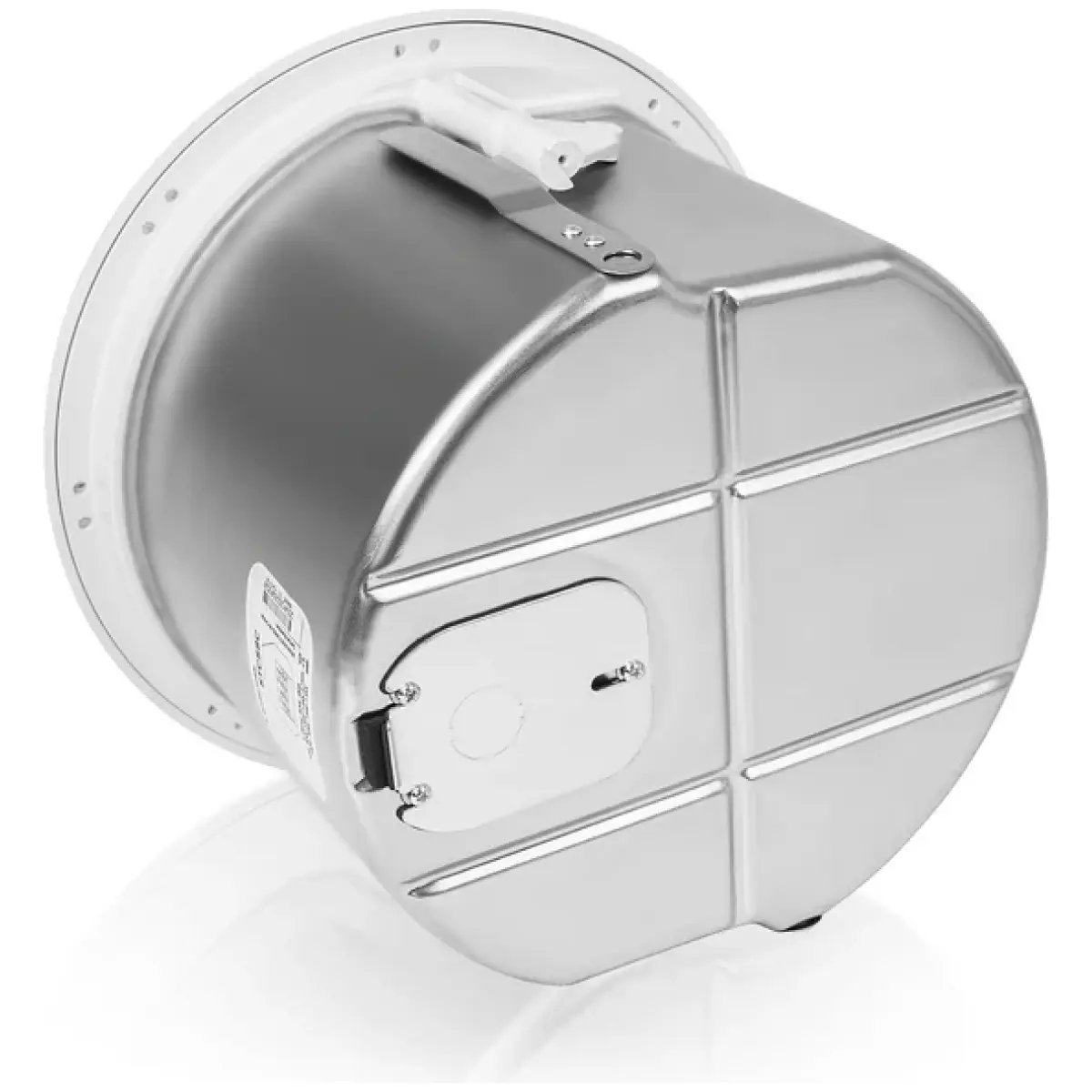

- ELEGANT DESIGN: Featuring a white-painted magnetic grill and a durable steel backcan for a seamless and clean install with long-lasting durability
- IMMERSIVE SOUND COVERAGE: Experience consistent sound performance with the 120° conical sound coverage, making it ideal for restaurants, cafes, bars, lobbies, conference rooms, school auditoriums, retail stores, casinos, and more
SPECIFICATIONS
| Model | STCS8C-PAIR |
| Active / Passive | passive |
| Frequency Range | 65~20kHz |
| Frequency Response | 70~20kHz |
| Sensitivity | 92 dB |
| SPL Max | 110 dB |
| Dispersion | 120° Conical |
| Configuration | 8″ woofer and a 1″ coaxial compression driver |
| Transducer | LF: 1 x 8″ woofer, HF: 1 x 1″ (coaxial) |
| Voice Coil | 1″ |
| Magnet | 11 oz |
| Impedance | 8Ω |
| Power Handling | 80W RMS, 160W program |
| Enclosure Material | Zinc Plated Steel |
| Mounting Hardware | Bridge Rail Installation Kit |
| Finish | White painted grille |
| Grill & Rigging Component | Magnetic Grill |
| Amplifier | — |
| Input | 4 Pole Euroblock Connector |
| Output | 4 Pole Euroblock Connector |
| Signal Processing | — |
| Control | 70V /100V / 8-ohm tap switch |
| Indicator | — |
| Voltage | 100V-240V (50-60 Hz) |
| Crossover Parts# | — |
| High Frequency Driver Parts# | — |
| Low Frequency Woofer Parts# | — |
Dimension & Weight
| Product Width (in.) | ∅11.4″ | Package Width (in.) | 26.8″ |
| Product Height (in.) | 11.4″ | Package Height (in.) | 10.9″ |
| Product Depth (in.) | 7.8″ | Package Depth (in.) | 13.7″ |
| Product Weight (lb.) | 8.0 lbs (each) | Package Weight (lb.) | 23.9 lbs |
Warranty/Certifications
| Manufacturer Warranty | 1 Year |
