Features
- Renowned Soundcraft quality and performance
- Built-in dual-band Wi-Fi eliminates the need for a router to provides a reliable connection to up to 10 mobile devices in mission critical situations
- Control Ui24R from iOS, Android, Windows, Mac OS and Linux browsers without installing additional apps
- Record and mix with the warmth of 20 professional-quality Studer-designed preamps
- dbx compression and iconic Lexicon reverb and delay processing
- 2 channels of DigiTech guitar amp modeling
- Dual-path, redundant multi-track recording of all 24 inputs to USB drive and connected Mac/PC
- 24 simultaneous inputs (10 combo ¼” TRS/XLR, 10 XLR, 2 line level, 2 digital)
- 4-band parametric EQ, high-pass filter, compressor, de-esser, and noise gate on input channels
- 31-band graphic EQ, noise gate, compressor, and dbx® AFS2 Automatic Feedback Suppression on all outputs
- Real-time frequency analyzer (RTA) on inputs and outputs
- Compatible with Mac/PC DAWs and other music software
- Compatible with Harman Connected PA application and system for easier setup and control

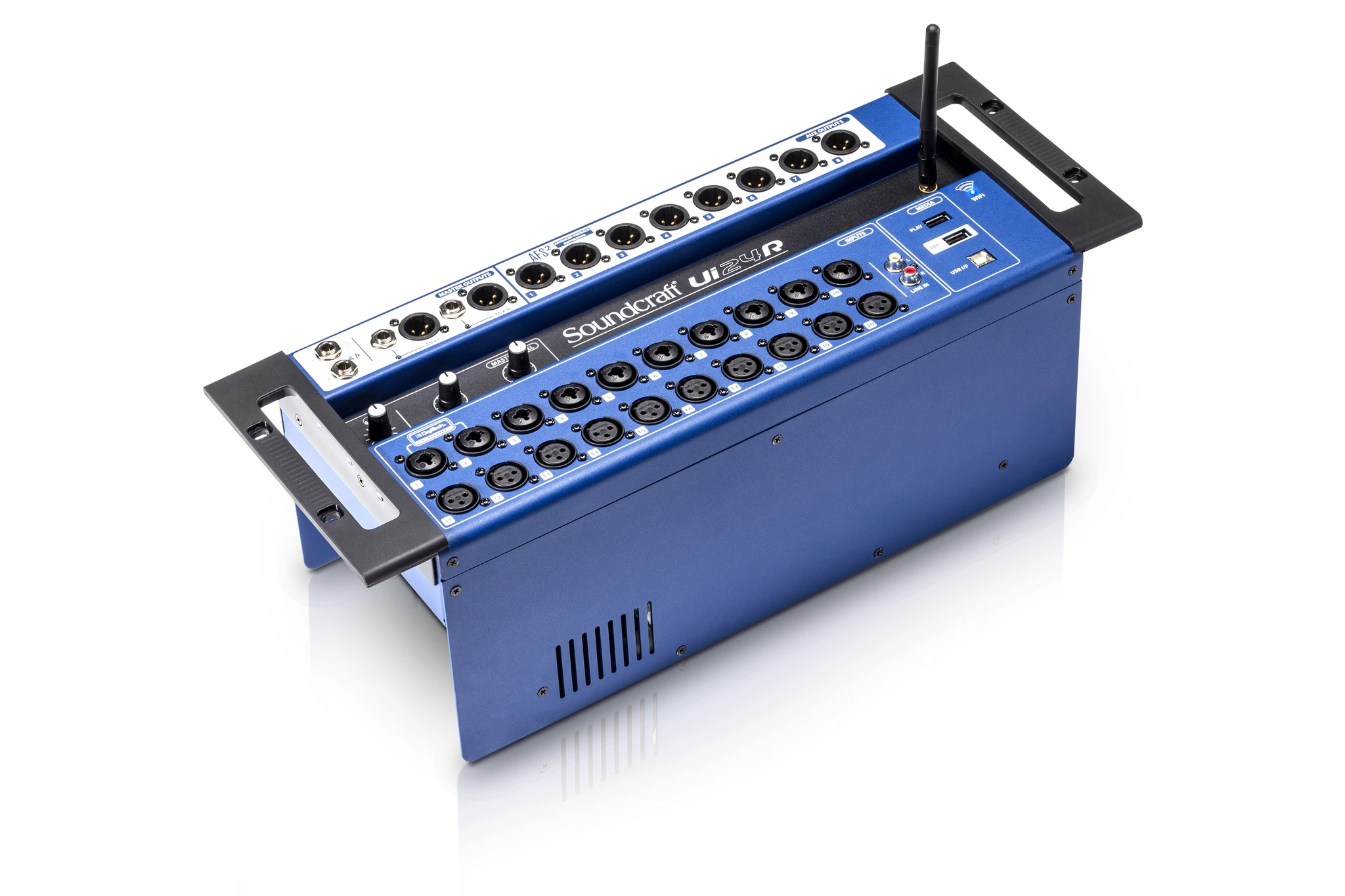

- 4U rackmount design
(20) Mic Preamps: Studer designed, 10 combi, 10 XLR
(2x) Line Inputs: -10 unbalanced

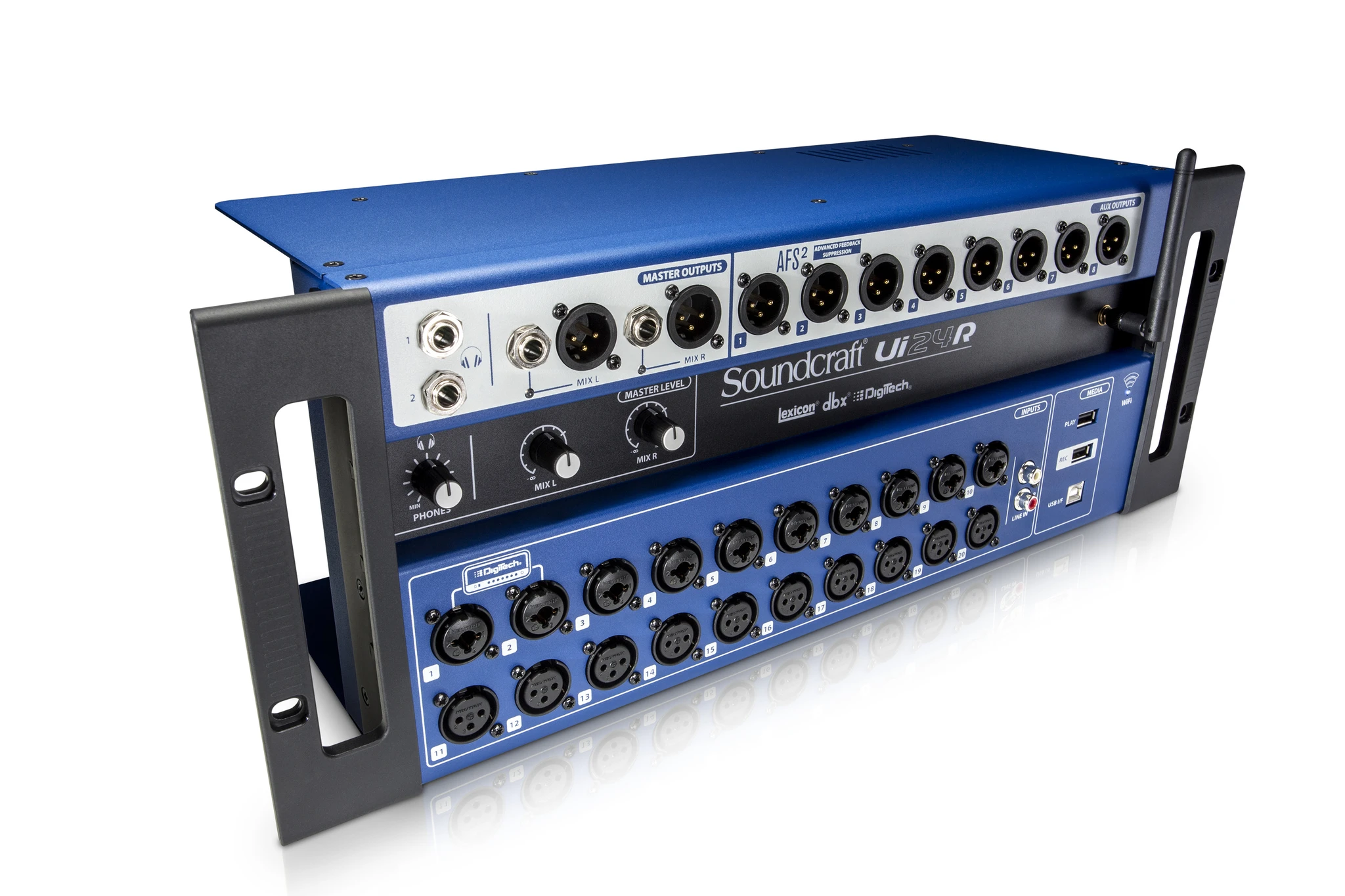

(2x) Master Outputs: +4 XLR, with individual volume pots
(2x) Headphone Outputs: With shared volume pot
(8x) AUX Outputs: +4 XLR with 32 band graphic and dbx AFS2
Feedback Suppression

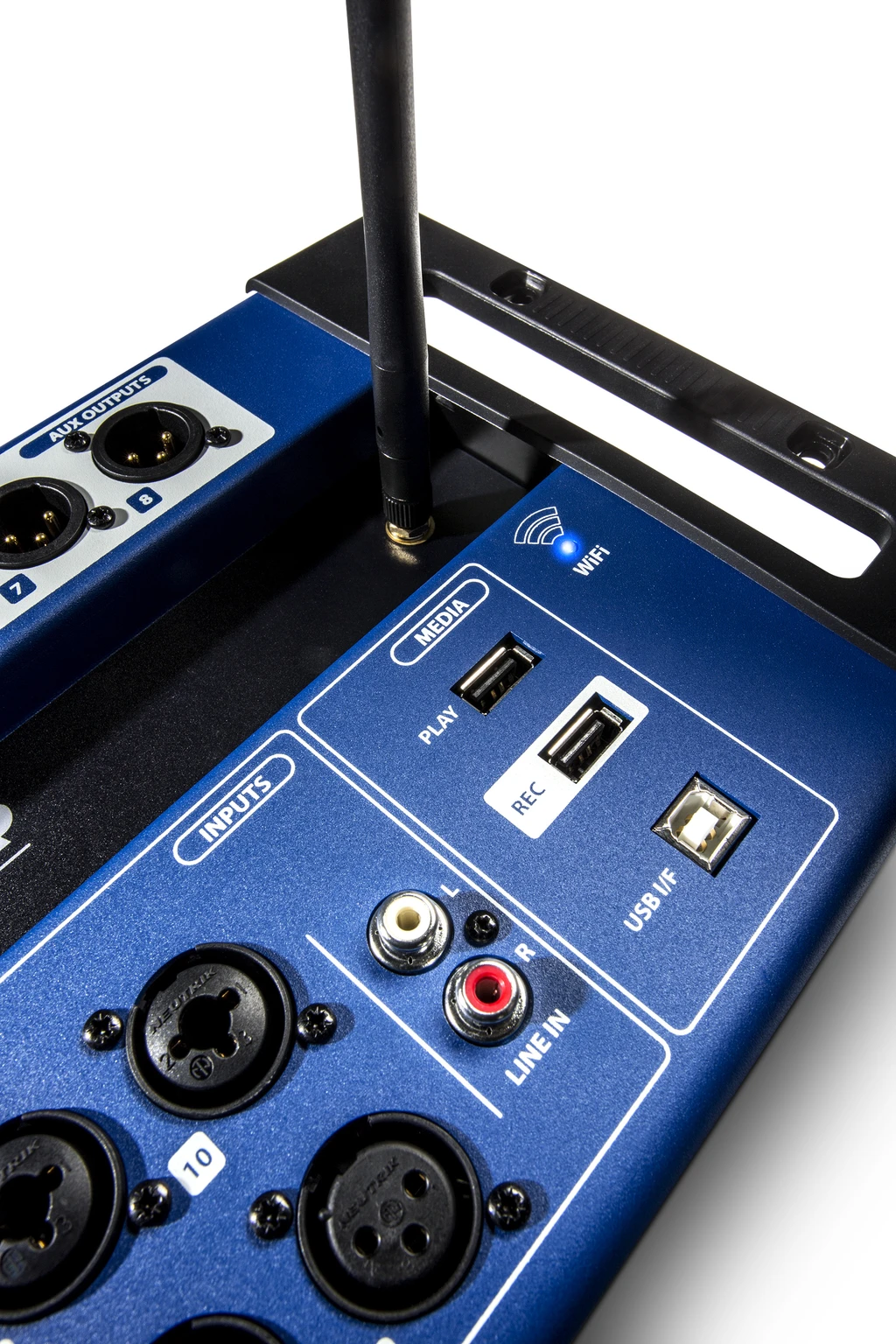

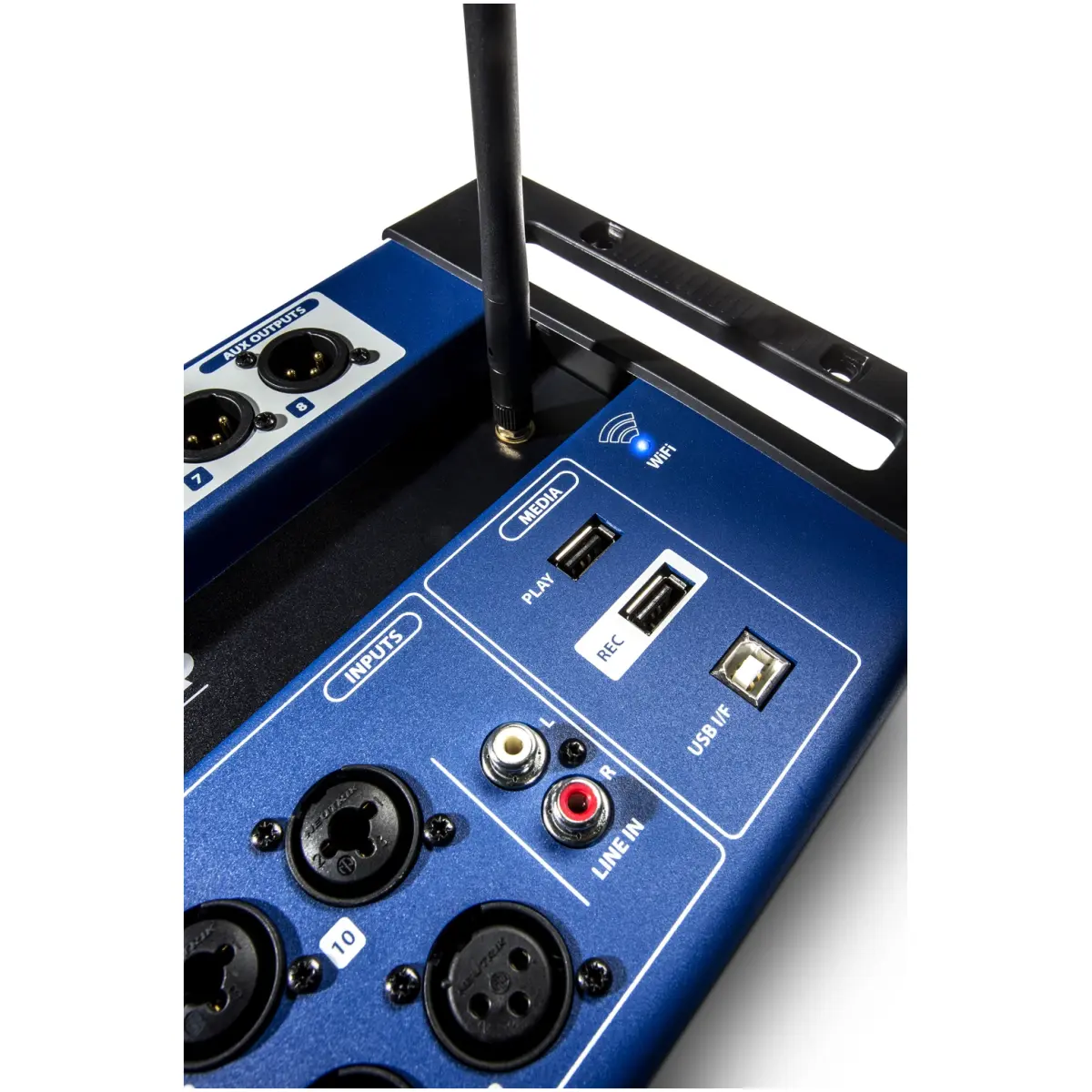

USB PLAY: USB A port
USB RED: USB A port
USB I/F: USB B port

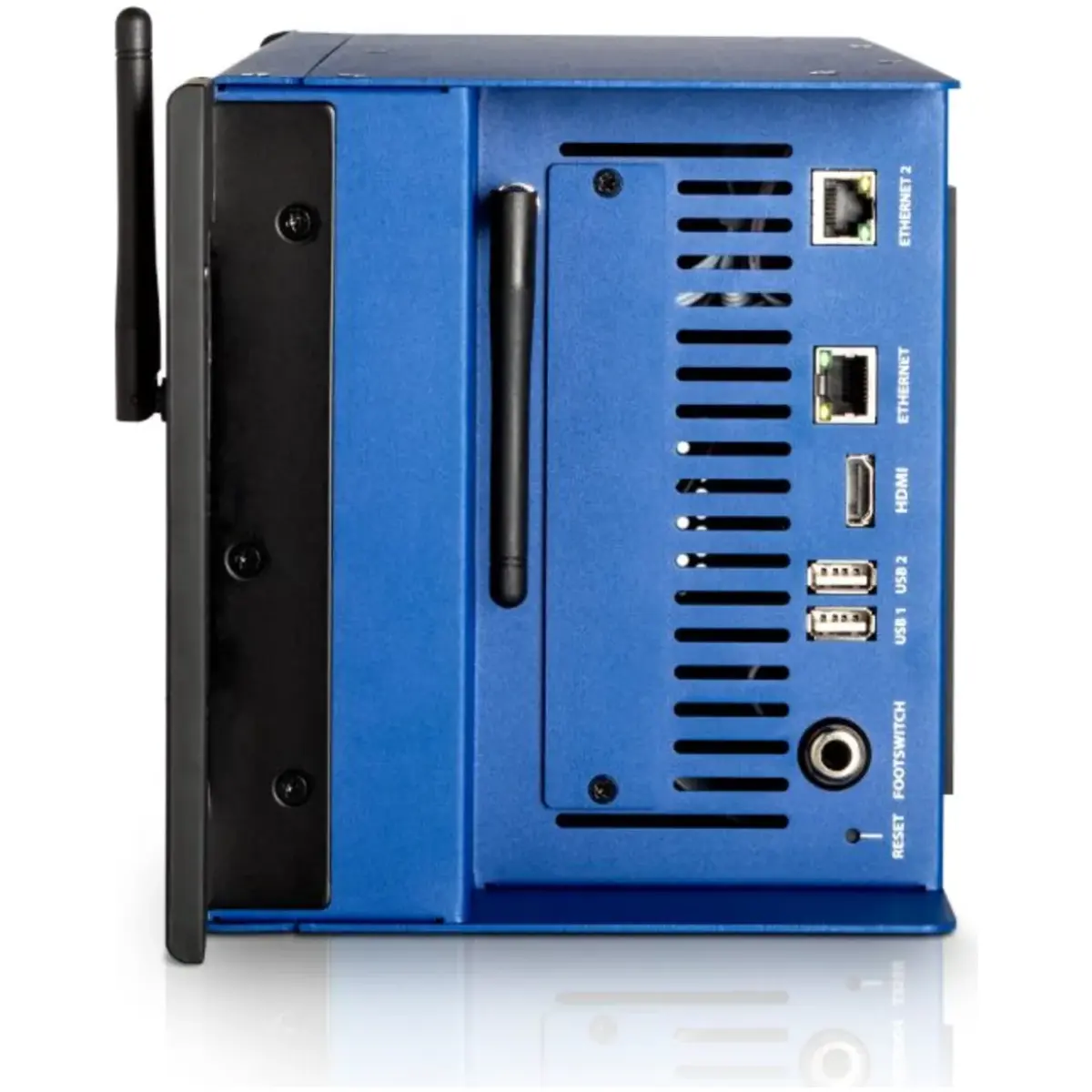

USB 1: USB A, for controllers (such as a computer mouse)
USB 2: USB A, for software update installation
Footswitch: ¼” for closure pedal event trigger

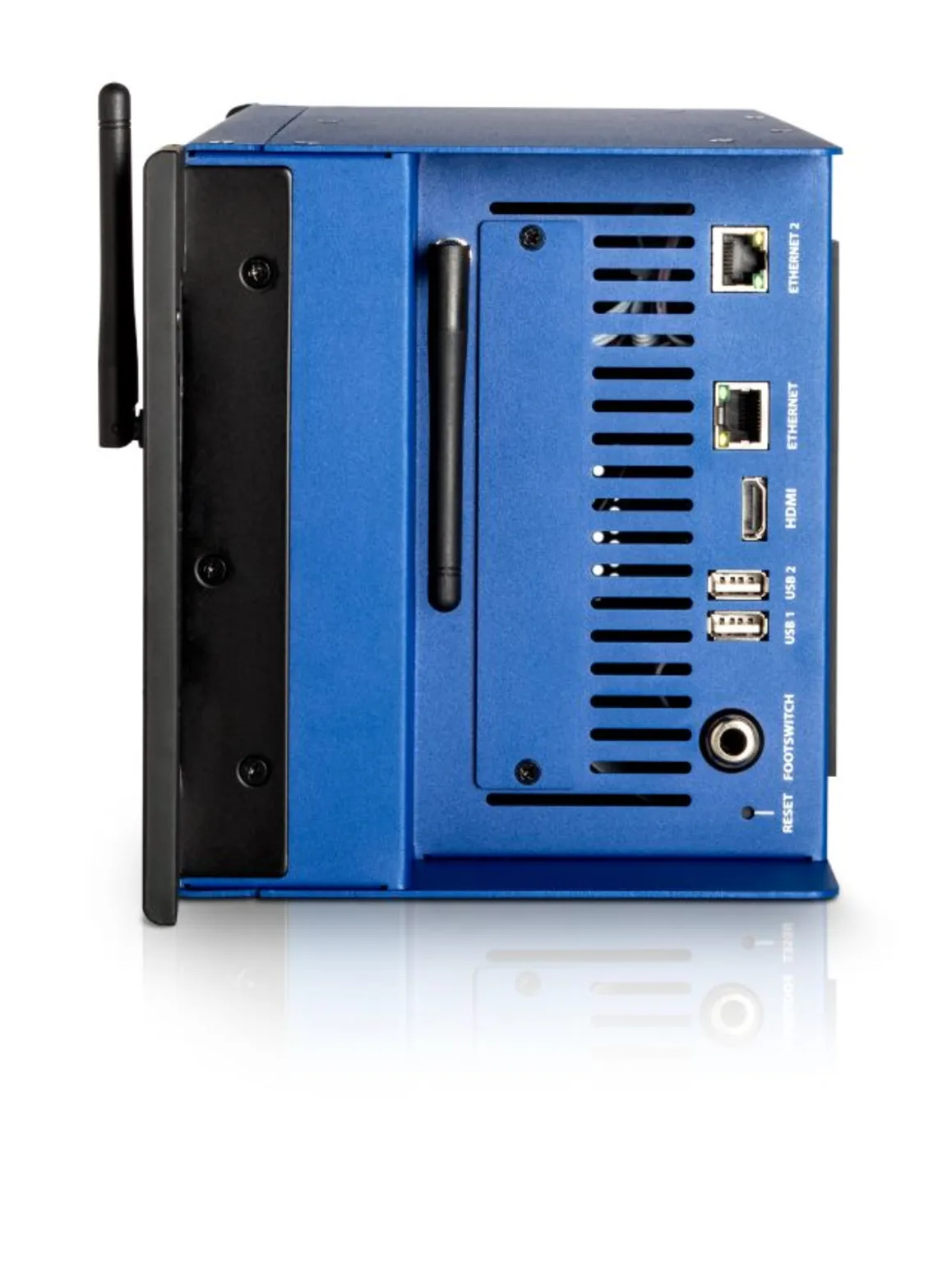

Ethernet : RJ45, for LAN connections
