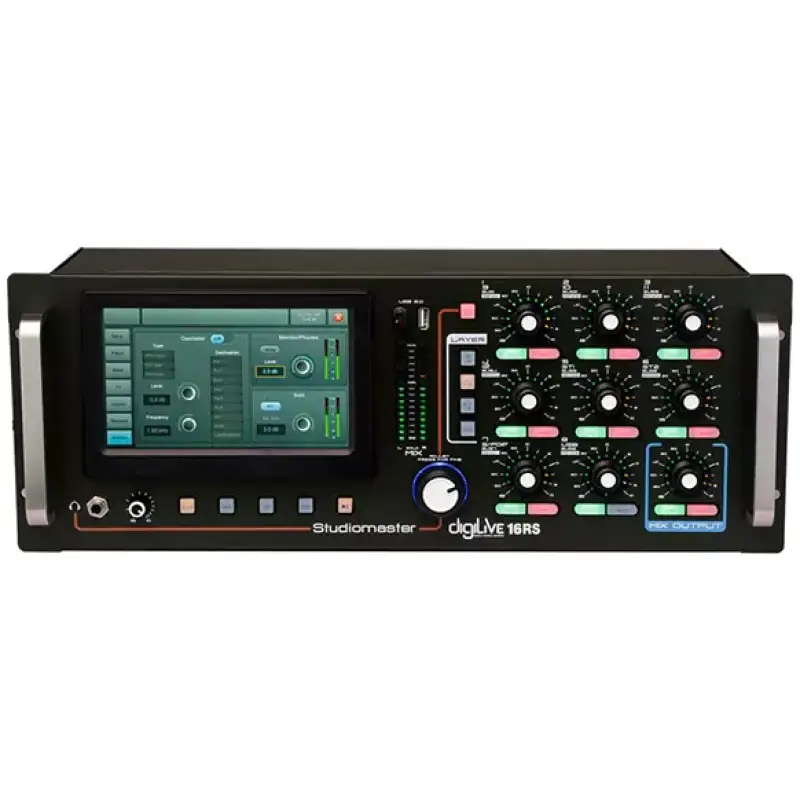

Studiomaster – DIGILIVE16RS 16 Ch Digital Console 19″

The New DigiLive 16 digital console is the culmination of years of research and development. It ticks every box for Functionality, Audio Excellence and Ease Of Use.

Features:

• 16 input with 16 internal busses
• 12 digital gain mic input channels
• 2 stereo inputs
• 8 configurable smart outputs
• 7″ high resolution touch screen
• Ultra compact unit size
• Advanced hybrid user interface
• Full iOS Tablet control

Specifications:

• Mic Inputs: 12 (8x XLR / 4x Combo XLR)
• Stereo Inputs: 2
• Master Output: 2 (Left/Right balanced XLR)
• Smart Outputs: 6 (assignable balanced XLR)
• Internal busses: 16
• Stage monitor: 1 TRS Jack output
• Headphone: 1 TRS Jack output
• Screen: 7″ high definition touch screen
• Operation system: Android system
• Network: Yes, via included WiFi module
• Remote control: iPad iOS via ‘Digilive Blackbox’ app
• Sample Frequency: 48 KHz
• AD/DA: 192 KHz, 24-bit
• DSP: 40 bit float point, SHARC processor
• Effects: up to 8 assignable effect modules
• AES/EBU: Output XLR
• S/PDIF: Input / Output (RCA Phono)
• USB Interface: 2 for playback/recording, scene/setting storage and system updates
• Power Supply: 90-240V ~ 50/60Hz IEC power supply
