Product Description

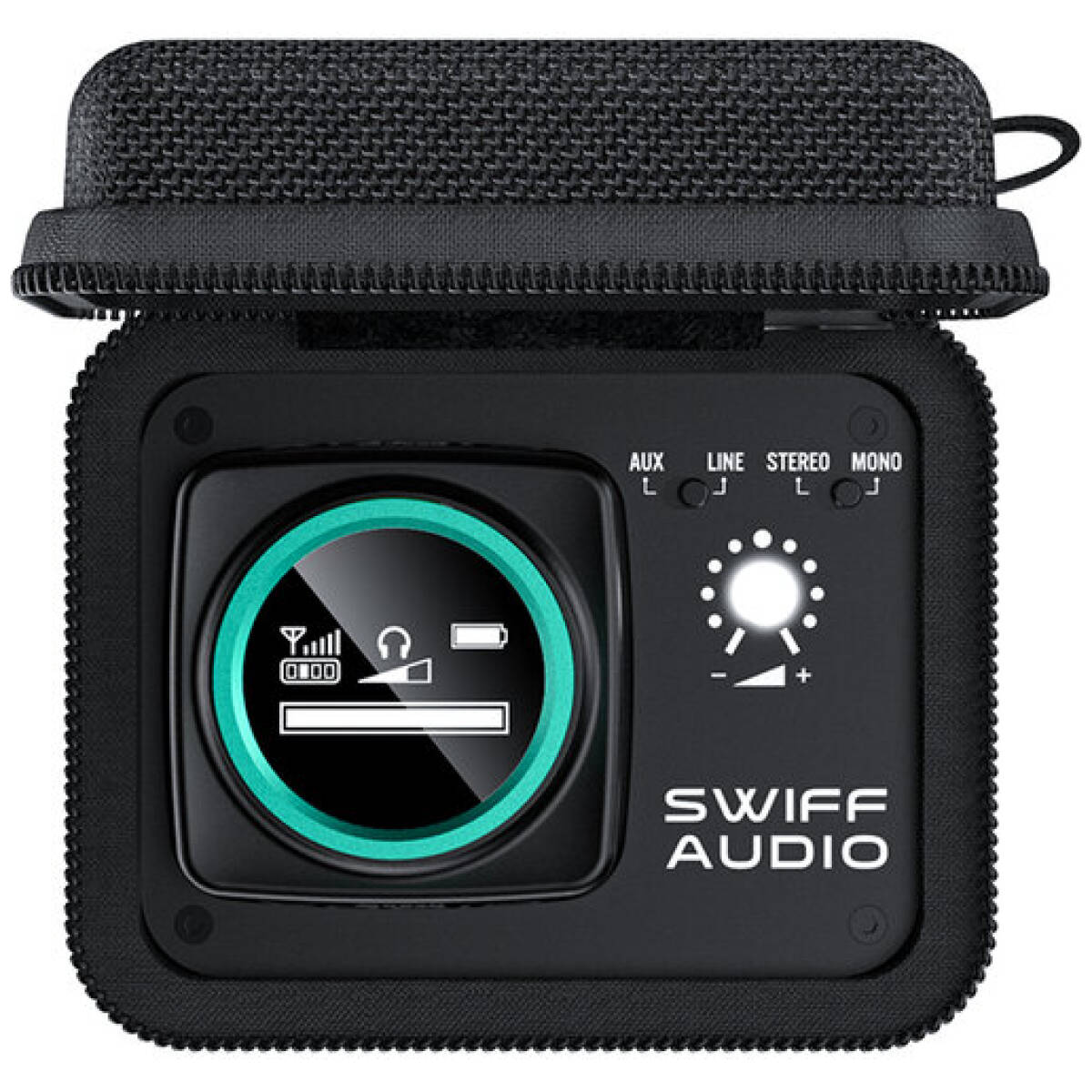

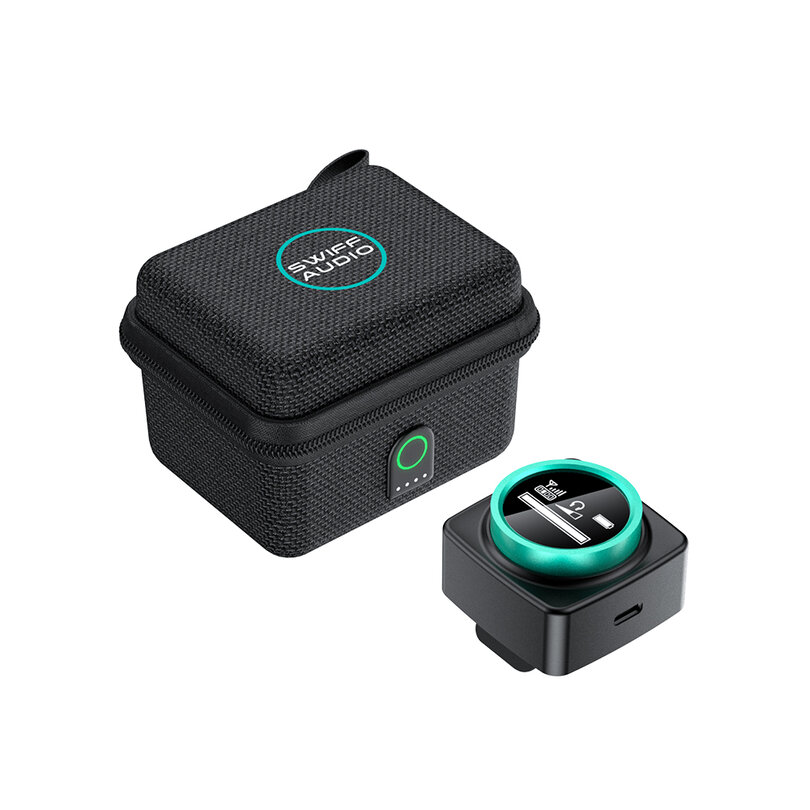

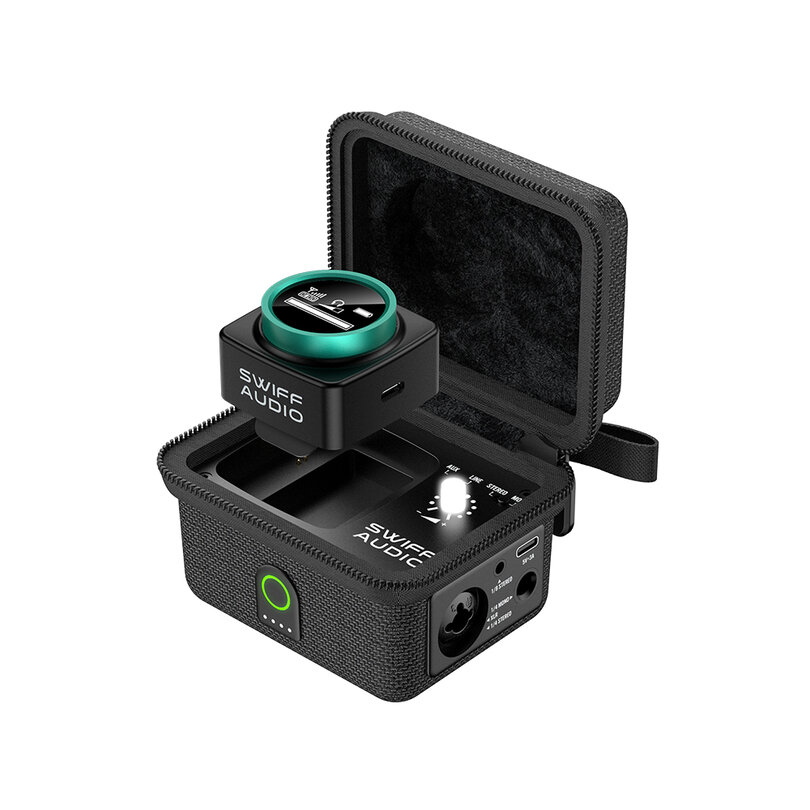

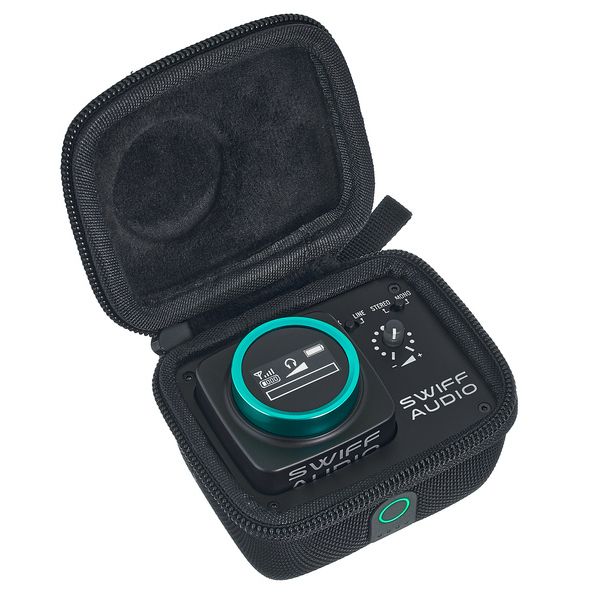

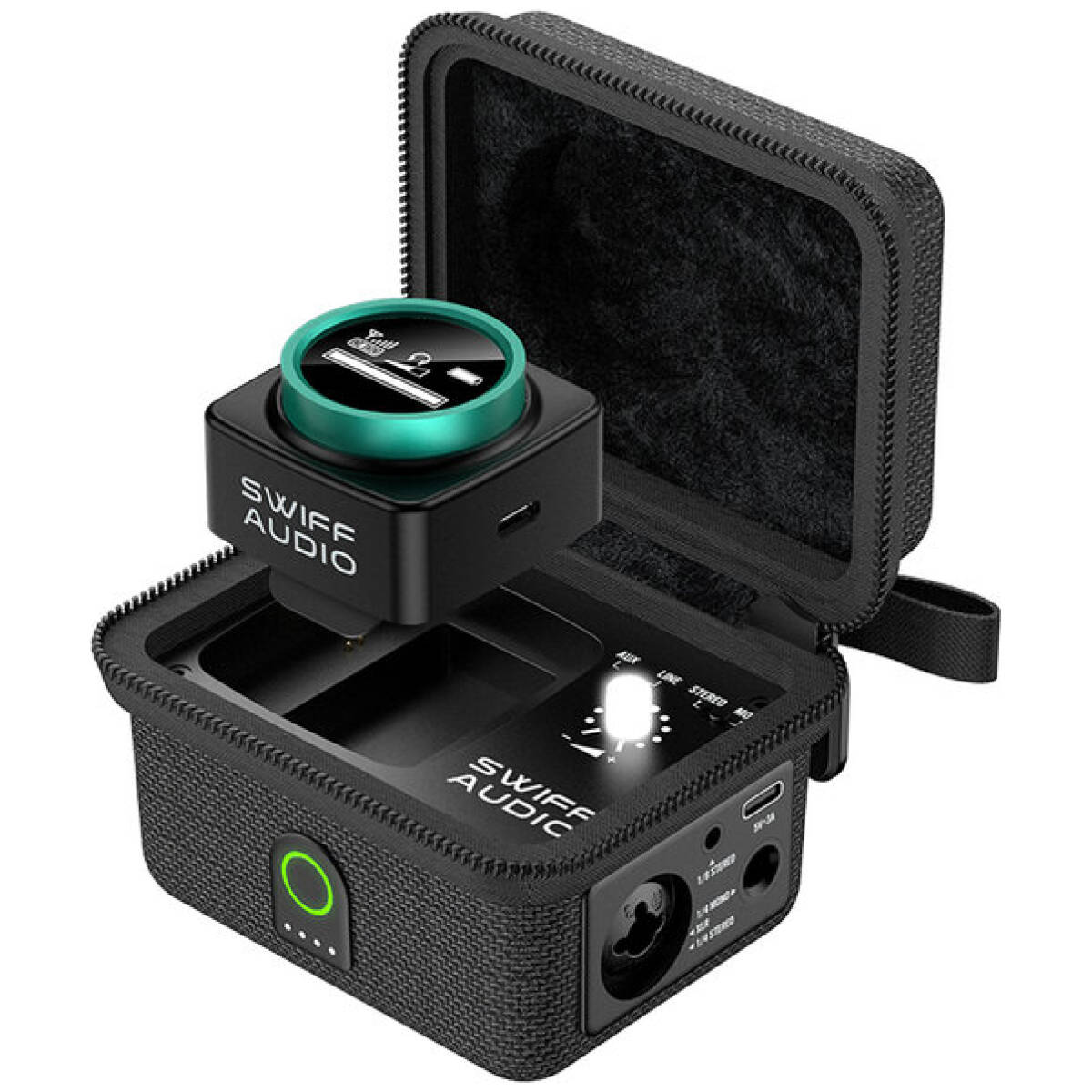

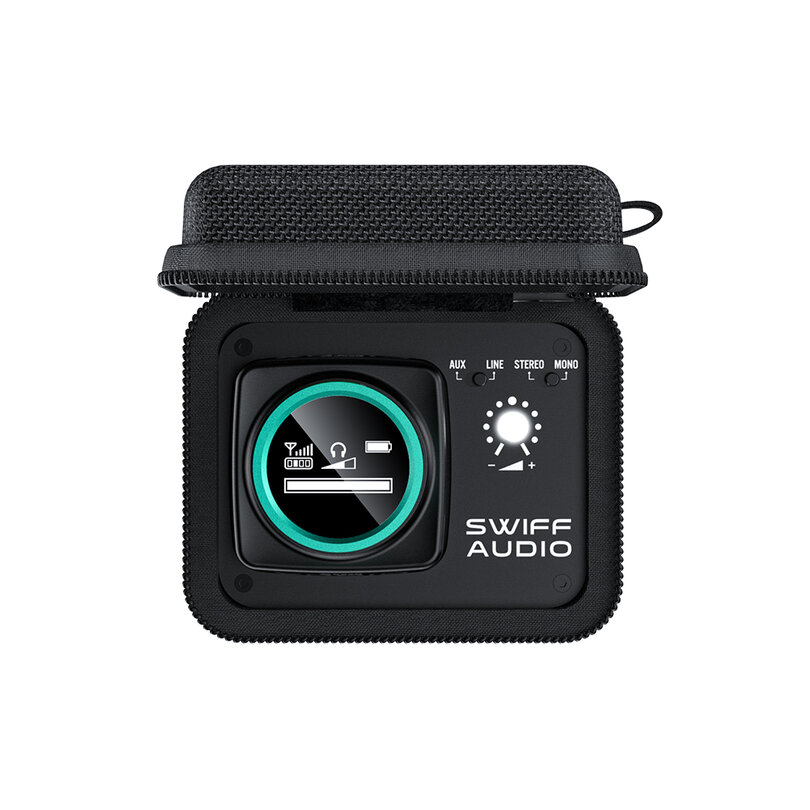

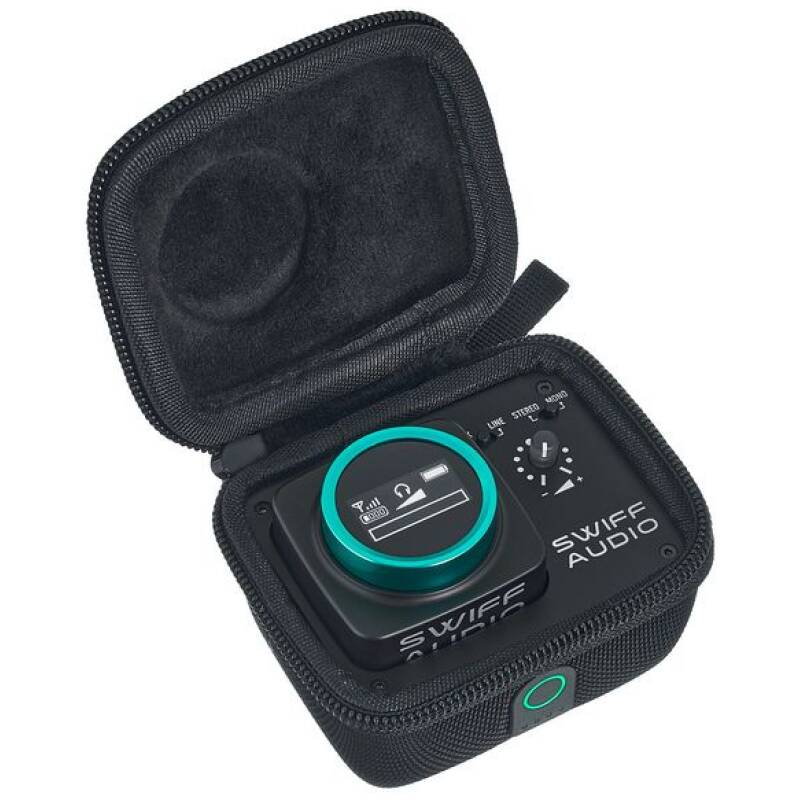

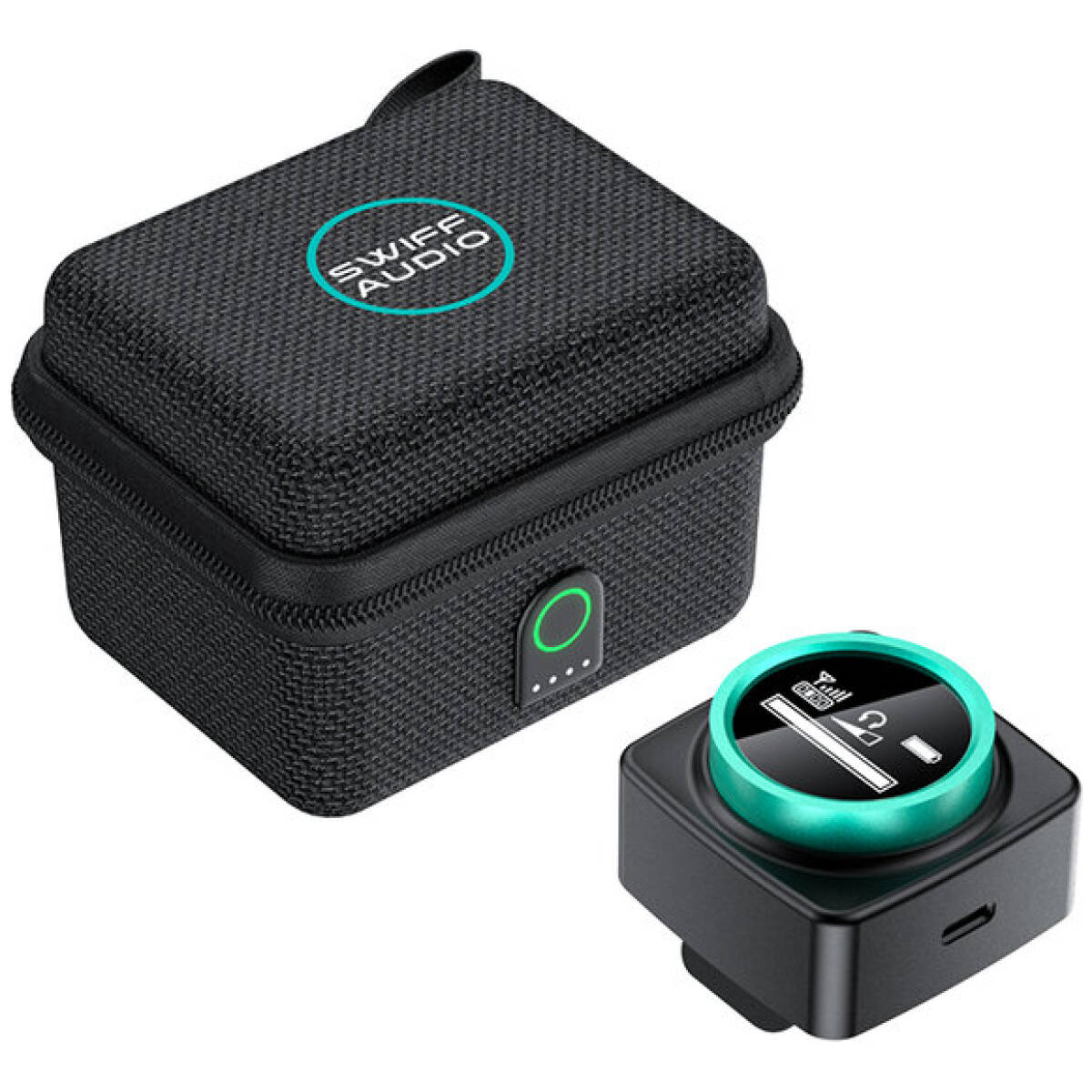

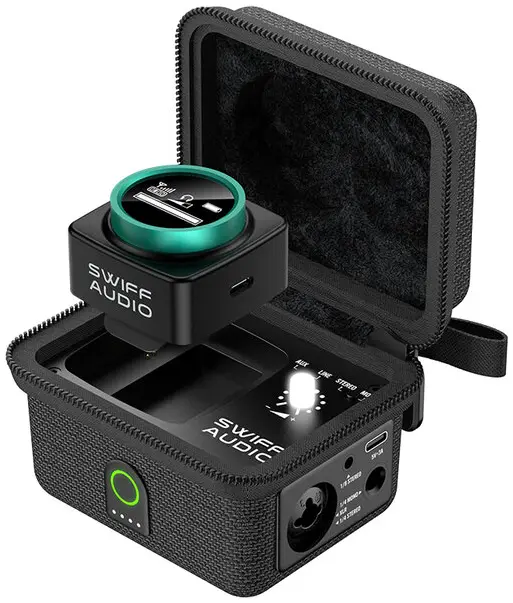

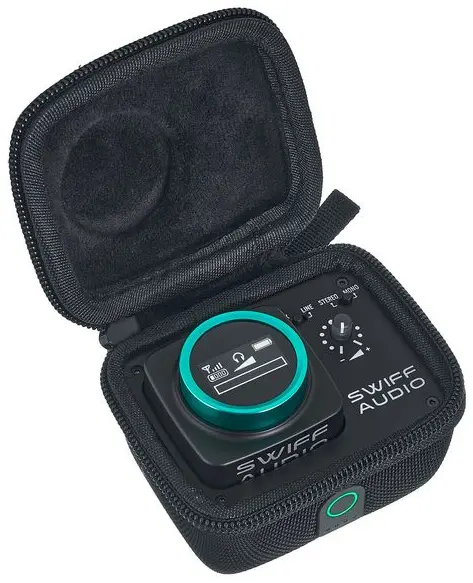

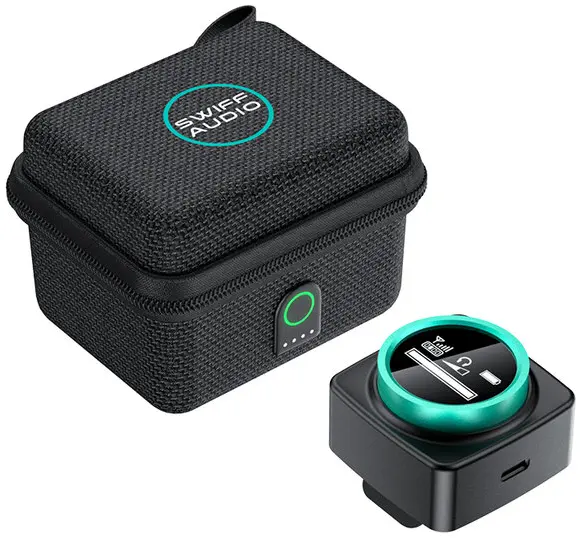

The Swiff Audio WX‑520 is a professional 5.8 GHz digital wireless in-ear monitoring system featuring a durable combination of transmitter (charging case) and receiver. It delivers stable, interference-resistant stereo audio up to 30 m with low latency (<5 ms). The transmitter includes a built-in 3000 mAh rechargeable battery, providing 8–10 hours of operation and the ability to recharge one receiver. Ideal for live performance, studio recording, conferences, and on-stage monitoring.
Key Features
-
5.8 GHz Digital Transmission ensures interference-free performance and stable audio.
-
Low Latency (<5 ms) delivers real-time audio without delay.
-
3000 mAh Integrated Battery supports 8–10 hours of continuous use and can charge one receiver.
-
Stereo Audio, 4 Channels with strong dynamic range (~102 dB) and full 20 Hz–20 kHz frequency response.
-
LED Display on Receiver for battery, channel, and signal status.
-
Expandable Setup: multiple WX‑520R receivers can be paired to the same transmitter.
-

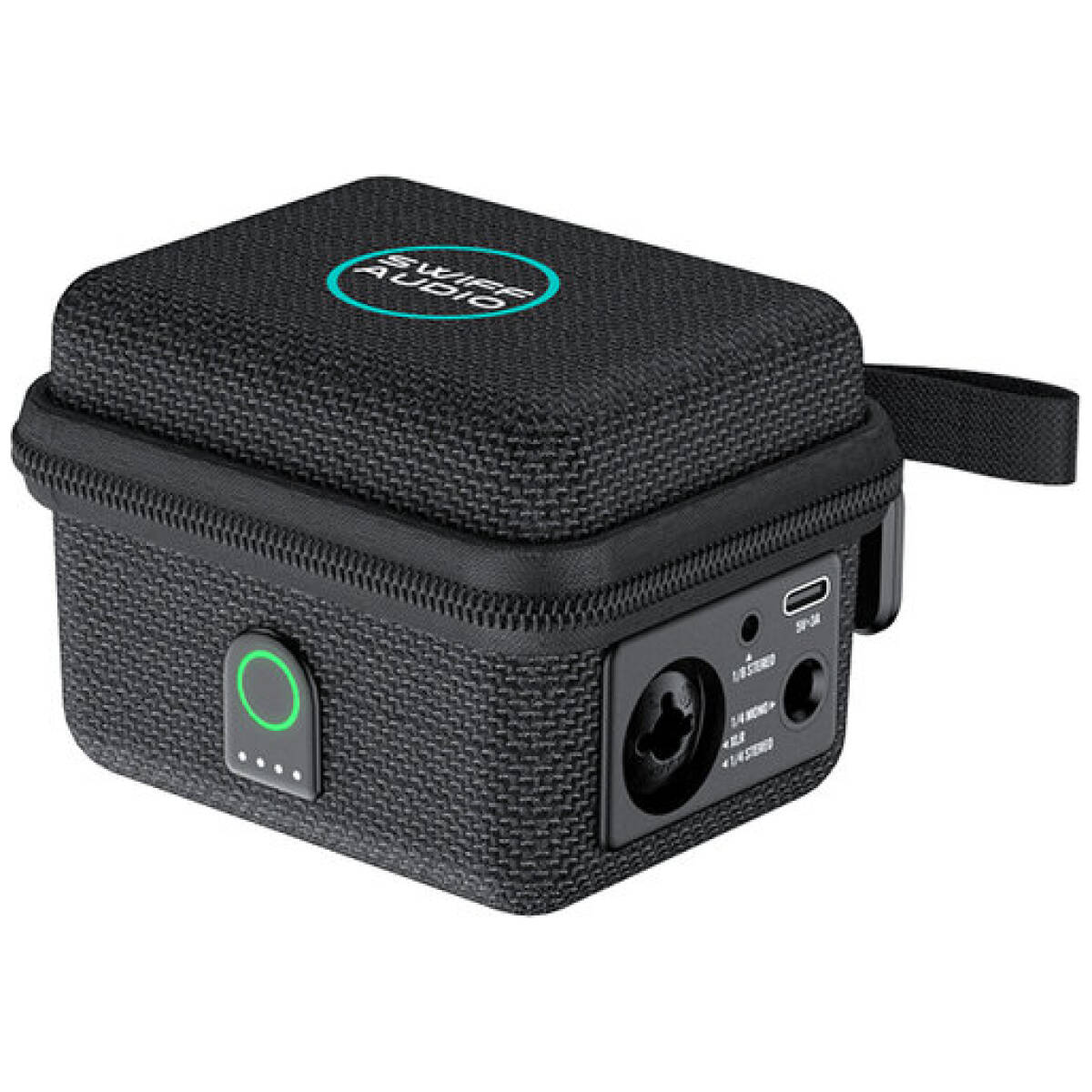

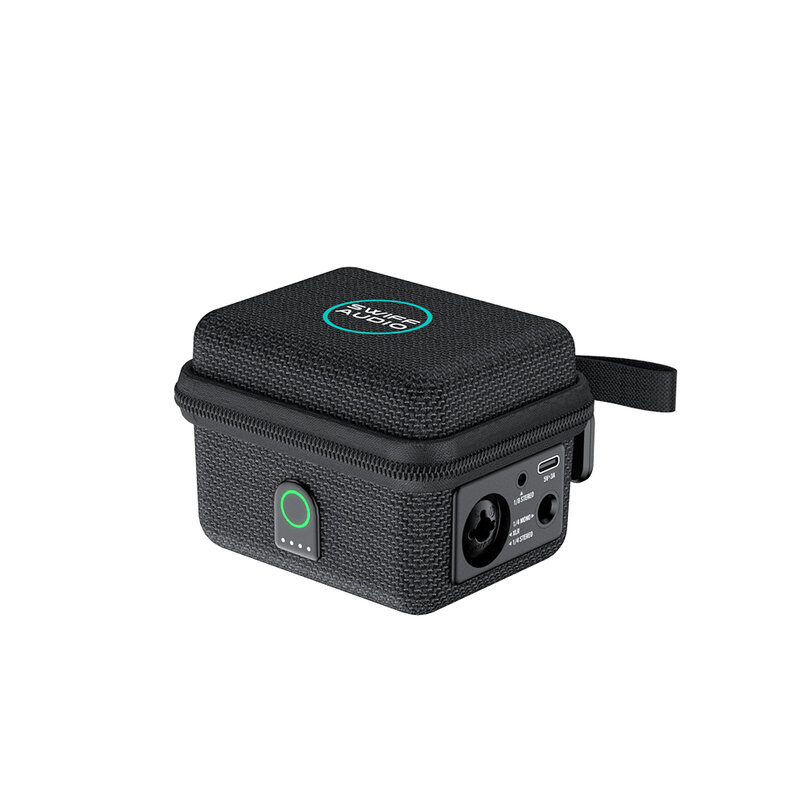

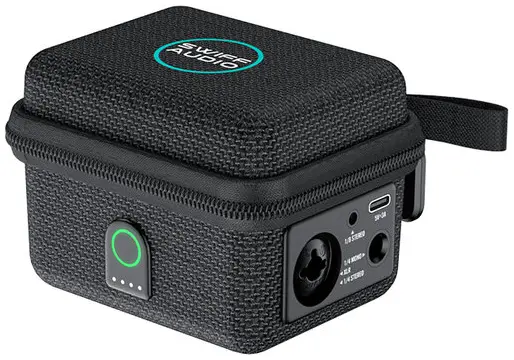

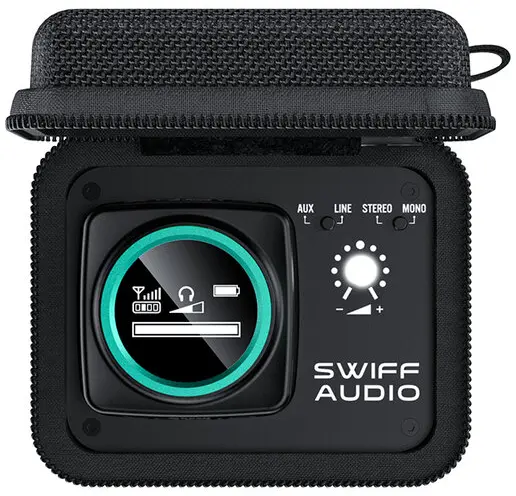

Transmitter Inputs: Combo balanced XLR/TRS and unbalanced 3.5 mm AUX with cue function.
Specifications
| Feature | Specification |
|---|---|
| Frequency Band | 5.8 GHz ISM |
| Range |
|
| Latency | <5 ms |
| Frequency Response | 20 Hz – 20 kHz |
| Dynamic Range | ~102 dB |
| Transmission Channels | 4 |
| Battery (Transmitter) | 3000 mAh Li‑ion, 8–10 h runtime |
| Battery (Receiver) | ~550 mAh, ~6 h runtime |
| Receiver Form Factor | Belt-clip with LED display and volume control |
| Transmitter Dimensions | Approx. 7.5 × 6 × 4 cm (charging case) |
| Receiver Dimensions | Approx. 4.8 × 2.3 × 1.6 cm |
| Transmitter Weight | ~200 g |
| Receiver Weight | ~30–35 g each |
