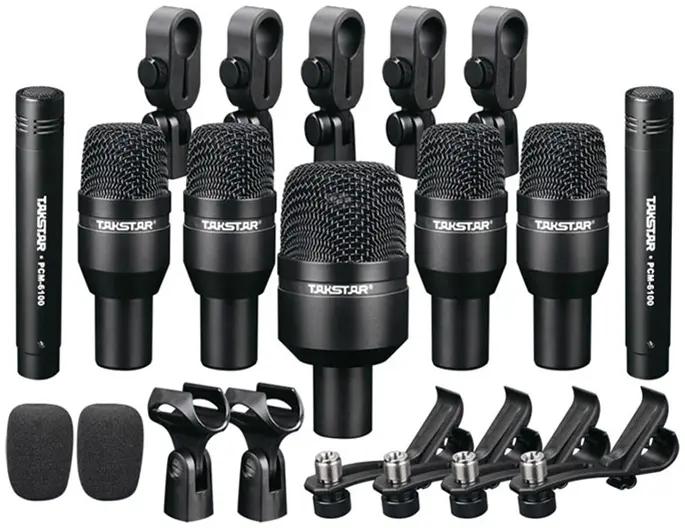

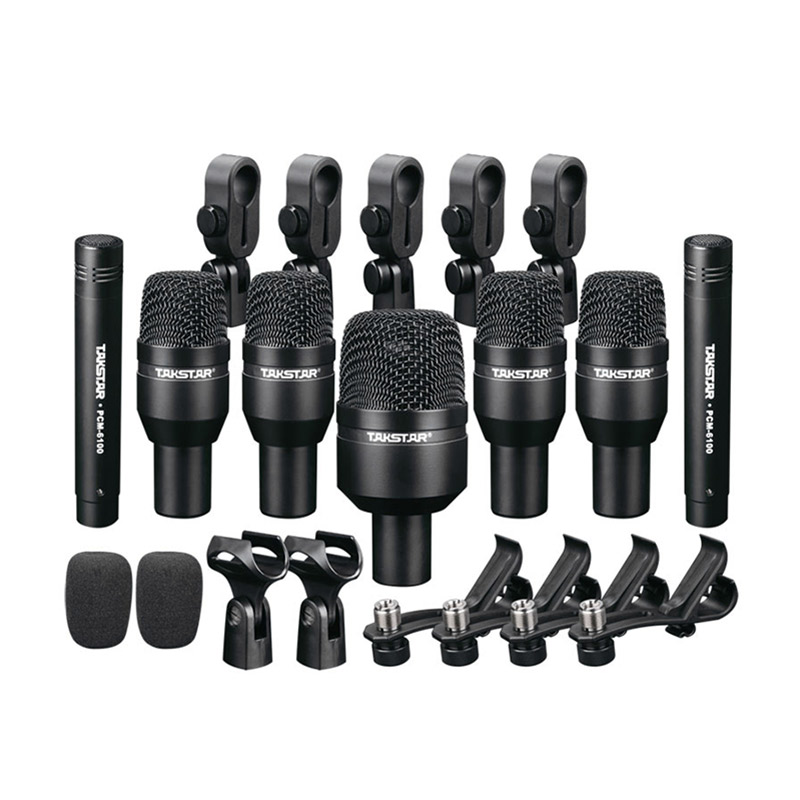

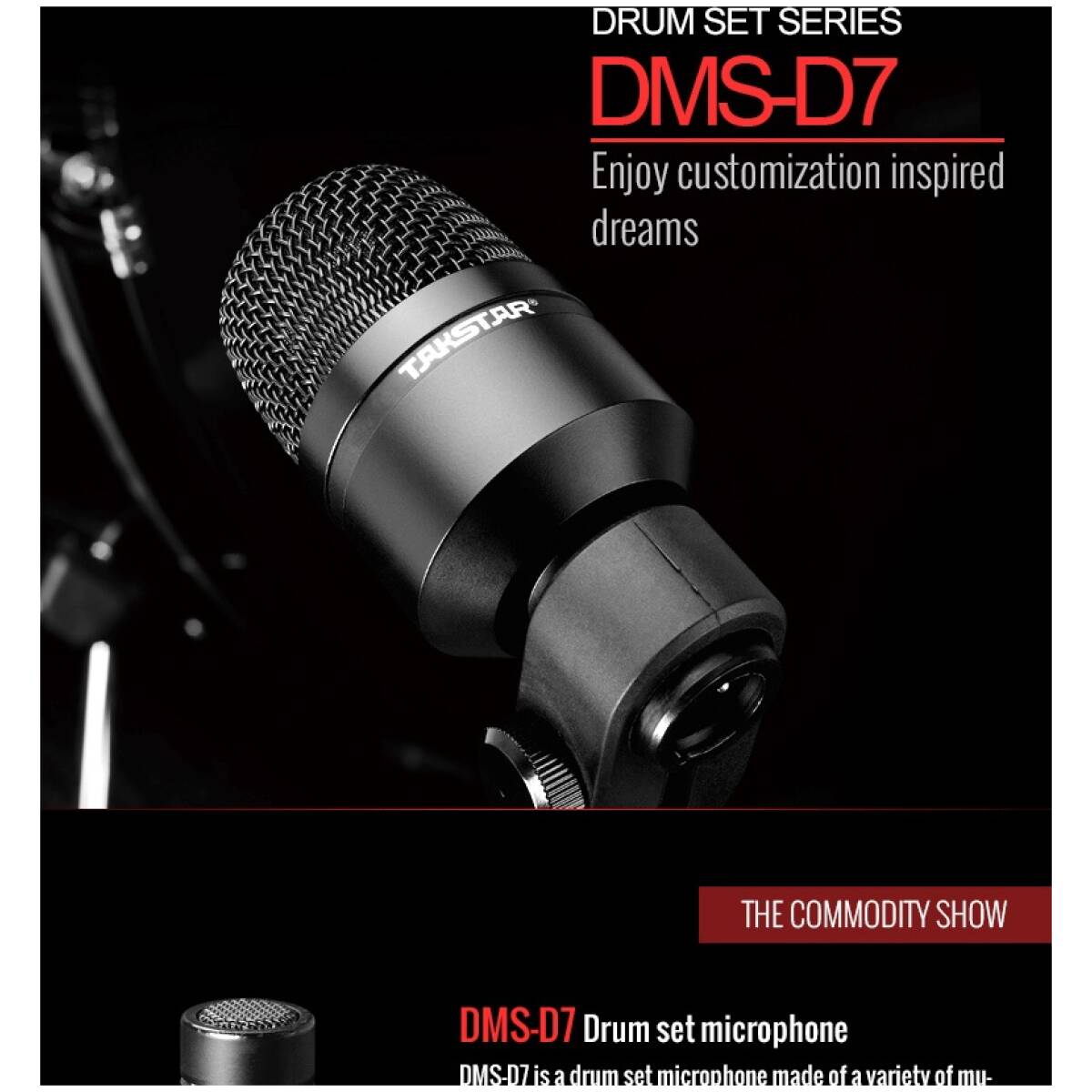

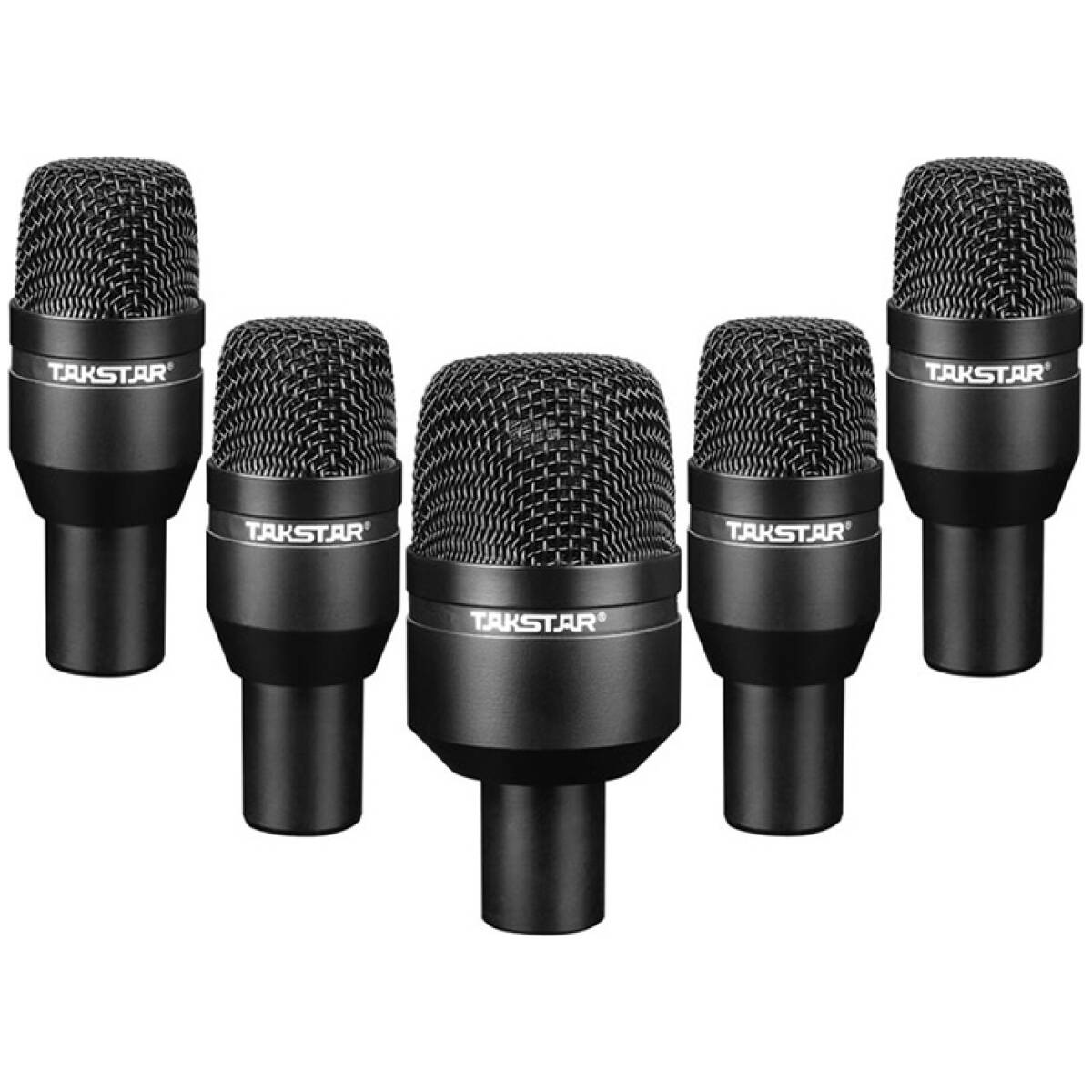

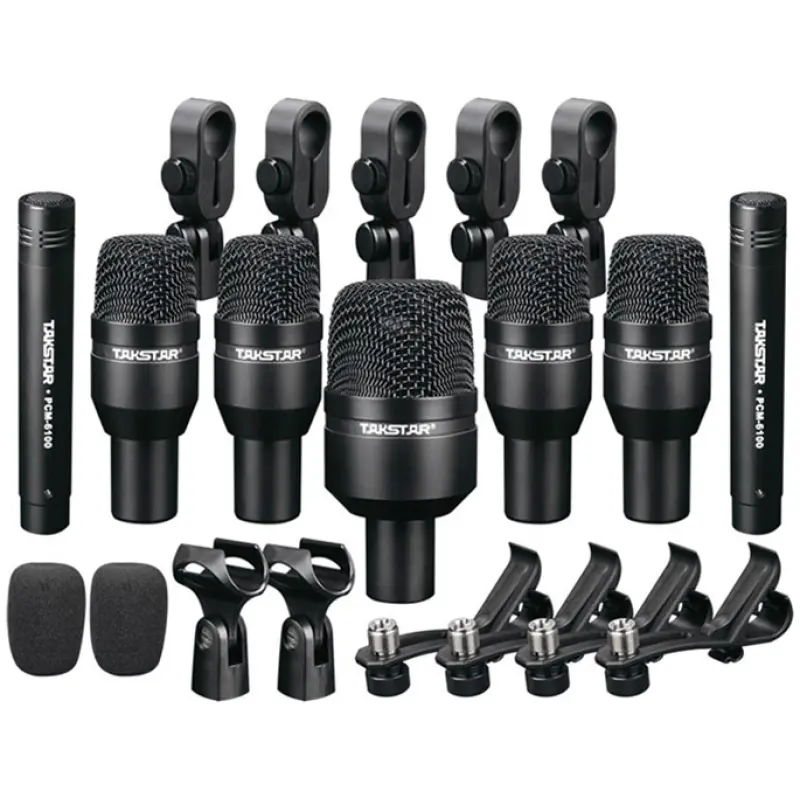

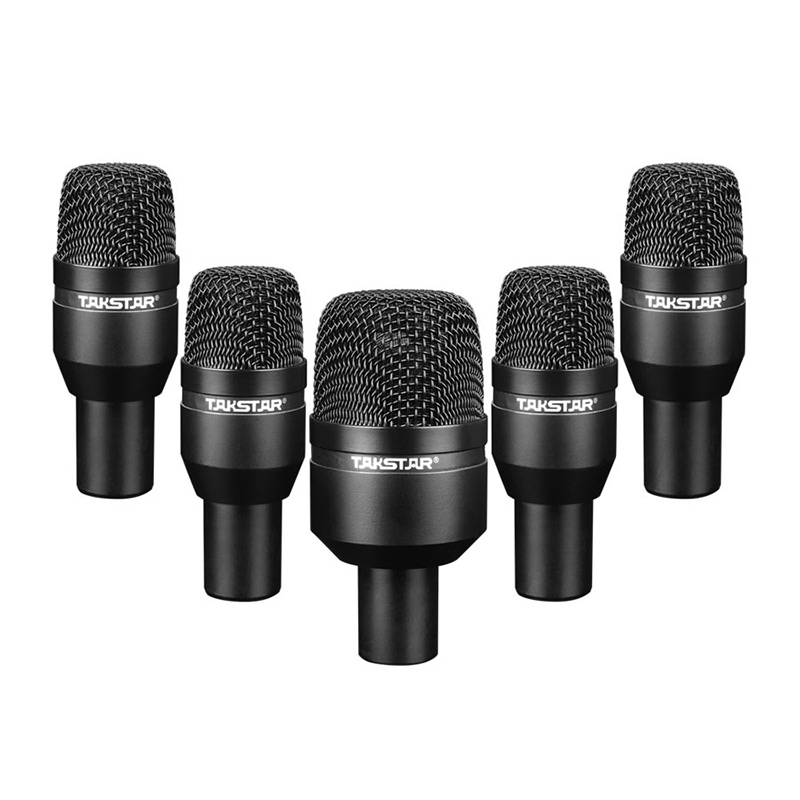

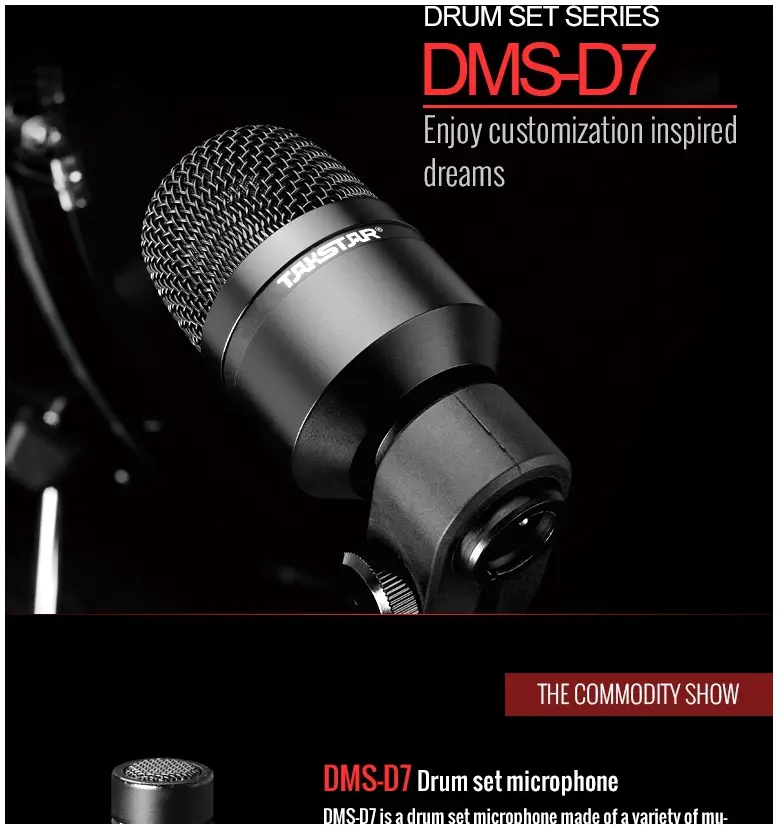

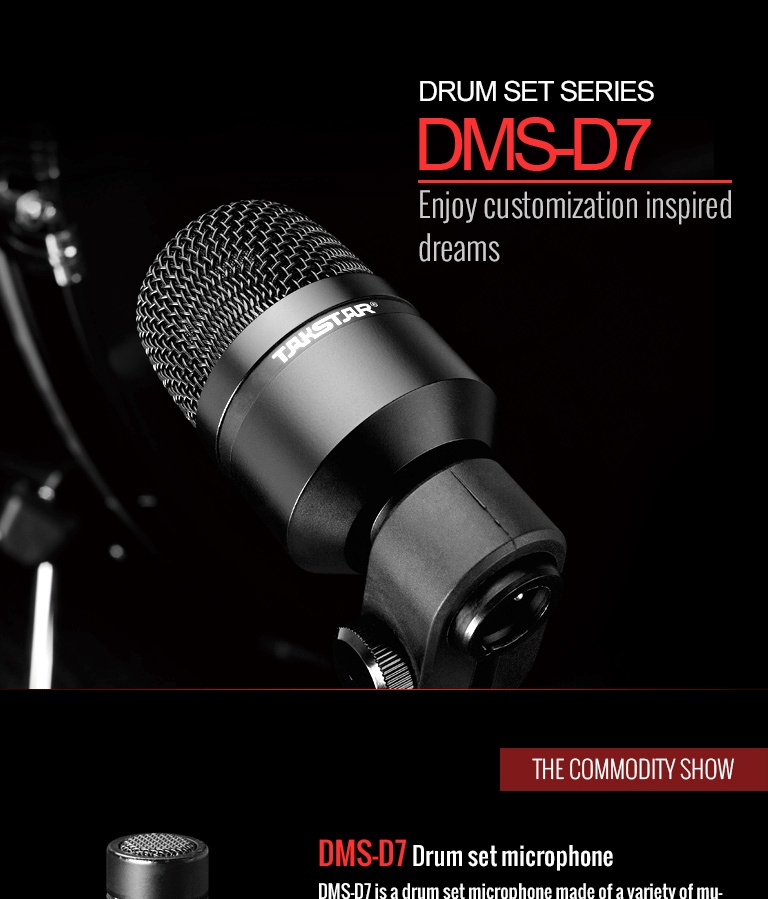

Takstar DMS-D7 Drum Set Series Microphone

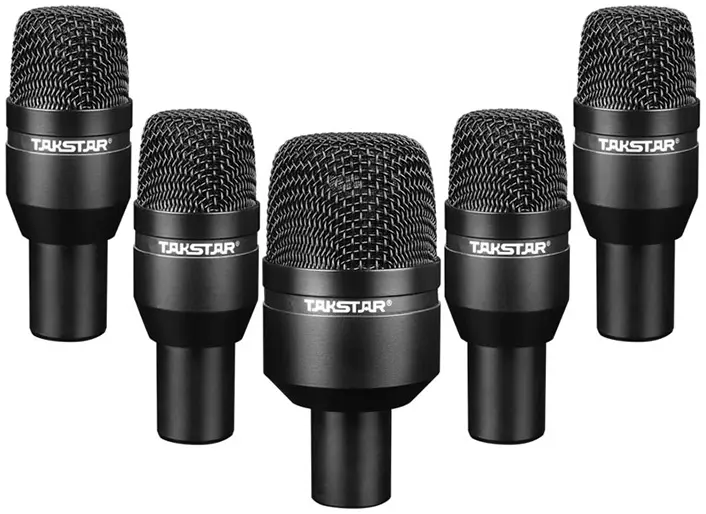

Bass drum microphone-full low frequency response for strong and dynamical bass effect pick up

Snare drum microphone-well designed low and frequency, ideal for snare and tom tom drum

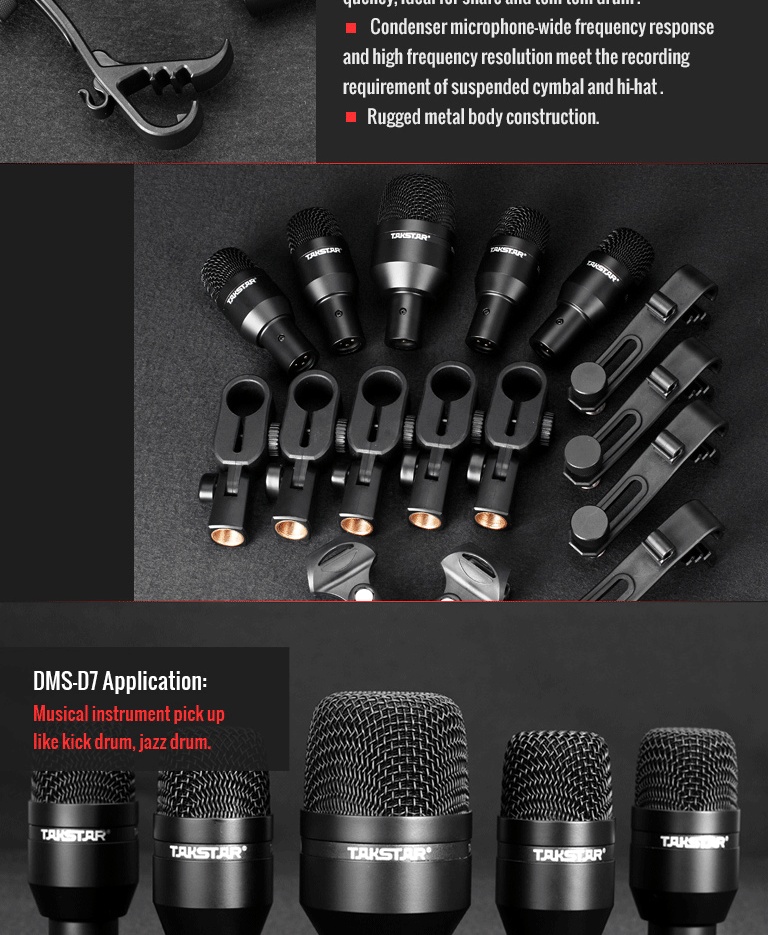

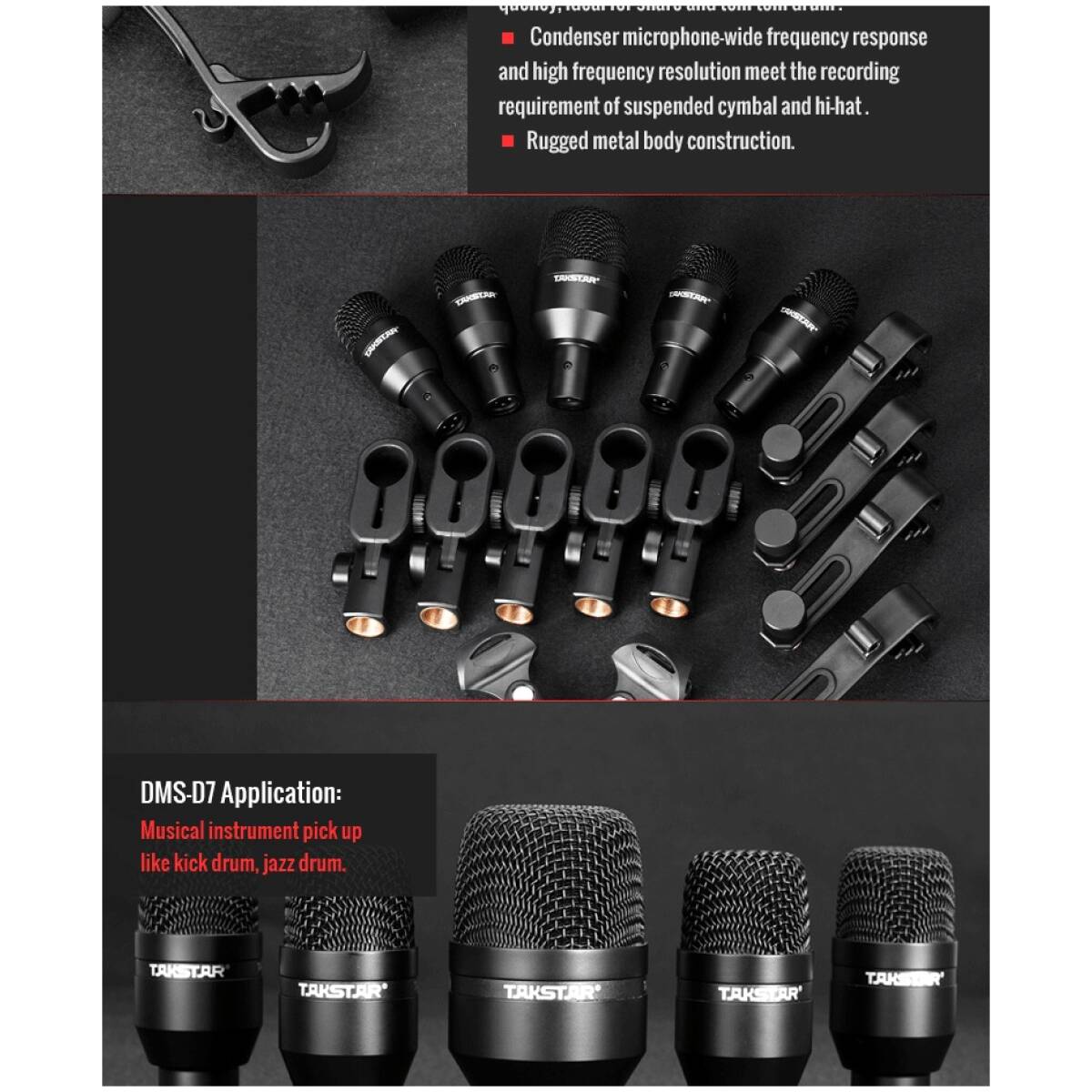

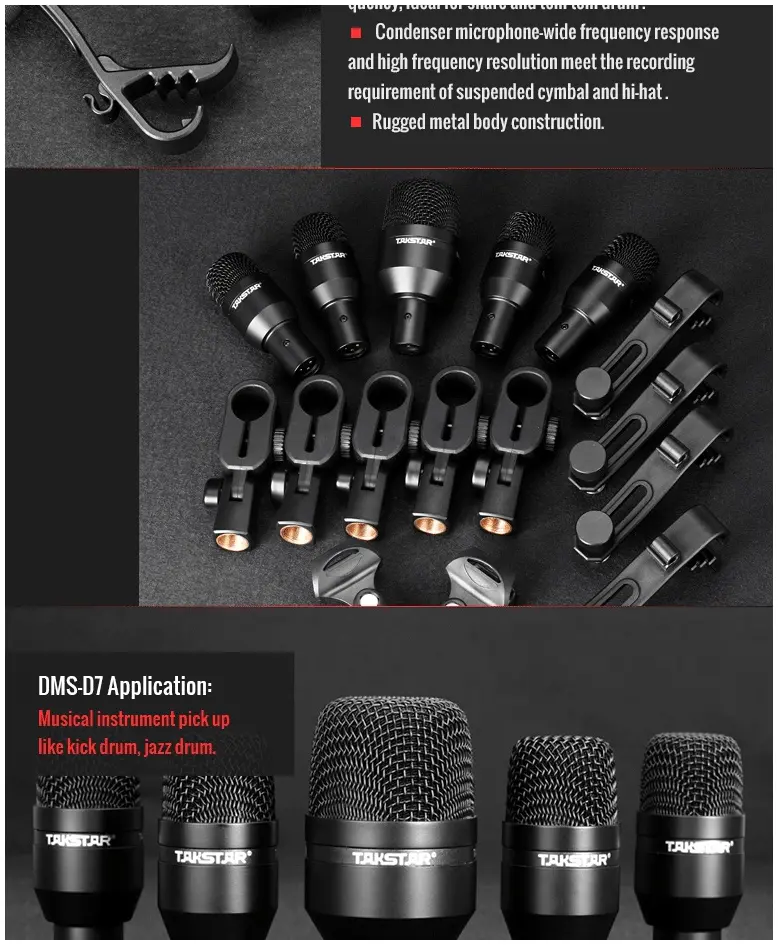

Condenser microphone-wide frequency response and high frequency resolution meet the recording requirement of suspended cymbal and hi-hat

Rugged metal body construction

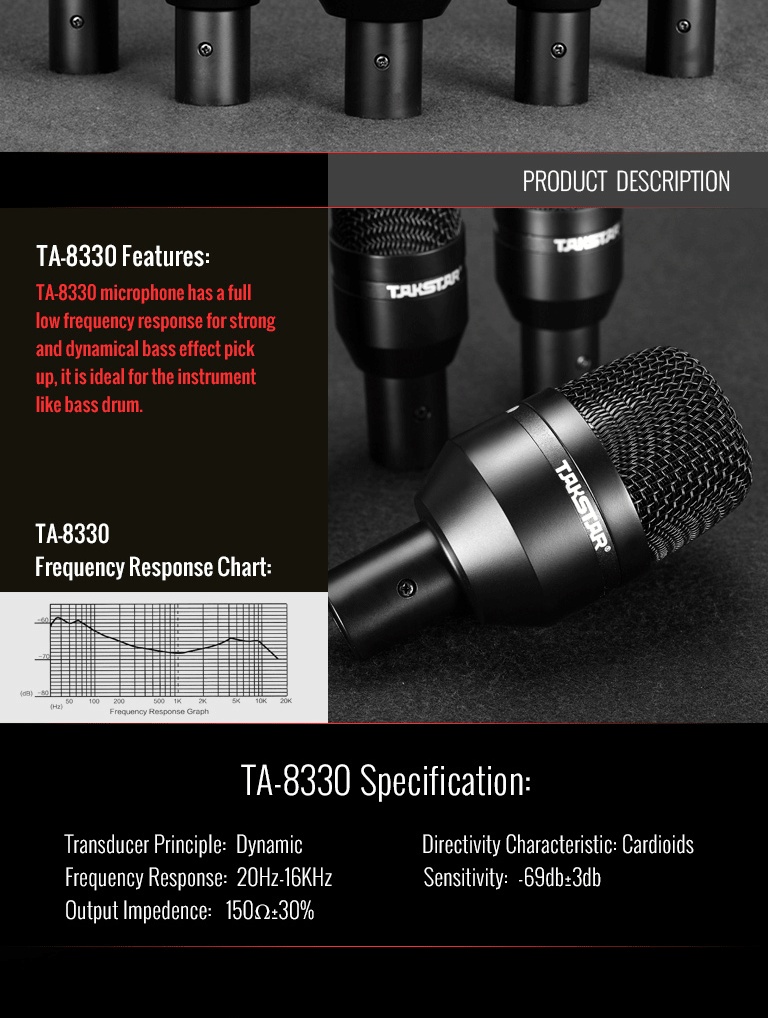

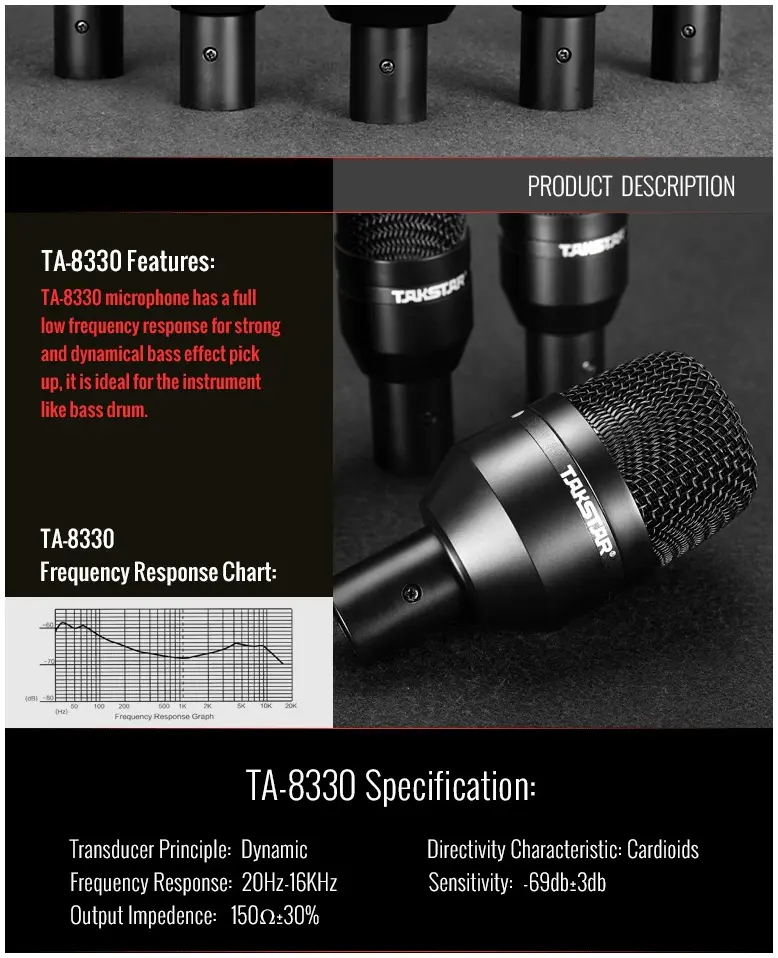

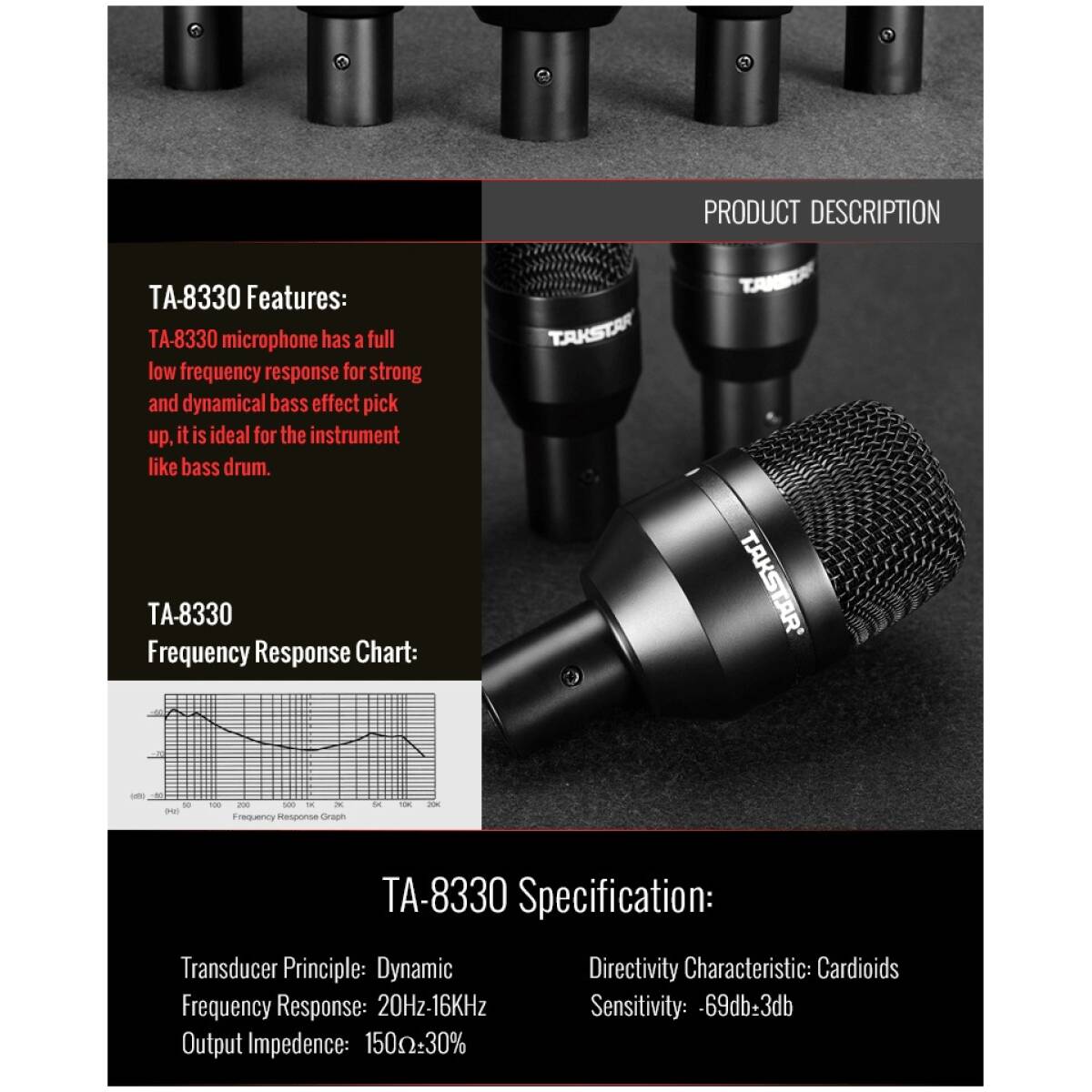

TA-8330 specification
• Transducer Principle: Dynamic
• Directivity Characteristic: Cardioid
• Frequency Response: 20Hz–16KHz
• Sensitivity: -69dB ± 3dB
• Output Impedance: 150 Ω ±30%

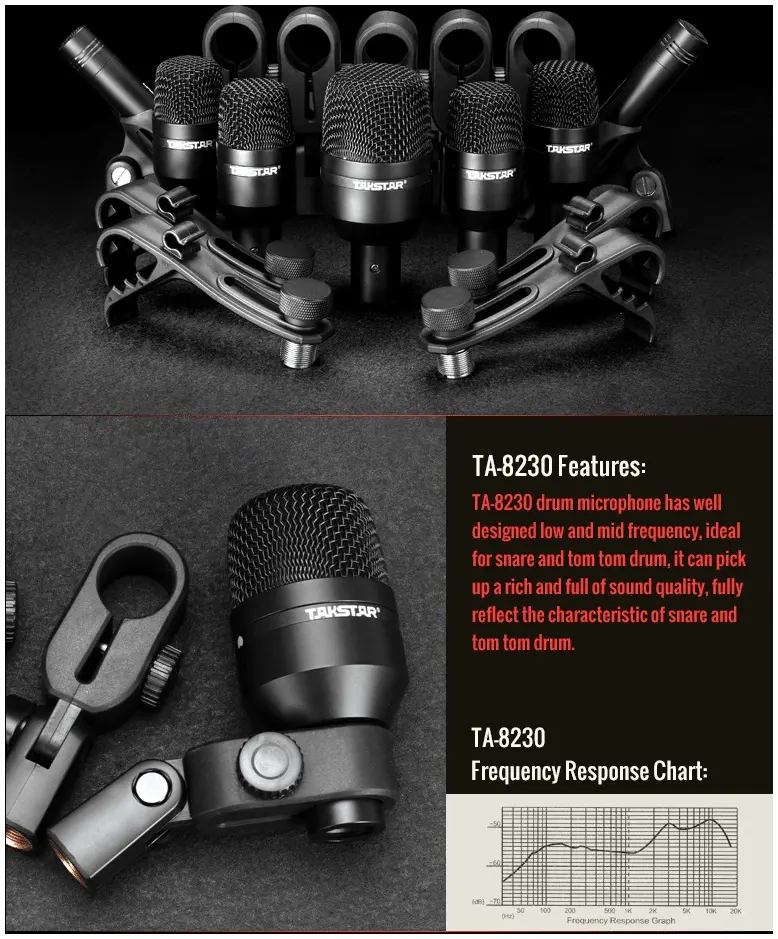

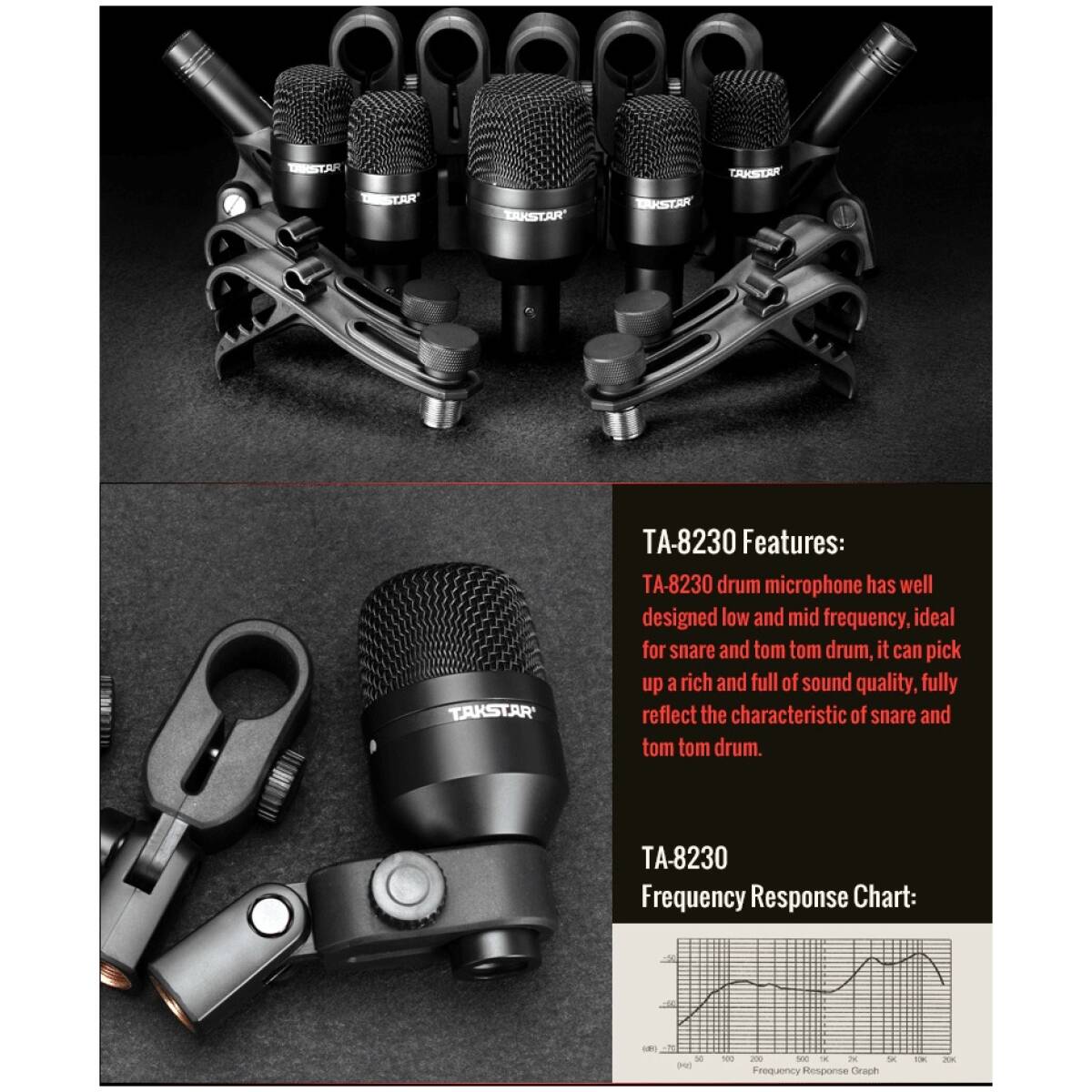

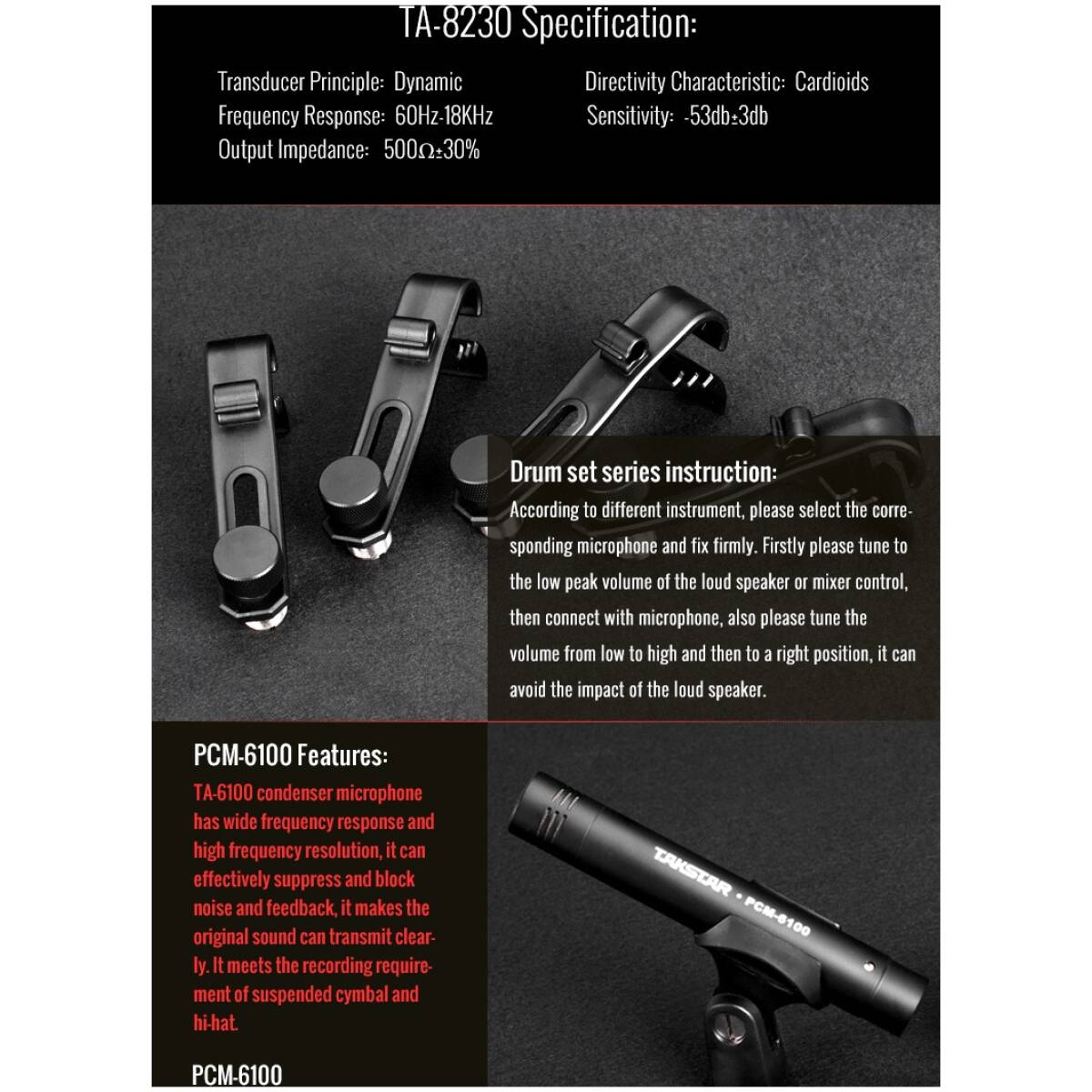

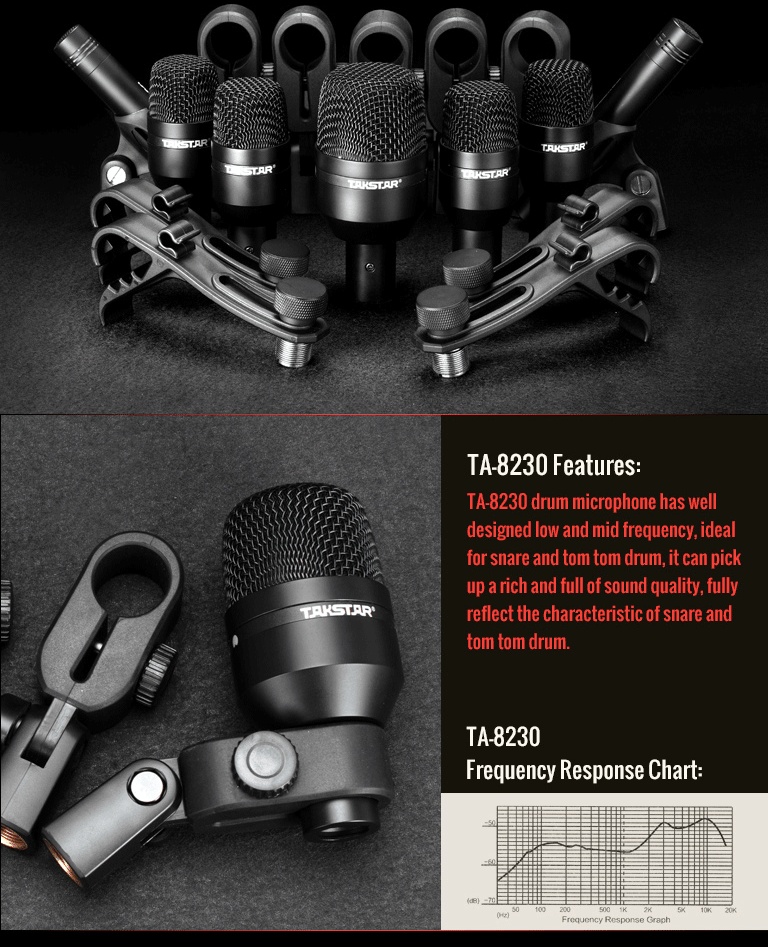

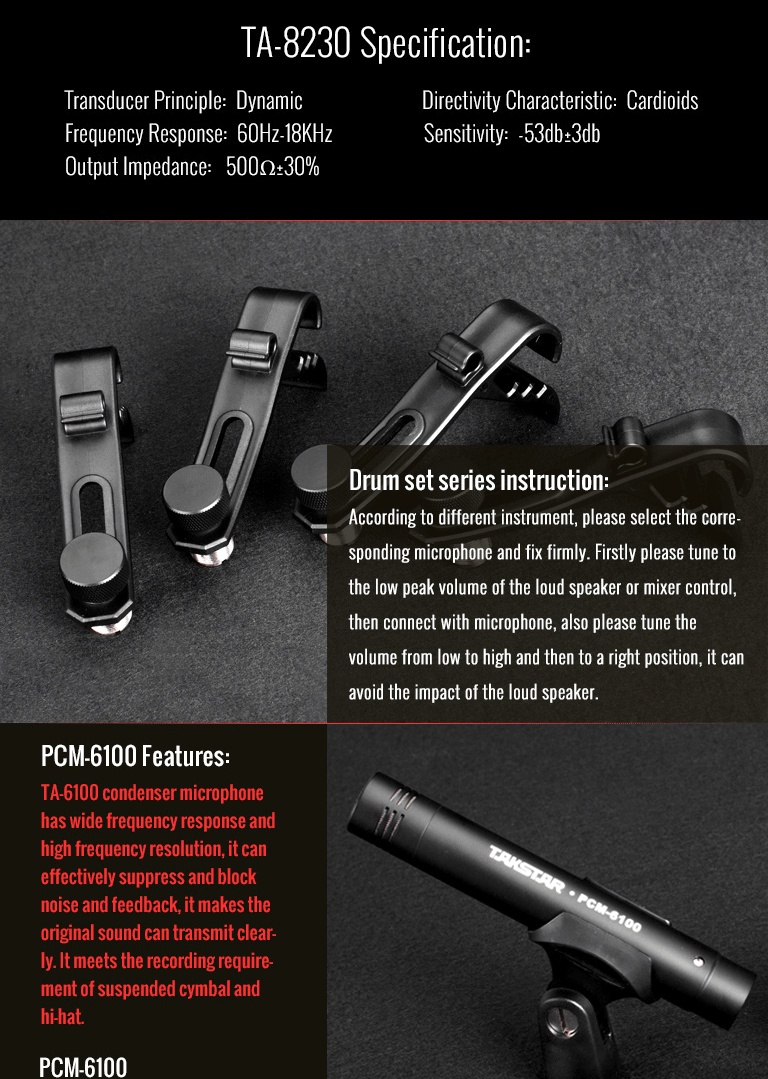

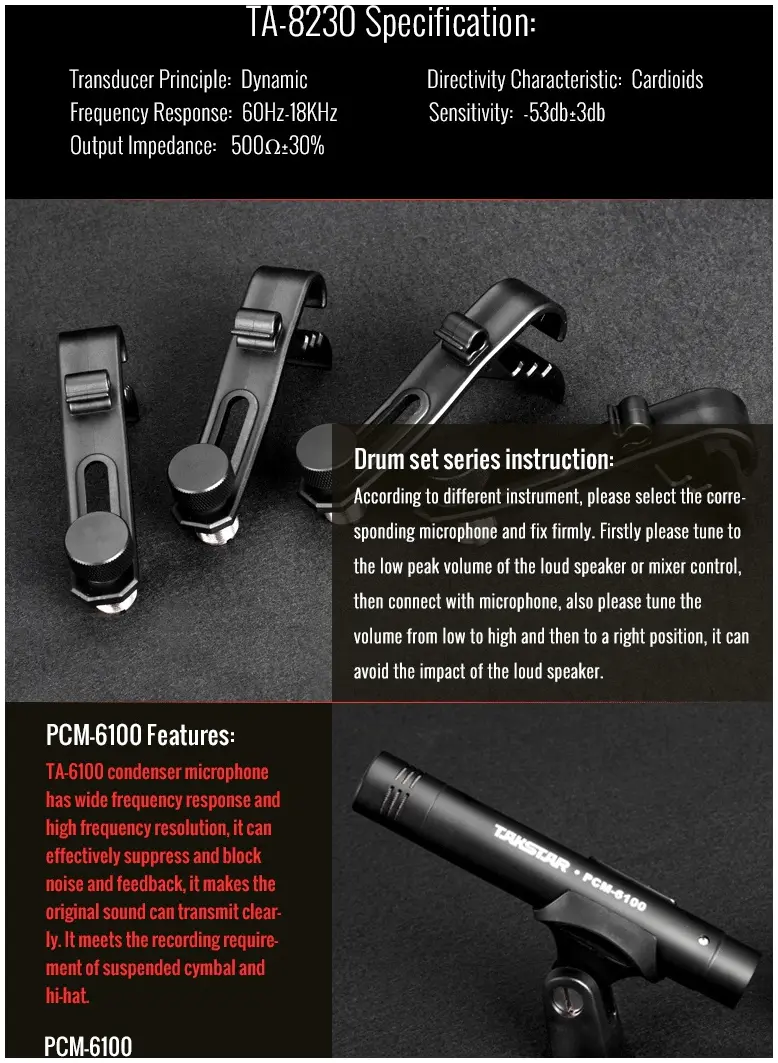

TA-8230 specification
• Transducer Principle: Dynamic
• Directivity Characteristic: Cardioid
• Frequency Response: 60Hz -18KHz
• Sensitivity: -53dB±3dB
• Output Impedance: 250 Ω±30%

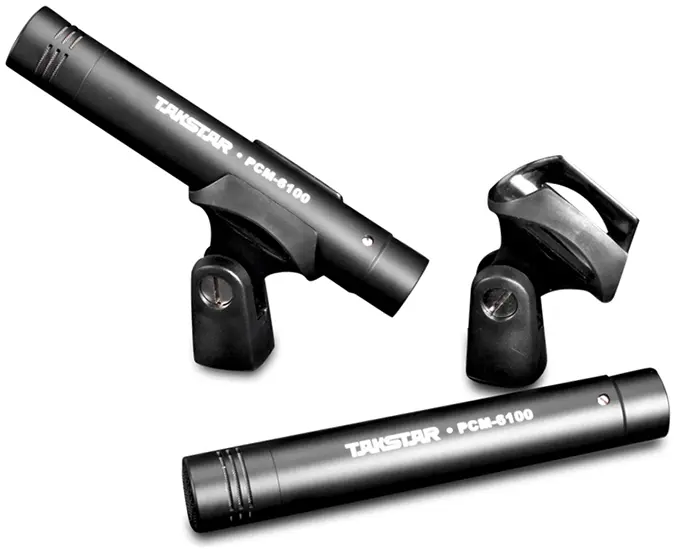

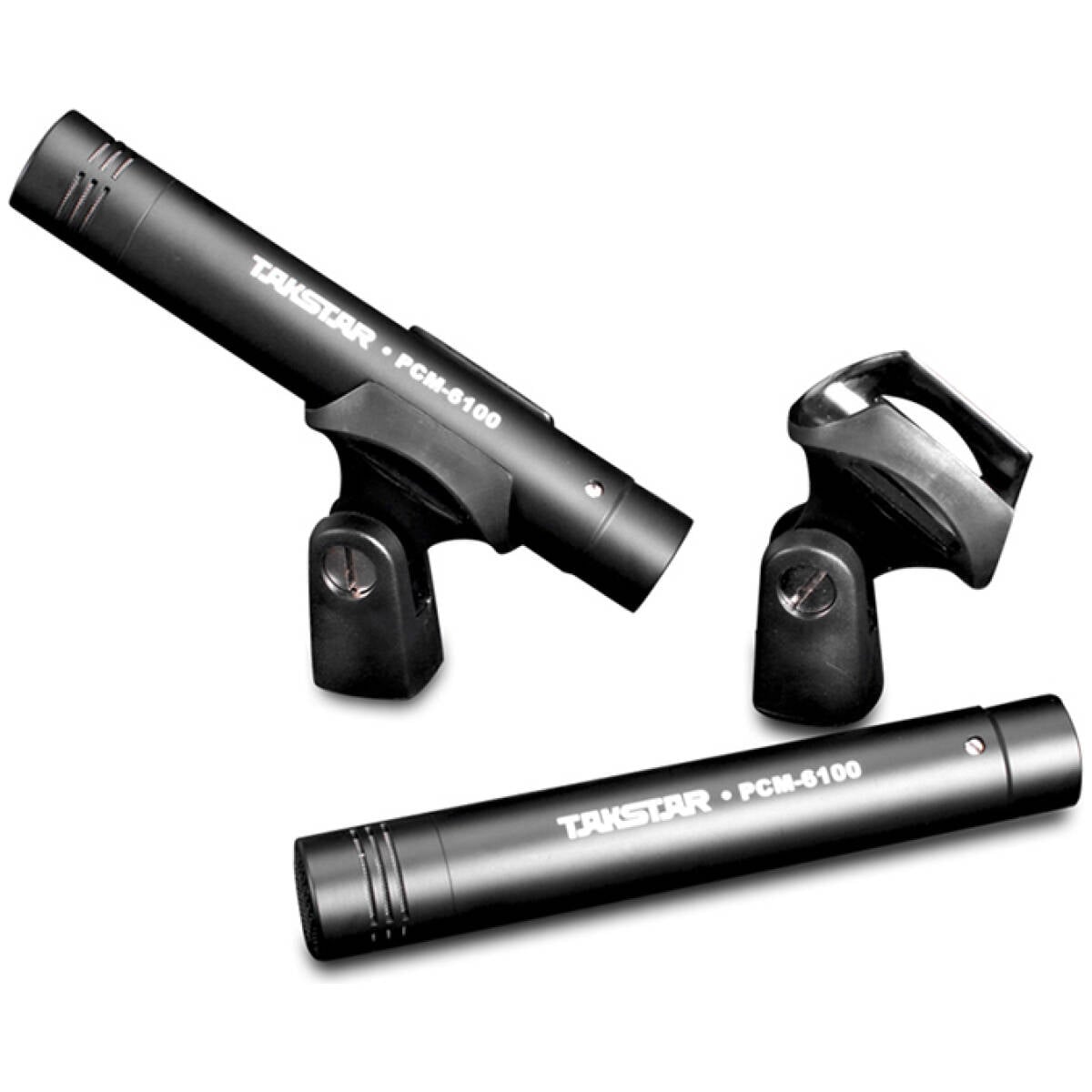

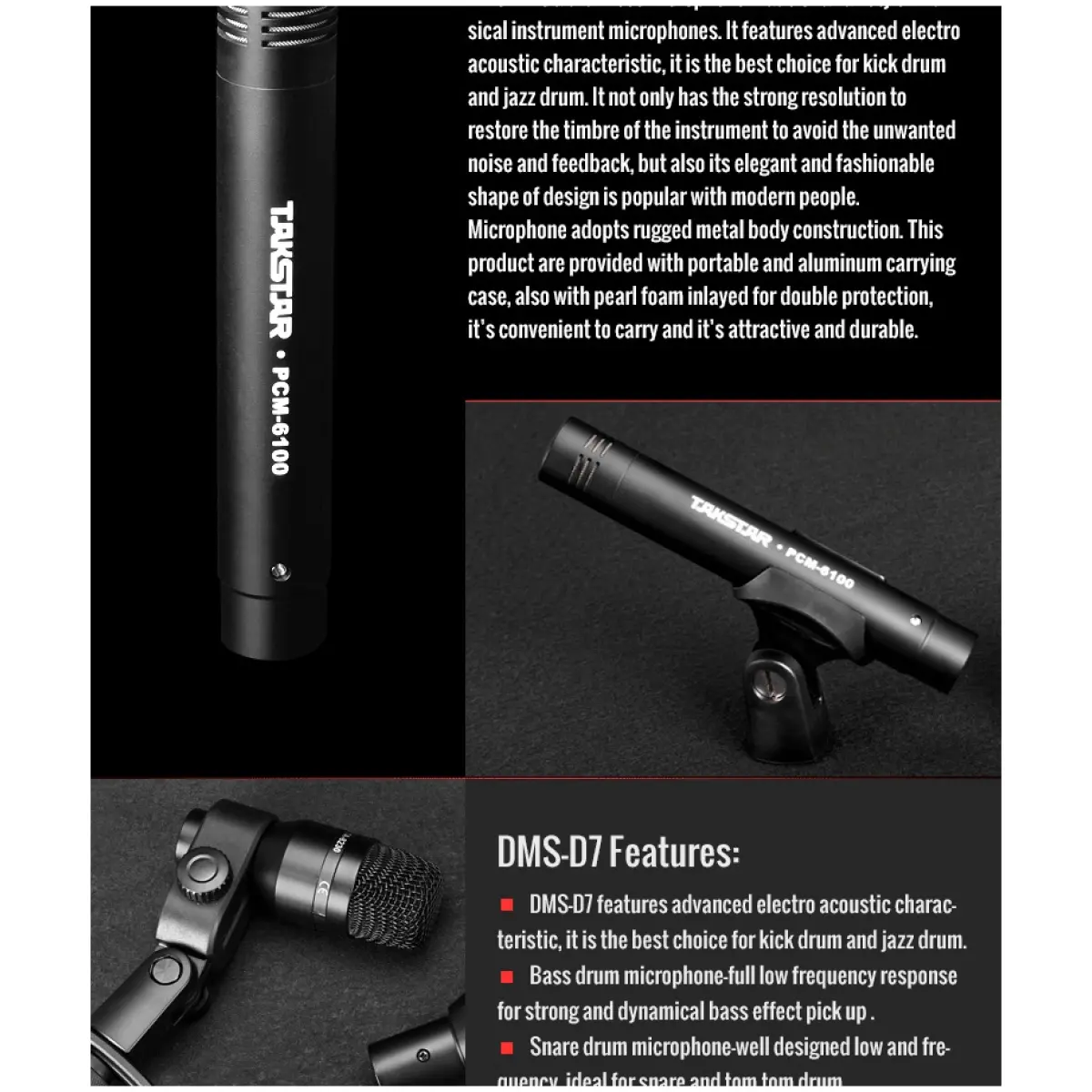

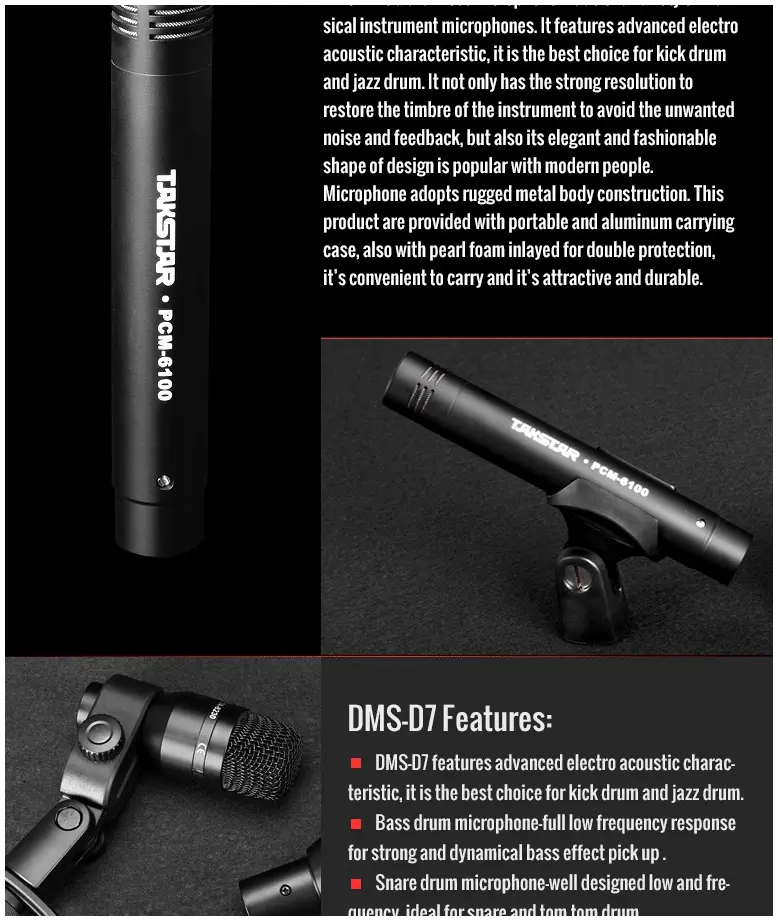

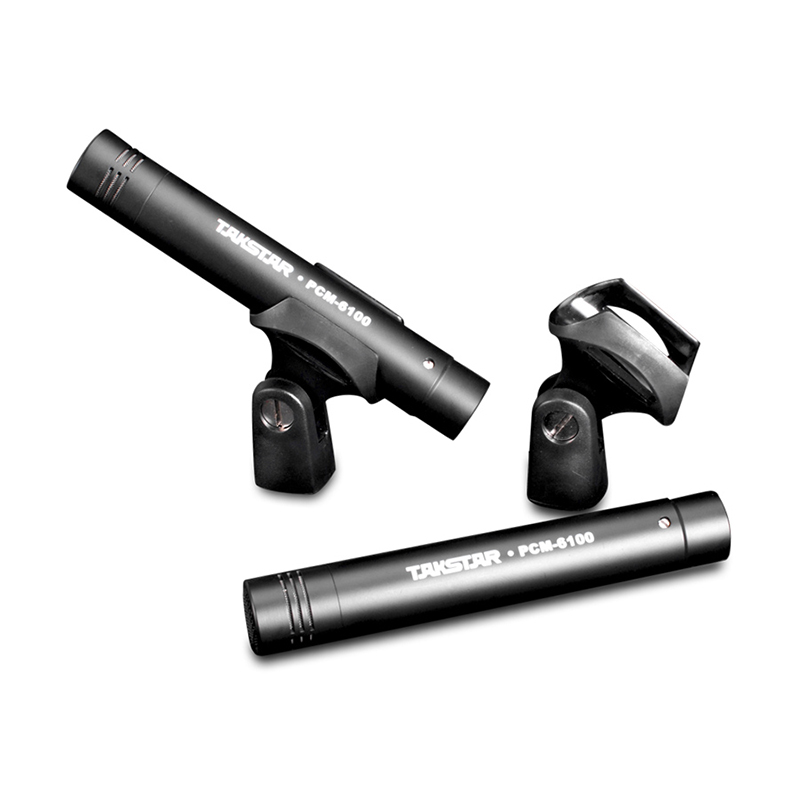

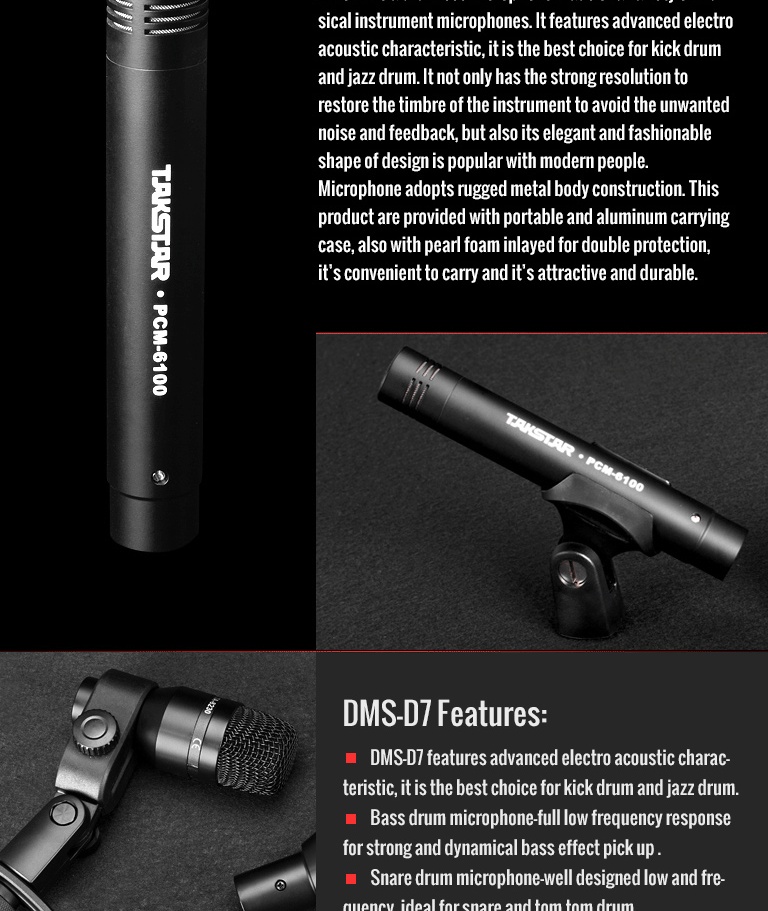

PCM-6100 specification
• Transducer Principle: Condenser
• Directivity Characteristic: Cardioid
• Frequency Response: 20Hz-20KHz
• Sensitivity: -36kB±3 dB
• Output Impedance: ≤100Ω
• Load Impedance: ≥1000 Ω
• Equivalent Noise Level: ≤25dB
• Max. SPL: 135dB(THD≤1% AT 1KHz)
• Power Requirement: 9-52V Phantom Power Supply
