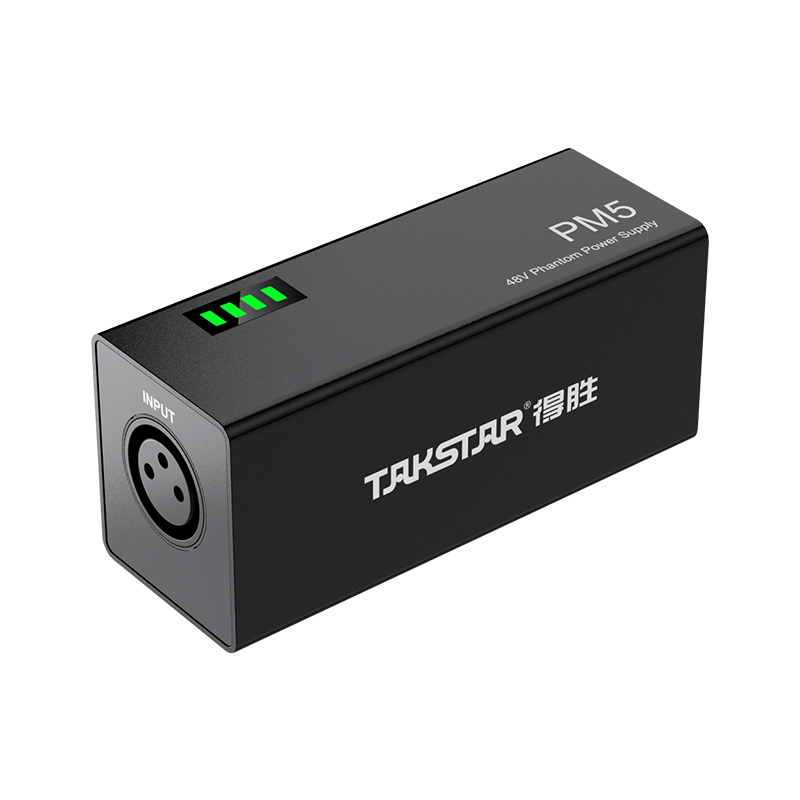

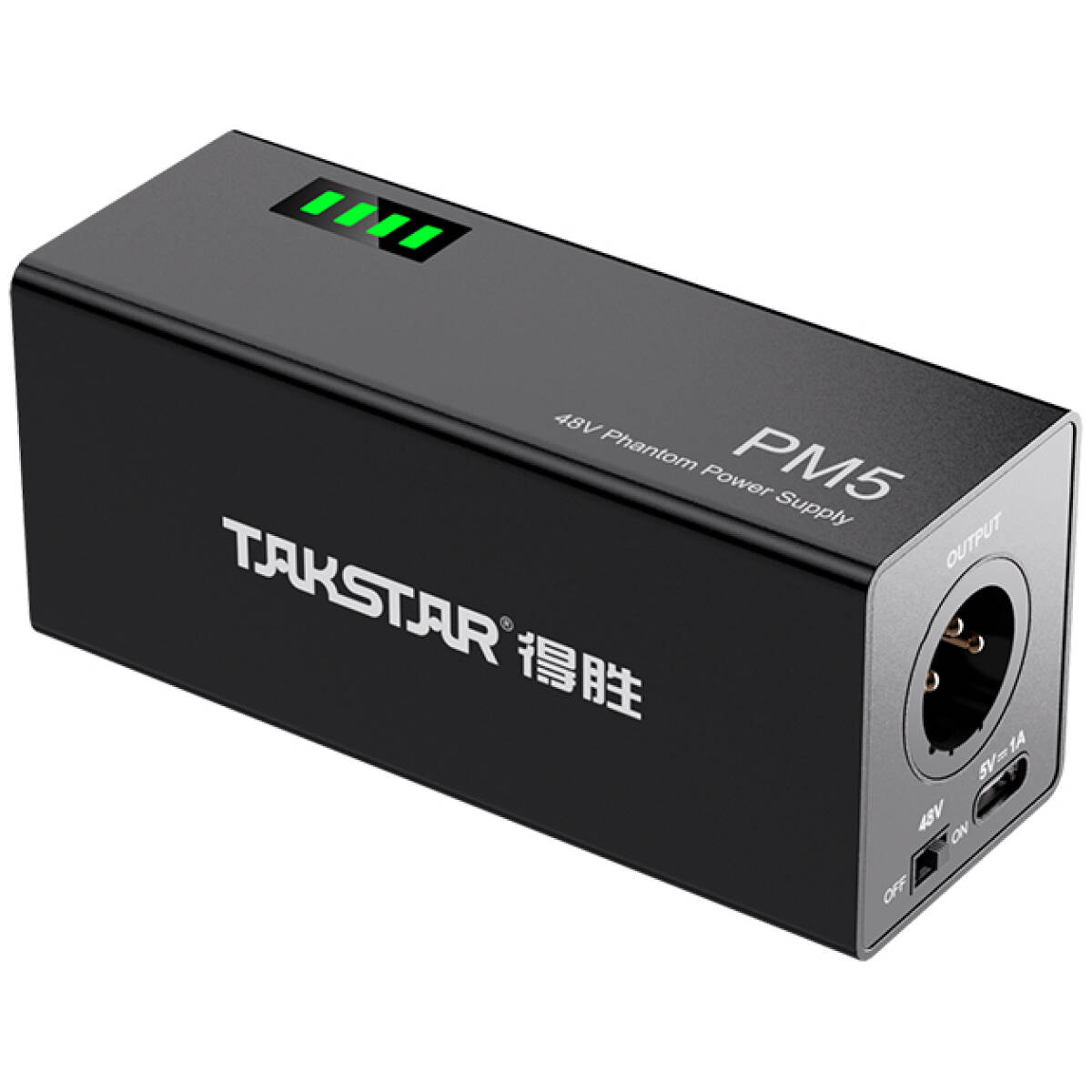

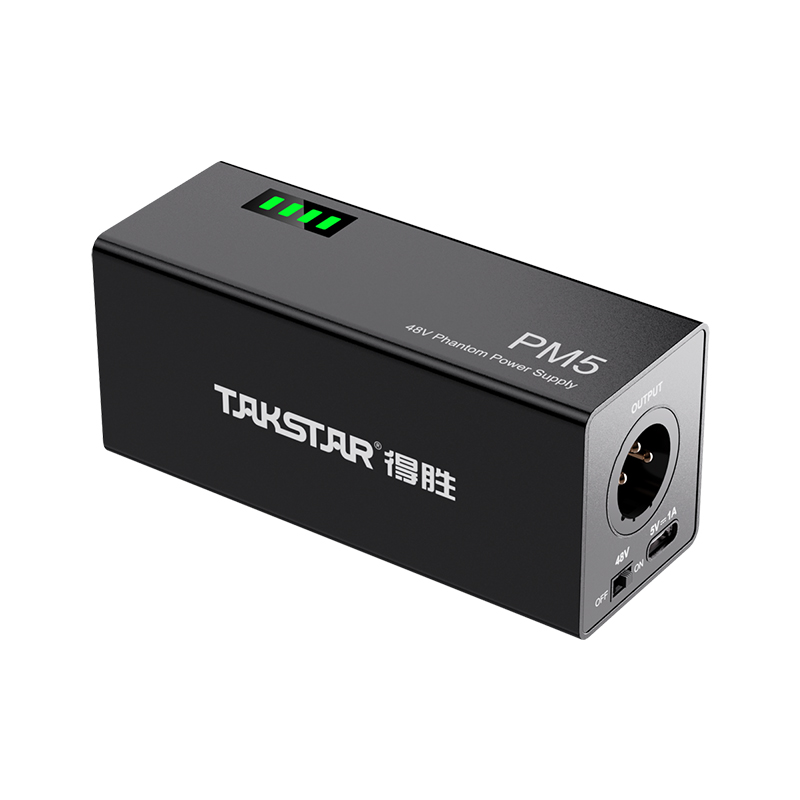

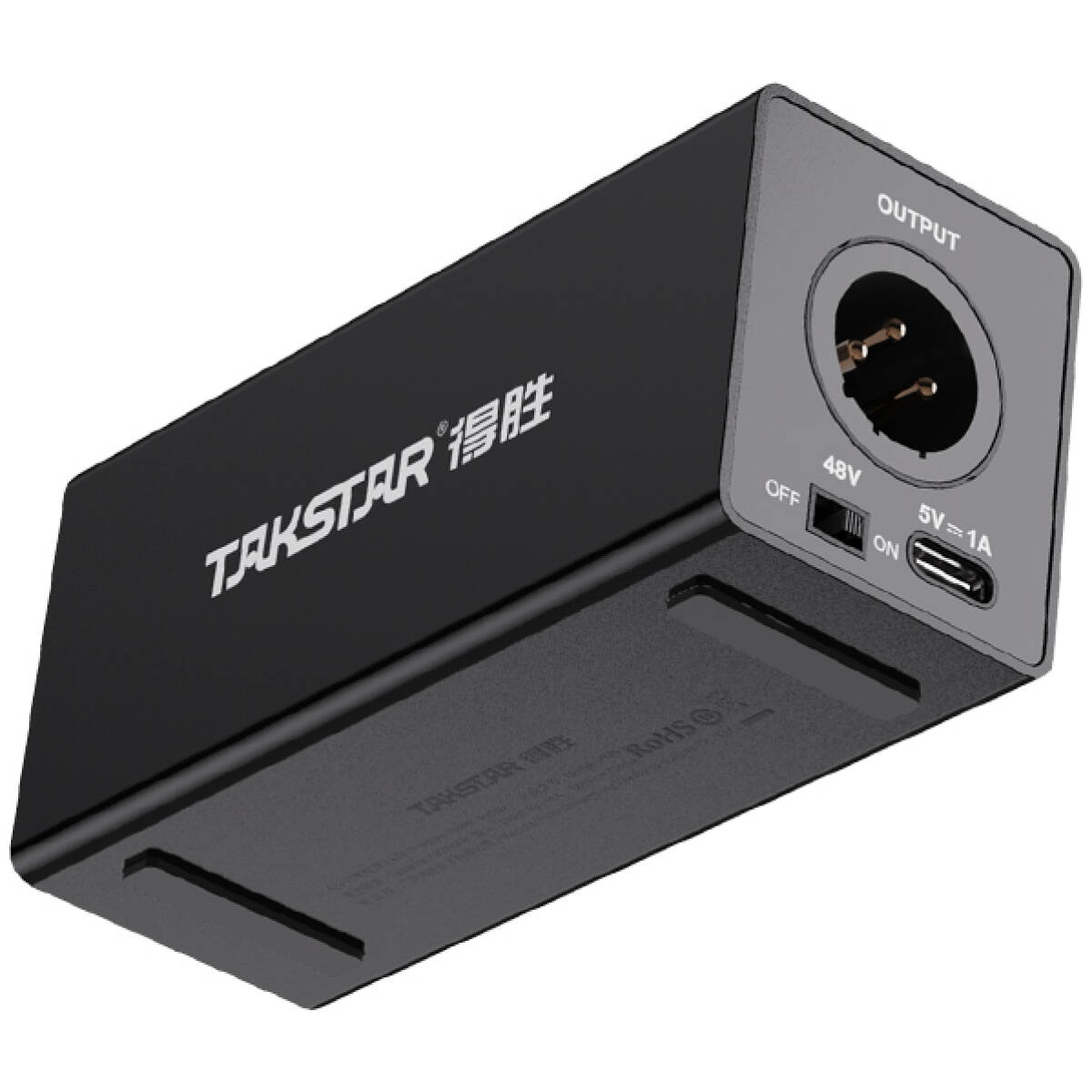

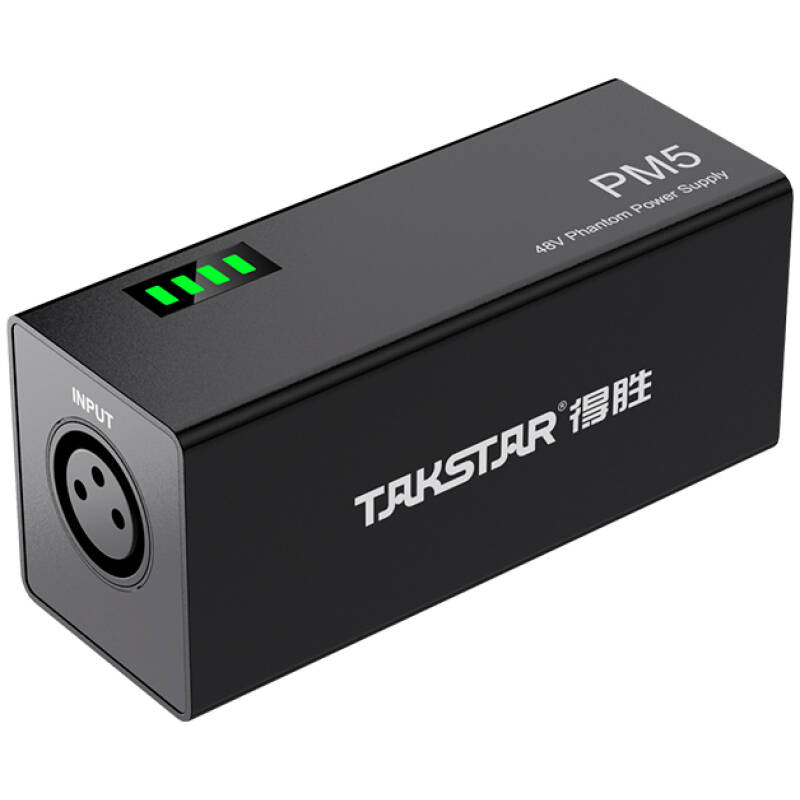

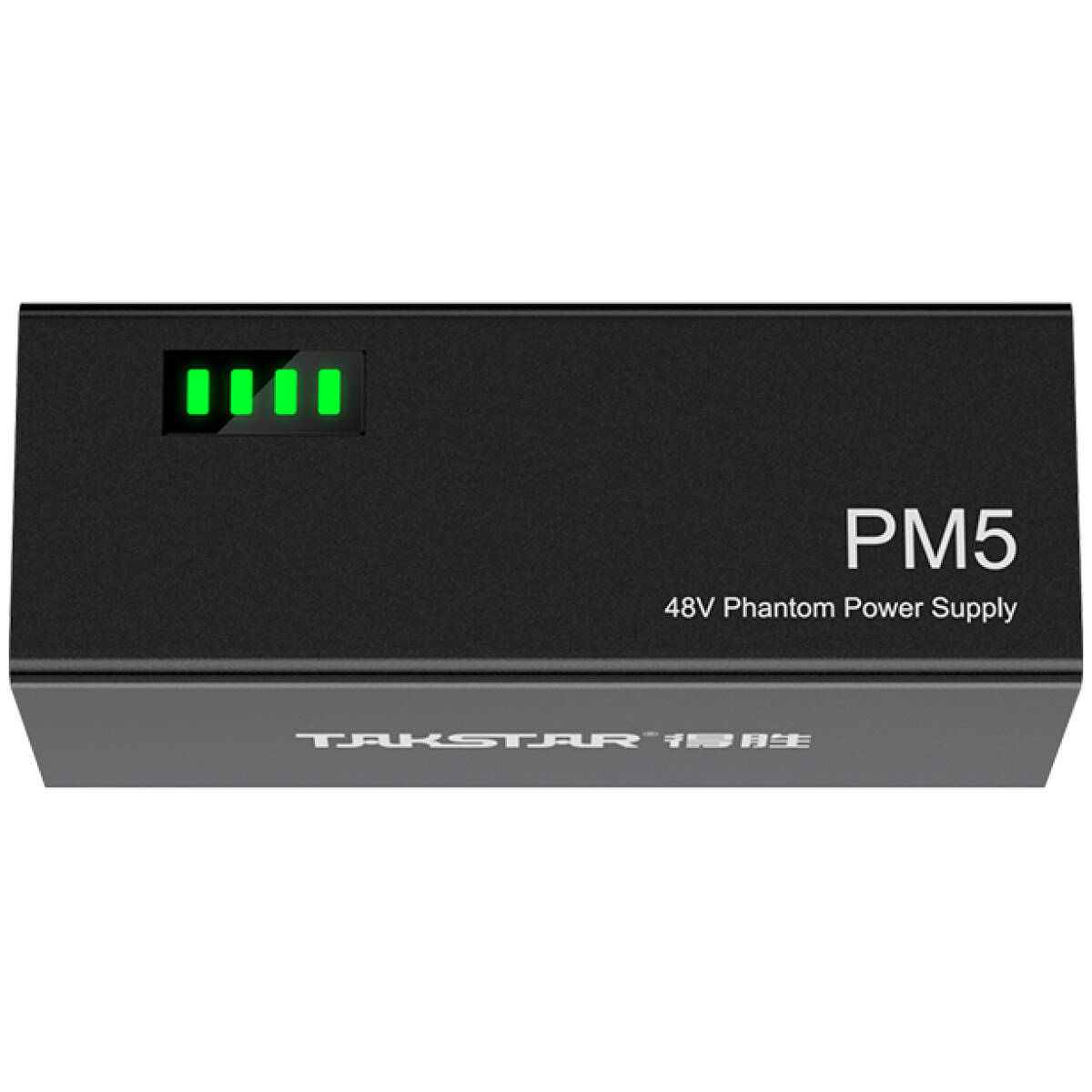

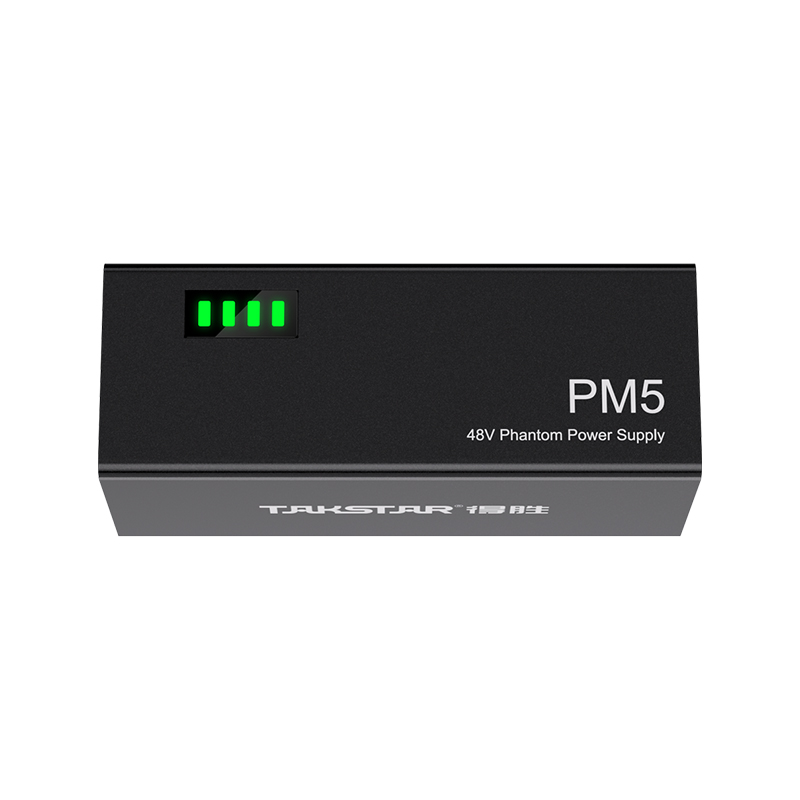

Takstar PM5 (GEN 2) 48V Phantom Power Supply

FEATURES:

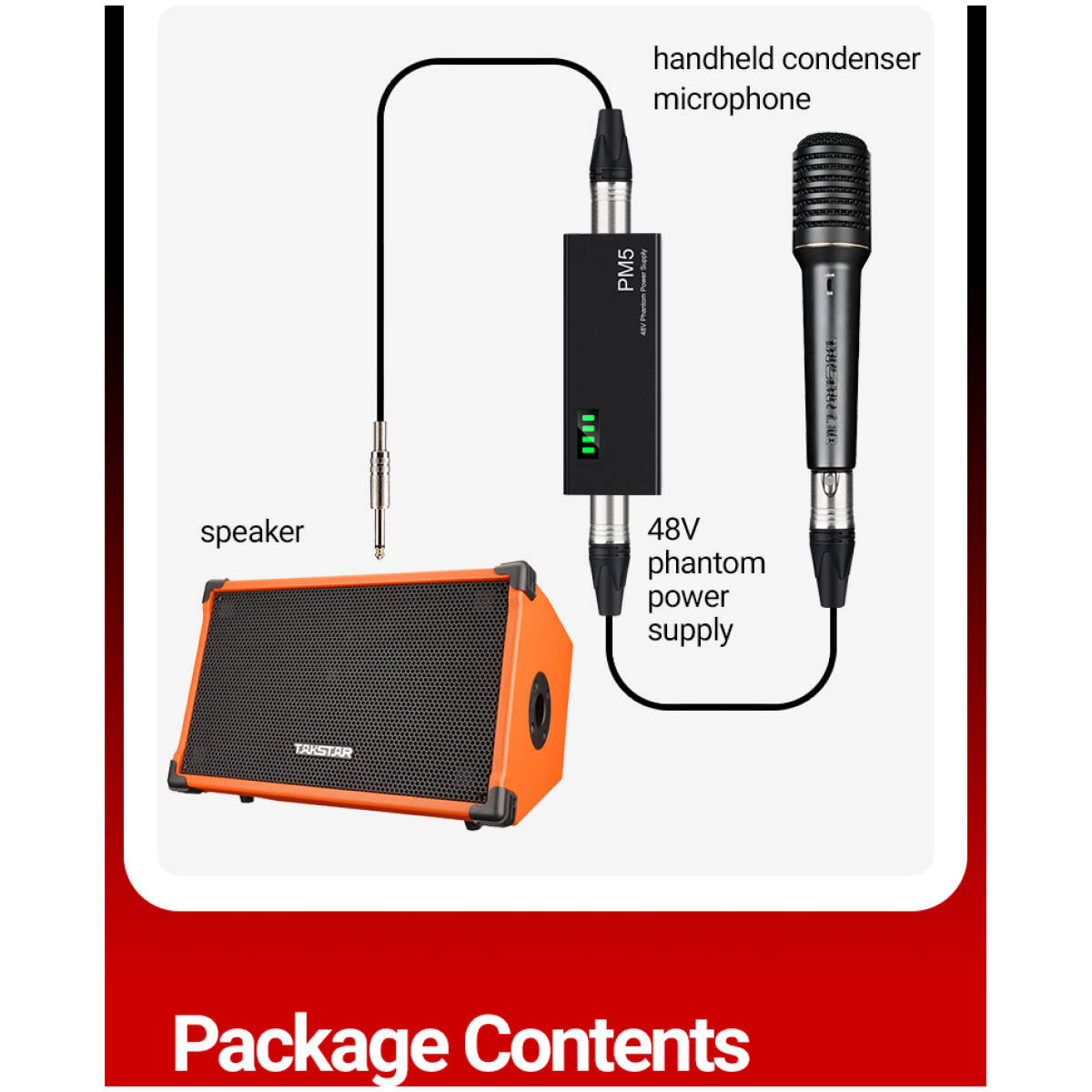

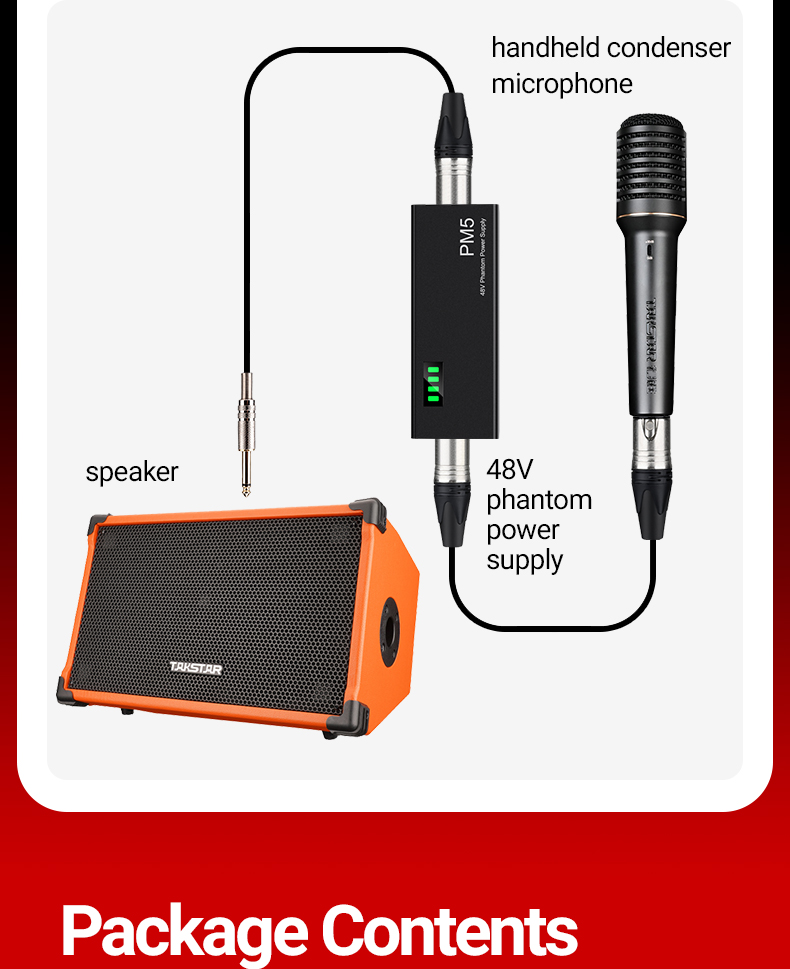

• 48V Phantom Power Supply, compatible with all condenser microphones requiring 48V phantom power supply.

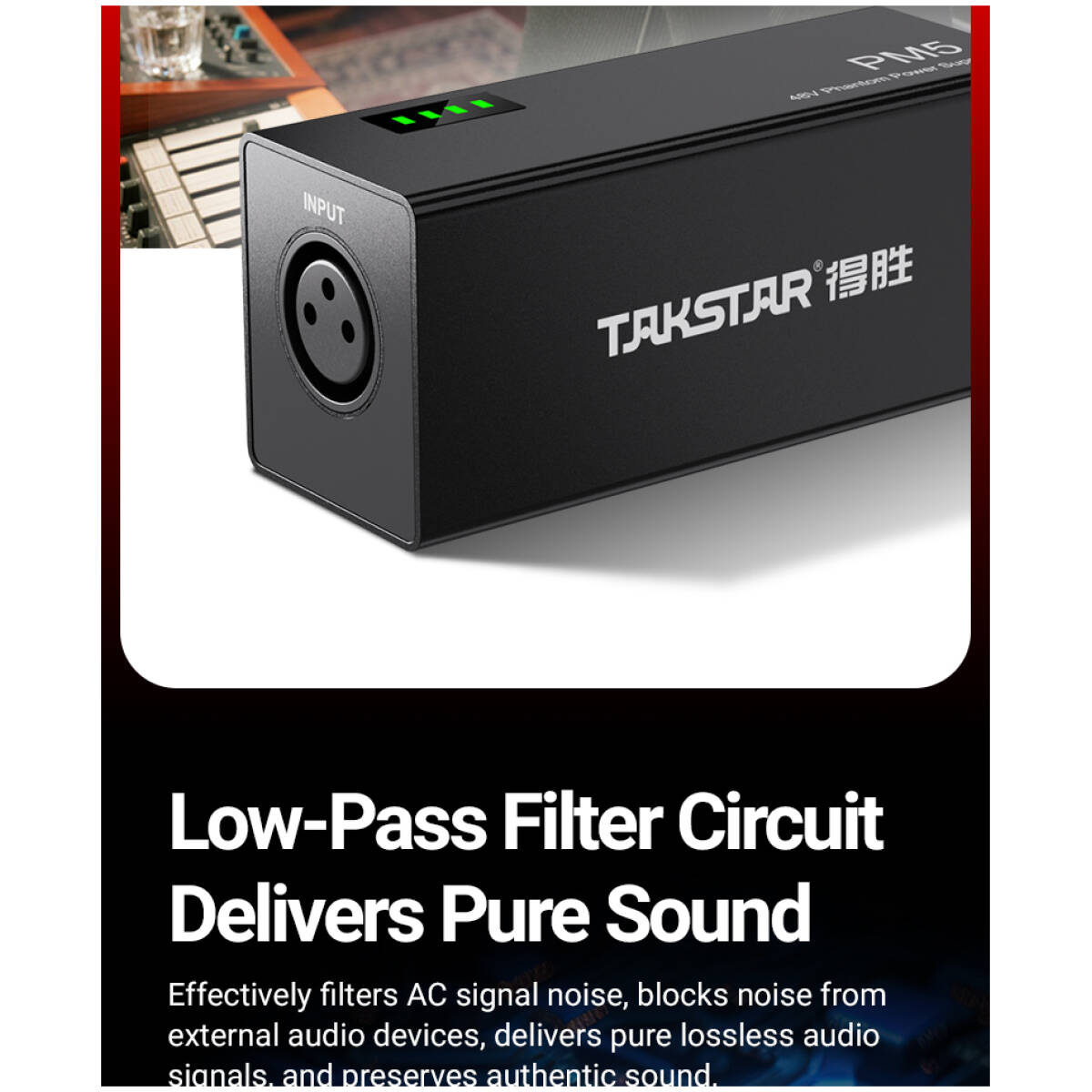

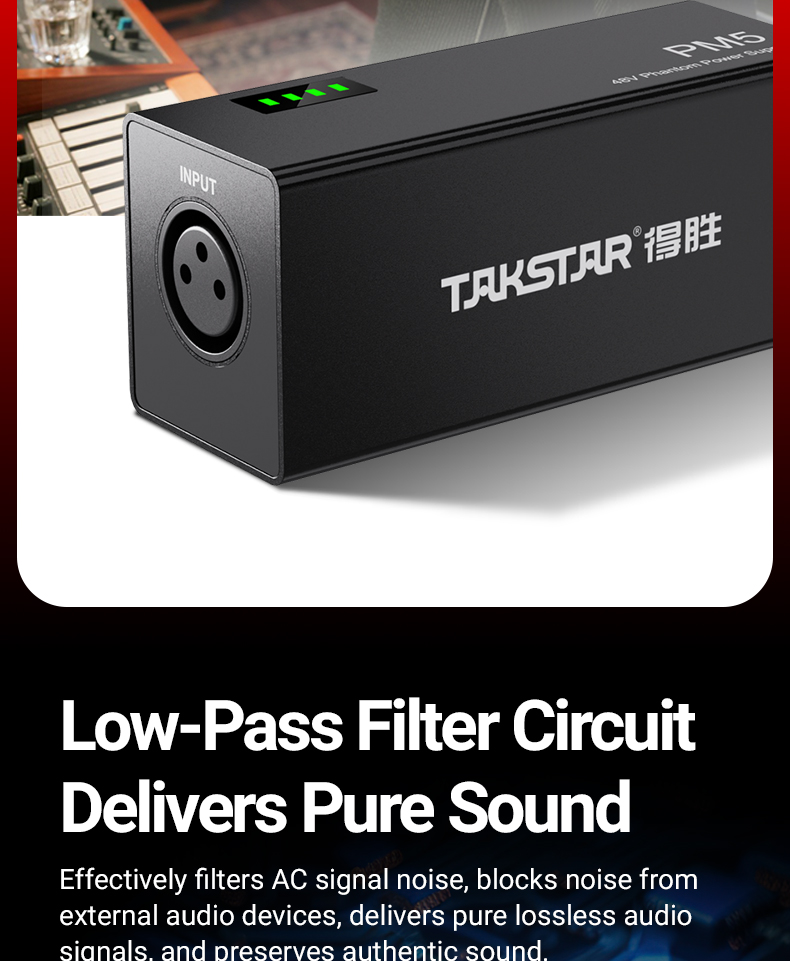

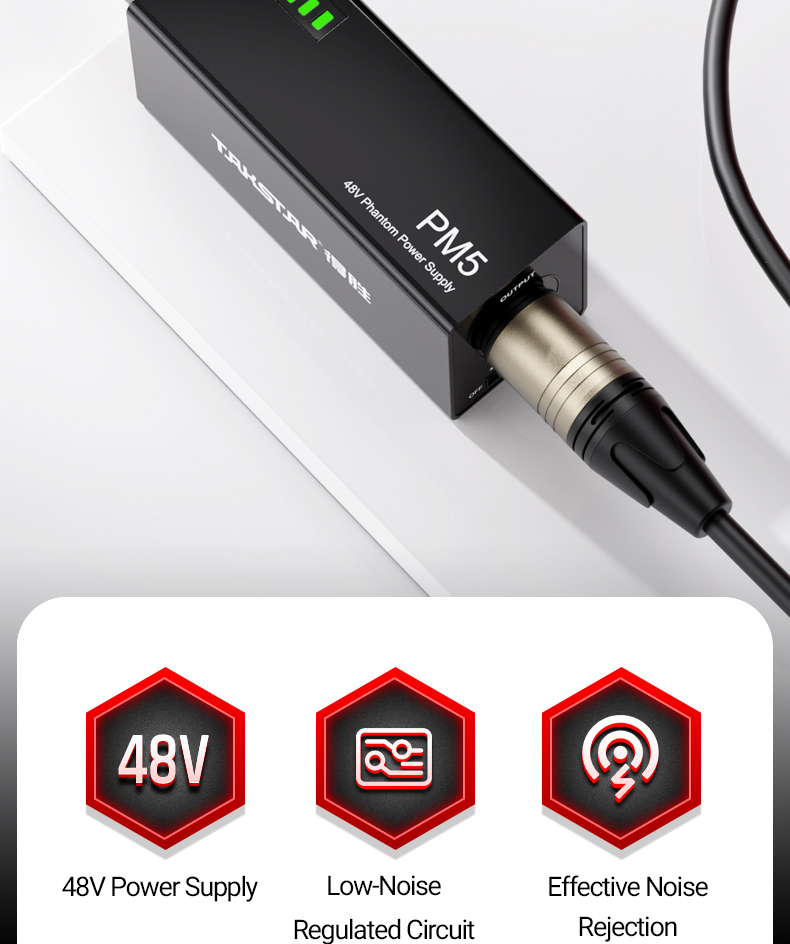

• Built-in low-pass filter circuit effectively eliminates signal interference to ensure pristine audio transmission.

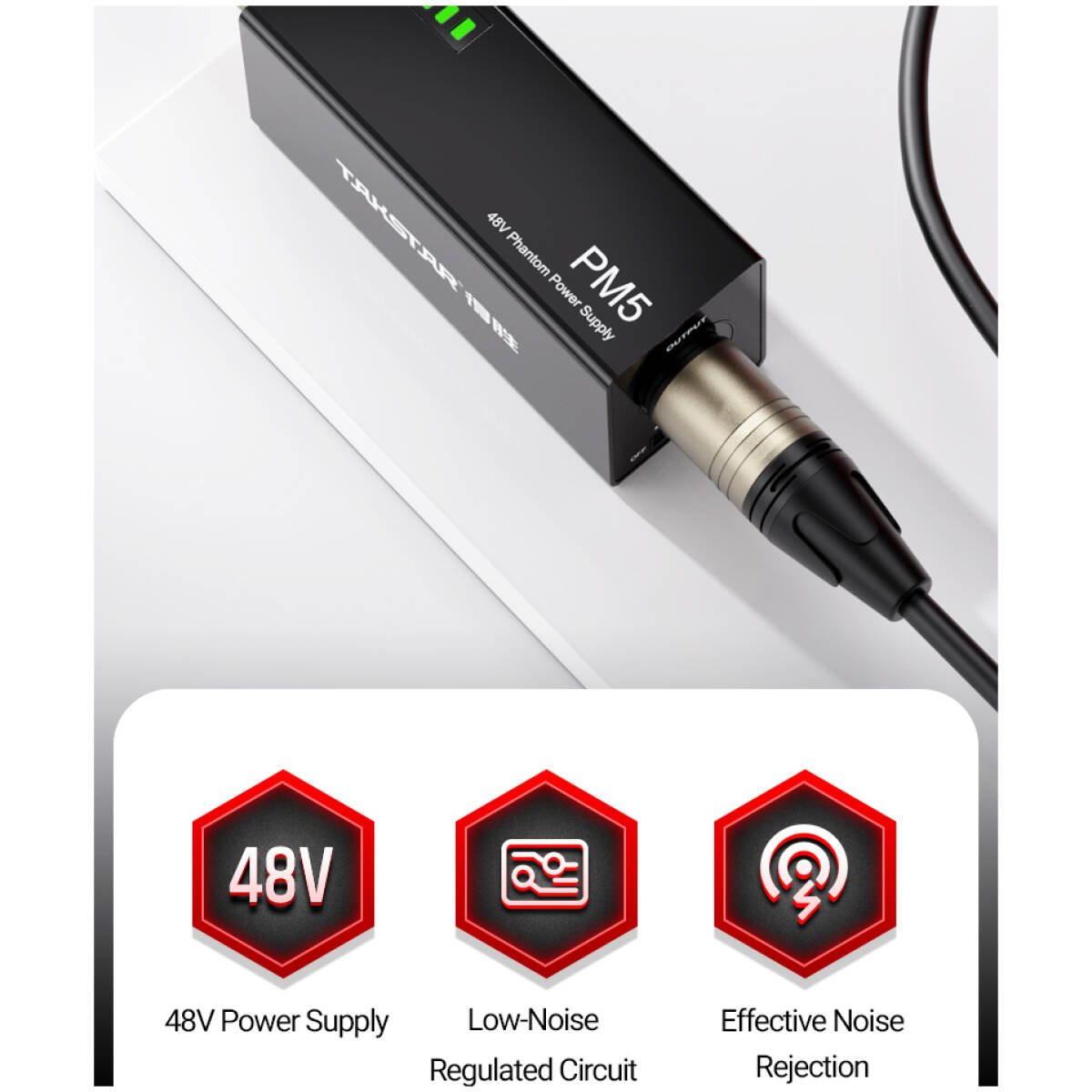

• DC 48V boost rectifier circuit guarantees stable voltage output while suppressing common-mode interference.

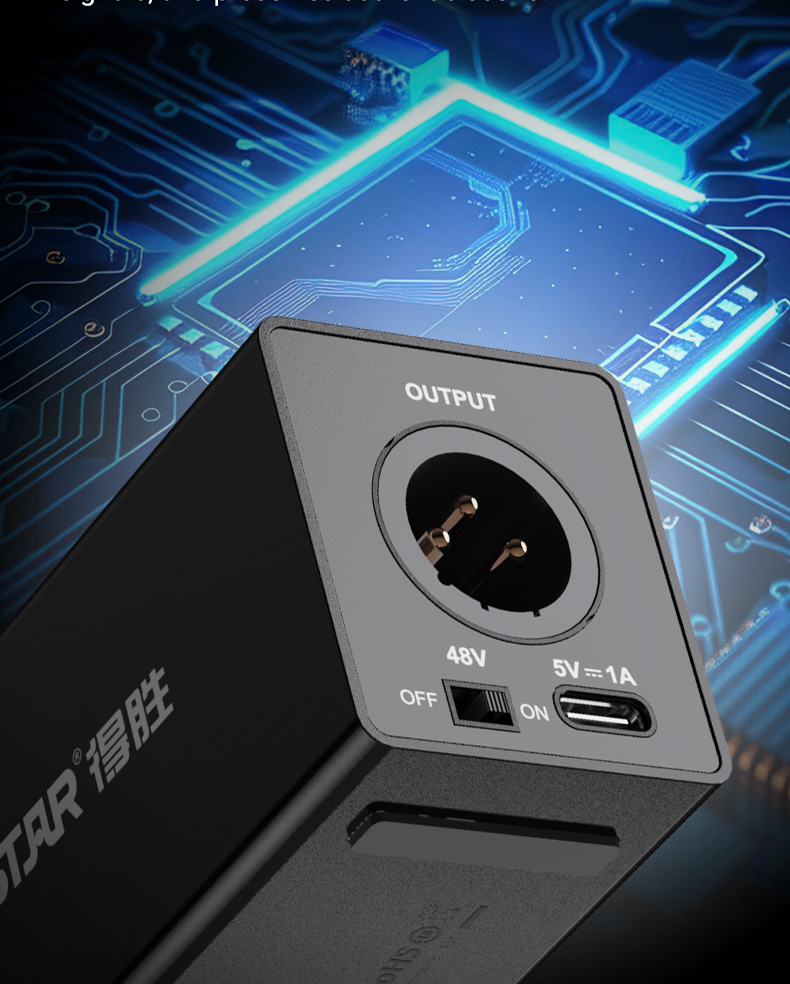

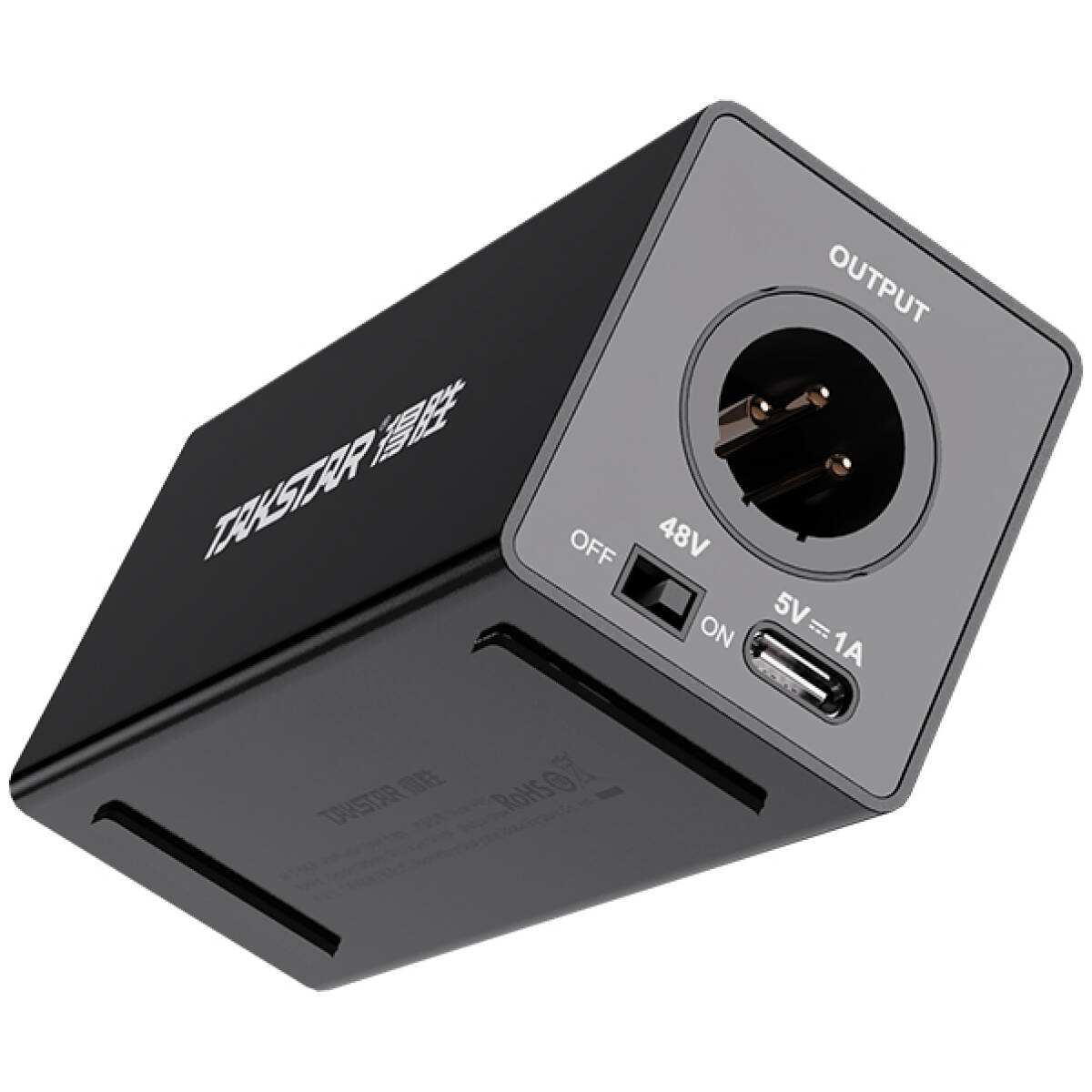

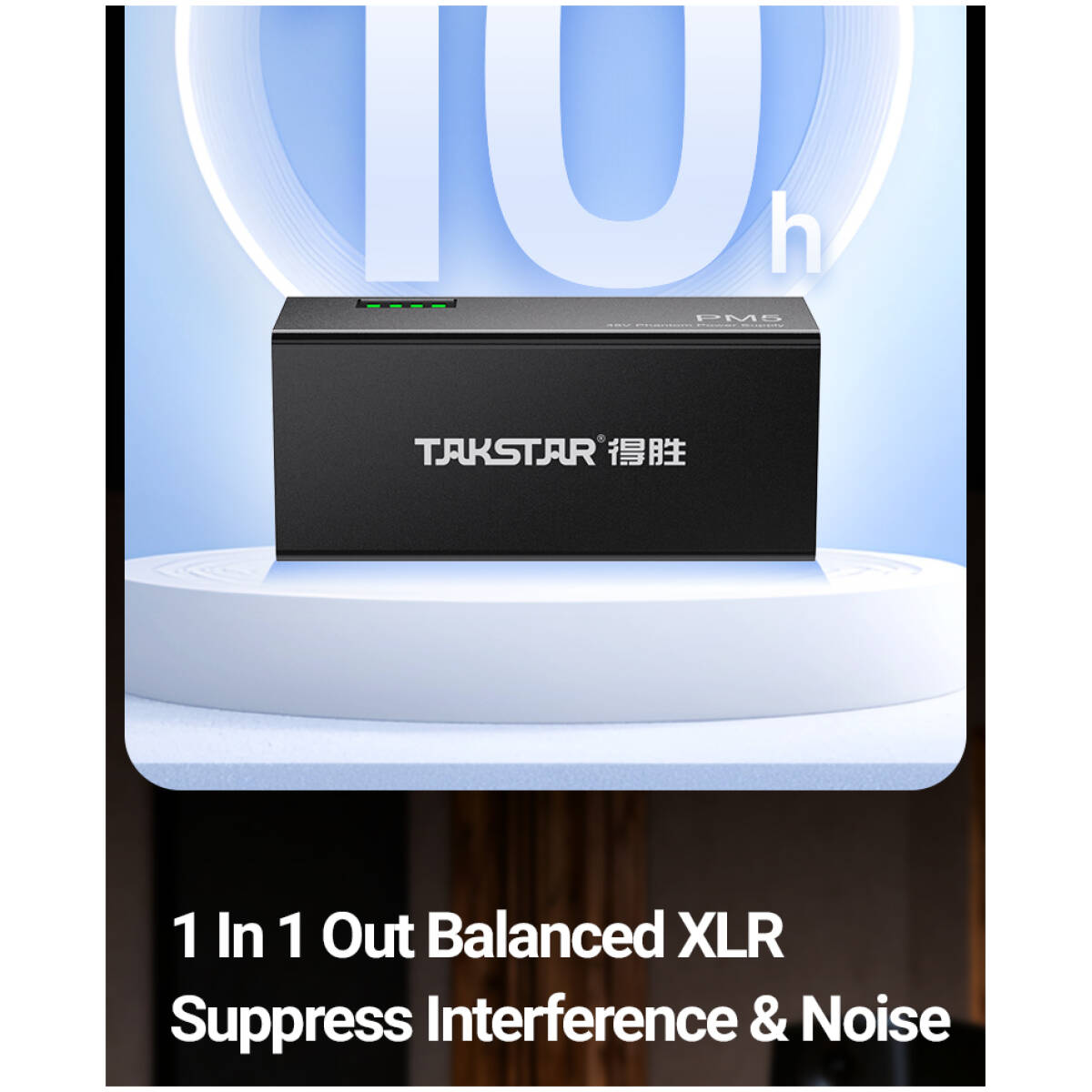

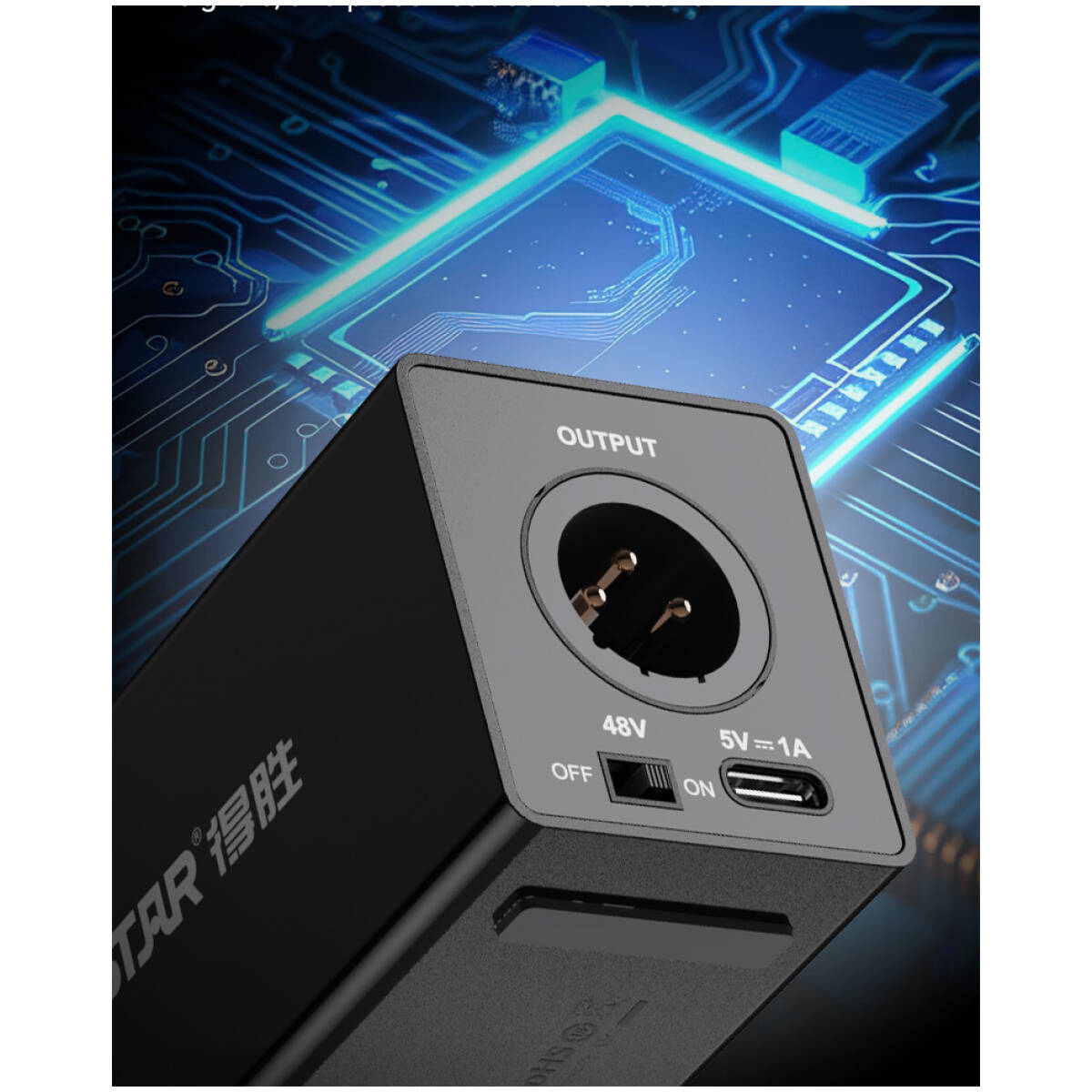

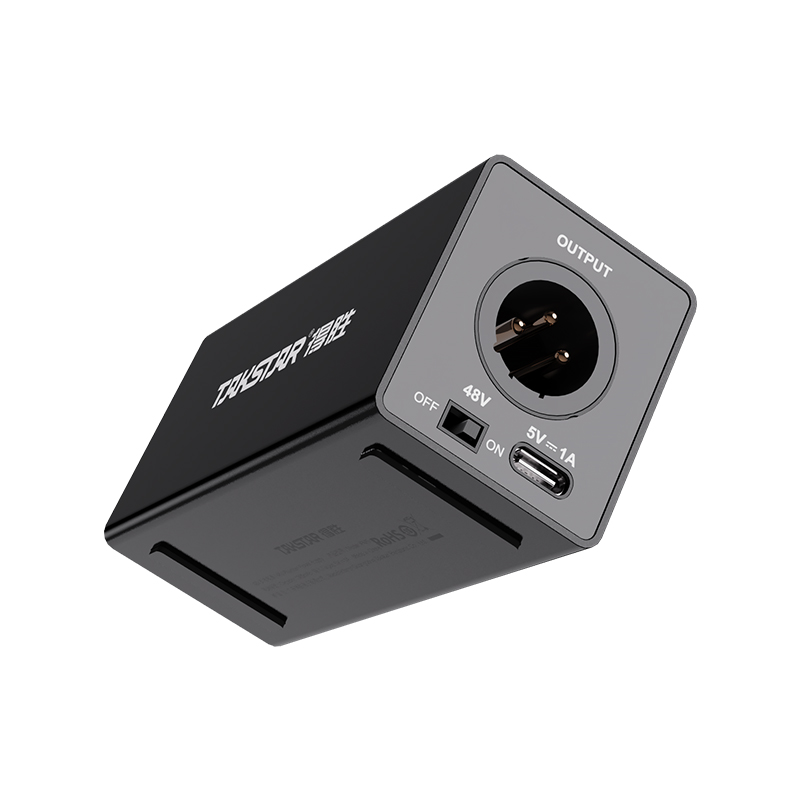

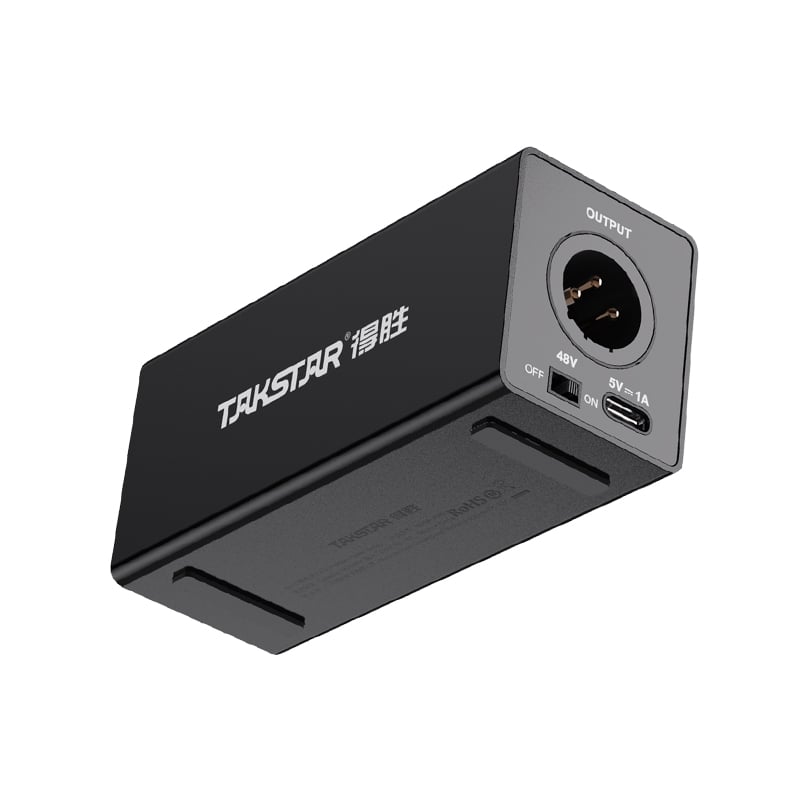

• Dual XLR balanced input/output connectors provide stable power delivery with anti-interference capabilities.

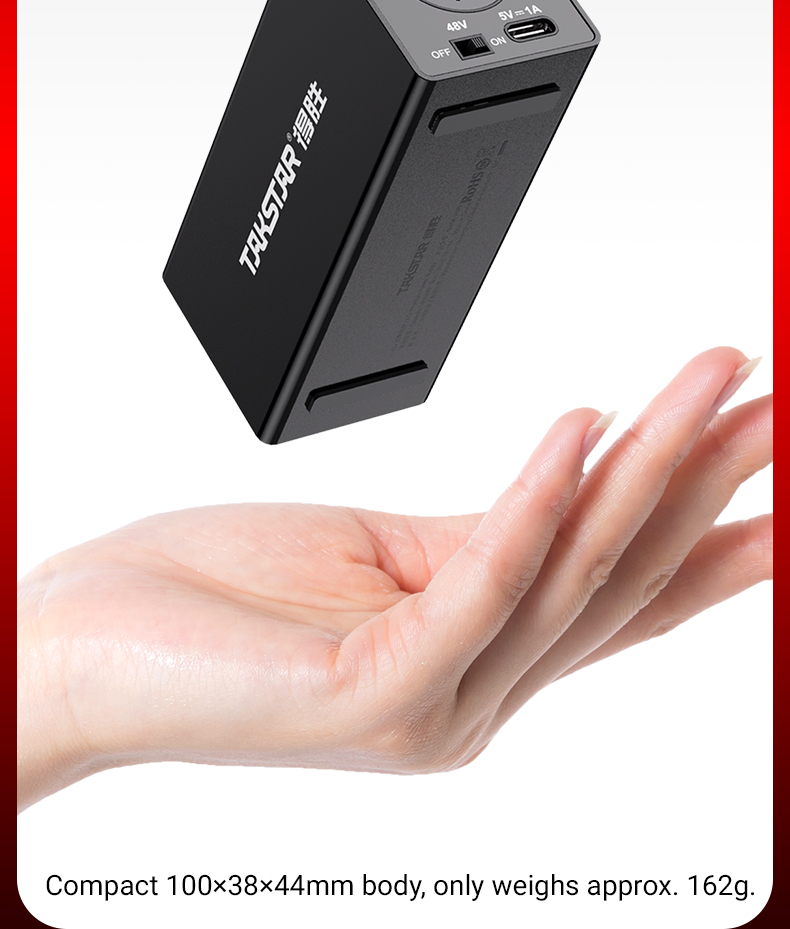

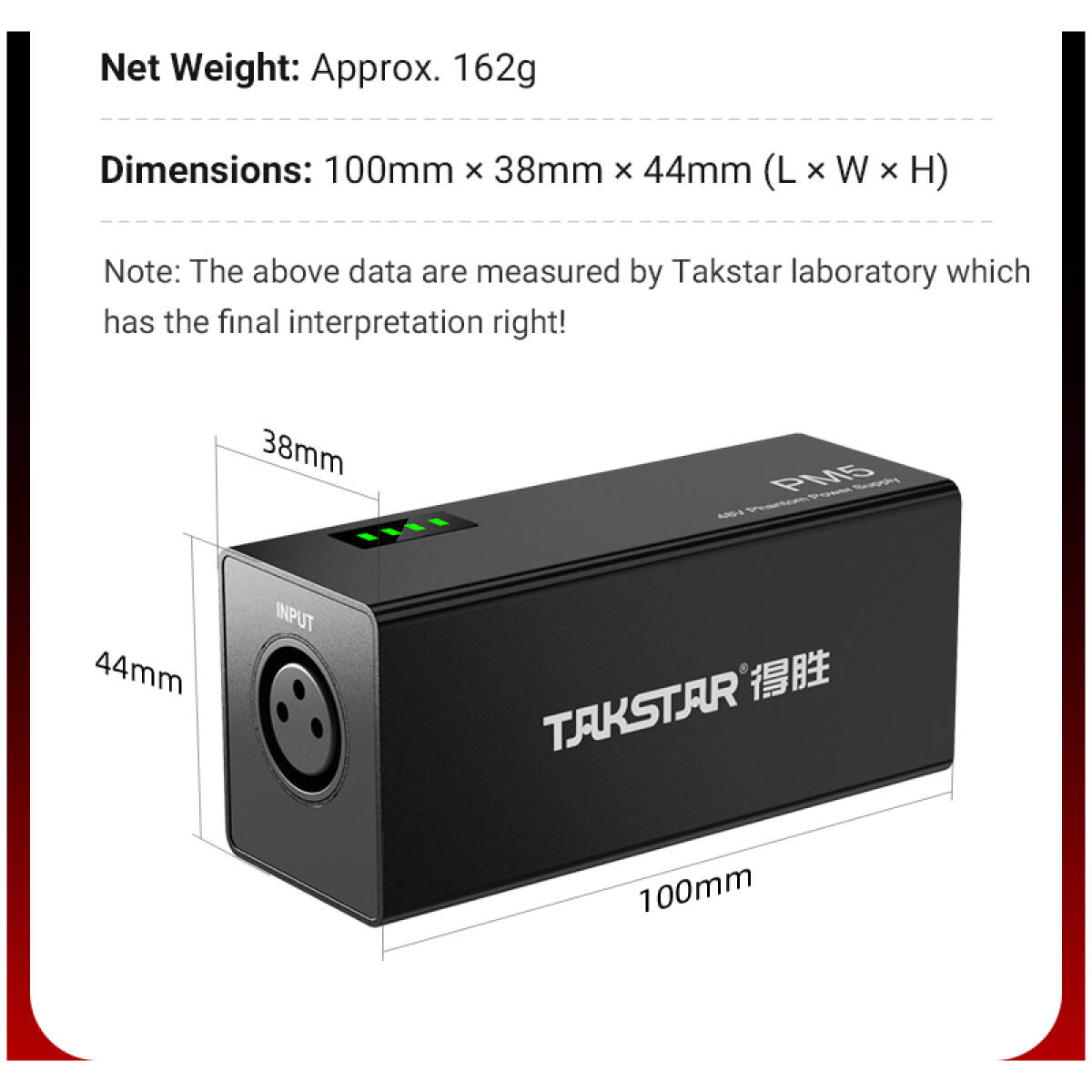

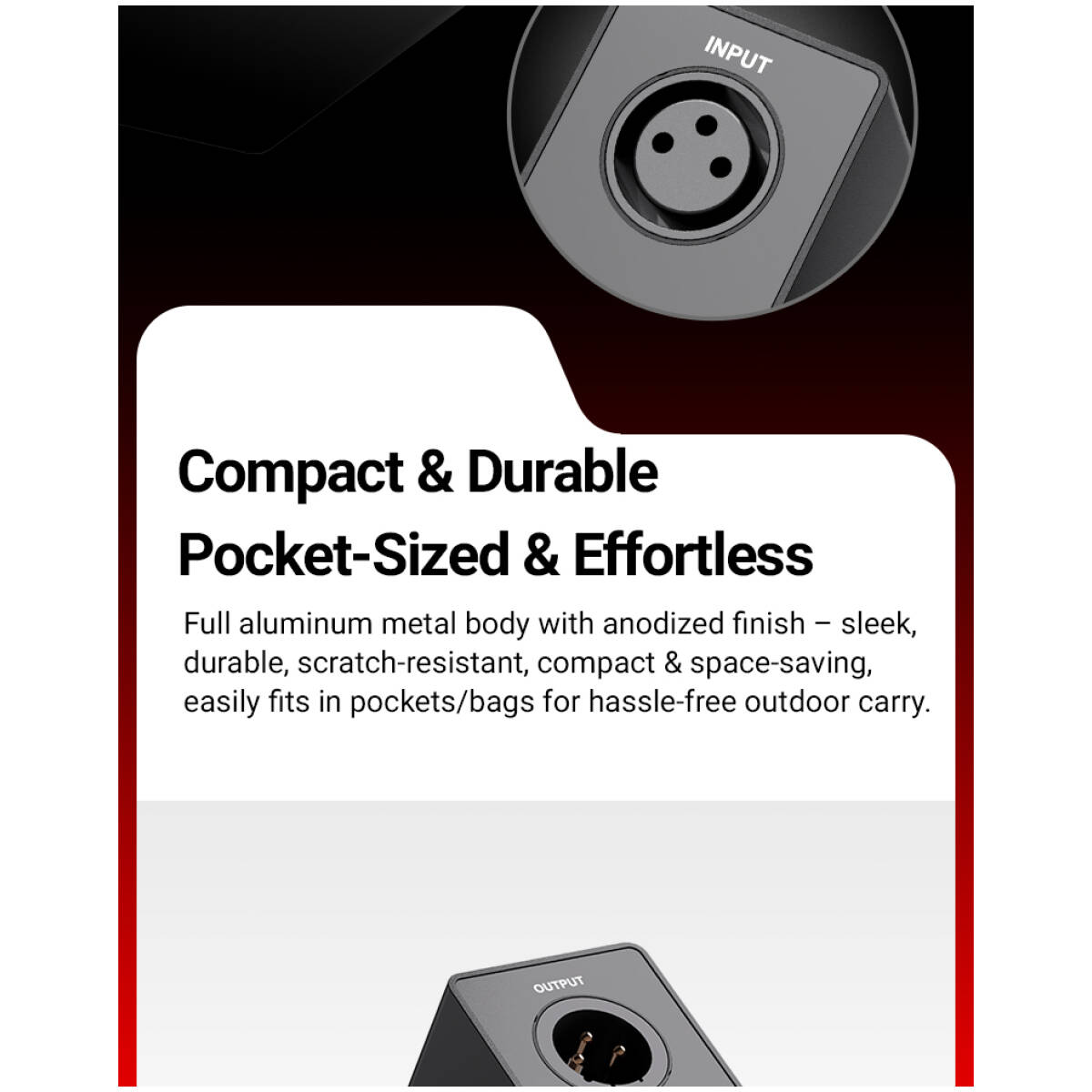

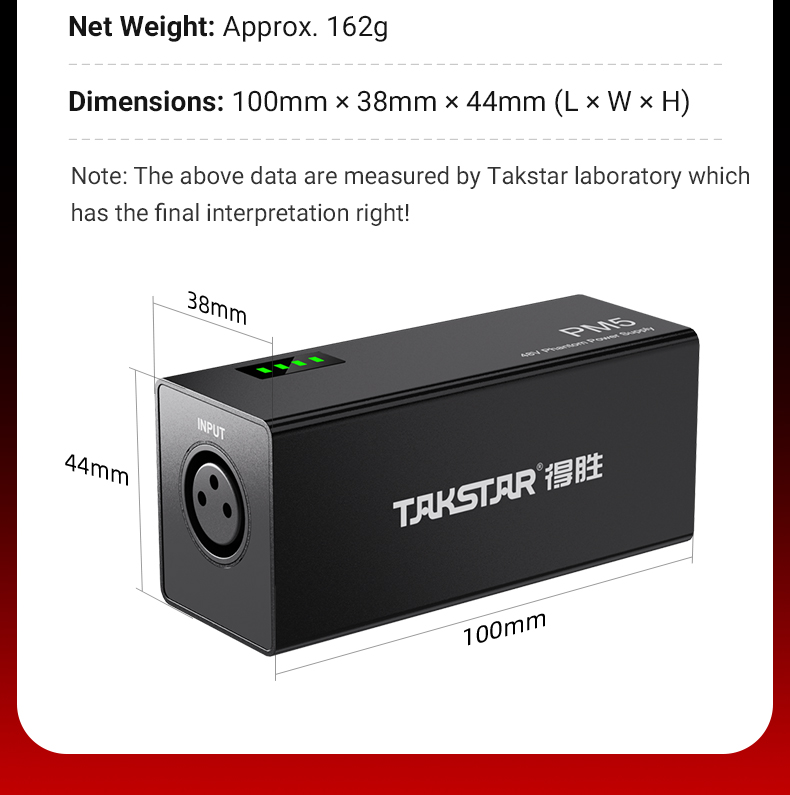

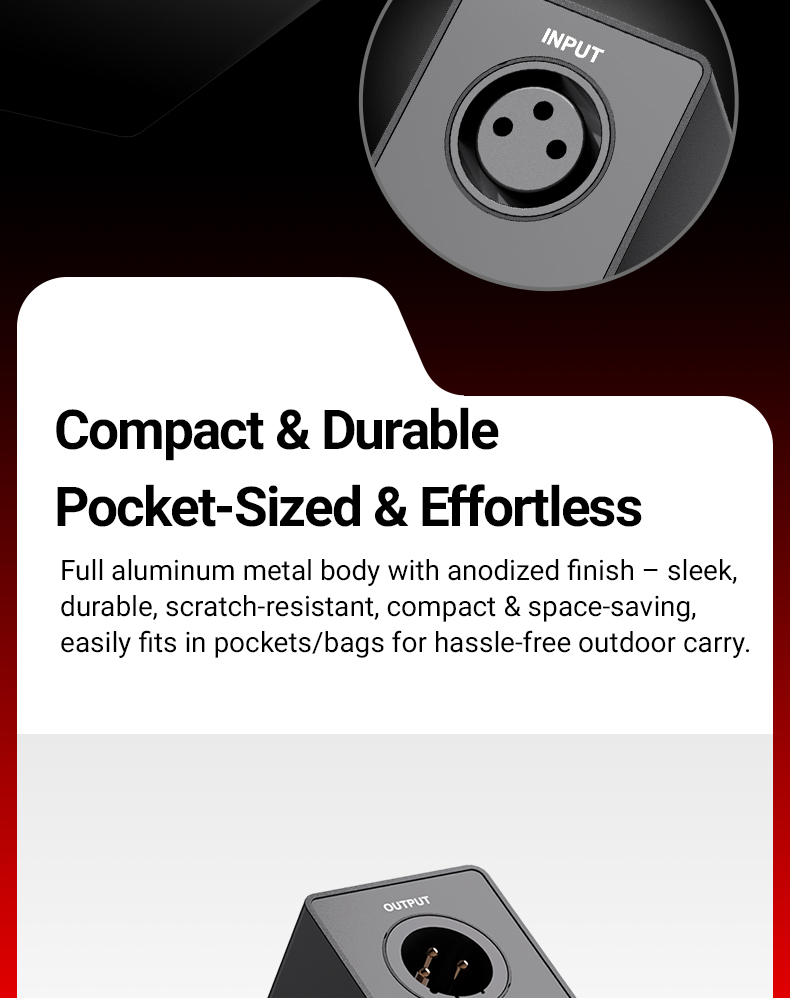

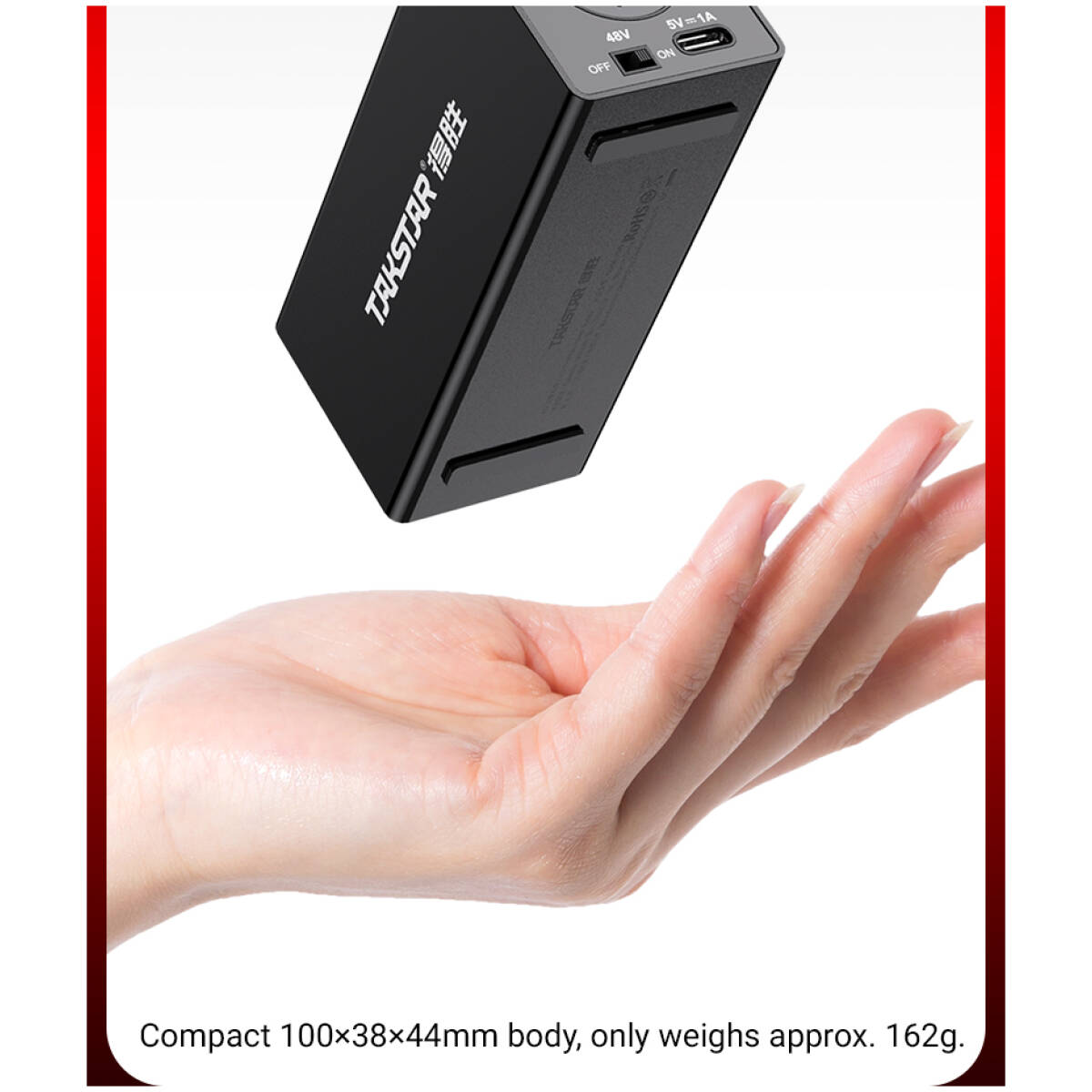

• Precision-crafted compact aluminum alloy chassis with anodized finish for wear resistance and portability.

• Built-in 1500mAh lithium battery delivers approximately 10 hours runtime and supports simultaneous charging and operation.

SPECIFICATIONS:

• Output Voltage: DC 48V±4V/20mA±20%

• Signal-to-Noise Ratio: 84dB (1kHz＠30mVrms)

• Total Harmonic Distortion: THD<0.5% (1kHz)

• Battery Type: Lithium-Ion Battery

• Battery Capacity: 1500mAh

• Charging Specification: 5V=1A

• Charging Time: Approx. 2 hours

• Operating Time: Approx. 10 hours (48V Enabled)
