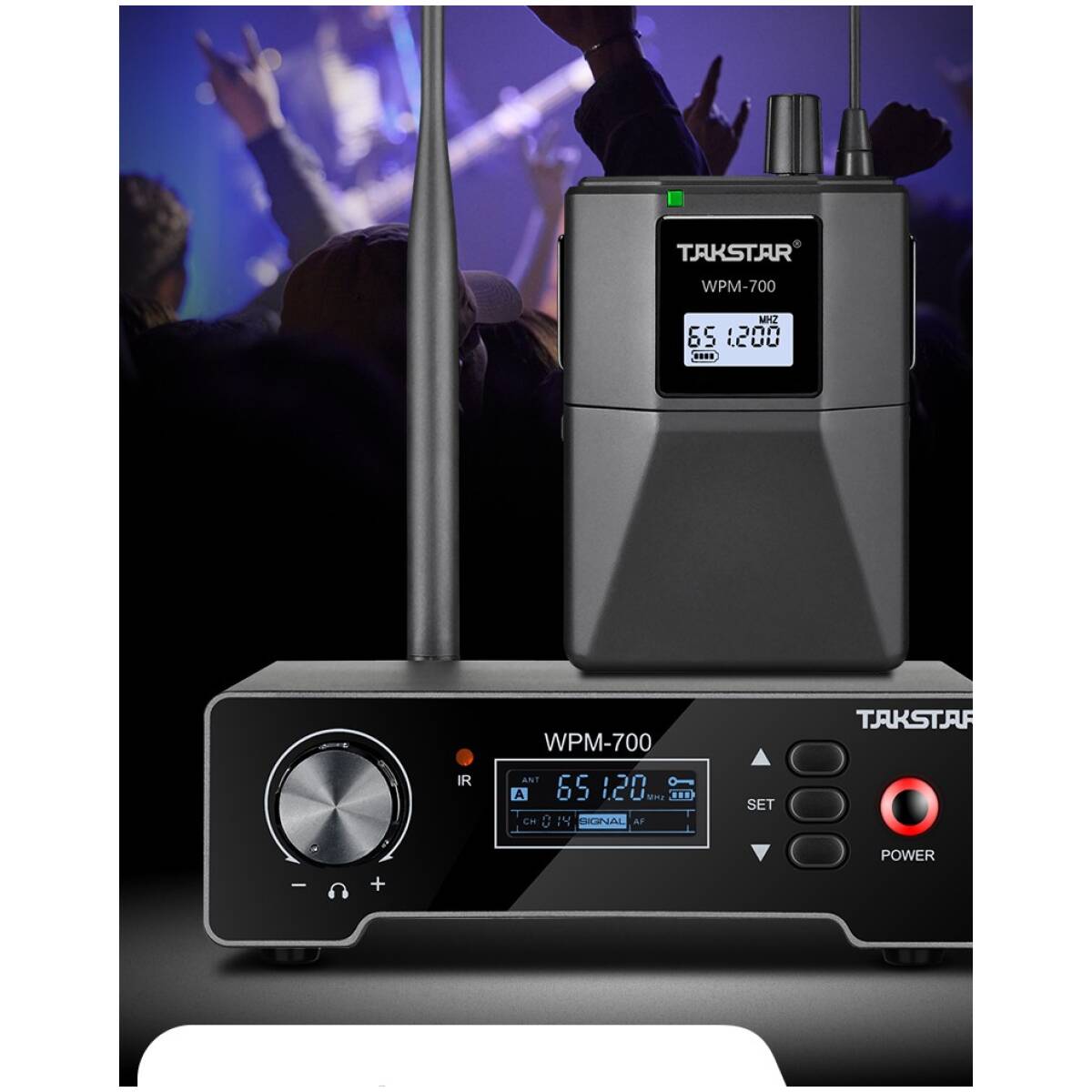

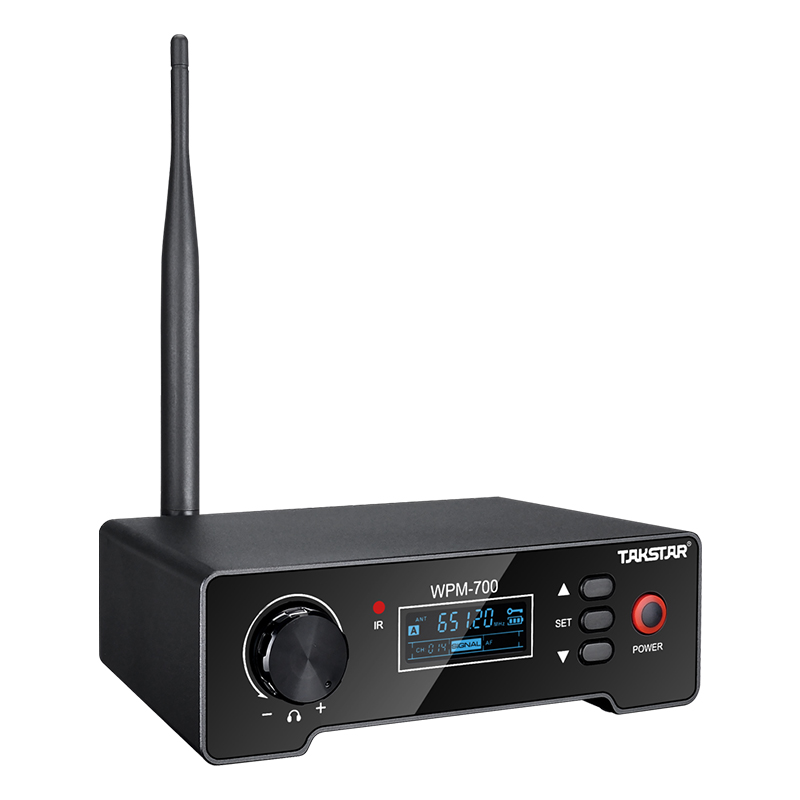

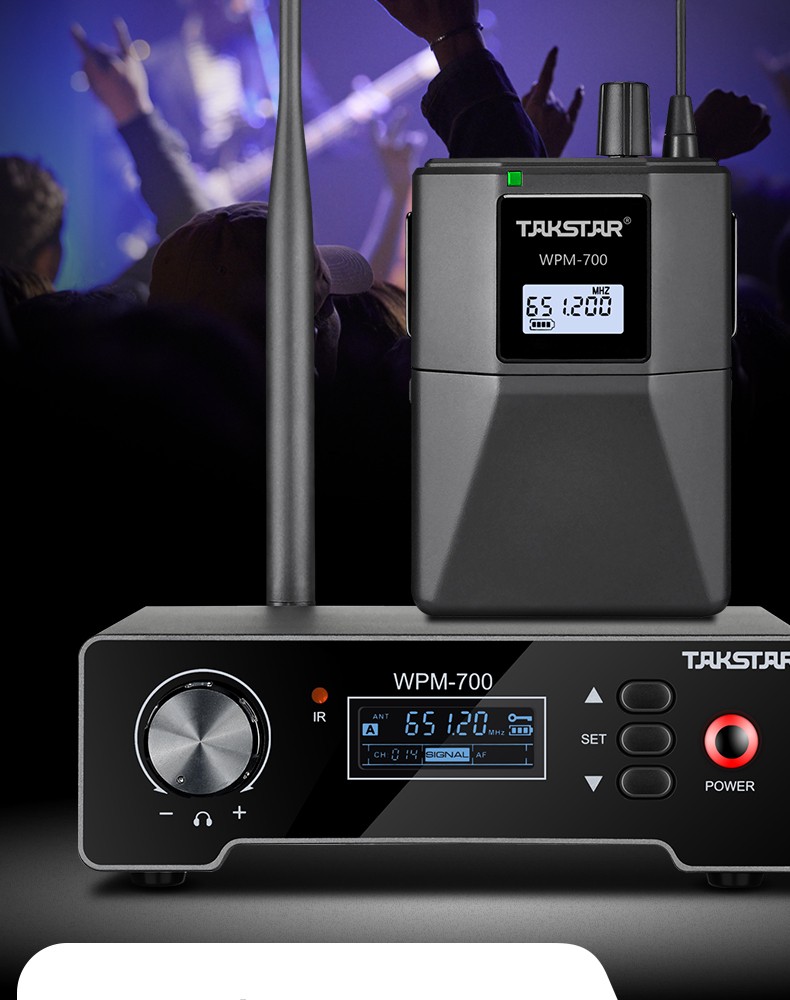

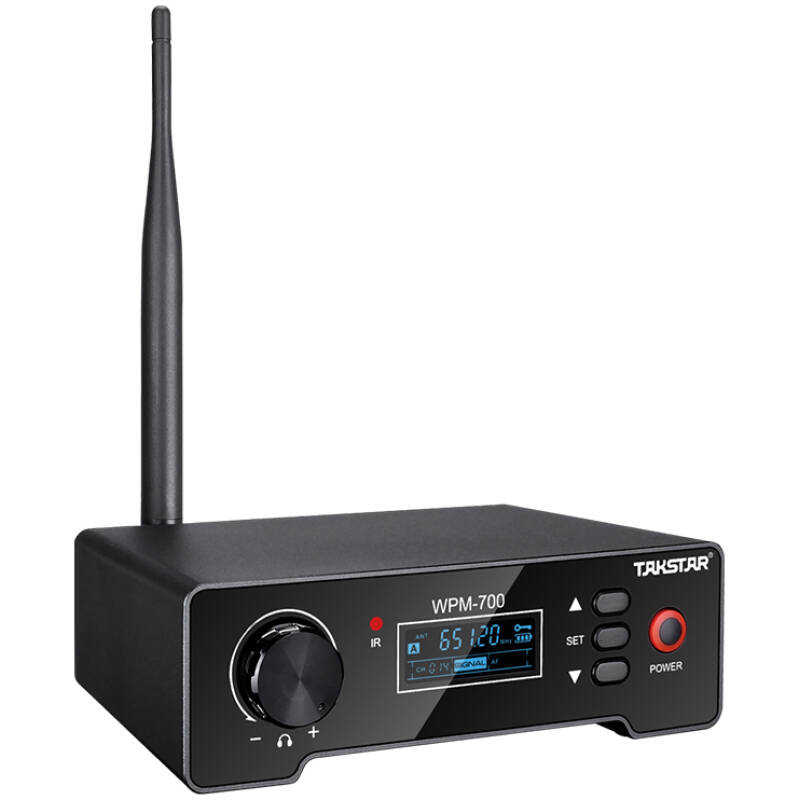

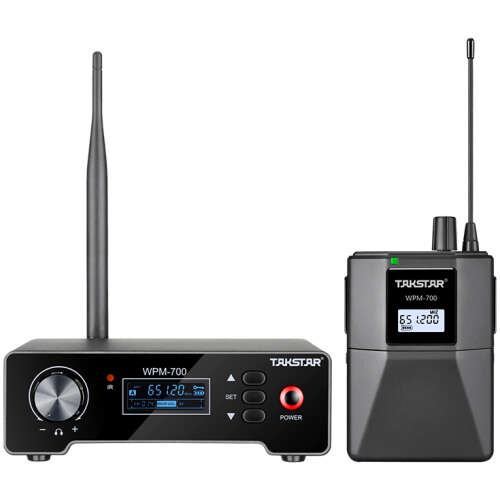

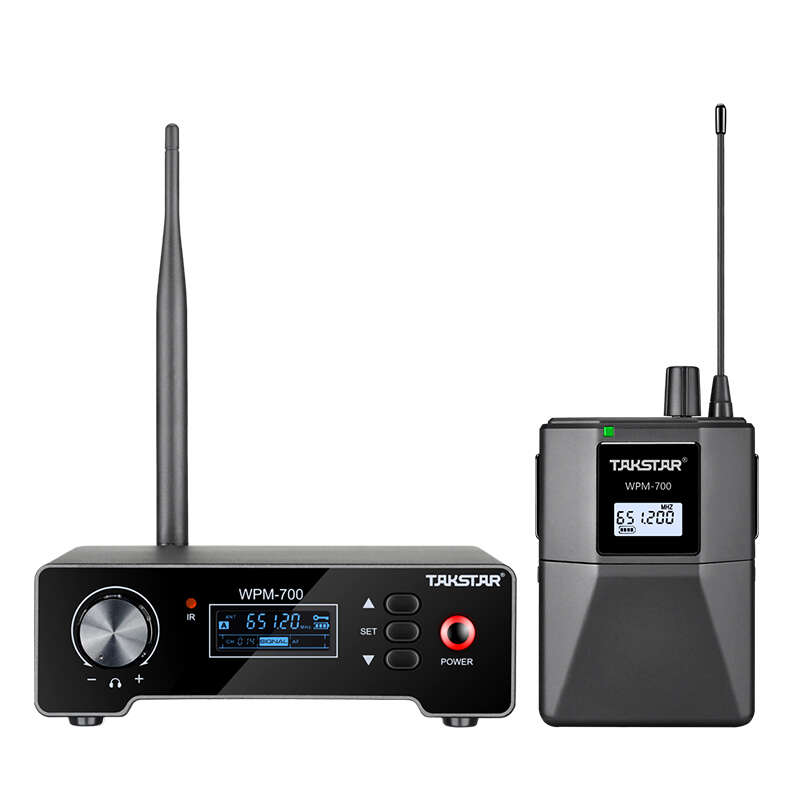

Takstar WPM-700 Wireless In Ear Monitoring System

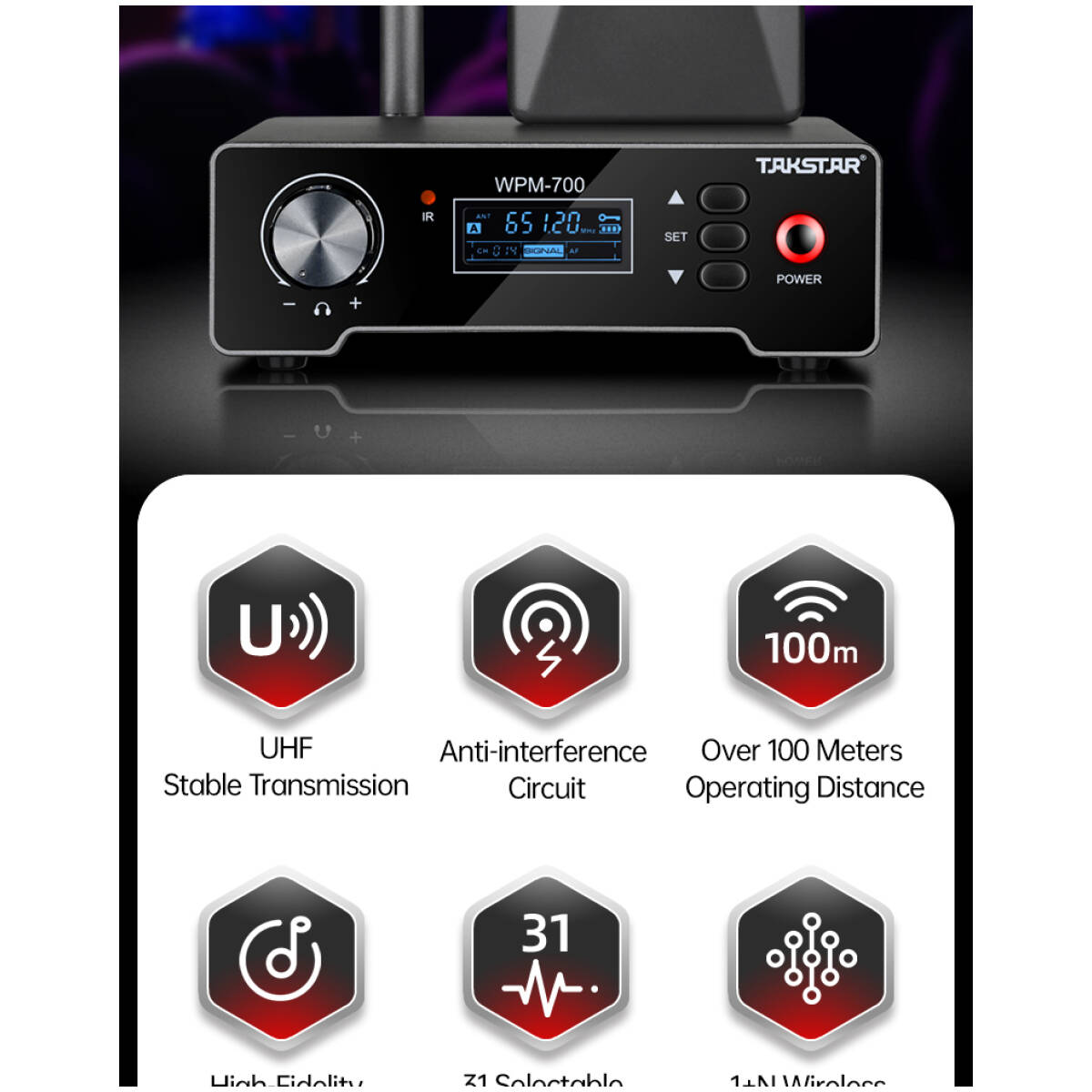

• Designed for livestream, instrument, and stage monitoring, as well as simultaneous interpretation.

• UHF modulation with GFSK ensures strong interference resistance and low power consumption.

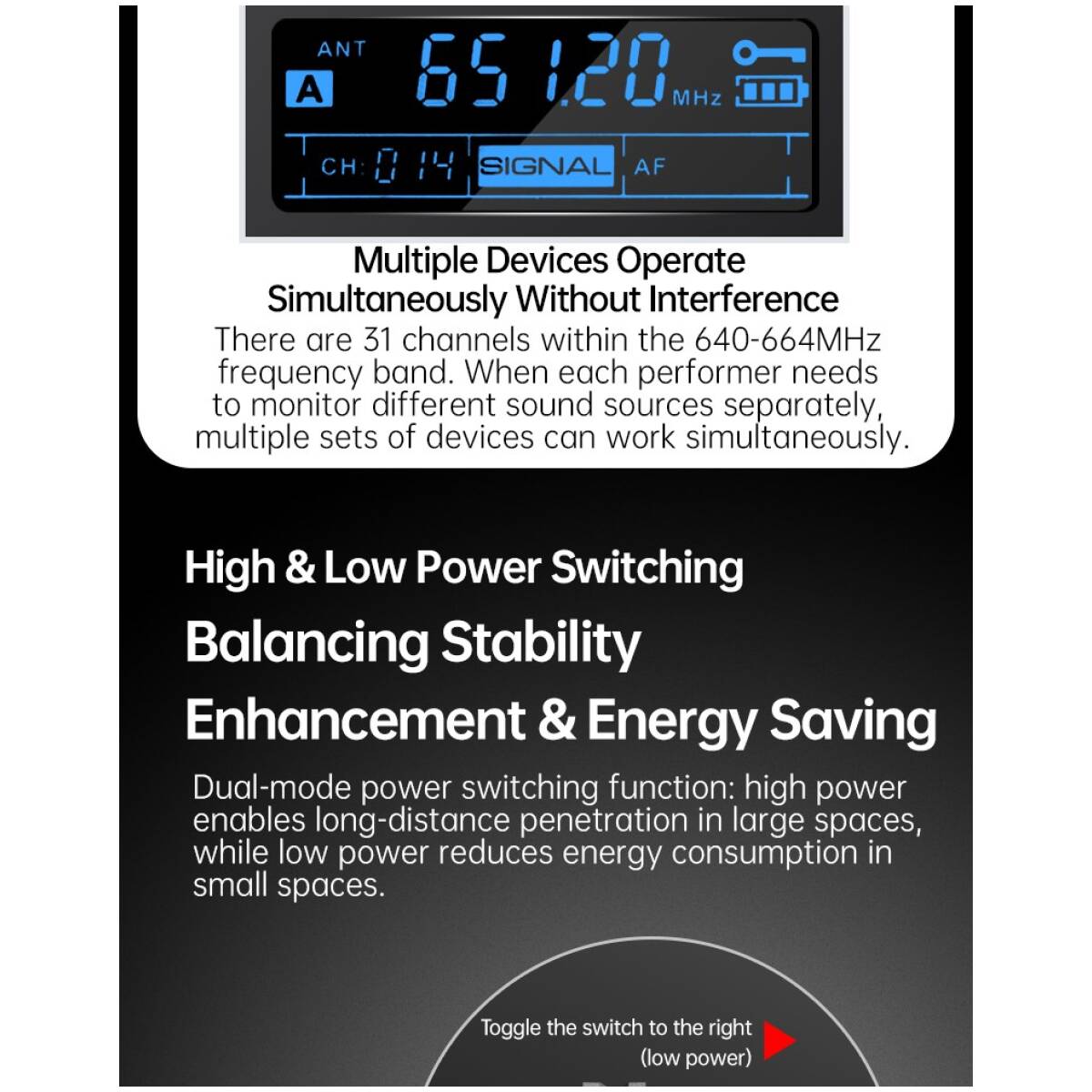

• Supports 31 channels for simultaneous operation of multiple systems.

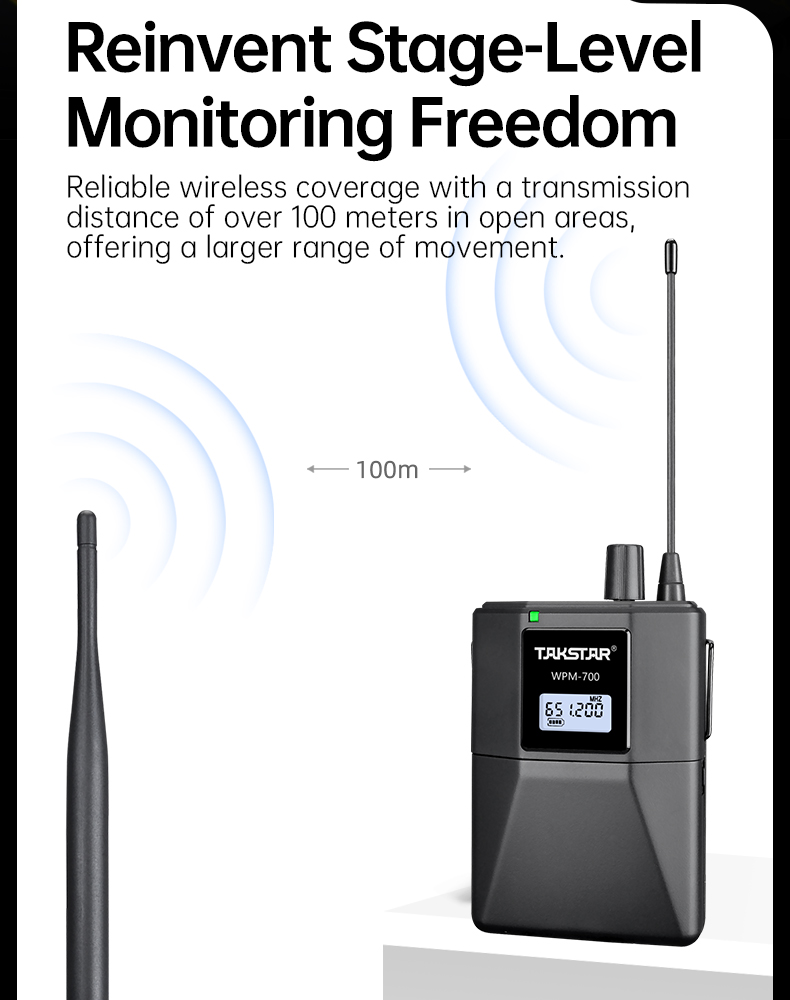

• Transmission range exceeds 100 meters in unobstructed environments.

• Distortion rate under 0.1% guarantees high-quality audio reproduction.

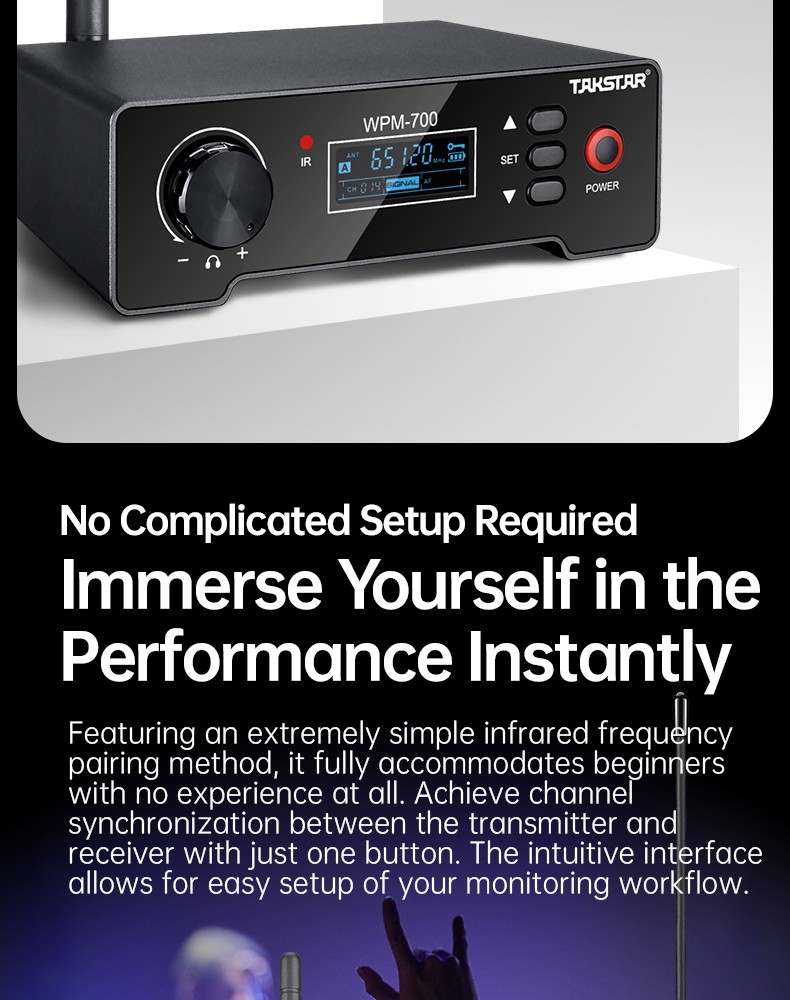

• One-button infrared sync for quick transmitter-receiver channel matching.

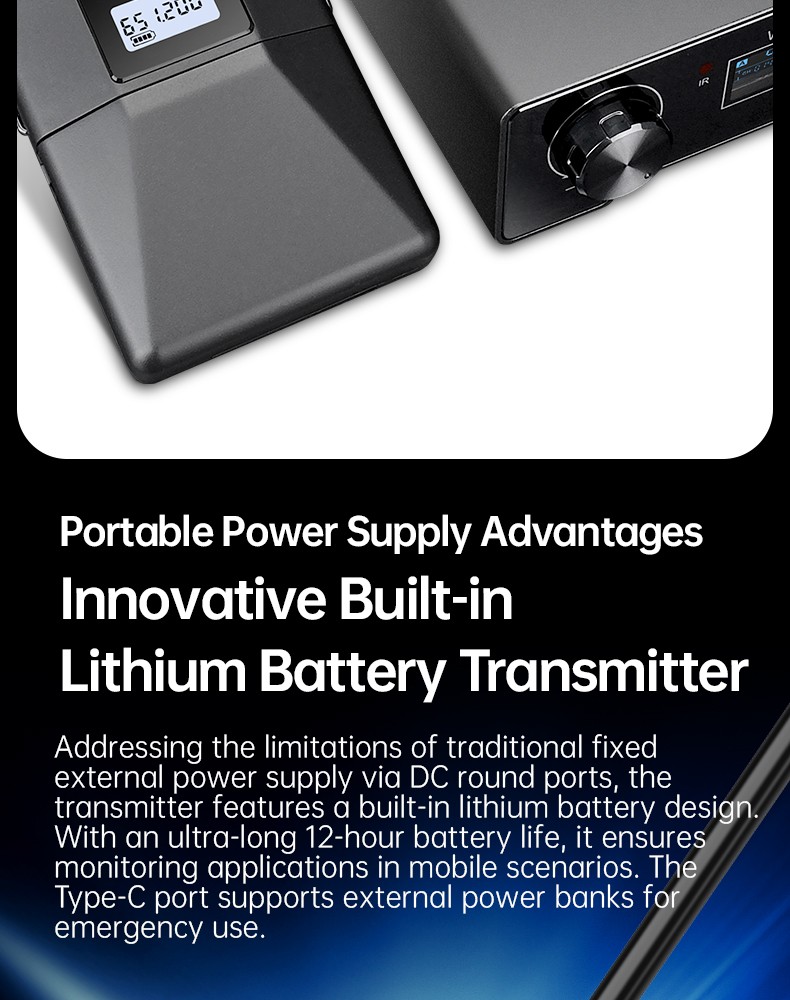

• Built-in lithium-ion battery in transmitter for over 12 hours of runtime.

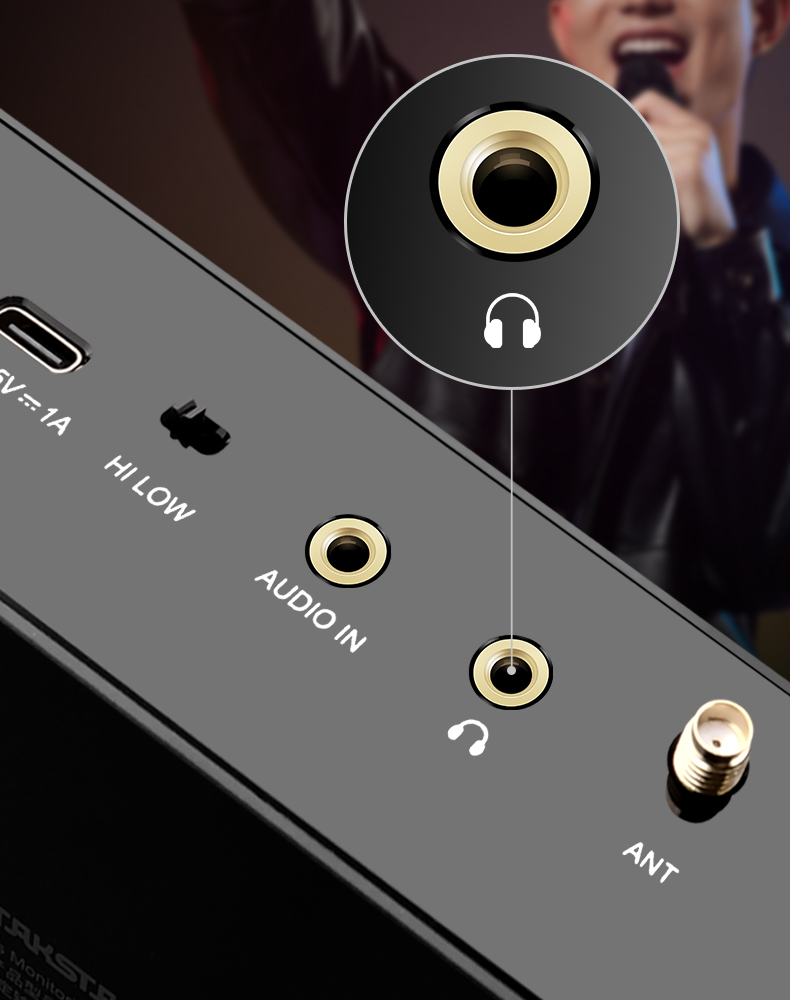

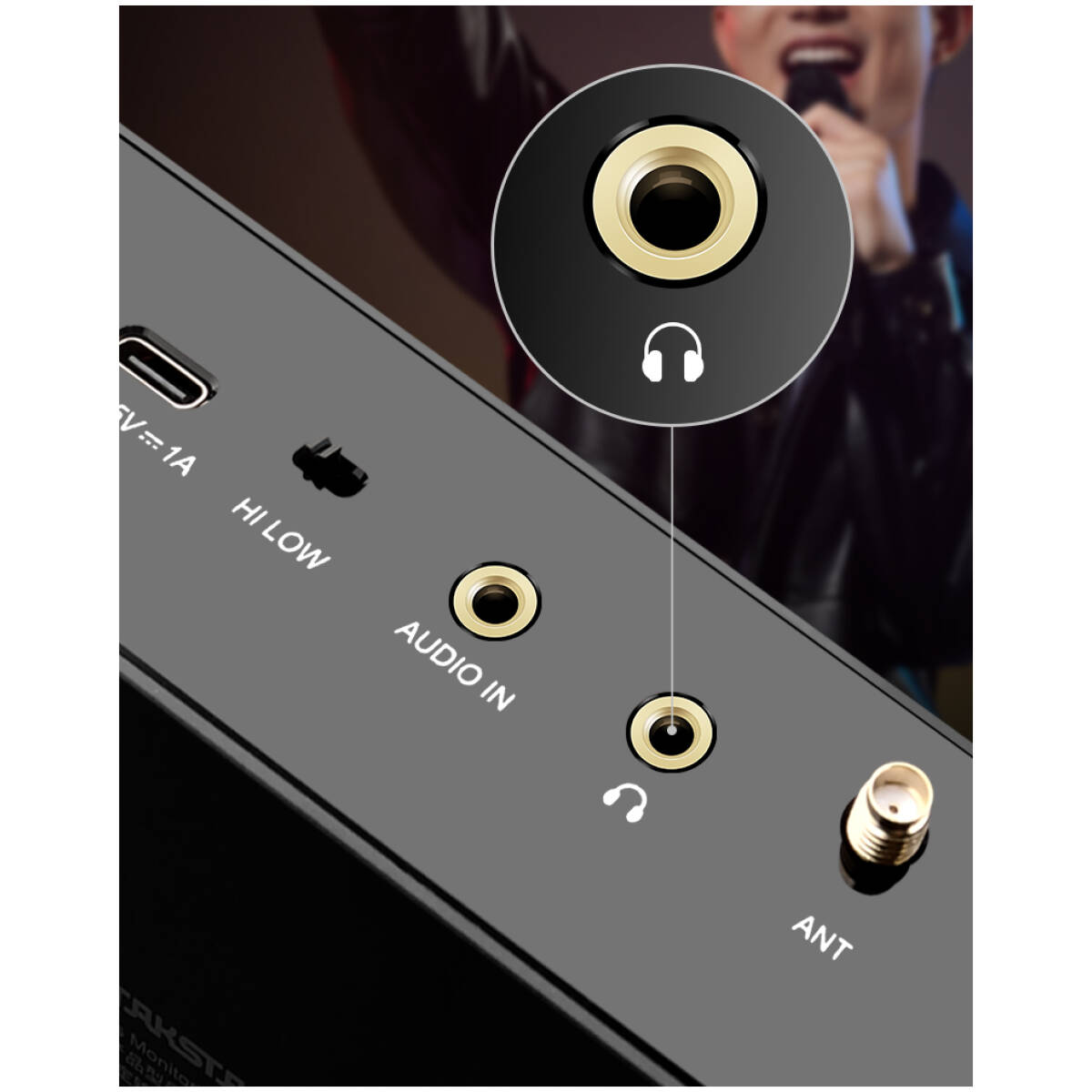

• Local monitoring interface on transmitter for real-time audio checks.

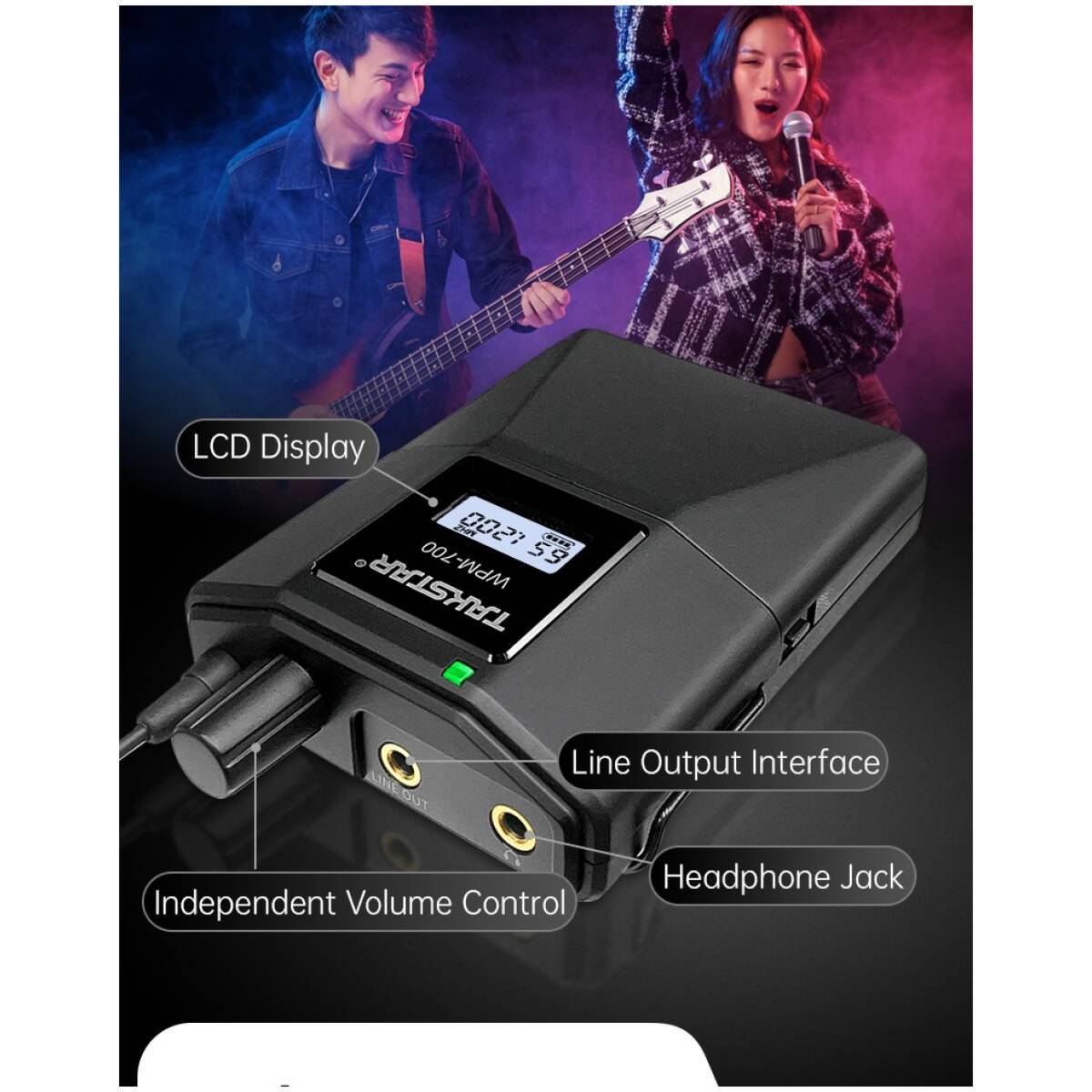

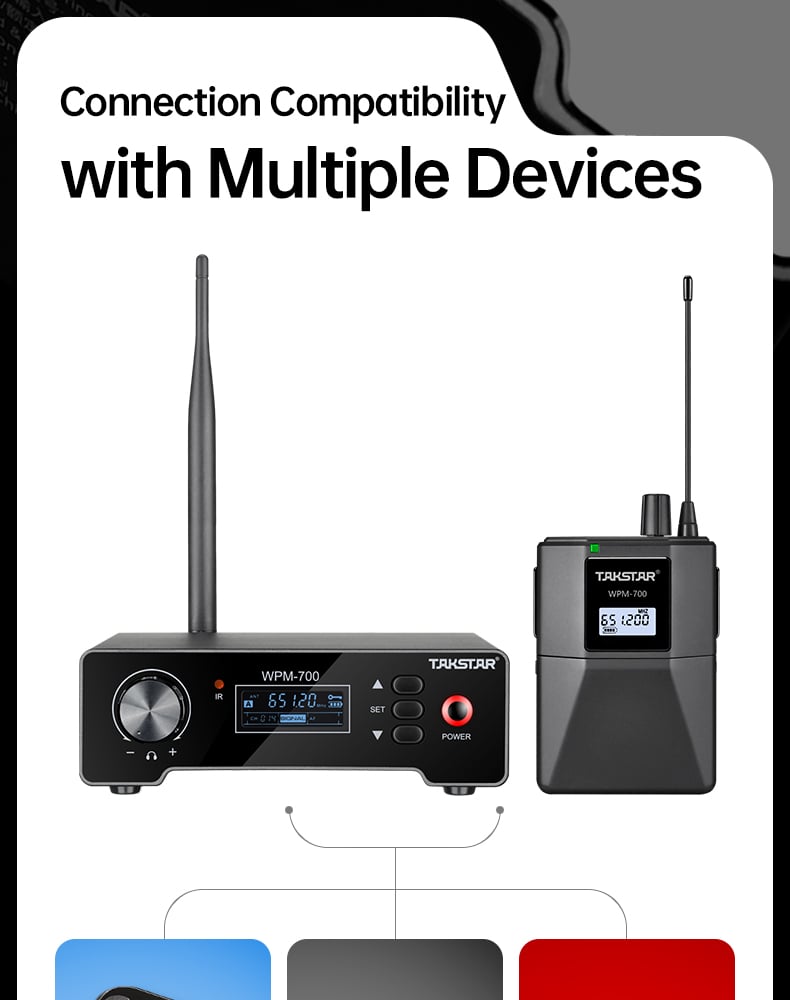

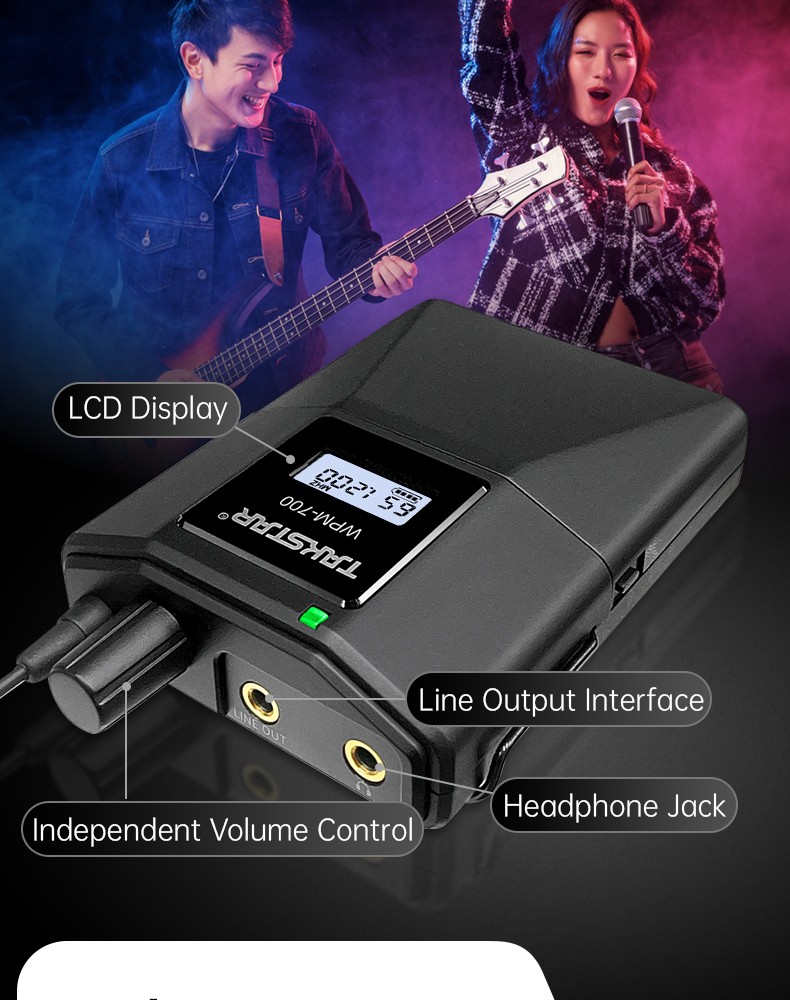

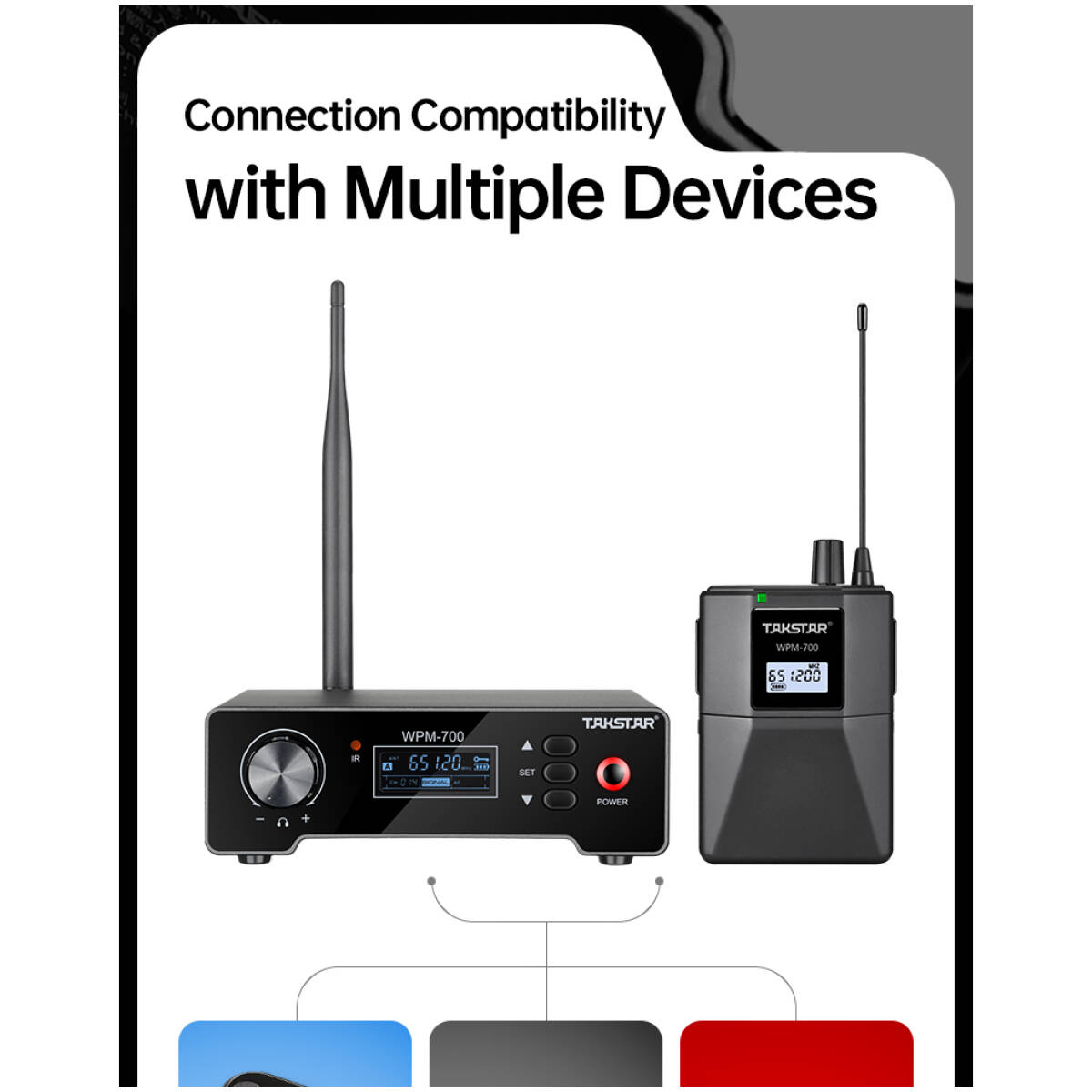

• Line output on receiver for easy connection to mixers and external audio devices.

Overall System
• Carrier Frequency Range: 640-664MHz
• Number of Wireless Channels: 31
• Modulation Type: GFSK
• Frequency Response: 20-20kHz
• Maximum Power: 80mW
• Rated Power: 50mW
• Total Harmonic Distortion (THD): <0.1%
• Separation: 75dB
• Signal-to-Noise Ratio (SNR): 65dB
• Dynamic Range: 95dB
• Low/High Power Battery Life: 15/12 hours
• Low/High Power Transmission Range: 100/150 meters (open area)
• Input/Output Interface: 3.5mm

Transmitter

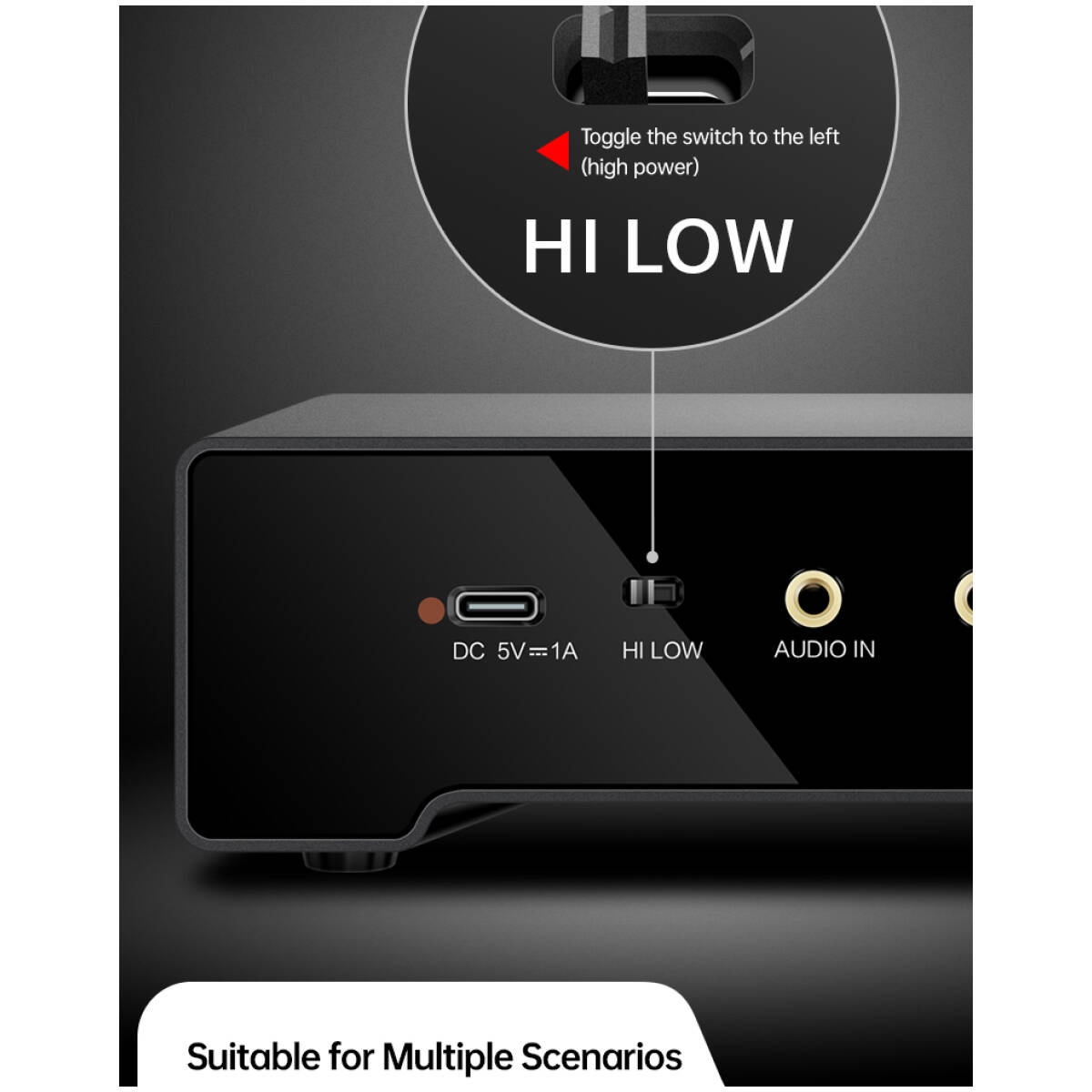

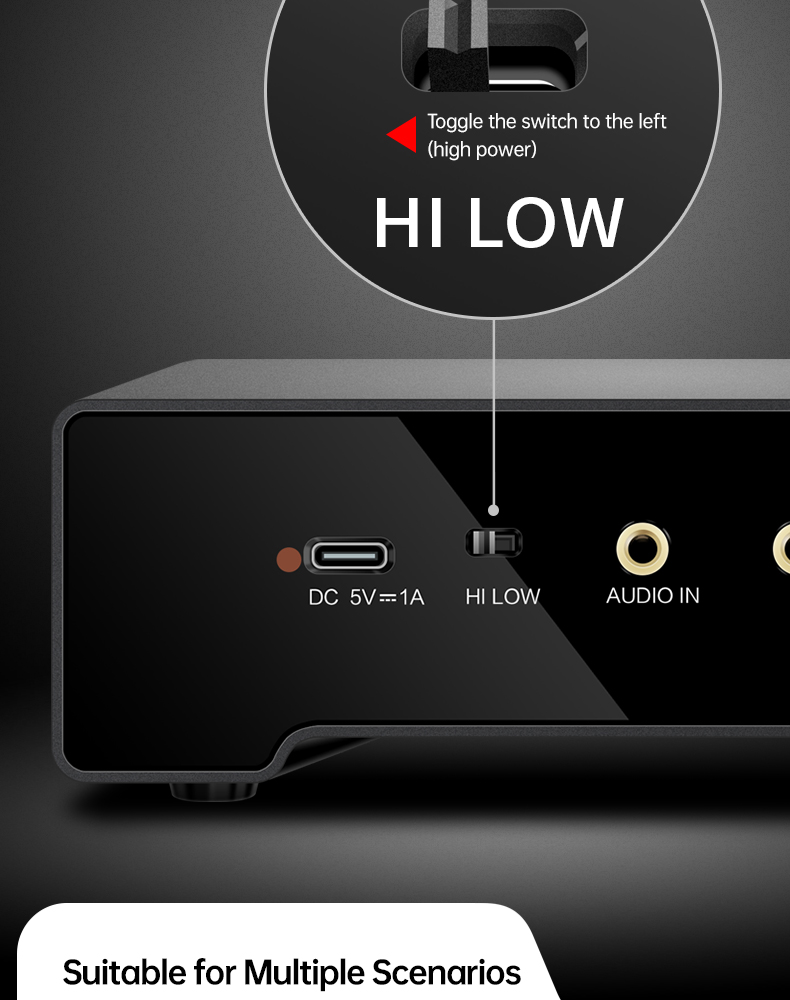

• Low/High Transmission Power: 11/16dBm
• Low/High Operating Current: 130/180 ± 20mA
• Battery Spec: 3.7V/2000mAh

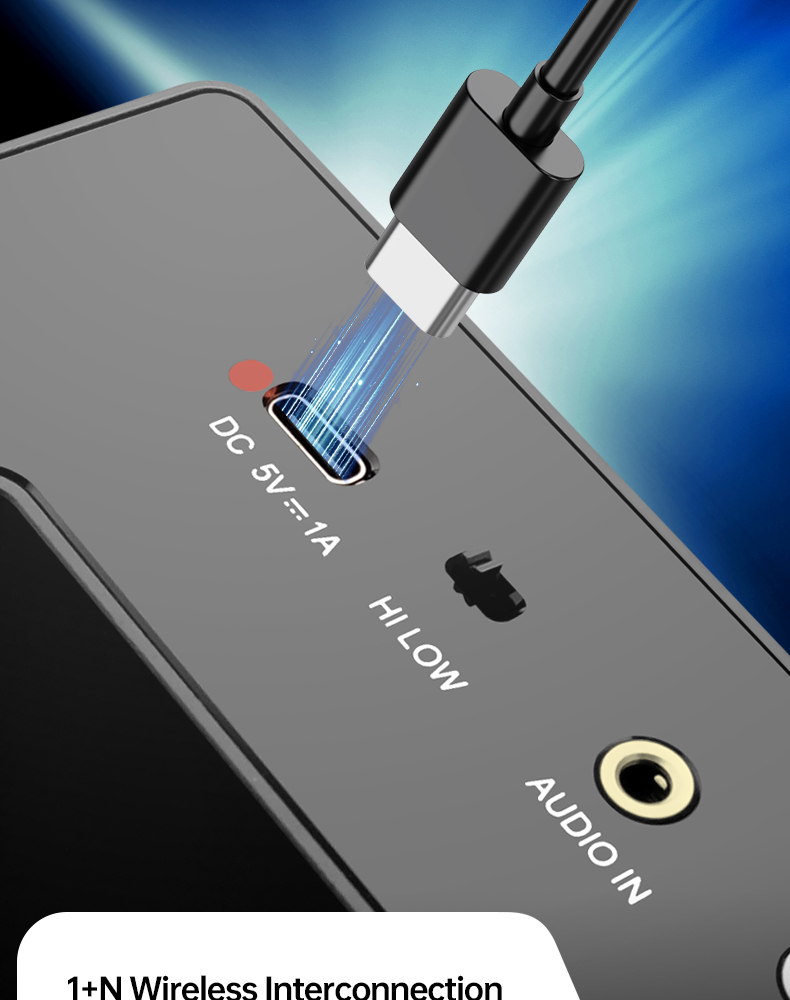

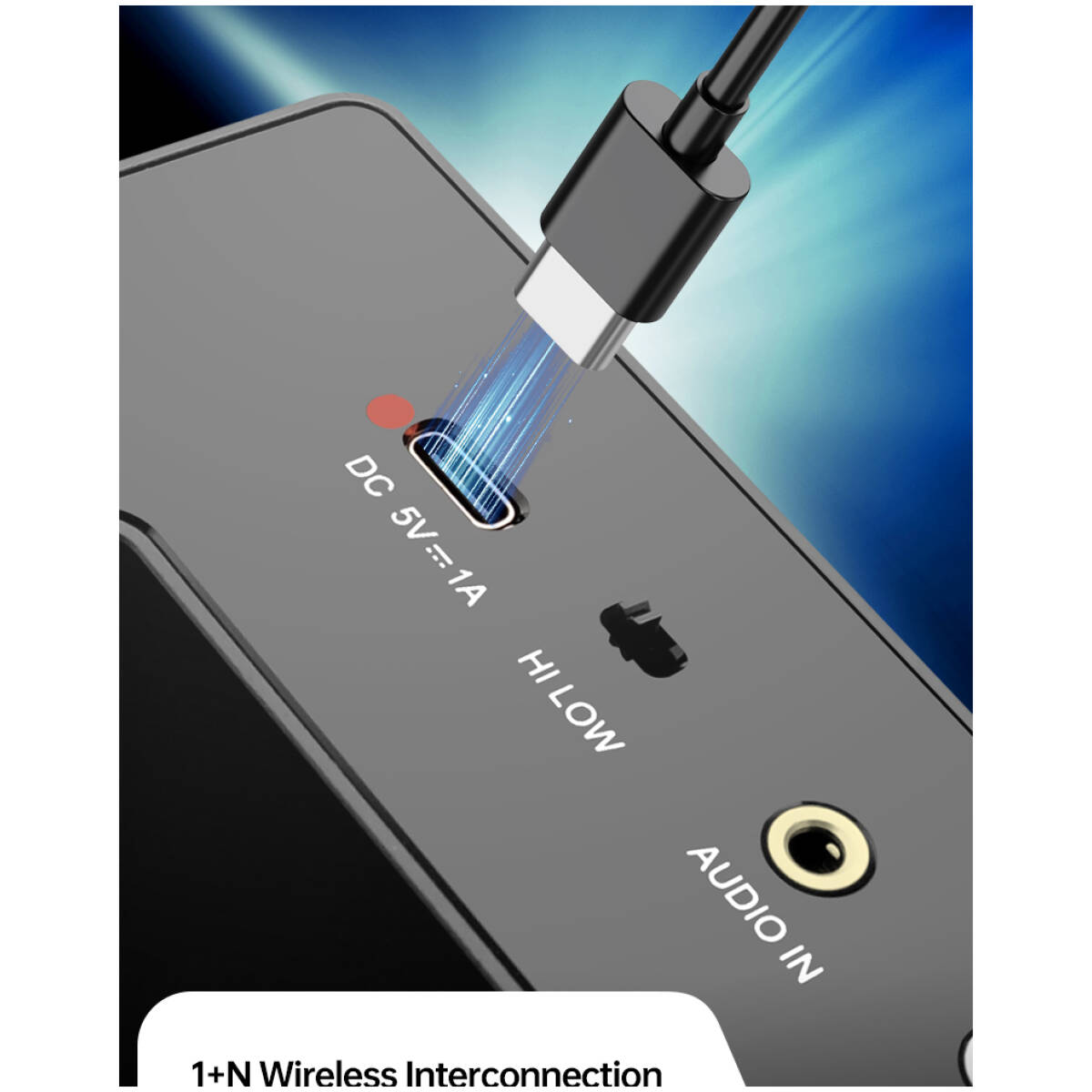

• Charging Method: USB 5V/1A

Receiver
• Sensitivity: <-95 dB
• Battery Spec: Two DC 1.5V AA batteries
• Low/High Operating Current: 250 mA ± 20mA

Inside the Box

• Receiver 1 PC

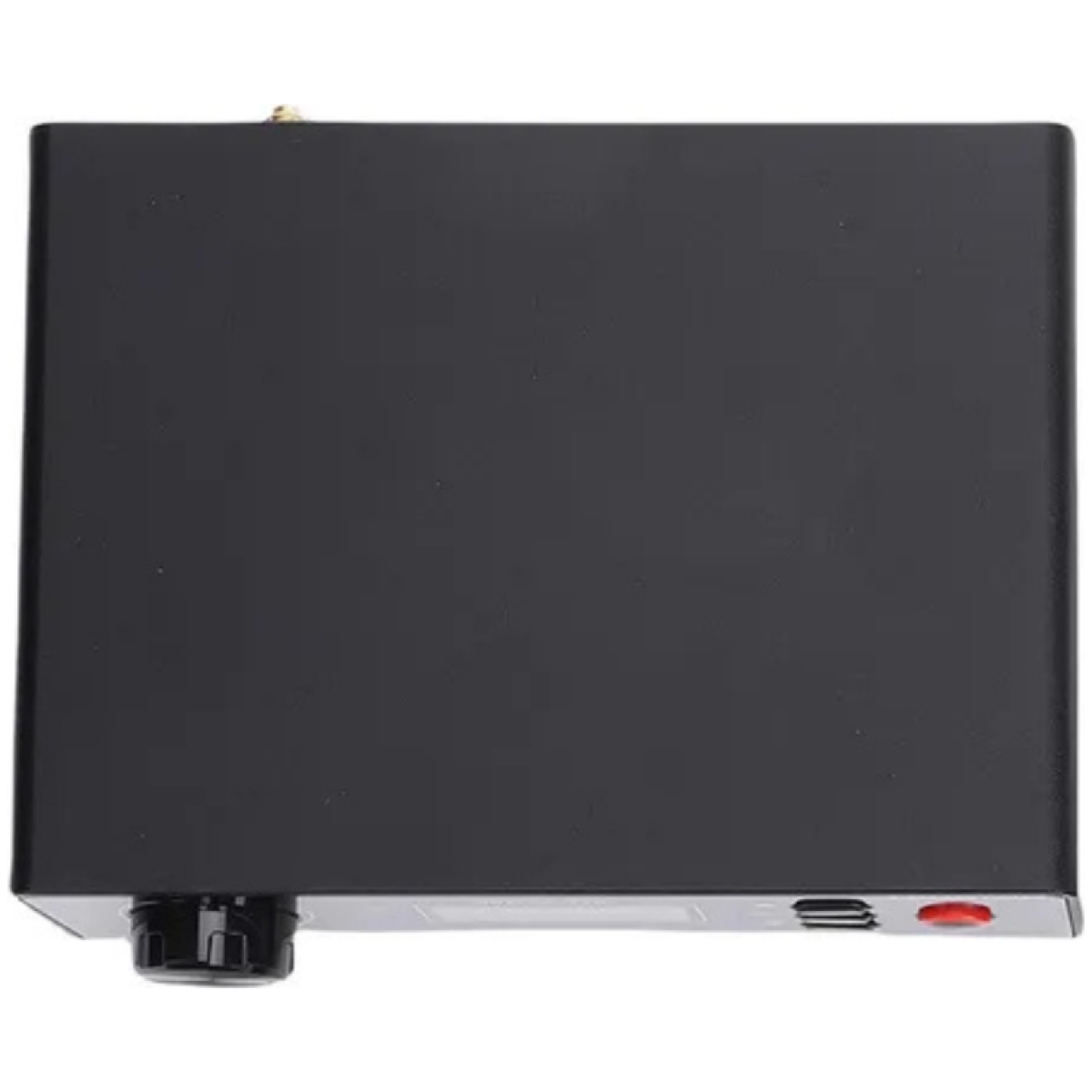

• Transmitter 1 PC
• Antenna 1 PC
• 3.5mm Audio Cable 1 PC
• 6.35mm Adapter 1 PC
• AA Battery 2 PC
• Charging Cable 1 PC
• User Manual 1 PC
