Product Features
- Full-range surface-mount loudspeaker for indoor and outdoor installation applications
- 90 Watts continuous, 360 Watts peak power

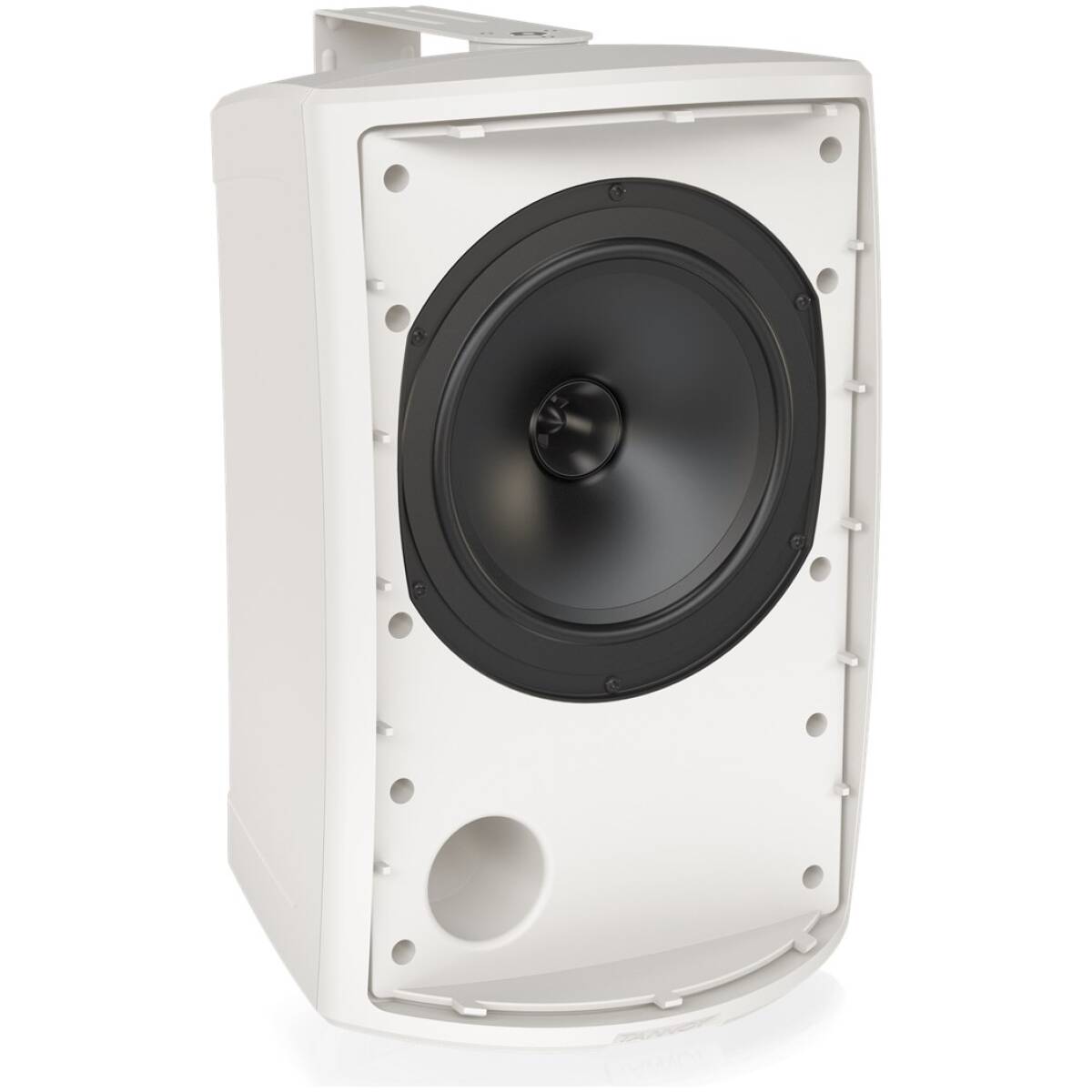

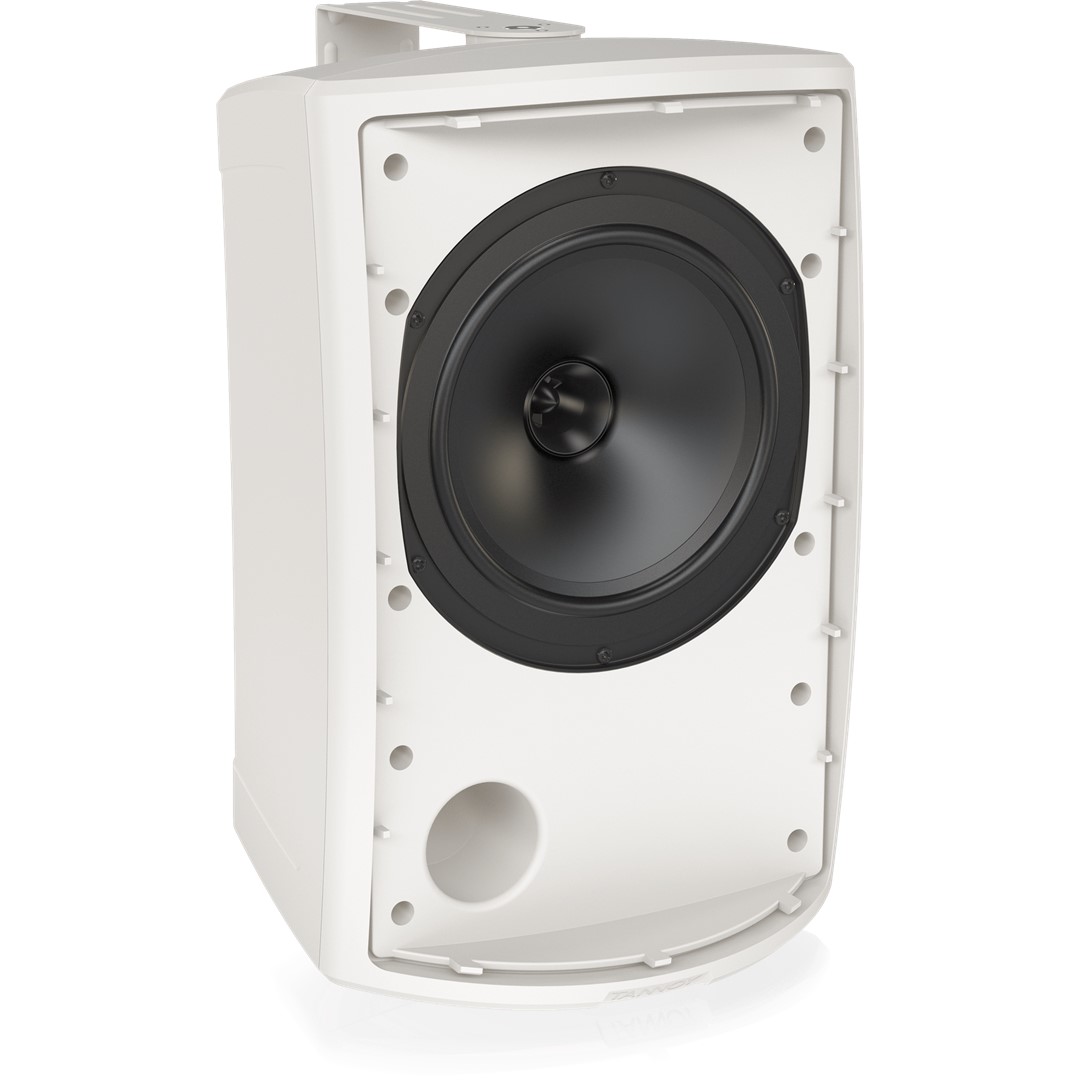

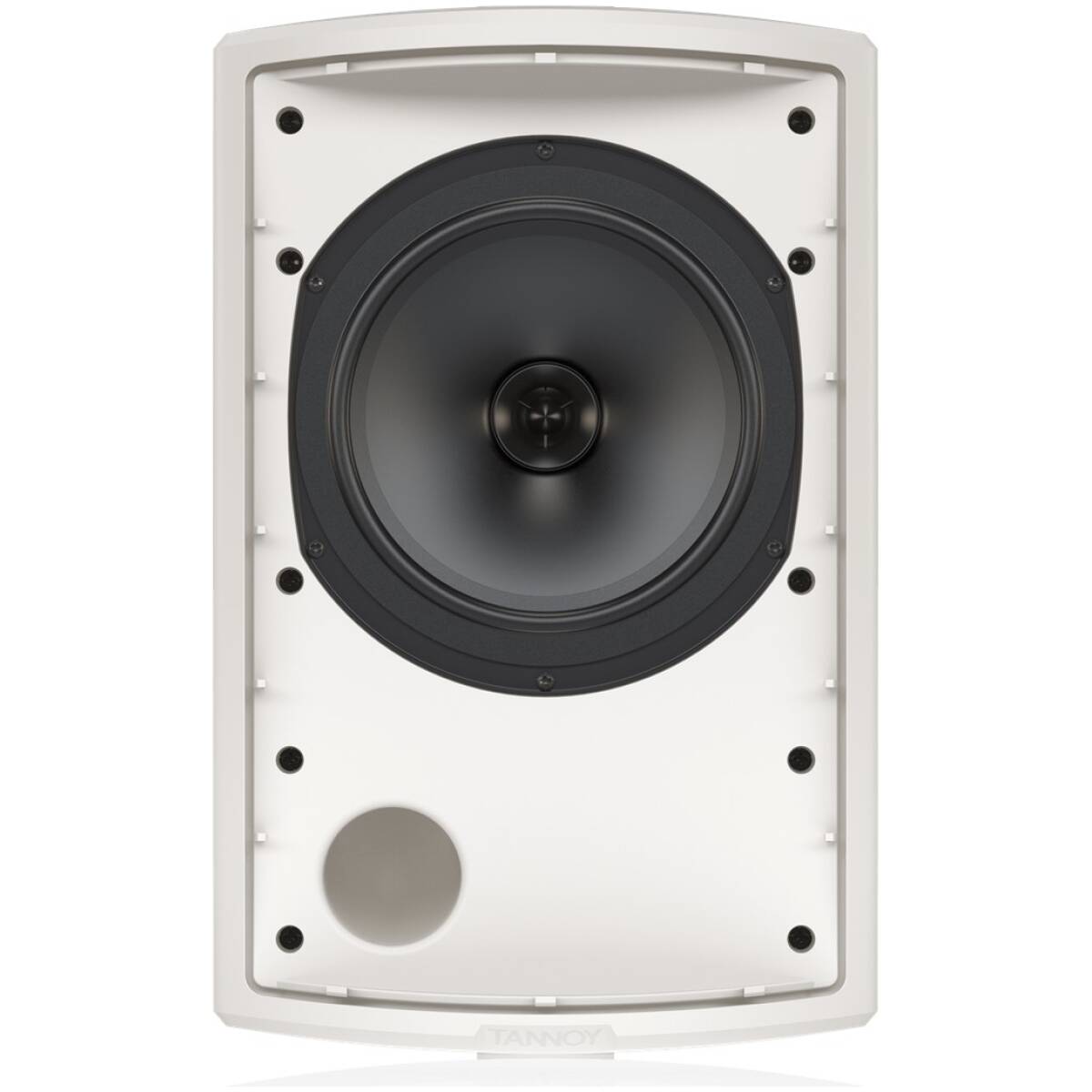

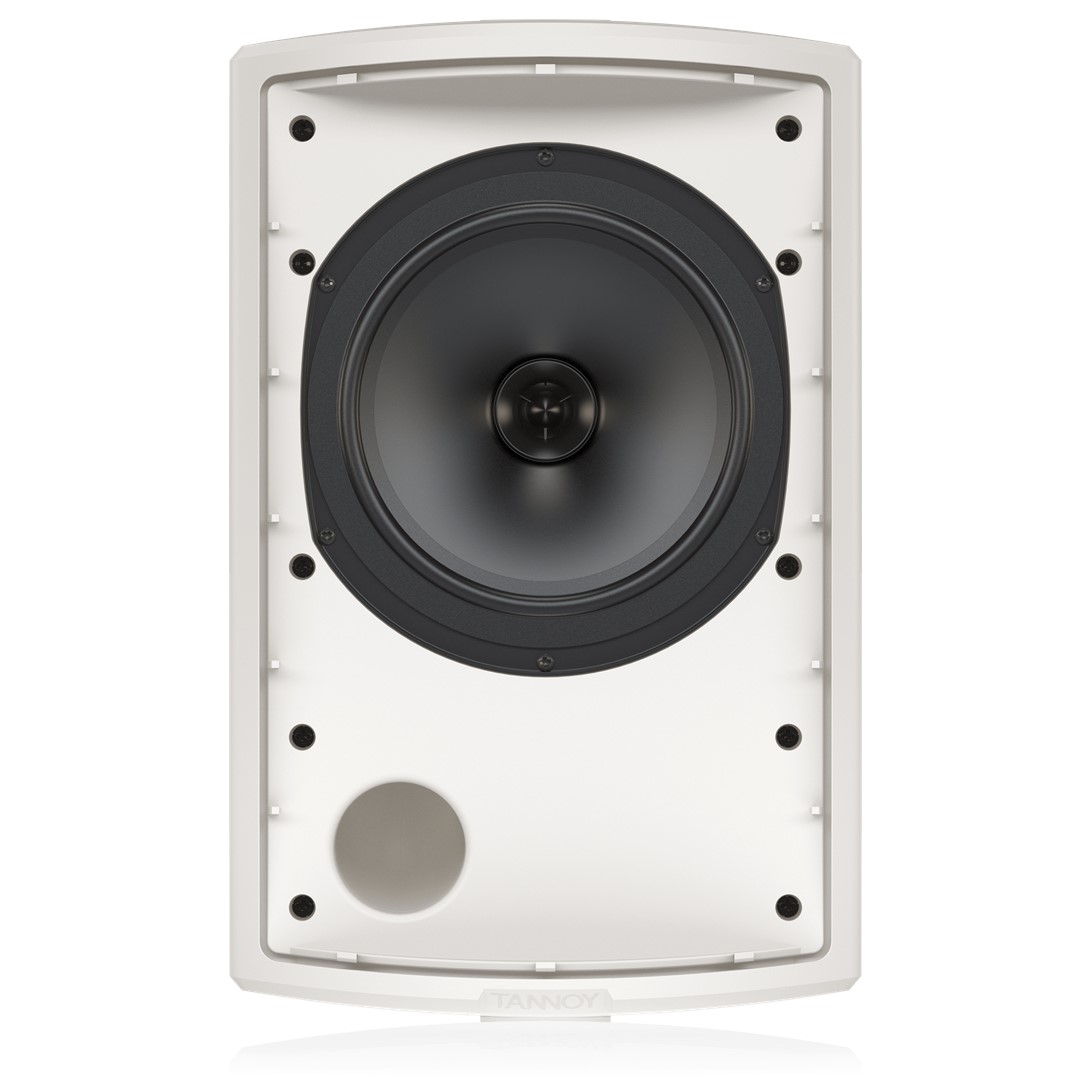

- 8″ next generation Dual Concentric driver featuring Omnimagnet technology
- Torus Ogive waveguide for improved high-frequency response and directivity
- Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input
- Low insertion loss 60 W line transformer with easily accessible tapping switch
- Optimised for LAB GRUPPEN low impedance LUCIA amplifiers with up to 8 AMS series loudspeakers per channel
- All components weather resistant to IP65 for outdoor use
- High-temperature resistant ABS enclosure rated at 120°C
- Semi-matte white paint finish fits unobtrusively in any environment

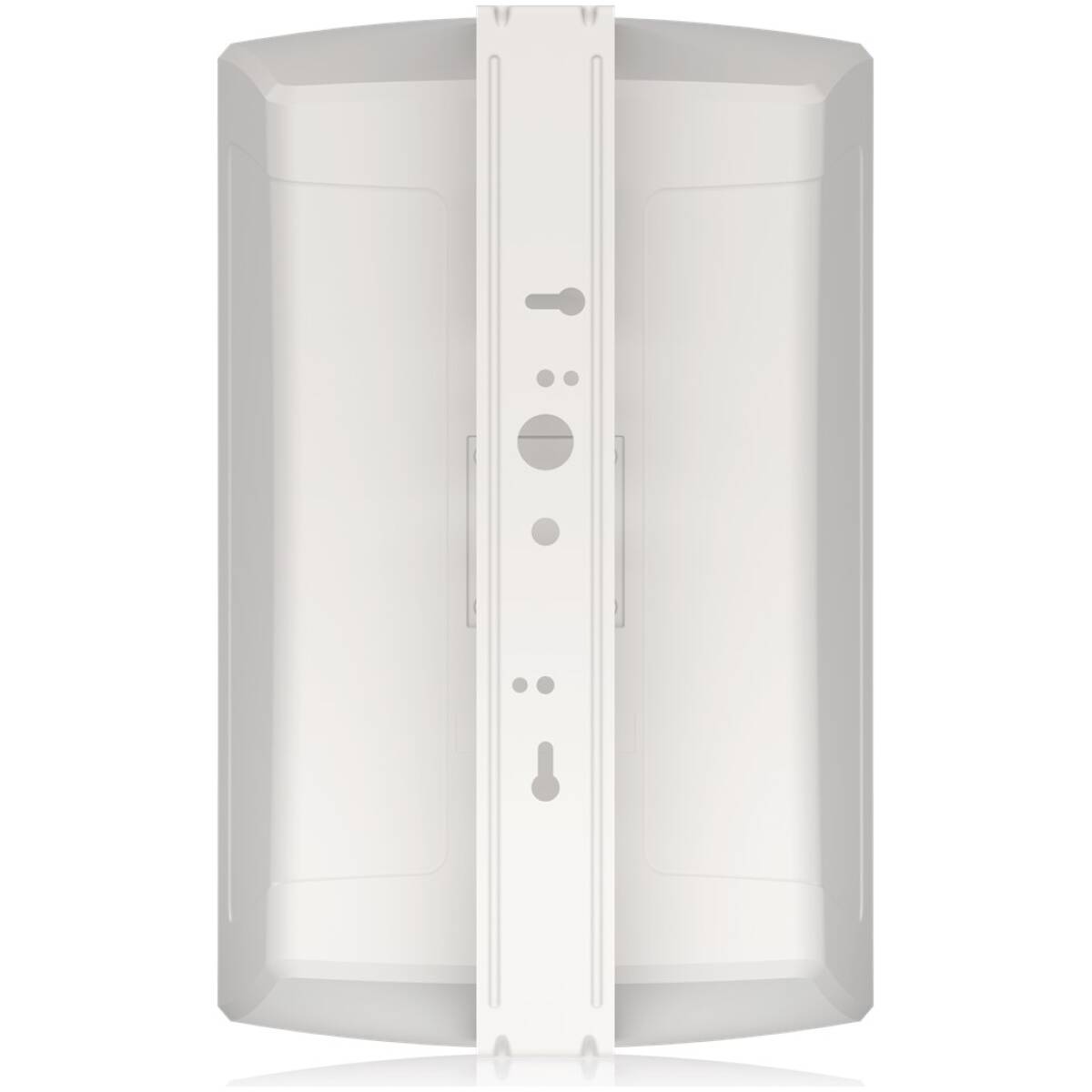

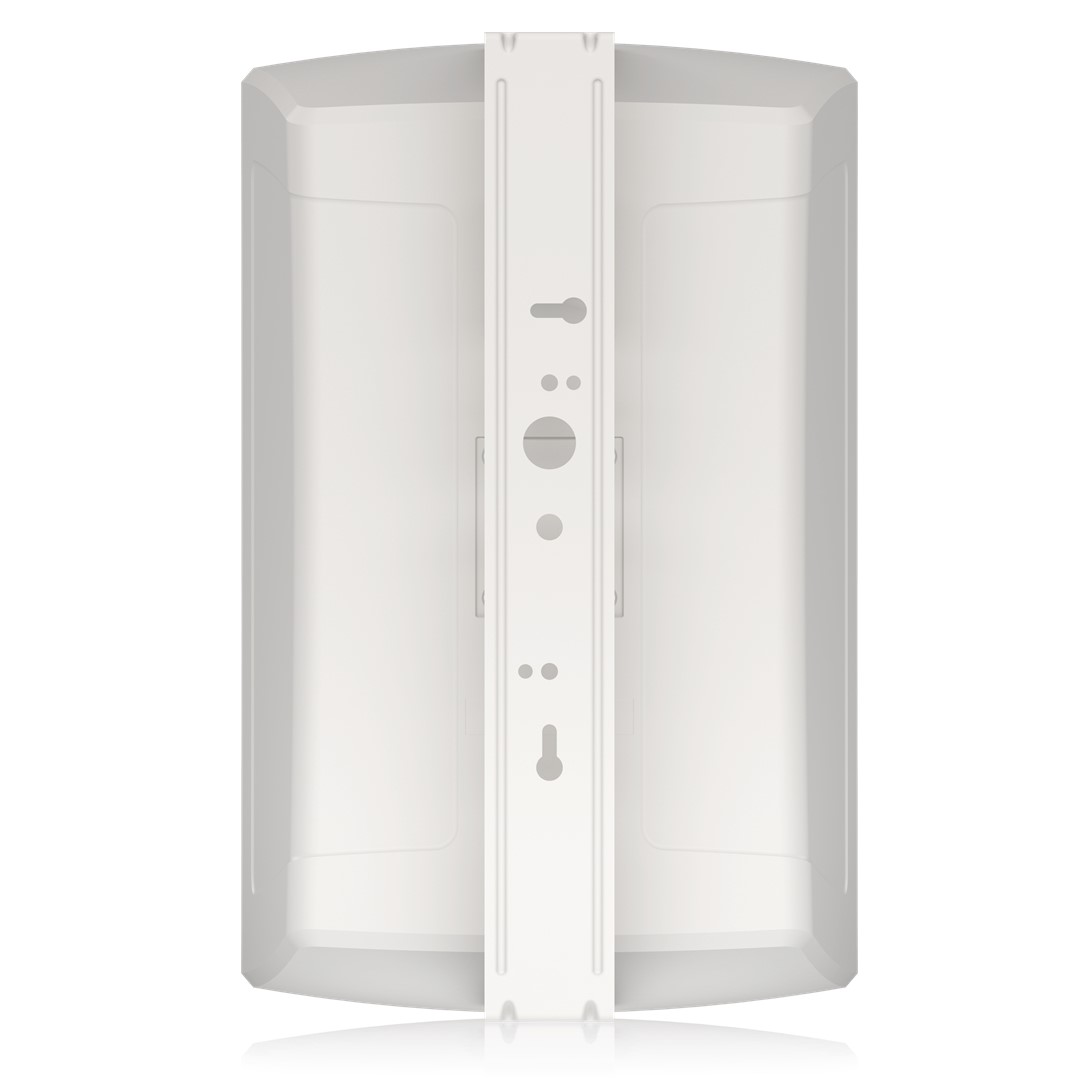

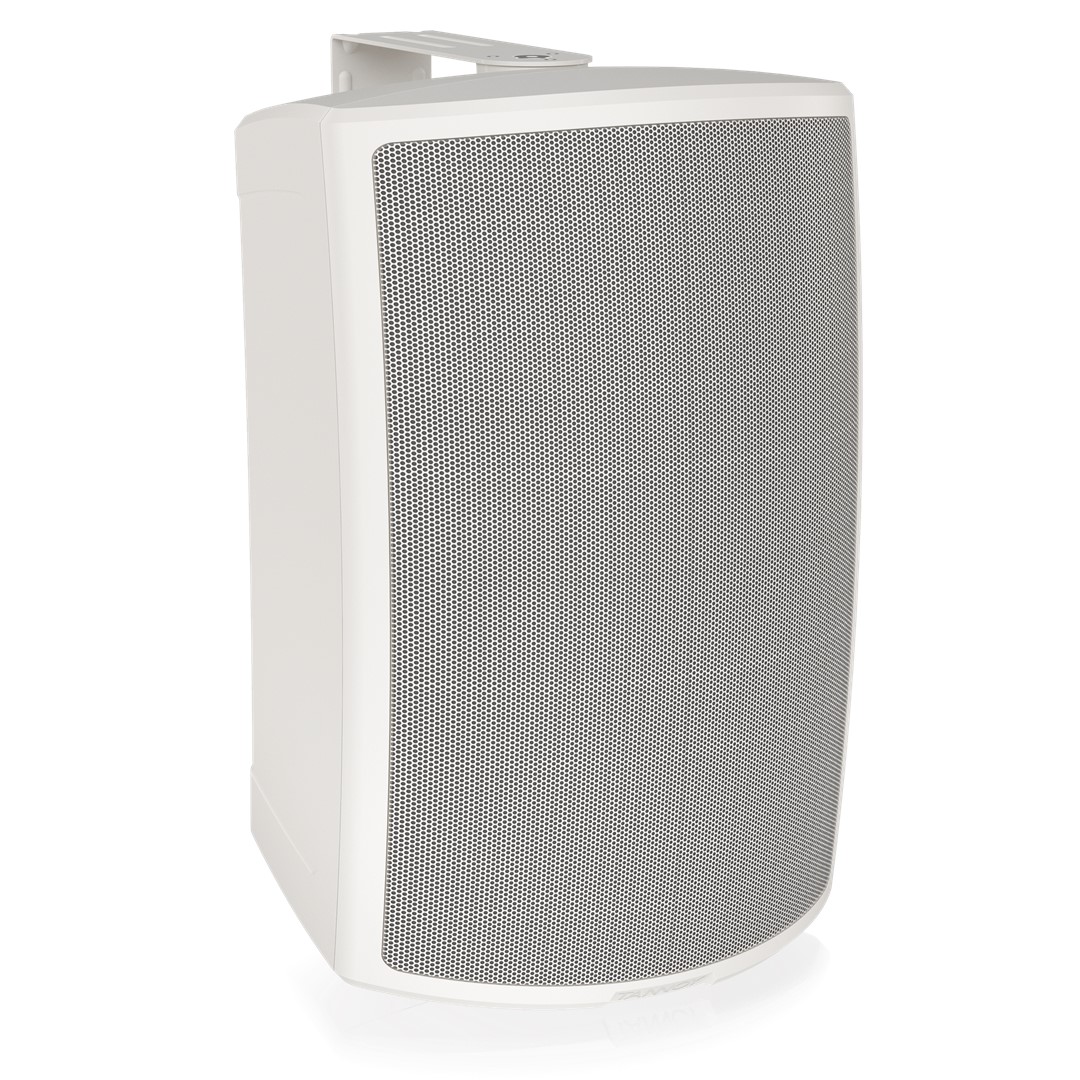

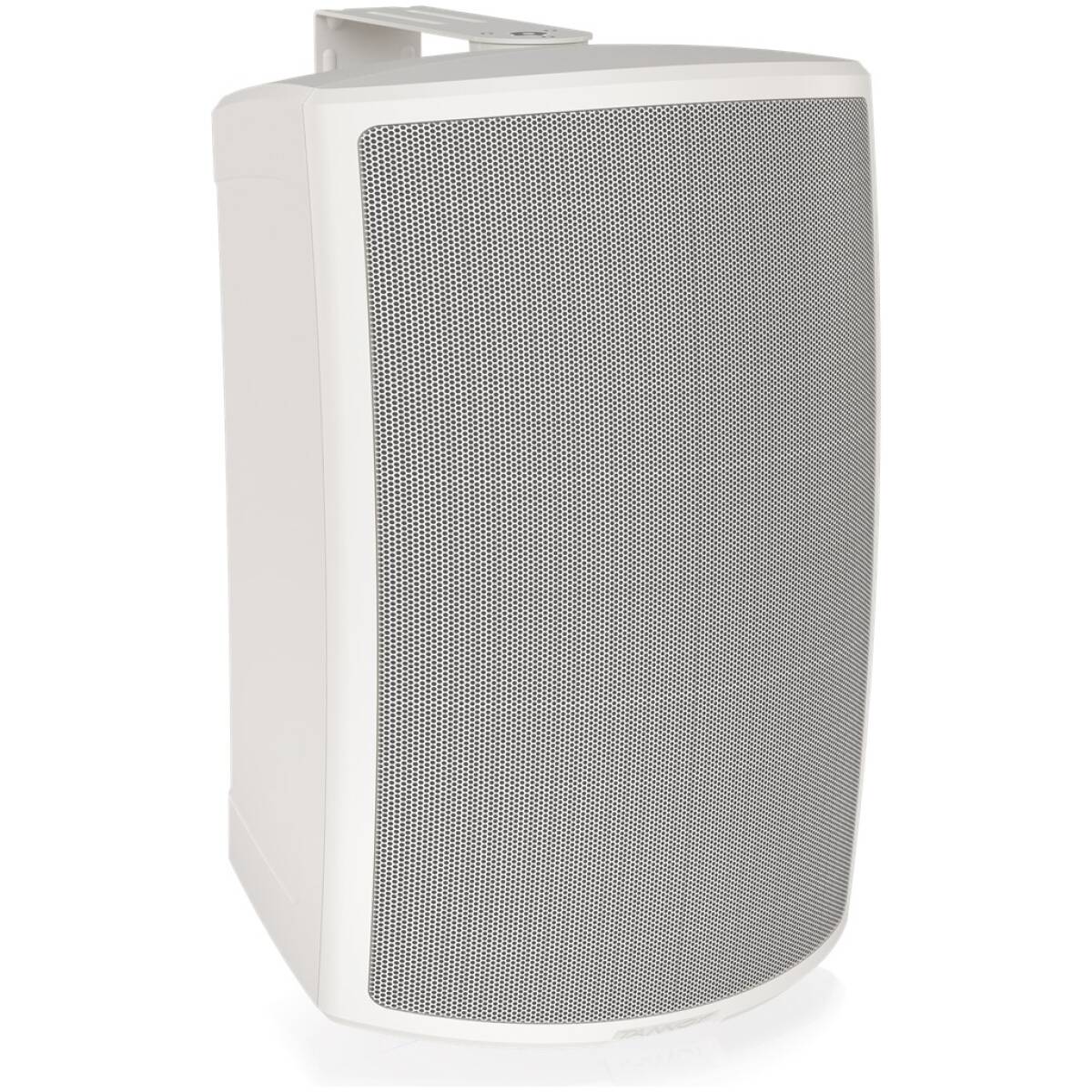

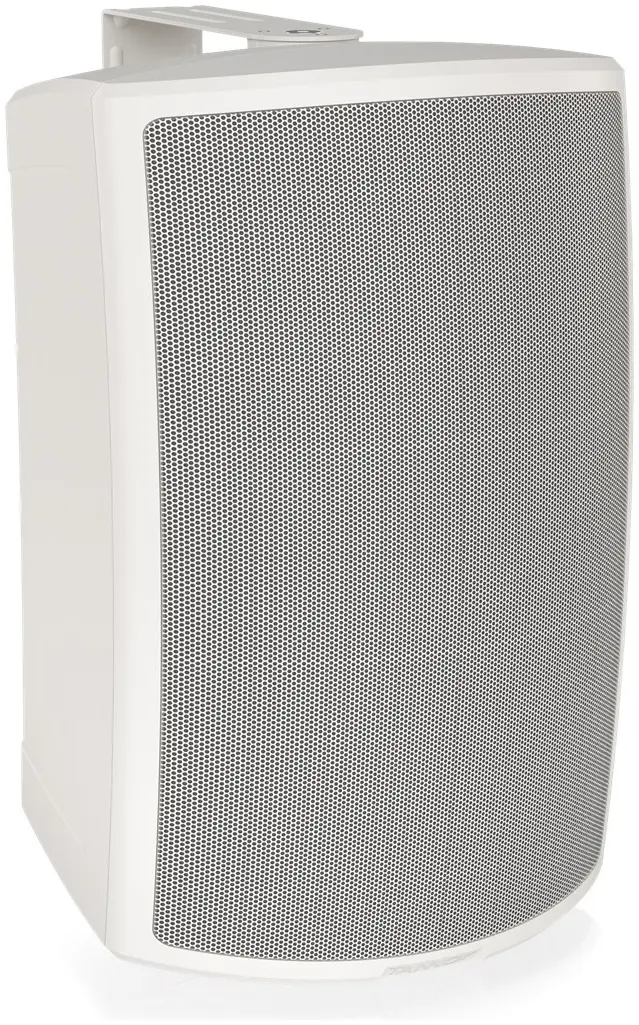

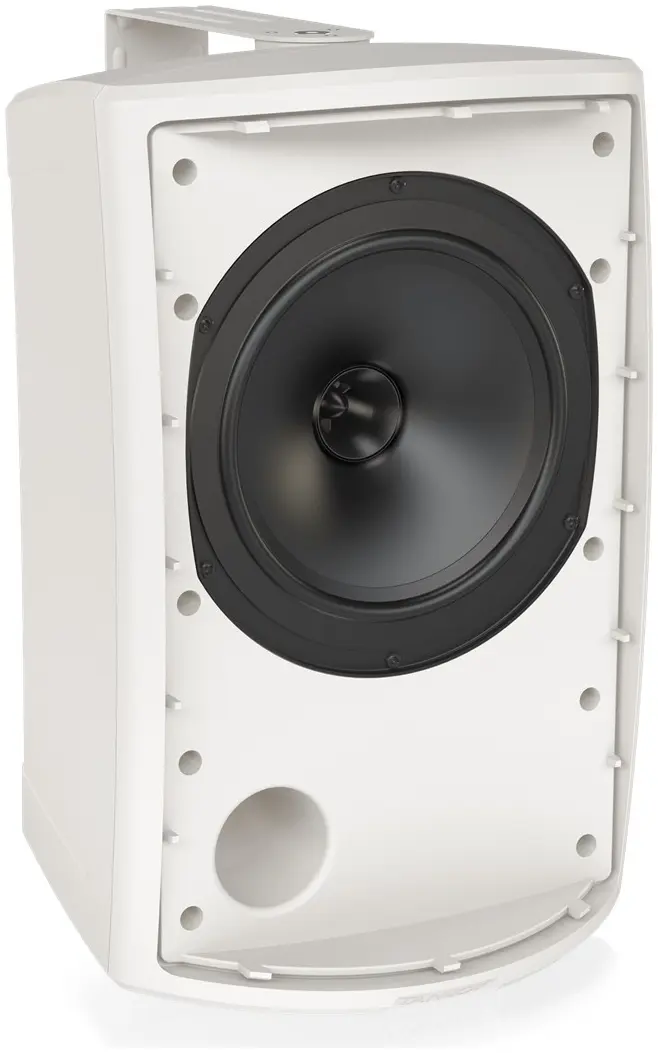

- Yoke bracket included for ease of installation
- Optional VARIBALL multi-angle bracket with secure clamp mechanism for accurate audience coverage
- Weatherproof cable gland cover to protect Phoenix connectors and tap selector switch
Performance
| Frequency Response (-3 dB) (1) | 65 Hz – 30 kHz |
| Frequency Range (-10 dB) (1) | 53 Hz – 40 kHz |
| System Sensitivity (1 W @ 1 m) (2) | 92 dB (1 W = 4 V for 16 Ohms) |
| Nominal Coverage Angle | 90 degrees conical |
| Power Handling | Average: 90 W Programme: 180 W Peak: 360 W |
| Recommended Amplifier Power | 180 W @ 16 Ohms |
| Nominal Impedance (Lo, Z) | 16 Ohms |
| Rated Maximum SPL | Average: 111 dB Peak: 117 dB |
| Transformer Taps (via front rotary switch) | 70 V: 60 W / 30 W / 15 W / 7.5 W / OFF & low impedance operation 100 V: 60 W / 30 W / 15 W / OFF & low impedance operation |
TRANSDUCERS

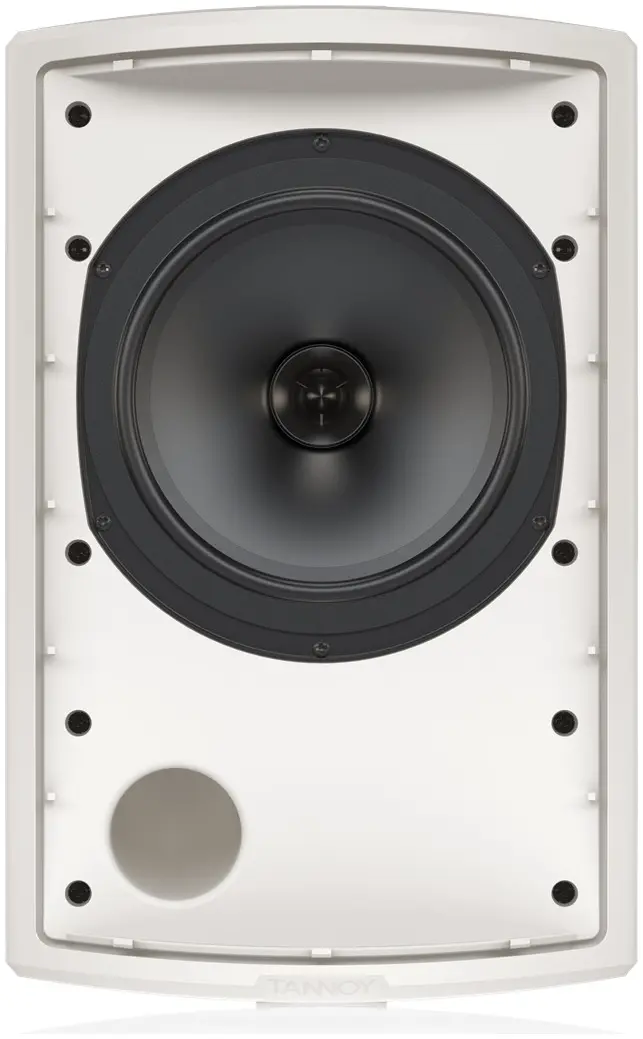

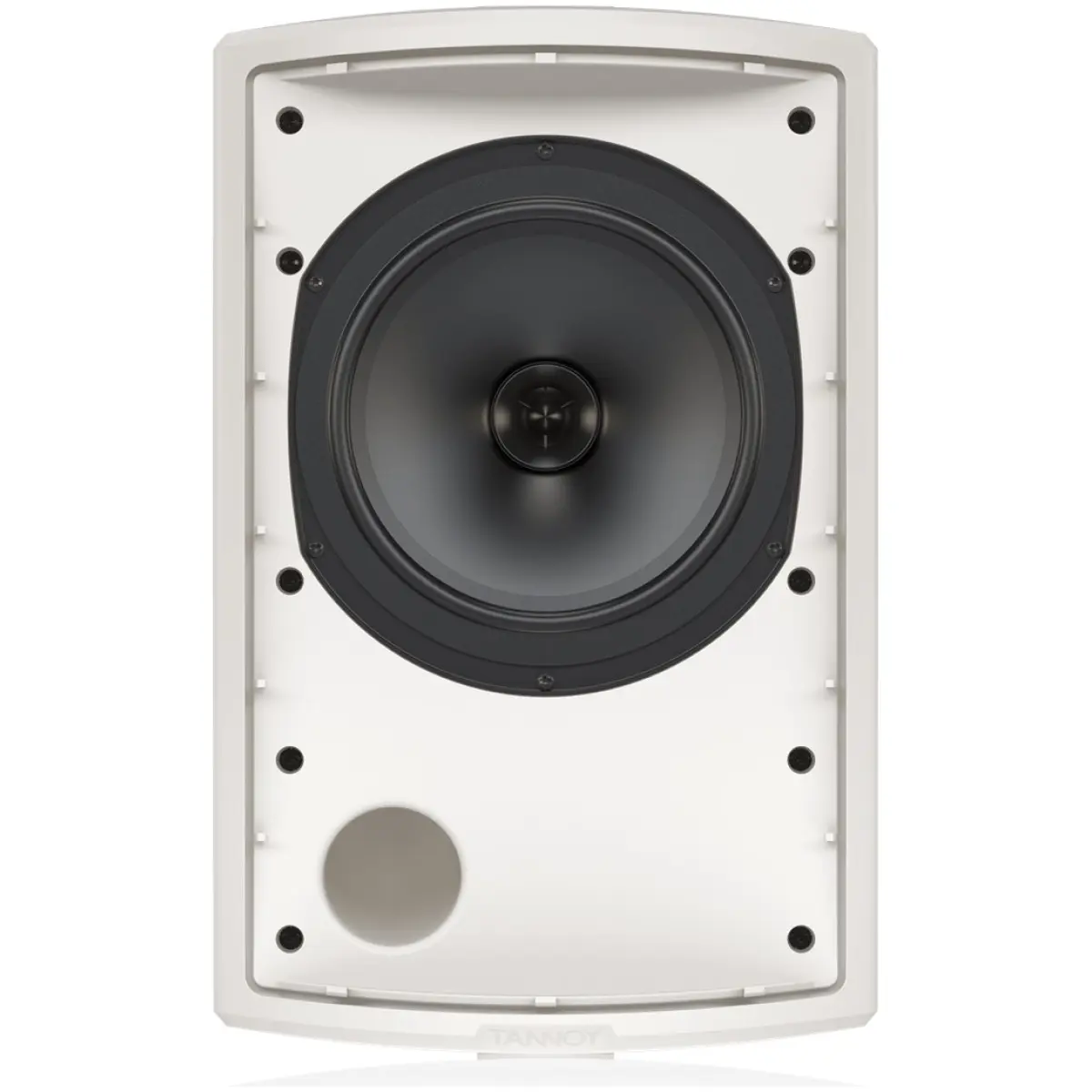

| Dual Concentric point source driver | 1 x 200 mm (8.0″) Dual Concentric driver, using Omnimagnet technology |
| Low Frequency | 44 mm (1.75″) voice coil, treated multi fiber paper pulp cone |
| High Frequency | 25 mm (1.00″) PEI dome |
PHYSICAL
| Enclosure | ABS |

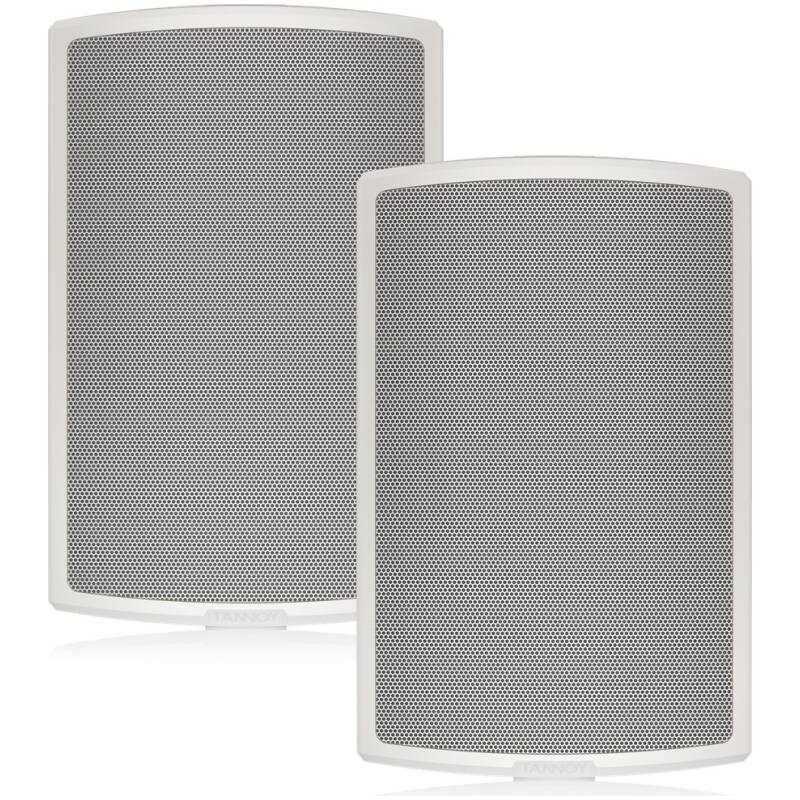

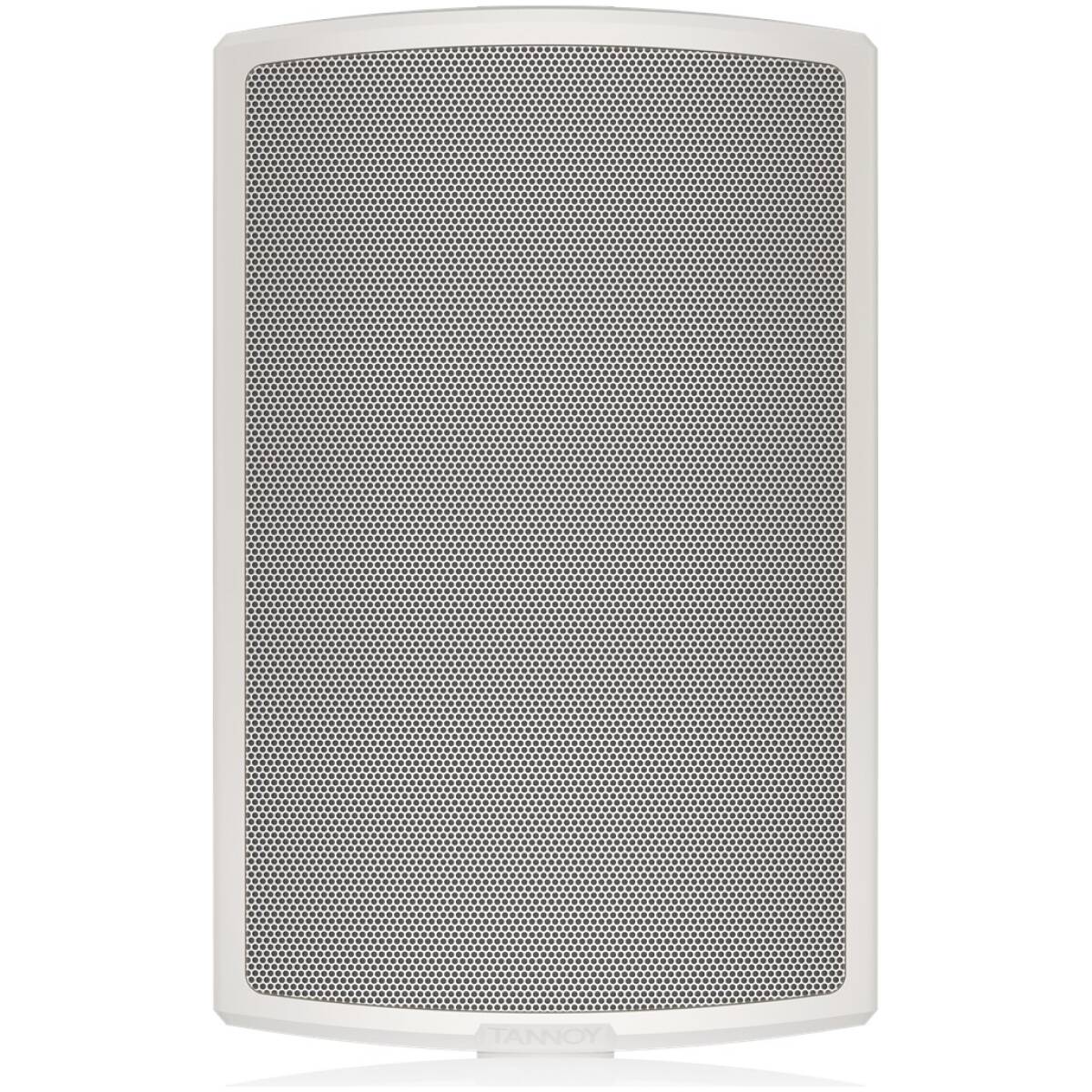

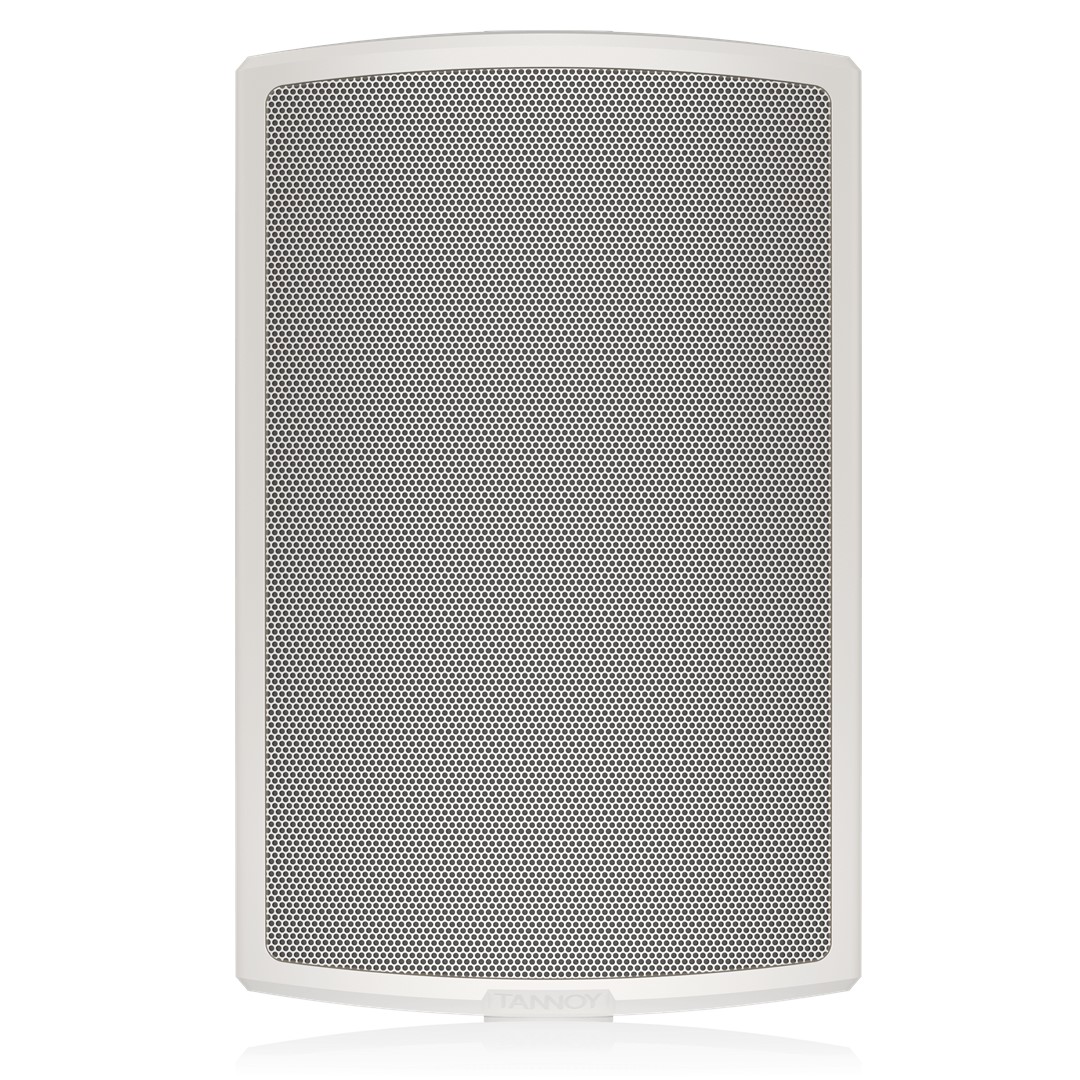

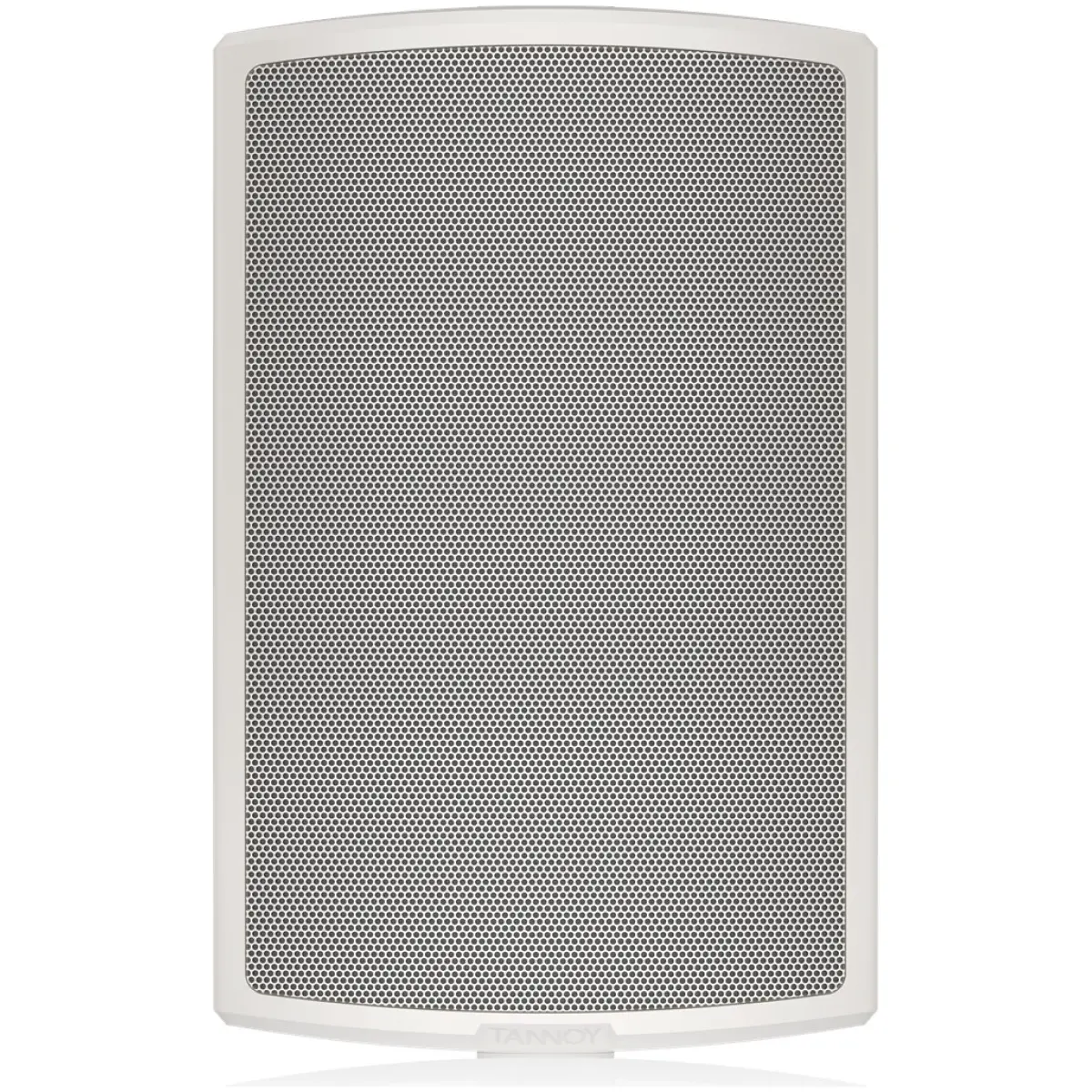

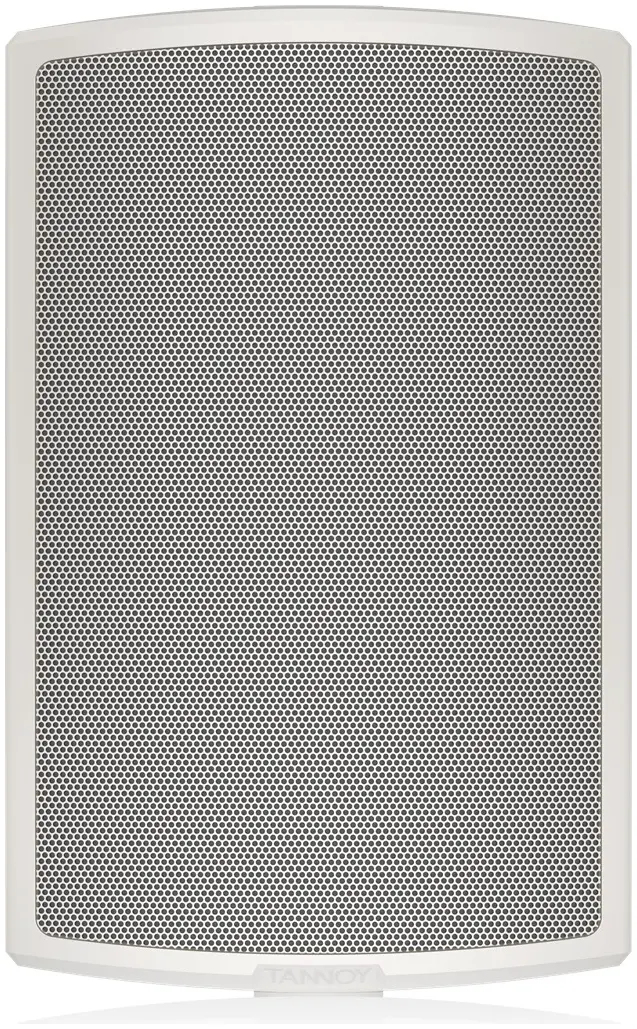

| Grille | Weather-resistant zinc nickel-plated steel grille |
| Connectors | Removable locking connector with screw terminals |
| Transformer setting | Rotary switch |
| Dimensions (H x W x D) | 409.8 x 260.0 x 306.3 mm (16.13 x 10.24 x 12.06″) |
| Net Weight (ea) | 7.82 kg (17.24 lbs) |
| Shipping Weight | 8.69 kg (19.16 lbs) |
| Included Accessories | Yoke bracket |

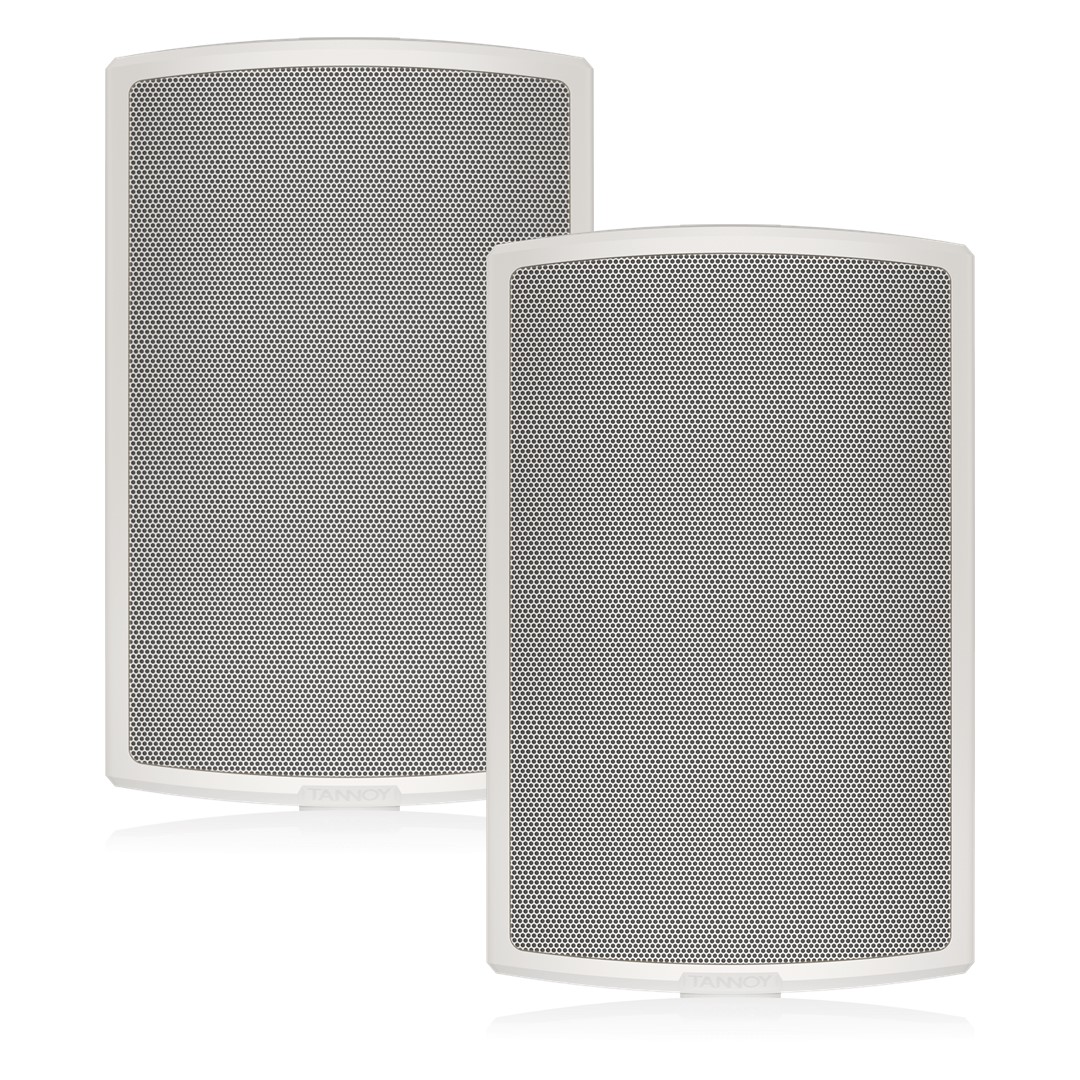

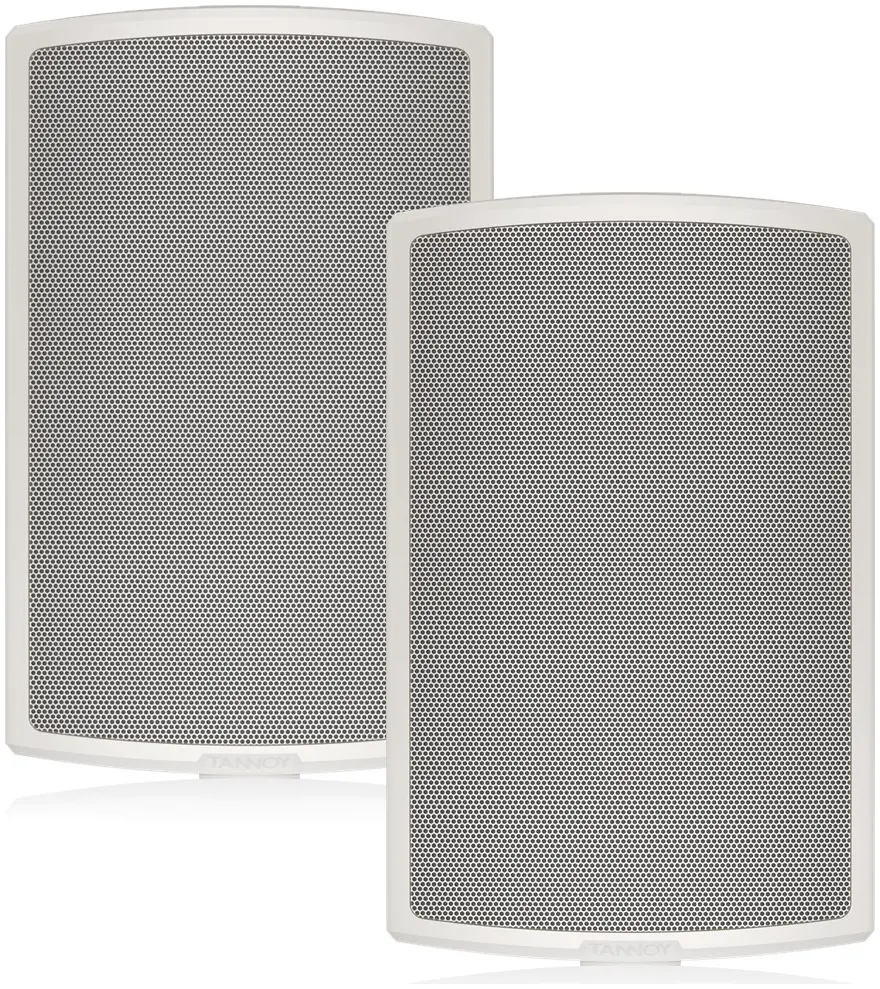

| Packed Quantity | 2 |
