CVS 1.0 SERIES CVS 401-BK

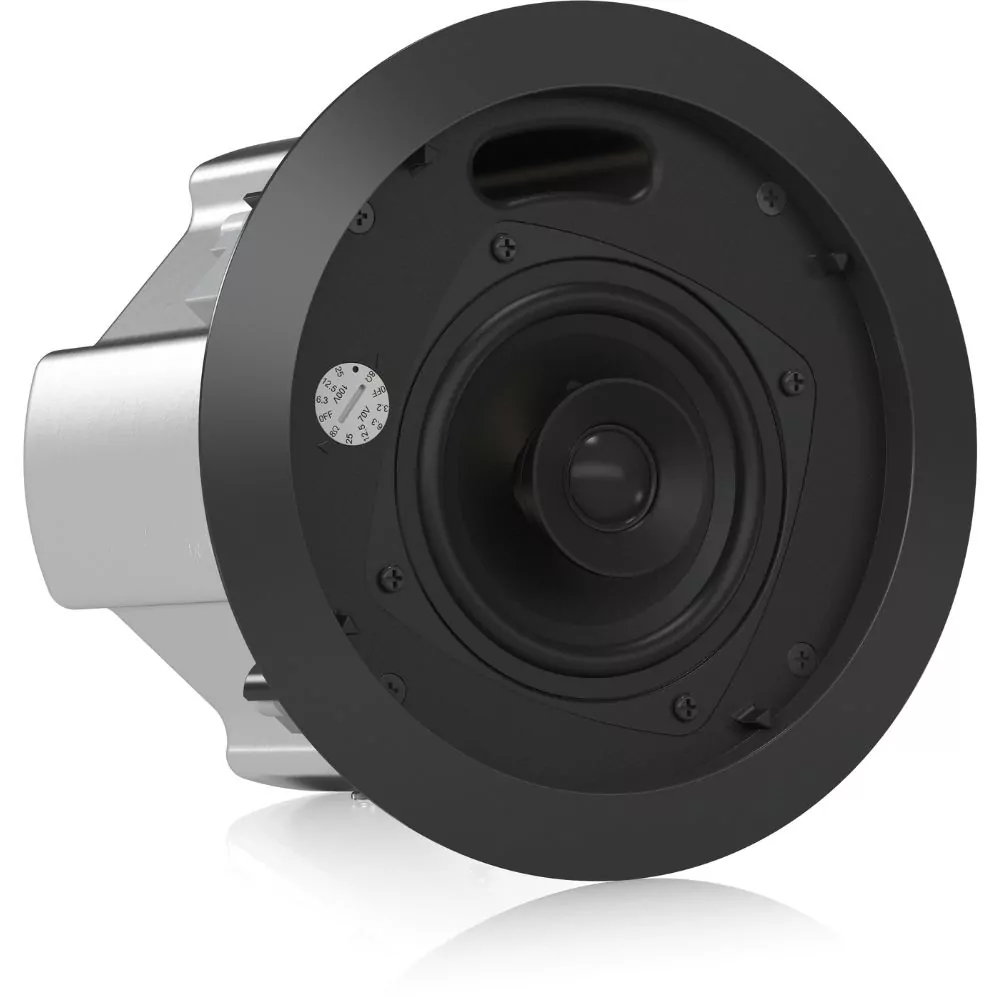

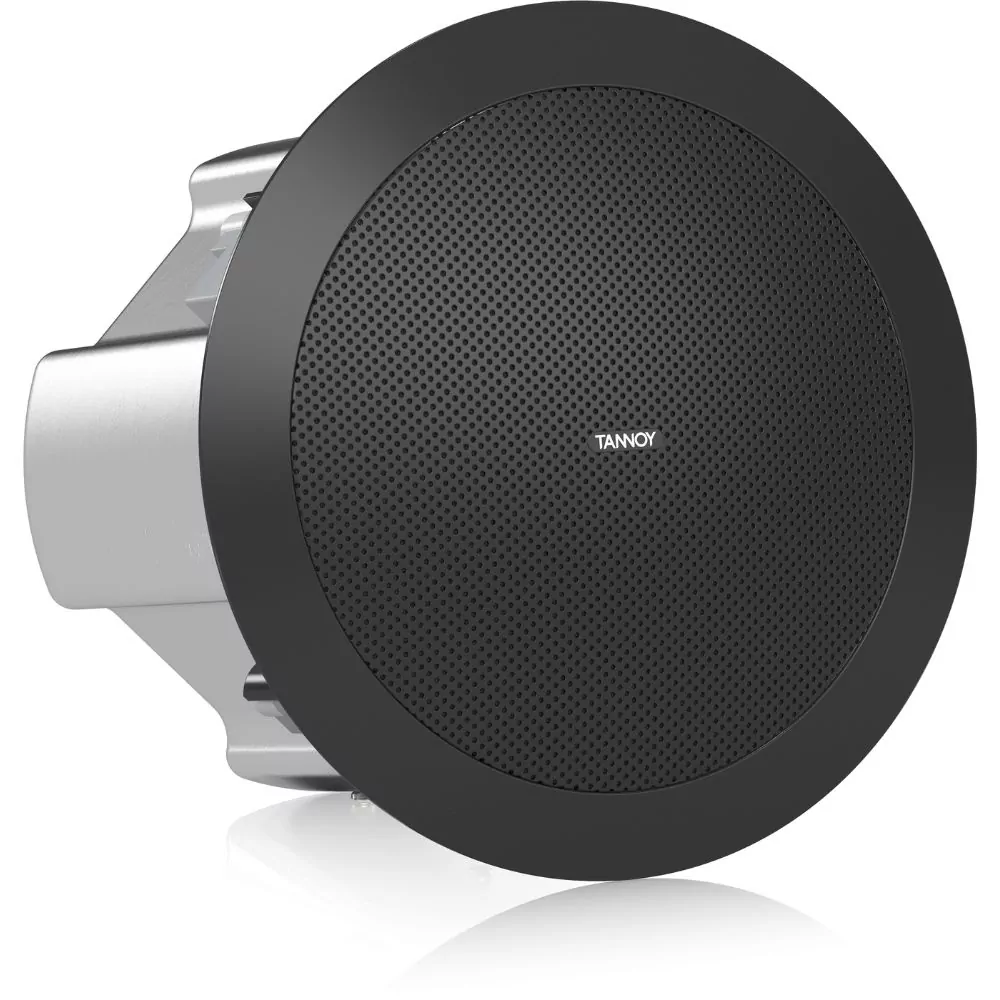

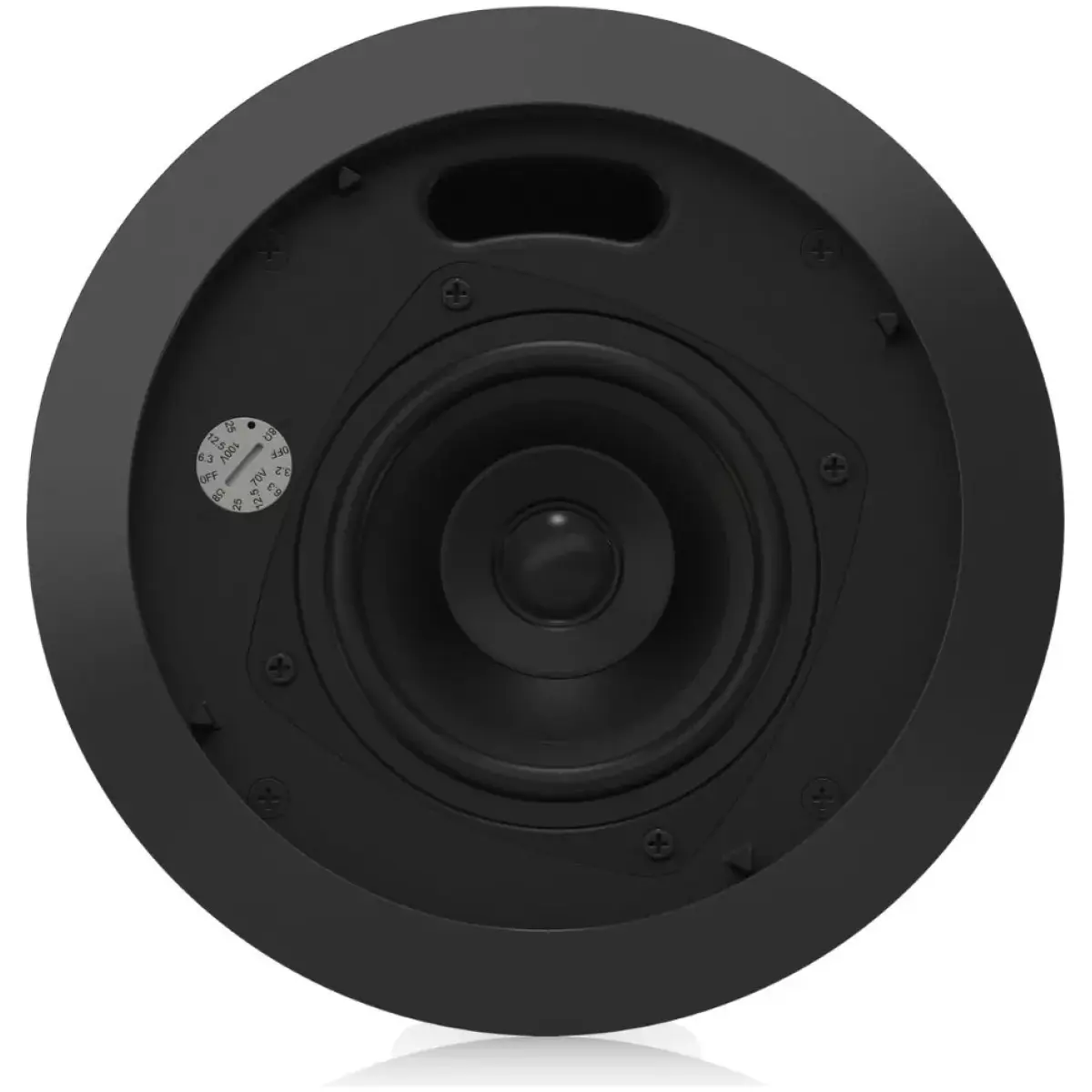

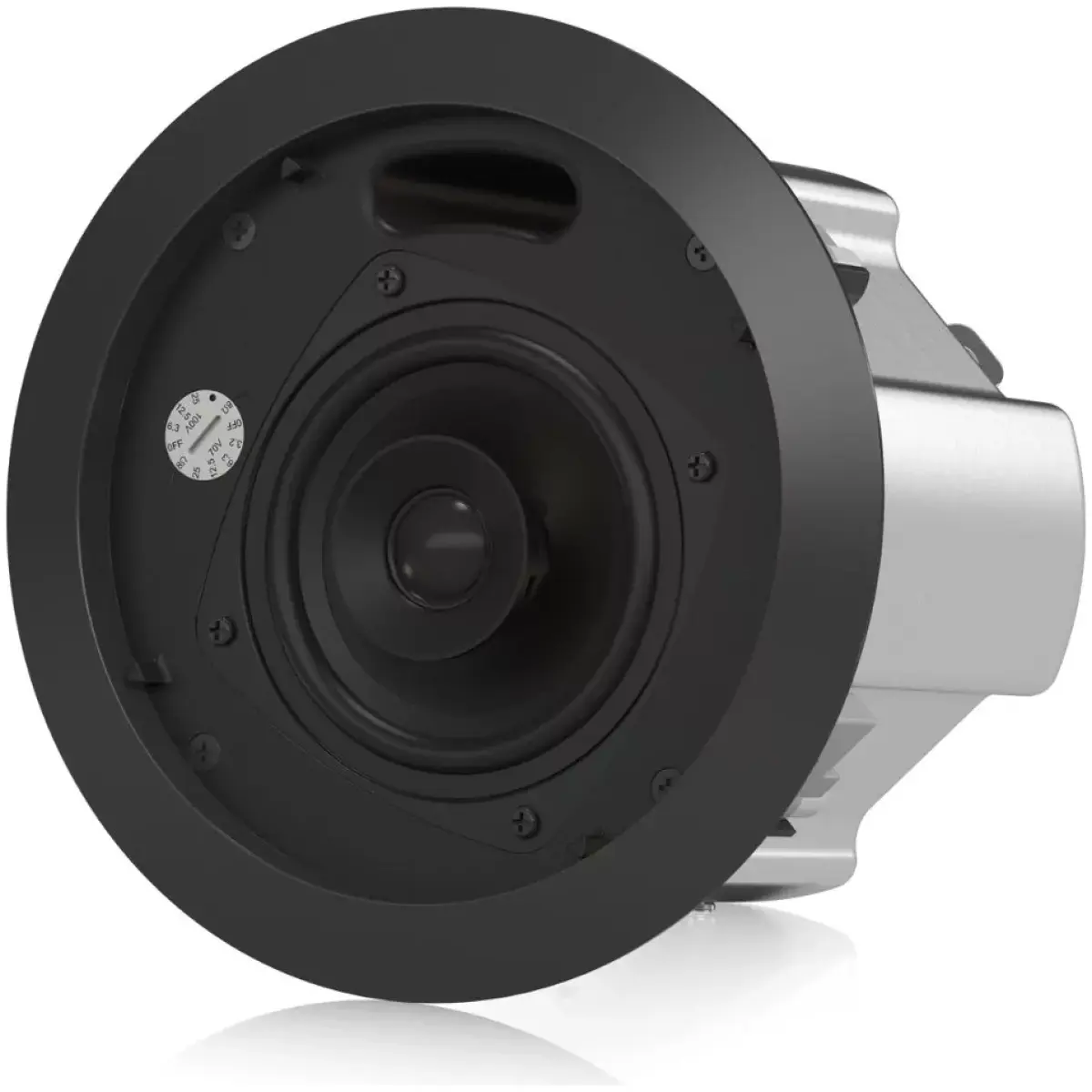

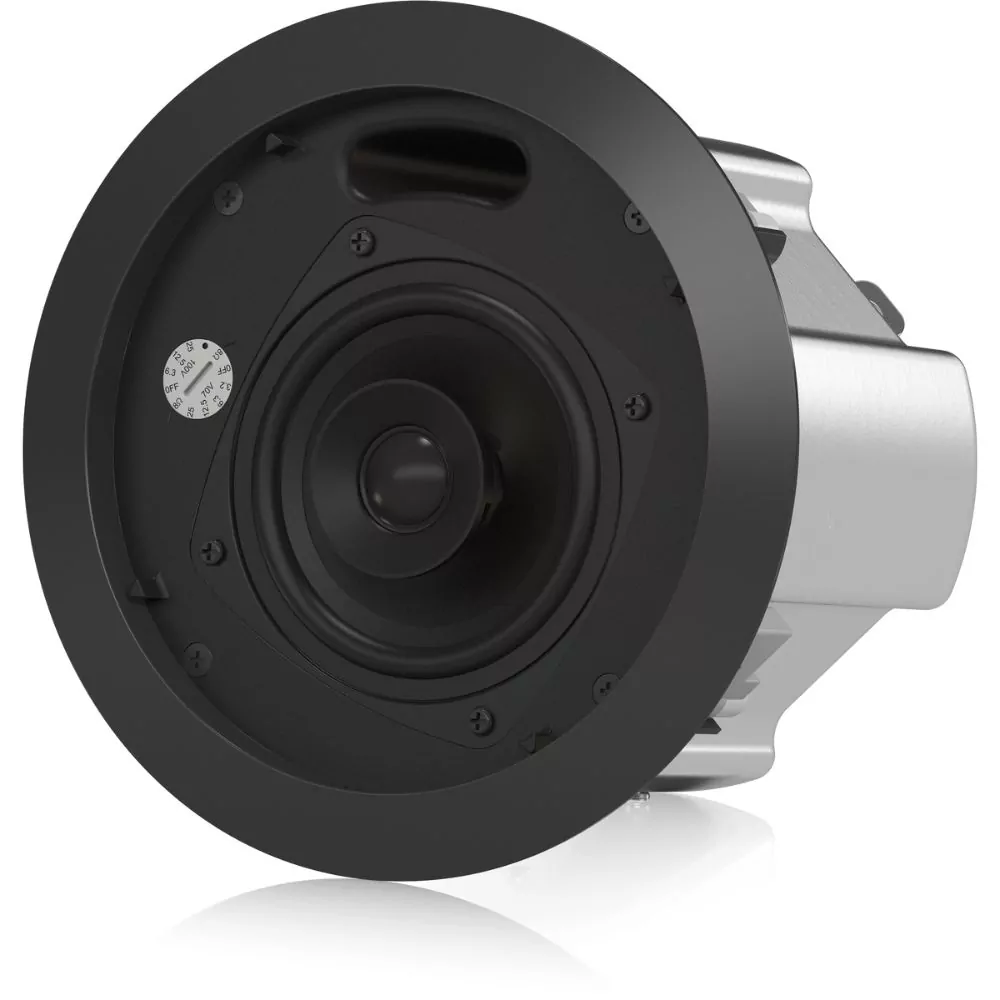

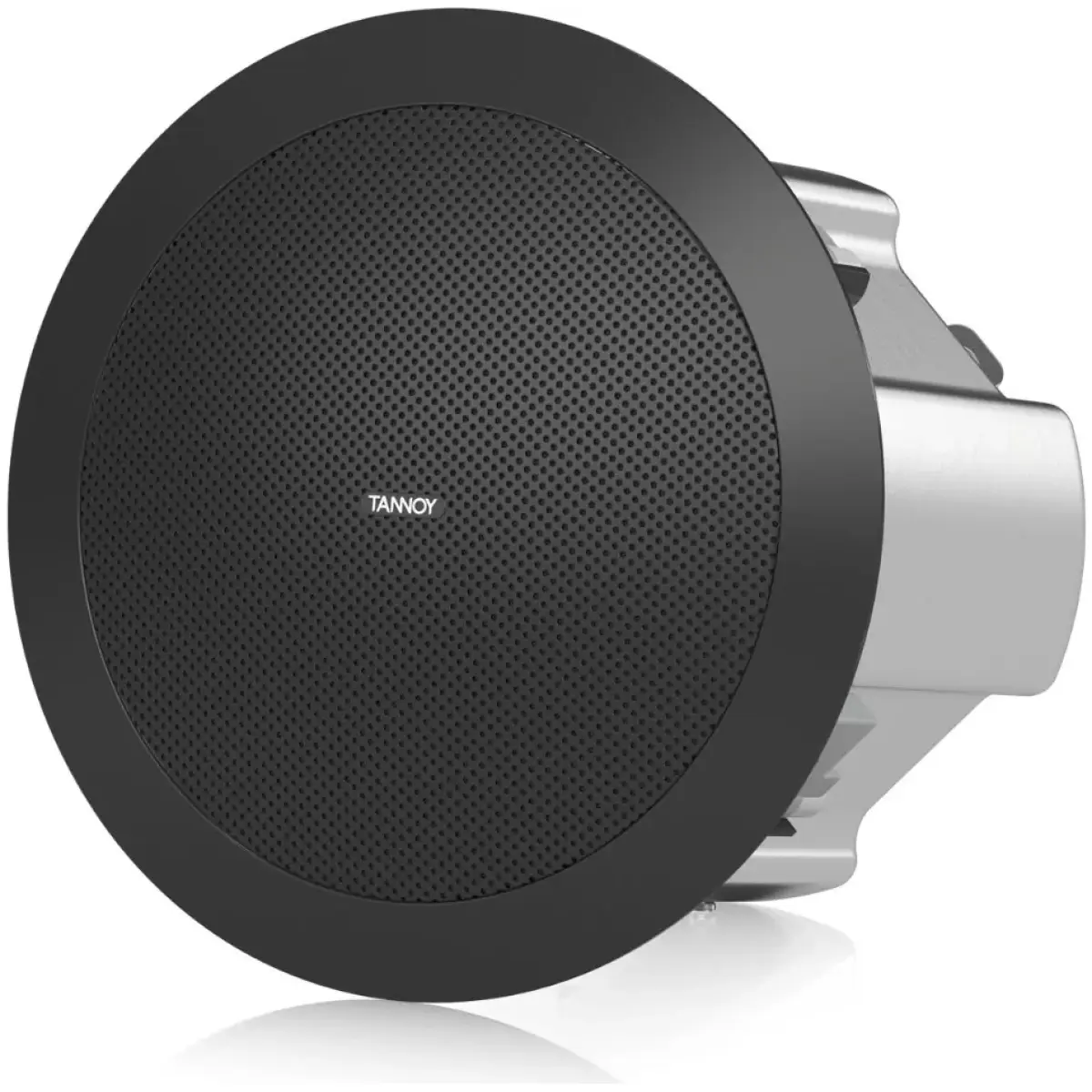

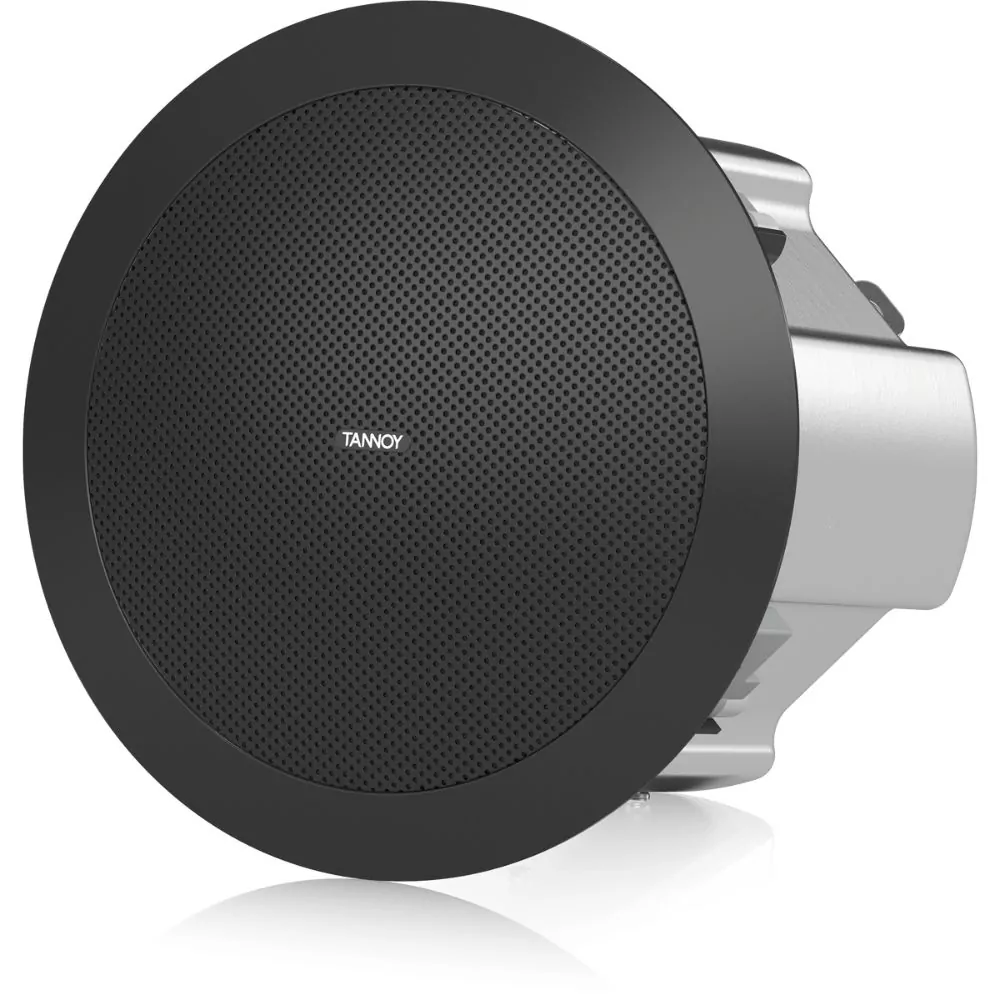

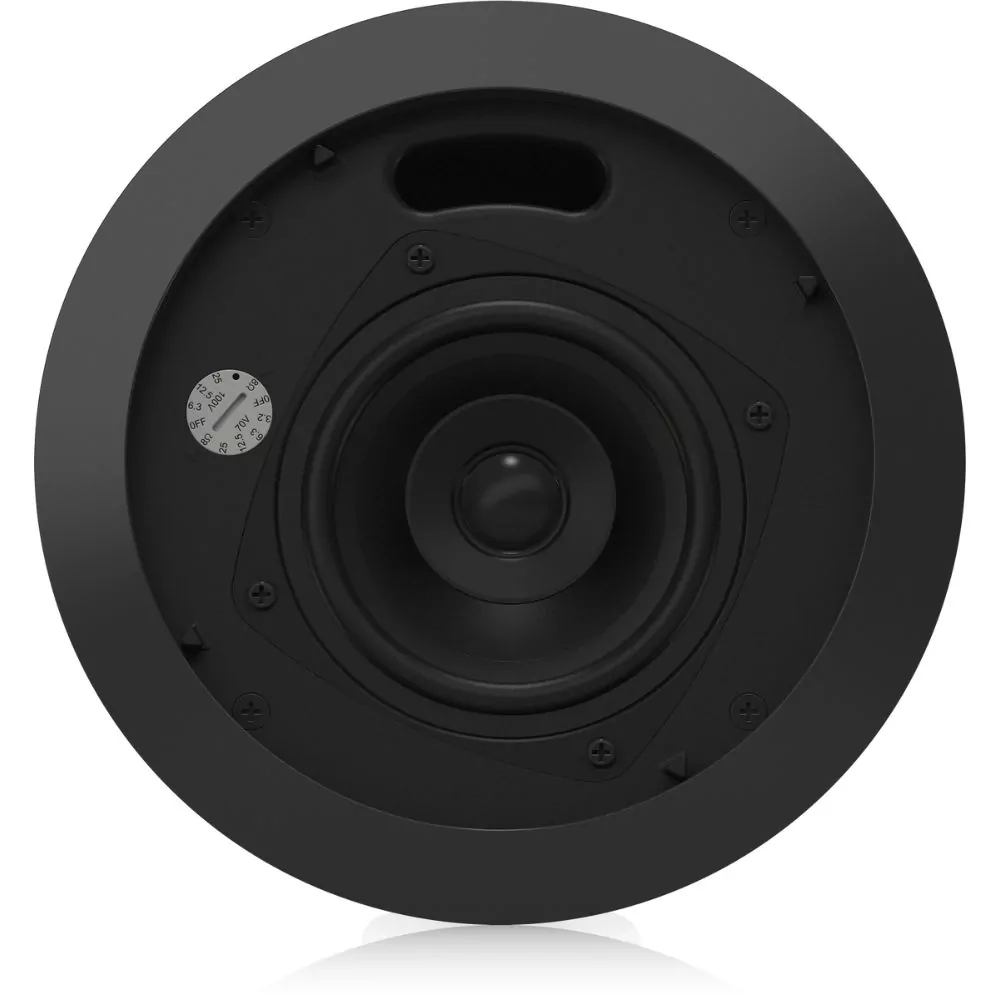

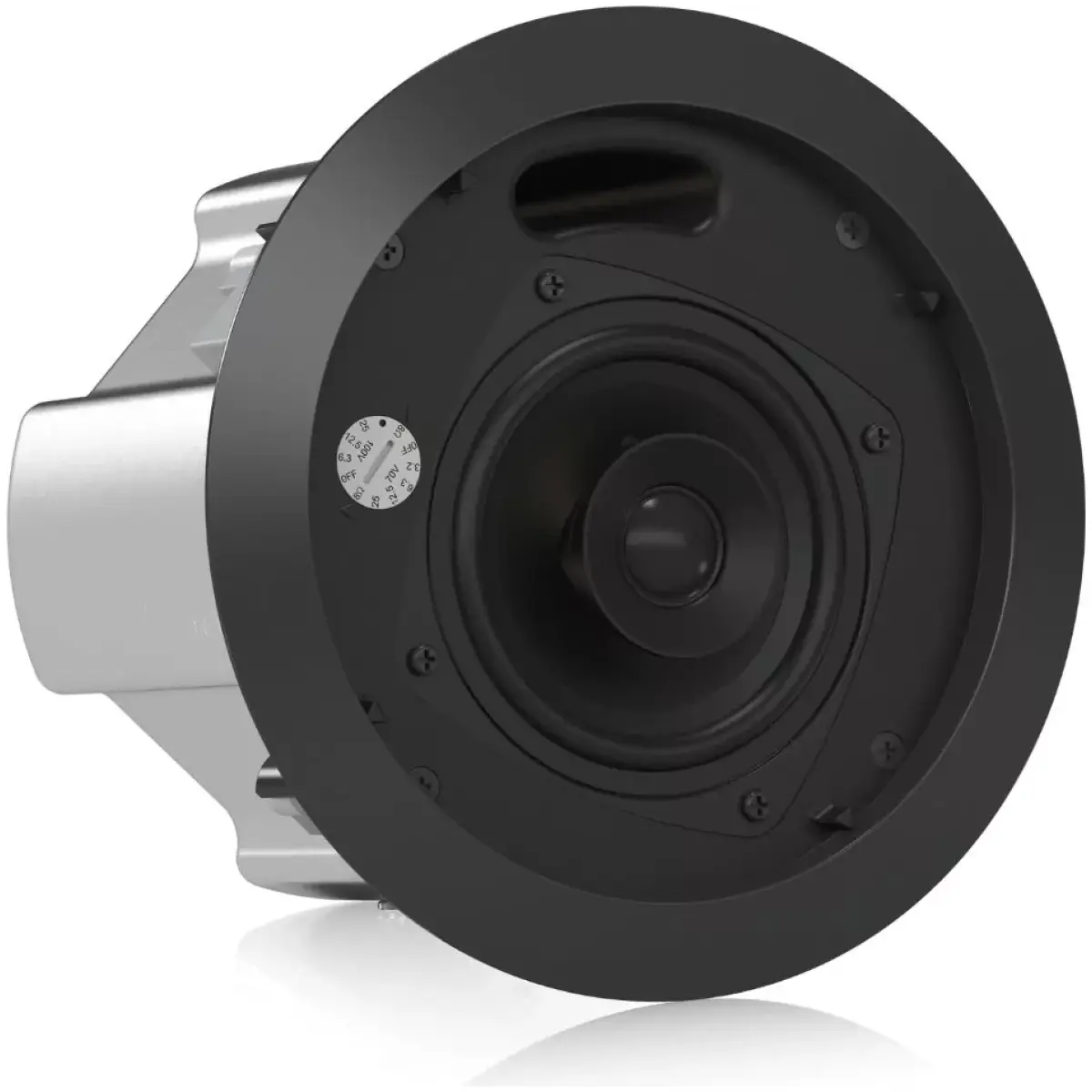

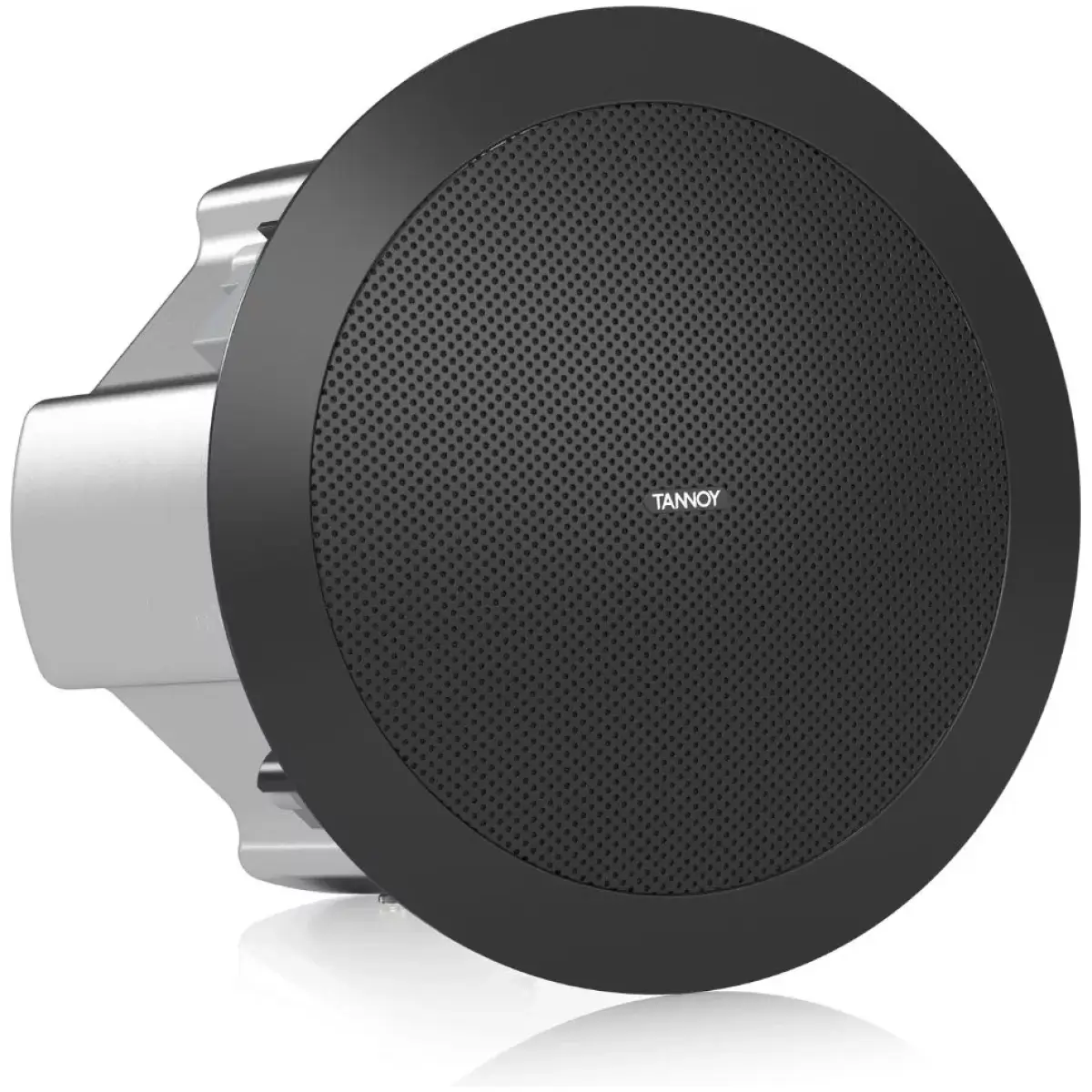

The CVS 401-BK is a coaxial ceiling loudspeaker engineered to provide superb audio performance in both background and foreground music sound systems. Ideally suited for a wide variety of applications, from restaurants and hotels to houses of worship and businesses of all types, the CVS 401-BK offers the power handling, wide frequency response and low distortion typically found in more expensive products. EN 54-24 certification for fire detection and fire alarm systems makes the CVS 401-BK the perfect choice where safety is a top priority. The loudspeaker is also UL 1480 certified for fire-protected signalling systems and UL 2043 certified for air-handling spaces.
Product Features
- Coaxial full-range ceiling loudspeaker for installation applications
- 30 Watts continuous, 120 Watts peak power
- 4″ polypropylene driver with butyl rubber surround for enhanced durability and long-term reliability
- 0.75″ ferrofluid-cooled soft dome high-frequency driver
- Wide constant directivity dispersion for optimum coverage
- EN54-24:2008 certified Type A
- UL 1480 certified for fire-protected signalling systems
- UL 2043 certified for air-handling spaces
- UV and weather resistant UL 94-V0 and 94-5VB ABS front with plated steel fire can enclosure

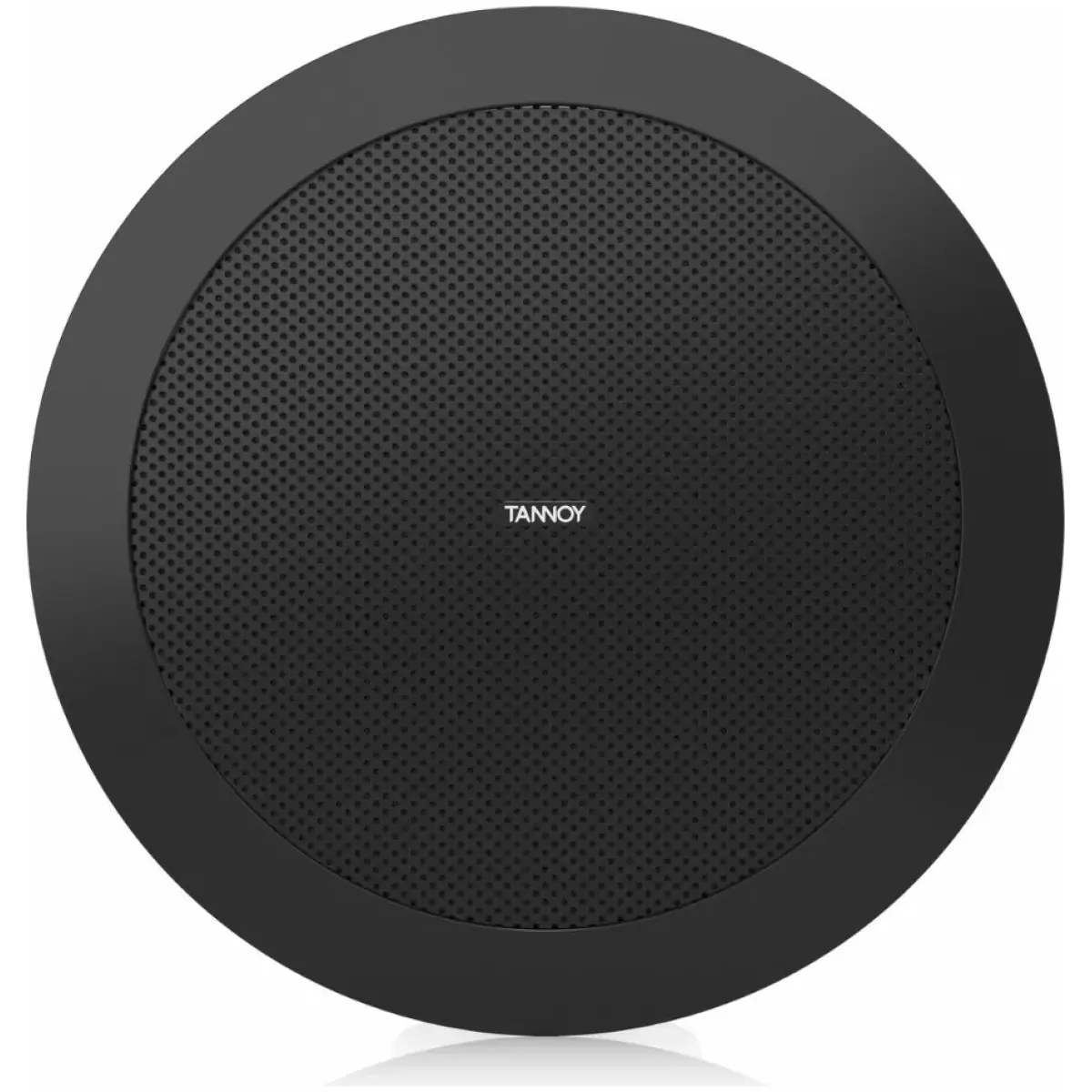

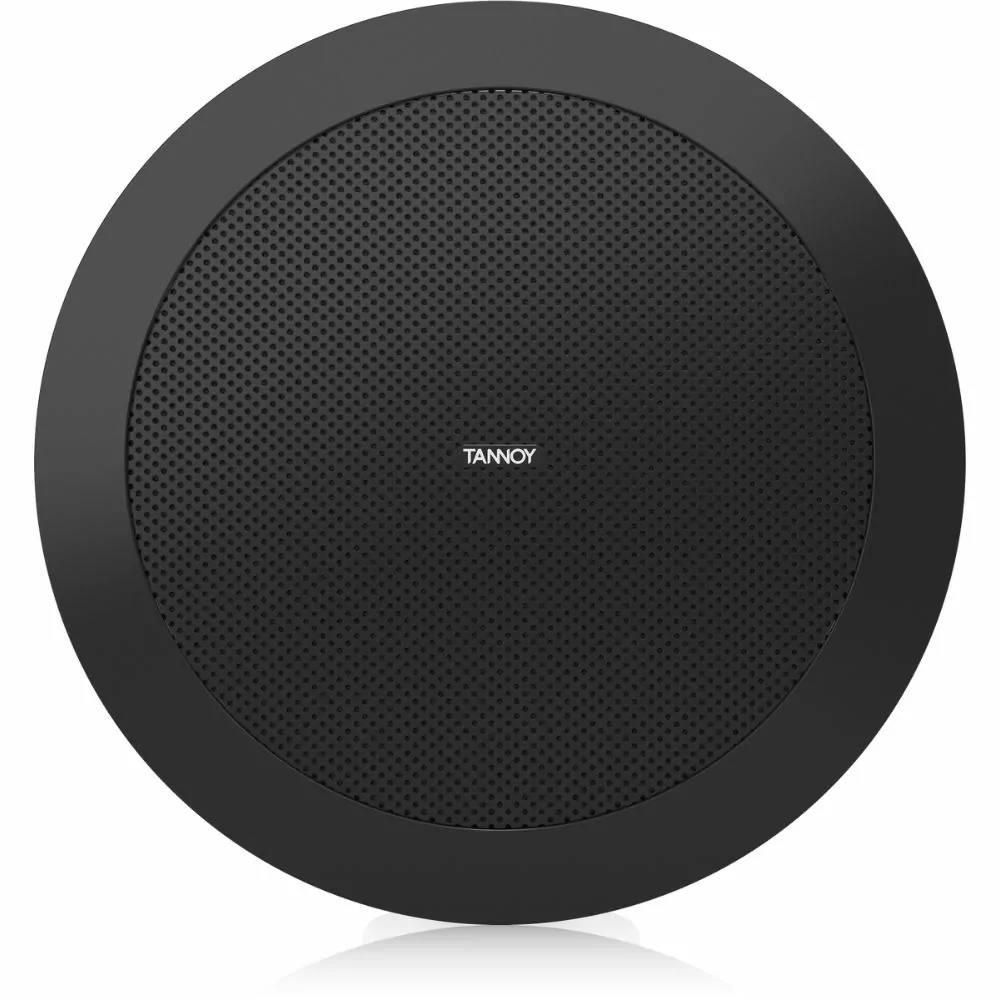

- Powder-coated aluminum mesh grille with dust protection
- Multiple transformer taps for 70 V and 100 V line systems or 8 Ohm direct input
- Low insertion loss 25 W line transformer with easily accessible tapping switch
- Semi-matte black finish fits unobtrusively in any environment
- Mounting C-ring and ceiling tile rails included

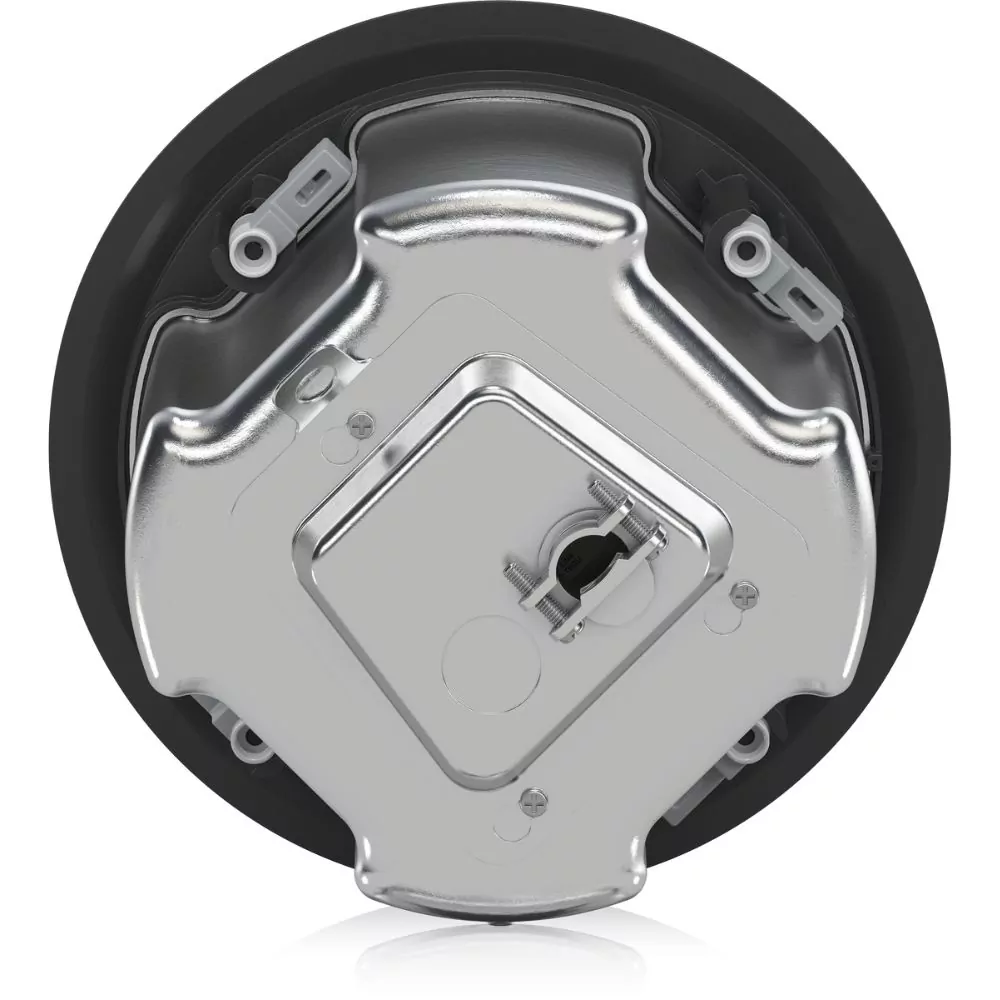

- Steel cover and strain relief clamping mechanism for fire-rated cable
Specifications
Performance
- Frequency response (+3 dB, -3 dB): 102 Hz-20 kHz
- Frequency response (-10 dB): 70 Hz-20 kHz
- Sensitivity at 1m/1W: 84 dB
- Directivity factor (Q) averaged 1 kHz to 6 kHz: 5.4
- Directivity index (DI) averaged 1 kHz to 6 kHz: 7.3
- Power handling (LoZ):
- Average: 30W
- Programme: 60 W
- Peak: 120 W
- Recommended amplifier power: 60 W @ 8 Ω
- Nominal Impedance (Switch to LoZ): 8 Ω
- Rated maximum SPL (1 m, Switch to LoZ): 102 dB
- Average: 99 dB
- Peak SPL: 105 dB
- Transformer taps:
- 70 V: 25 W/12.5 W/ 6.3 W/3.2 W
- 100 V: 25 W/12.5 W/6.3 W
Coverage Angles
- 500 Hz: 180°
- 1 kHz: Horizontal: 125°; Vertical: 118°
- 2 kHz: Horizontal: 82°; Vertical: 81°
- 4 kHz: Horizontal: 88°; Vertical: 86°
Transducers
- Low frequency: 100 mm (4″) PP cone
- High frequency: 20 mm (0.79″) coaxially mounted
Physical
- Enclosure: Blind mount (BM)

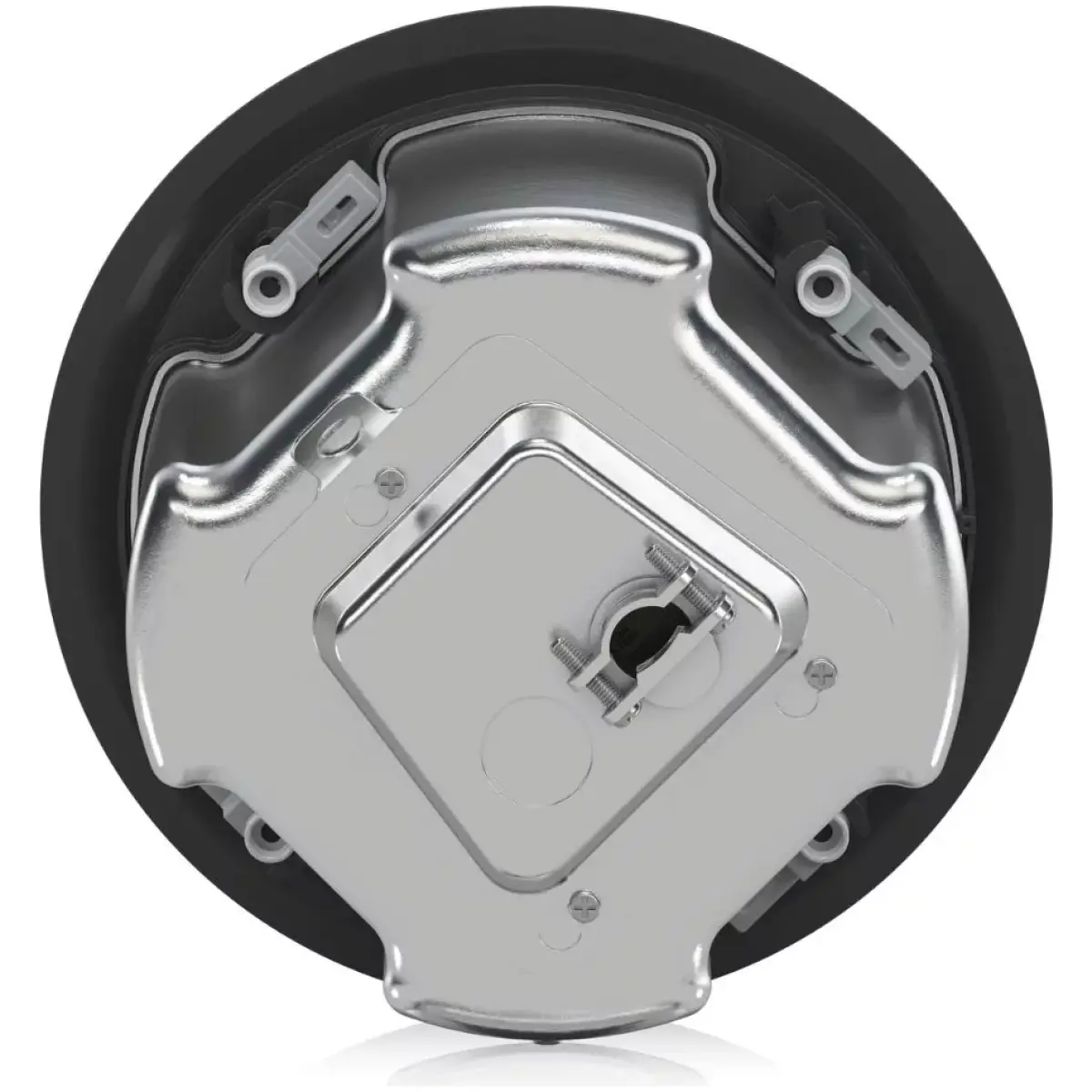

- Back can: Anodized steel
- Baffle: Reflex loaded UL 94V-0 rated ABS
- Grille: Aluminum, powder coated
- Safety features: Rear enclosure safety ring for load-bearing bond
- Clamping design: Security toggle clamp
- Connectors: Euroblock-style connector with screw terminals (with input cover and cable gland supplied)
- Dimensions:
- Bezel diameter (grille max diameter): 8 inches
- Rear face of baffle to rear of back can: 5.91 inches
- Rear face of baffle to top of safety loop: 6.42 inches
- Rear face of baffle to rear of flex conduit: 6.89 inches
- Hole cutout diameter: 6.77 inches
- Net weight: 6.09 lbs
- Included accessories: Metal grille, cable gland, flex conduit, C-ring, tile-bridge kit, paint mask, cutout template
- Optional accessories (Not evaluated by UL): Mud ring, 48″ Tile rail
- Packed quantity: 1 pair
