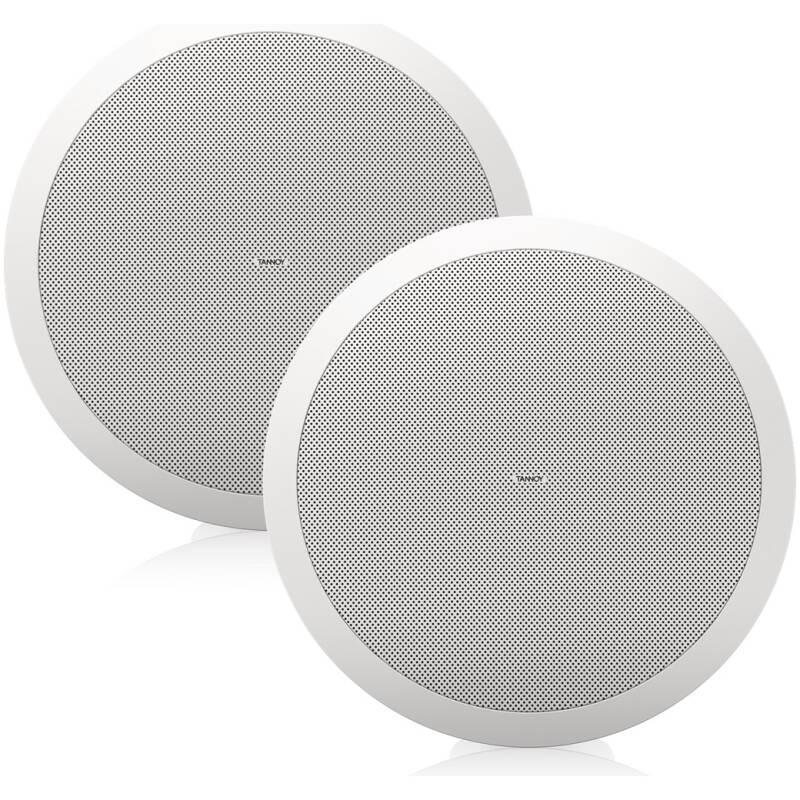

CVS 1.0 SERIES CVS 801S

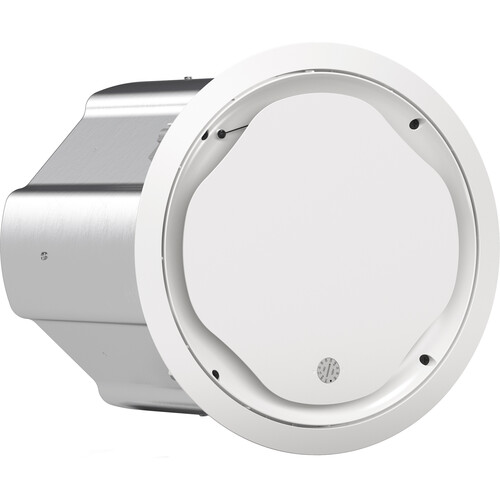

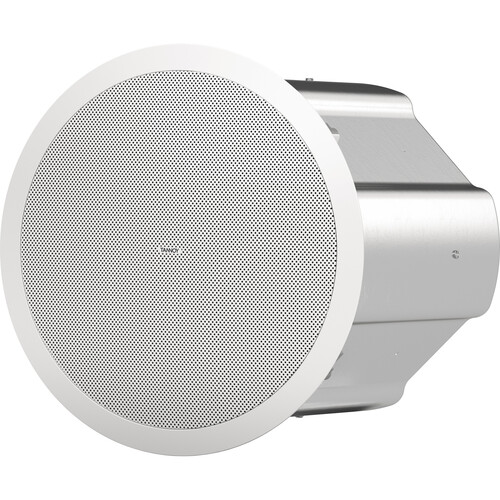

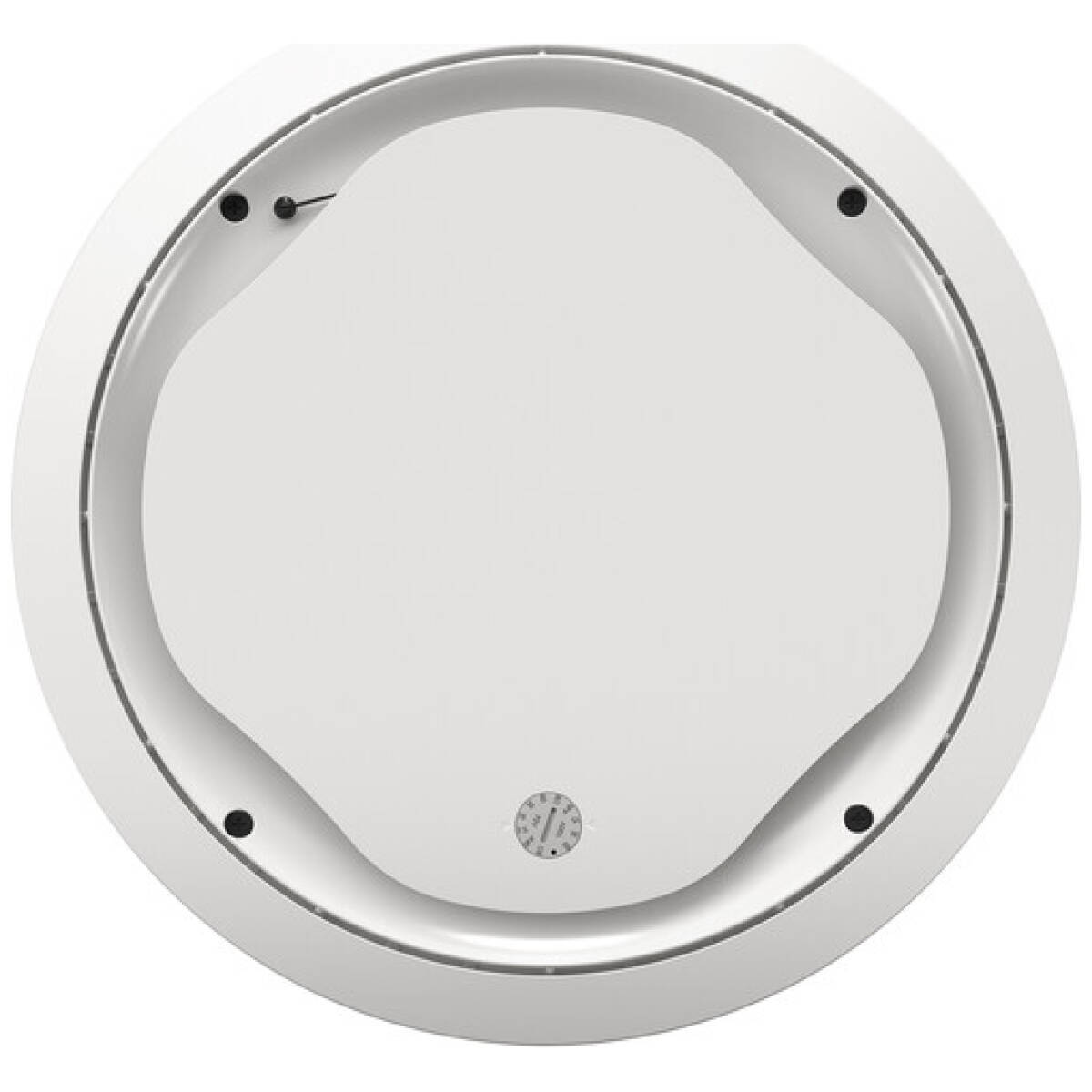

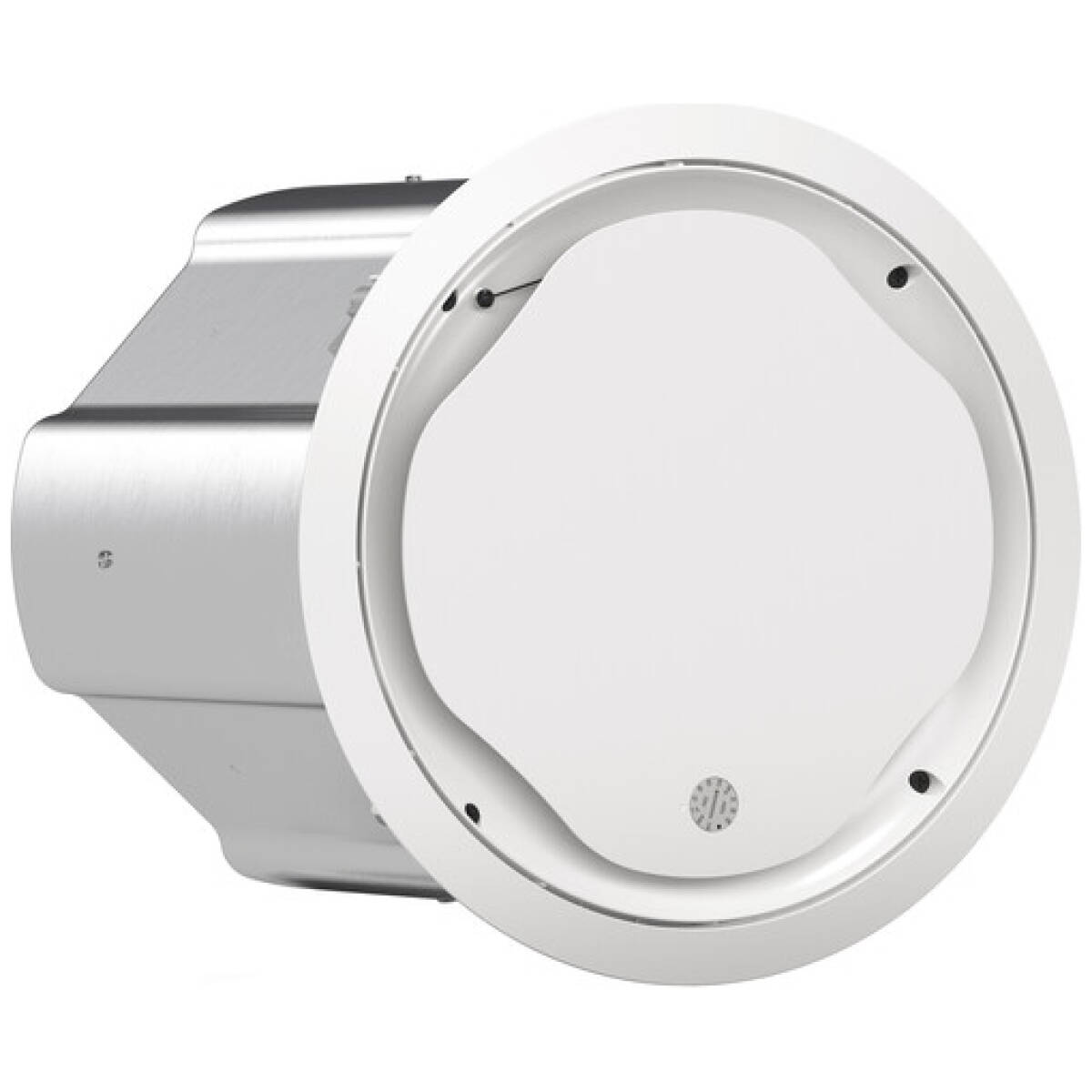

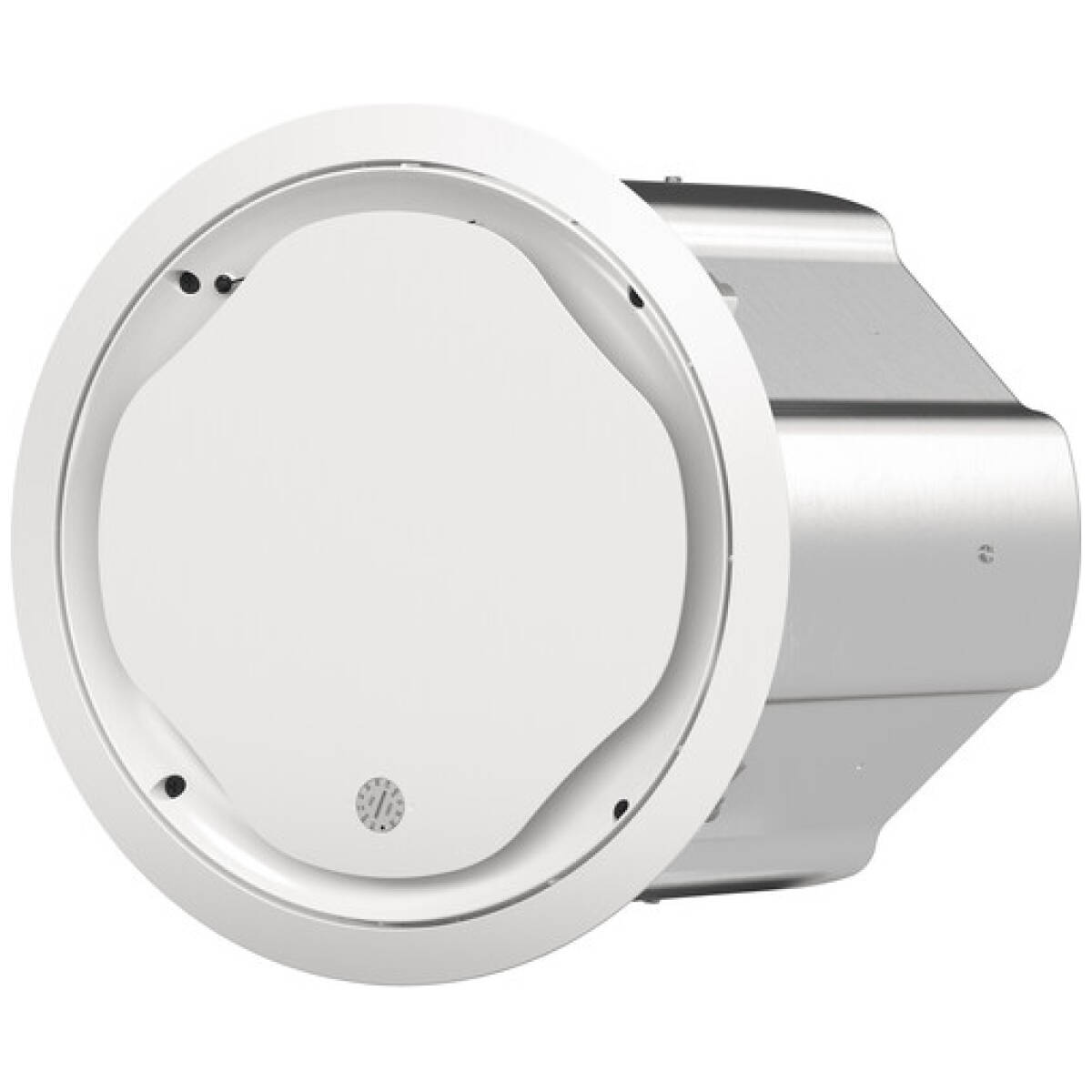

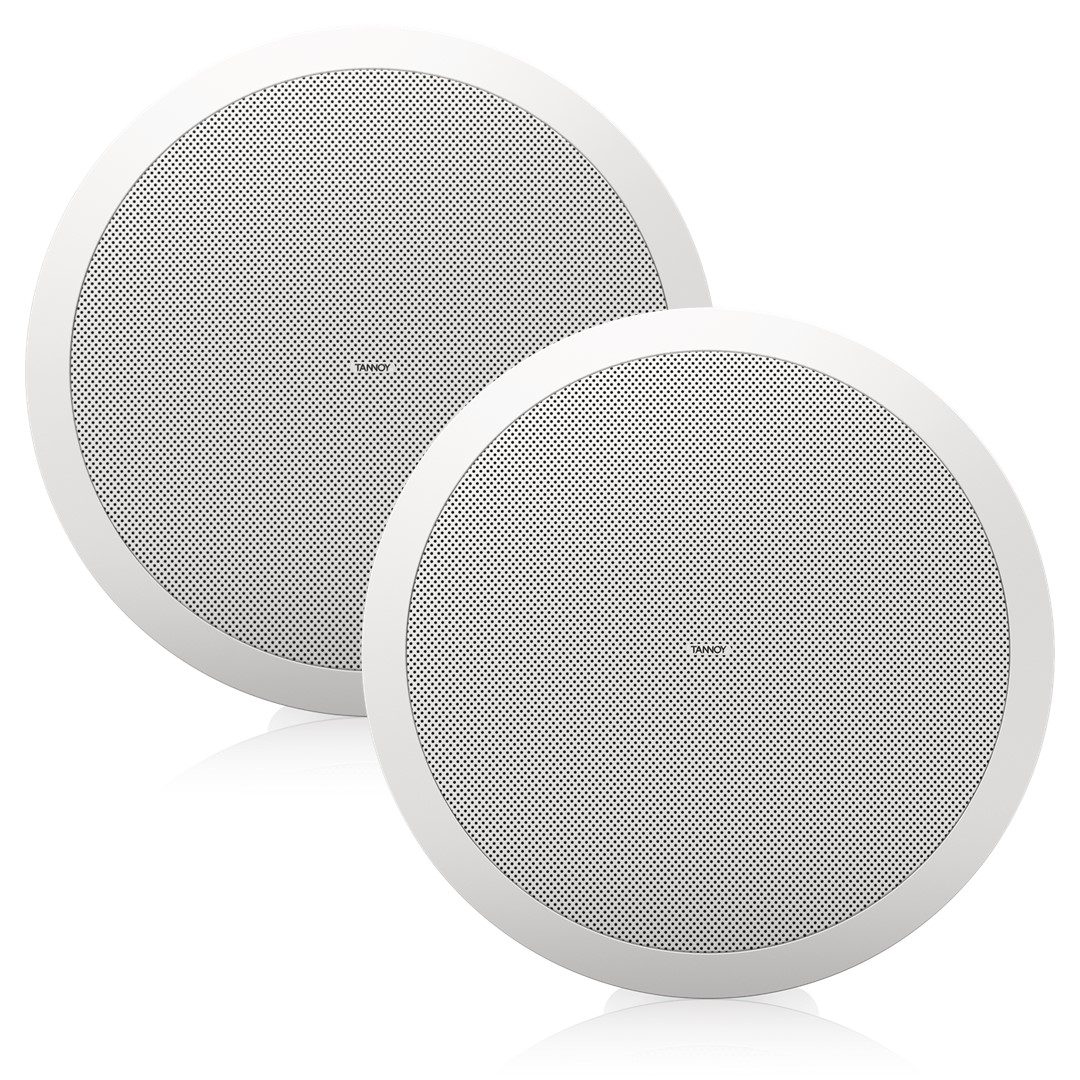

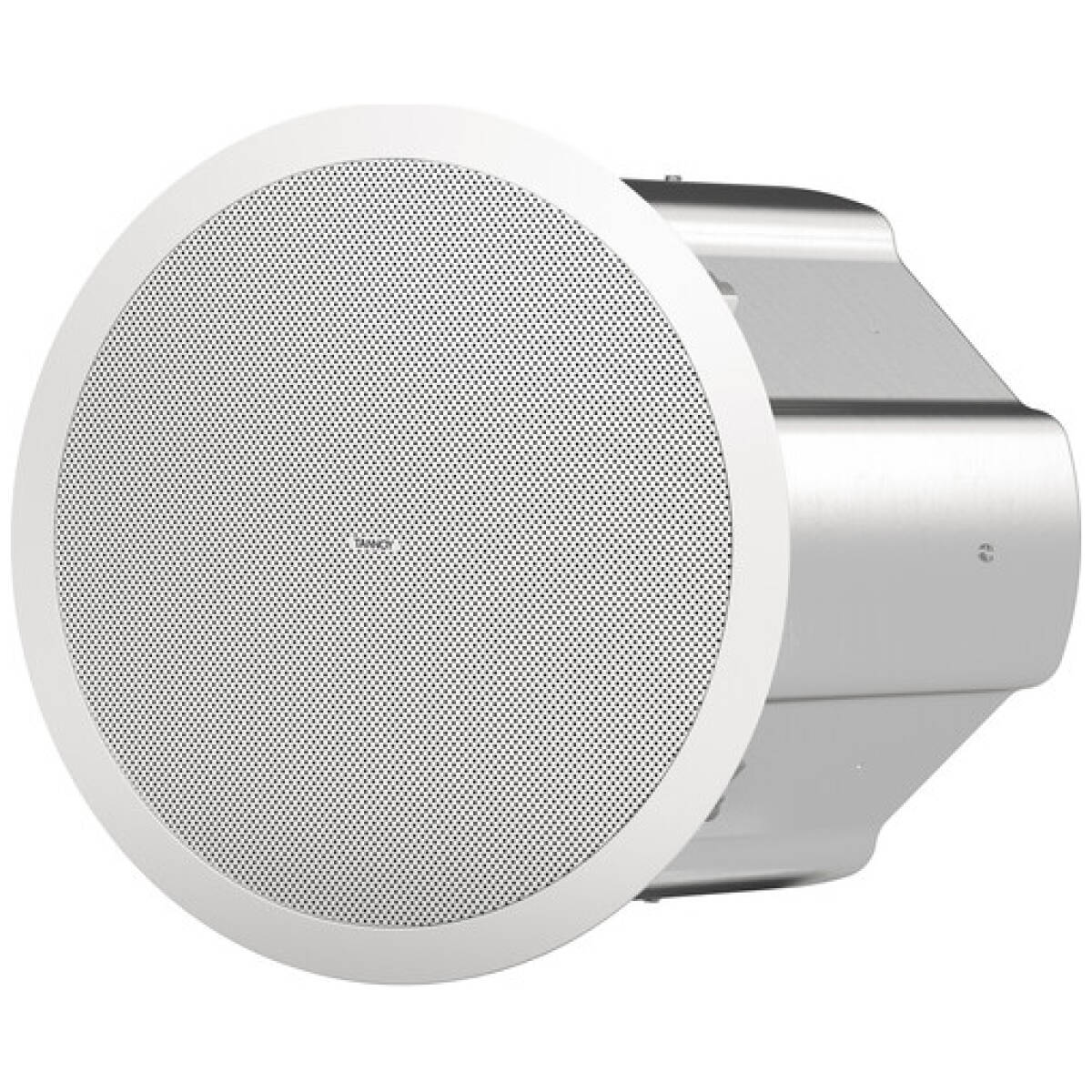

The CVS 801S is a ceiling subwoofer engineered to provide superb audio performance in both background and foreground music sound systems. Ideally suited for a wide variety of applications, from restaurants and hotels to houses of worship and businesses of all types, the CVS 801S offers the power handling, extended bass output and low distortion typically found in more expensive products. UL 1480 certification for fire-protected signalling systems and UL 2043 for air-handling spaces make the CVS 801S the perfect choice where safety is a top priority.
Product Features
- Ceiling subwoofer loudspeaker for installation applications
- 100 Watts continuous, 400 Watts peak power
- 8″ polypropylene long-excursion driver with butyl rubber surround for enhanced durability and long-term reliability
- Extended deep bass output
- UL 1480 certified for fire-protected signalling systems
- UL 2043 certified for air-handling spaces

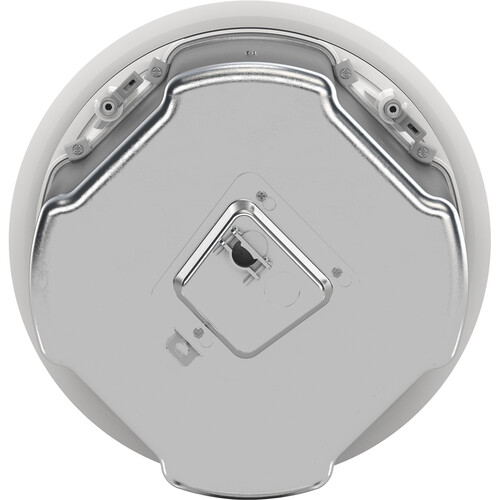

- UV and weather-resistant UL 94 V-0 ABS front with plated steel fire can enclosure

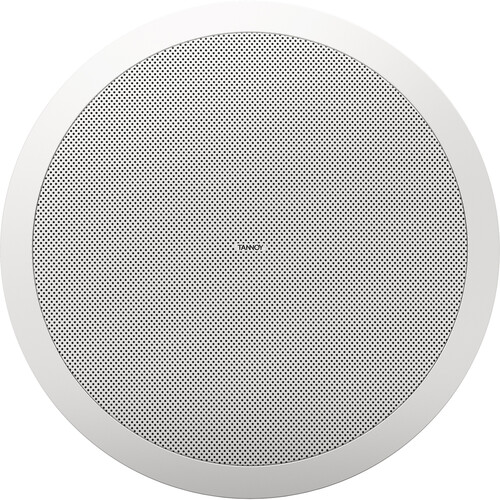

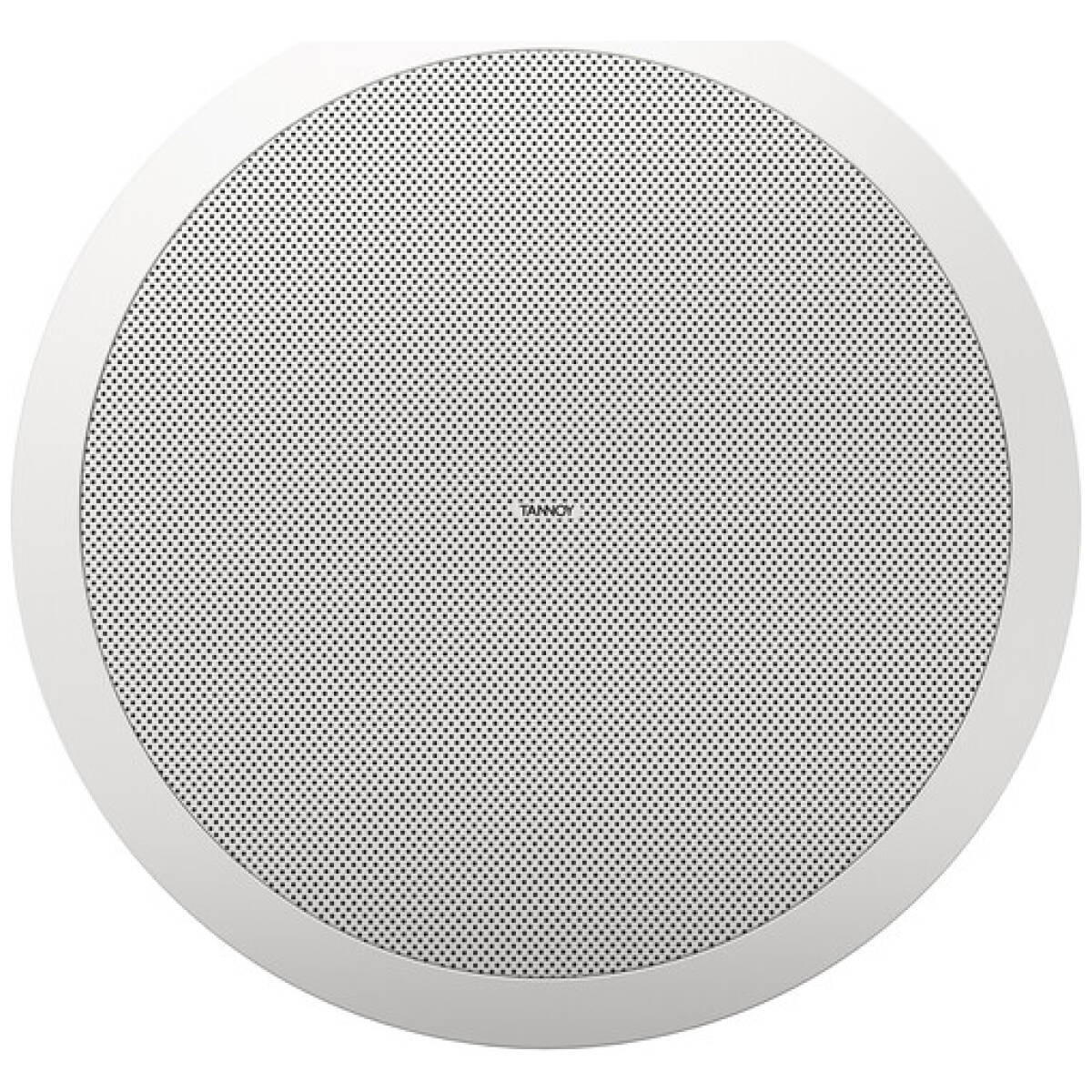

- Powder-coated aluminum mesh grille with dust protection
- Multiple transformer taps for 70 V and 100 V line systems or 8 Ohm direct input
- Low insertion loss 80 W line transformer with easily accessible tapping switch

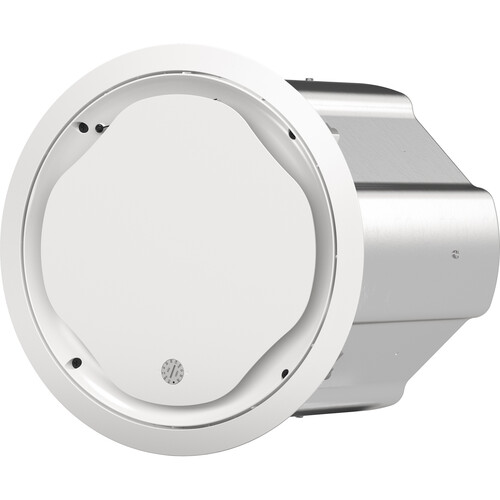

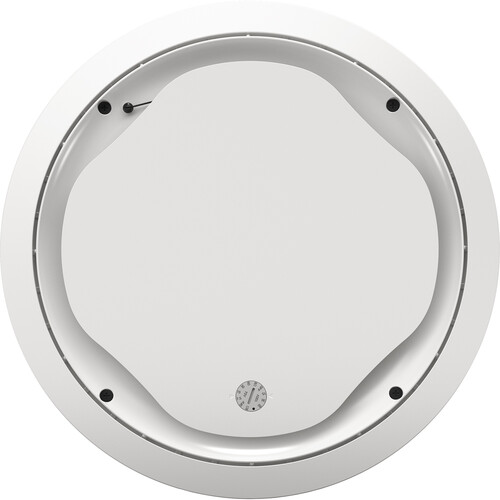

- Acoustic low-pass baffle design allows use without crossover
- Semi-matte white finish fits unobtrusively in any environment
- Mounting C-ring and ceiling tile rails included

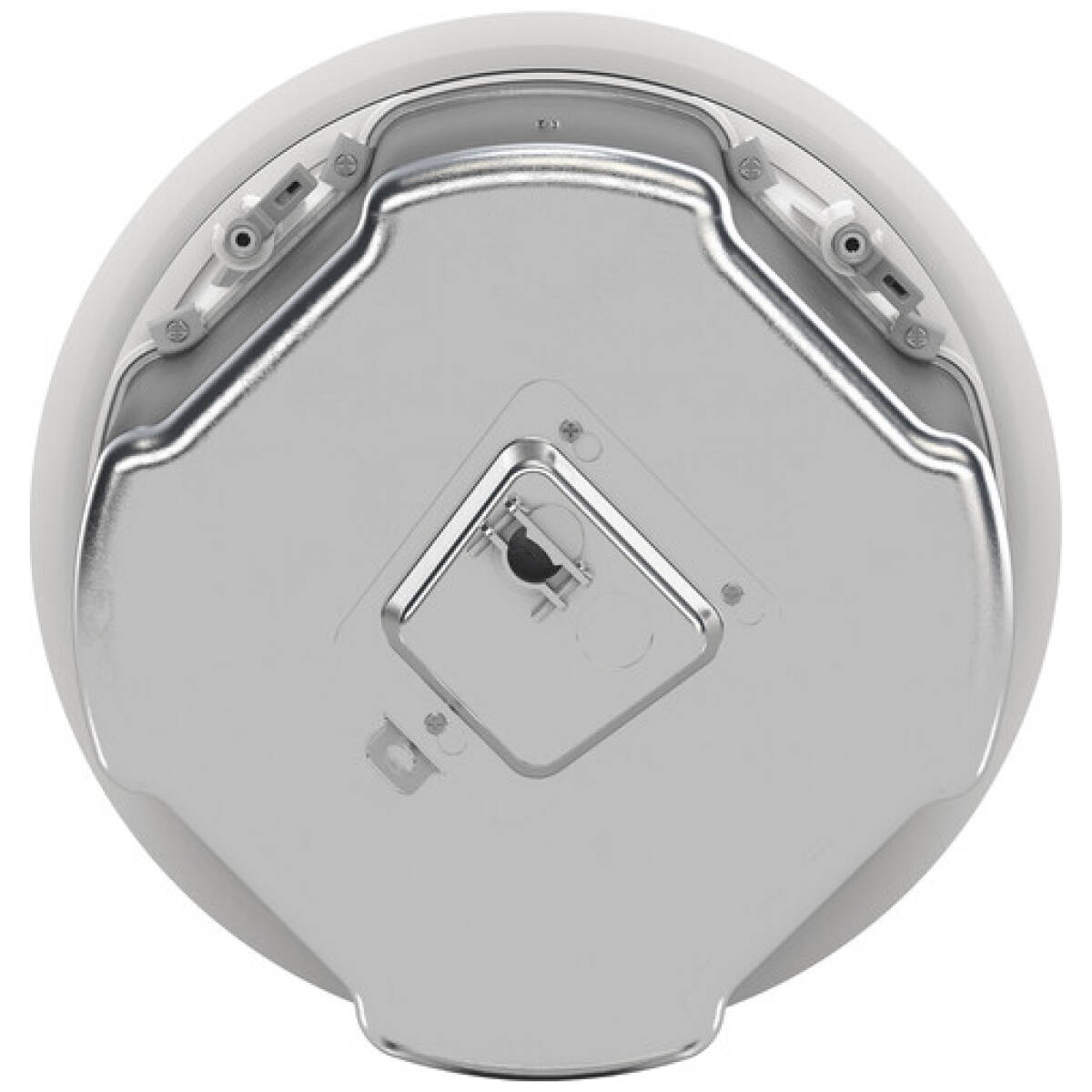

- Steel cover and strain relief clamping mechanism for fire-rated cable
| Feature | Specification |
|---|---|
| Driver Size | 8″ (200 mm) polypropylene with butyl surround |
| Power Handling | 100 W continuous / 200 W programme / 400 W peak |
| Frequency Response | ±3 dB: 66–200 Hz · –10 dB: down to 53 Hz |
| Sensitivity | 92 dB @ 1 W / 1 m |
| Impedance Options | 8 Ω low‑impedance or 70 V / 100 V taps |
| SPL (Max) | ~115 dB (average), up to ~118 dB peak |
| Certifications | UL 1480, UL 2043 |
| Installation Package | Fire‑rated enclosure, tile rails, C‑ring, connectors |
| Dimensions (Cutout) | ~273 mm hole; ~305 mm bezel; ~300–317 mm depth |
| Weight | ~7 kg (±10%) |
