Product Features
- Full range surface-mount loudspeaker for indoor and outdoor installation applications
- 30 Watts continuous, 120 Watts peak power

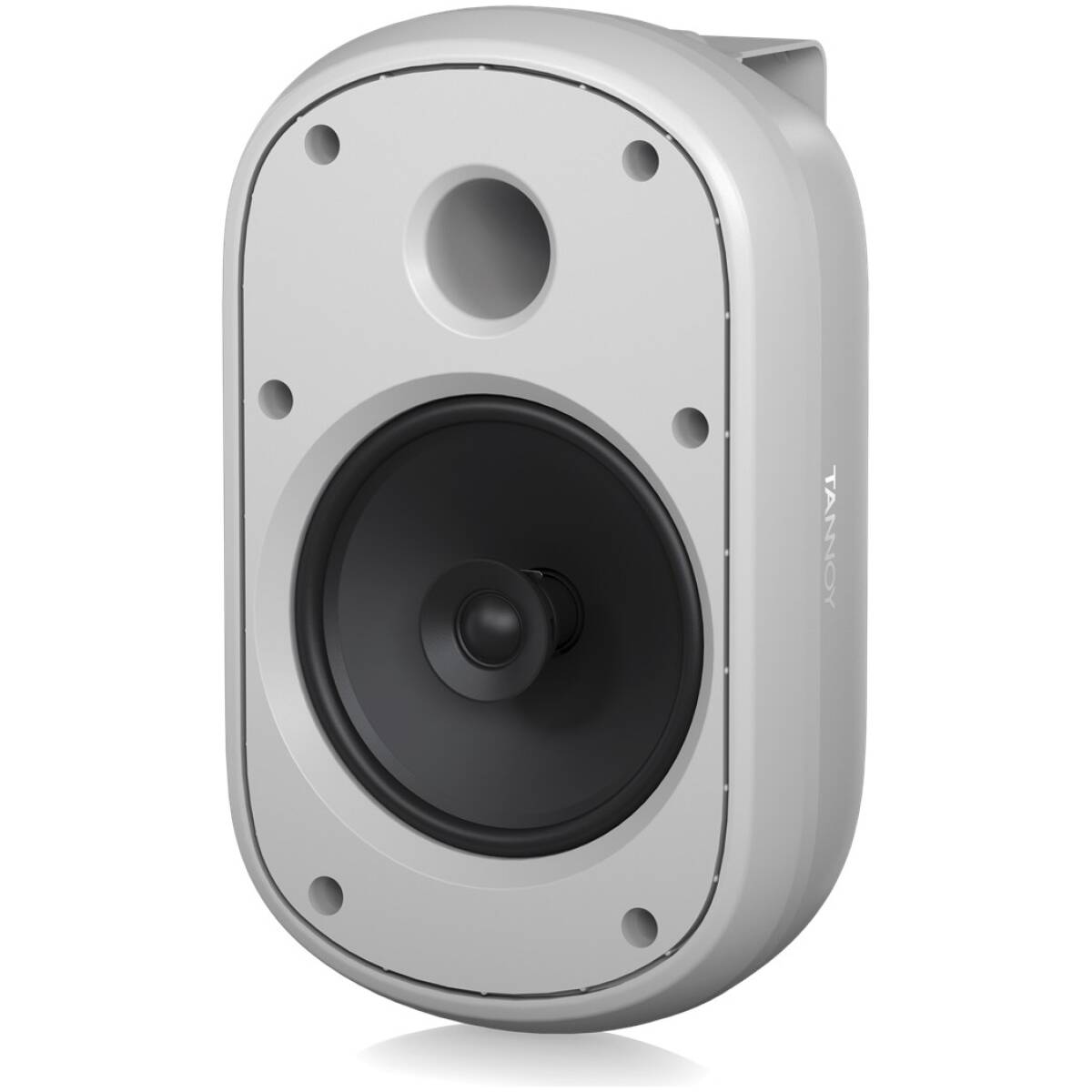

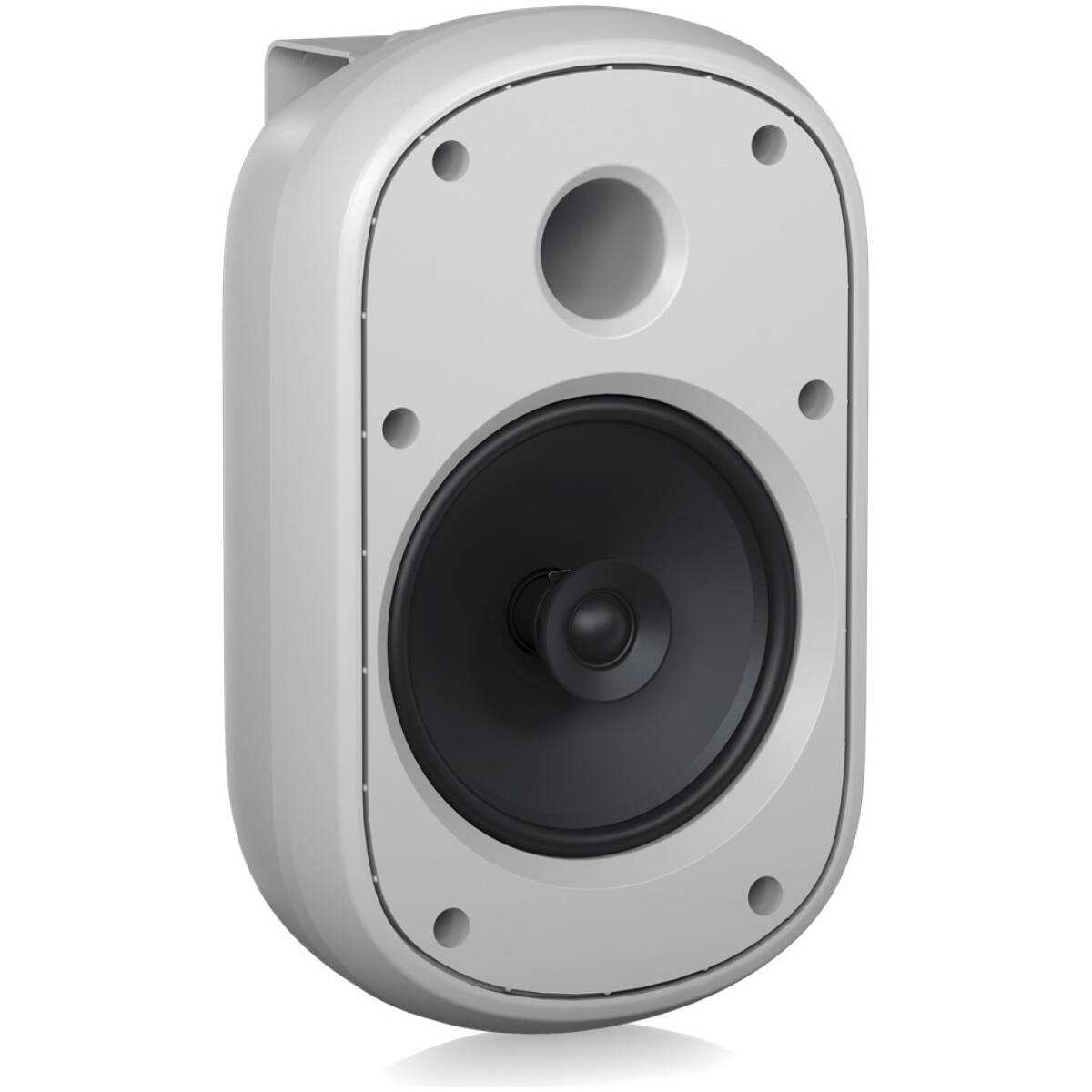

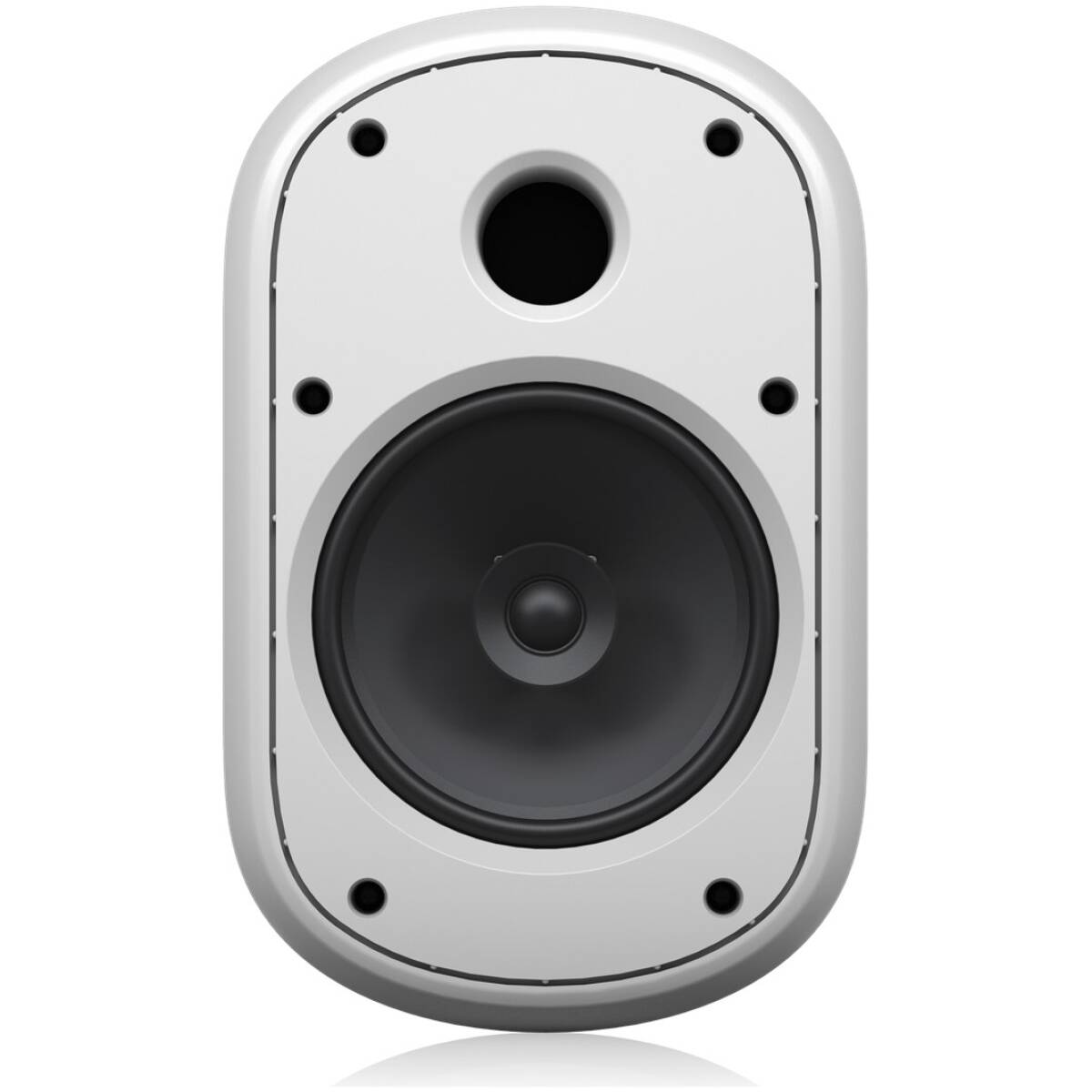

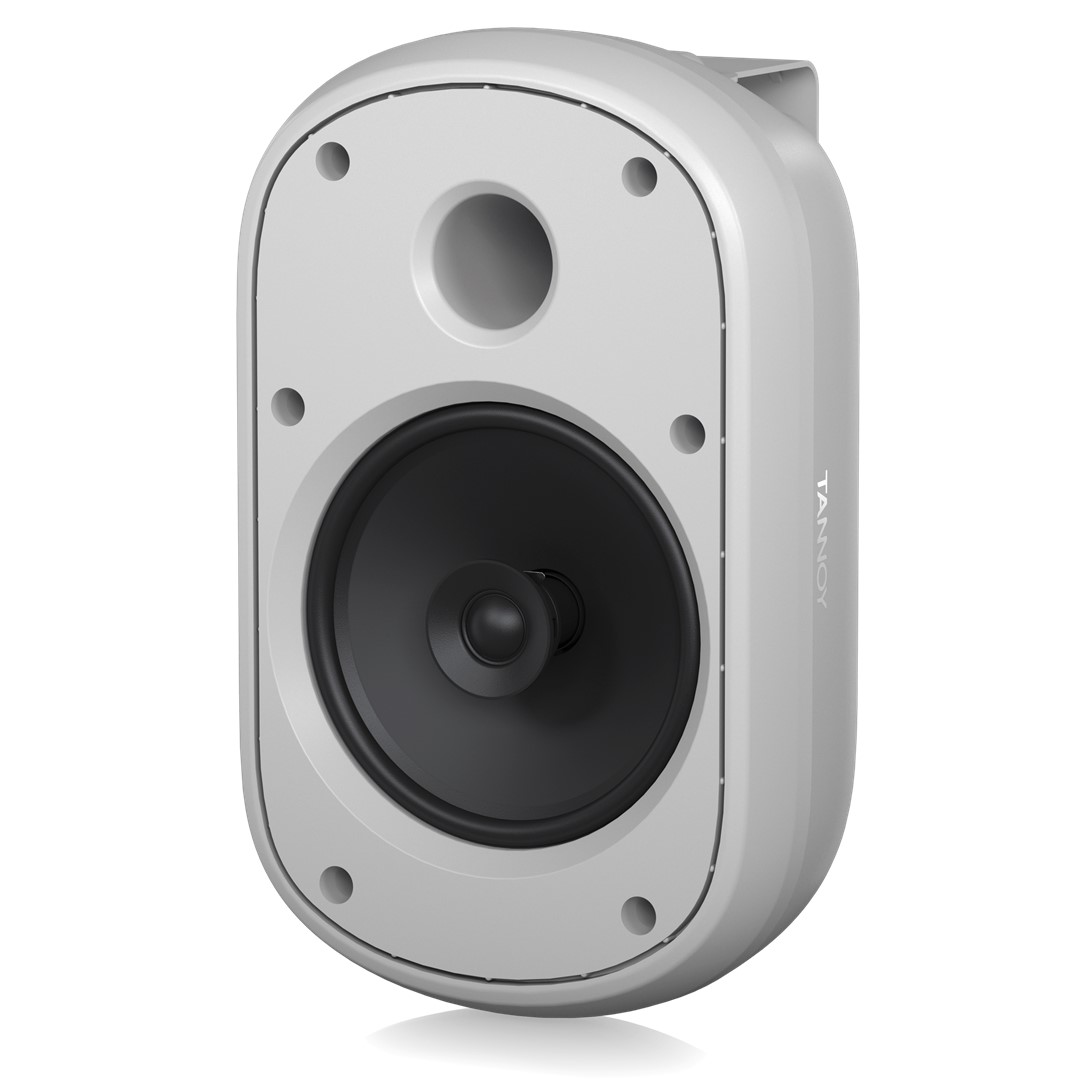

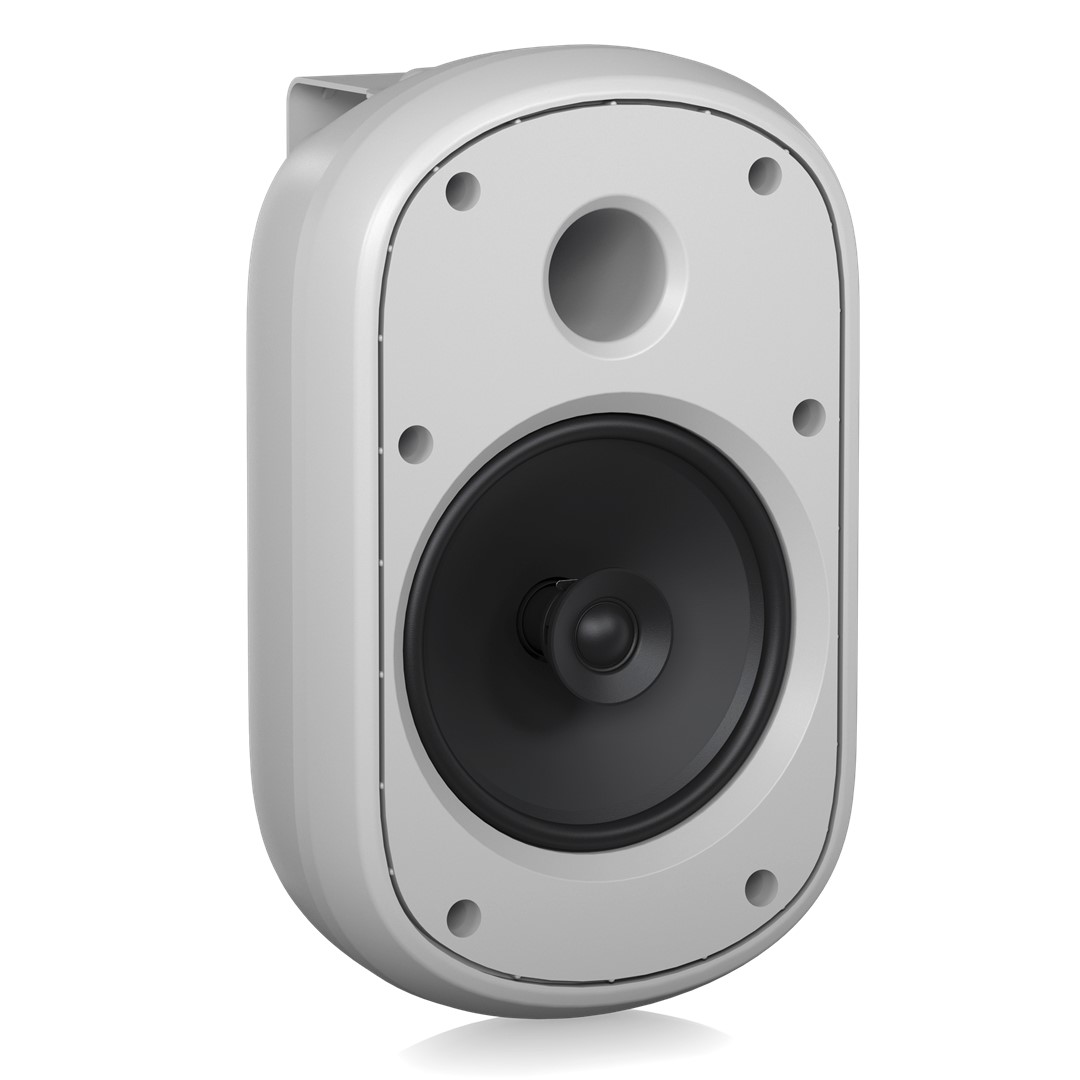

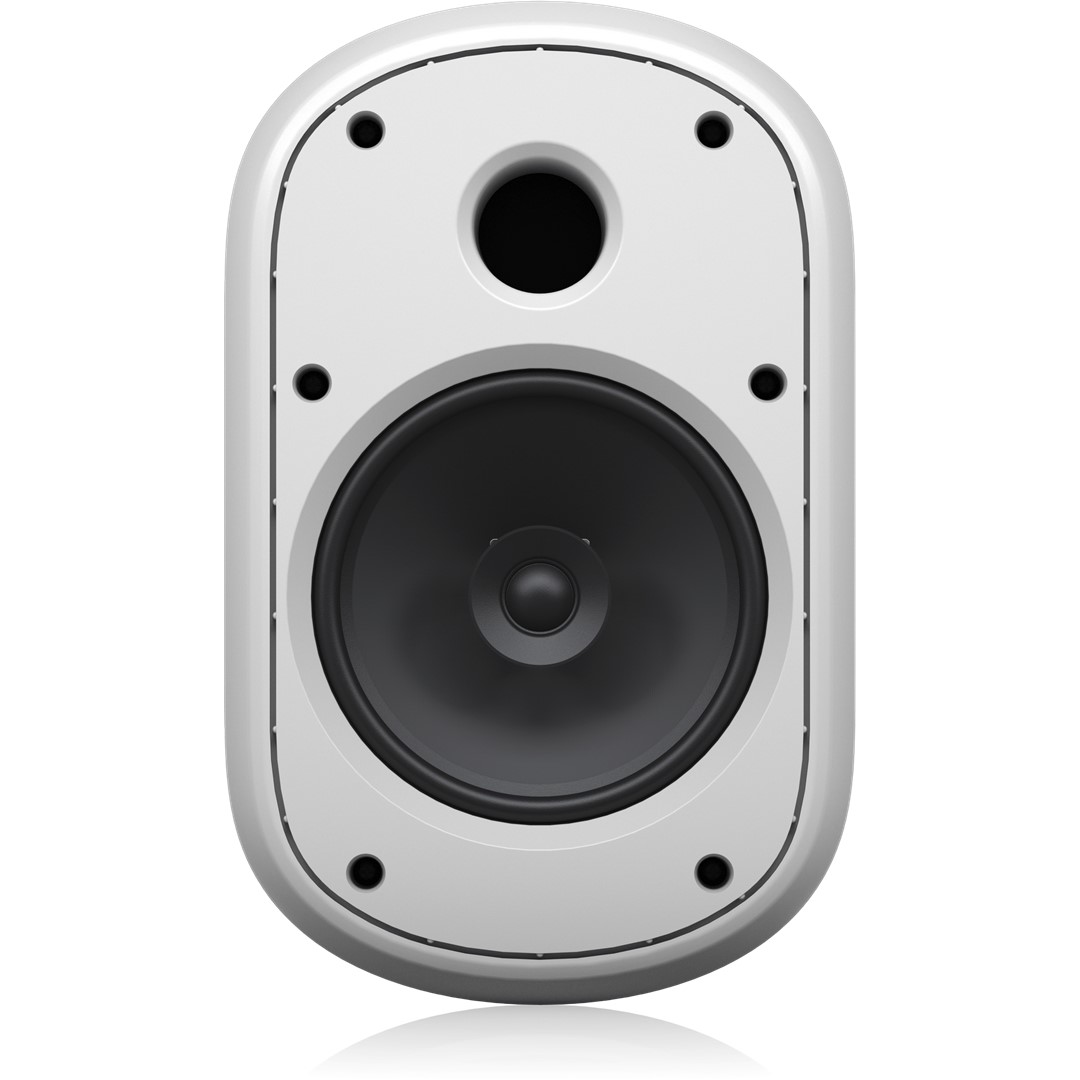

- 6.5″ paper cone, coated driver with butyl rubber surround for enhanced durability and long-term reliability
- 0.79″ ferrofluid-cooled soft dome neodymium high-frequency driver
- 90° constant directivity dispersion for optimum coverage
- EN54-24:2008 certified Type A
- UL 1480 certified for general signalling systems
- UV and weather resistant UL 94 V-0 ABS enclosure
- Multiple transformer taps for 70 V and 100 V line systems

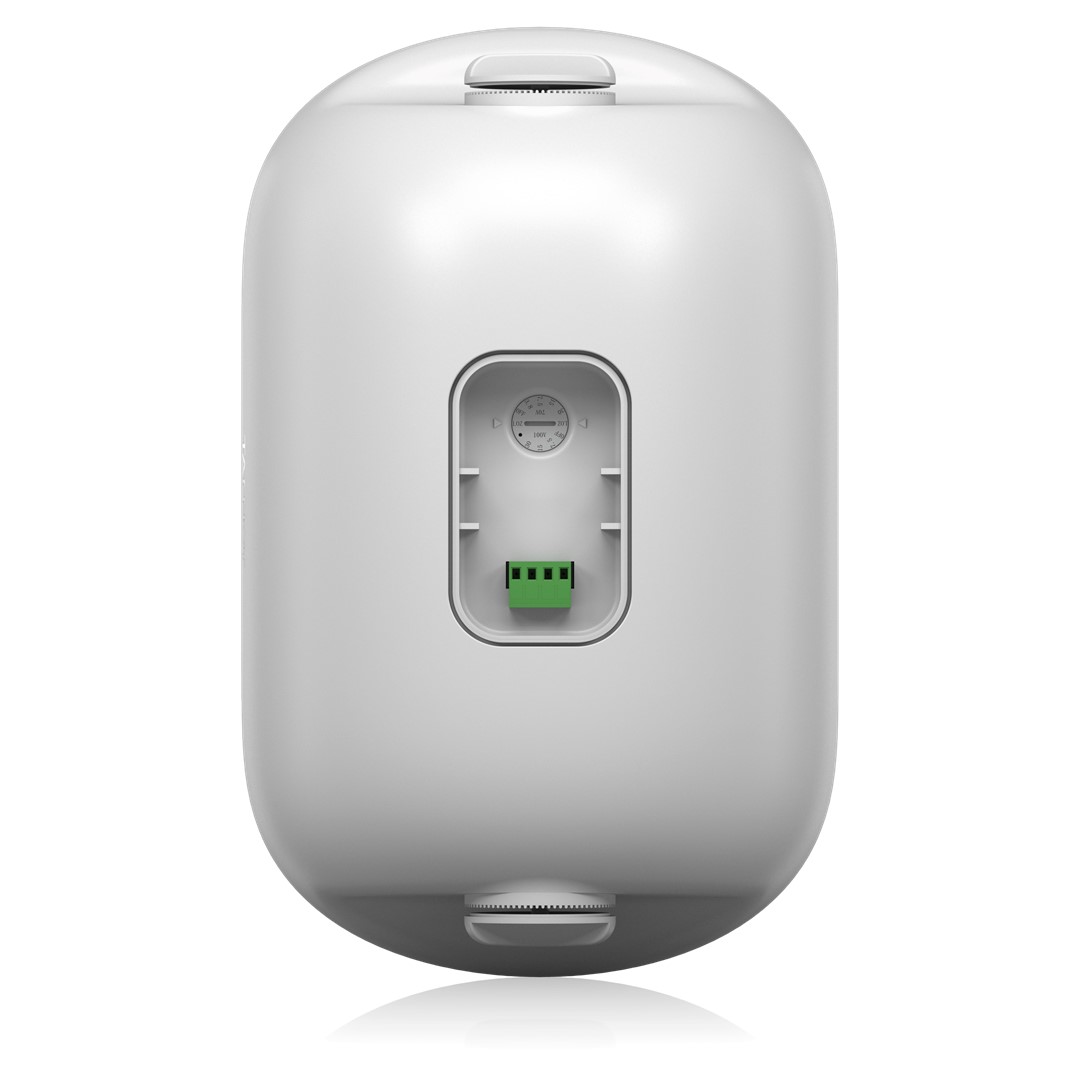

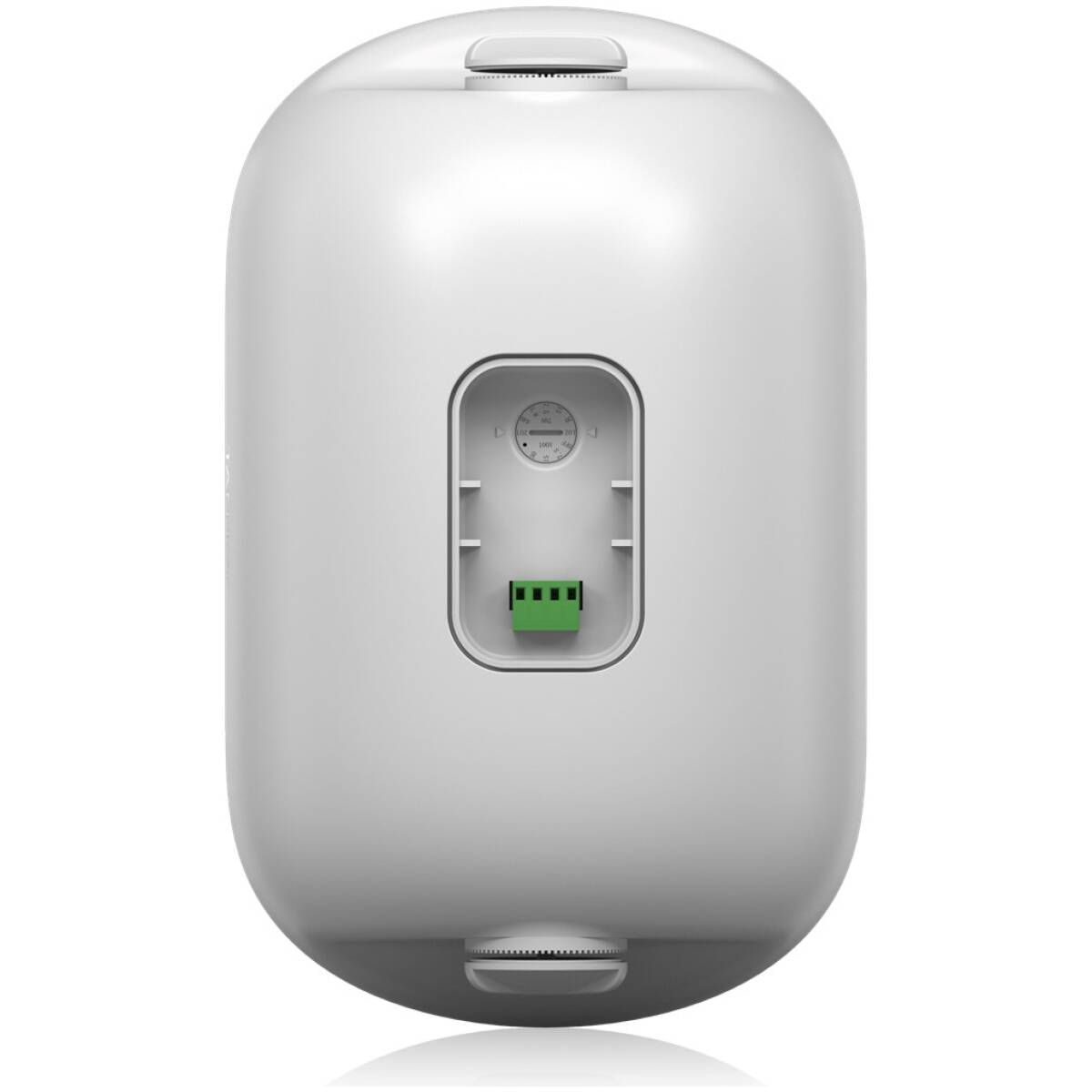

- Low insertion loss 30 W line transformer with easily accessible tapping switch
- All components weather resistant to IP64 for outdoor use

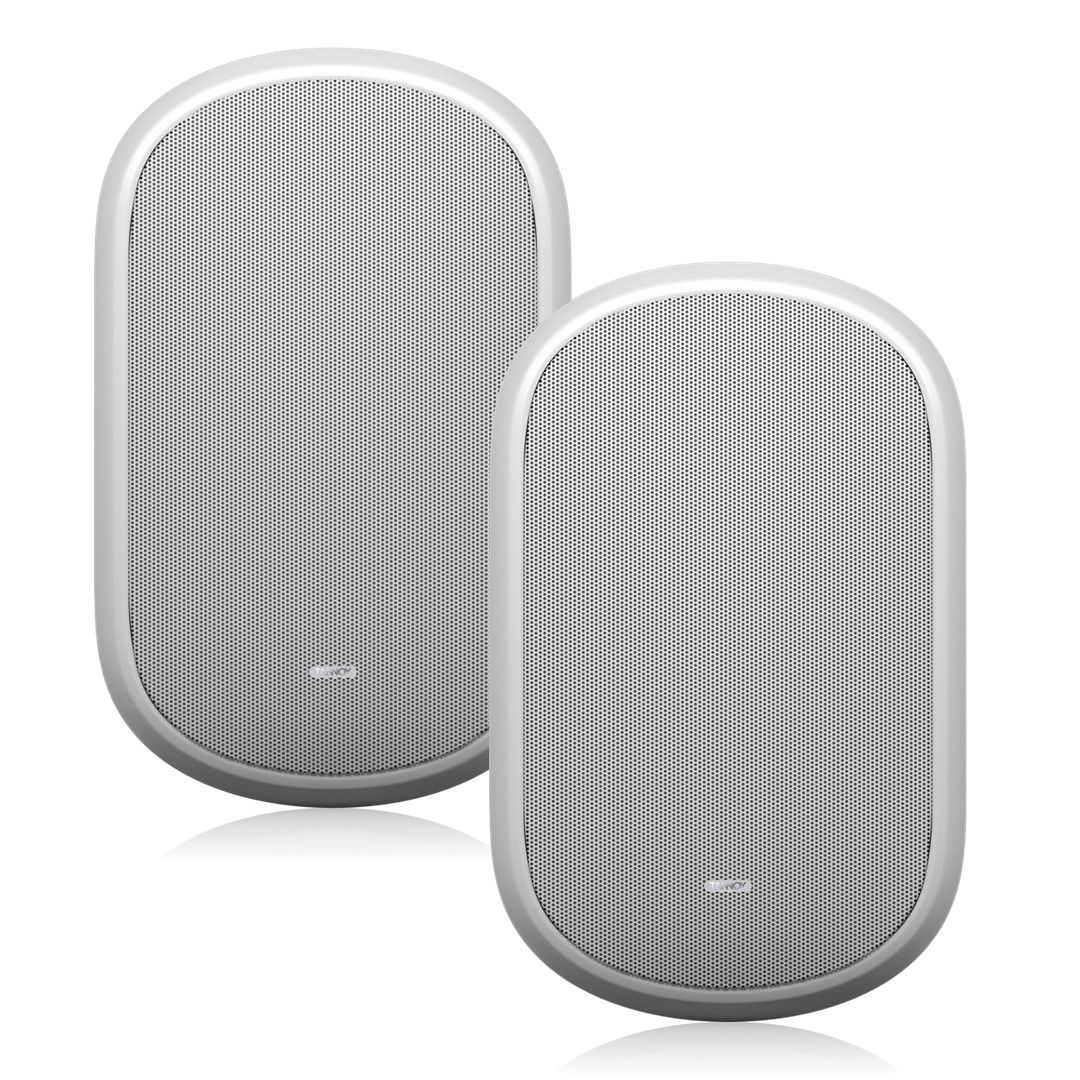

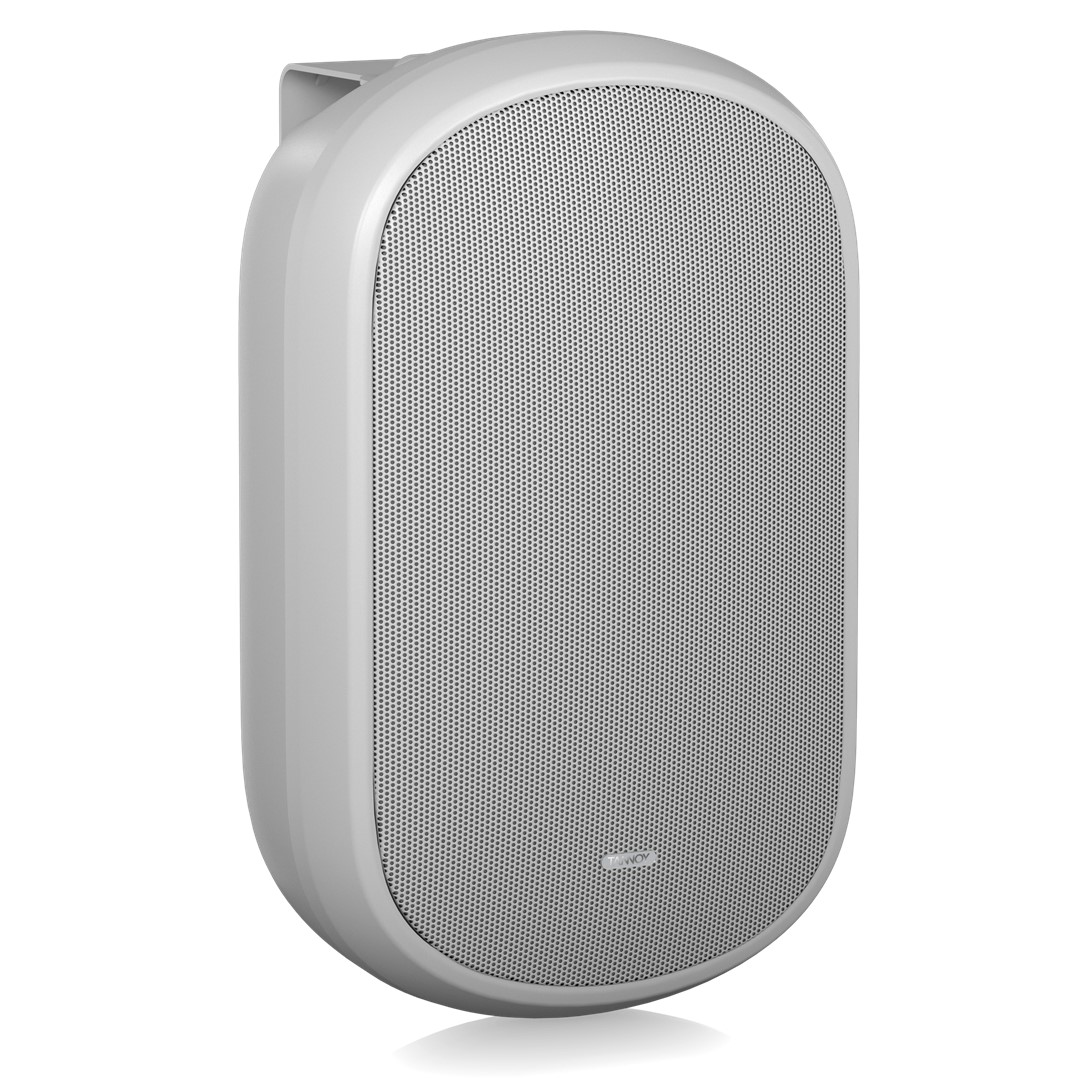

- Stylish durable enclosure in a semi matt white paint finish fits unobtrusively in any environment

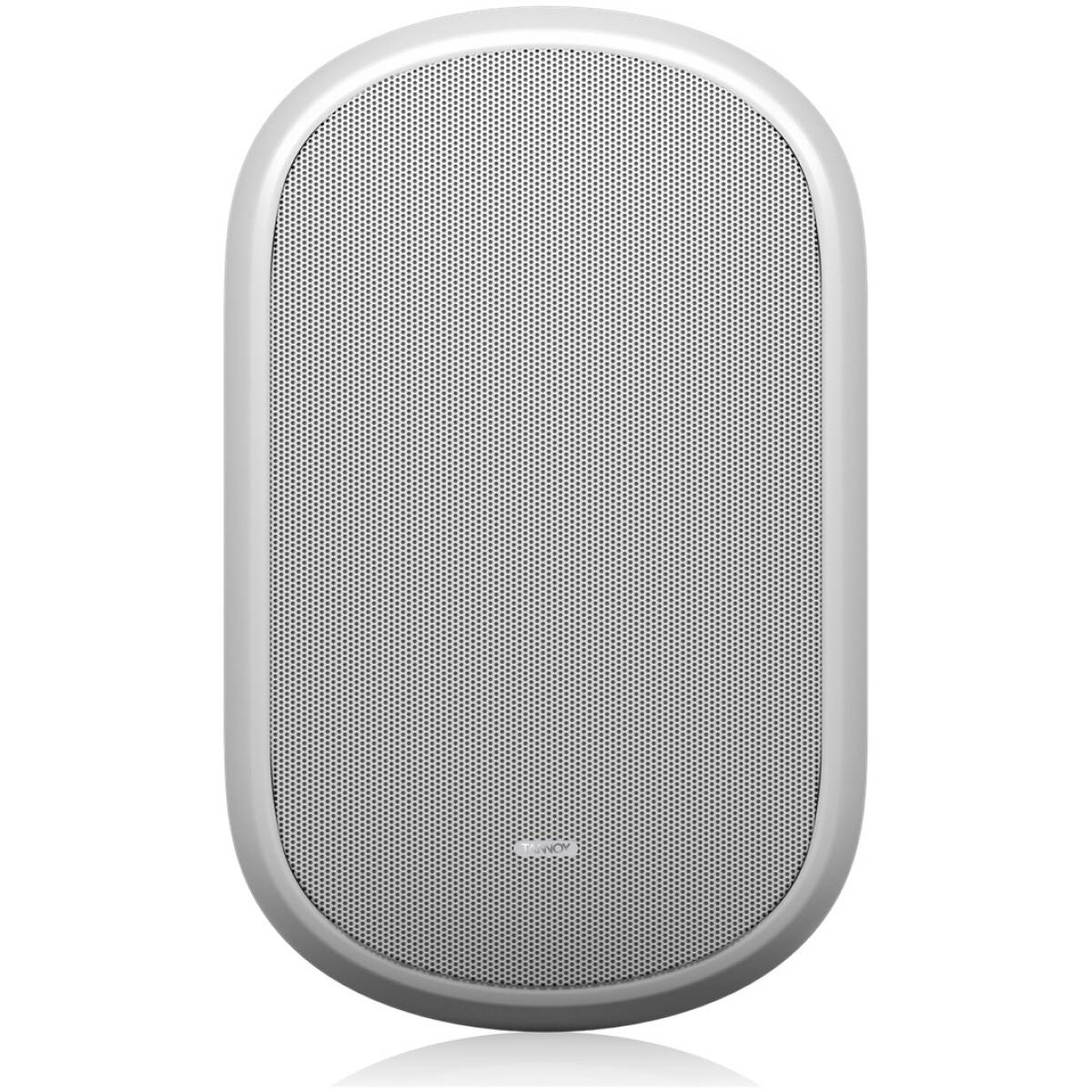

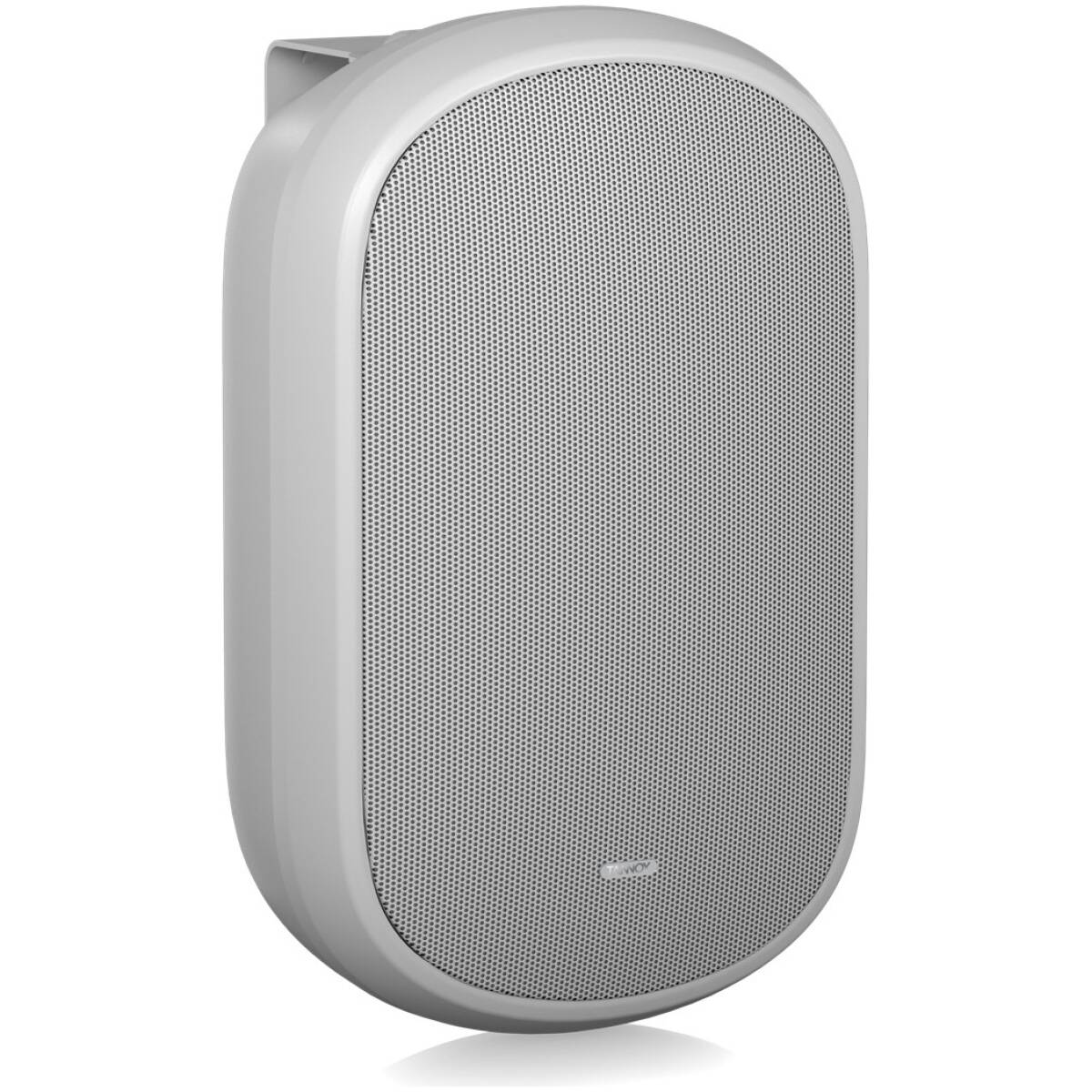

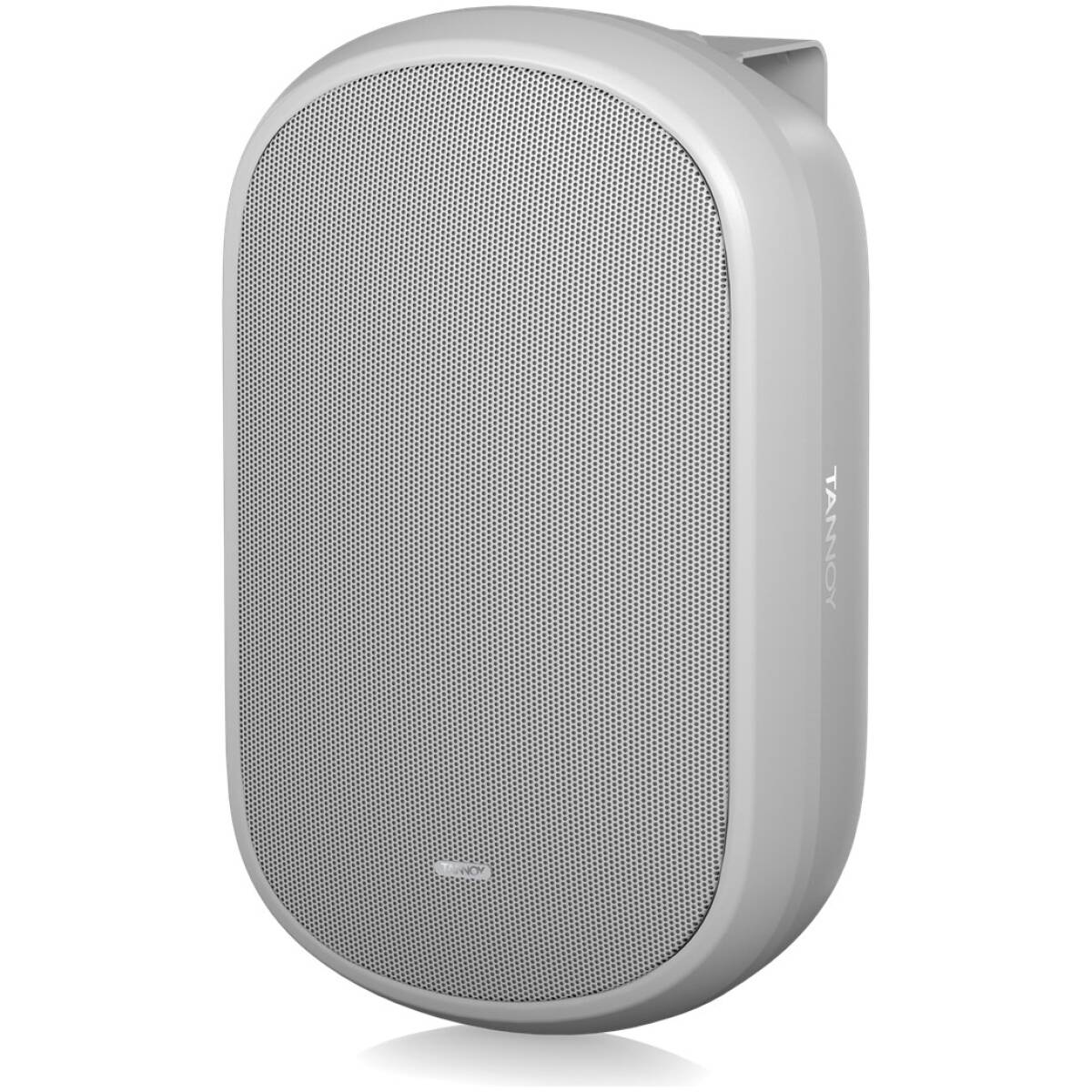

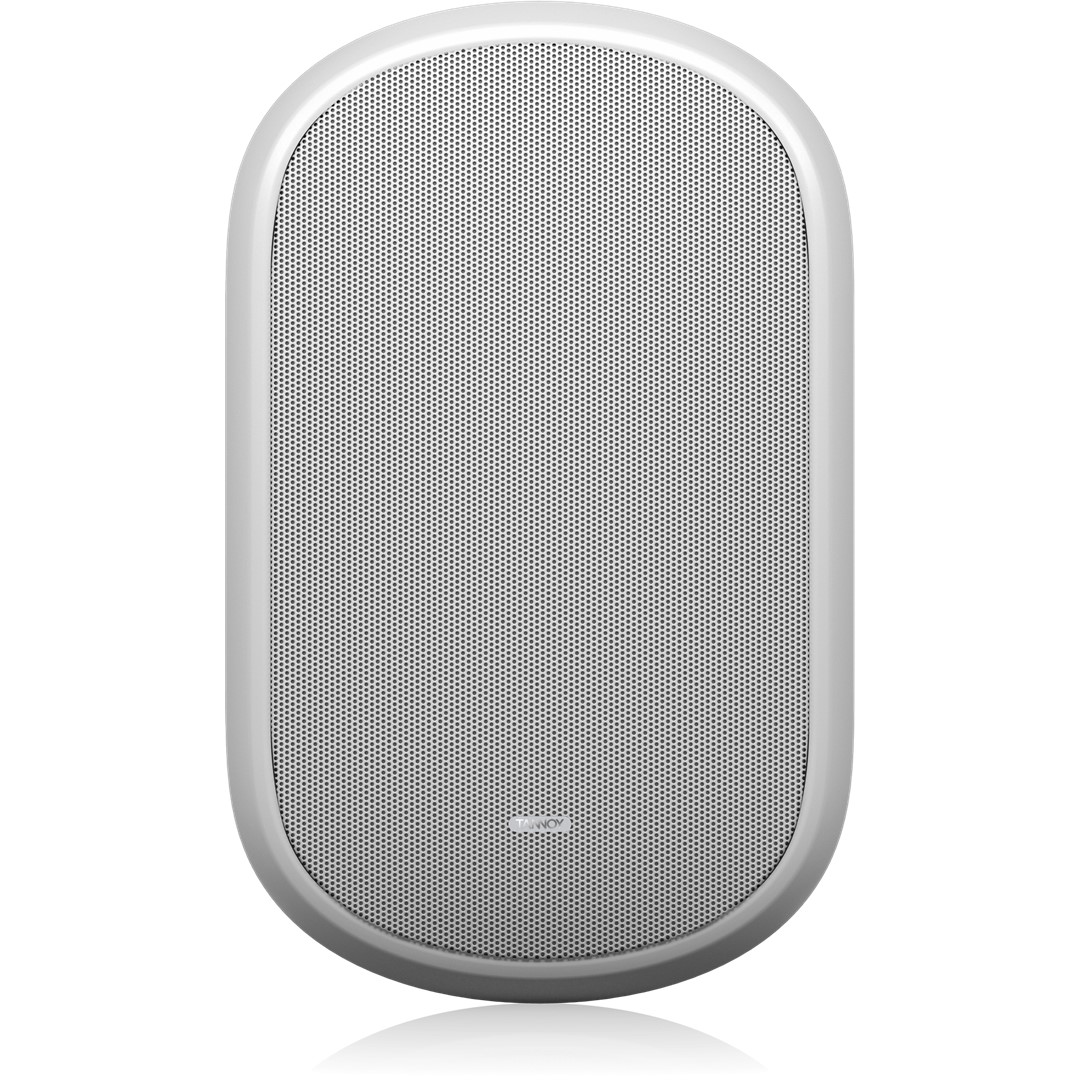

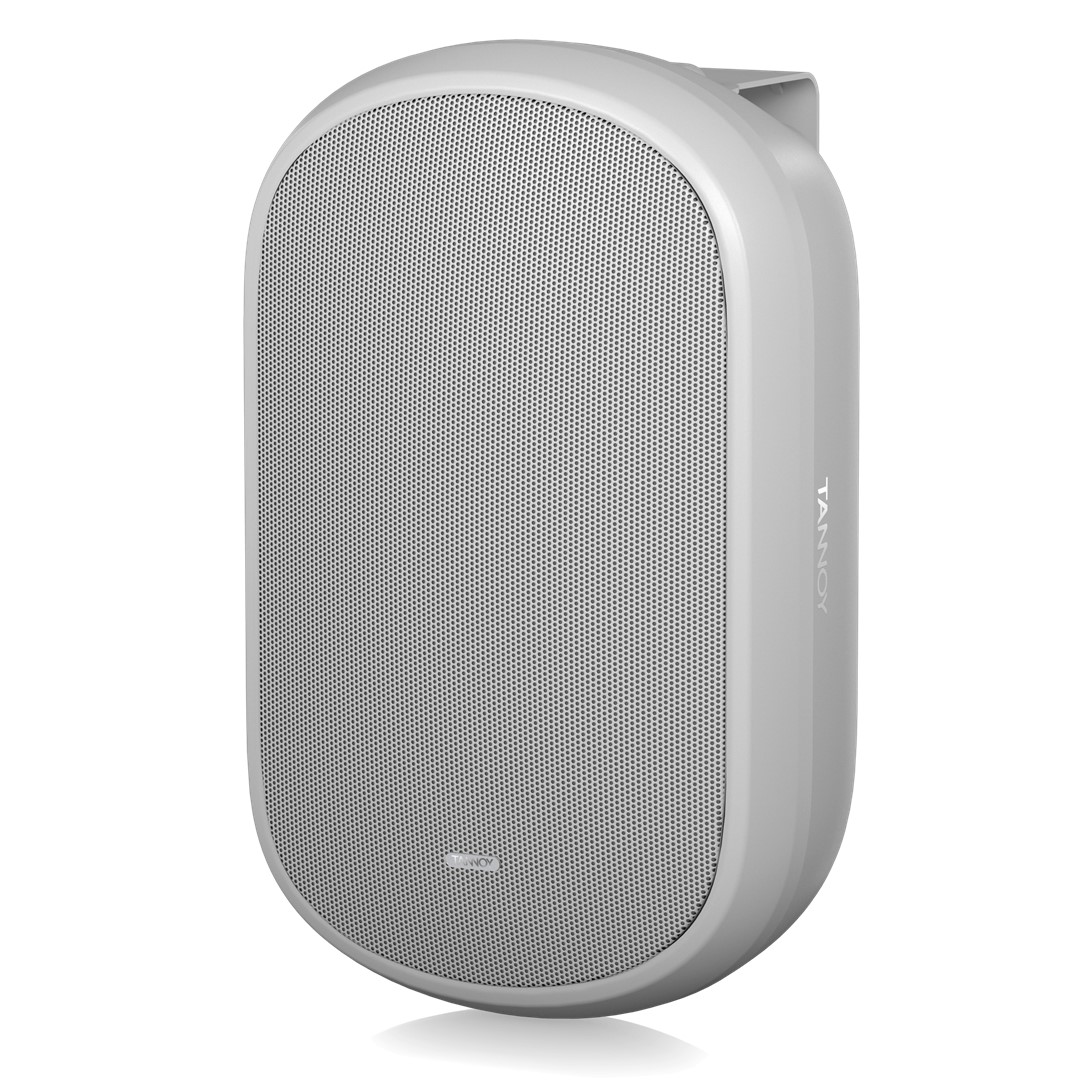

- Painted perforated aluminium mesh grille with dust protection

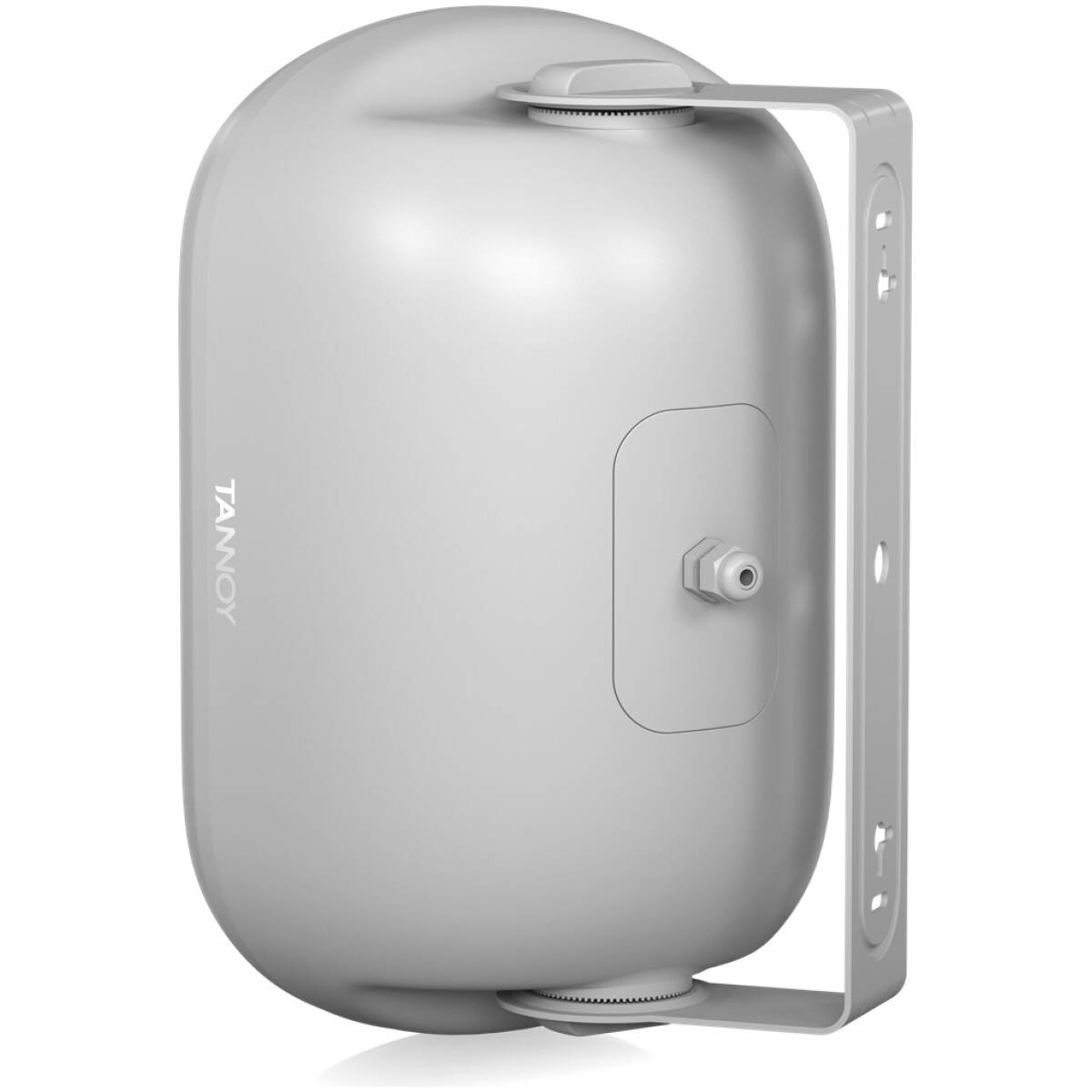

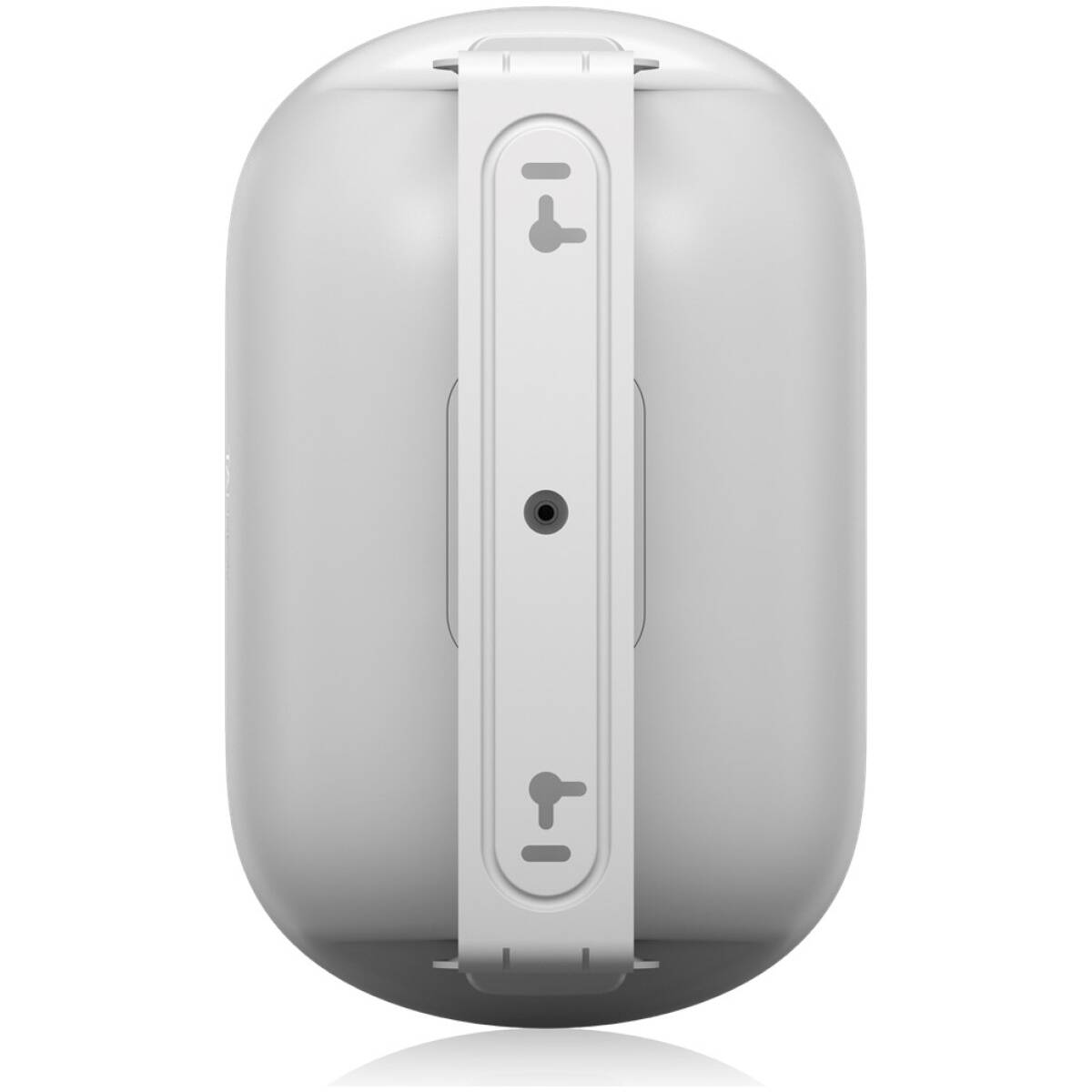

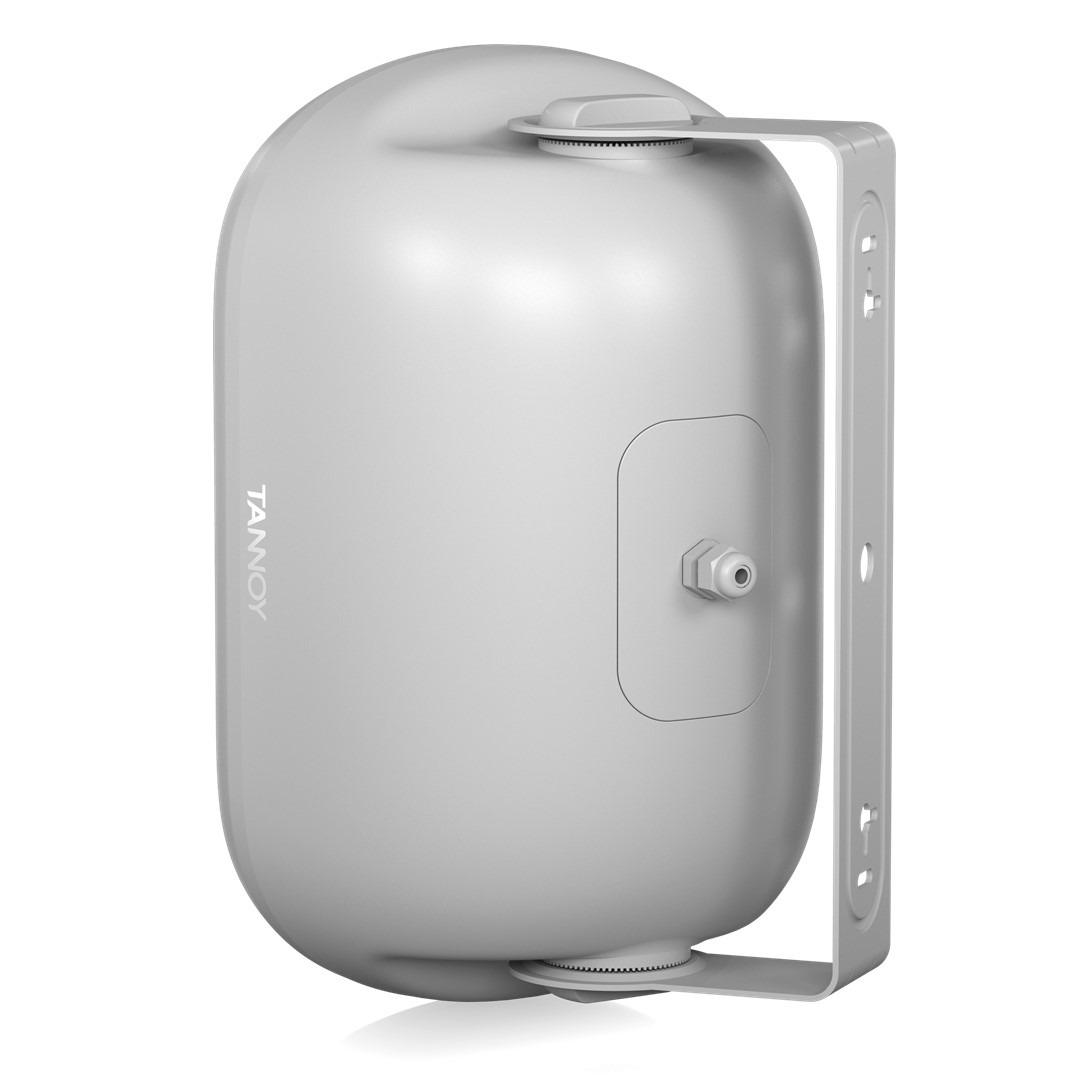

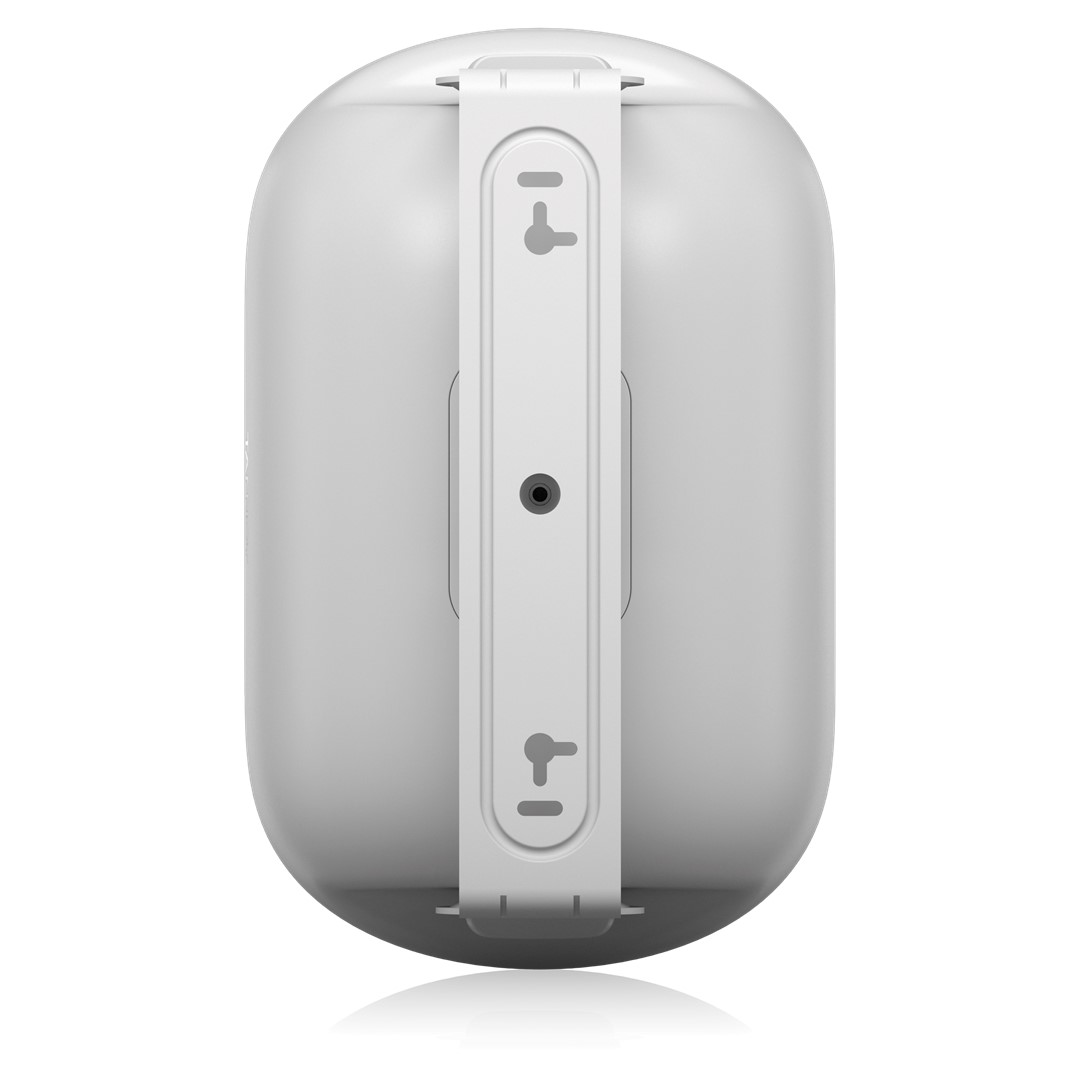

- Yoke bracket included for ease of installation
- Phoenix connectors for input and link output
Performance
| Frequency response (-3 dB) | 90 Hz – 20 kHz |
| Frequency response (-10 dB) | 80 Hz – 20 kHz |
| System sensitivity (1 W @ 1 m) | 86 ± 2 dB |
| Dispersion (-6 dB) | 90 degrees conical averaged 1 kHz – 10 kHz |
| Transducers | Coaxial |
| Low frequency | 165mm (6.5″) paper cone with coating |
| High frequency | 20 mm (0.79′) |
| Crossover | 3500 Hz ± 10% |
| Directivity (Q) | 4.9 averaged 1 kHz to 10 kHz |
| Directivity (DI) | 6.7 averaged 1 kHz to 10 kHz |
| Rated maximum SPL | 100 dB (average) 106 dB (peak) |
Transformer
| Transformer taps | 70 V – 30 W / 15 W / 7.5 W / 3.8 W / OFF and LOZ low impedance operation
100 V – X / 30 W / 15 W / 7.5 W / OFF and LOZ low impedance operation |
| Maximum wire gauge for connector | 2.5 mm CSA (AWG12) |
| Safety Agency Ratings | UL 1480A, EN54-24:2008 |
Power Handling
| Average | 30 W |
| Programme | 60 W |
| Peak | 120 W |
| Recommended amplifier power | 60 W @ 8 Ohms |
| Nominal impedance | 8 Ohms |
