FEATURES

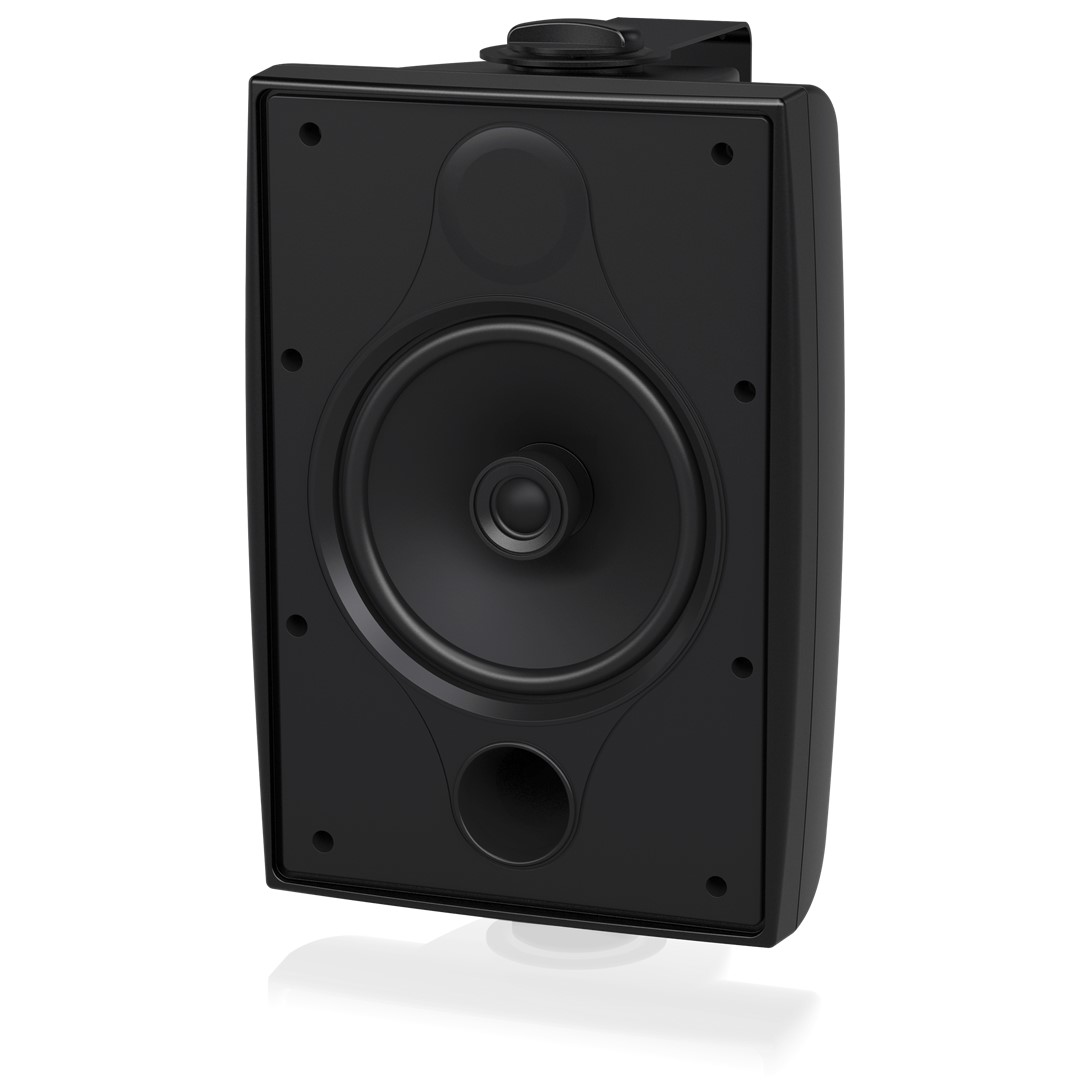

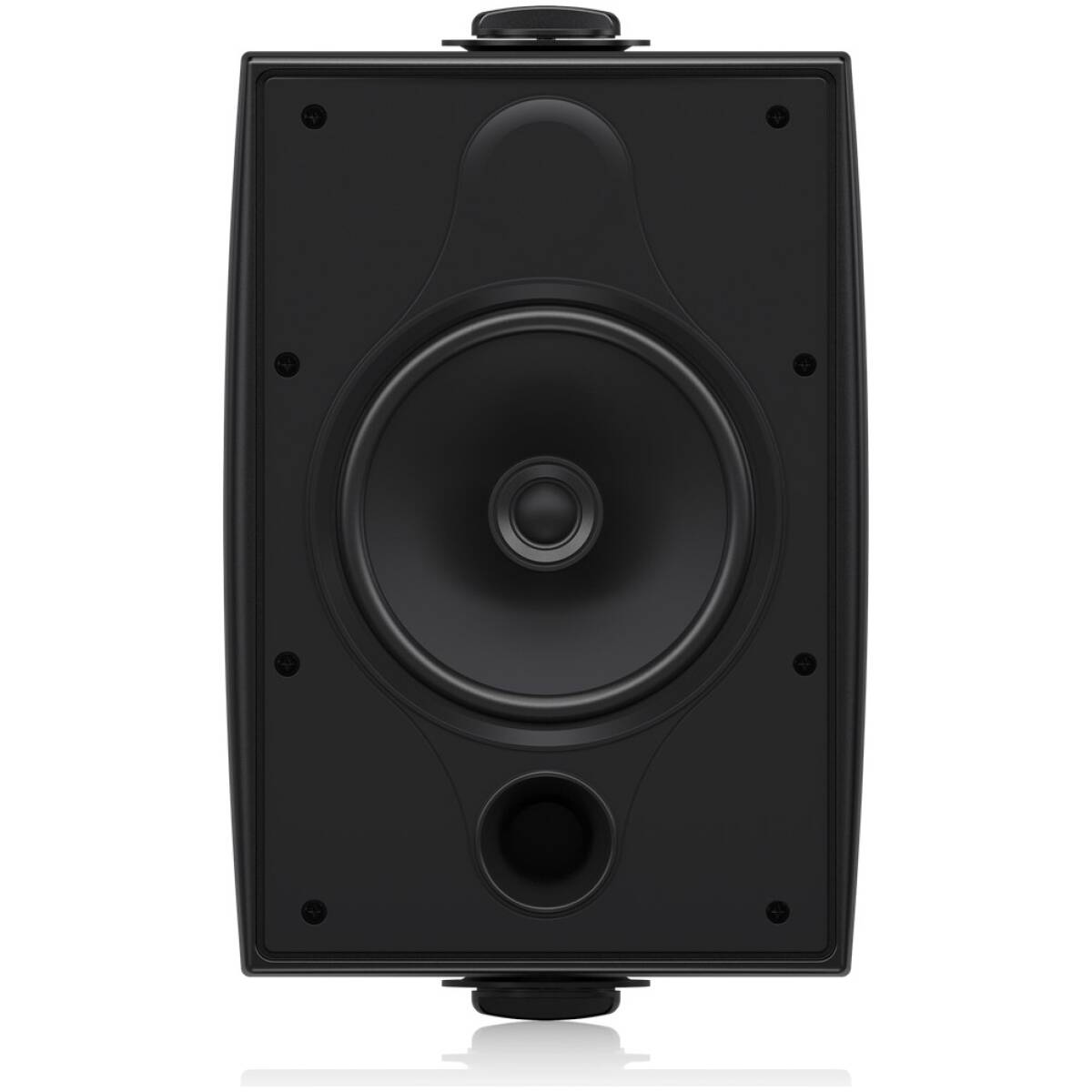

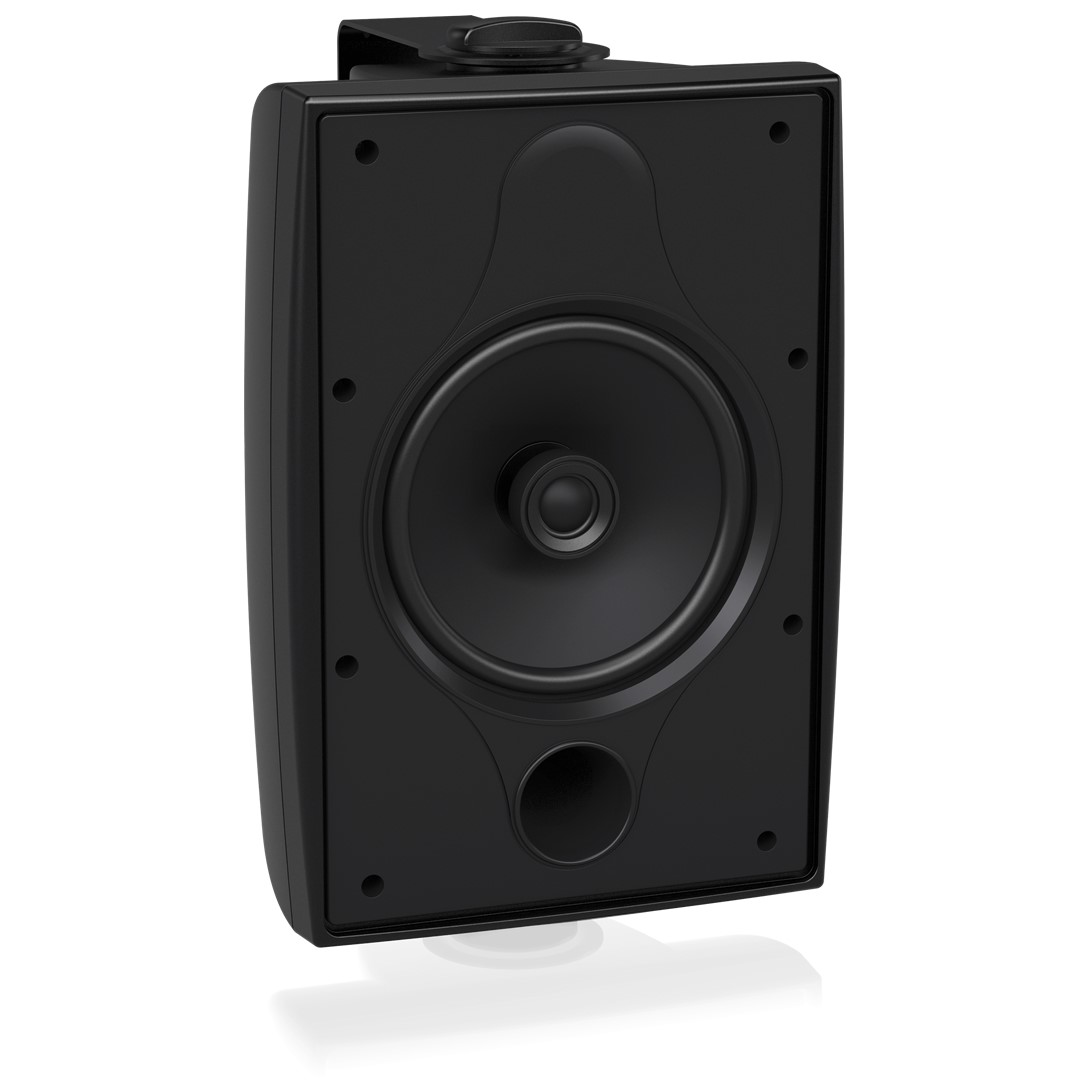

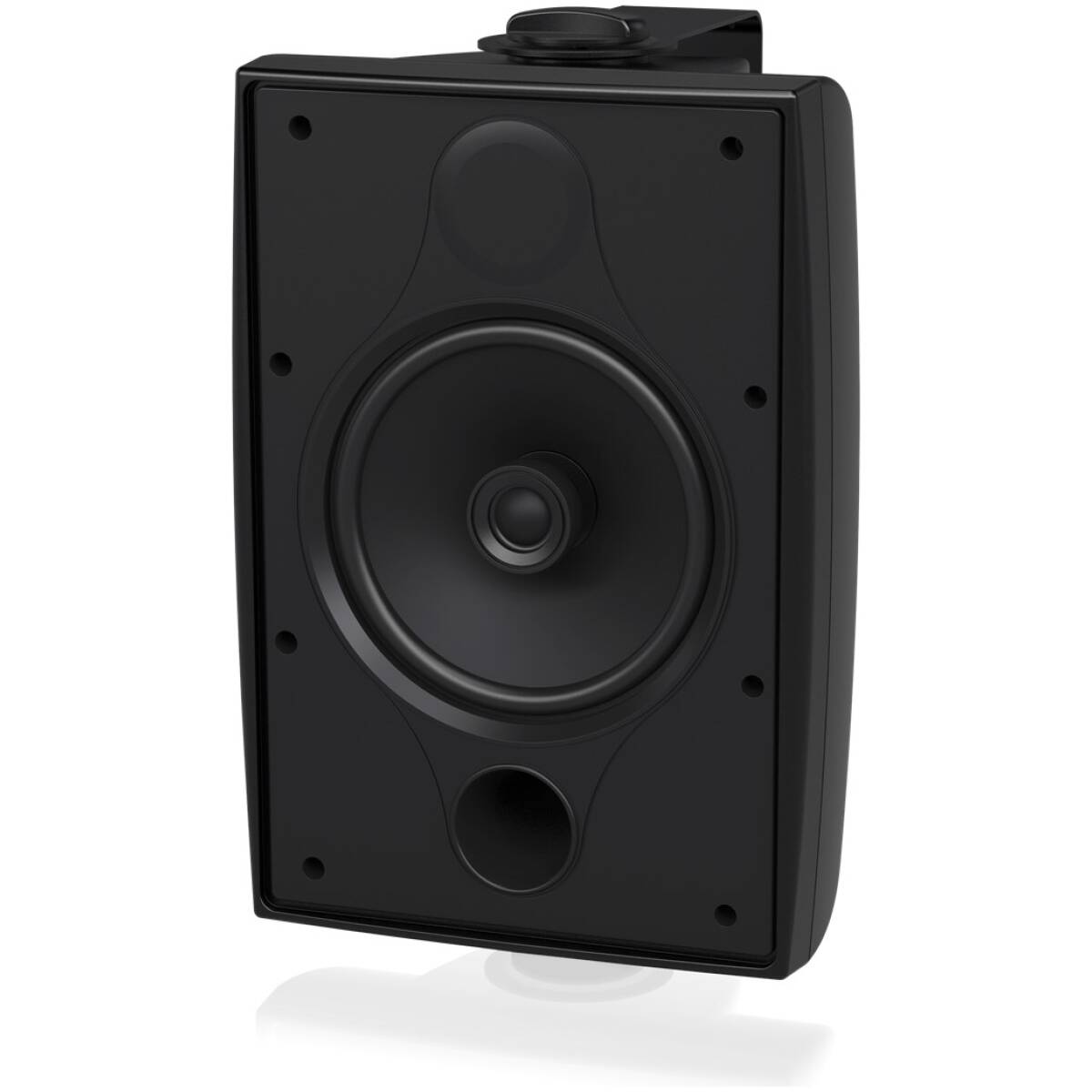

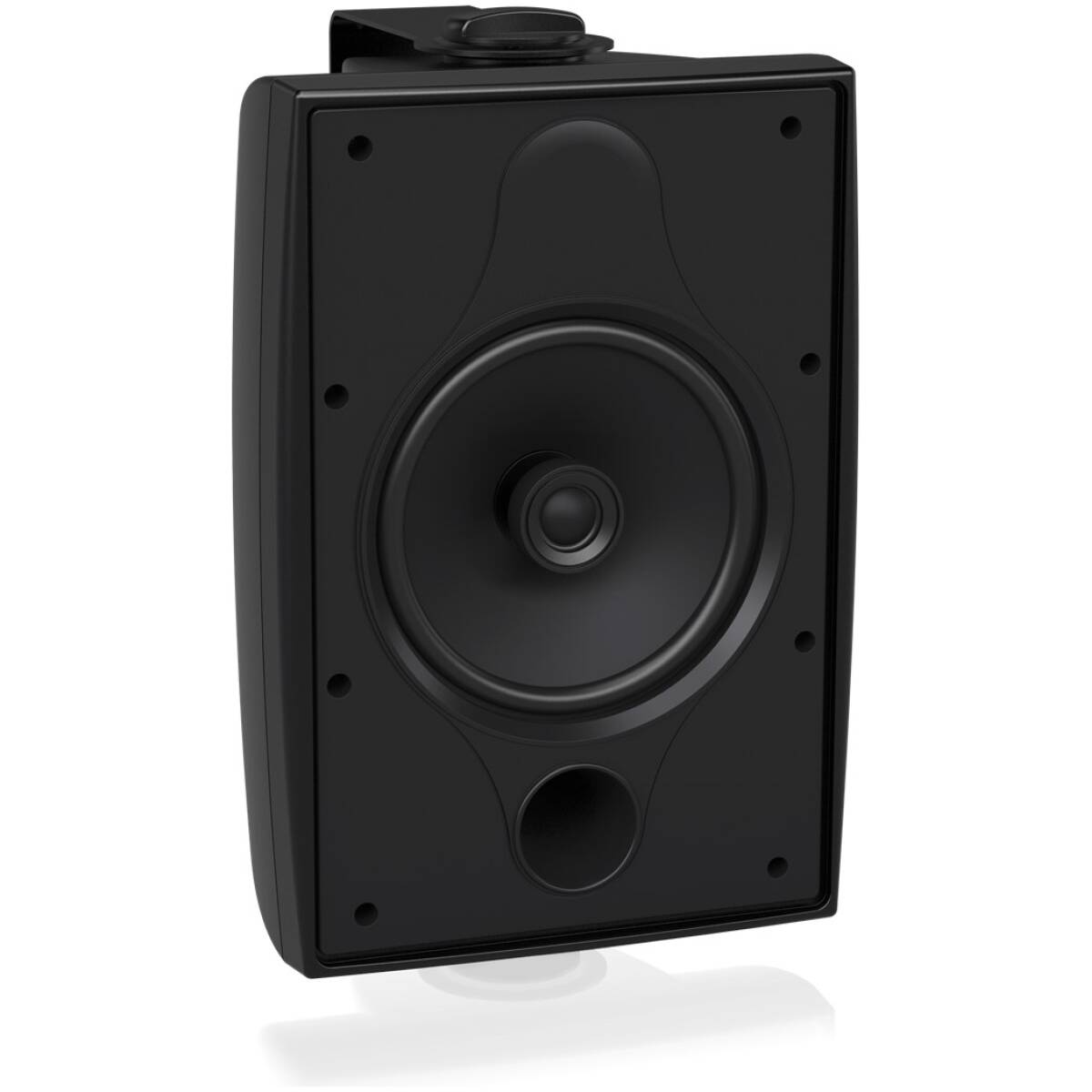

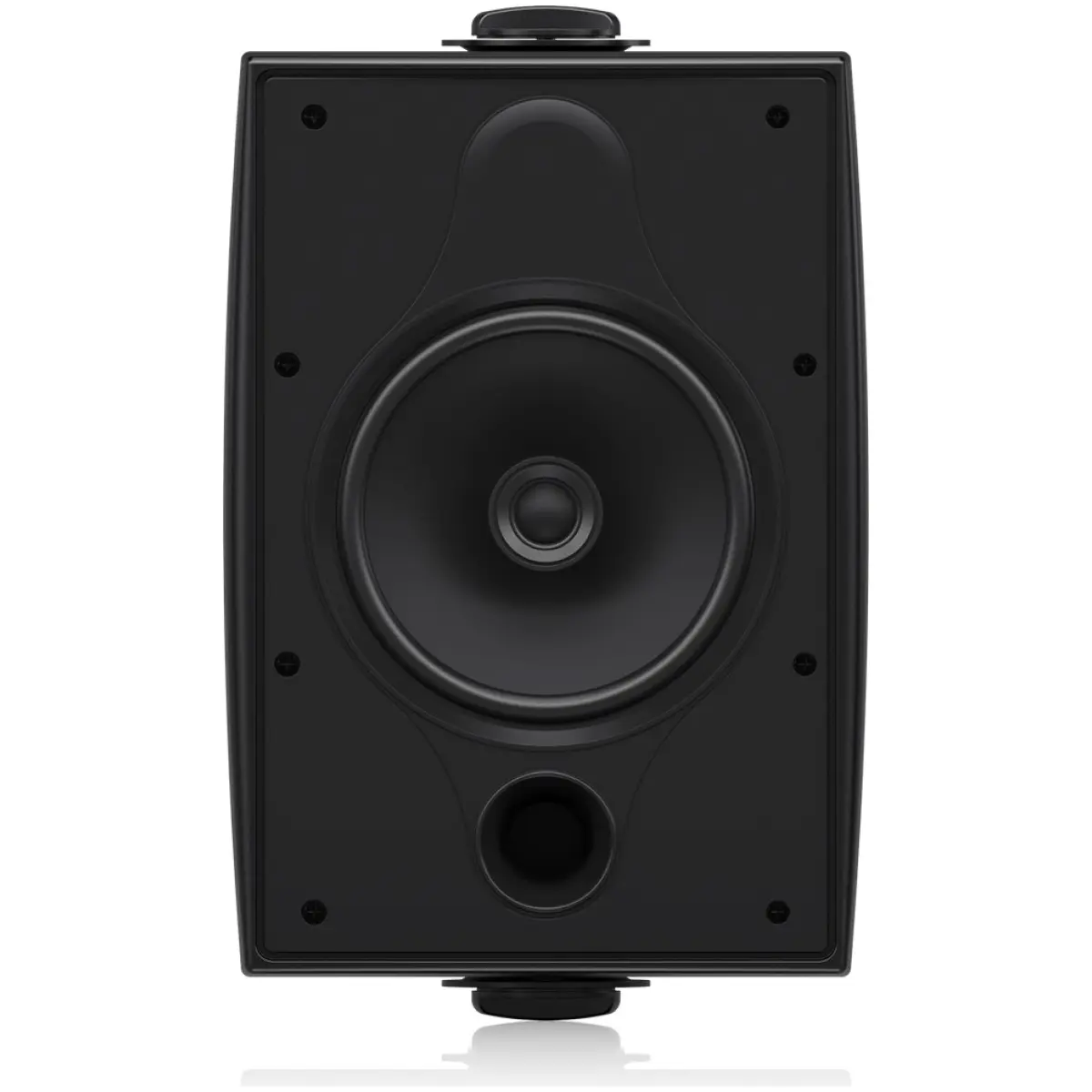

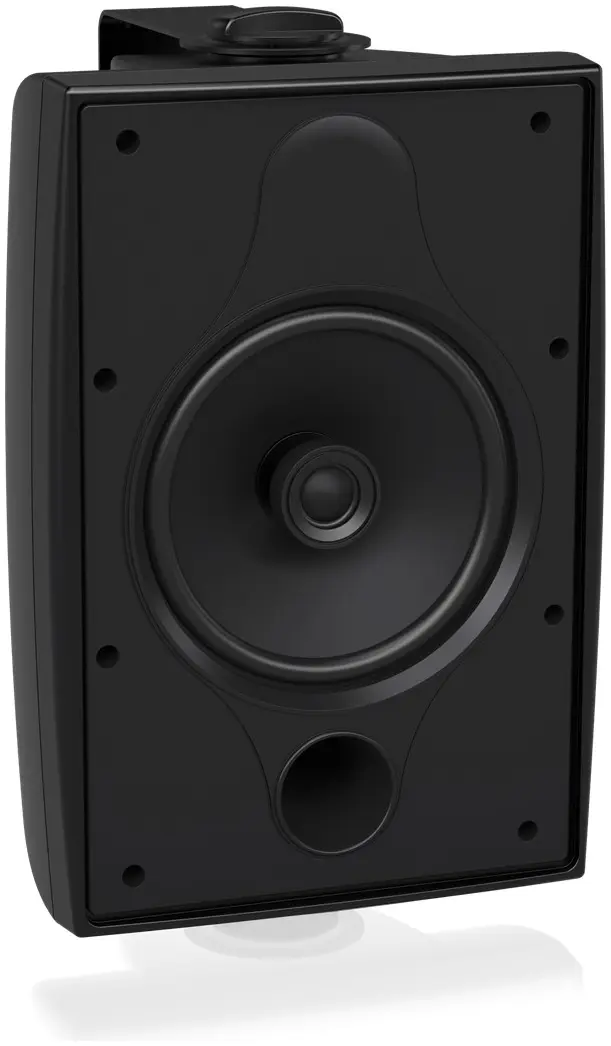

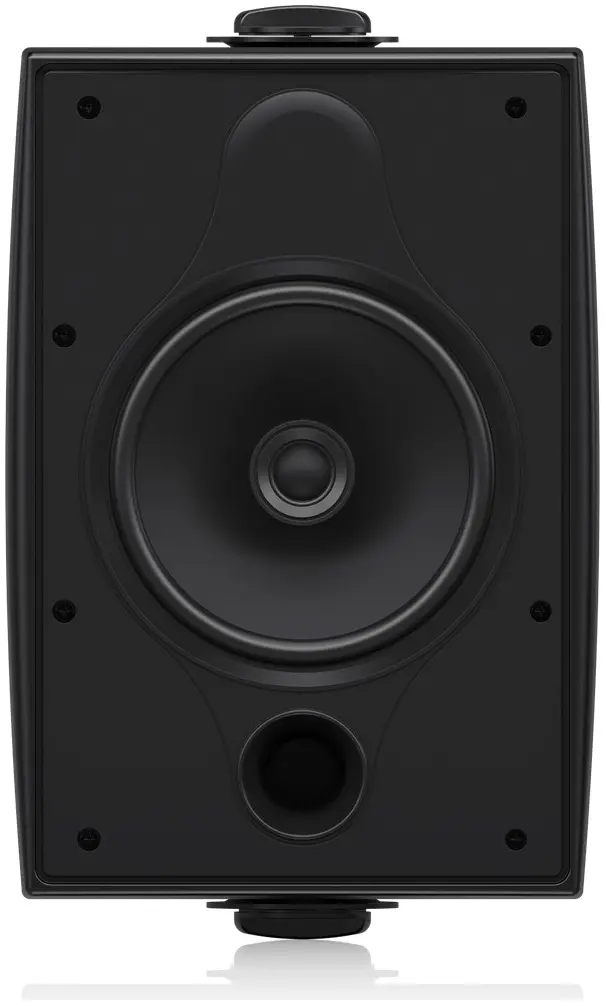

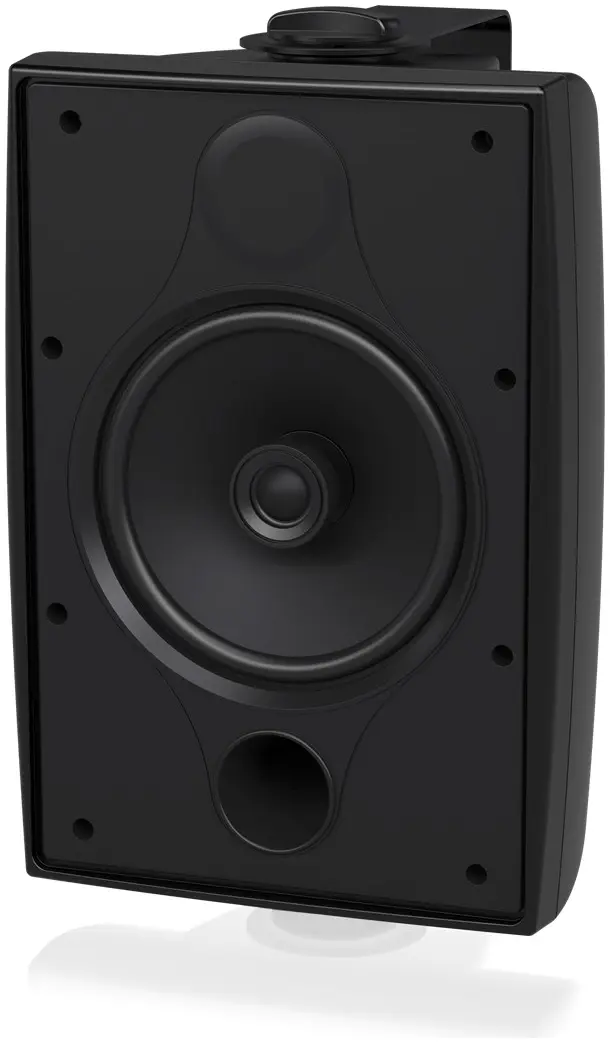

High-Performance Drivers: The Tannoy DVS-6T features a 6″ mineral-loaded polypropylene driver paired with a 0.75″ ferrofluid-cooled neodymium high-frequency driver. This combination ensures robust and clear audio performance with detailed high frequencies.
Weather-Resistant Construction: The loudspeaker is housed in a UV and weather-resistant UL 94 V-0 ABS enclosure, which is rated IP64 for dust and water resistance. This makes it suitable for use in challenging environments, including outdoor areas and high-moisture spaces like indoor pools and saunas.

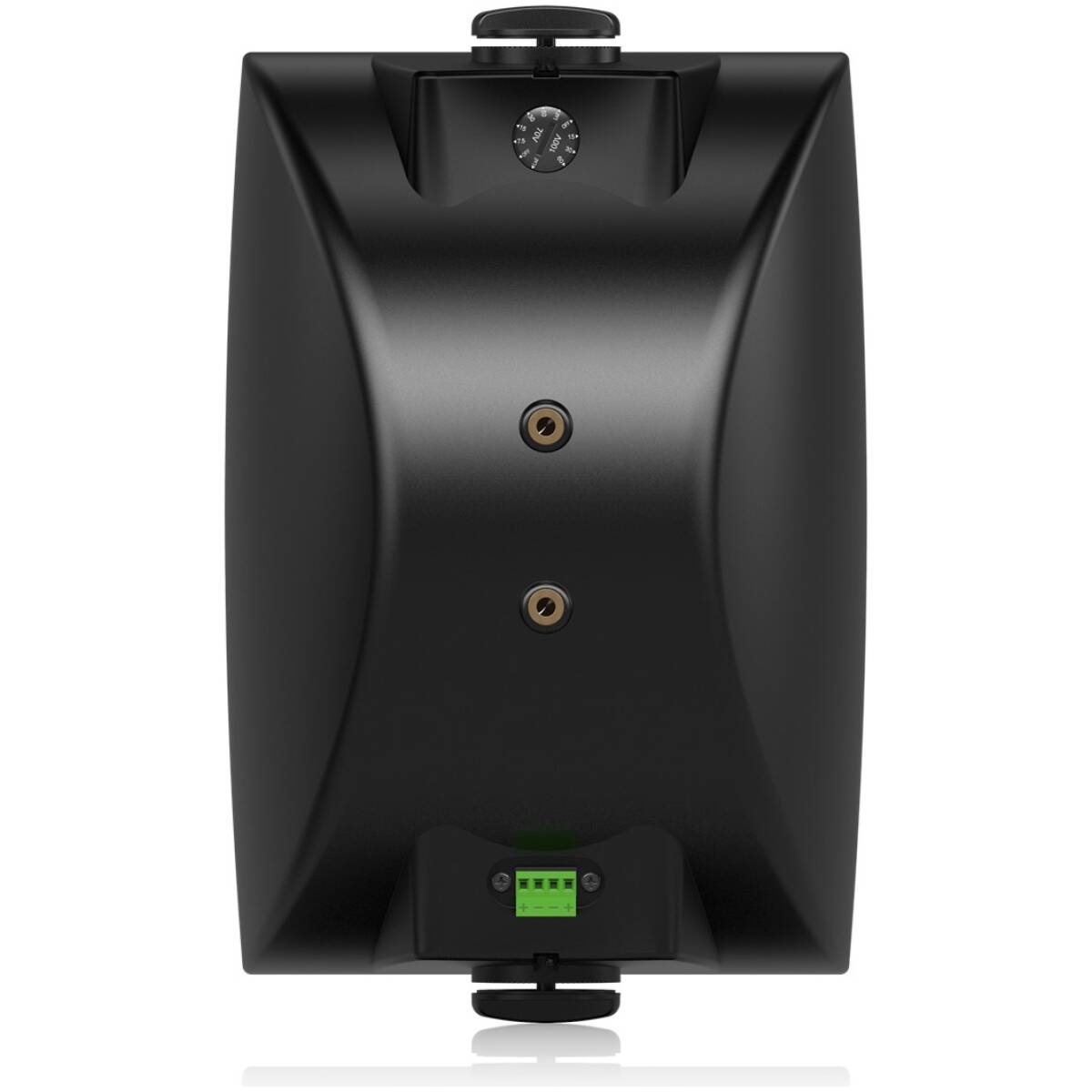

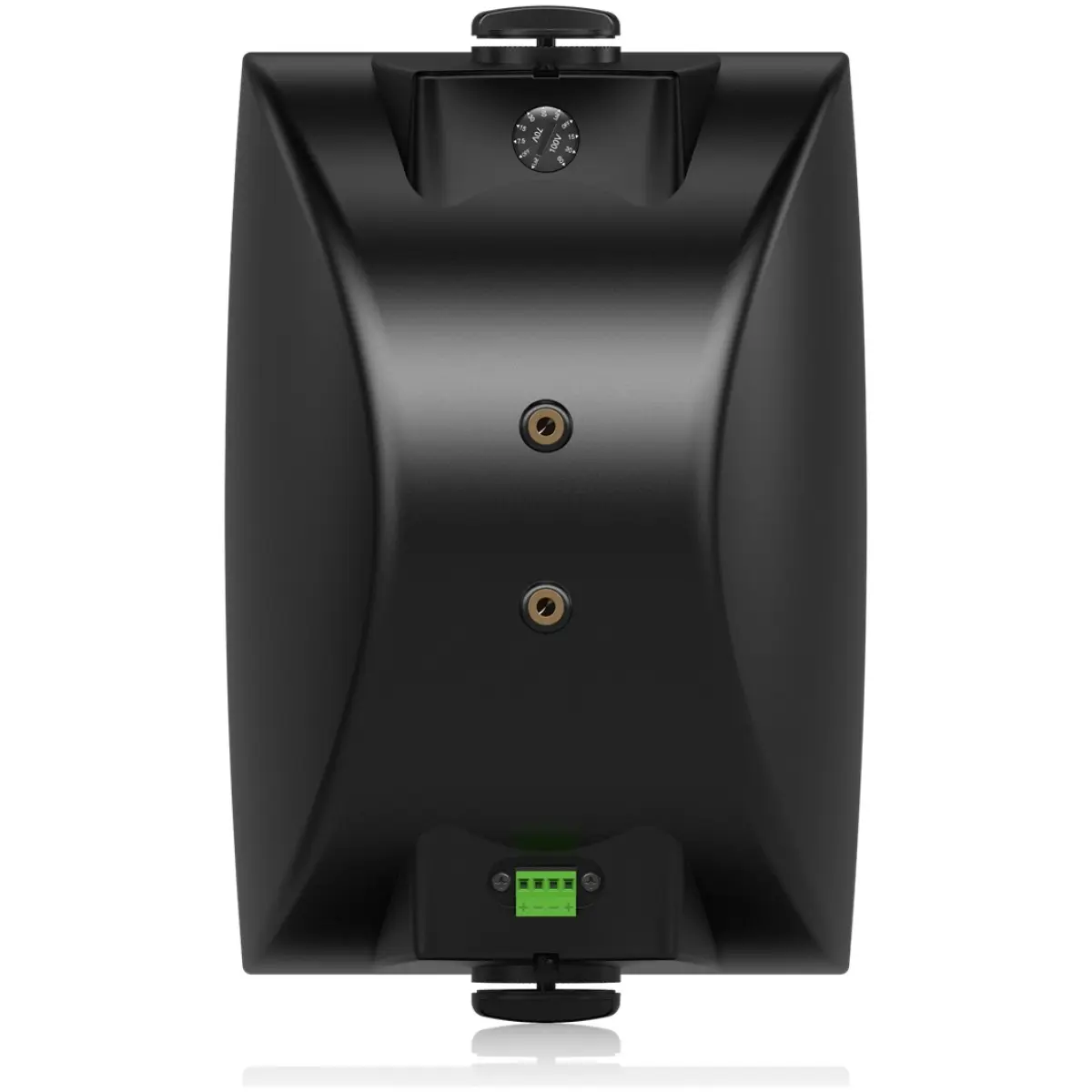

Flexible Power Handling: It includes a low insertion loss 60 W line transformer with multiple taps for 70 V and 100 V systems. The rotary tapping switch on the back panel allows for easy adjustment of power settings.

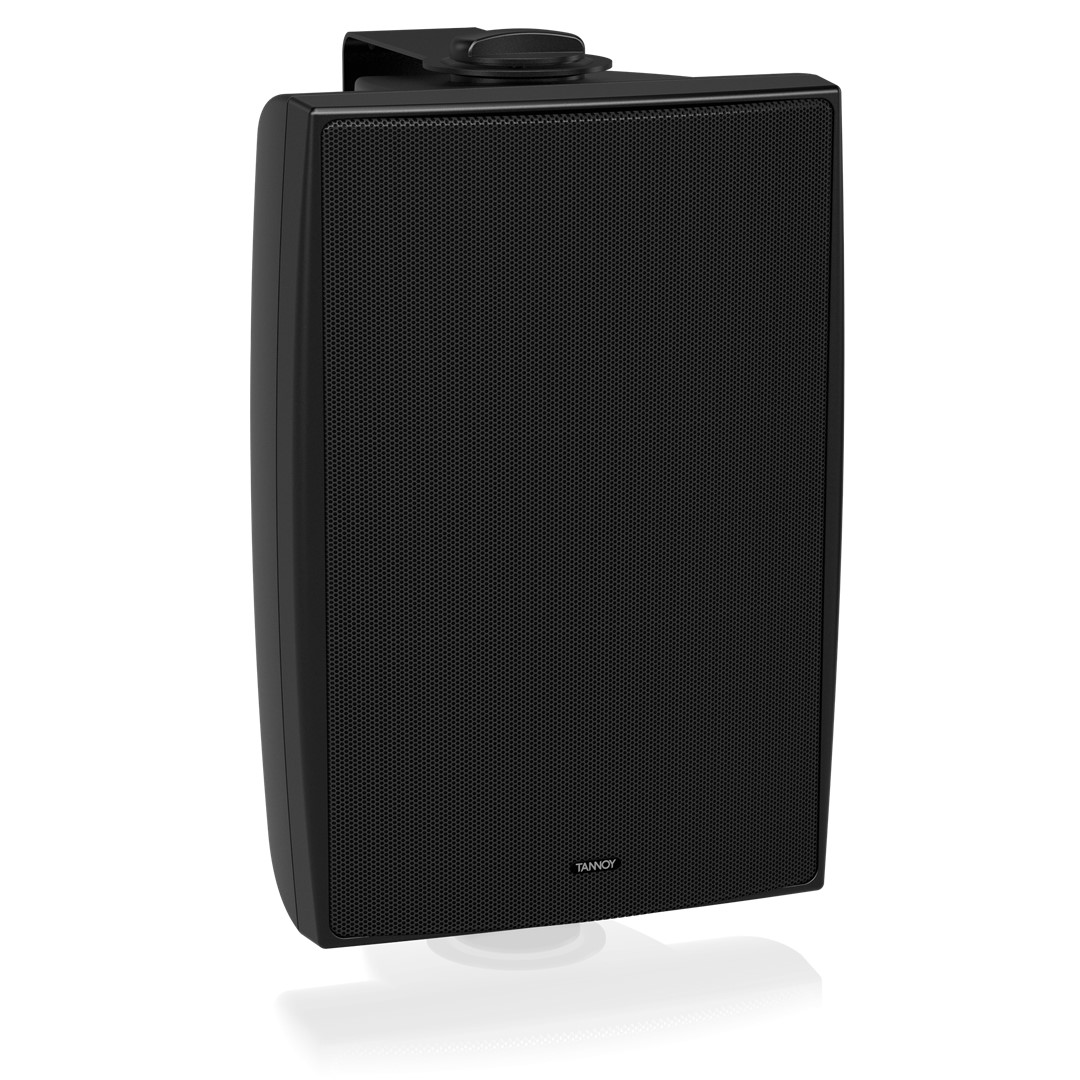

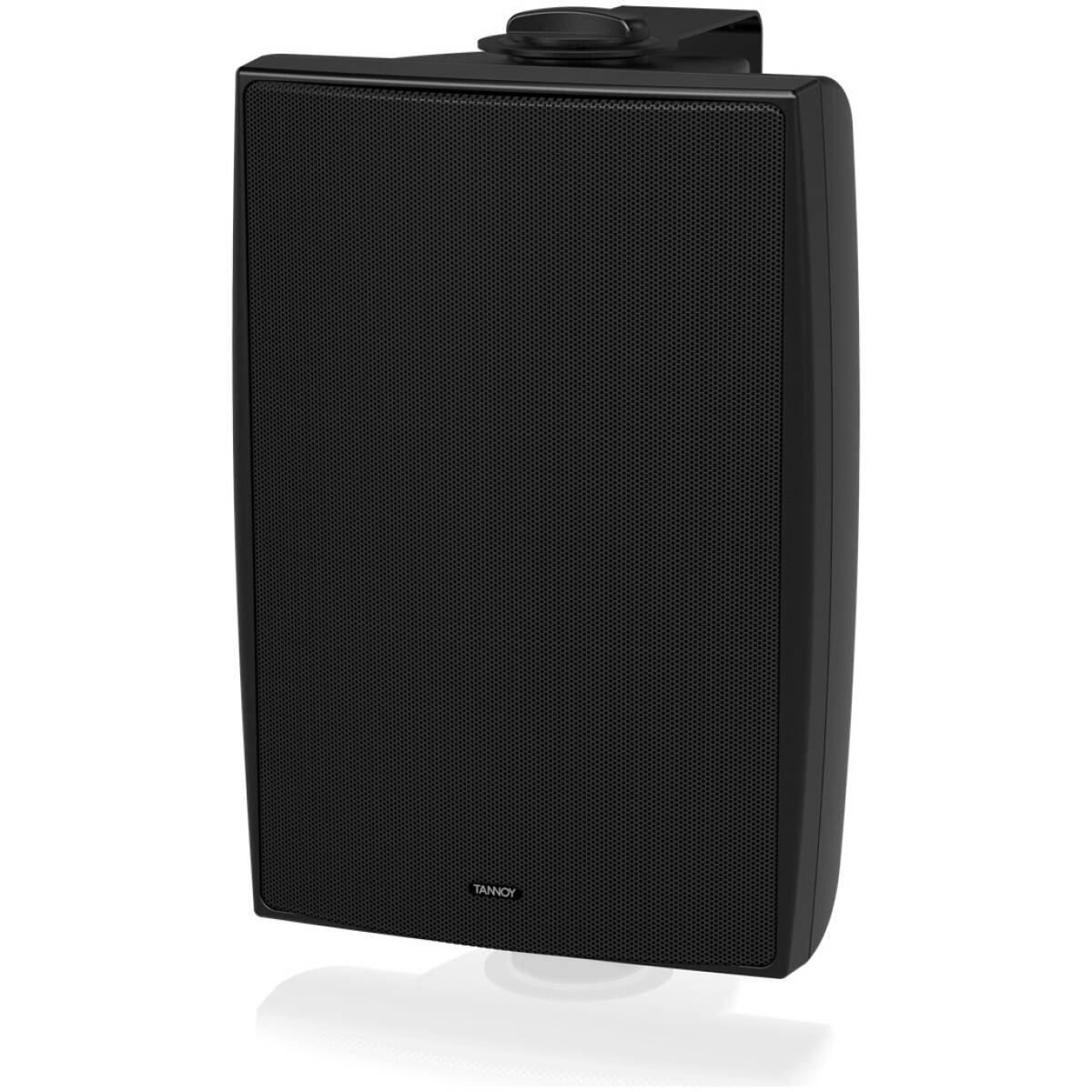

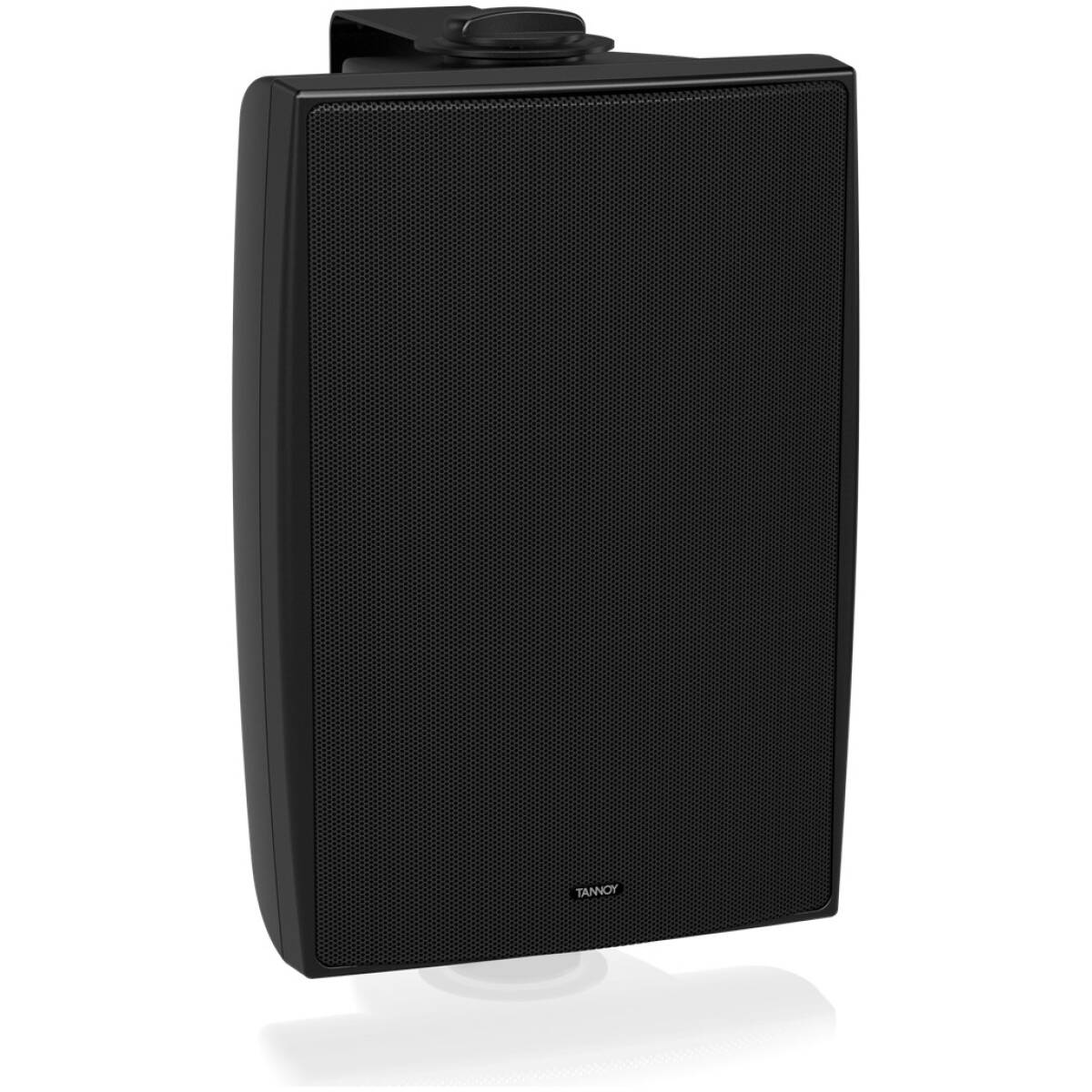

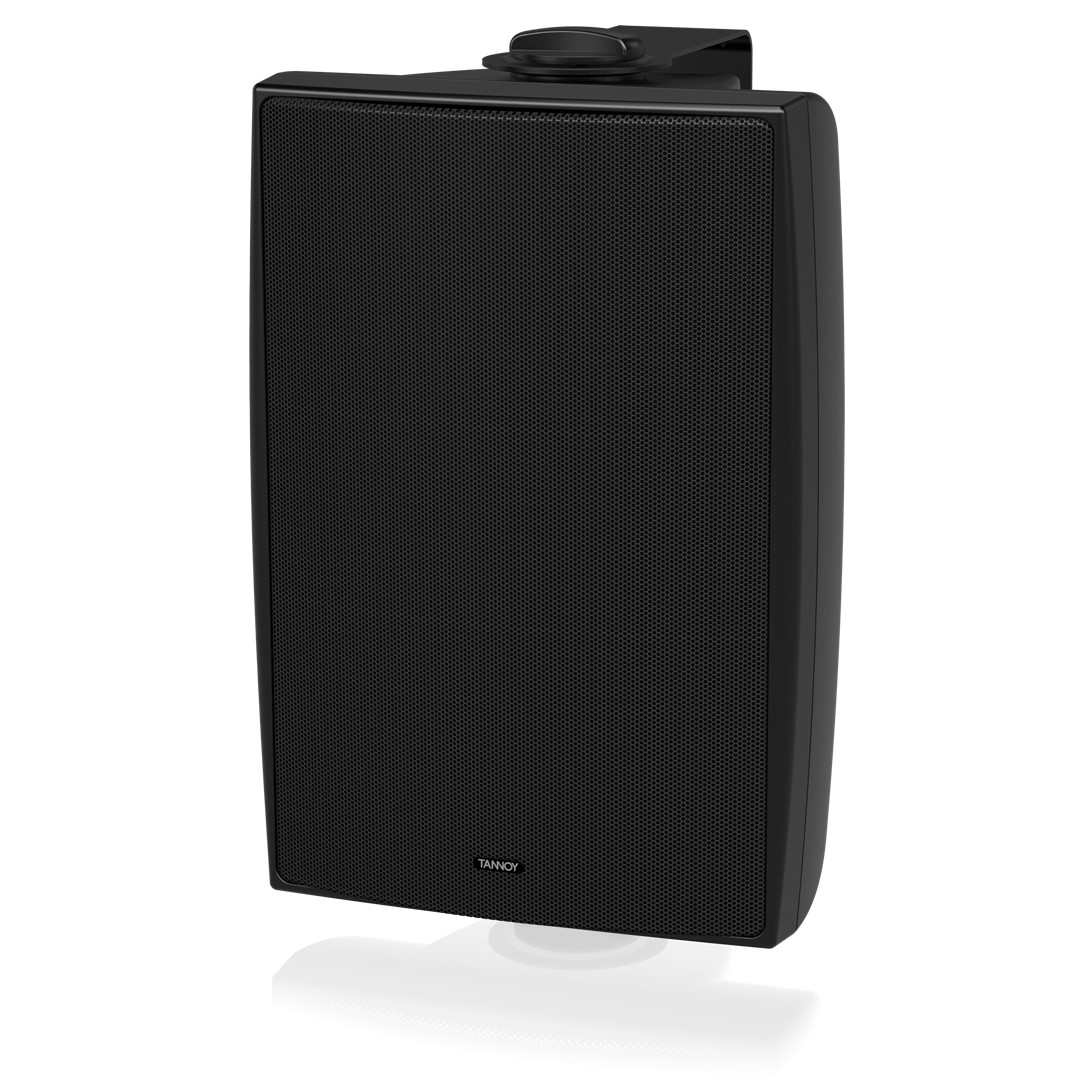

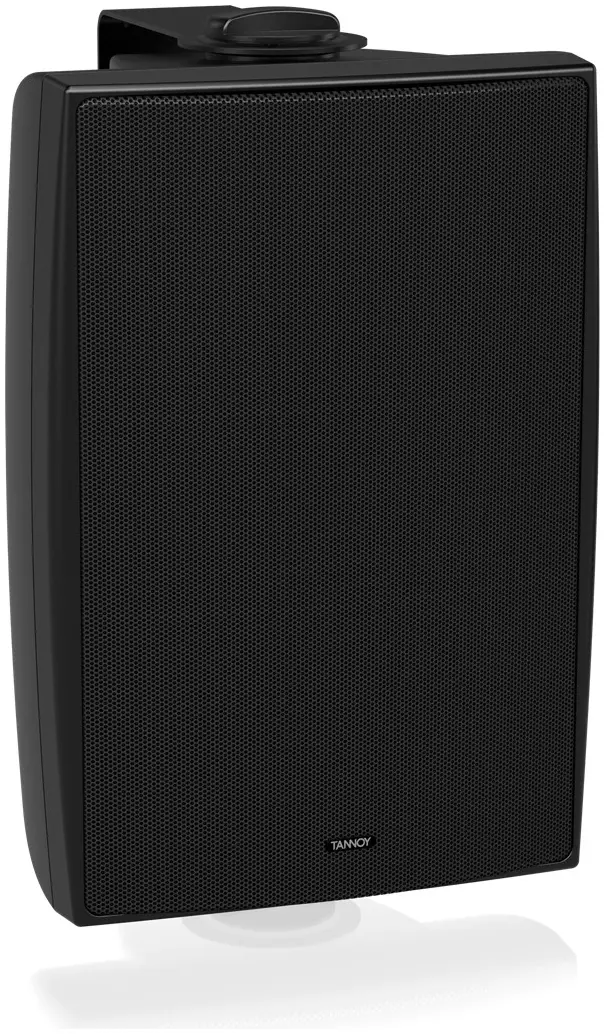

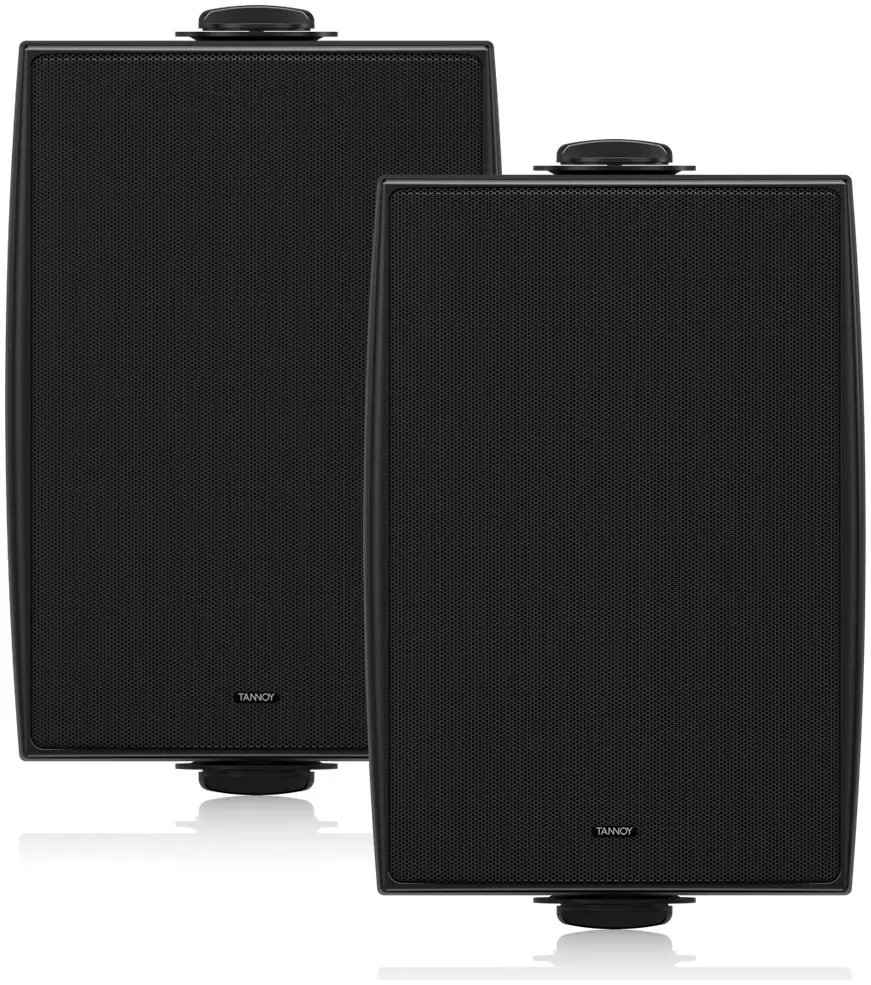

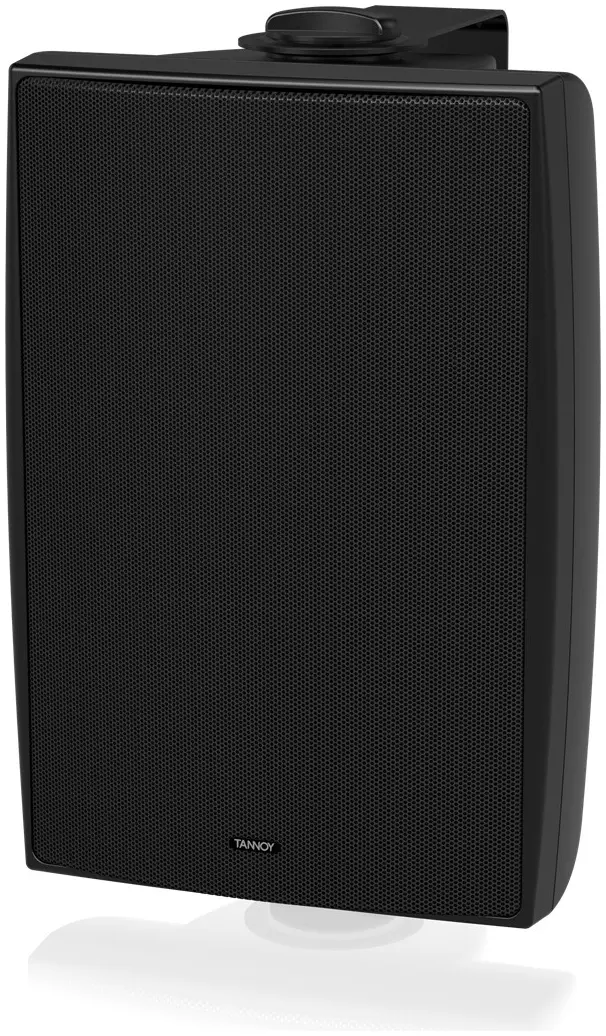

Aesthetic Design: The speaker features a semi-matte black finish and a painted perforated aluminum mesh grille. This design is both stylish and durable, blending seamlessly into various environments while providing excellent dust protection.

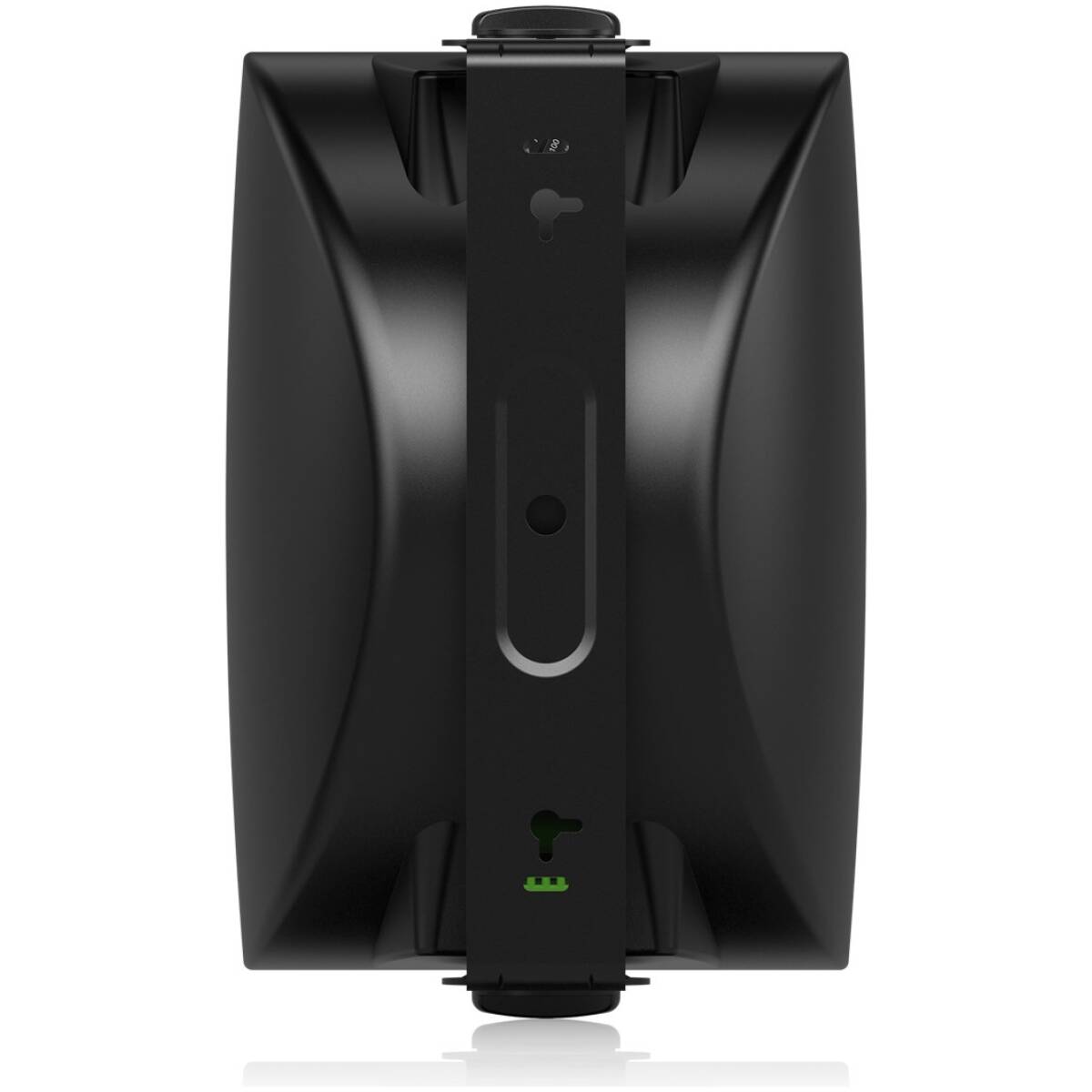

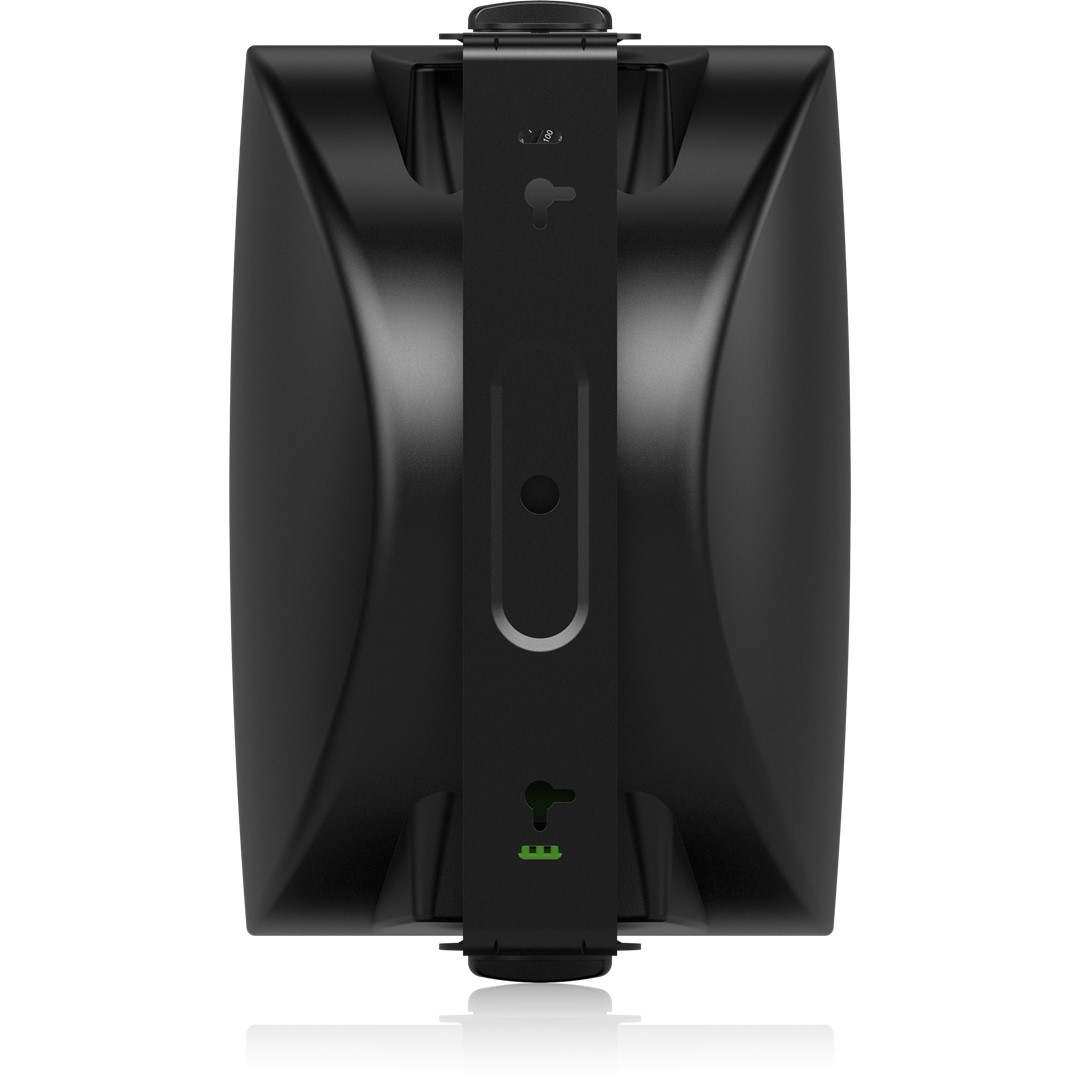

Easy Installation: The DVS-6T comes with a yoke bracket for simple mounting. Phoenix connectors for input and link output make wiring straightforward. The compact design ensures it fits unobtrusively in any installation.
Coverage and Dispersion: With a 90-degree constant directivity dispersion, the DVS-6T ensures even sound distribution across a wide area. This feature is ideal for both background and foreground music applications.
Specifications
- Frequency Response (-3 dB): 80 Hz – 20 kHz
- Frequency Response (-10 dB): 65 Hz – 30 kHz
- System Sensitivity (1 W @ 1 m): 88 dB
- Dispersion (-6 dB): 90 degrees conical
- Transducers: Coaxial
- Low Frequency Driver: 165 mm (6.5″) mineral-loaded cone
- High Frequency Driver: 20 mm (0.79″)
- Crossover: 4.3 kHz
- Rated Maximum SPL: 105 dB (average), 111 dB (peak)
- Transformer Taps: 70 V – 60 W / 30 W / 15 W / 7.5 W / OFF; 100 V – 60 W / 30 W / 15 W / OFF
- Construction: ABS enclosure, painted aluminum grille
- Connectors: Euroblock type removable locking connector with screw terminals
- Dimensions (H x W x D): 340.5 x 212.2 x 216.5 mm (13.41 x 8.36 x 8.52″)
- Weight: 8.2 kg (18.1 lbs)
