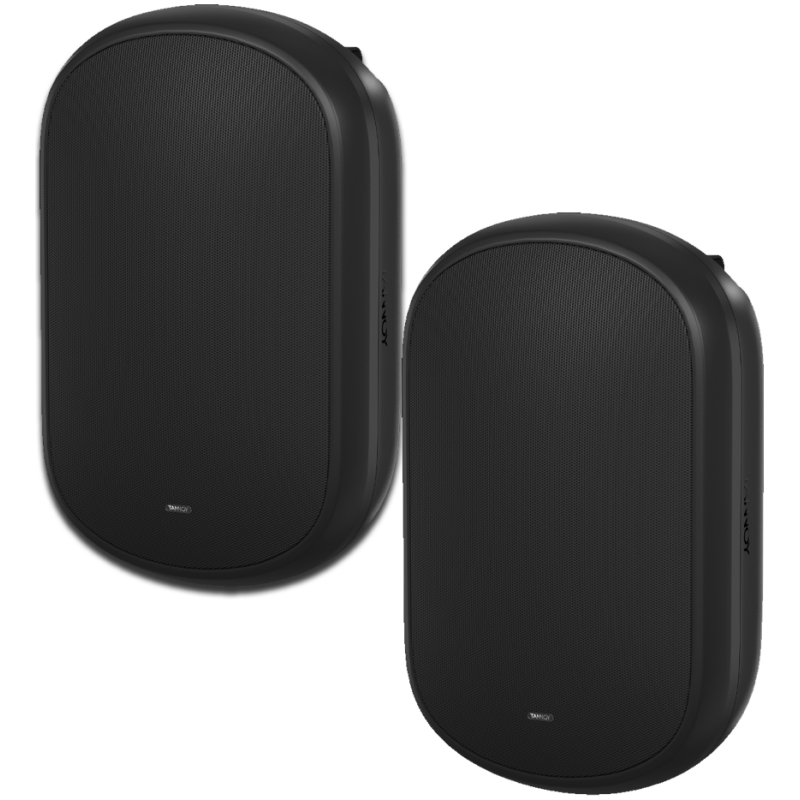

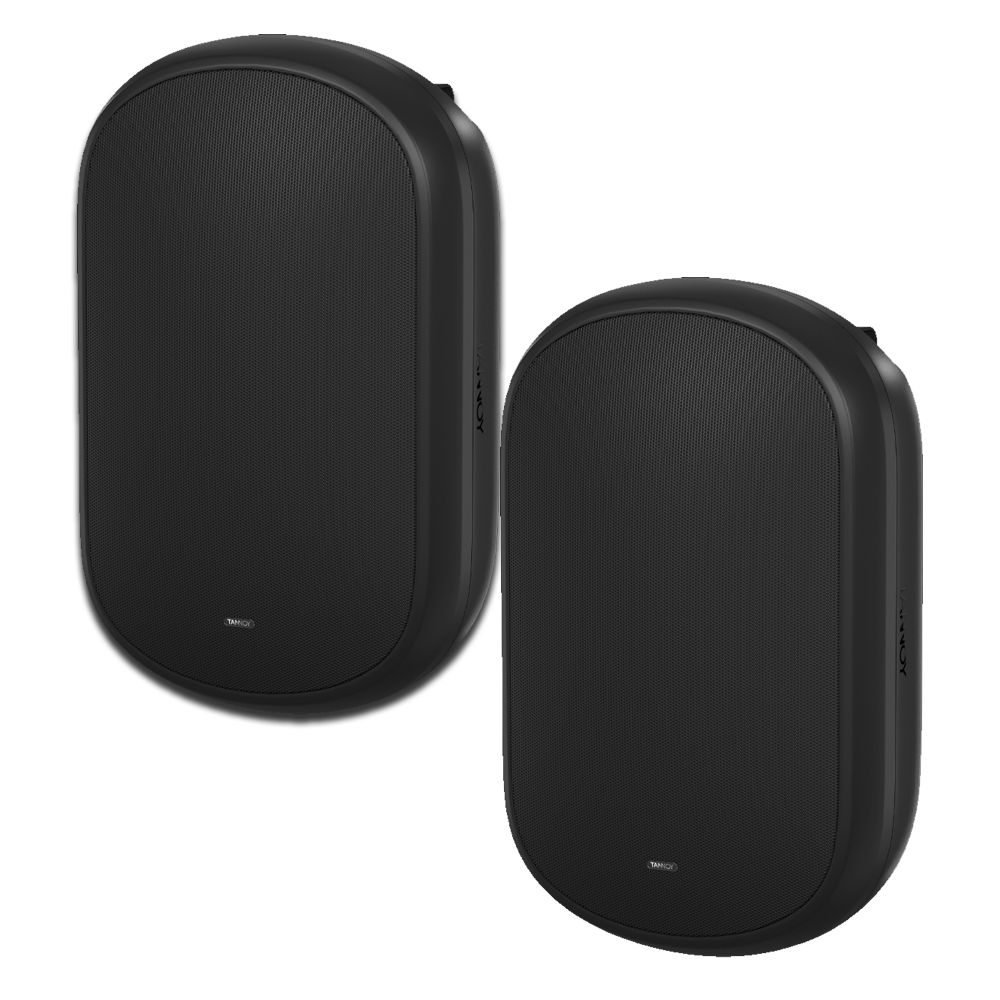

The Tannoy DVS 801 is a premium commercial-grade surface-mount loudspeaker, designed primarily for background music and speech reinforcement in a variety of indoor and outdoor environments.
Product Features
- Full range surface-mount loudspeaker for indoor and outdoor installation applications
- 60 Watts continuous, 240 Watts peak power

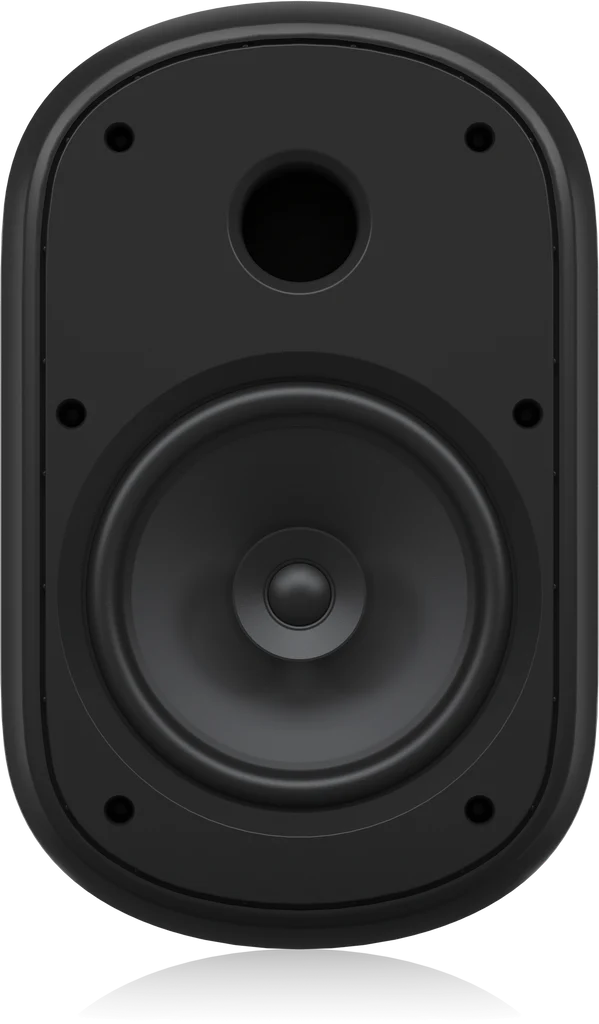

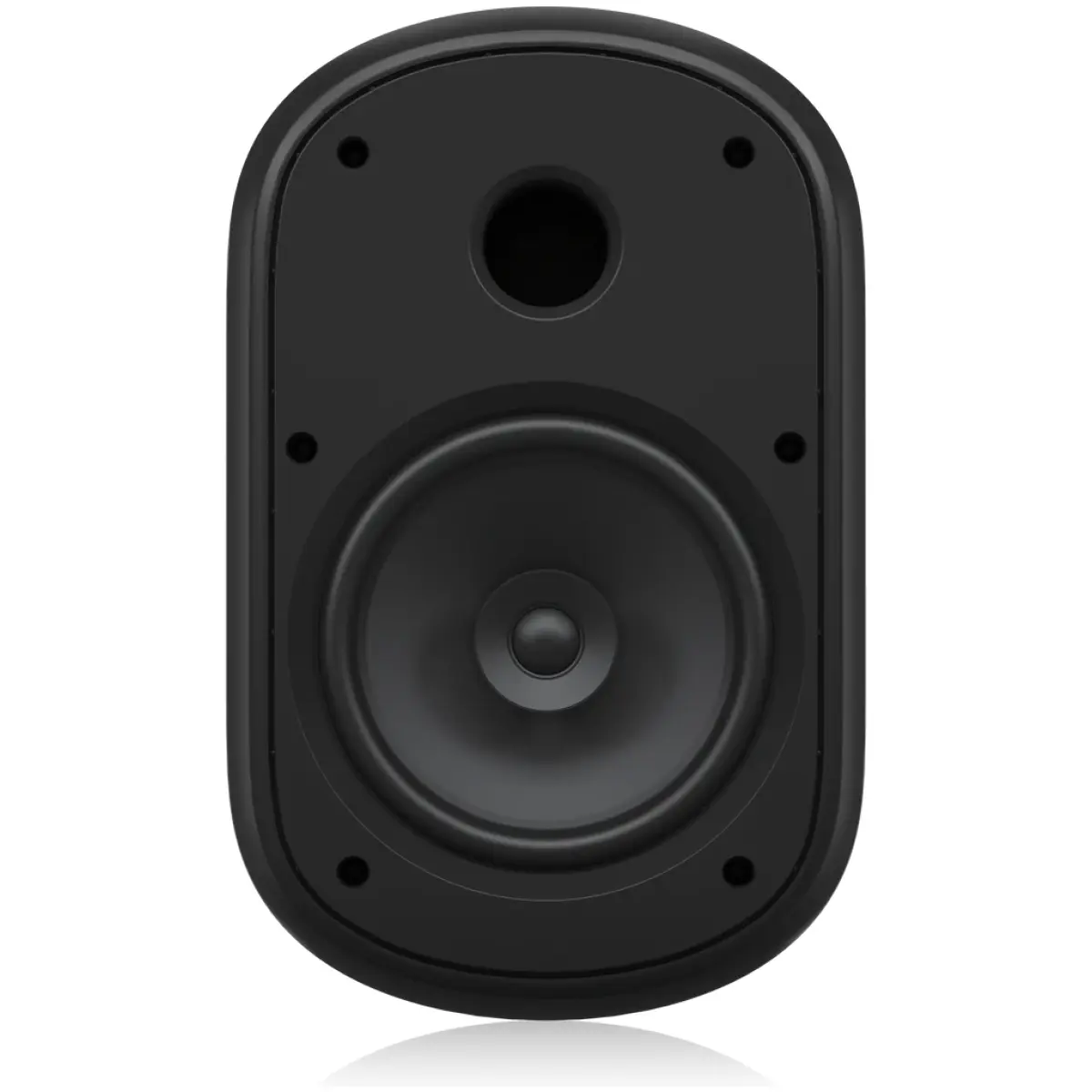

- 8″ paper cone, coated driver with butyl rubber surround for enhanced durability and long-term reliability
- 1″ ferrofluid-cooled soft dome neodymium high-frequency driver
- 82° constant directivity dispersion for optimum coverage
- EN54-24:2008 certified Type A
- UL 1480 certified for general signalling systems
- UV and weather resistant UL 94 V-0 ABS enclosure
- Multiple transformer taps for 70 V and 100 V line systems
- Low insertion loss 60 W line transformer with easily accessible tapping switch
- All components weather resistant to IP64 for outdoor use
- Stylish durable enclosure in a semi matt white paint finish fits unobtrusively in any environment

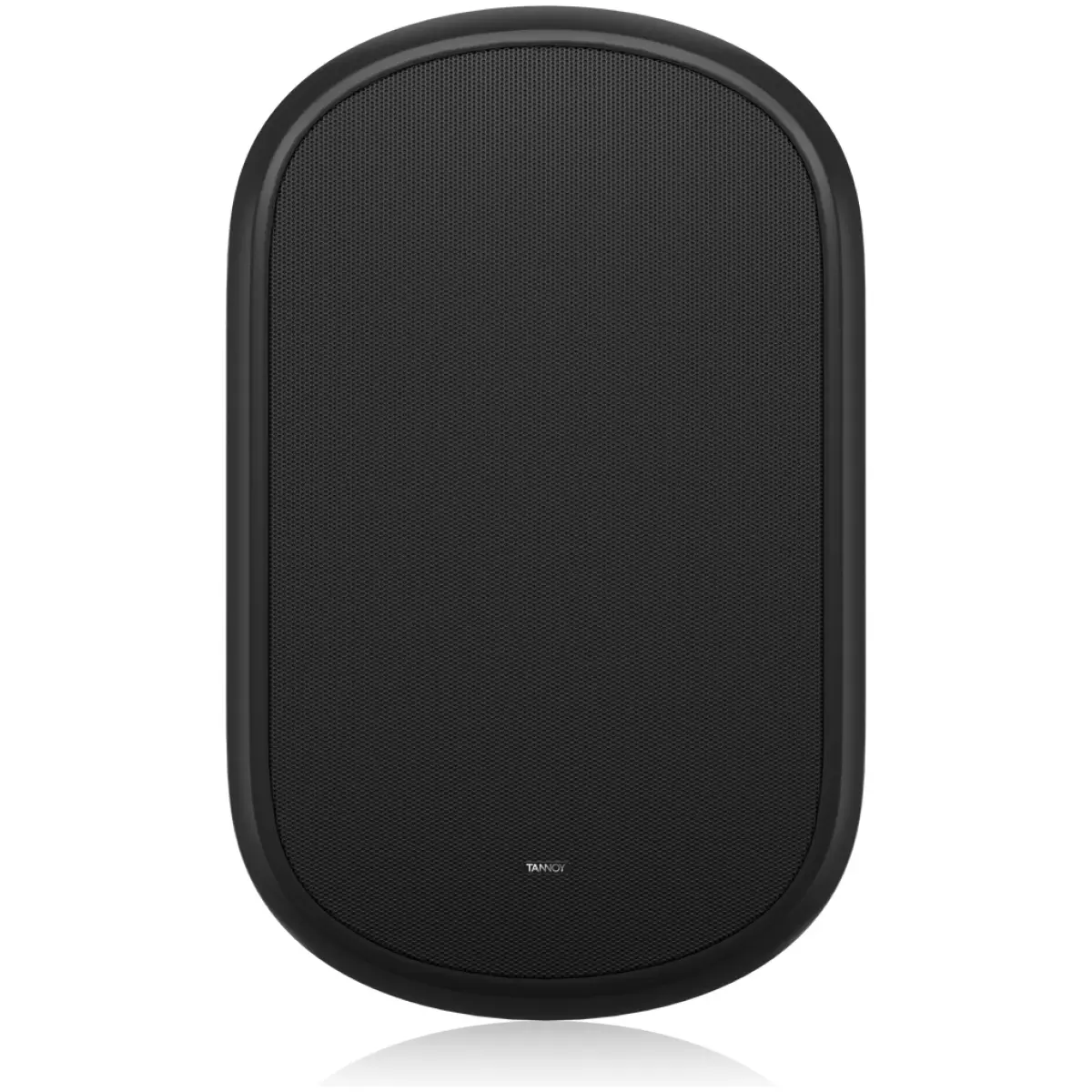

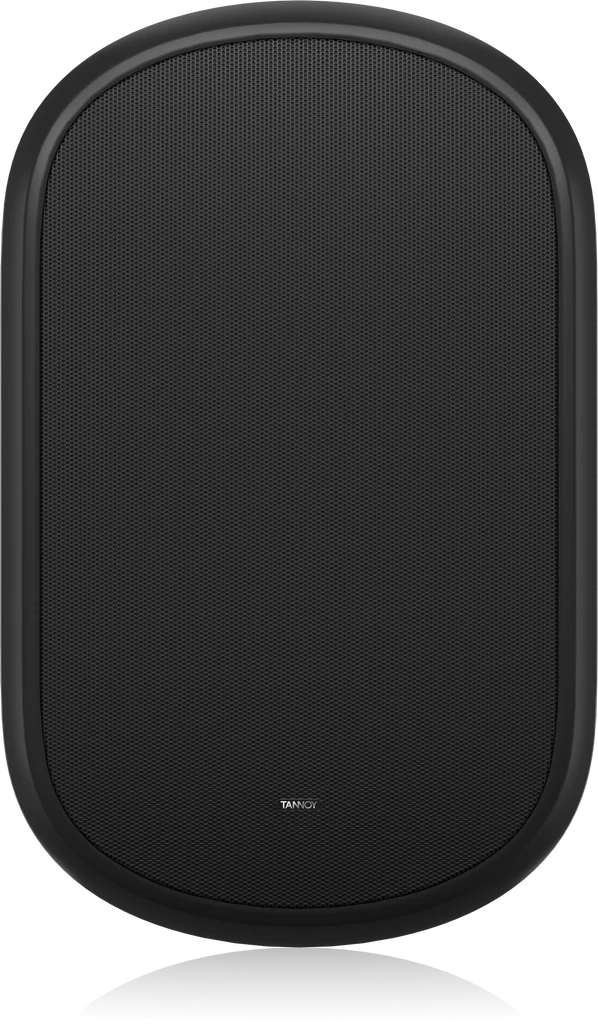

- Painted perforated aluminium mesh grille with dust protection

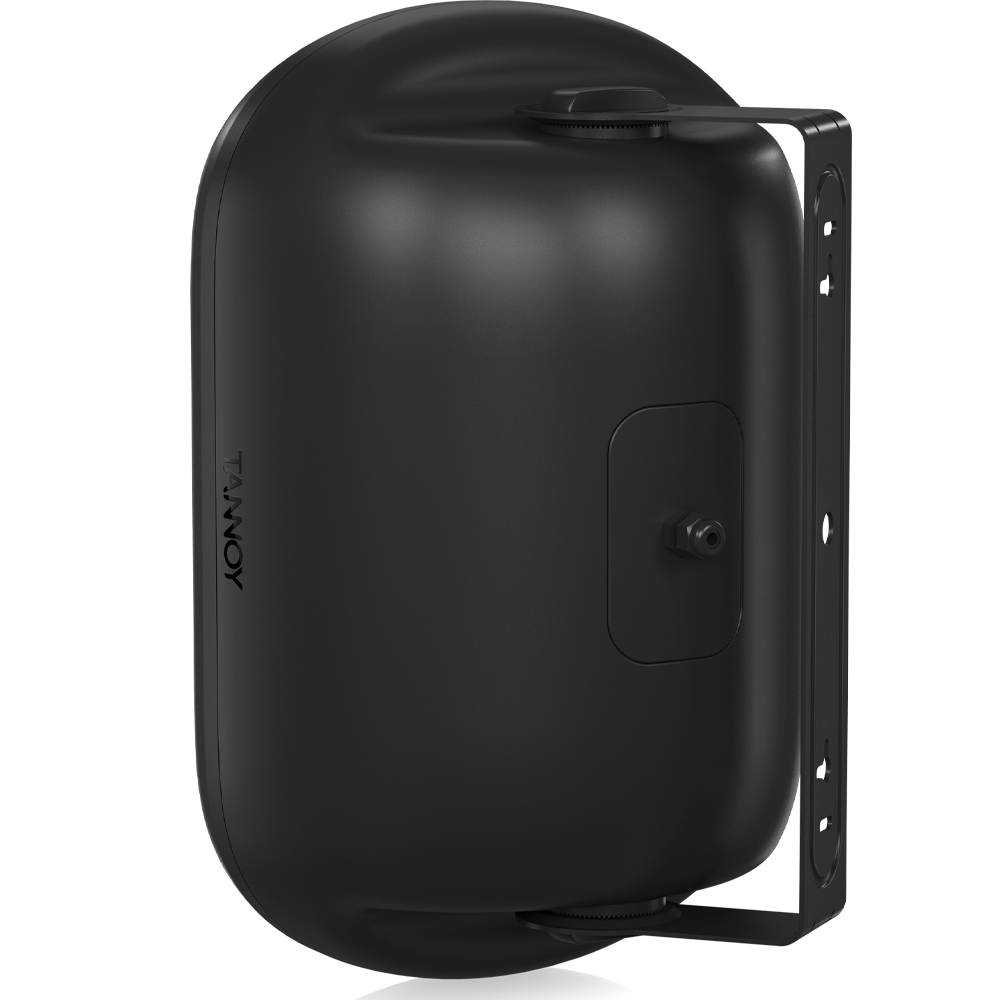

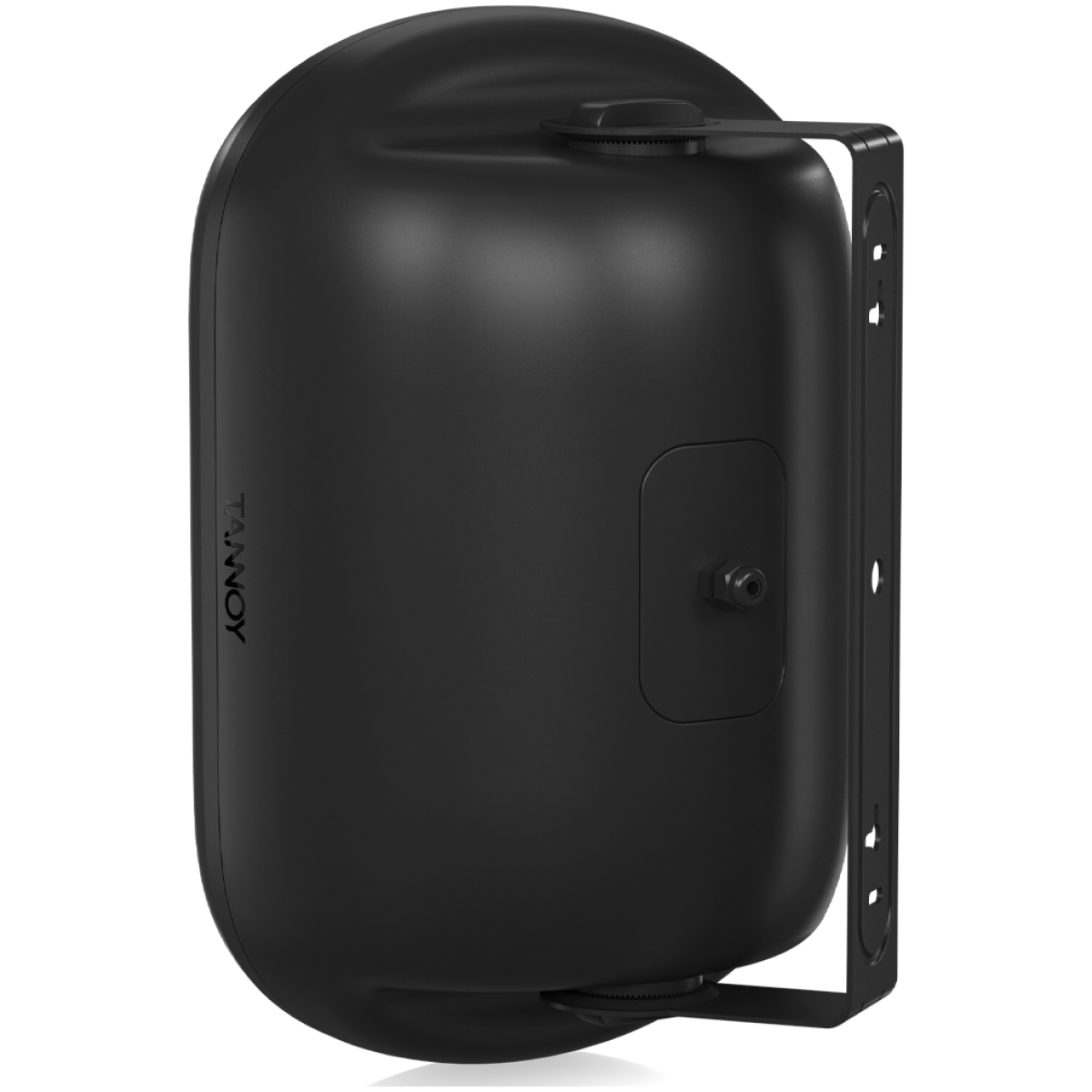

- Yoke bracket included for ease of installation
- Phoenix connectors for input and link output
Specification
Performance
| Frequency response (-3 dB) | 85 Hz – 20 kHz |
| Frequency response (-10 dB) | 75 Hz – 20 kHz |
| System sensitivity (1 W @ 1 m) | 88 ± 2 dB |
| Dispersion (-6 dB) | 82 degrees conical averaged 1 kHz – 10 kHz |
| Transducers | Coaxial |
| Low frequency | 200 mm (8.00″) paper cone with coating |
| High frequency | 25 mm (1′) |
| Crossover | 3150 Hz ± 10% |
| Directivity (Q) | 5.7 averaged 1 kHz to 10 kHz |
| Directivity (DI) | 7.2 averaged 1 kHz to 10 kHz |
| Rated maximum SPL | 106 dB (average) 112 dB (peak) |
Transformer
| Transformer taps | 70 V – 60 W / 30 W / 15 W / 7.5 W / OFF and LOZ low impedance operation
100 V – X / 60 W / 30 W / 15 W / OFF and LOZ low impedance operation |
| Maximum wire gauge for connector | 2.5 mm CSA (AWG12) |
| Safety Agency Ratings | UL 1480A, EN54-24:2008 |
Power Handling
| Average | 60 W |
| Programme | 120 W |
| Peak | 240 W |
| Recommended amplifier power | 120 W @ 8 Ohms |
| Nominal impedance | 8 Ohms |
