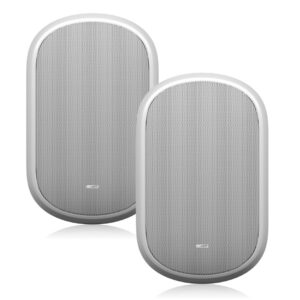

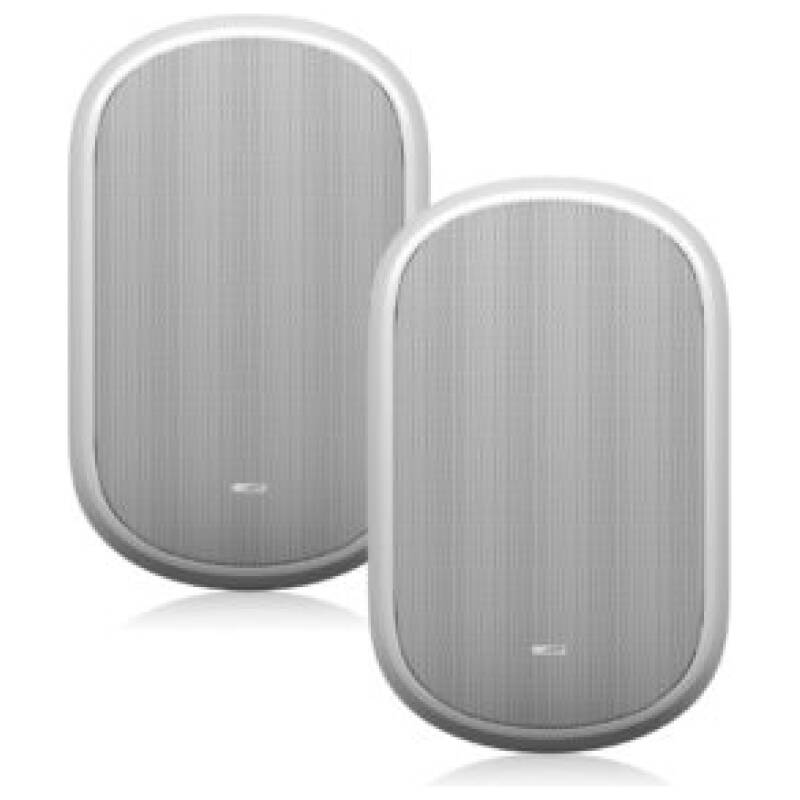

DVS 1.0 SERIES DVS 801

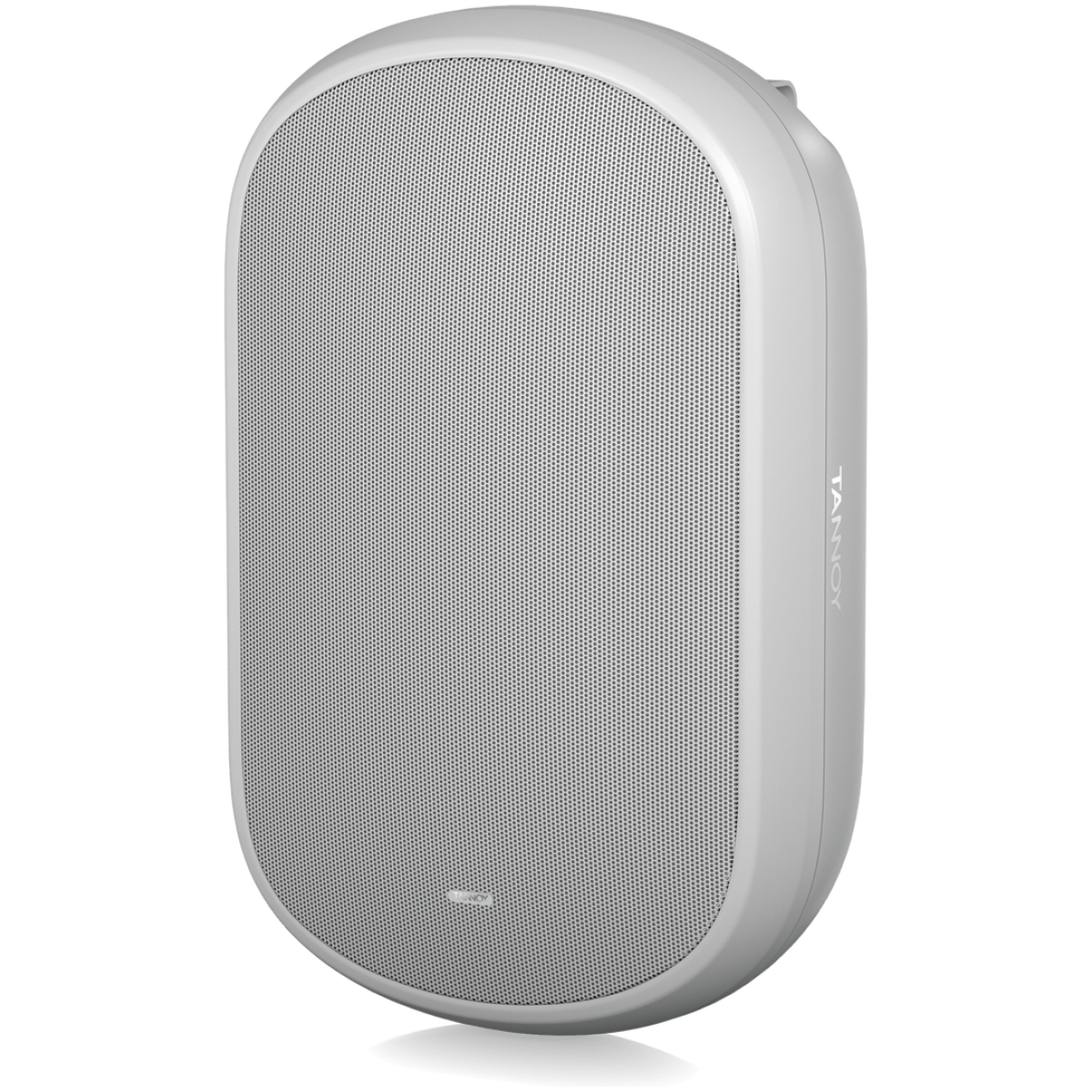

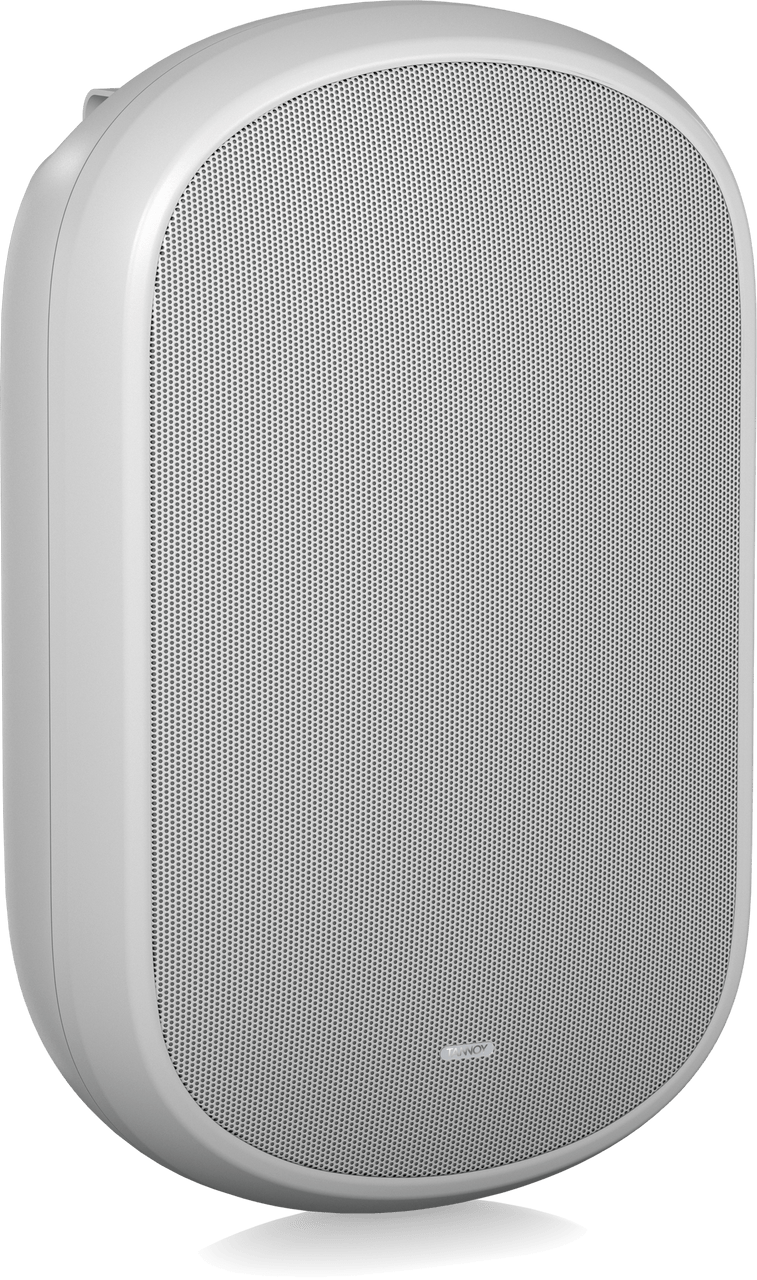

The DVS 801 is a coaxial surface-mount loudspeaker engineered to provide superb audio performance in both background and foreground music sound systems. Ideally suited for a wide variety of applications, from restaurants and hotels to houses of worship and businesses of all types, the DVS 801 offers the power handling, wide frequency response and low distortion typically found in more expensive products. EN 54-24 certification for fire detection and fire alarm systems makes the DVS 801 the perfect choice where safety is a top priority. The loudspeaker is also UL 1480 certified for fire-protected signalling.
Features
- Full range surface-mount loudspeaker for indoor and outdoor installation applications
- 60 Watts continuous, 240 Watts peak power

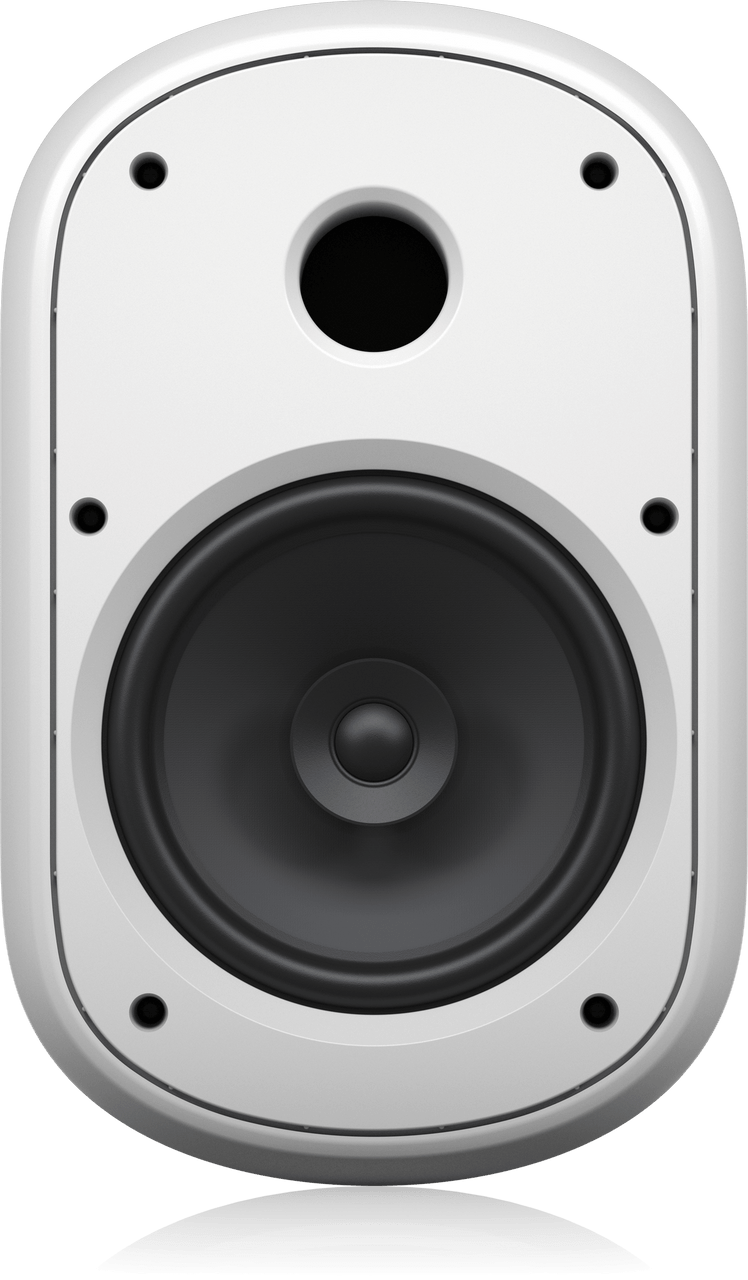

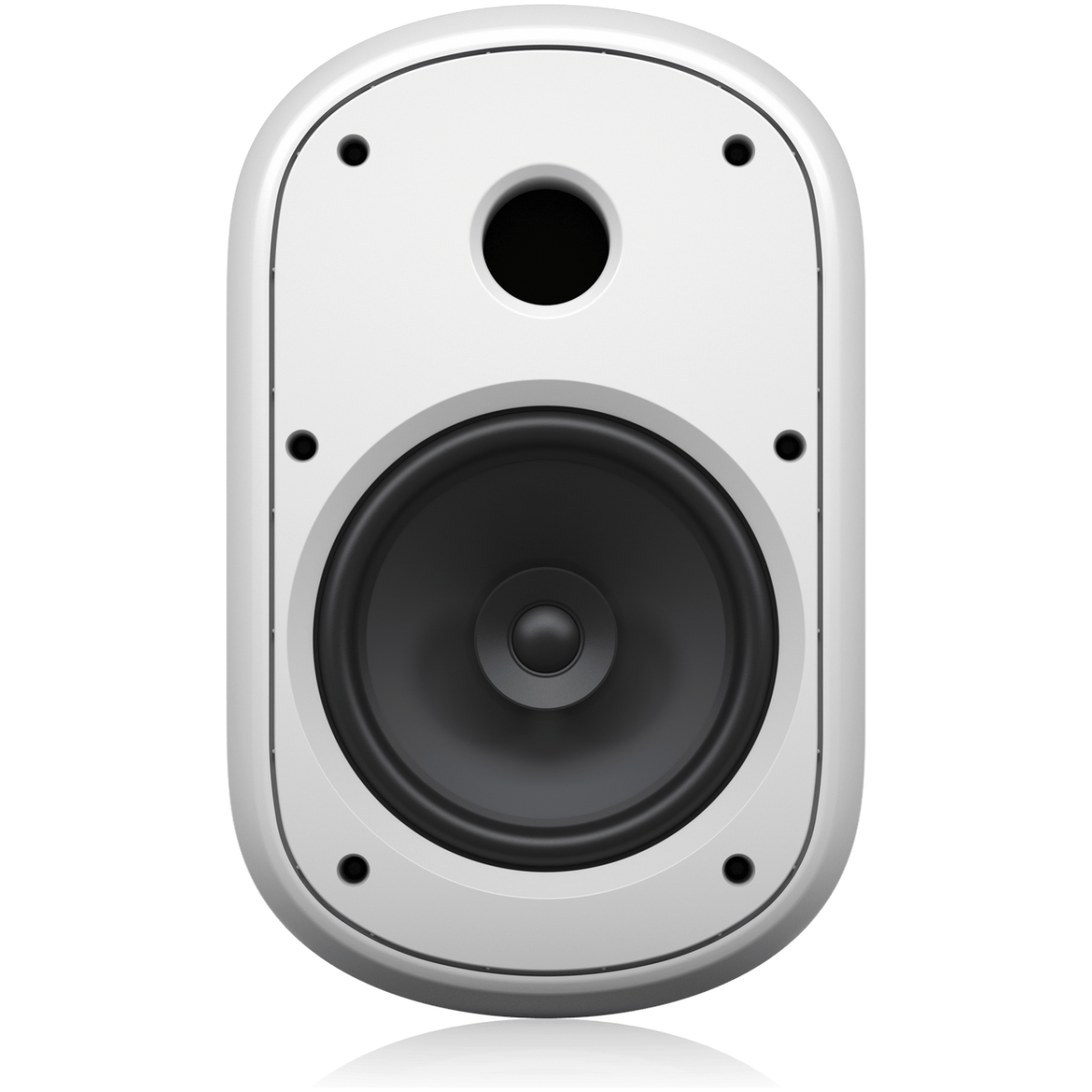

- 8″ paper cone, coated driver with butyl rubber surround for enhanced durability and long-term reliability
- 1″ ferrofluid-cooled soft dome neodymium high-frequency driver
- 82° constant directivity dispersion for optimum coverage
- EN54-24:2008 certified Type A
- UL 1480 certified for general signalling systems
- UV and weather resistant UL 94 V-0 ABS enclosure
- Multiple transformer taps for 70 V and 100 V line systems
- Low insertion loss 60 W line transformer with easily accessible tapping switch
- All components weather resistant to IP64 for outdoor use
- Stylish durable enclosure in a semi matt white paint finish fits unobtrusively in any environment

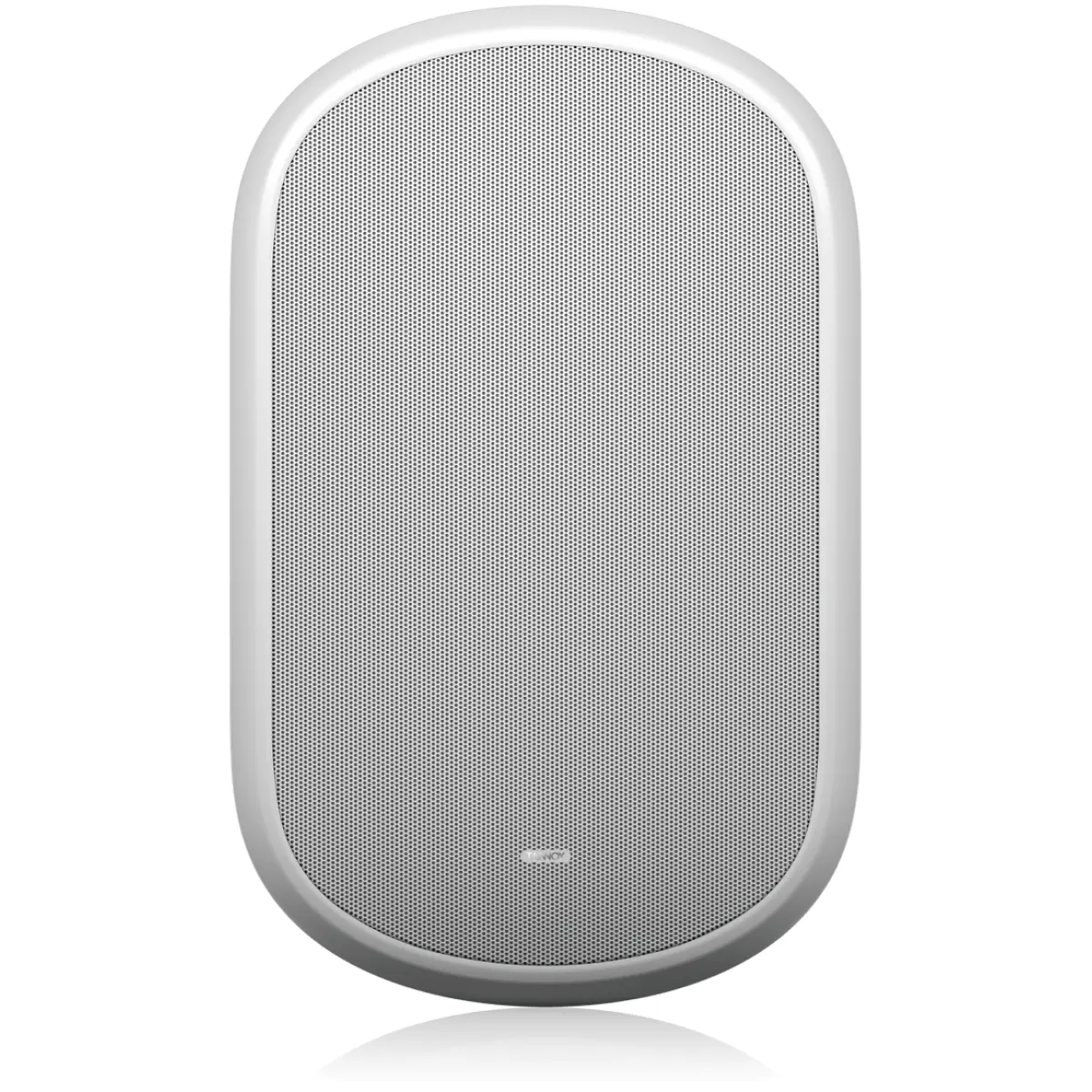

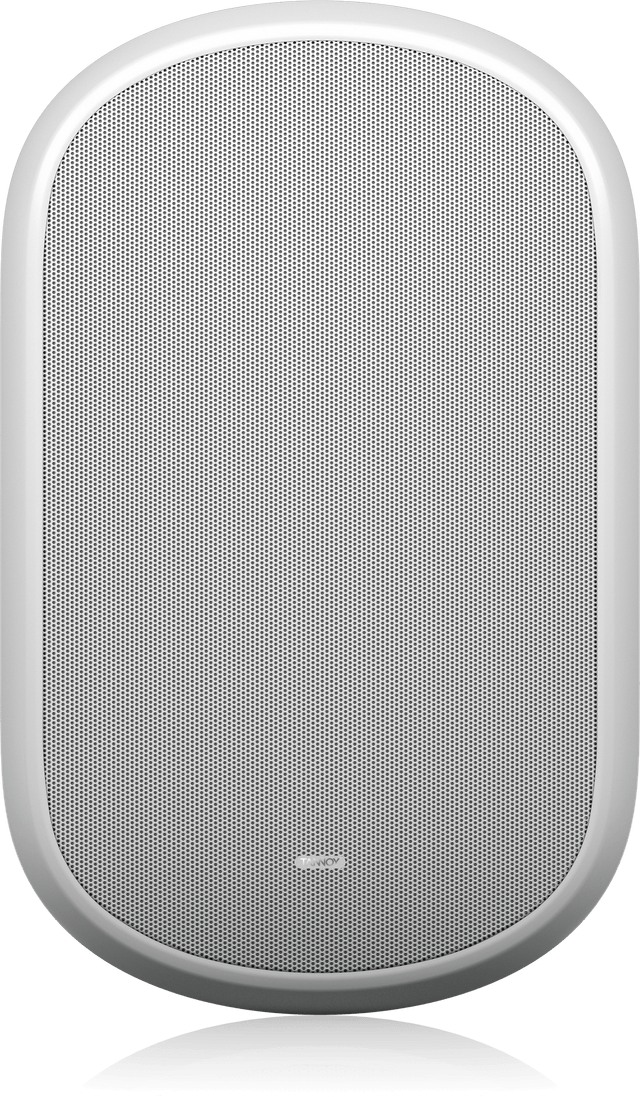

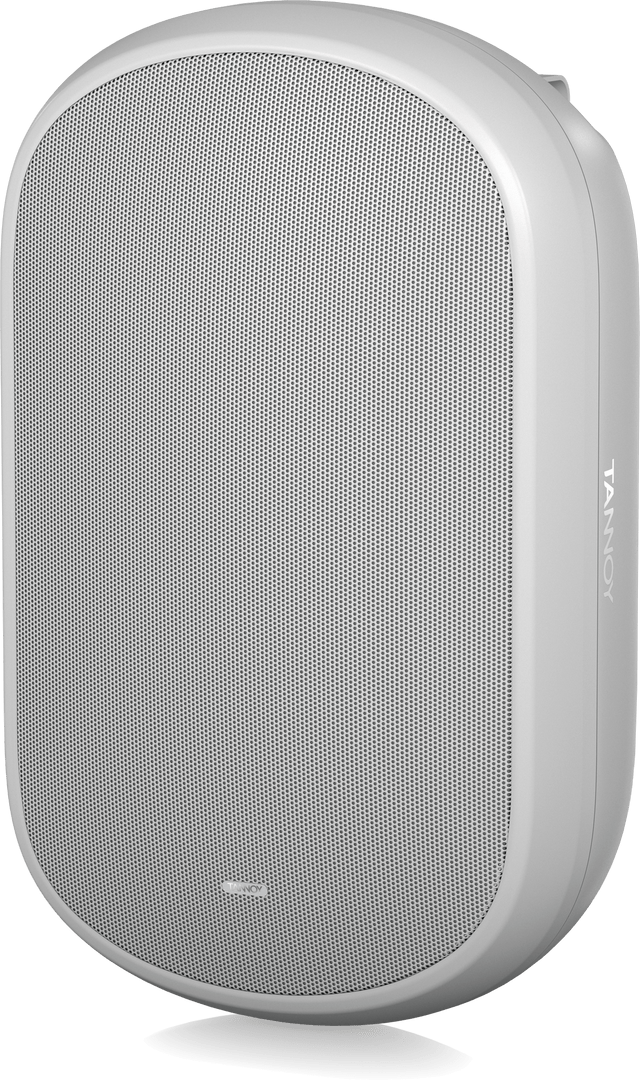

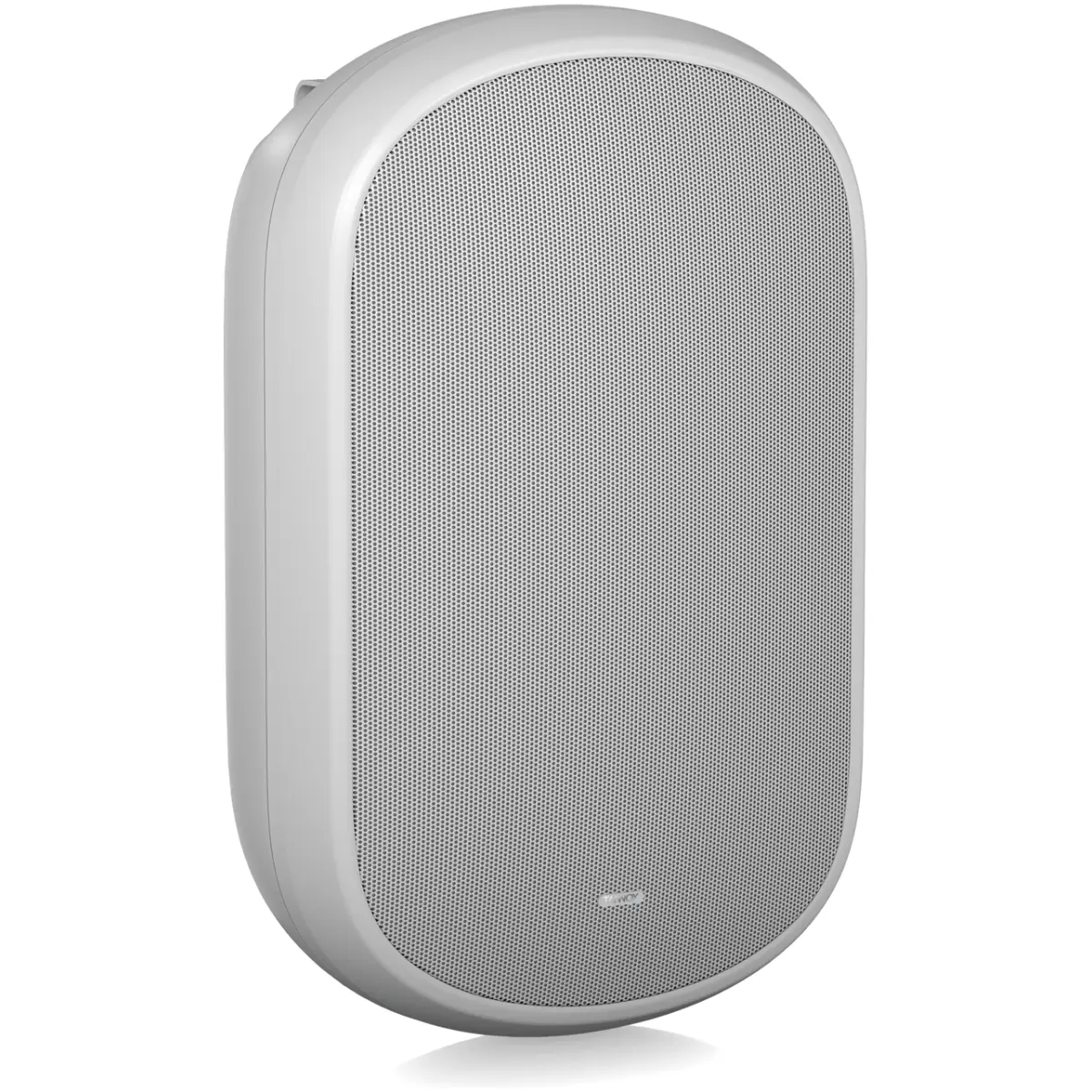

- Painted perforated aluminium mesh grille with dust protection

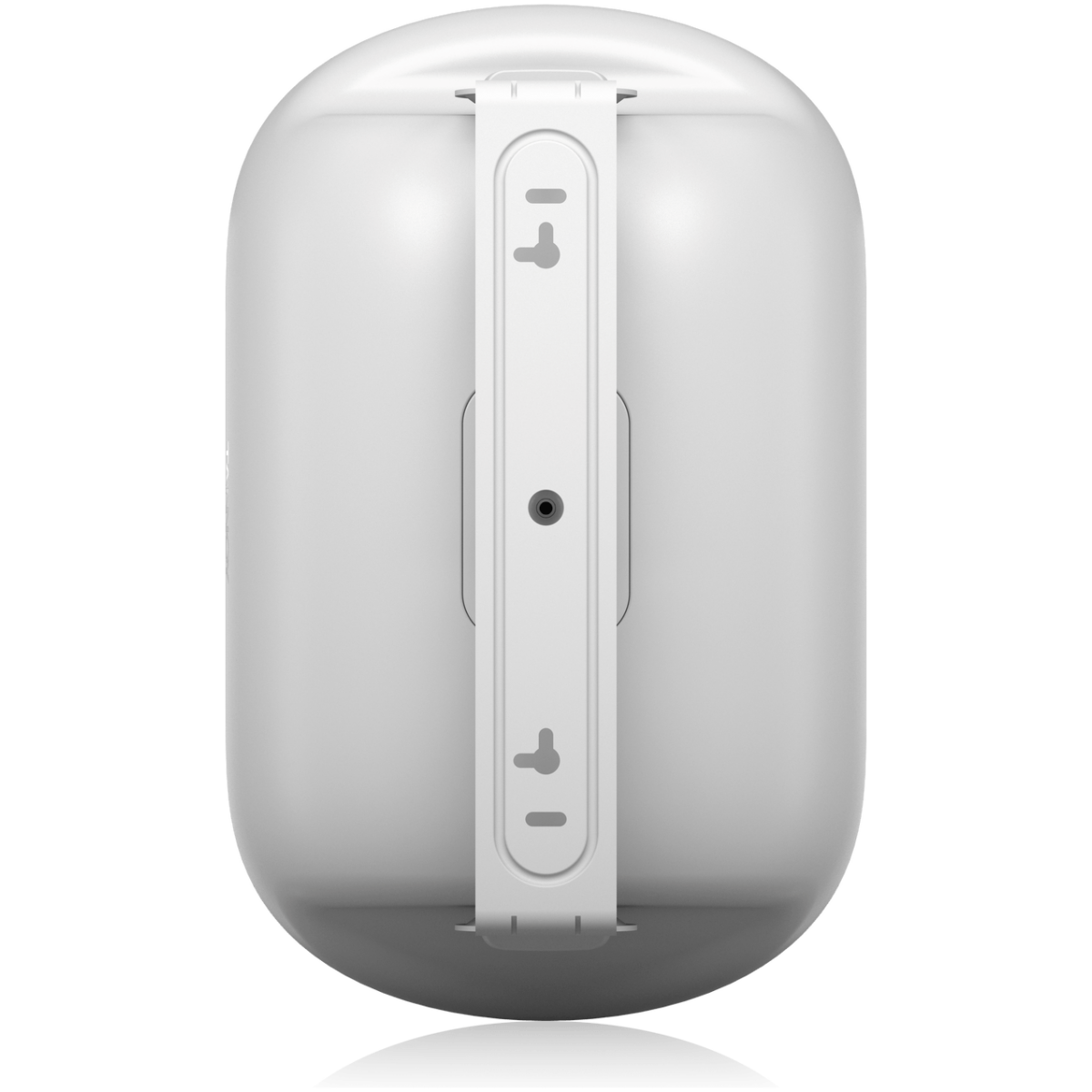

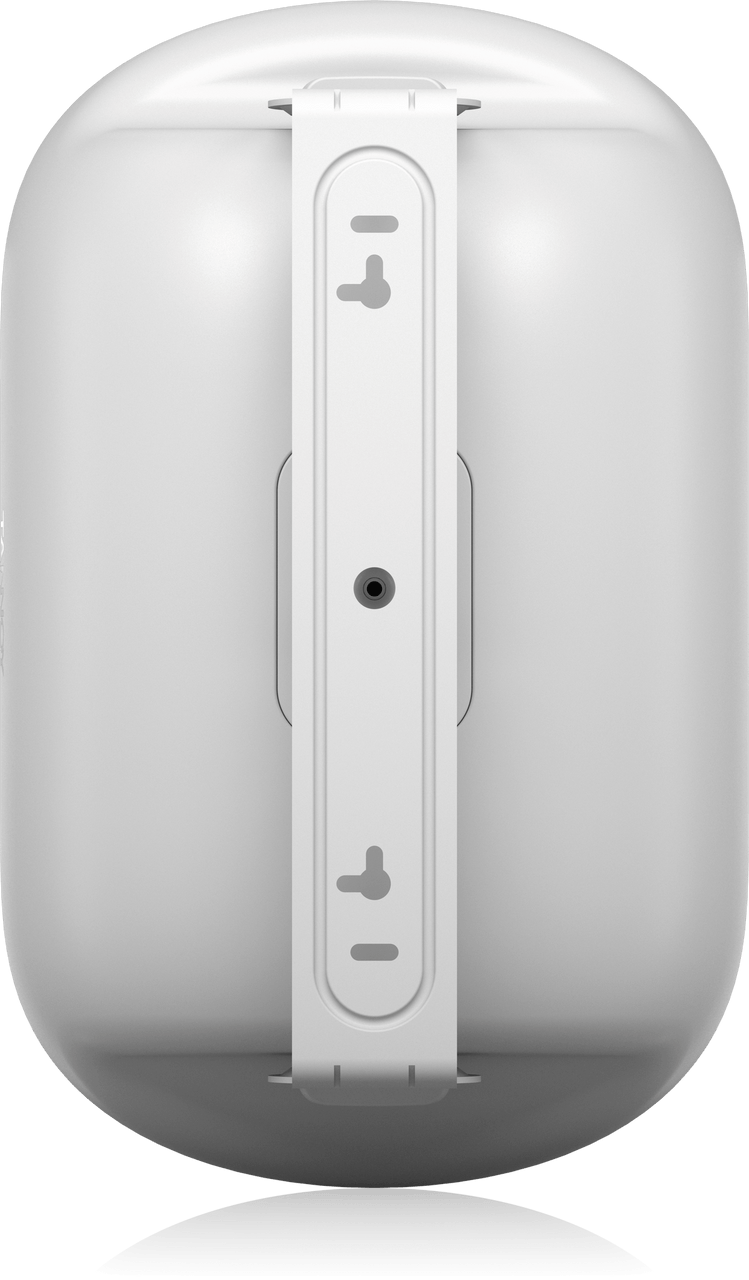

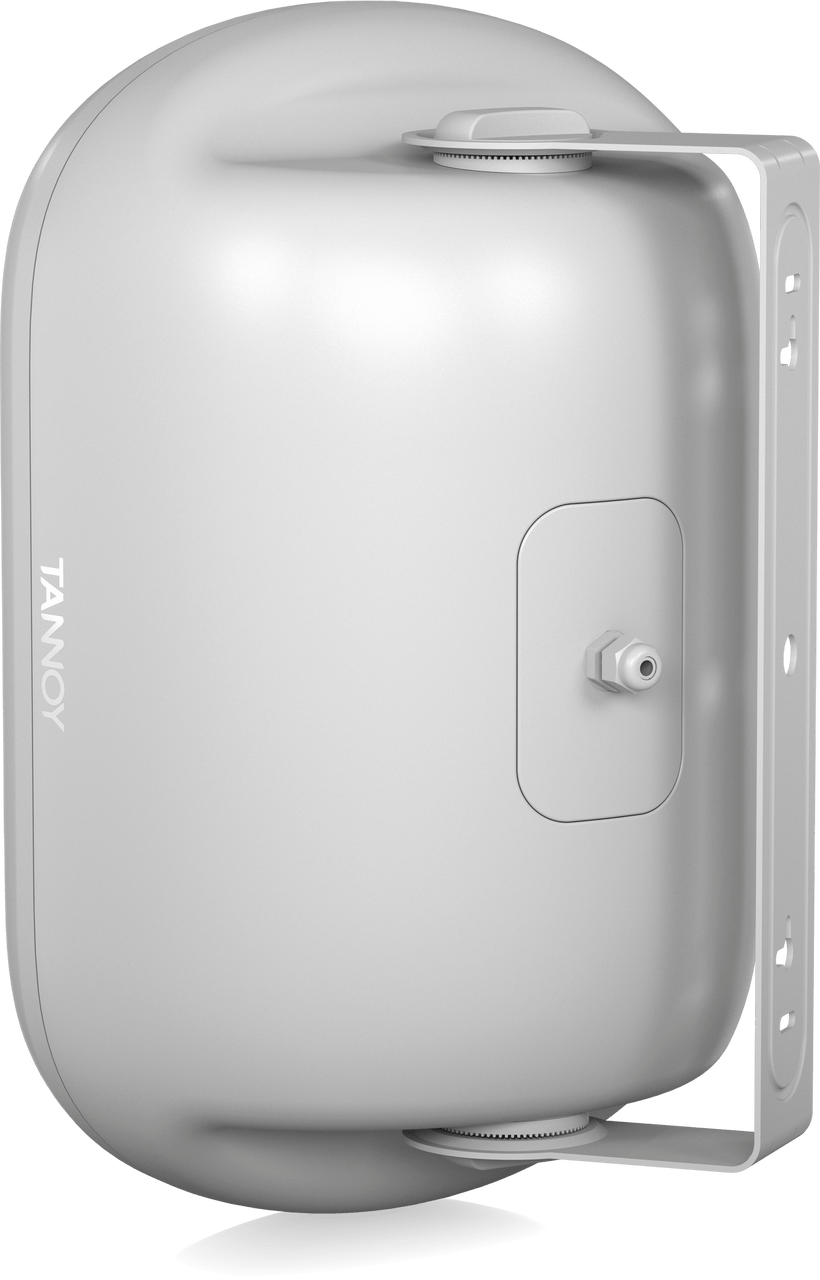

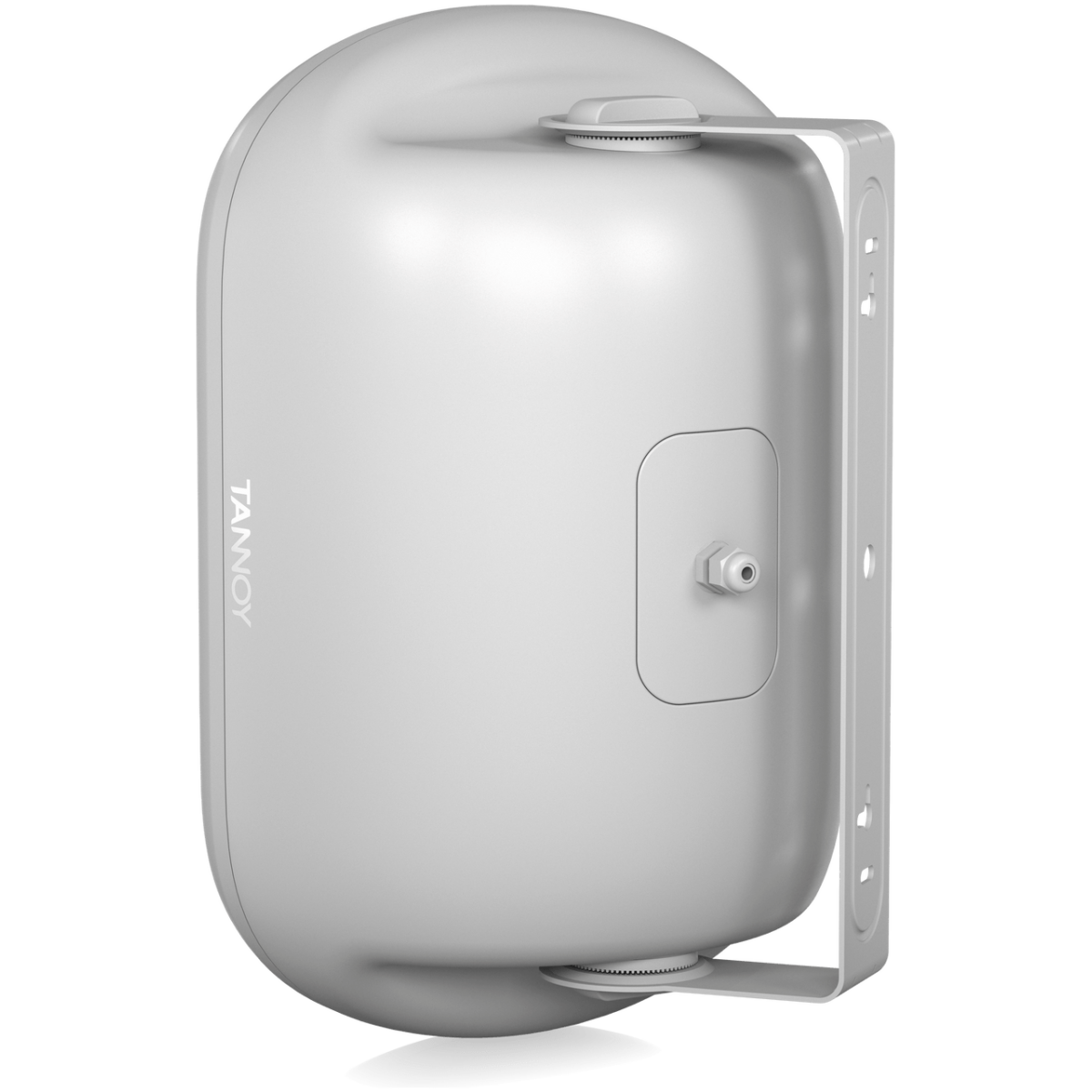

- Yoke bracket included for ease of installation

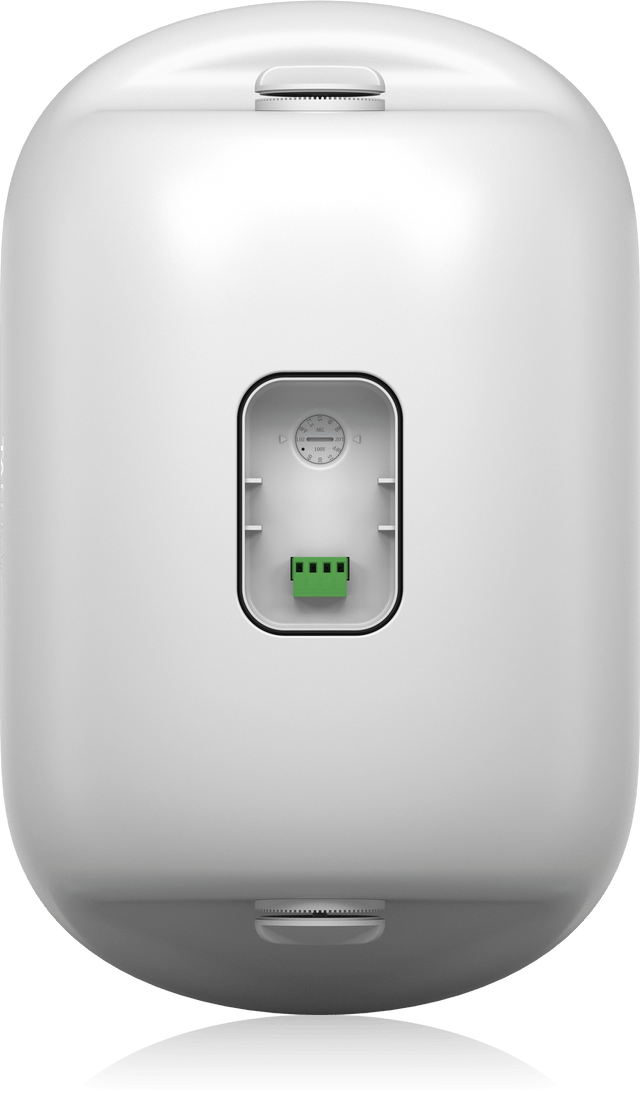

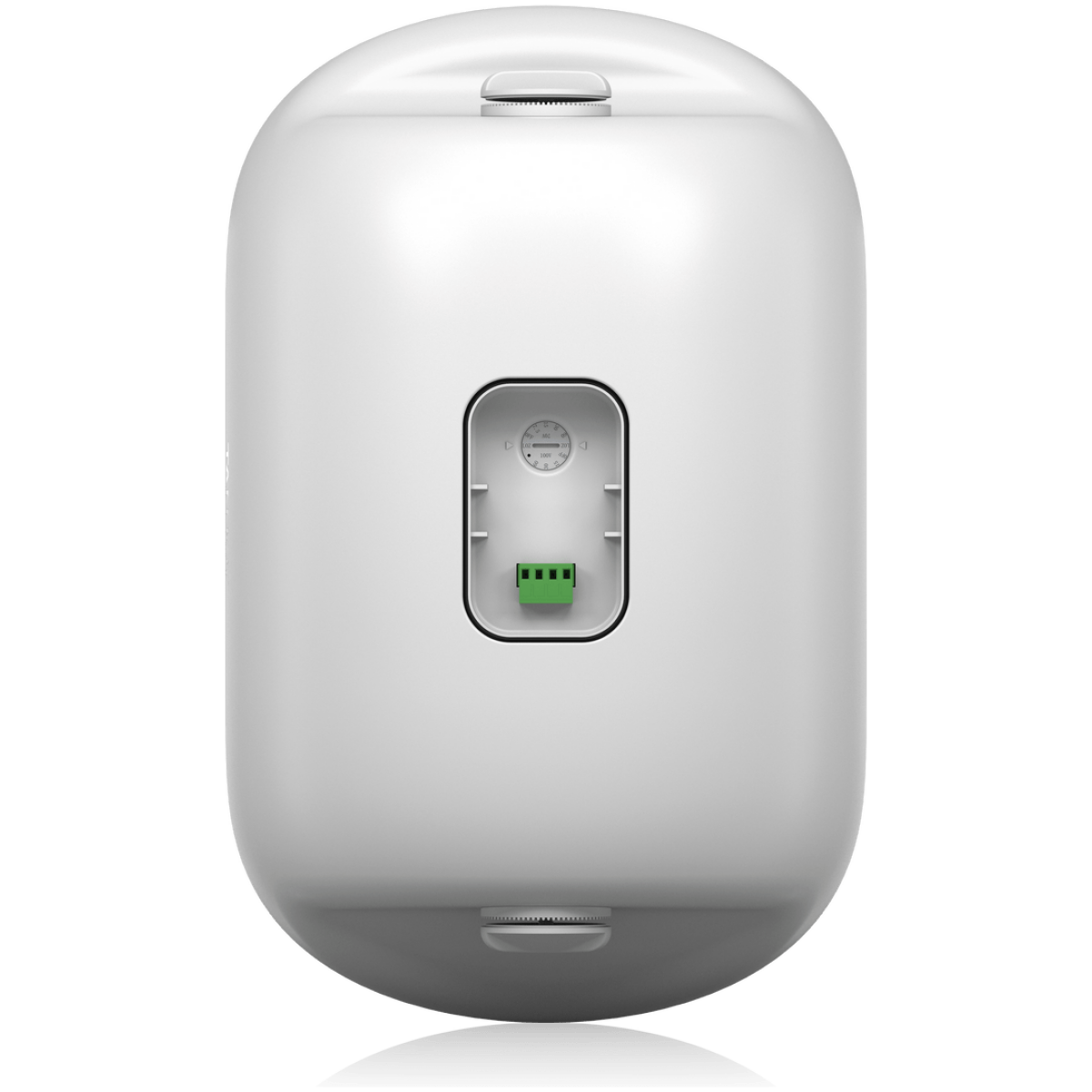

- Phoenix connectors for input and link output
Specifications
Performance
| Frequency response (-3 dB) | 85 Hz – 20 kHz |
| Frequency response (-10 dB) | 75 Hz – 20 kHz |
| System sensitivity (1 W @ 1 m) | 88 ± 2 dB |
| Dispersion (-6 dB) | 82 degrees conical averaged 1 kHz – 10 kHz |
| Transducers | Coaxial |
| Low frequency | 200 mm (8.00″) paper cone with coating |
| High frequency | 25 mm (1′) |
| Crossover | 3150 Hz ± 10% |
| Directivity (Q) | 5.7 averaged 1 kHz to 10 kHz |
| Directivity (DI) | 7.2 averaged 1 kHz to 10 kHz |
| Rated maximum SPL | 106 dB (average) 112 dB (peak) |
Transformer
| Transformer taps | 70 V – 60 W / 30 W / 15 W / 7.5 W / OFF and LOZ low impedance operation
100 V – X / 60 W / 30 W / 15 W / OFF and LOZ low impedance operation |
| Maximum wire gauge for connector | 2.5 mm CSA (AWG12) |
| Safety Agency Ratings | UL 1480A, EN54-24:2008 |
Power Handling
| Average | 60 W |
| Programme | 120 W |
| Peak | 240 W |
| Recommended amplifier power | 120 W @ 8 Ohms |
| Nominal impedance | 8 Ohms |
