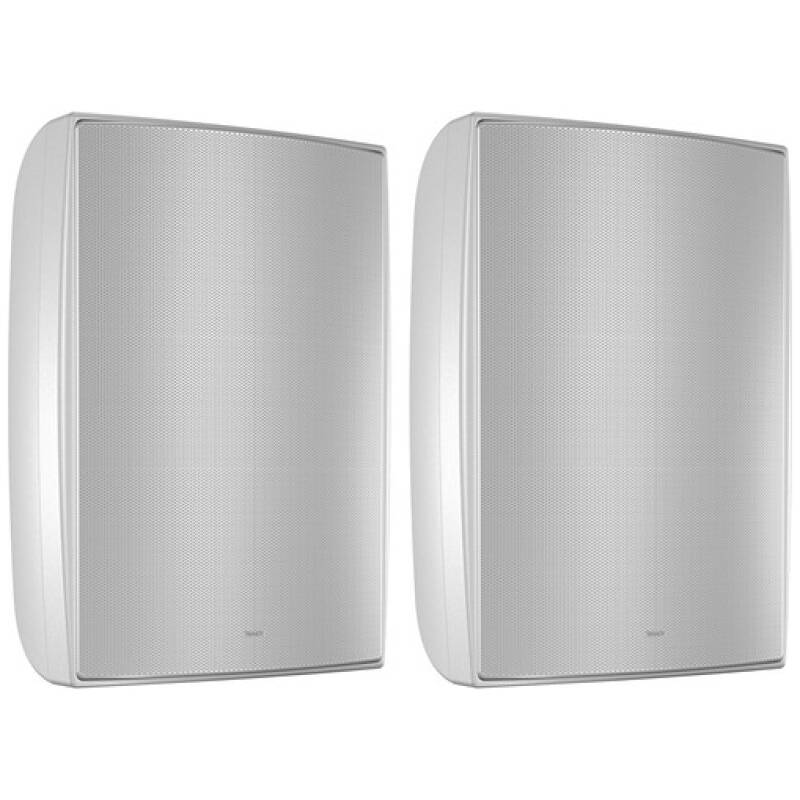

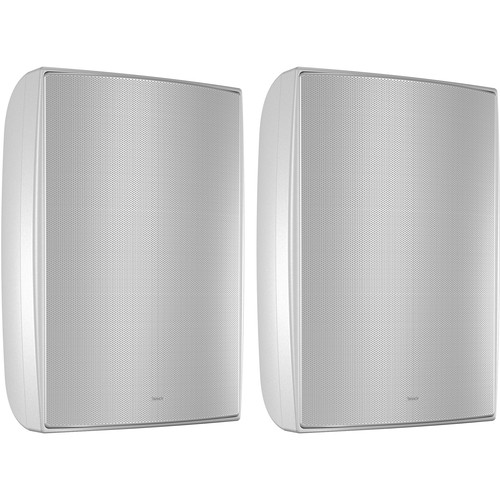

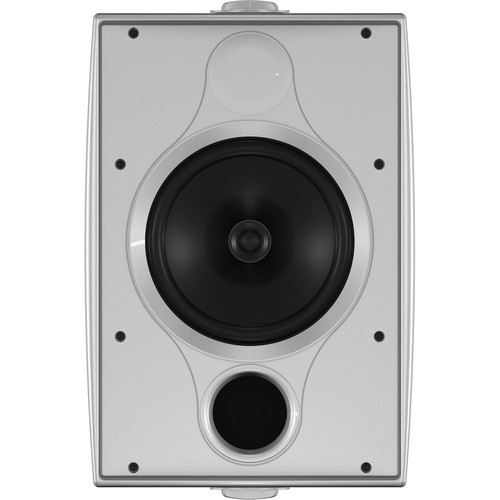

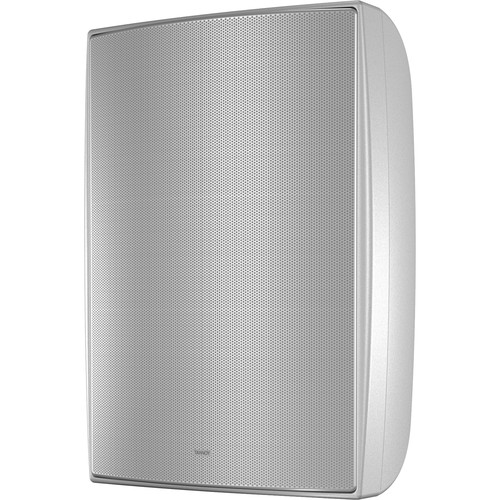

DVS 8T-WH
Designed to excel in a wide variety of sound reinforcement applications, the full range DVS 8T-WH is an ultra-compact 280-Watt surface mount loudspeaker that provides both exceptional value and inspiring acoustic performance. The DVS 8T-WH is ideally suited for stereo or mono background/foreground music applications in theme parks, hotels, restaurants and bars, retail stores, as well as corporate AV, residential developments, and houses of worship.
Product Features
- Full range surface-mount loudspeaker for indoor and outdoor installation applications
- 70 Watts continuous, 280 Watts peak power

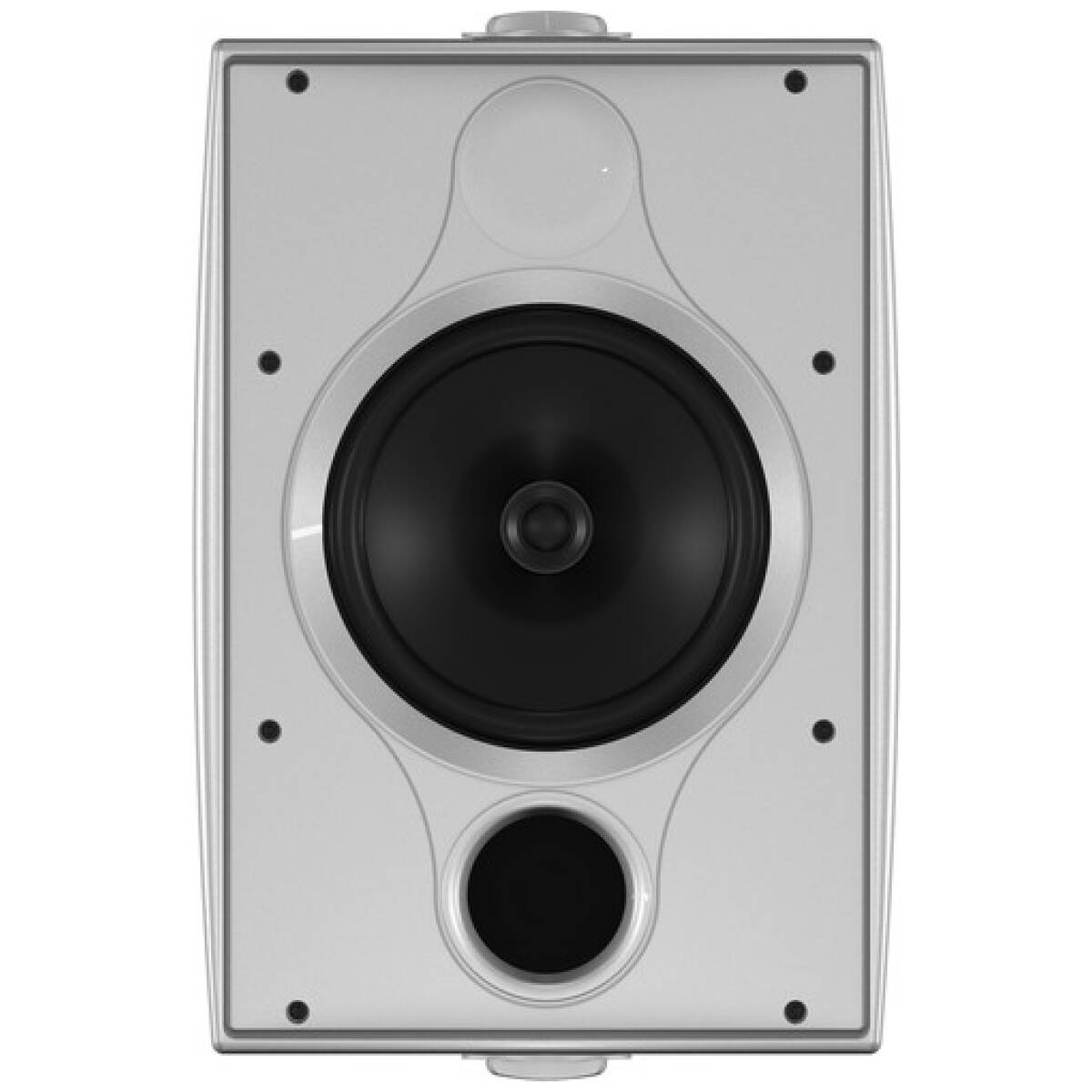

- 8″ mineral loaded polypropylene driver with nitrile rubber surround for enhanced durability and long-term reliability
- 0.75″ ferrofl uid cooled soft dome neodymium high frequency driver
- 80° constant directivity dispersion for optimum coverage
- UL 1480 certified for general signalling systems
- UV and weather resistant UL 94 V-0 ABS enclosure
- Multiple transformer taps for 70 V and 100 V line systems
- Low insertion loss 60 W line transformer with easily accessible tapping switch
- All components weather resistant to IP64 for outdoor use

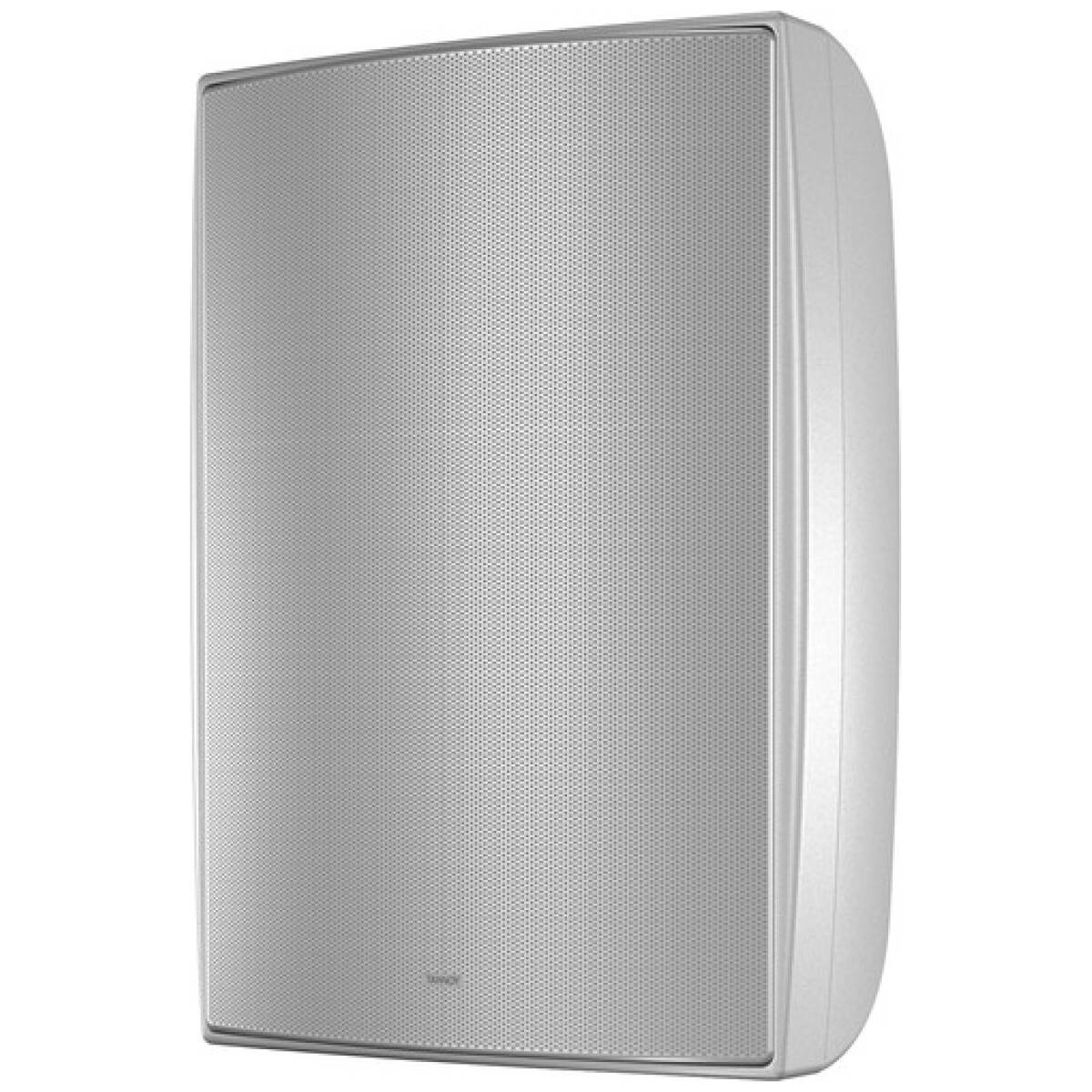

- Stylish durable enclosure in a semi matt white paint fi nish fi ts unobtrusively in any environment

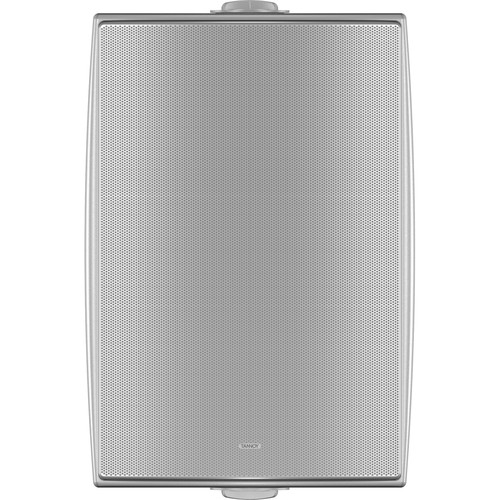

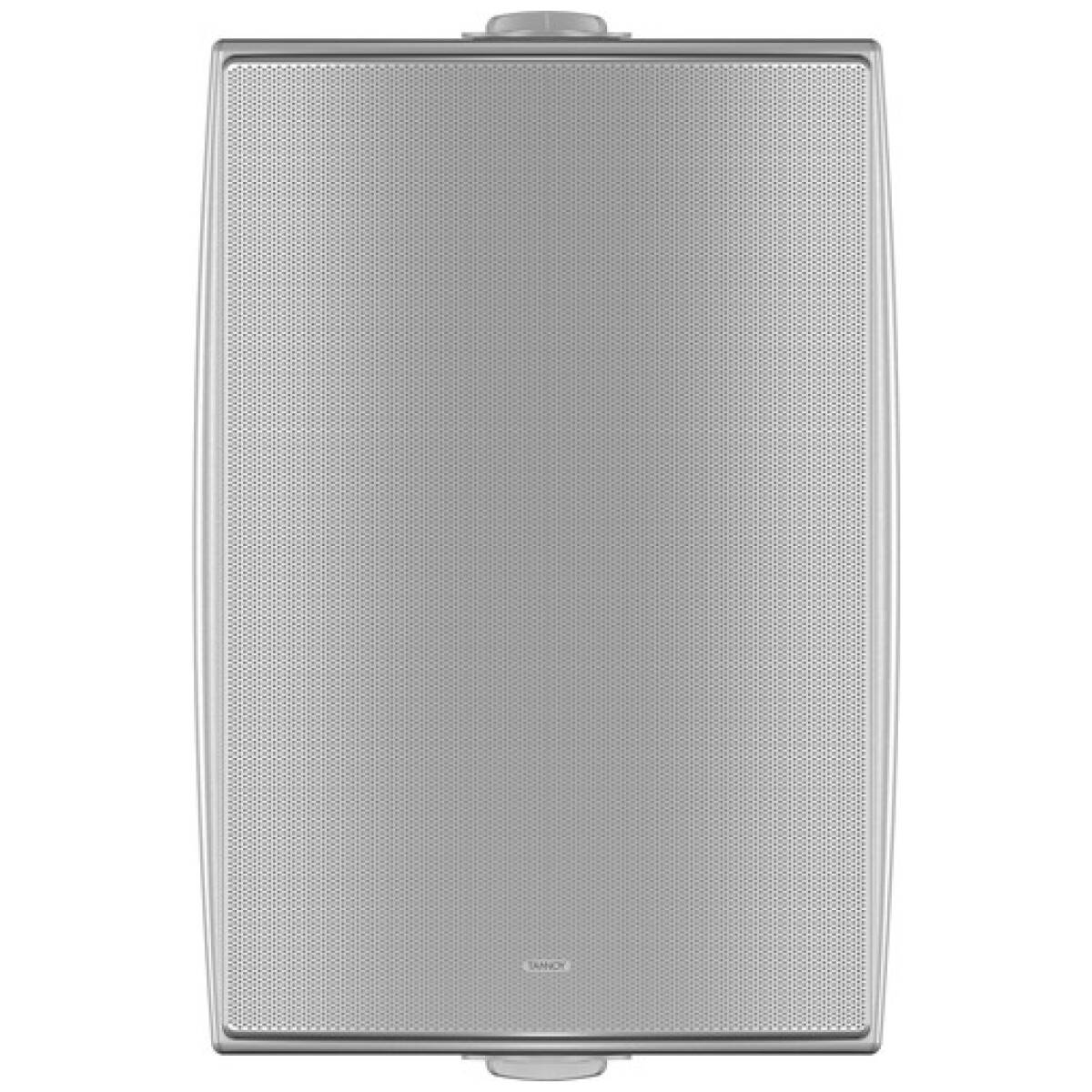

- Painted perforated aluminium mesh grille with dust protection

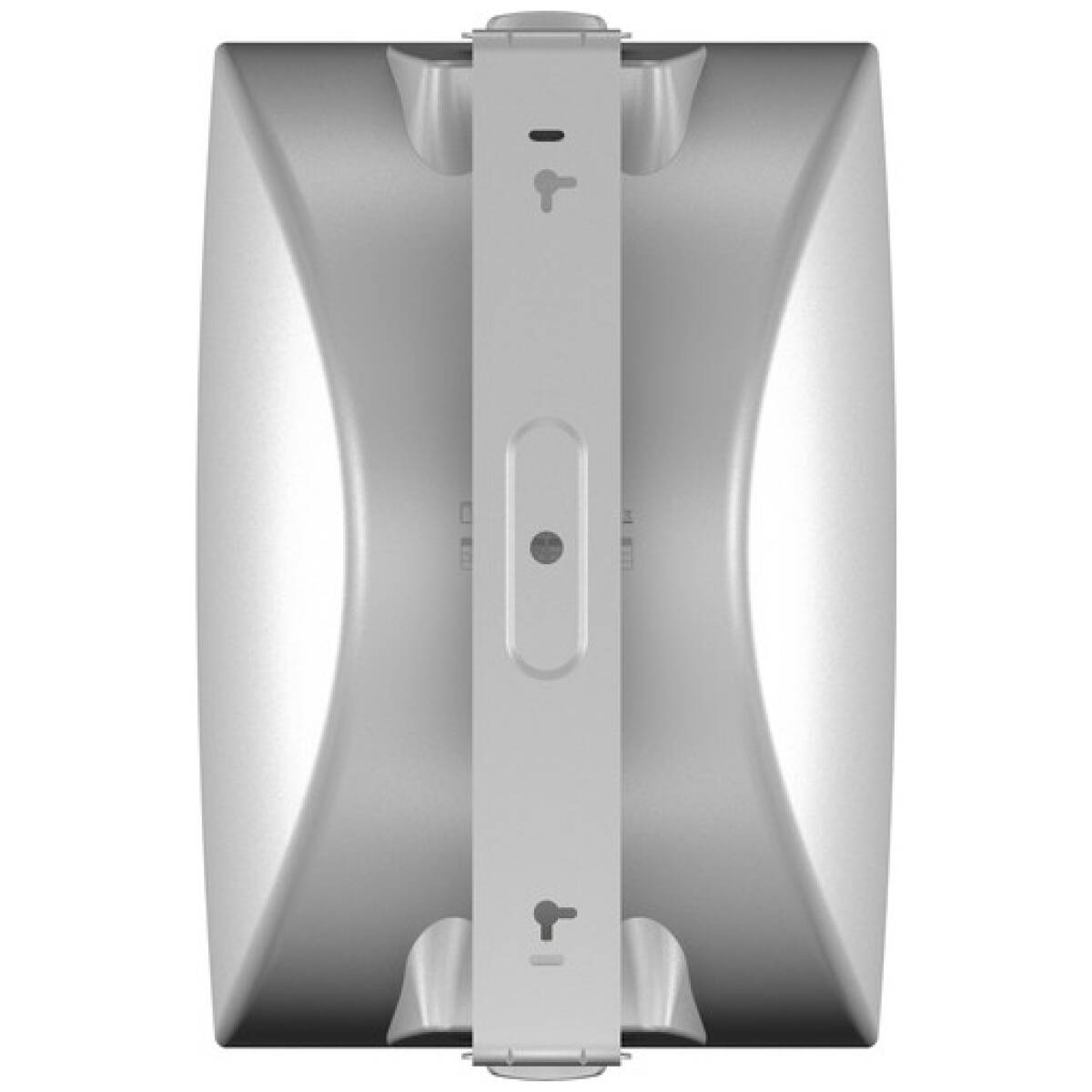

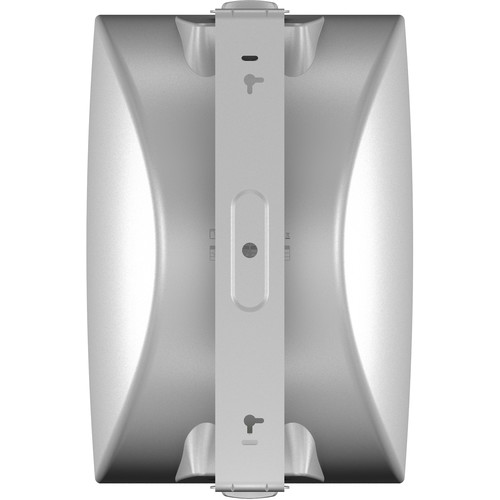

- Yoke bracket included for ease of installation
- Phoenix connectors input and link output
Specification
Performance
| Frequency response (-3 dB)<sup>1</sup> | 75 Hz – 20 kHz |
| Frequency response (-10 dB)<sup>1</sup> | 60 Hz – 30 kHz |
| System sensitivity (1 W @ 1 m)<sup>2</sup> | 90 dB |
| Dispersion (-6 dB) | 80 degrees conical |
| Transducers | Coaxial |
| Low frequency | 200 mm (8.00″) mineral loaded cone material |
| High frequency | 20 mm (0.79) |
| Crossover | 3.4 kHz – 2nd order LF, 2nd order HF |
| Directivity (Q) | 12.3 averaged 1 kHz to 10 kHz |
| Directivity (DI) | 10.0 averaged 1 kHz to 10 kHz |
| Rated maximum SPL <sup>2</sup> | 108 dB (average) 114 dB (peak) |
Transformer Version
| Transformer taps | |
| Maximum wire gauge for connector | 2.5 mm CSA (AWG12) |
| Safety Agency Ratings | UL-1480, CE |
Power Handling
| Average | 70 W |
| Programme | 140 W |
| Peak | 280 W |
| Recommended amplifier power | 140 W @ 6 Ohms |
| Nominal impedance | 6 Ohms |
Construction
| Enclosure | ABS |
| Grille | Aluminium, painted |
| Connectors | Euroblock type removable locking connector with screw terminals with “loop through” facility |
| Supplied accessories | Yoke bracket |
| Packed quantity | 2 |
| Dimensions (H x W x D) | 451.8 x 290.0 x 296.0 mm (17.79 x 11.42 x 11.65″) |
