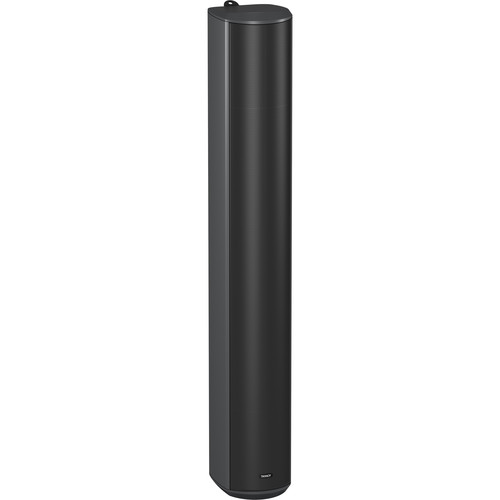

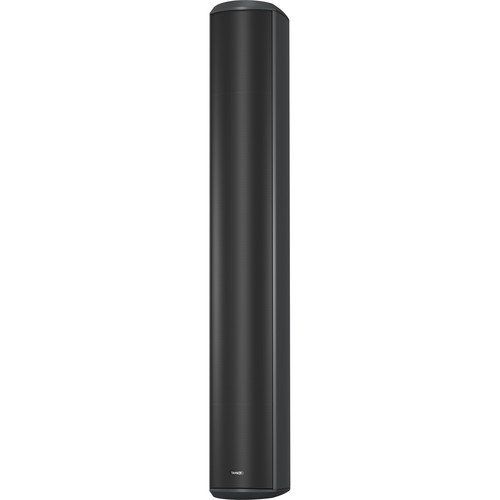

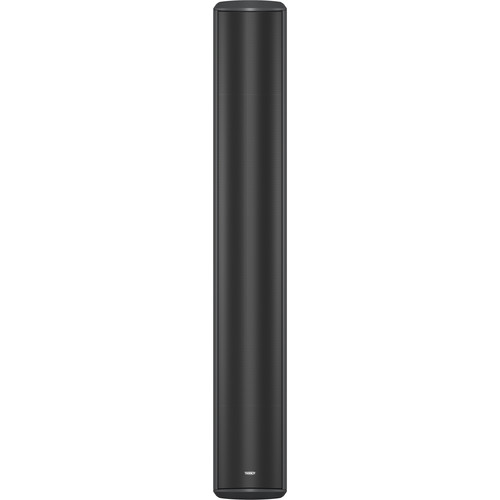

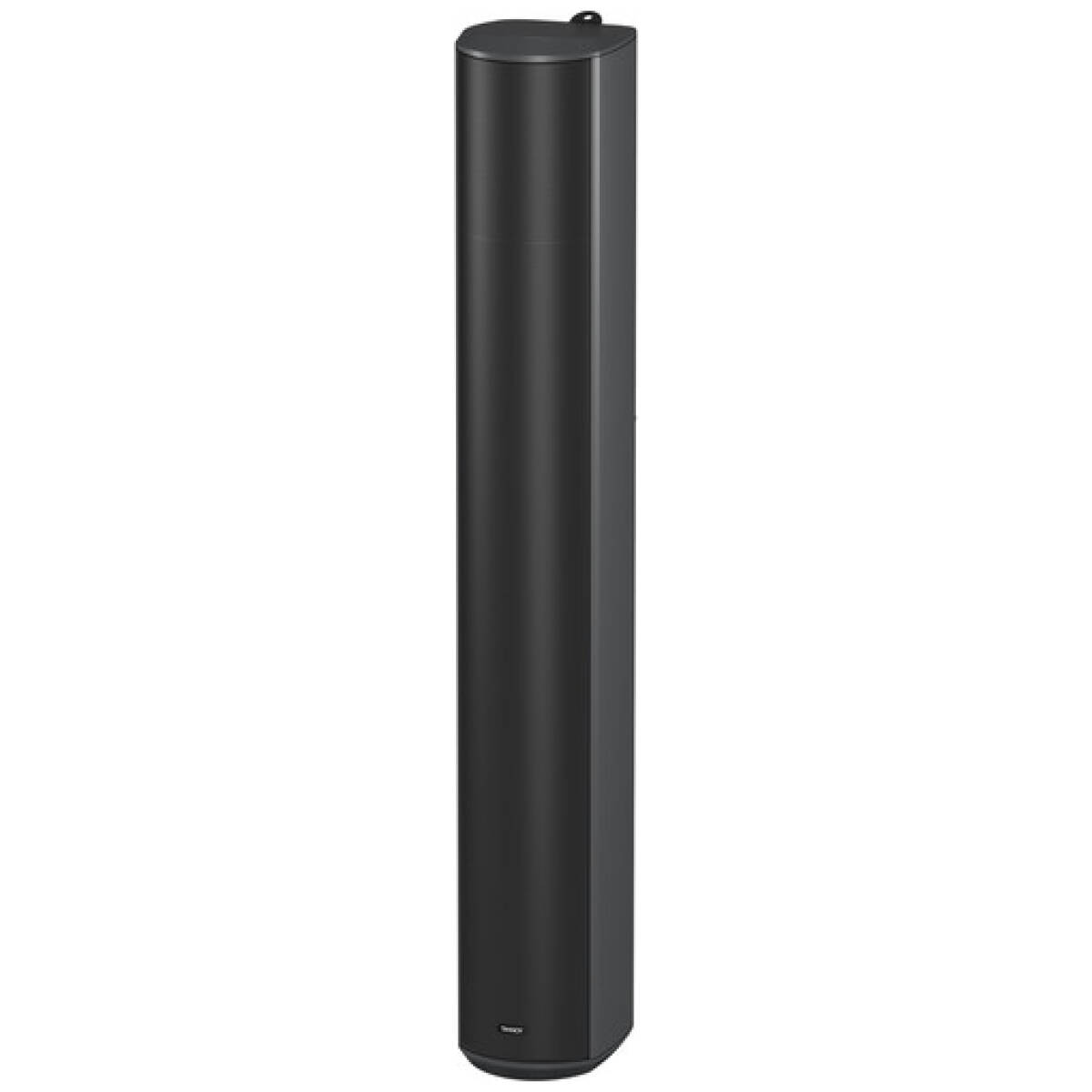

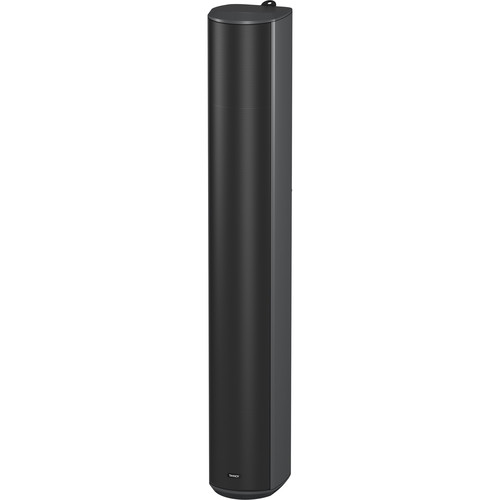

VLS 7 (EN 54)
The VLS 7 (EN 54) is a 600-Watt passive column array loudspeaker ideally suited for challenging acoustic and architecturally sensitive spaces in speech only applications, including, airports, train stations, conference centers, houses of worship, stadium concourses and museums. The heart of the loudspeaker system is its asymmetrical vertical dispersion, which gently shapes the acoustic coverage towards the lower quadrant of the vertical axis. VLS 7 (EN 54)’s Focused Asymmetrical Shaping Technology (FAST) also facilitates quick and easy installation, with less need for tilting for optimal mounting. EN 54-24 compliance makes the VLS 7 (EN 54) the perfect choice where safety is a top priority. VLS7 (EN54) packages this performance in a slender and narrow profile, aesthetically refined, powder coated aluminum chassis with curved stainless steel grille.
Product Features
- Passive column array loudspeaker for indoor and outdoor installation applications
- 150 Watts continuous, 600 Watts peak power

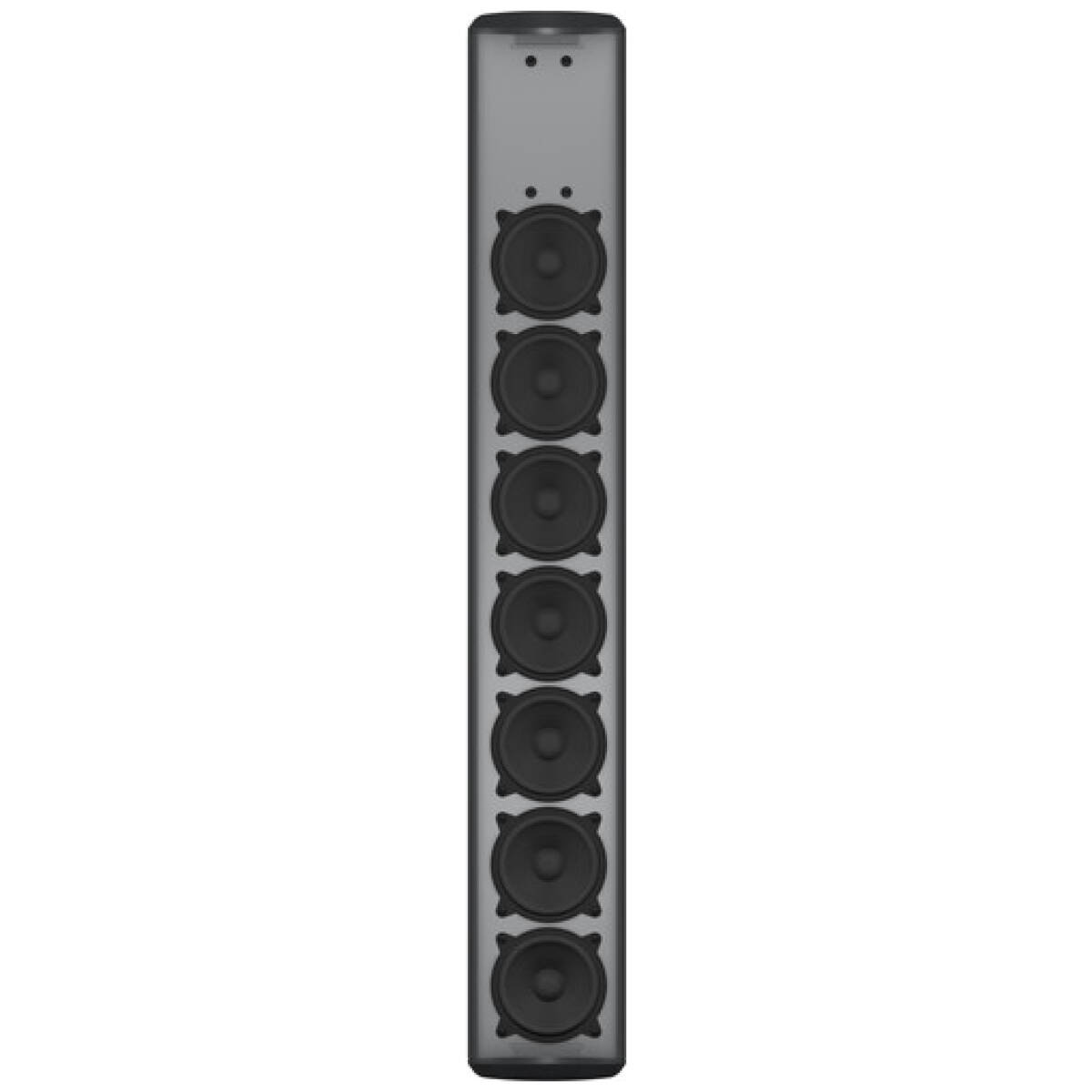

- 7 vertically arrayed 3.5″ mid range drivers provide high intelligibility speech reproduction
- FAST (Focussed Asymmetrical Shaping Technology) delivers asymmetric vertical dispersion towards the typical listening plane
- EN 54-24 certified for fire detection and fire alarm systems
- Multiple transformer taps for 70 V and 100 V line systems or 12 Ohm direct input

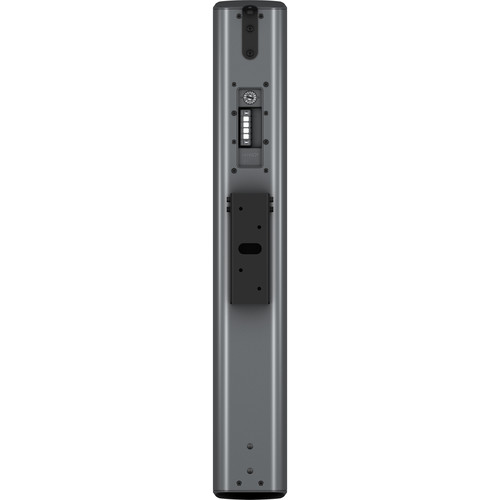

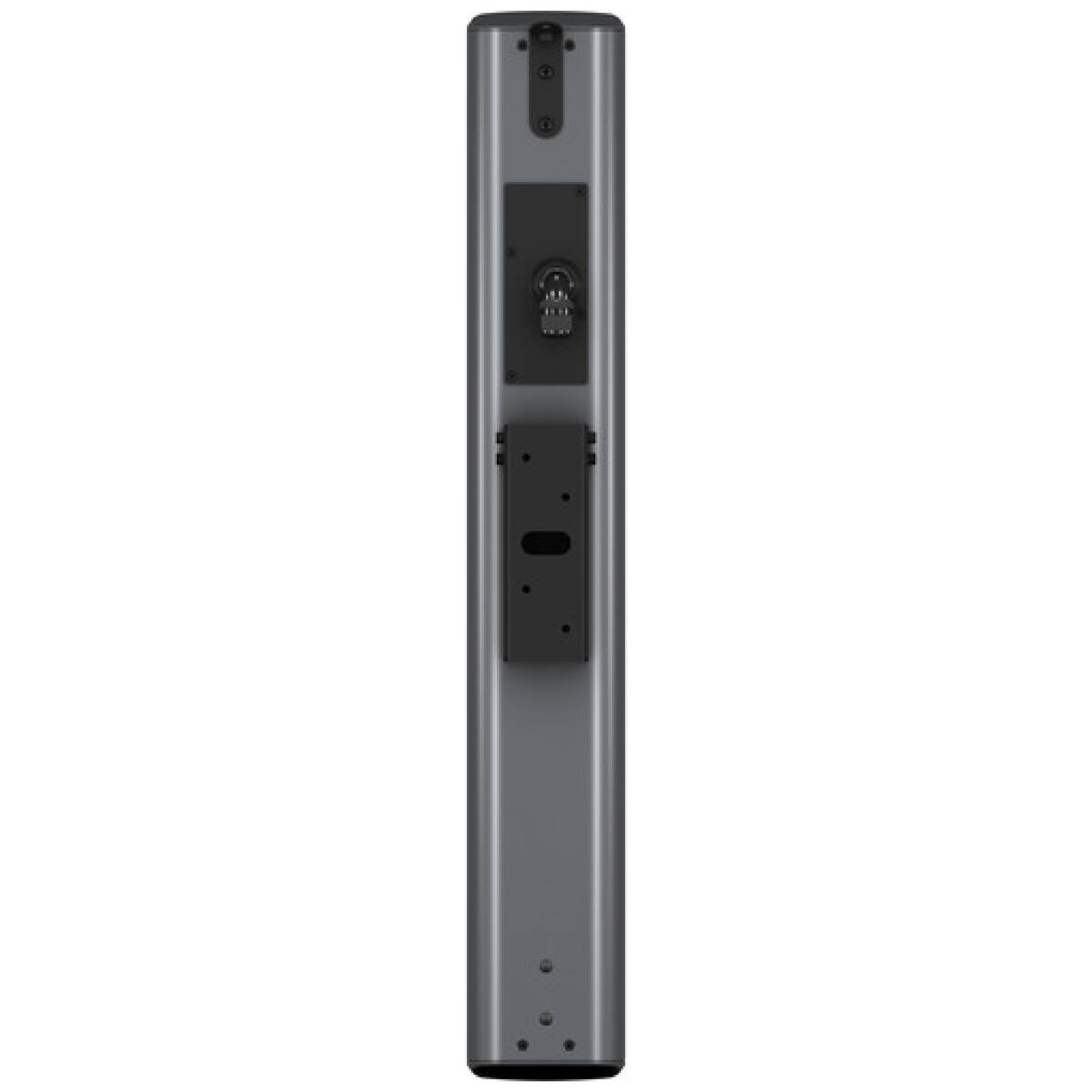

- Low insertion loss 150 W line transformer with easily accessible tapping switch
- All components weather resistant to IP65 for outdoor use
- Architecturally styled aluminum enclosure with a semi-matte black painted finish
- Corrosion-resistant stainless steel perforated grille
- Included custom brackets allow quick and accurate installation
Specifications
- Power Handling: 150 W continuous, 600 W peak
- Drivers: 7 x 3.5″ mid-range
- Frequency Range: 110 Hz – 14 kHz
- Max SPL: 118 dB (1 m, Lo-Z)
- Dispersion: 130° horizontal, +6° / -22° vertical
- Protection Rating: IP65
- Certifications: EN 54-24
- Weight: 10.8 kg (23.8 lbs)
- Dimensions: 956 x 118 x 157 mm
- Transformer Taps: 150, 75, 37.5, 19, 9.5, 5 W
