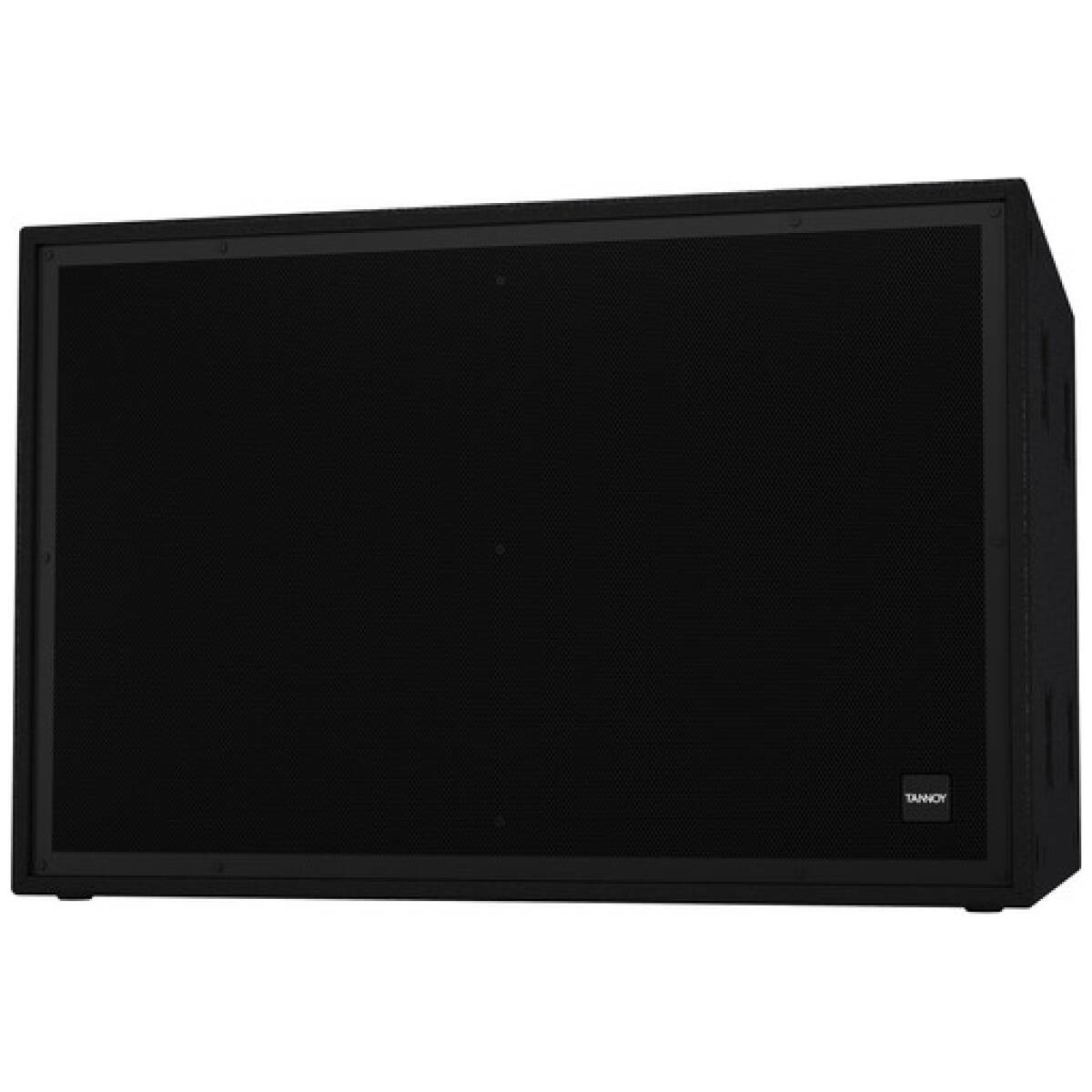

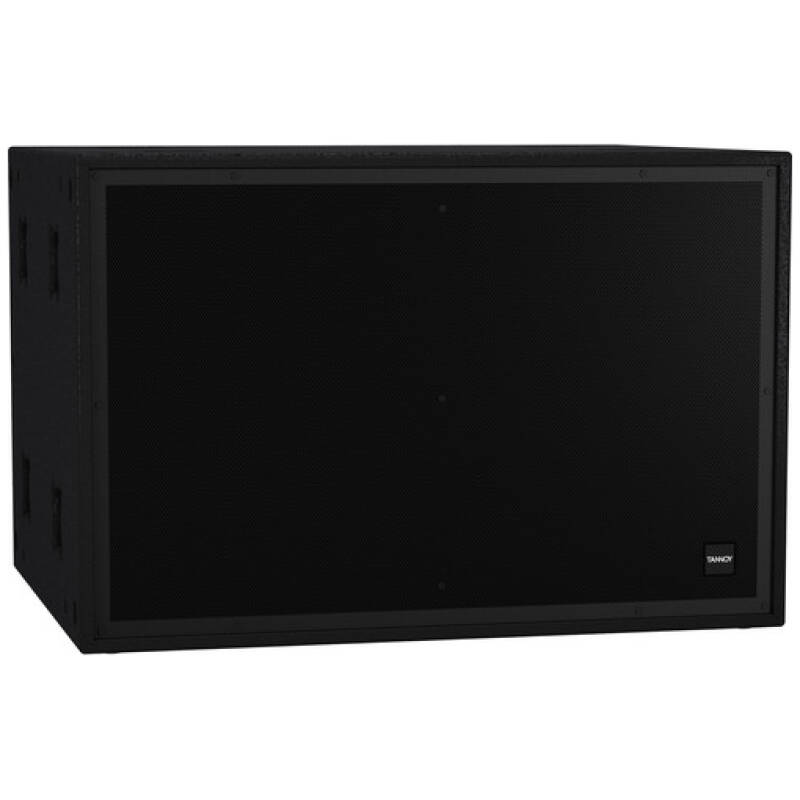

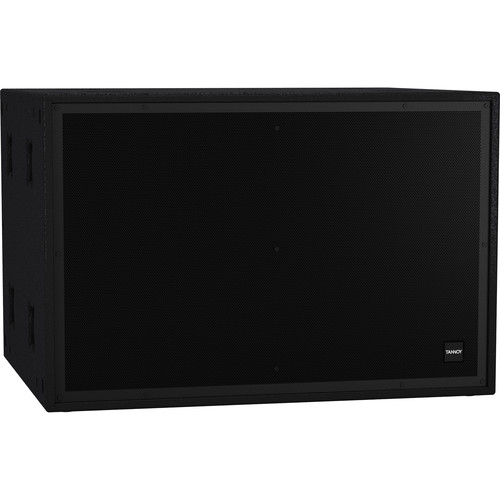

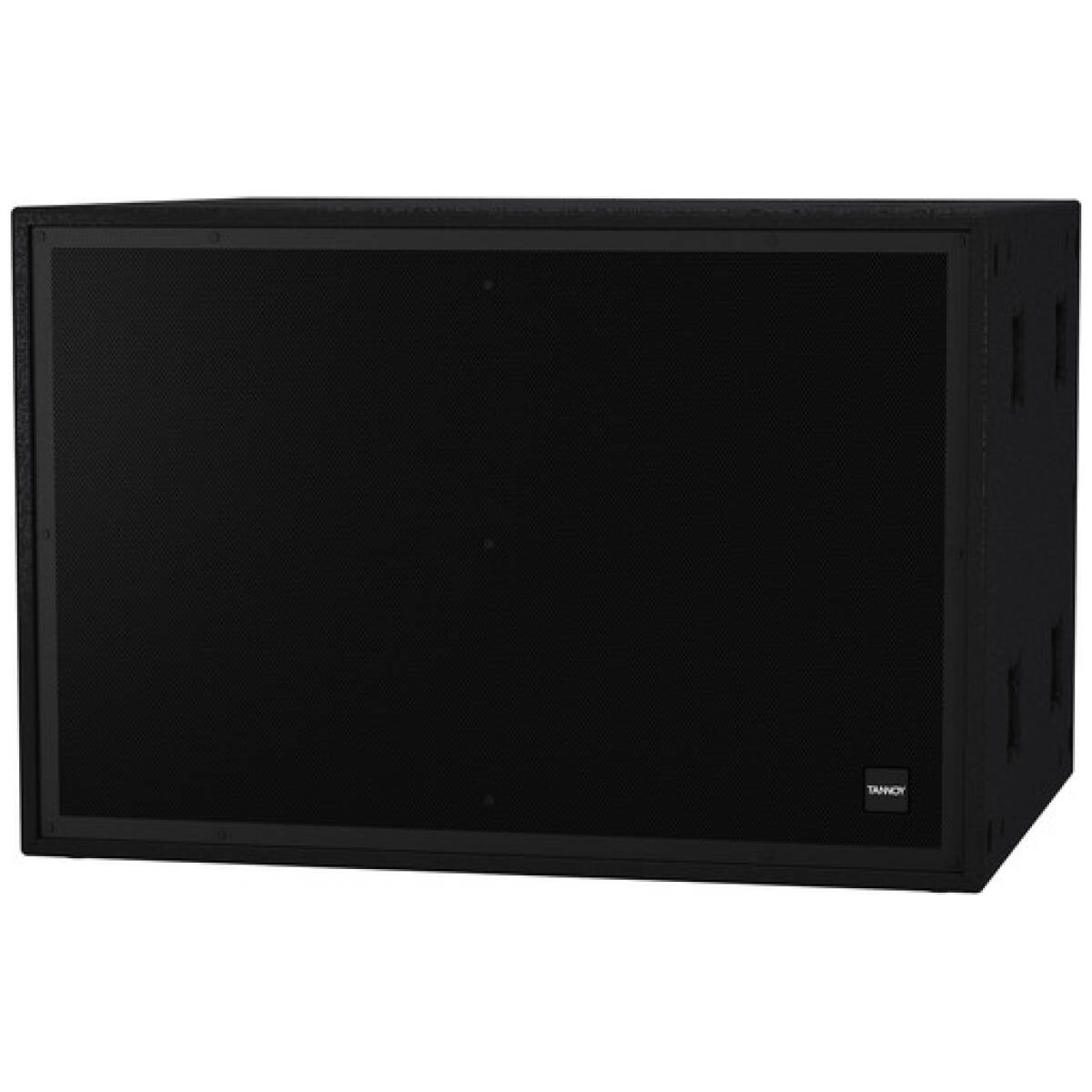

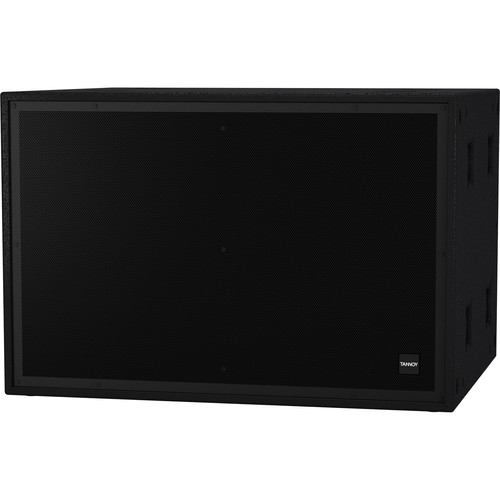

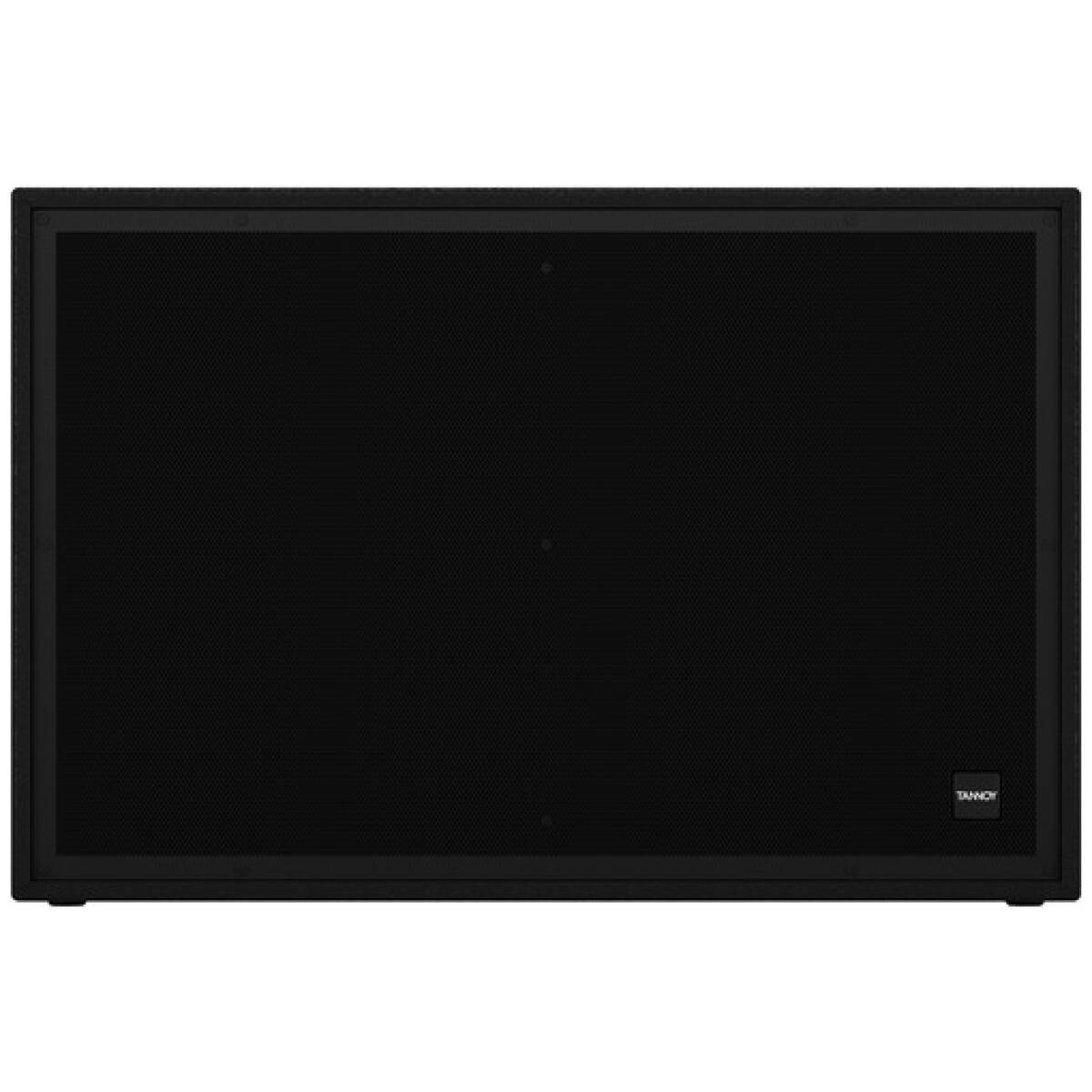

VSX218B
The 8,000-Watt VSX218B is a direct radiating passive twin 18″ subwoofer that is ideally suited for a broad range of speech and music sound reinforcement applications in both fixed, portable, and touring audio systems. VSX218B’s superb low frequency reproduction makes it the perfect choice for deployment in clubs, bars, theatres and AV applications.
Product Features
- Large-scale direct radiating subwoofer for portable and installation applications
- 2,000 Watts continuous, 8,000 Watts peak power

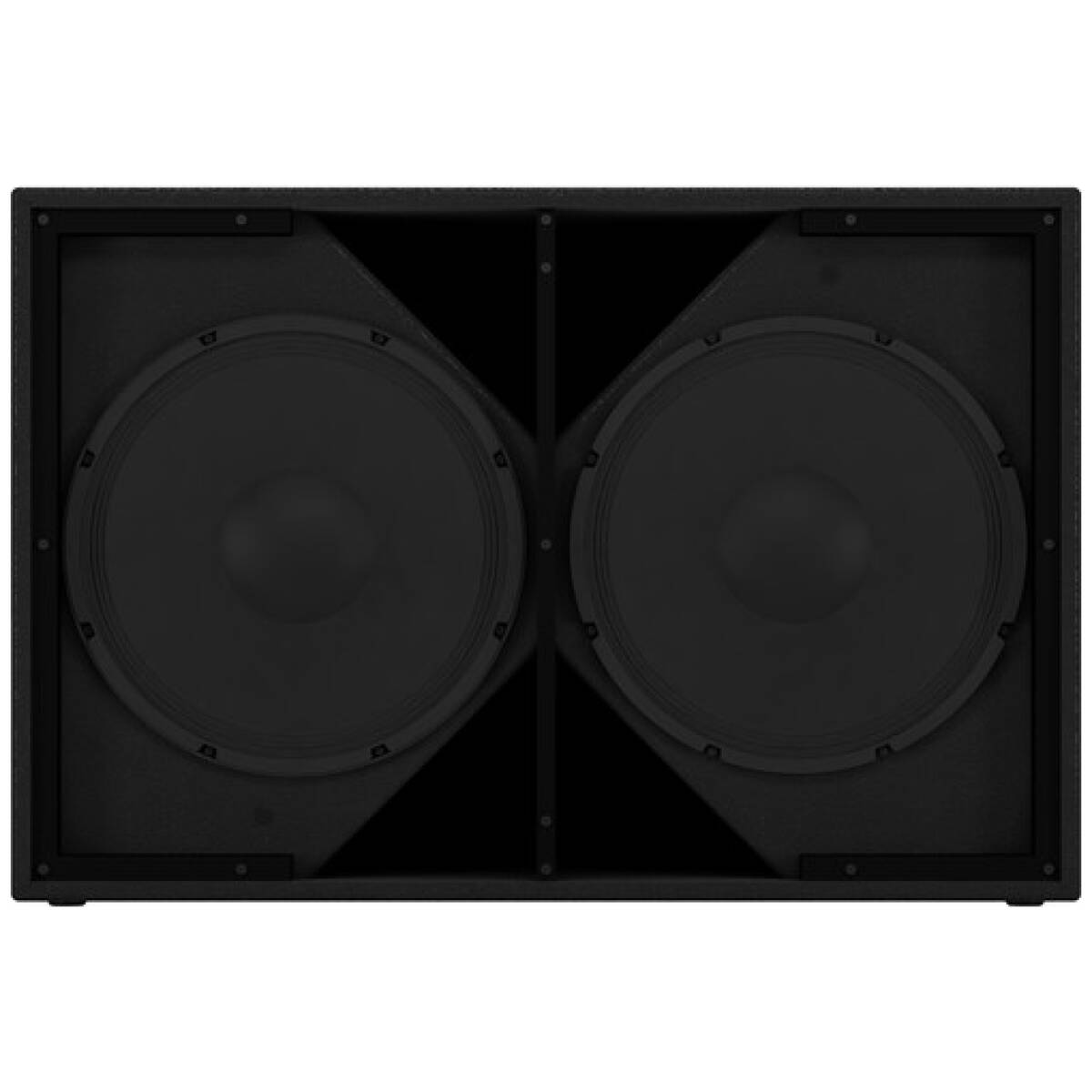

- Twin 18″ drivers for extended low-frequency response to 30 Hz
- Low distortion dual port design for maximum sound pressure levels
- Ideal for foreground music playback in clubs, bars, theatres and AV applications
- Internally braced plywood enclosure
- Finished with a hard wearing semi matt black paint finish

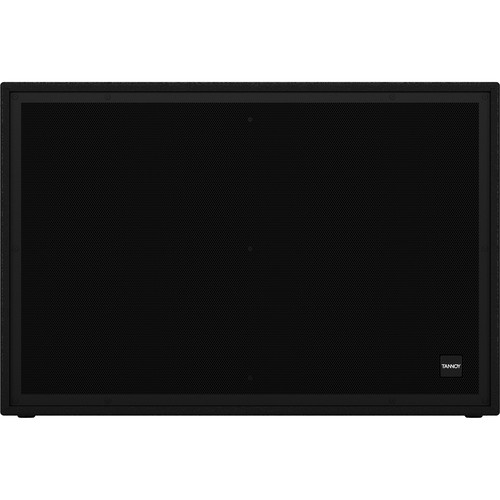

- Rugged powder-coated perforated steel mesh grille
- Integral M10 rigging points for ease of installation
- Handles ergonomically integrated into sides of the cabinet

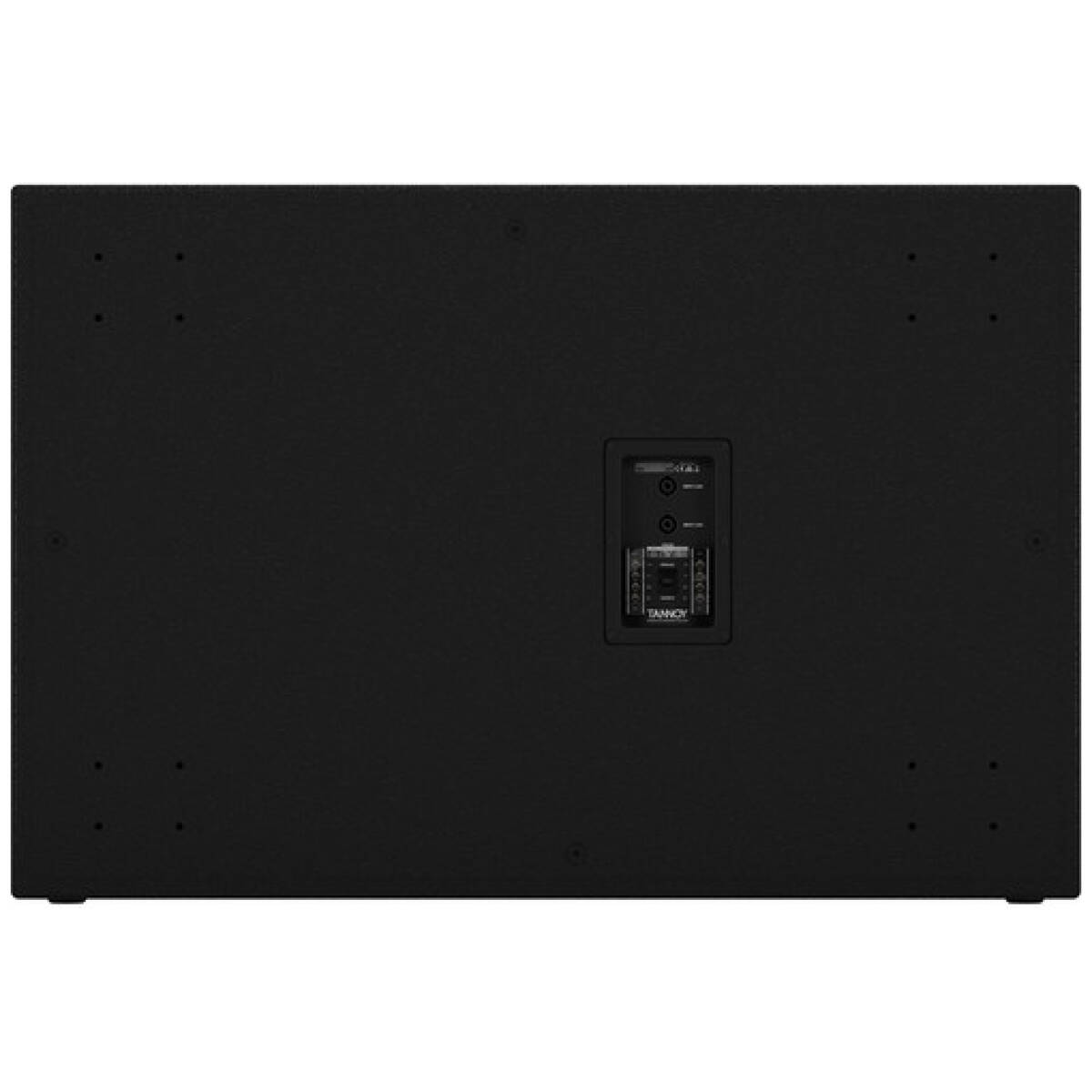

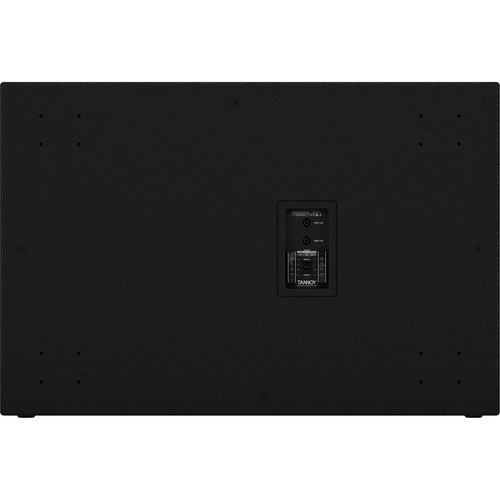

- Industry standard 4-pole twist-lock speaker and barrier strip connectors for input and link output
Technical Specifications
System
Frequency response 31 Hz – 600 Hz, ±3 dB
24 Hz – 2 kHz, -10 dB
Recommended low pass crosssover 70 – 300 Hz, 24 dB/Oct
Nominal dispersion Half space
Power handling (IEC) 2000 W continuous, 8000 W peak
Sensitivity 103 dB (1 W @ 1 m)
Maximum SPL 136 dB continuous, 142 dB peak
Impedance 4 Ω (parallel)
2 x 8 Ω (discrete)

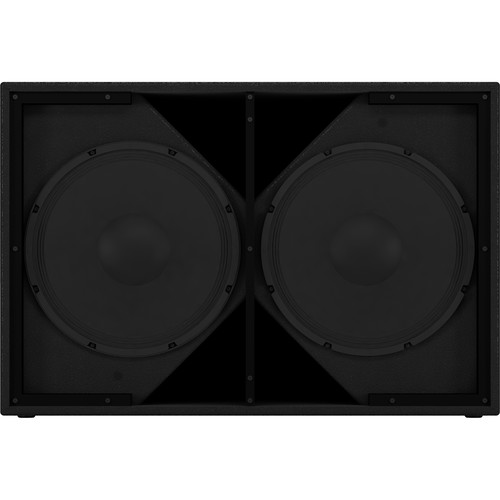

Components 2 x 18″ (460 mm) LF driver
Enclosure
Connectors 2 x Neutrik speakON* NL4
2 x barrier strip terminals
Wiring —
Parallel Pins 1+ / 1- input, pins 2+ / 2- link
Discrete Pins 1+ / 1- input (SUB 1),
pins 2+ / 2- input (SUB 2)
Dimensions H x W x D 708 x 1052 x 851 mm
(27.9 x 41.4 x 33.5″)
Net weight 92.9 kg (204.6 lbs)
Construction 18 mm (3/4″) birch plywood
Finish Semi matt black paint
Grille Powder coated perforated steel
Flying hardware M10 x 24 points
