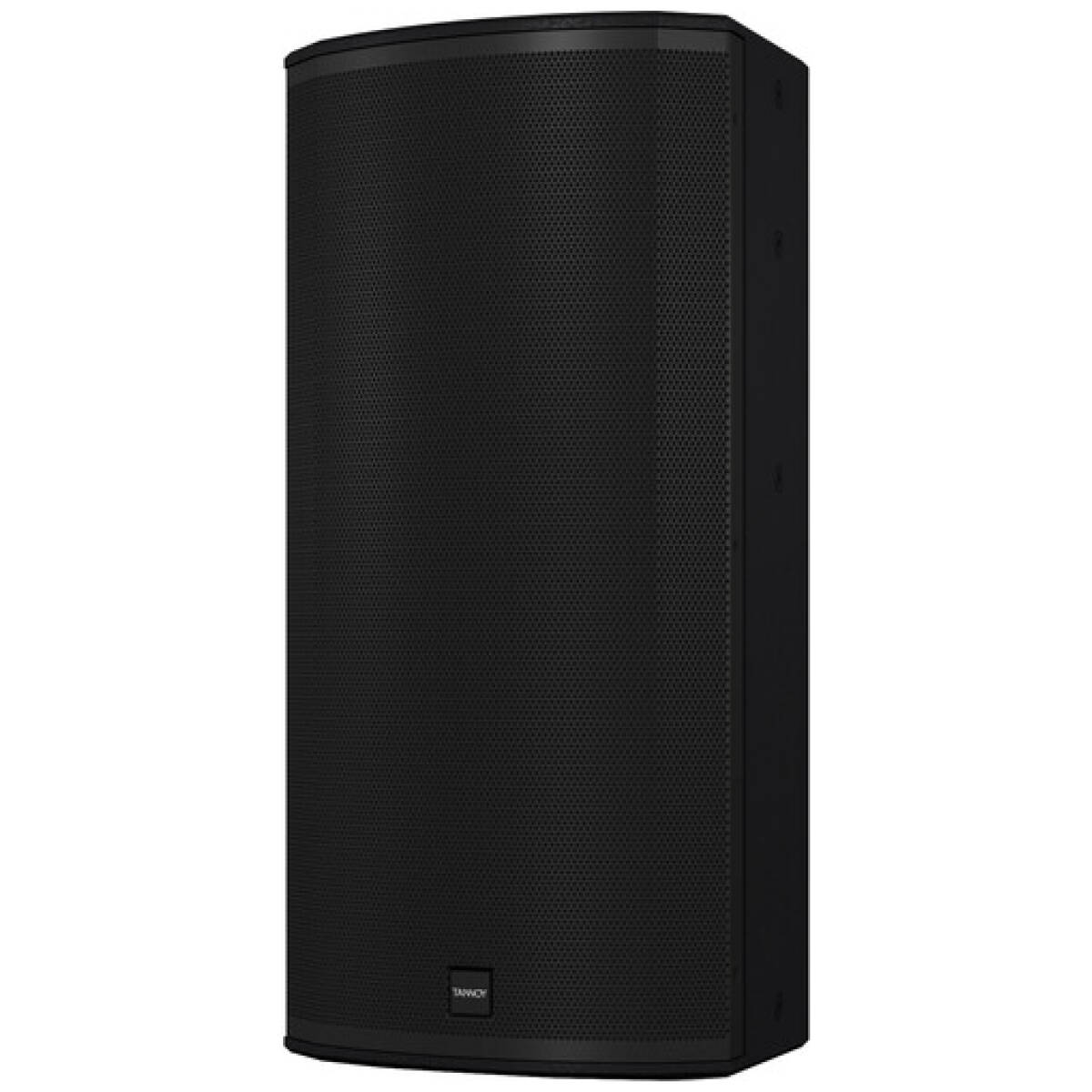

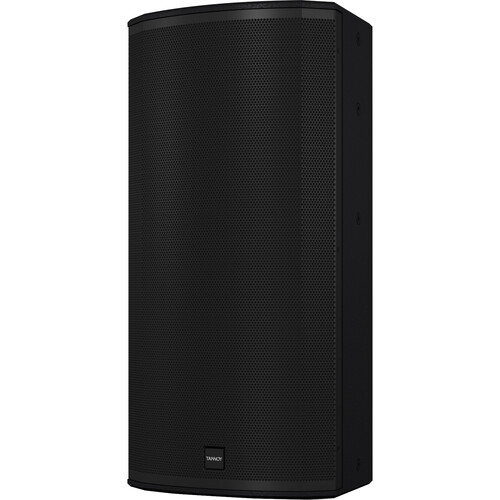

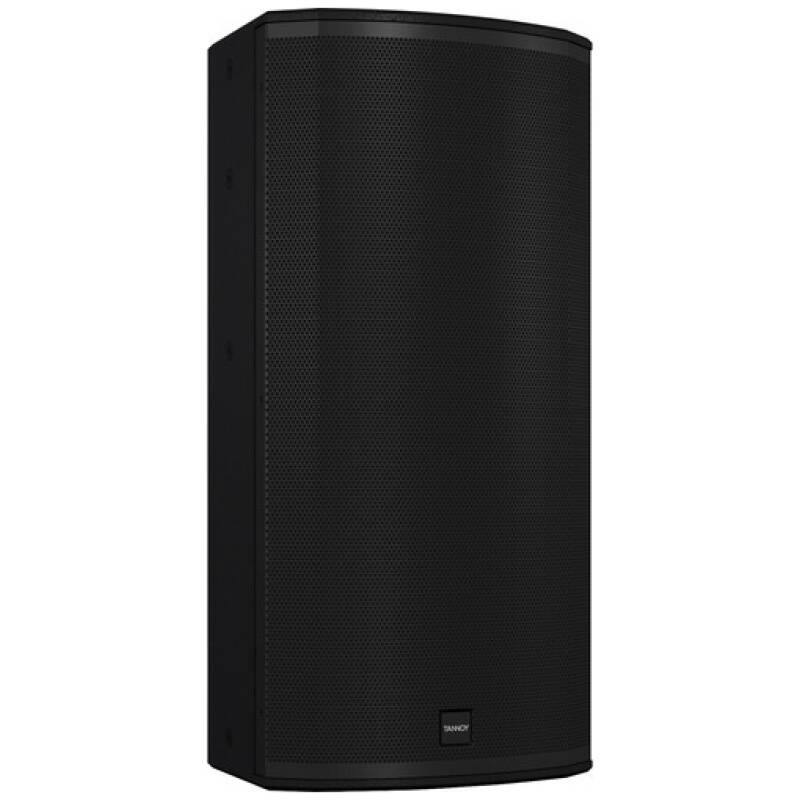

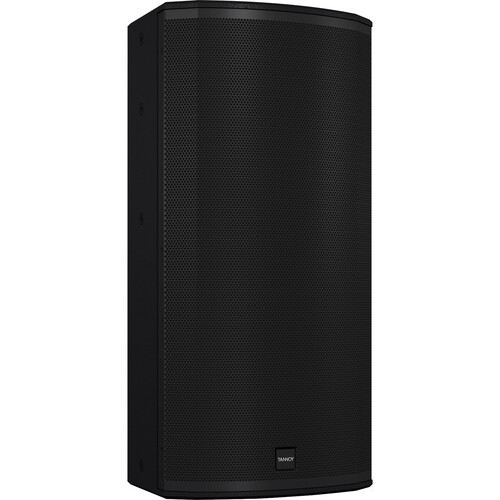

VX 12.2Q
The VX 12.2Q is a new class of device that delivers high SPL, low distortion audio coverage in a complete high performance loudspeaker cabinet. It provides a high impact solution for medium-to-large scale sound reinforcement in high-SPL applications such as bars and clubs, as well as being well suited for mid-scale portable/live PA applications. Thanks to its twin driver design for extended low frequency reproduction and flexible mounting options, the VX 12.2Q is also ideally suited for use complimenting much larger systems, making it an excellent choice for both installed and portable applications. The VX 12.2Q can also be configured for bi-amp operation.
Product Features
- Full range multi-purpose sound reinforcement loudspeaker for portable and installation applications
- 500 Watts continuous, 2,000 Watts peak power
- 12″ PowerDual full range driver for point source phase coherence
- 12″ low frequency driver for extended bass response
- Q-Centric waveguide for tighter vertical or horizontal pattern control
- Precise 75° H x 40° V dispersion for optimum coverage and forward projection
- Ideal for FOH, floor monitor and side fill applications
- Configurable for bi-amp operation
- Vented and internally braced plywood enclosure
- Finished with hard wearing semi matt black paint

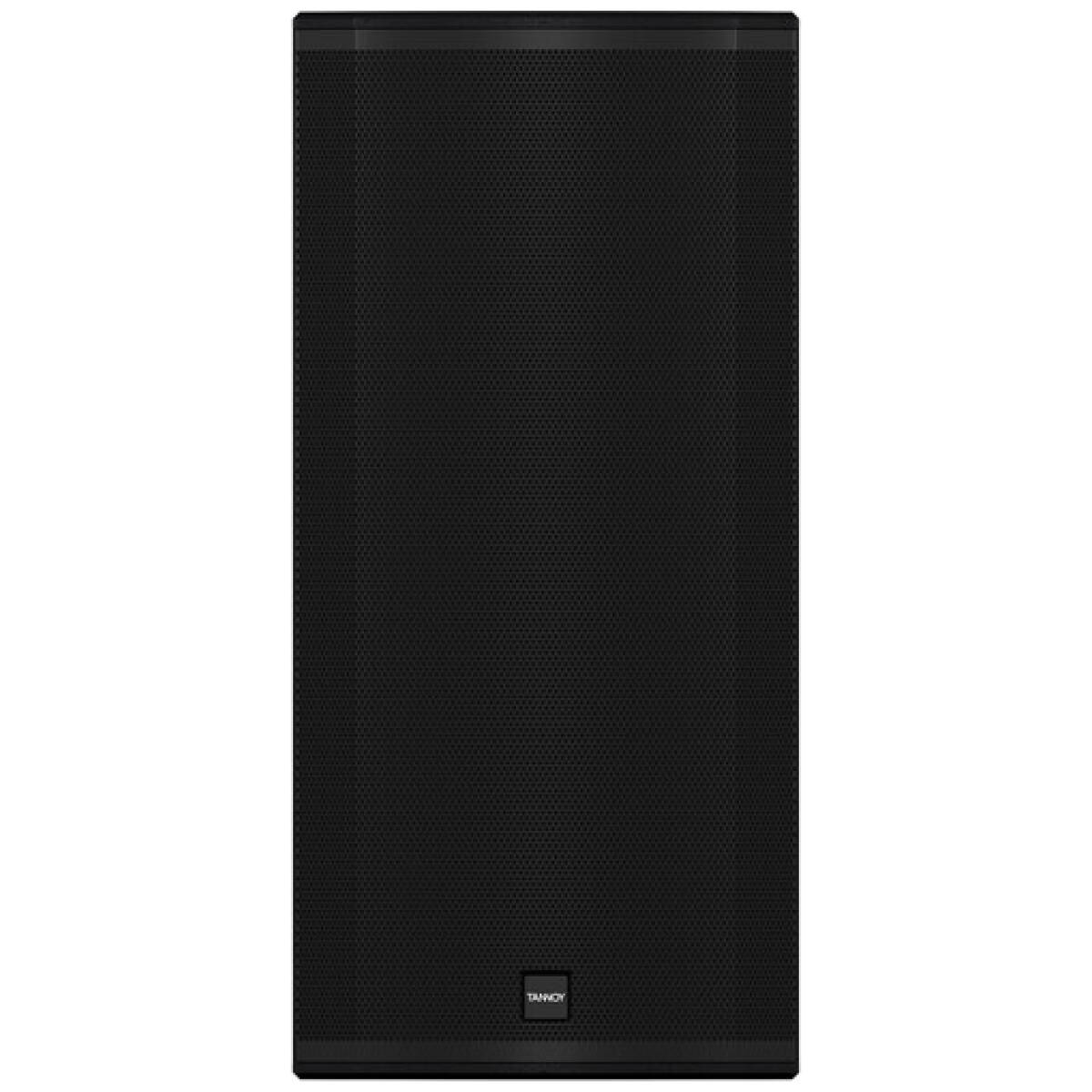

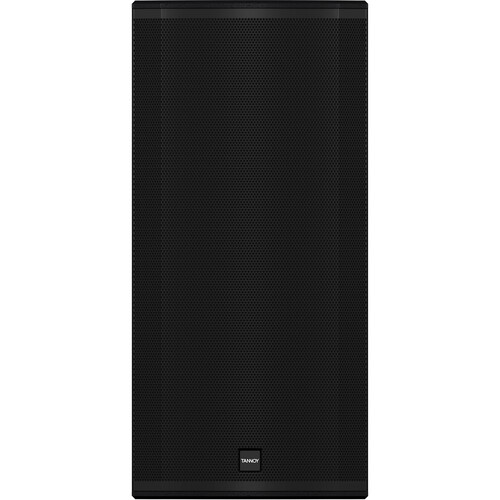

- Rugged powder coated perforated steel mesh grille
- Blanking plate for optional VTH pole mount
- Optional horizontal and vertical mounting yokes (available separately)
- Integrip handles ergonomically integrated into top and bottom of cabinet
- 4-pole industry standard twist-lock speaker and barrier strip connectors for input and link output
Specification
System
| Frequency response | 70 Hz – 25 kHz ±3 dB 55 Hz – 30 kHz -10 dB |
| Nominal dispersion | 75° H x 40° V @ -6 dB points |
| Directivity factor (Q) | 13 |
| Directivity index (DI) | 11.1 |
Power handling (IEC)
| Passive | 500 W continuous, 2,000 W peak |
| Bi-amp | LF: 350 W continuous, 1,400 W peak MF/HF: 350 W continuous, 1,400 W peak |
| Sensitivity | 99 dB (1 W @ 1 m) |
Maximum SPL
| Passive | 126 dB continuous, 132 dB peak |
| Bi-amp | LF: 123 dB continuous, 129 dB peak HF: 127 dB continuous, 133 dB peak |
Impedance
| Passive | 8 Ω |
| Bi-amp | 8 Ω 8 Ω |
| Crossover Type | Passive / Bi-amp switchable |

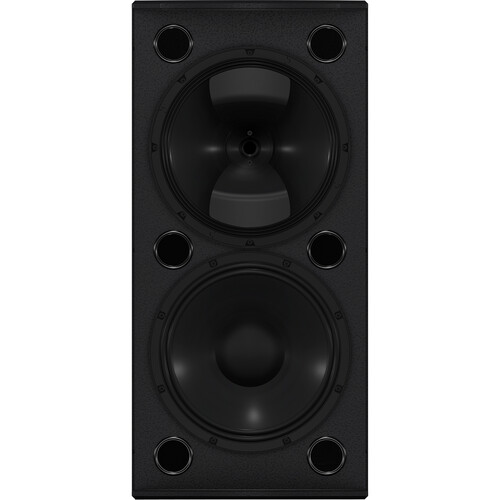

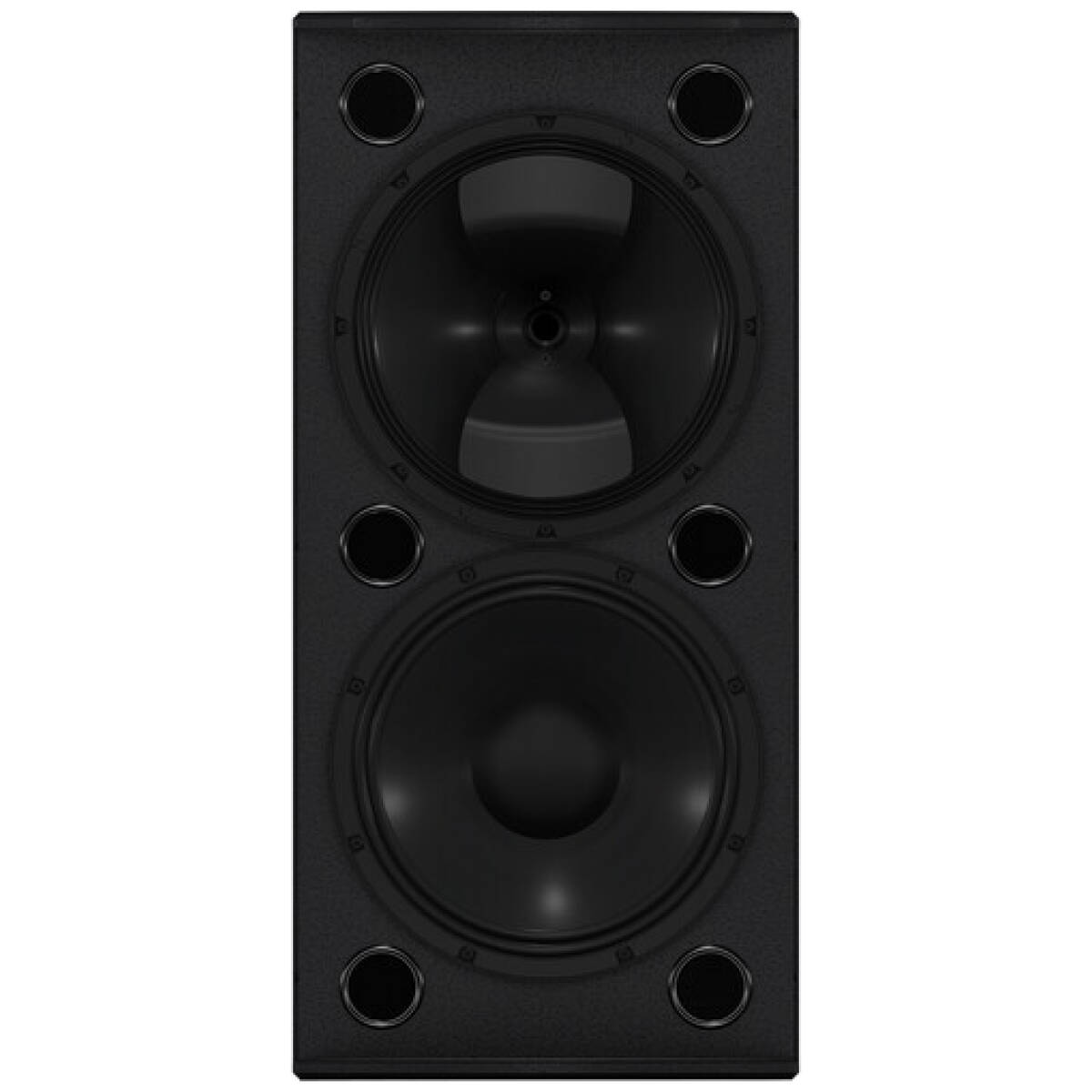

| Components | 1 x 12″ (305 mm) constant directivity PowerDual with Q-Centric waveguide 1 x 12″ (305 mm) LF driver |
Enclosure

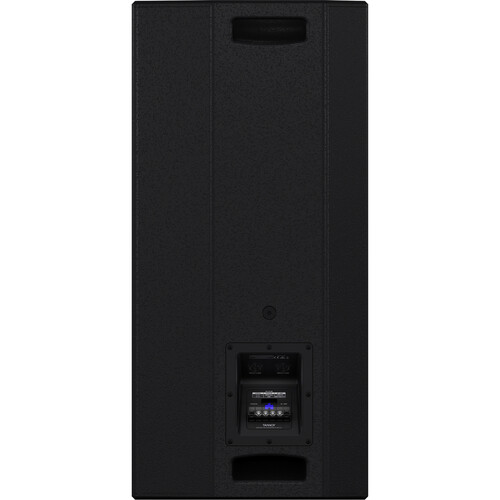

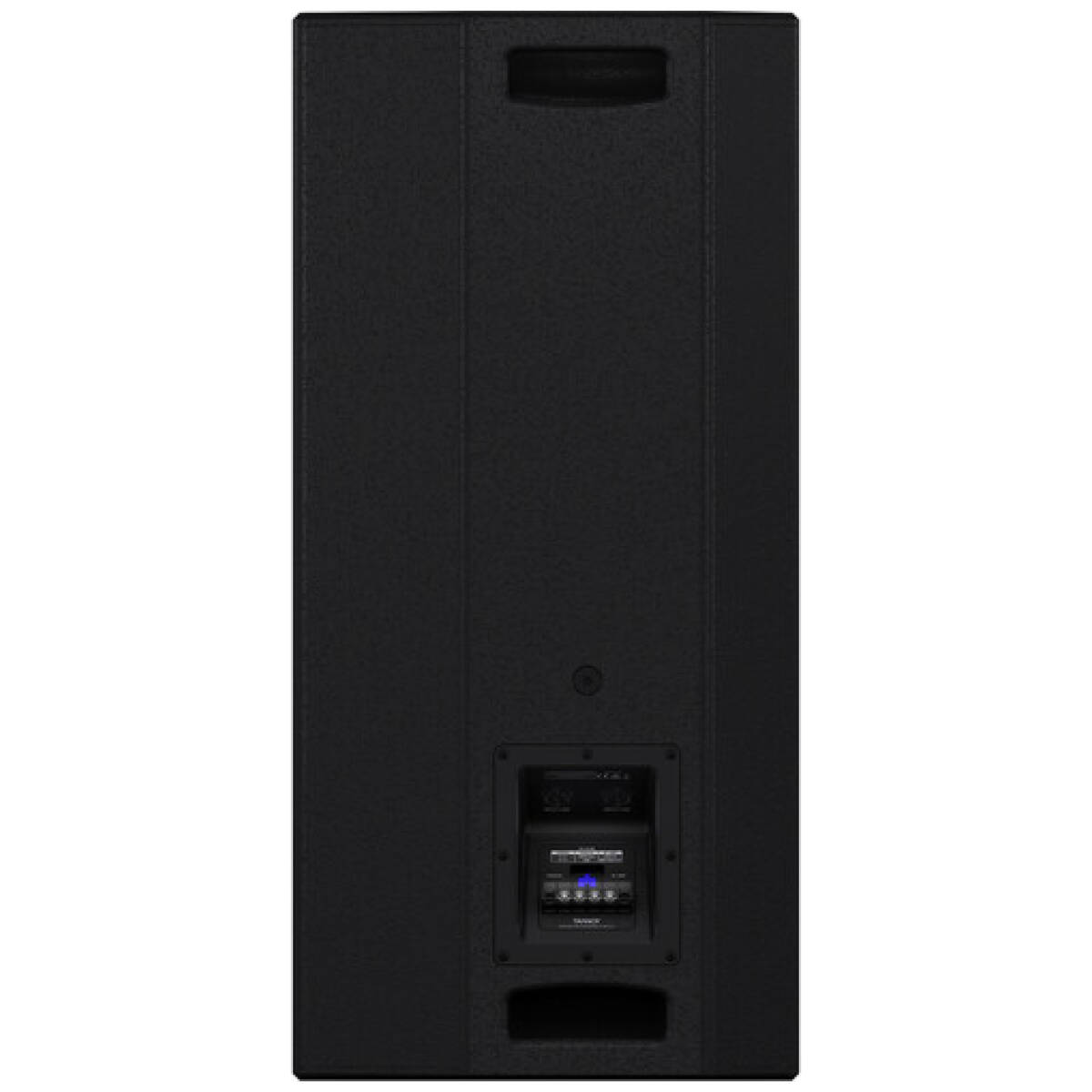

| Connectors | 2 x Industry-standard 4-pole twist-lock speaker connectors 1 x barrier strip terminals |
Wiring
| Passive | Pins 1+ / 1- Input, Pins 2+ / 2- Link |
| Bi-Amp | Pins 1+ / 1- LF, Pins 2+ / 2- HF |
| Dimensions H x W x D | 781 x 371 x 361 mm (30.7 x 14.6 x 14.2″) |
| Net weight | 30.5 kg (67.2 lbs) |
| Construction | 15 mm (5/8″) enclosure / 18 mm (3/4″) front, plywood, vented and internally braced |
| Finish | Semi matt black paint (white optional) |
| Grille | Powder coated perforated steel |
| Flying hardware | M10 x 8 flying inserts (portrait or landscape mounting) M10 x 8 yoke bracket inserts 2 x Intergrip carrying handles Blanking plate for optional VTH pole mount |
| Accessories | Yoke Horizontal VX12.2 Yoke Vertical VX12/VX12.2 Yoke Vertical VX12/VX12.2 – WH VTH Top Hat |
