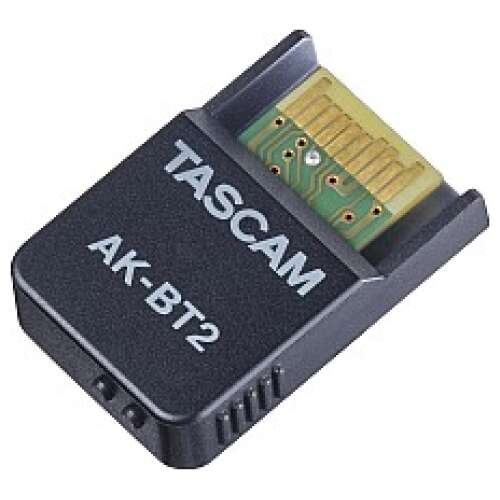

TASCAM AK-BT2 Bluetooth Adapter for TASCAM Products

The TASCAM AK-BT2 is a compact Bluetooth adapter that adds wireless remote control, Bluetooth audio and wireless timecode functions to compatible TASCAM products.

When installed in a supported FR-series field recorder, the adapter allows the recorder to be controlled from a compatible smartphone or tablet. It also enables wireless audio monitoring through supported Bluetooth headphones or speakers and wireless timecode synchronisation with compatible Atomos equipment.

When used with a compatible TASCAM media player, the AK-BT2 can receive Bluetooth audio from smartphones and tablets and provide wireless control through the relevant TASCAM application. Available functions depend on the connected TASCAM product.

Key Features

• Adds Bluetooth connectivity to compatible TASCAM products
• Wireless recorder control from a smartphone or tablet
• Wireless audio monitoring through Bluetooth headphones or speakers
• Bluetooth audio input from smartphones and tablets
• Wireless timecode synchronisation with compatible Atomos equipment
• Compatible with the TASCAM Recorder Connect application
• Compatible with the TASCAM Media Control Center application
• Bluetooth 5.0
• Bluetooth Low Energy support
• A2DP Bluetooth profile
• SBC audio codec
• Approximate transmission range of 10 metres
• Compact plug-in design
• Weight of only 1.5 g

Compatible TASCAM Products

Official TASCAM regional product pages list support for:

• TASCAM FR-AV2 Professional Two-Channel Audio Recorder
• TASCAM FR-AV4 Professional Four-Track Field Recorder
• TASCAM MP-800U Media Player
• TASCAM MP-800U DAB Media Player

Compatibility and available functions may differ by product, firmware version and region.

FR-AV2 Functions

When connected to the TASCAM FR-AV2, the AK-BT2 supports:

• Wireless remote control
• Wireless audio monitoring
• Wireless timecode synchronisation
• Synchronisation with compatible Atomos UltraSync BLUE devices
• Control through the TASCAM Recorder Connect app
• Simultaneous wired and Bluetooth monitoring
• Management of multiple compatible TASCAM recorders

The FR-AV2 provides three selectable wireless-monitoring quality levels to balance connection stability and audio quality according to the recording environment.

FR-AV4 Functions

When used with the TASCAM FR-AV4, the AK-BT2 enables:

• Wireless remote control
• Wireless audio monitoring
• Wireless timecode synchronisation
• Atomos timecode compatibility
• Remote operation through TASCAM Recorder Connect
• Independent wired and wireless monitoring volumes
• Simultaneous control of multiple compatible recorders

The wired headphone output and Bluetooth monitoring output can operate at the same time, allowing more than one person to monitor the recording.

TASCAM Recorder Connect

TASCAM Recorder Connect is available for compatible iOS, iPadOS and Android devices. With the AK-BT2 installed in compatible recorders, the application can provide:

• Recording start and stop
• Simultaneous recording control
• Input waveform monitoring
• Recorder-status monitoring
• Input and recording-setting adjustment
• Device naming and colour coding
• Project, scene and take metadata management
• Automatic recorder date and time synchronisation
• Control of up to five compatible recorders

The number of simultaneously connected devices may vary according to the surrounding environment and wireless conditions.

MP-800U and MP-800U DAB Functions

When installed in a compatible TASCAM MP-800U-series media player, the AK-BT2 supports:

• Bluetooth audio streaming from smartphones and tablets
• Wireless playback of music and other audio
• Wireless control through the TASCAM Media Control Center app
• Connection to compatible iOS and Android devices

The media-player functions differ from the FR-series recorders. Wireless timecode and field-recorder monitoring functions are intended for compatible recorder models.

Wireless Timecode Synchronisation

The AK-BT2 can provide wireless timecode synchronisation between compatible TASCAM recorders and supported Atomos devices, including Atomos UltraSync BLUE.

This can help synchronise separately recorded audio and video files during post-production without requiring a physical timecode cable between the devices.

Bluetooth Specifications

Bluetooth version:

• Bluetooth 5.0
• Bluetooth Low Energy

Supported Bluetooth profile:

• A2DP

Supported A2DP codec:

• SBC

Operating frequency:

• 2.4 GHz band

Approximate transmission distance:

• 10 metres

The actual operating range may be reduced by walls, people, nearby wireless equipment, radio-frequency interference and other environmental conditions.
