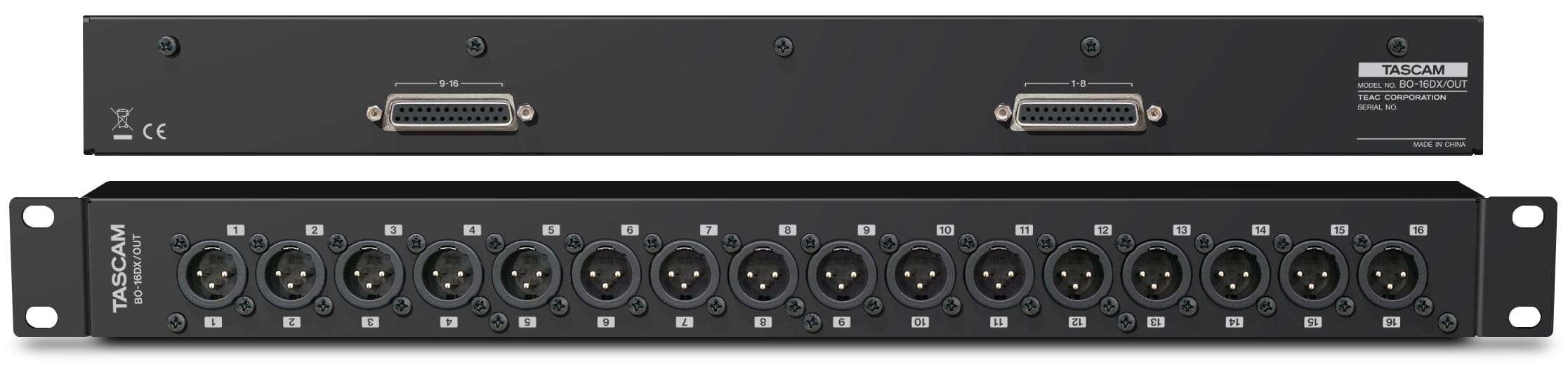

The TASCAM BO-16DX/OUT is a passive 16-channel analogue breakout box designed to convert two 25-pin D-sub output connections into 16 balanced XLR male outputs.

It is suitable for professional recording studios, broadcast facilities, post-production environments, live sound systems and permanent commercial audio installations. It can be used with TASCAM ML-16D and ML-32D Dante converters, selected TASCAM multitrack recorders and other professional equipment using the AES59-2012 TASCAM-standard DB25 pin configuration.

Key Features

• 16 balanced analogue audio outputs
• 16 three-pin XLR male output connectors
• Two female 25-pin D-sub input connectors
• Eight audio channels per DB25 connector
• AES59-2012 TASCAM-standard DB25 pin assignment
• Passive design requiring no power supply
• Rugged metal enclosure
• Standard 19-inch rack mounting
• Occupies 1U of rack space
• Removable and reversible rack ears
• Can be mounted with the XLR or DB25 connectors facing forward
• Supports upside-down rack installation
• Can be used on a tabletop with the rack ears removed
• Labelling space provided above the connectors
• Shallow enclosure for compact rack installations
• Rackmount screw kit included
• Audio cables are not included

Channel Configuration

Total channels:

• 16 balanced analogue output channels

Channel groups:

• Channels 1–8 through DB25 Connector 1
• Channels 9–16 through DB25 Connector 2

The two eight-channel groups can connect to one 16-channel device or to two separate eight-channel devices.

XLR Outputs

Number of connectors:

• 16

Connector type:

• XLR-3-32 male
• Balanced

The XLR connectors provide convenient individual output connections for professional mixers, amplifiers, audio interfaces, stage systems and other balanced audio equipment.

DB25 Connections

Number of connectors:

• Two

Connector type:

• 25-pin D-sub female

Channels per connector:

• Eight

Pin assignment:

• TASCAM standard
• Compliant with AES59-2012

Attachment screws:

• Four No. 4-40 UNC screws

Equipment from another manufacturer should only be connected after confirming that its DB25 connector follows the same AES59-2012 TASCAM pin assignment.

Passive Operation

The BO-16DX/OUT is a passive connection adapter and requires no mains electricity, batteries or external power supply.

It does not provide:

• Signal amplification
• Microphone preamplification
• Phantom power
• Analogue-to-digital conversion
• Dante conversion
• Mixing
• DSP processing
• Level adjustment
• Audio recording

It only routes balanced analogue signals from the DB25 connectors to the corresponding XLR outputs.

Compatible Equipment

The BO-16DX/OUT is suitable for:

• TASCAM ML-16D
• TASCAM ML-32D
• TASCAM DA-98HR
• TASCAM DA-78HR
• Selected professional multitrack recorders
• Audio interfaces with compatible DB25 outputs
• Mixing consoles with compatible DB25 outputs
• Microphone preamplifiers with DB25 outputs
• Professional equipment using the AES59-2012 TASCAM pin assignment

BO-16DX/IN Compatibility

The BO-16DX/OUT can be used together with the related TASCAM BO-16DX/IN.

• BO-16DX/IN: 16 XLR female inputs to two DB25 connectors
• BO-16DX/OUT: Two DB25 connectors to 16 XLR male outputs
