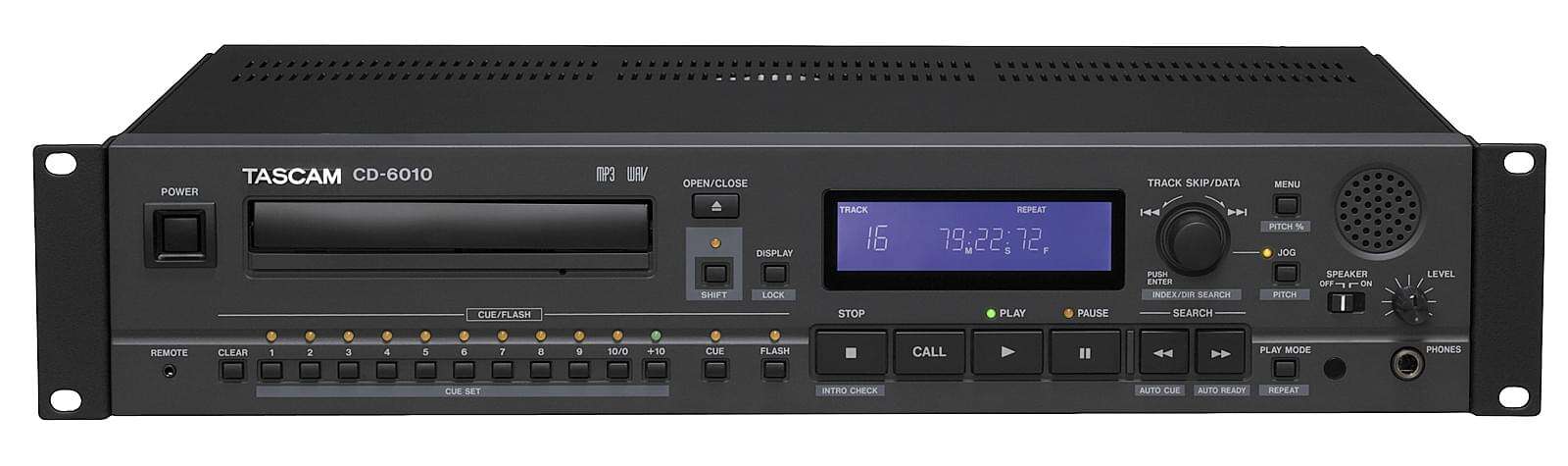

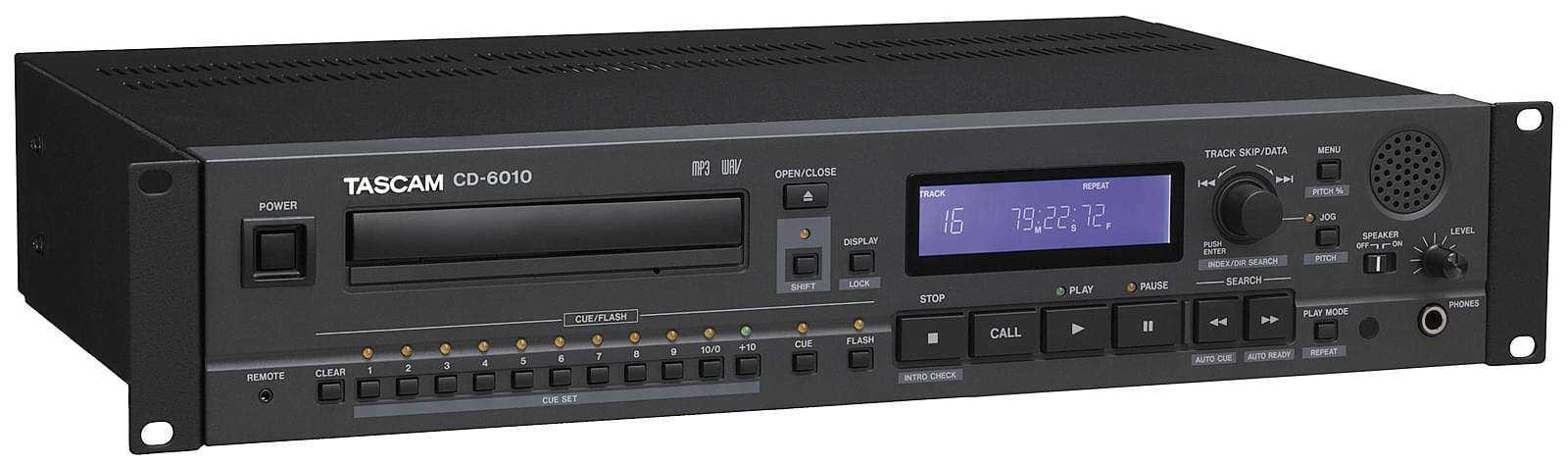

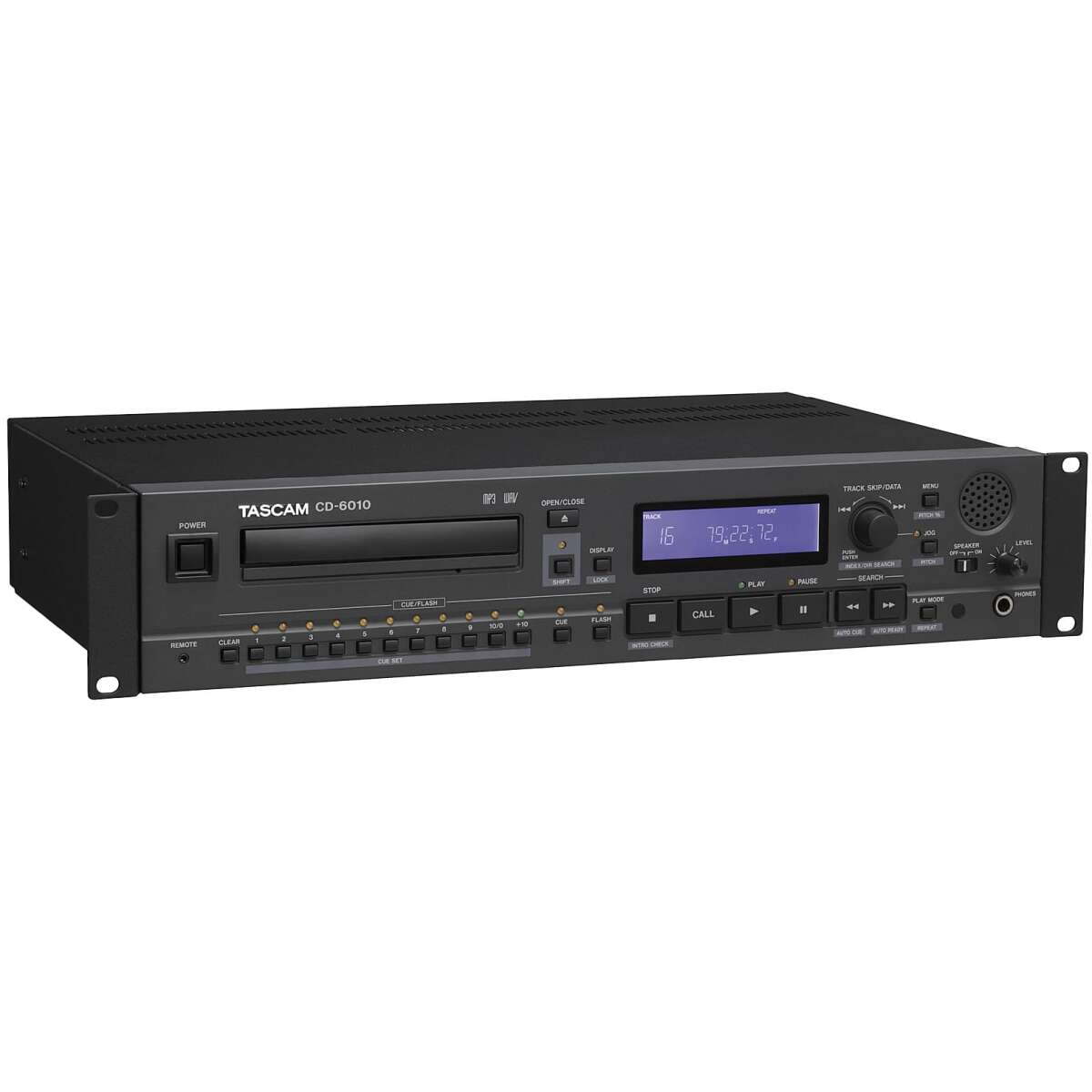

Tascam CD-6010 Professional CD Player

The Tascam CD-6010 is a professional 2U rackmount CD player developed for broadcast studios, theatres, installations, touring systems and other applications where dependable playback and precise control are essential. It supports audio CDs as well as MP3 and WAV files recorded on compatible data CDs.

Key Features

• Professional tray-loading CD mechanism
• Plays audio CDs, CD-R discs, MP3 and WAV files
• Twenty programmable cue-memory points
• Flash-start playback for up to 20 tracks
• ±16% pitch control
• Key Original function changes playback speed without altering pitch
• Program memory for up to 100 discs
• Auto Cue, Auto Ready and Incremental Play
• Normal, single-track, programmed and random playback modes
• Repeat playback
• Built-in front-panel monitor speaker
• Headphone output with dedicated volume control
• Emergency disc-release mechanism
• Key-lock function prevents accidental operation
• Balanced and unbalanced analogue outputs
• Professional AES/EBU and coaxial S/PDIF digital outputs
• RS-232C and parallel remote control
• Compatible with selected Tascam wired and footswitch controllers
• Standard 19-inch, 2U rackmount construction

Supported Media and Formats

• Compatible discs: 8 cm and 12 cm CDs, including CD-R
• Audio CD format: CD-DA
• Data-disc formats: ISO 9660 Level 1/2 and Joliet
• Supported audio files: MP3 and WAV
• MP3 sampling rates: 32, 44.1 and 48 kHz
• MP3 bit rates: 32–320 kbps and VBR
• WAV resolution: 16-bit
• WAV sampling rates: 32, 44.1 and 48 kHz
• Audio channels: Two-channel stereo

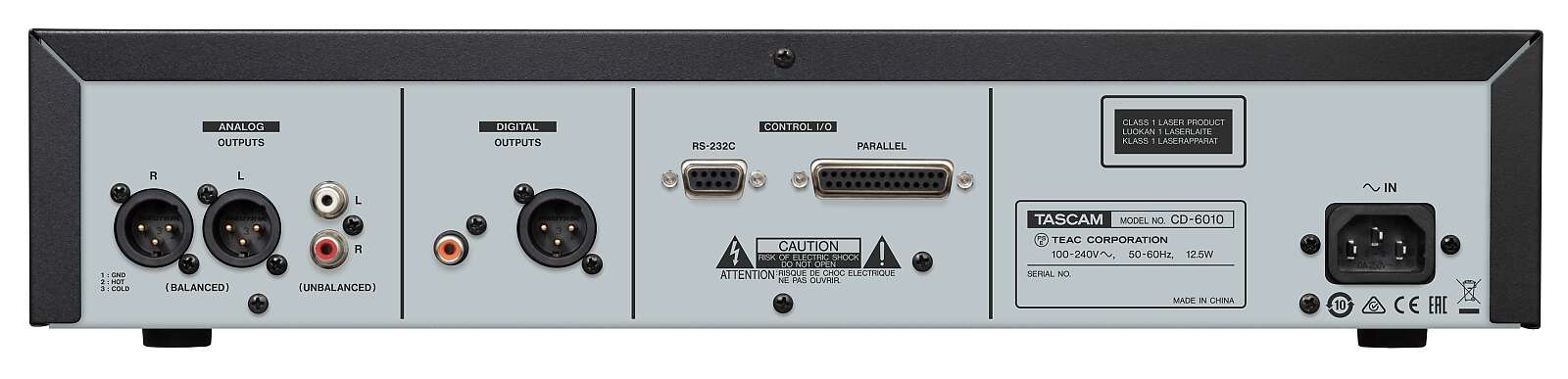

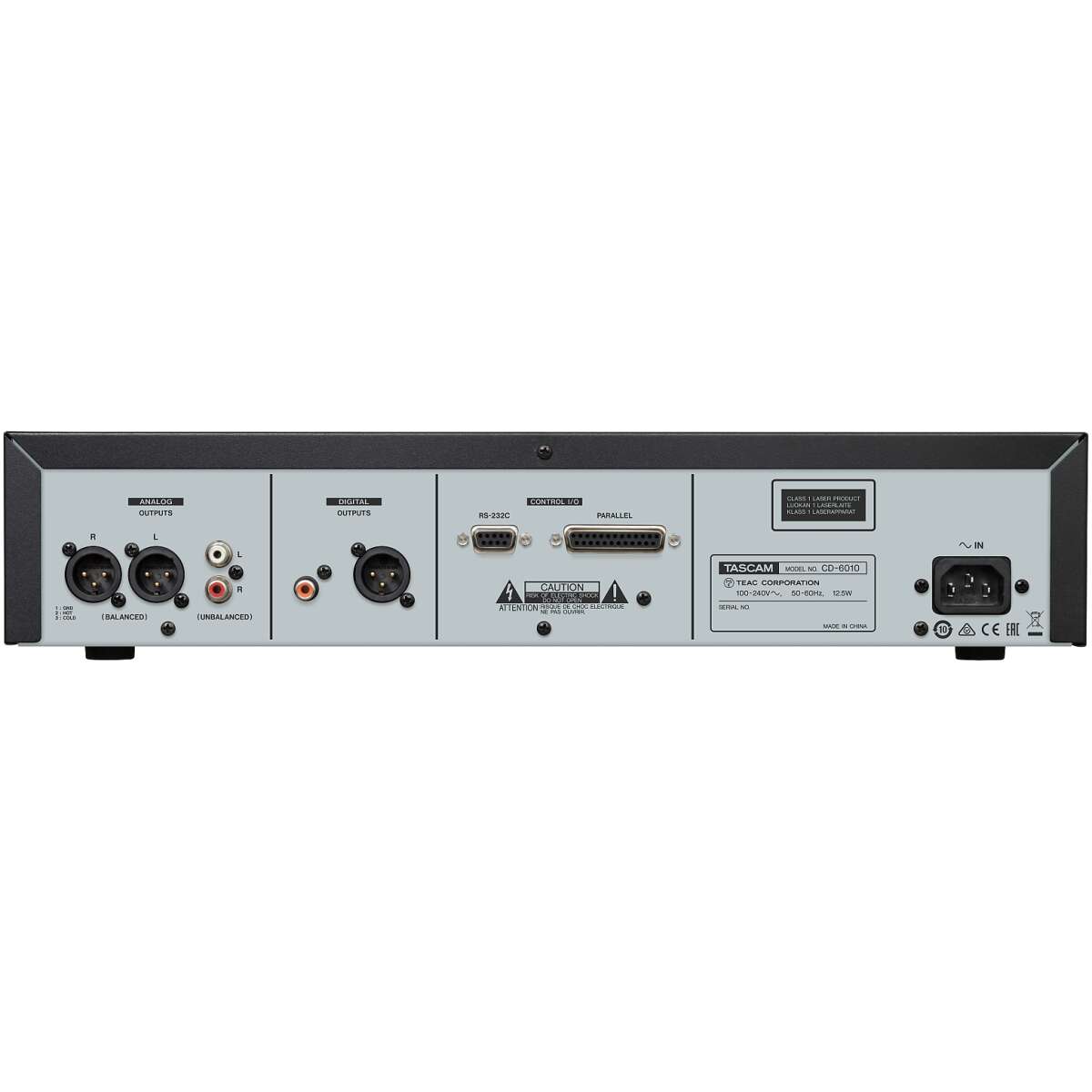

Audio Outputs

• Balanced stereo XLR outputs
• Unbalanced stereo RCA outputs
• AES/EBU digital output through XLR
• Coaxial S/PDIF digital output
• 6.3 mm stereo headphone output
• Built-in monitor speaker

Control Connections

• RS-232C serial control
• Parallel control through D-sub connector
• Remote-control input
• Supports compatible Tascam remote controllers and footswitches

Audio Performance

• Frequency response: 20 Hz–20 kHz, ±0.5 dB
• Signal-to-noise ratio: 95 dB or higher
• Dynamic range: 95 dB or higher
• Total harmonic distortion: 0.005% or lower
• Channel separation: 95 dB or higher
