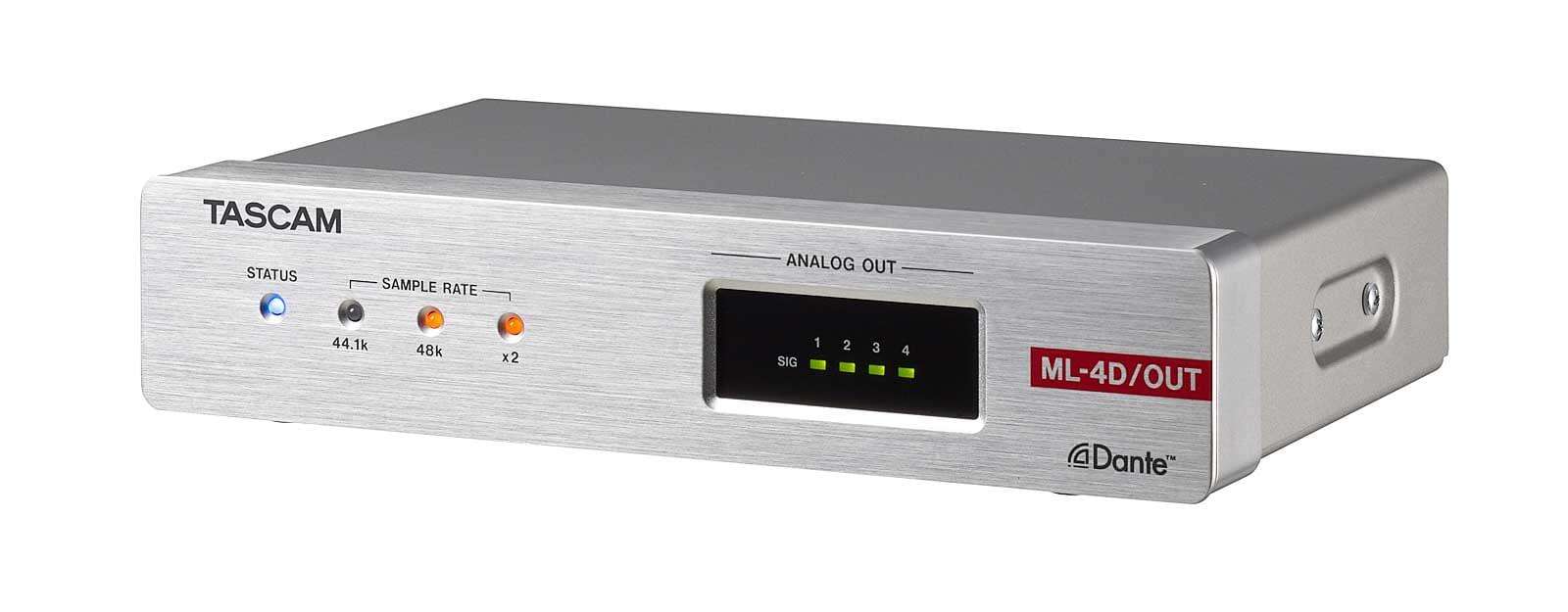

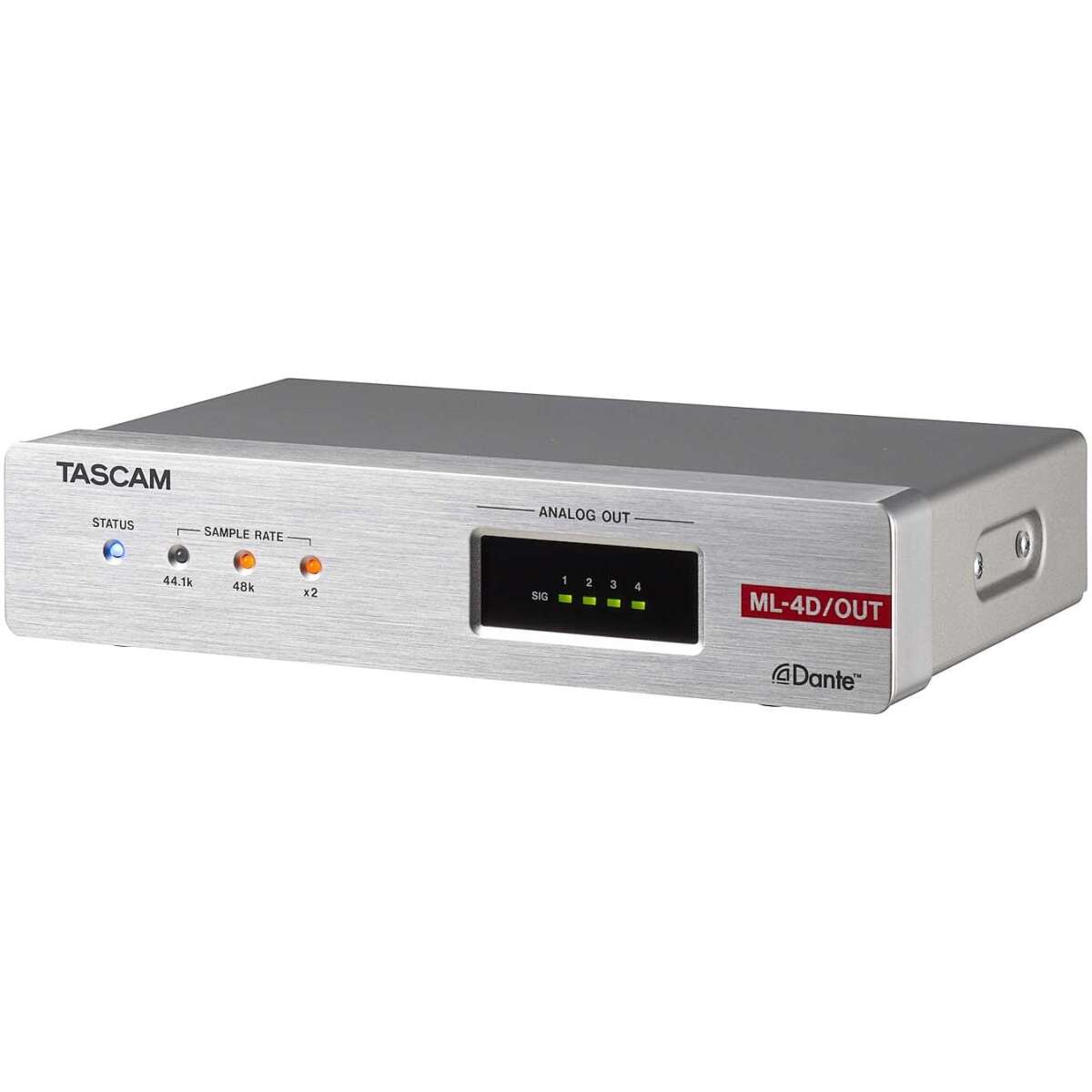

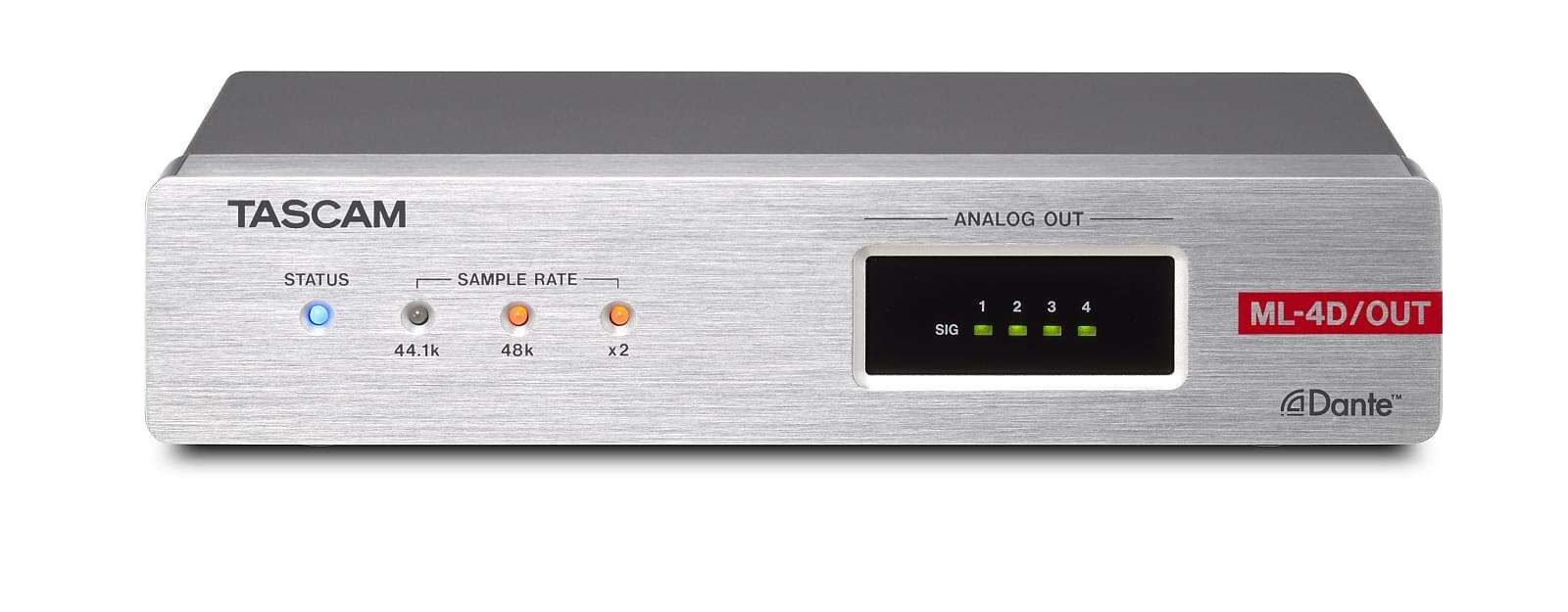

Tascam ML-4D/OUT-E Four-Channel Dante-to-Analogue Converter with DSP Mixer

The Tascam ML-4D/OUT-E converts four Dante network audio channels into four balanced analogue line outputs. Its Euroblock connectors make it especially suitable for permanent commercial installations, conference rooms, educational facilities, broadcast studios and distributed audio systems.

Key Features

• Four balanced analogue line outputs
• Euroblock connectors for permanent installations
• Four Dante inputs and four Dante outputs
• Supports up to 24-bit/96 kHz audio
• Dante and AES67 compatible
• Integrated 6-input/4-output DSP mixer
• Dual Gigabit Ethernet connections
• PoE or optional AC-adapter operation
• External output-level control through GPI
• Up to 50 scene presets
• Five selectable analogue reference levels
• Compact half-rack, 1U chassis
• Mounting brackets included

DSP Functions

• Matrix mixing
• Flexible signal routing
• Automatic ducking
• Ambient Noise Compensator
• 10-band output equaliser
• Output delay
• Limiter
• Mute and fader control
• Polarity reversal

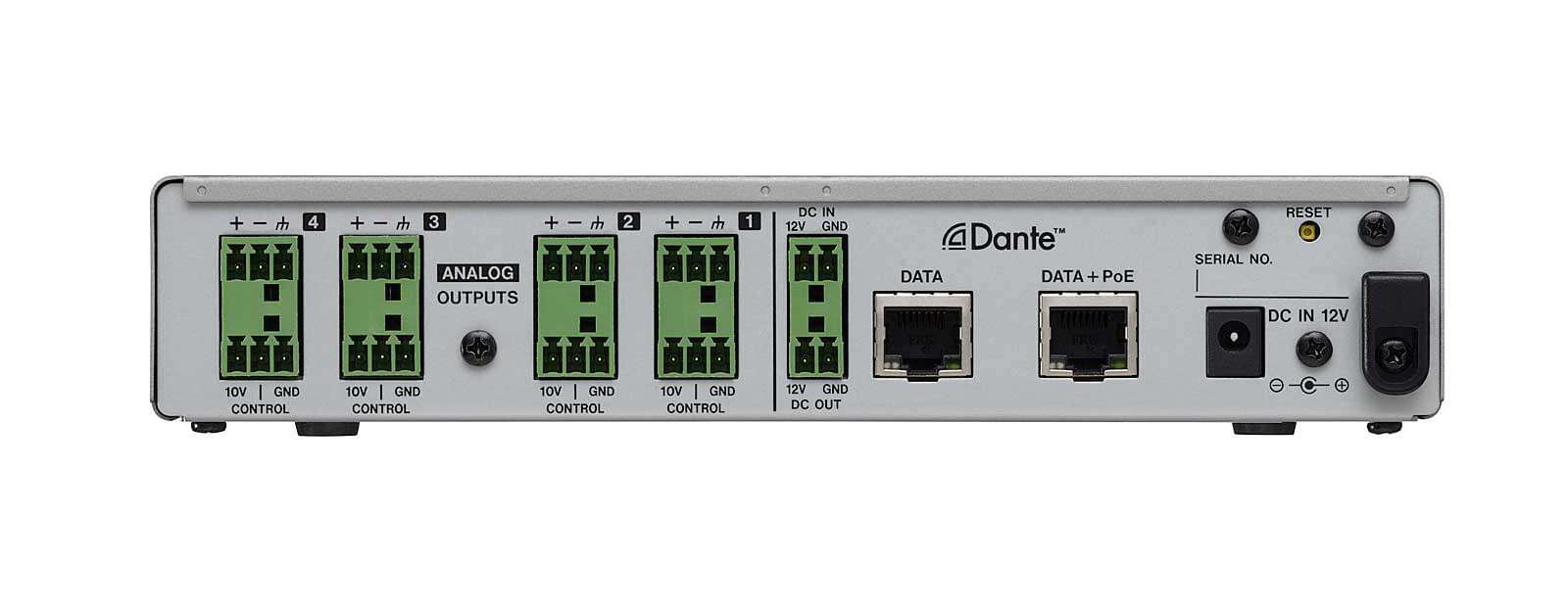

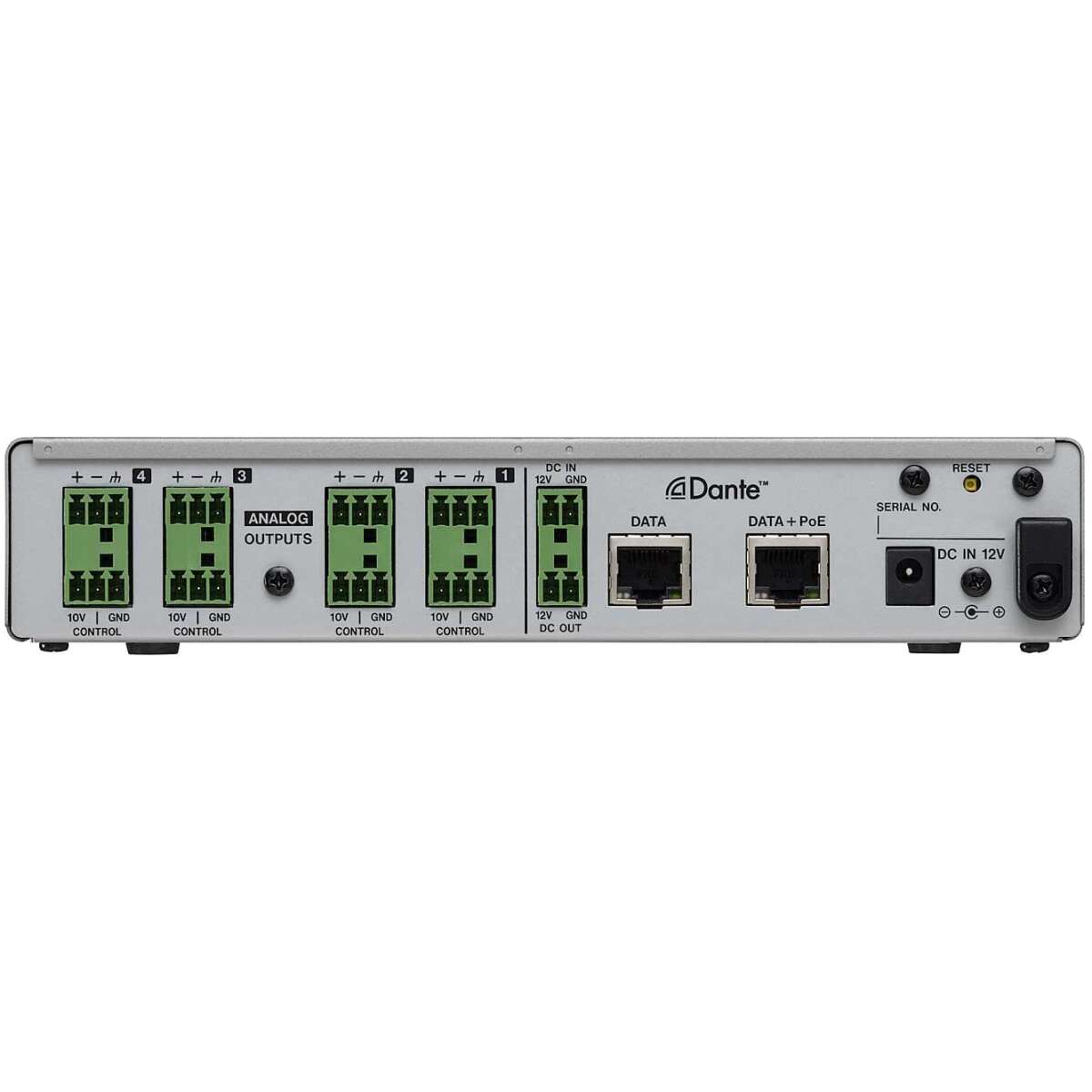

Connections

• Analogue outputs: 4 × balanced Euroblock
• Dante network: 2 × RJ45 Gigabit Ethernet
• GPI: External output-level control
• DC input and output for power daisy-chaining

Remote Control

• Tascam MX Connect for system configuration
• Tascam EZ Connect for simplified user control
• Dante Controller for network routing
• Windows, macOS, iOS and Android support

General Specifications

• Maximum resolution: 24-bit/96 kHz
• Power supply: PoE or optional Tascam PS-P1220E
• Power consumption: 7.5W
