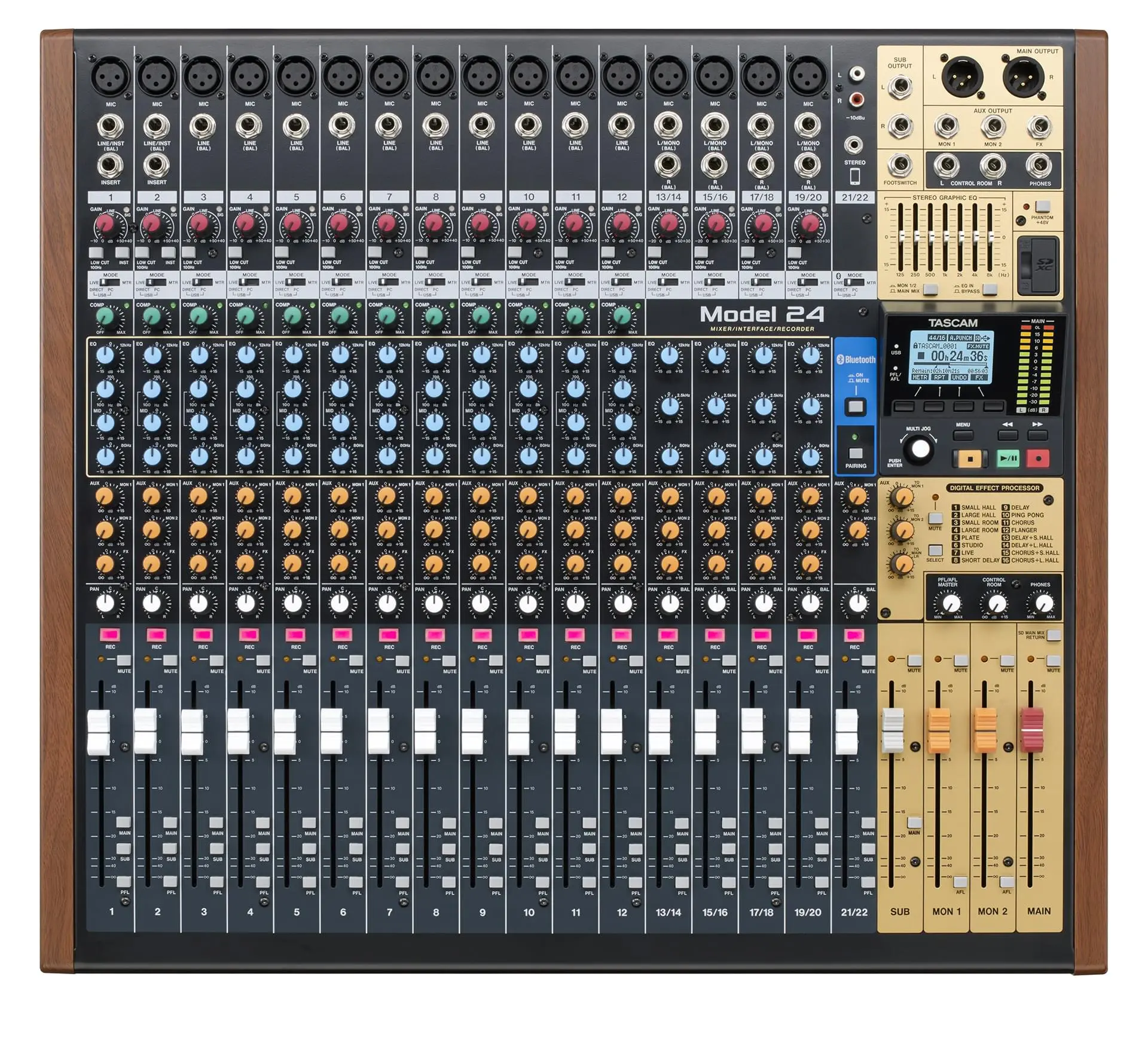

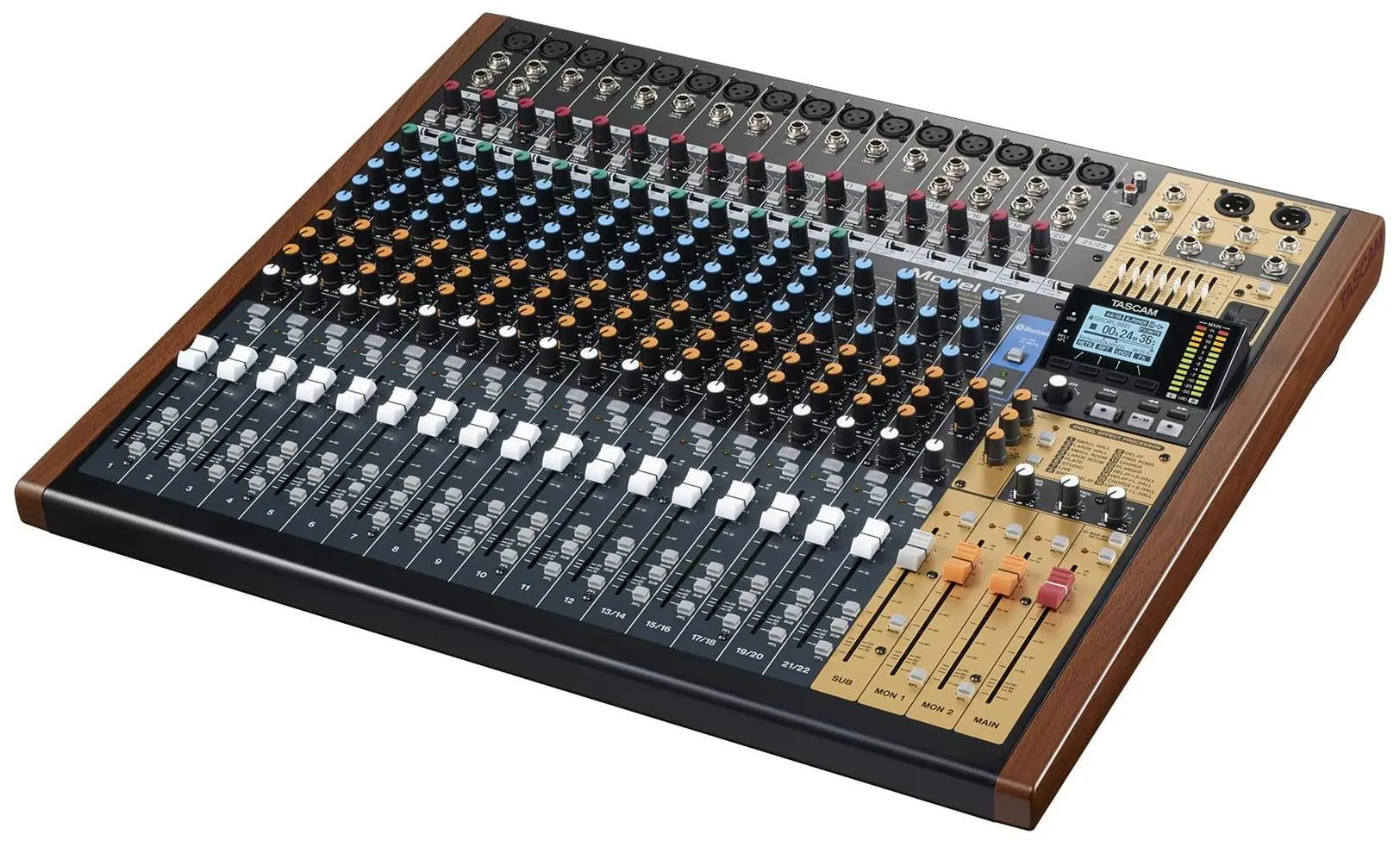

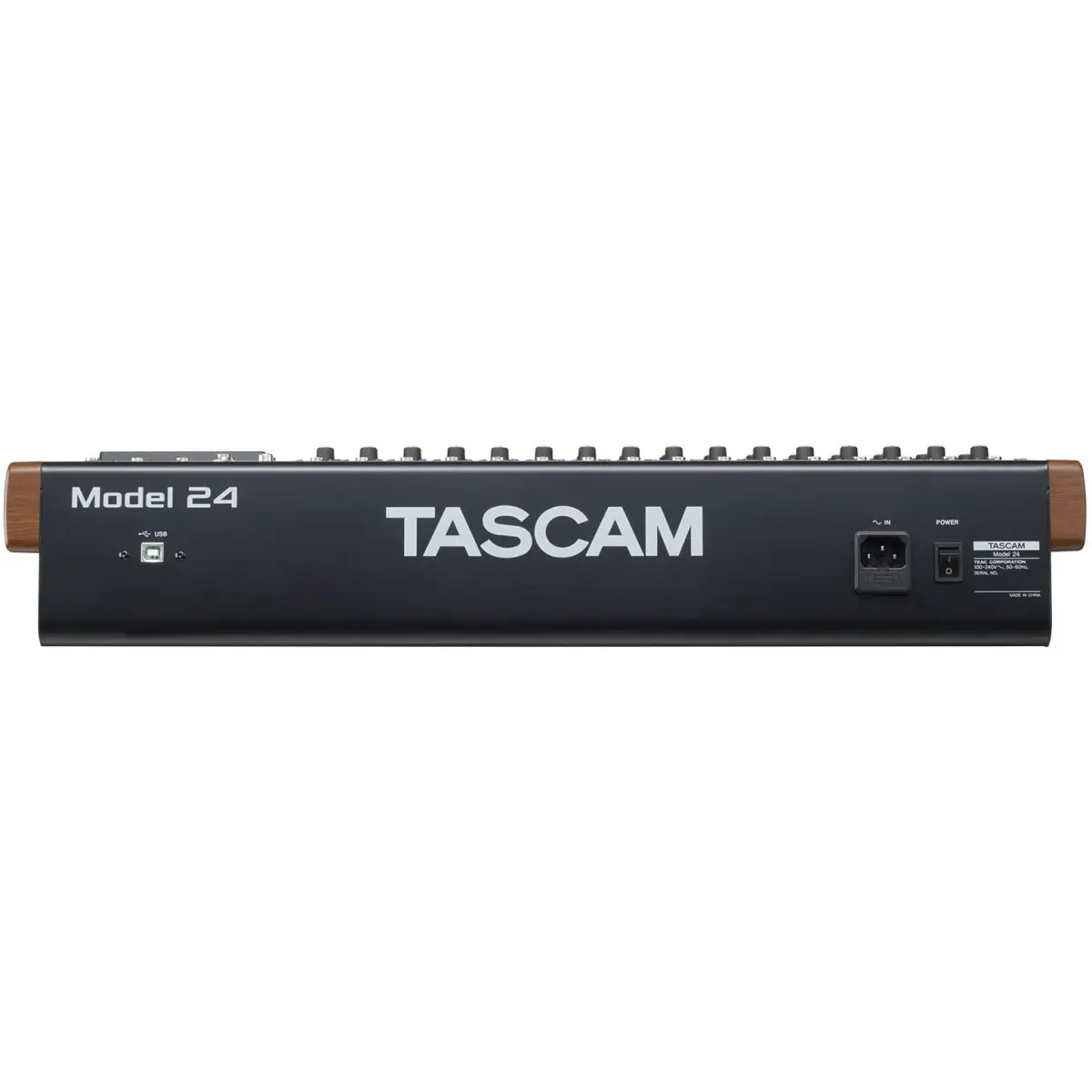

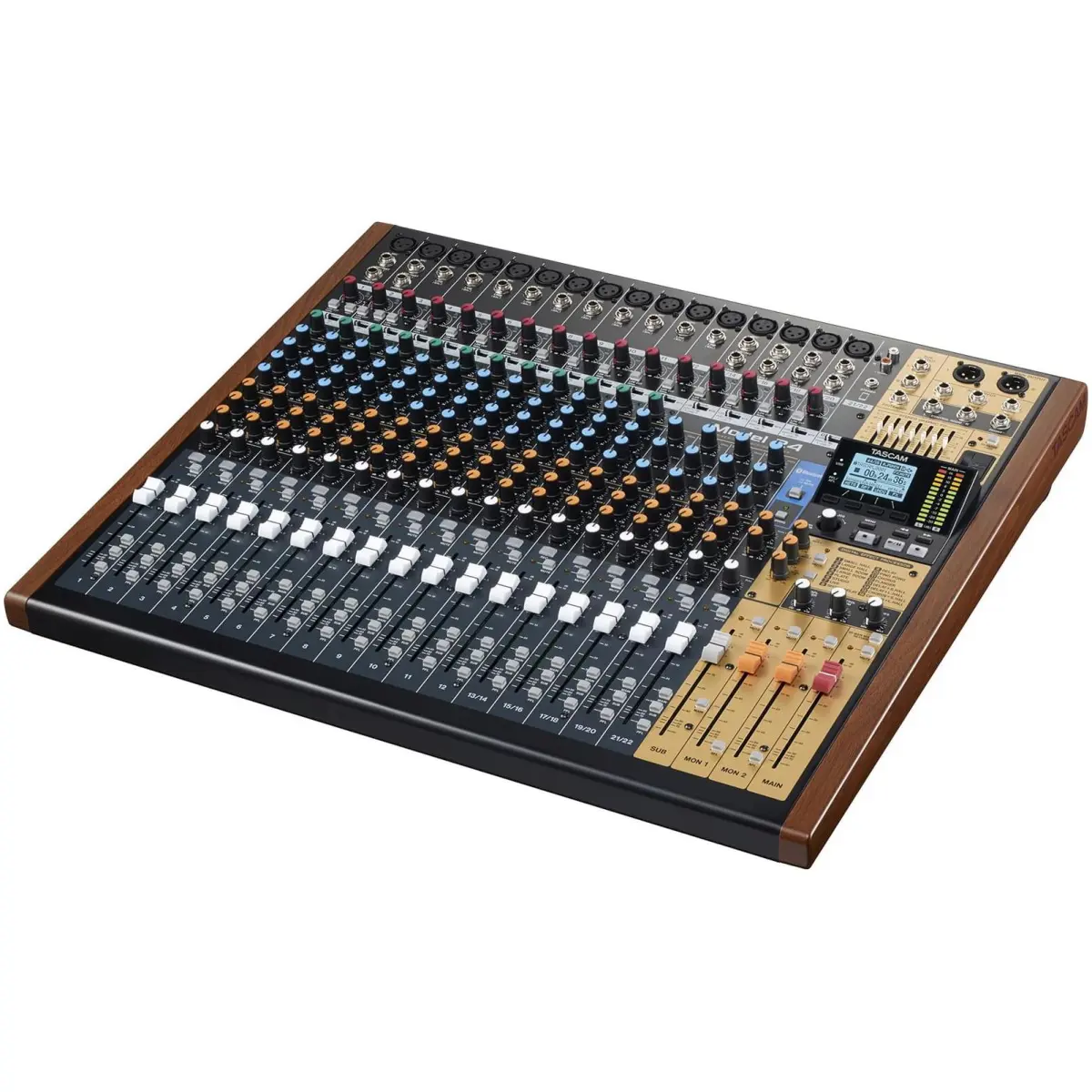

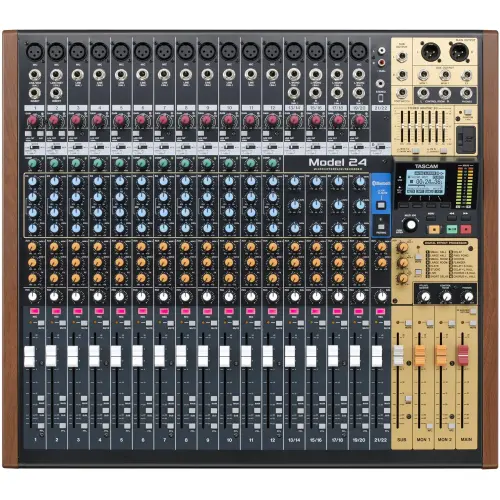

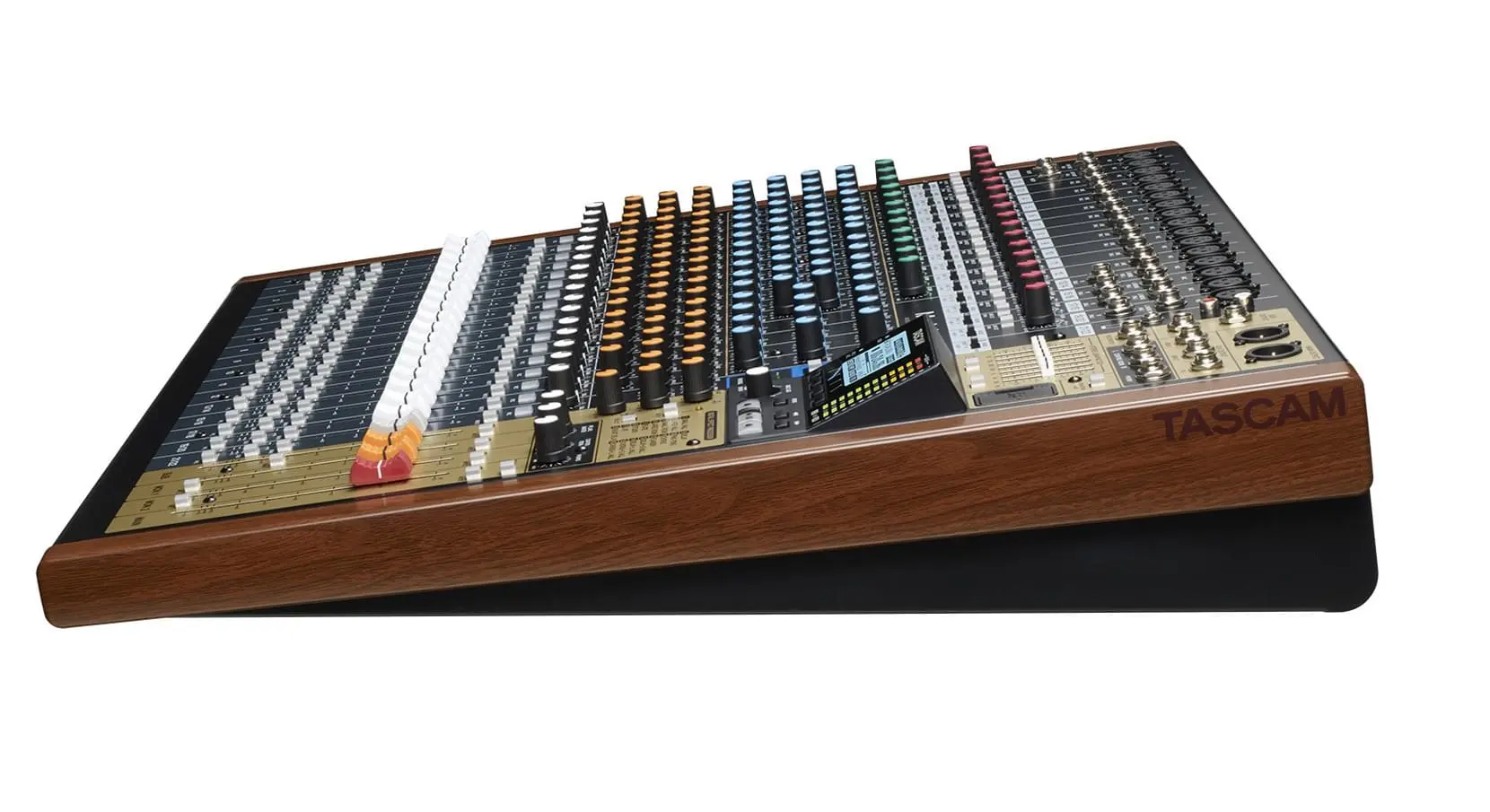

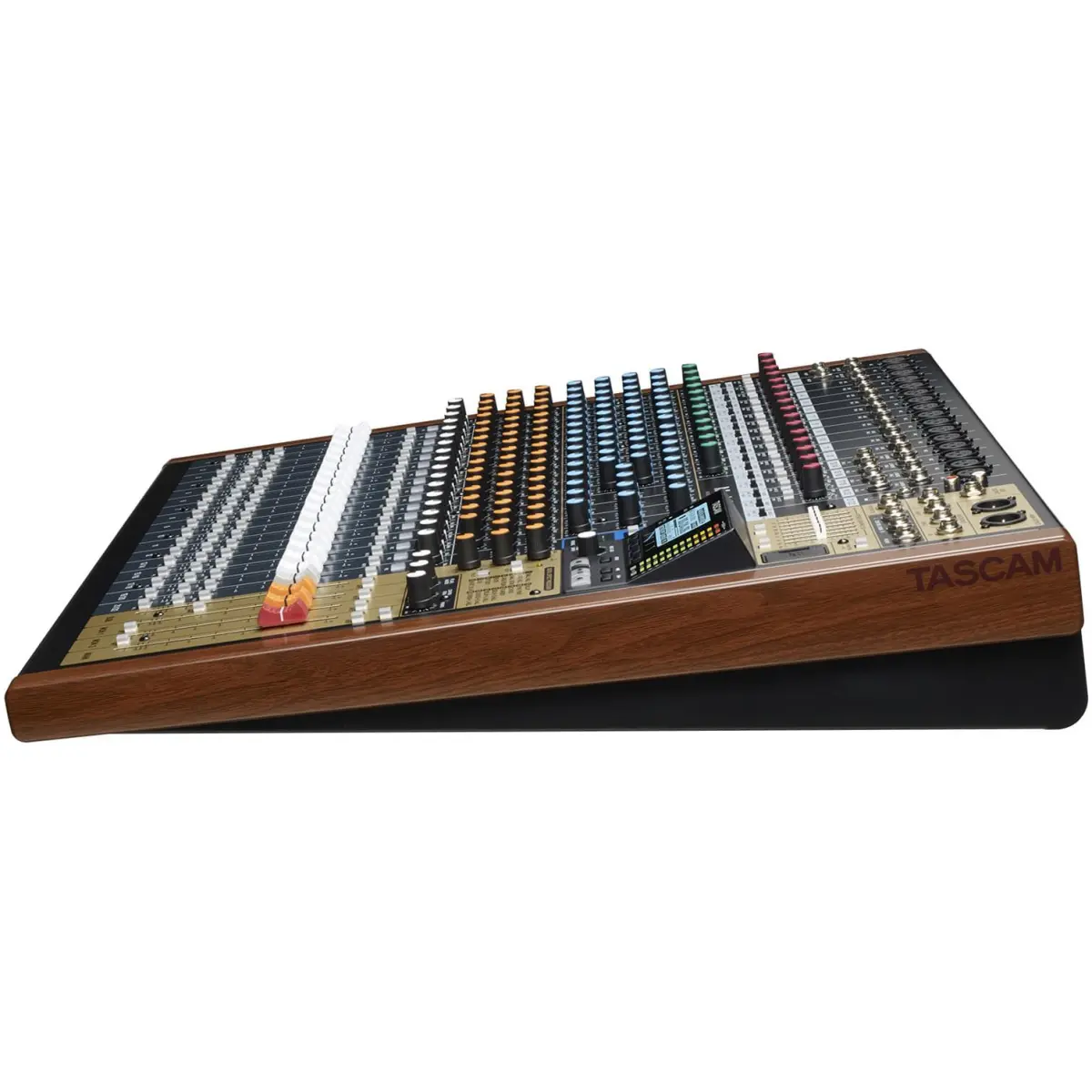

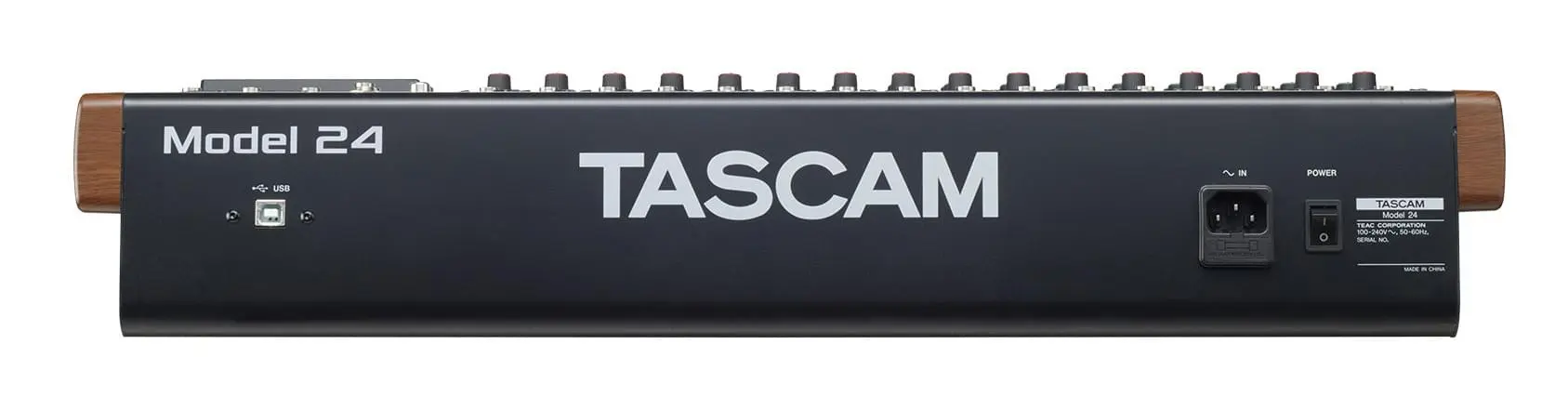

Tascam Model 24 22-Channel Analogue Mixer With 24-Track Digital Recorder

The TASCAM Model 24 combines a traditional analogue mixing console, a standalone 24-track SD-card recorder and a multichannel USB audio interface. It is suitable for live performances, rehearsals, studios, podcasts and computer-based recording.

Key attributes

• Mixer Type: Analogue mixer with integrated digital recording
• Mixing Channels: 22 analogue input channels
• Channel Configuration: 12 mono channels, four stereo channel pairs and one multipurpose stereo input
• Microphone Preamps: 16 TASCAM microphone preamps
• Faders: 100 mm non-motorised faders
• Phantom Power: +48V
• Instrument Inputs: Two high-impedance inputs on channels 1 and 2
• Channel Inserts: Channels 1 and 2
• Low-Cut Filter: 100 Hz
• Channel EQ: Three-band EQ with sweepable midrange on mono channels
• Master EQ: Seven-band stereo graphic equaliser
• Compression: One-knob compressors on channels 1–12
• Built-in Effects: Yes
• Effects Presets: 16
• Effects Control: Can be switched using an optional TASCAM RC-1F footswitch
• Main Bus: Stereo
• Sub Bus: Stereo
• Aux/Monitor Buses: Two
• Effects Bus: One
• Recorder Type: Built-in digital multitrack recorder
• Maximum Recording Tracks: 24—22 input channels plus the stereo master mix
• Recording Media: SD, SDHC or SDXC card, up to 512 GB
• Recording Format: WAV
• Recording Quality: 16-bit or 24-bit at 44.1/48 kHz
• Simultaneous Punch In/Out: Up to eight tracks
• Standalone Recording: Yes—no computer required
• Digital Interface: USB 2.0 audio interface
• USB Configuration: 24 inputs into the computer and 22 outputs from the computer
• Compatible Systems: Windows and macOS
• DAW Compatibility: Works with compatible recording and streaming software
• Settings Application: Model Mixer Settings Panel with digital meter bridge
• Bluetooth Connectivity: Yes—built-in Bluetooth receiver for stereo audio playback
• Touchscreen Interface: No
• Motorised Faders: No
• Network Capability: No Ethernet, AVB or Dante networking
• Remote Mixing Capability: No full wireless remote-mixing control
• Main Outputs: Balanced XLR
• Other Outputs: Sub, monitor, control-room, effects and headphone outputs
• Headphone Output Power: 80 mW + 80 mW at 32 ohms
• Power Requirement: 100–240V AC, 50/60 Hz
• Power Consumption: 52W
