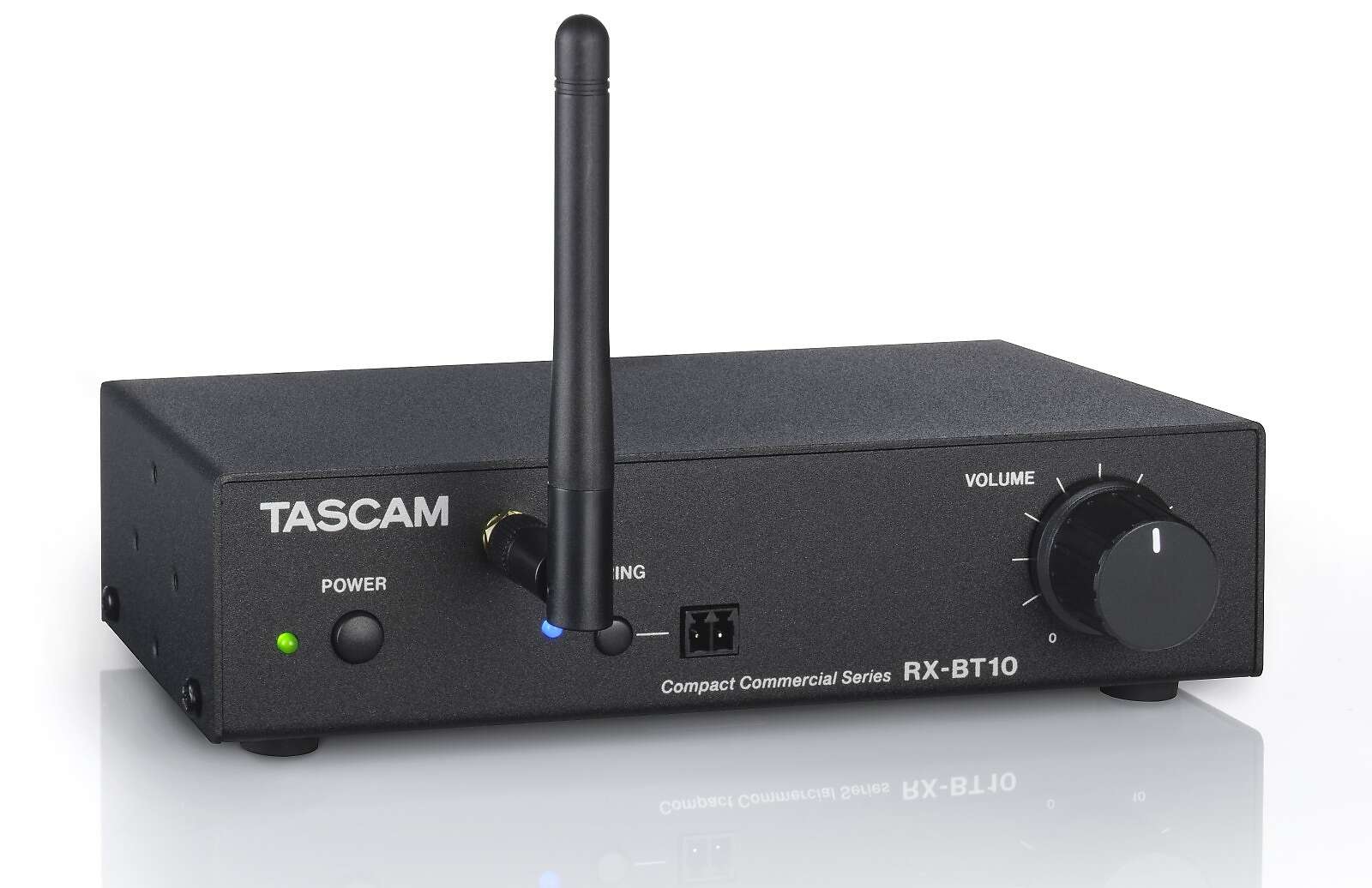

The TASCAM RX-BT10 is a professional stereo Bluetooth audio receiver designed to add wireless music streaming to mixers, amplifiers, powered speakers and commercial audio systems.

It features Bluetooth 5.1 Class 1 connectivity, balanced XLR outputs and unbalanced RCA outputs. The output can operate in stereo or summed-mono mode, making it suitable for restaurants, retail stores, conference rooms, schools, hotels and background-music installations.

Key Features

• Professional stereo Bluetooth audio receiver
• Bluetooth 5.1 Class 1
• Maximum theoretical range: Up to 100 m
• Supports SBC and AAC codecs
• Balanced stereo XLR outputs
• Unbalanced stereo RCA outputs
• Switchable stereo or summed-mono output

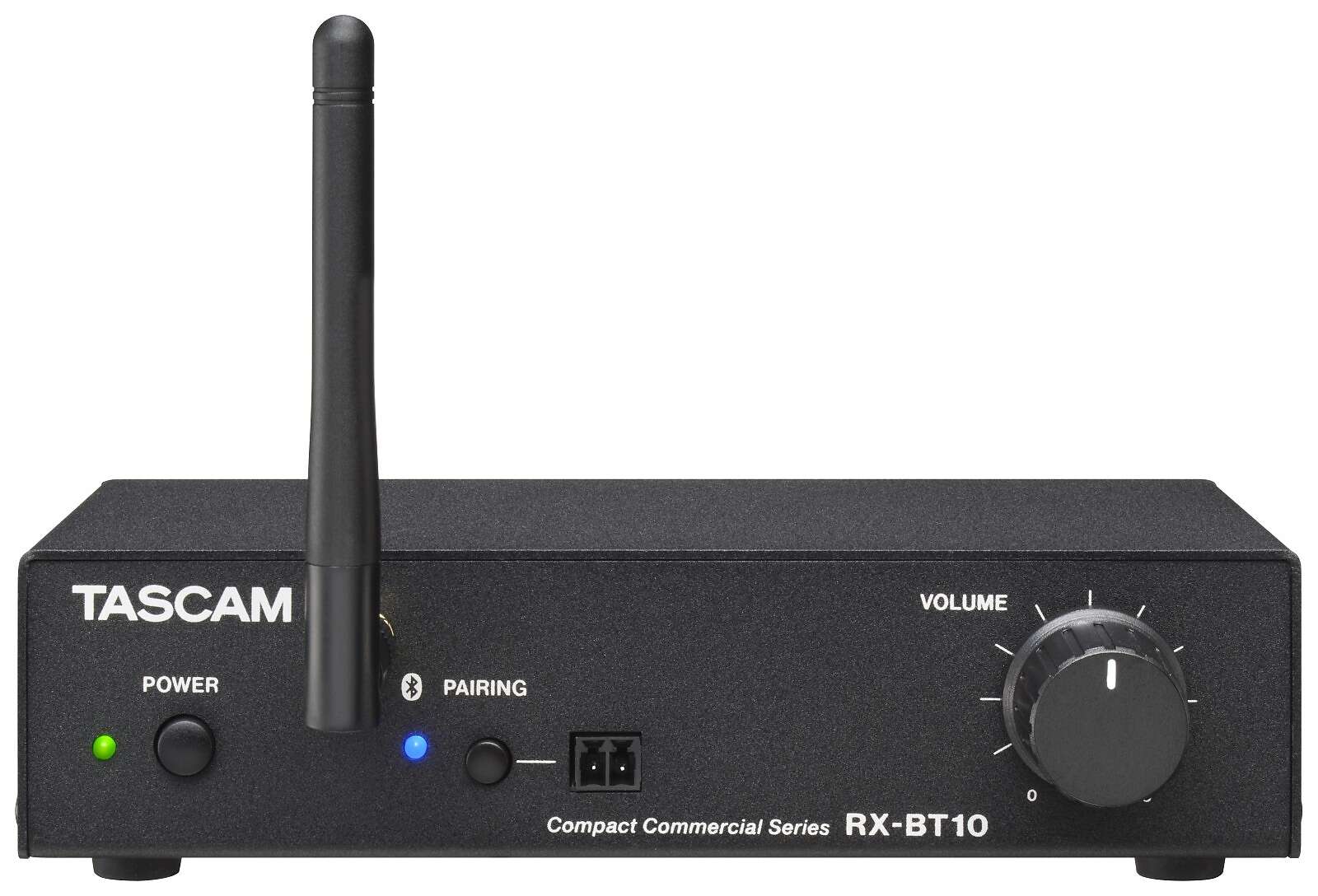

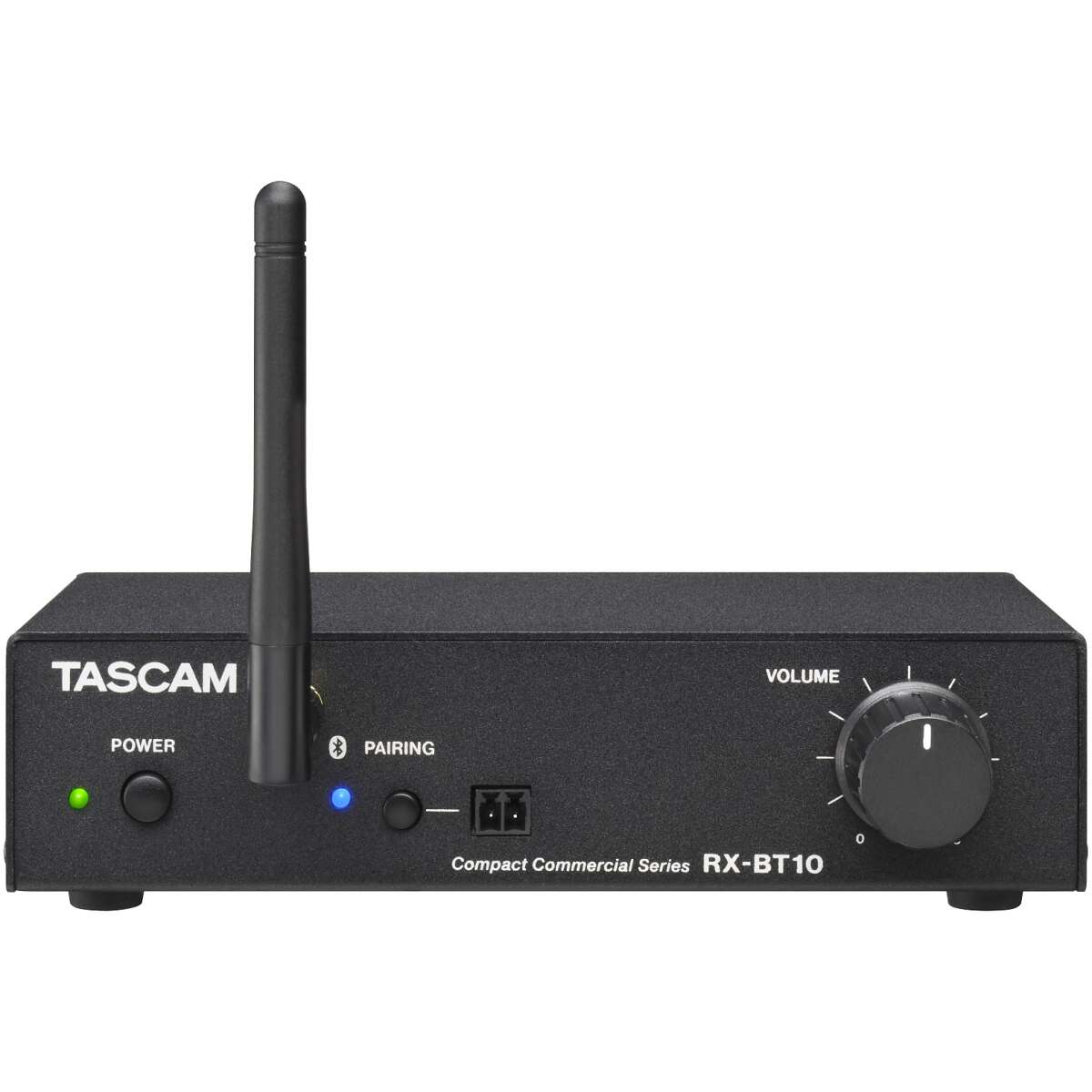

• Adjustable front-panel output level
• Stores pairing information for up to eight devices
• External remote-pairing connection
• Detachable Bluetooth antenna
• Antenna extension support up to 20 m
• Installation brackets included
• Optional rack mounting with the TASCAM AK-RS1

Bluetooth Specifications

• Bluetooth version: 5.1
• Bluetooth class: Class 1
• Profiles: A2DP and AVRCP
• Codecs: SBC and AAC
• Maximum theoretical unobstructed range: 100 m

Actual operating range depends on the transmitting device, walls and surrounding wireless interference.

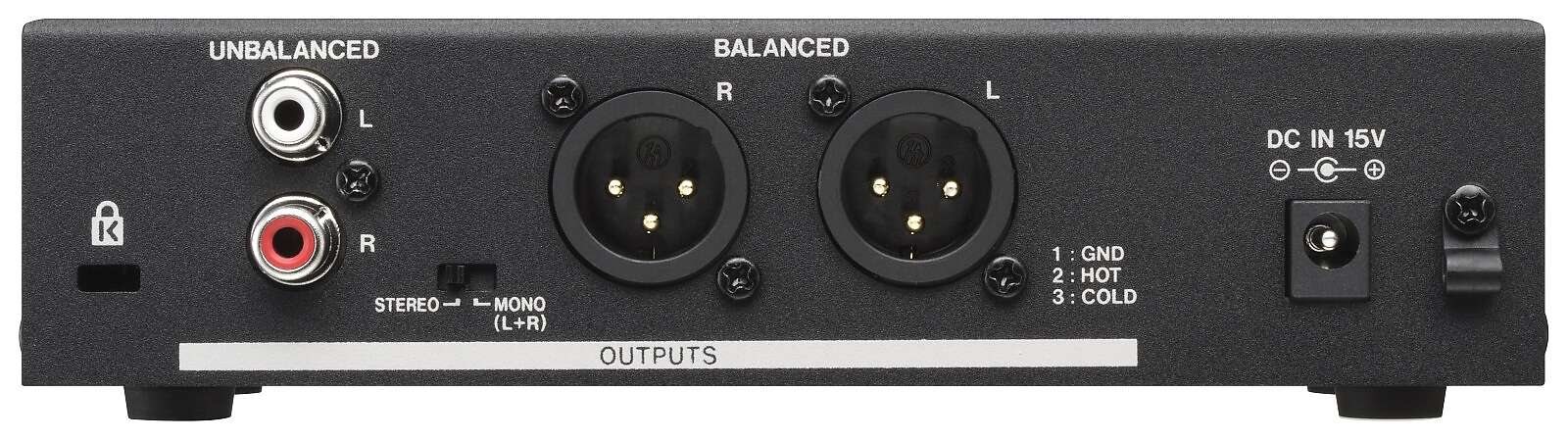

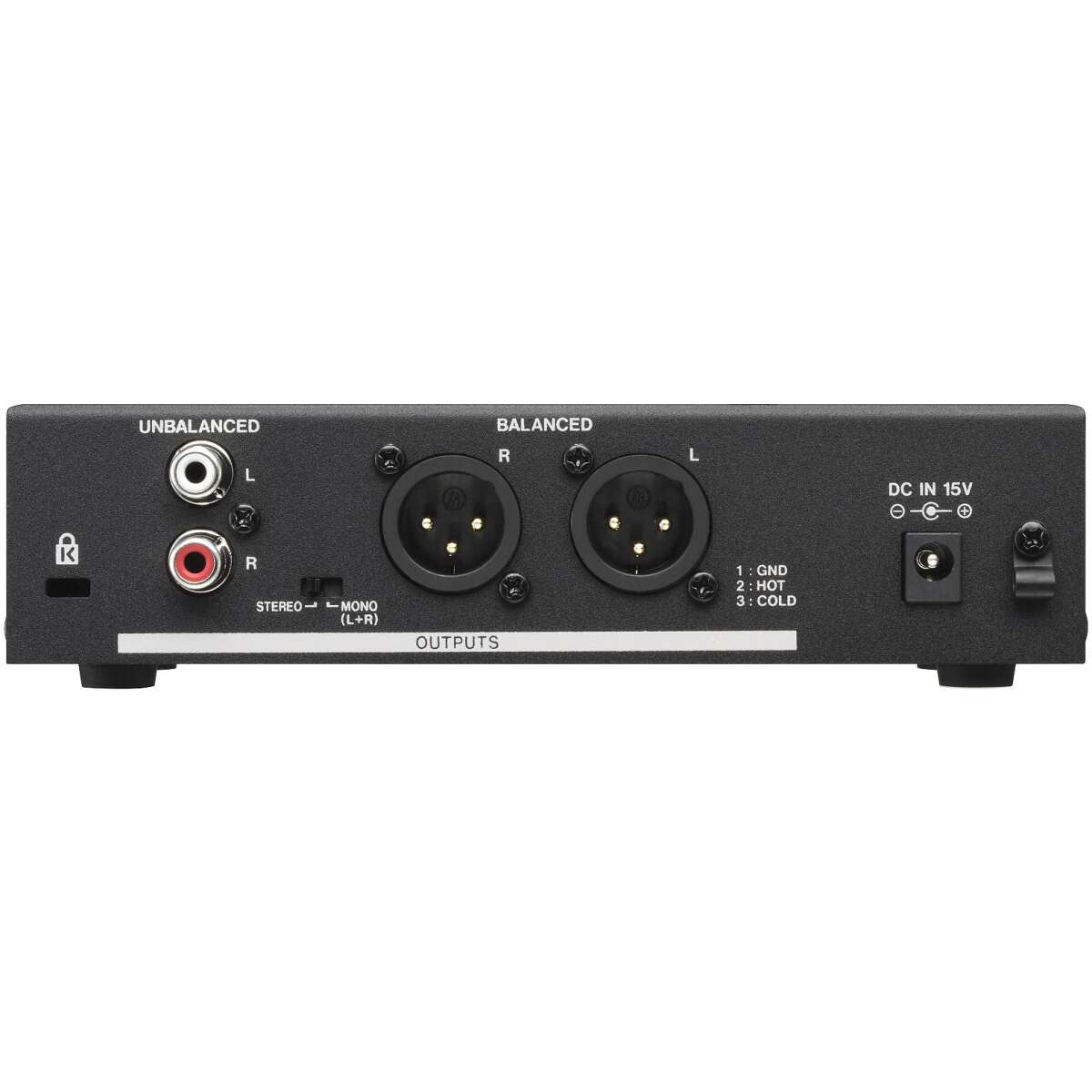

Audio Outputs

Balanced outputs:

• 2 × XLR
• Left and right stereo
• Nominal output level: −2 dBu
• Maximum output level: +14 dBu

Unbalanced outputs:

• 2 × RCA
• Left and right stereo
• Nominal output level: −10 dBV
• Maximum output level: +6 dBV

Audio Performance

• Frequency response: 20 Hz–20 kHz
• Signal-to-noise ratio: 90 dB or higher
• Channel separation: 100 dB or higher
• Total harmonic distortion plus noise: 0.04% or lower

Power Requirements

• Power adapter: TASCAM PS-M1524
• Adapter input: 100–240V AC, 50/60 Hz
• Adapter output: 15V DC, 2.4A
• Power consumption: 1.7W
