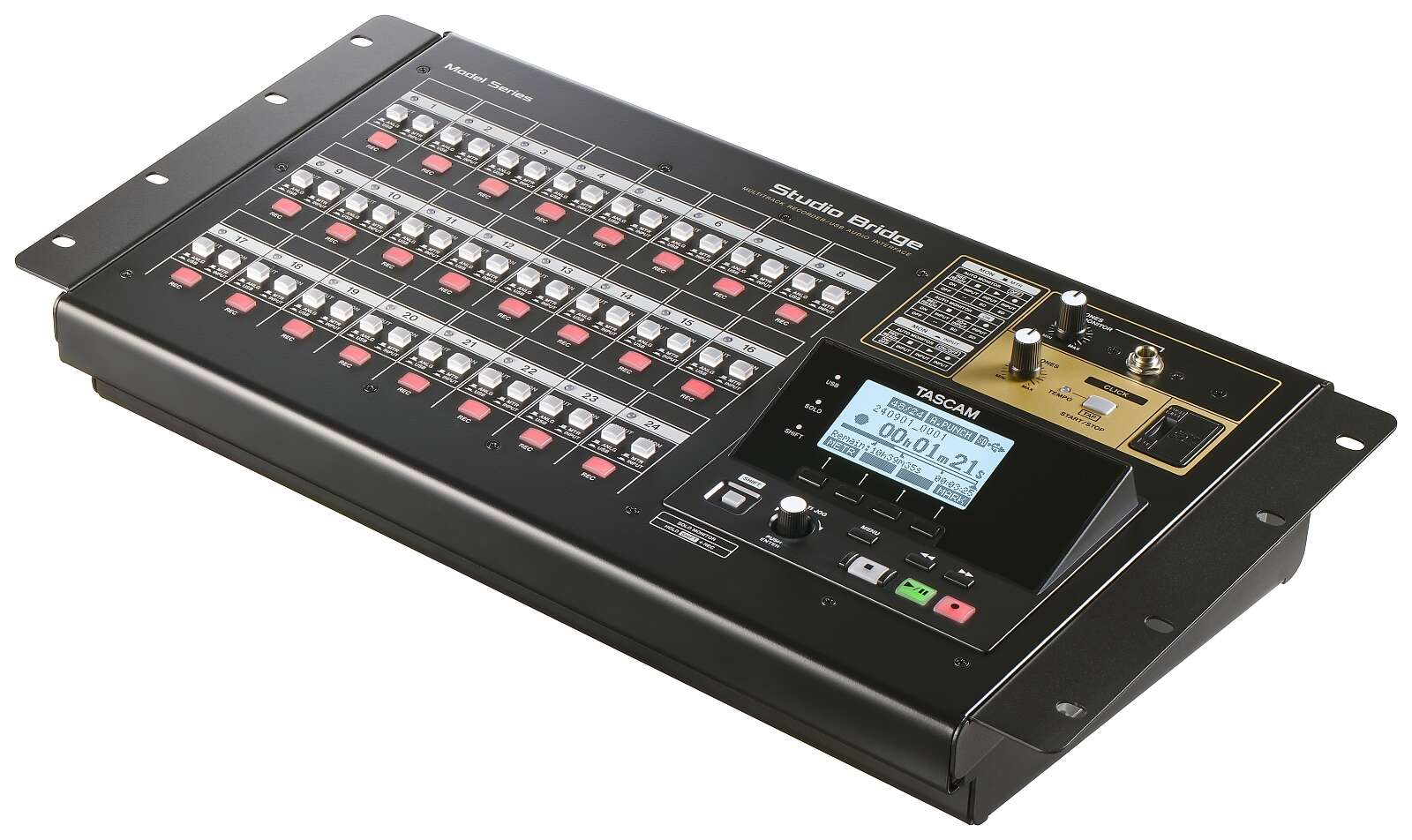

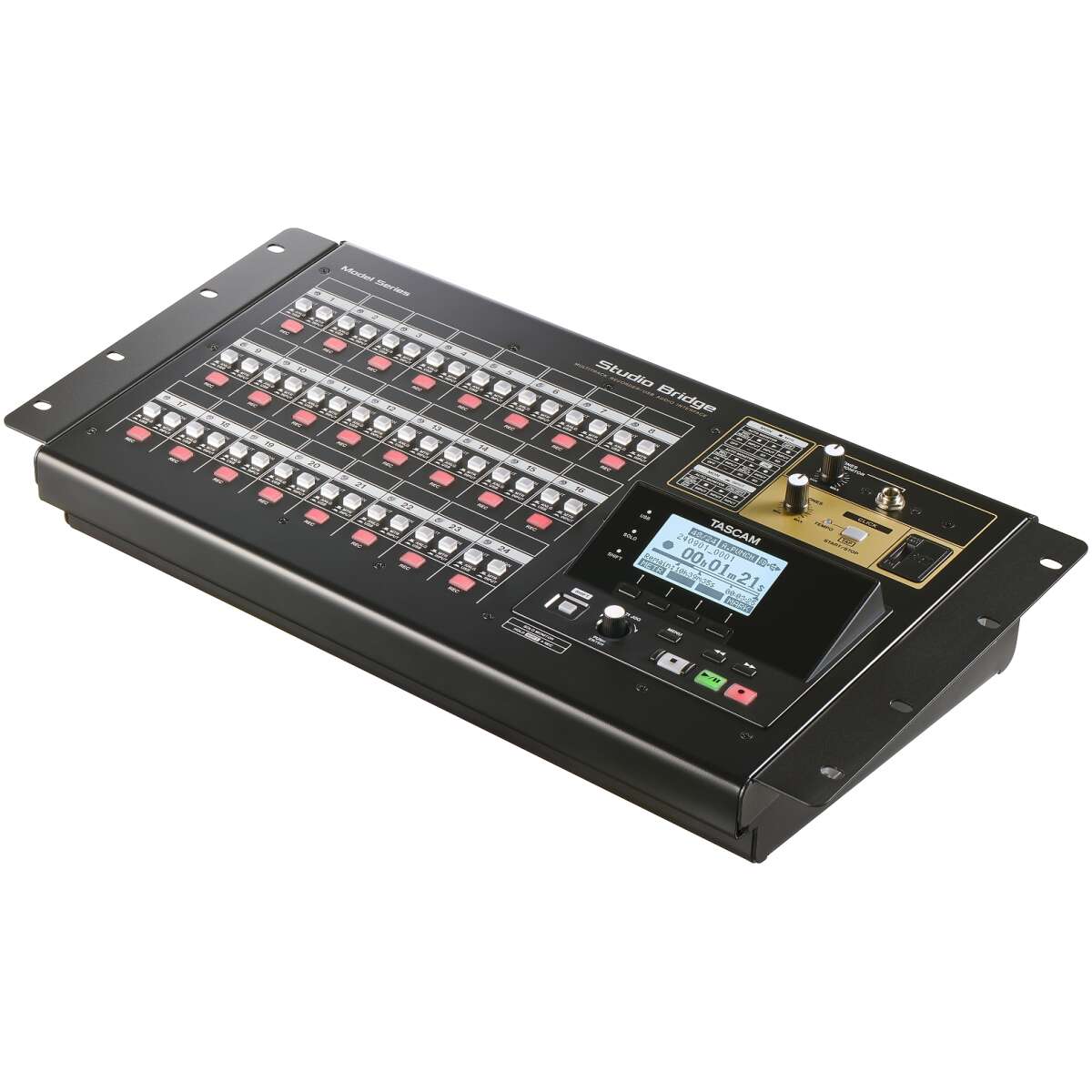

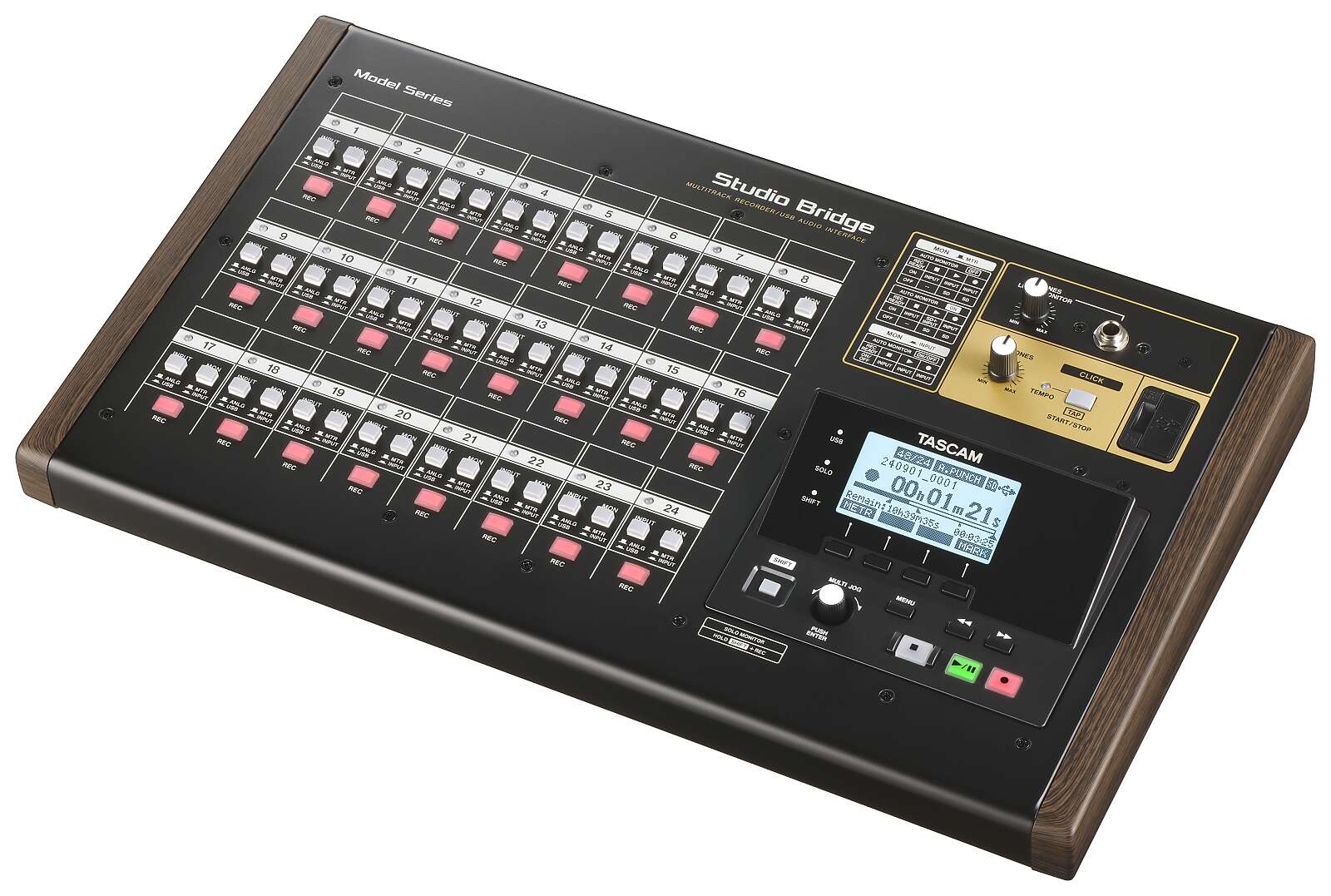

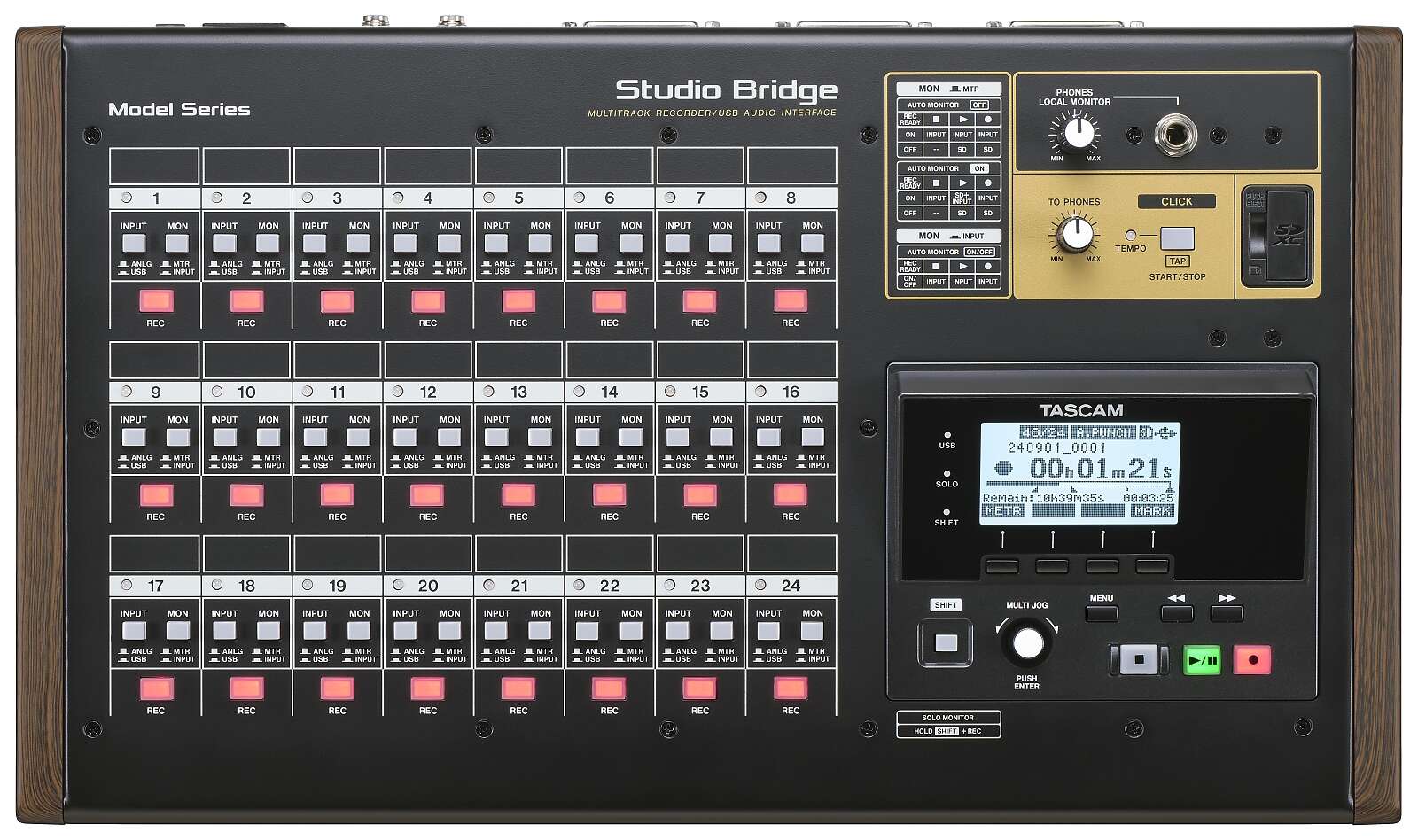

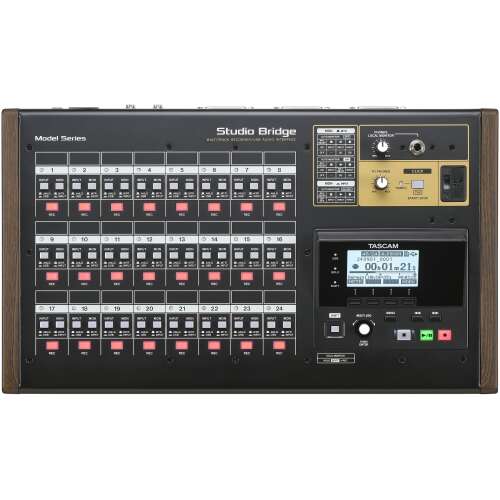

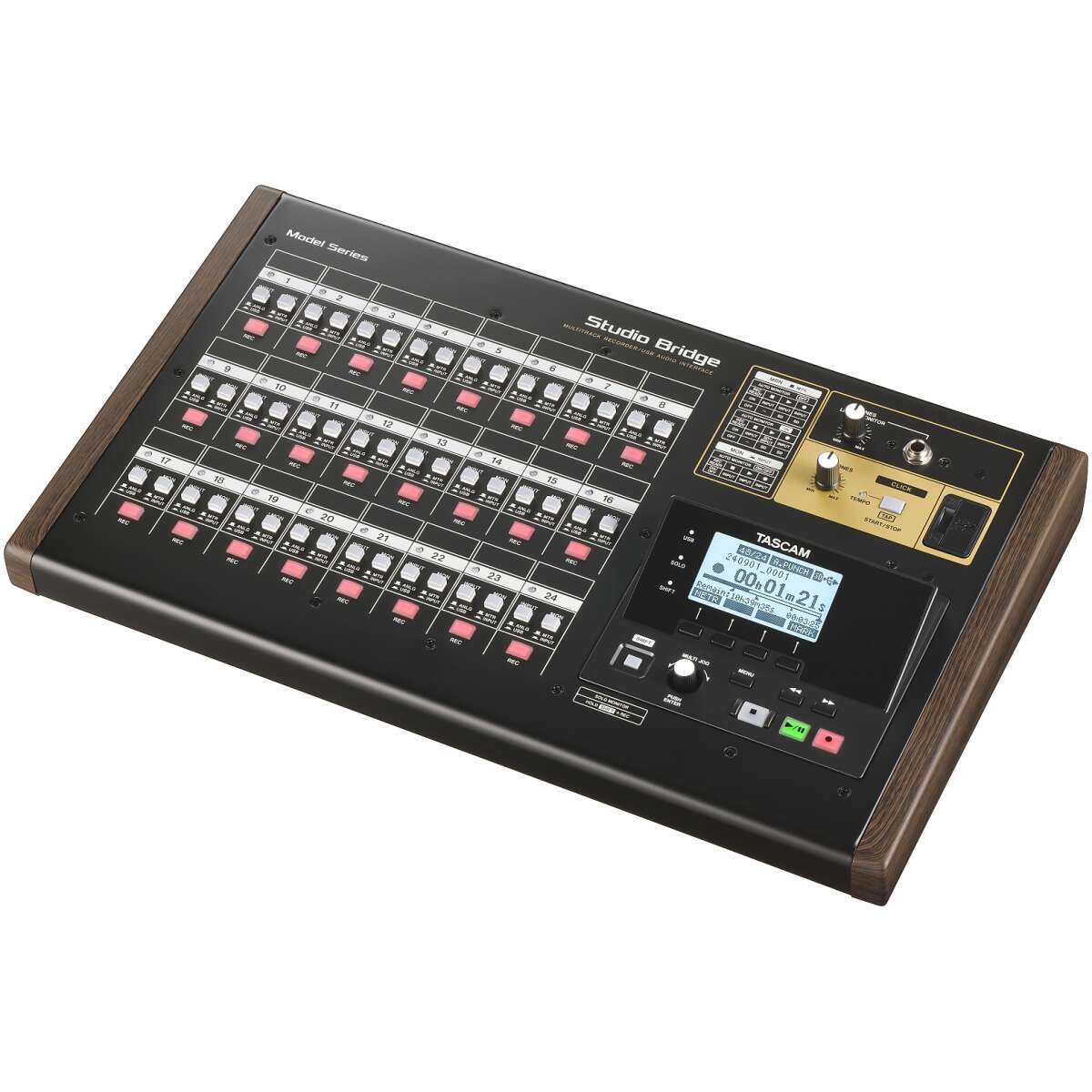

Tascam Studio Bridge 24-Track Audio Recorder / Audio/MIDI Interface

The TASCAM Studio Bridge connects an analogue mixing console to a modern digital recording workflow. It can record and play back 24 tracks simultaneously to an SD card without a computer, or function as a 24-input/24-output USB audio interface for a DAW. It is not a standalone audio mixer and does not include microphone preamps.

Key attributes

• Device Type: Multitrack recorder, USB audio interface and MIDI interface
• Maximum Recording Tracks: 24
• Simultaneous Playback Tracks: 24
• Analogue Inputs: 24 balanced line-level inputs
• Analogue Outputs: 24 balanced line-level outputs

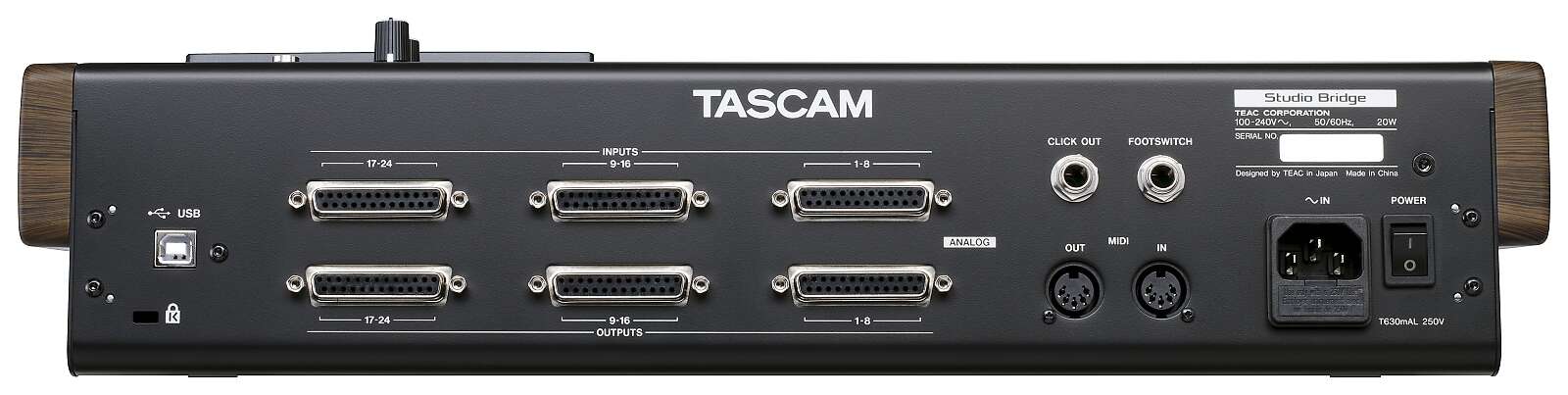

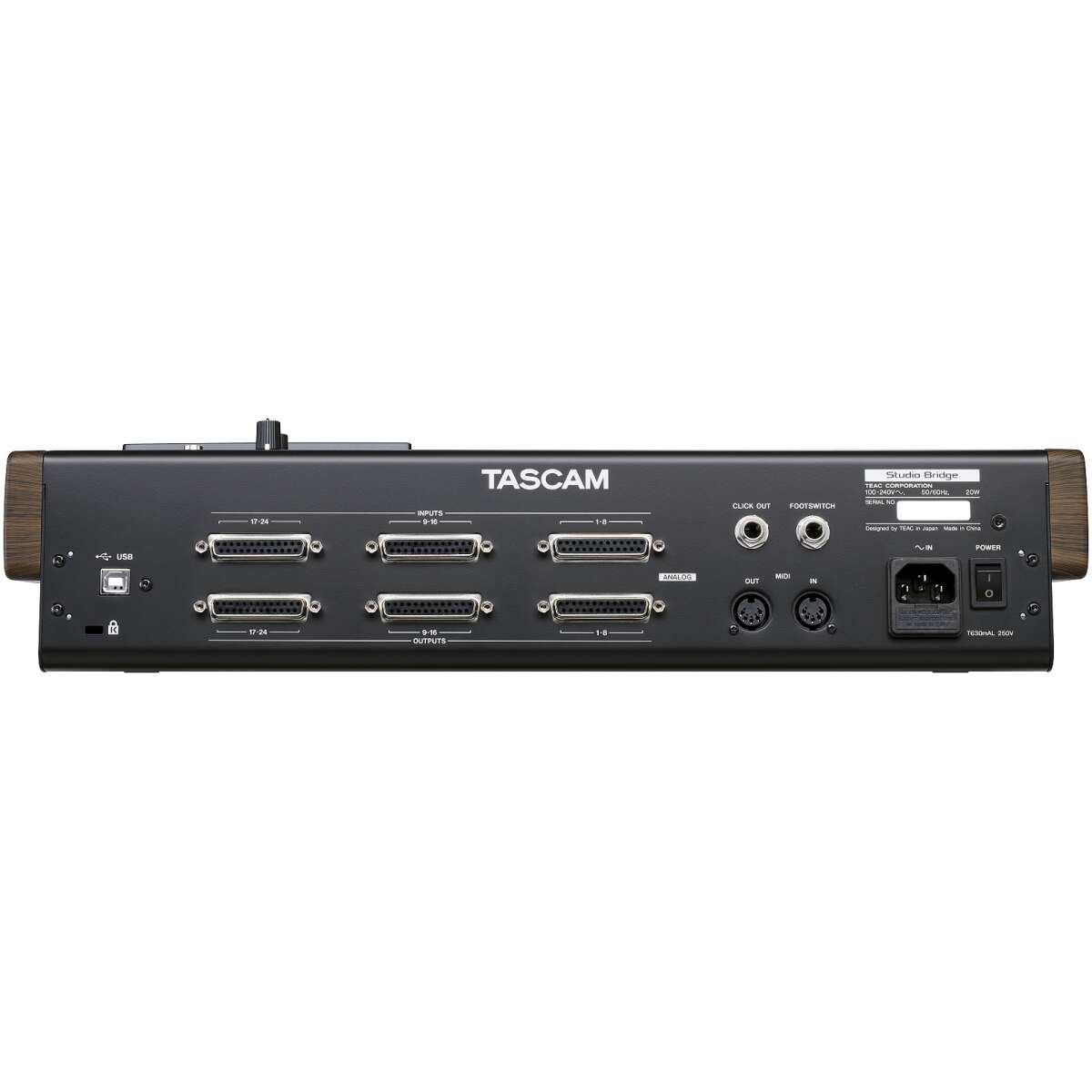

• Connections: Three DB-25 input connectors and three DB-25 output connectors
• Input Level: +4 dBu nominal, +24 dBu maximum
• Microphone Inputs/Preamps: None
• Built-in Mixer: No
• Built-in Effects: No

Recording

• Recording Media: SD, SDHC and SDXC cards up to 512 GB
• Recording Format: WAV/BWF
• Sample Rates: 44.1 kHz and 48 kHz
• Bit Depth: 16-bit or 24-bit
• Standalone Recording: Yes—no computer required
• Punch In/Out: Supported
• Footswitch Connection: Yes, for compatible recording controls

Audio and MIDI interface

• Digital Interface: 24-input/24-output USB 2.0 audio interface
• USB Connector: USB Type-B
• USB Audio Resolution: 24-bit at 44.1 or 48 kHz
• MIDI Connections: Five-pin MIDI input and output
• USB MIDI Interface: Yes
• MIDI Synchronisation: MIDI Time Code and MIDI clock master functions
• DAW Control: Record, play, stop, rewind and fast-forward transport controls

Other features

• Headphone/Local Monitor Output: 6.35 mm stereo jack
• Click Output: Balanced 6.35 mm TRS
• Touchscreen: No
• Bluetooth: No
• Network Capability: No Ethernet, Dante, AVB or Wi-Fi
• Remote Mixing: No
• Power Requirement: 100–240V AC, 50/60 Hz
• Power Consumption: 20W
